The K&N 69-9501TP Typhoon cold-air intake system is a free-flowing, mandrel-bent aluminum tube air induction system. The restrictive factory air filter and air intake housing are replaced by the K&N Typhoon cold-air intake which is designed to pull in relatively cooler air and dramatically reduce air flow restriction by smoothing and straightening air flow. This allows your engine to inhale a larger amount of denser air than the factory air intake. More air means more usable power and acceleration throughout the engine's RPM range. The 69-9501TP cold-air intake consists of a black rubber topped K&N high-flow air filter that mounts near the driver side wheel well directing cooler outside air through free-flowing aluminum tubing into a short ram induction tube that delivers high volumes of clean, colder air into the engine's throttle body for a guaranteed power gain. The oversized cone shaped air filter comes with a water repellent DryCharger filter wrap to protect the filter from moisture. The air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This cold air intake is relatively easy to install usually in 90 minutes or less using existing factory mounting points. Some Typhoon air intakes are not legal for sale or use in California and other states adopting California emission standards while others are CARB exempt and 50 state legal. Check the vehicle applications and specific CARB status for each vehicle and air intake.
Specifications:
| Description_DEF |
Engine Cold Air Intake Performance Kit |
| Description_DES |
Performance Air Intake System |
| Description_EXT |
K&N's easy to install Typhoon cold air intake system replaces the restrictive factory air filter and air intake housing delivering a guaranteed power gain. The low-restriction aluminum intake tubes come in an attractive chrome-like finish. |
| Description_INV |
Performance Air Intake System |
| Description_MKT |

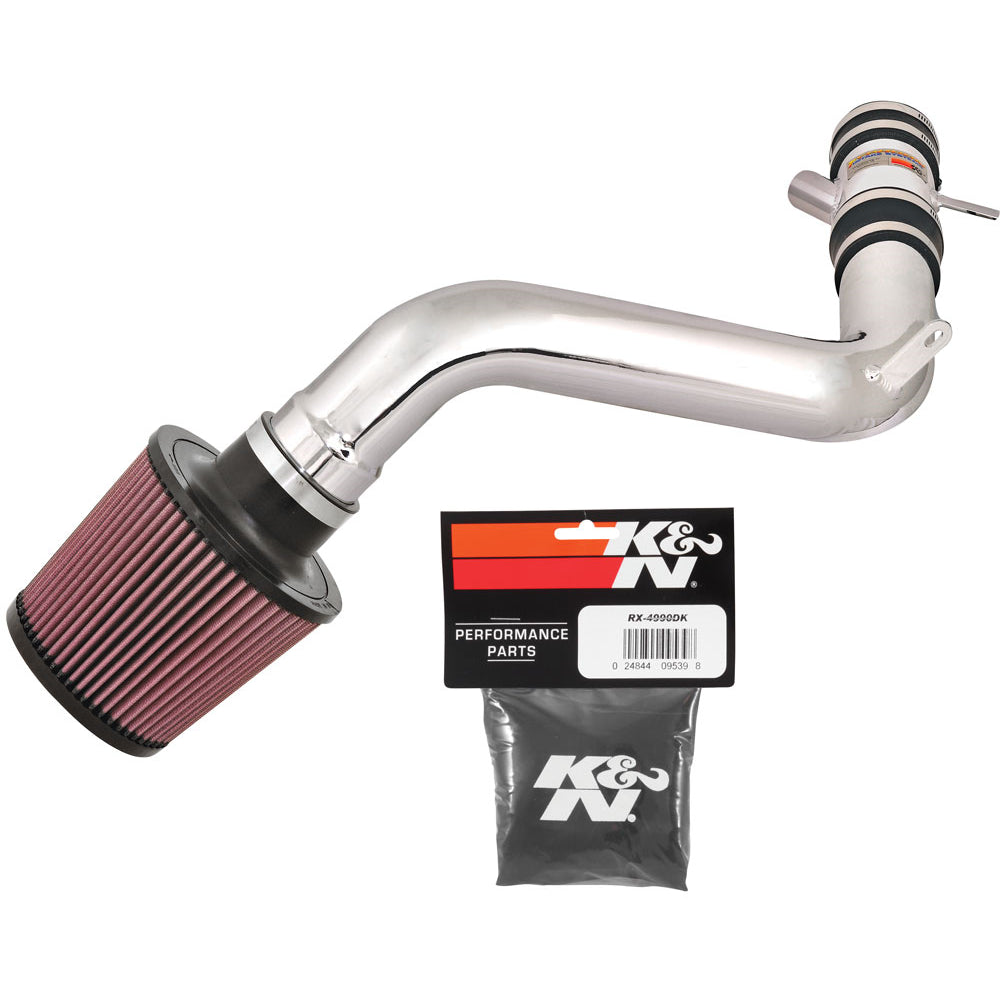

The K&N 69-9501TP Typhoon cold-air intake system is a free-flowing, mandrel-bent aluminum tube air induction system. The restrictive factory air filter and air intake housing are replaced by the K&N Typhoon cold-air intake which is designed to pull in relatively cooler air and dramatically reduce air flow restriction by smoothing and straightening air flow. This allows your engine to inhale a larger amount of denser air than the factory air intake. More air means more usable power and acceleration throughout the engine's RPM range. The 69-9501TP cold-air intake consists of a black rubber topped K&N high-flow air filter that mounts near the driver side wheel well directing cooler outside air through free-flowing aluminum tubing into a short ram induction tube that delivers high volumes of clean, colder air into the engine's throttle body for a guaranteed power gain. The oversized cone shaped air filter comes with a water repellent DryCharger filter wrap to protect the filter from moisture. The air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This cold air intake is relatively easy to install usually in 90 minutes or less using existing factory mounting points. Some Typhoon air intakes are not legal for sale or use in California and other states adopting California emission standards while others are CARB exempt and 50 state legal. Check the vehicle applications and specific CARB status for each vehicle and air intake. |
| Description_SHO |
Air Intake System |
| Air Box Included |
No |
| Intake Pipe Material |
Aluminum |
| Clamp Style |
Regular |
| Mass Air Flow Sensor Adapter Included |
No |
| Air Filter Outlet Shape |
Round |
| Clamp Color/Finish |
Natural |
| Weight |
6.2 lb (2.8 kg) |
| Air Filter Material |
Cotton Gauze |
| Couplers Included |
3 |
| Product Style |
69 Series Typhoon Kits |
| Prop 65 - Short Label |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Oil Included |
Yes |
| Warranty |
No-Hassle Lifetime Limited |
| Estimated Horsepower Gain |
10.03 HP @ 5079 RPM |
| Intake Pipe Color / Finish |
Polished |
| Air Filter Washable |
Yes |
| Intake Pipe Ports |
All intake tube ports needed for the specified applications are included |
| Prop 65 Warning Label |
https://www.knfilters.com/images/l/prop65.jpg |
| Package Material |
Paperboard |
| Air Filter Color |
Red |
| Prop 65 (C, R or CR) |
CR |
| Clamp Material |
Stainless Steel |
| TUV Approved (Europe) |
No |
| Title |
K&N 69-9501TP Performance Air Intake System |
| RPM |
5079 |
| Package Type |
Box |
| Coupler Color/Finish |
Black |
| Prop 65 Yes/No |
Yes |
| Clamps Included |
7 |
| CARB EO Number |
D-269-38 |
| Street Legal In All US States |
See Vehicle Applications |
| Replacement Filter |
RU-4960 |
| Horse Power Increase |
10 HP |
| Mounting Hardware Included |
Yes |
| System Type |
Complete Cold-Air Intake System |
| Length |
9.0000 |
| Width |
15.0000 |
| Height |
18.0000 |
| Weight |
6.0000 |
