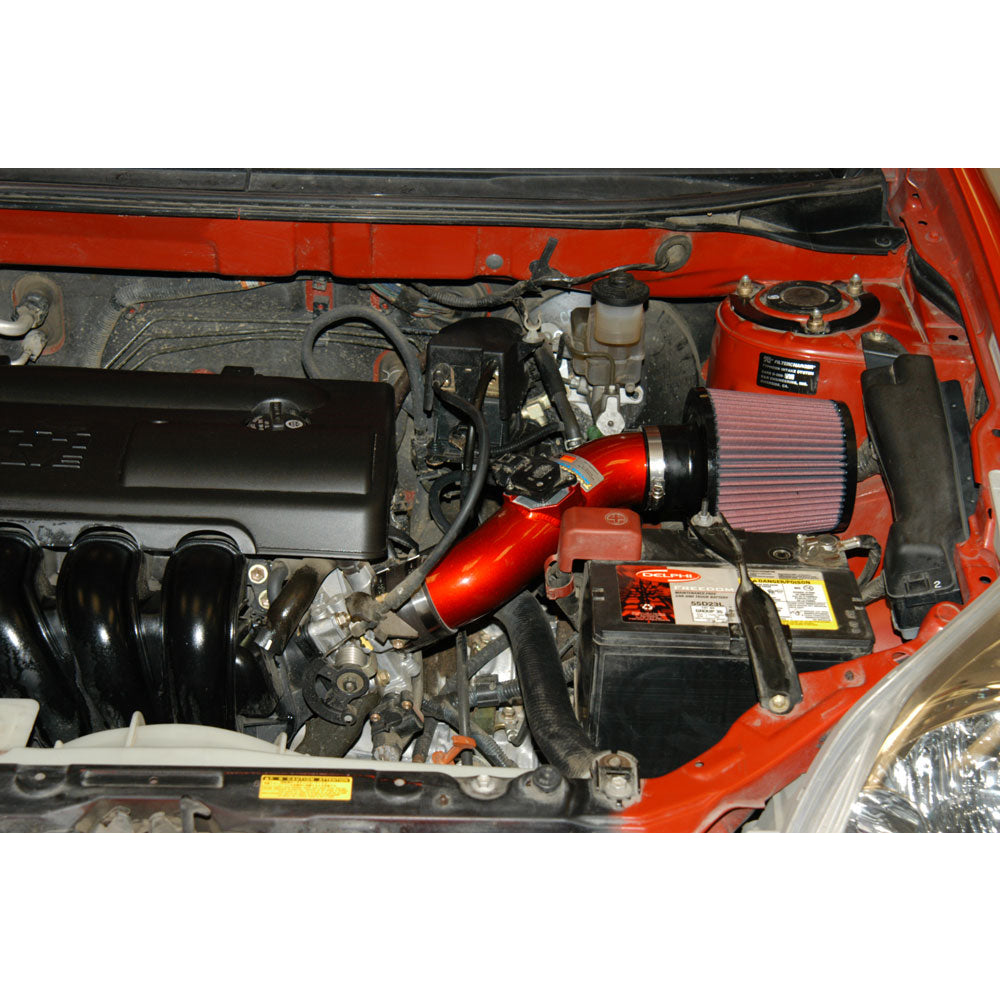

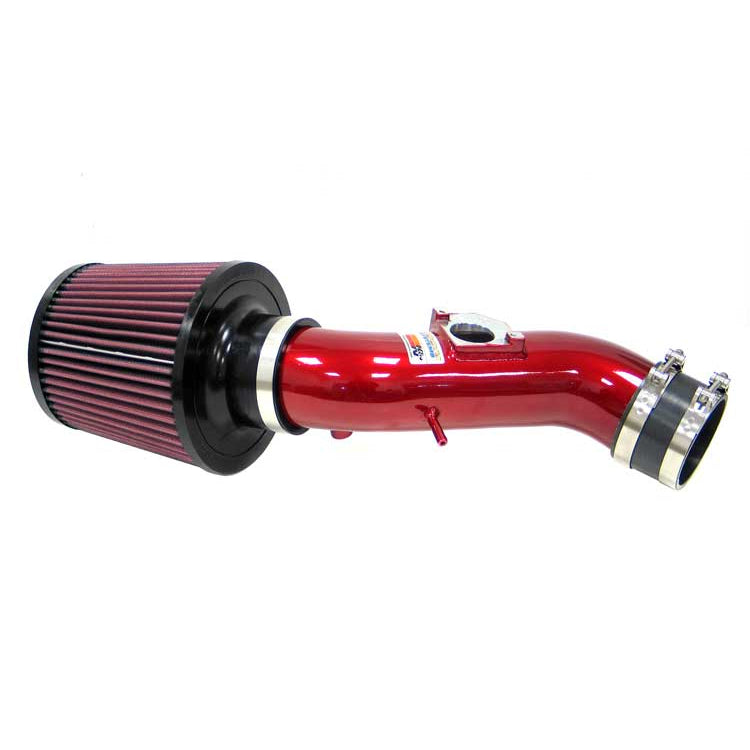

The K&N 69-8600TR Typhoon air intake system is a free-flowing, mandrel-bent aluminum tube air induction system designed to fit some Toyota Corolla, Toyota Matrix XR and Pontiac Vibe models. The restrictive factory air filter and air intake housing are replaced by the K&N Typhoon air intake which is designed to dramatically reduce air flow restriction as it smoothes and straightens air flow. This allows your engine to inhale a larger amount of air than the factory air intake. More air means more usable power and acceleration throughout the engine's RPM range. The 69-8600TR air intake comes with a black rubber topped K&N high-flow air filter that installs into the previous air box space. Air is directed through the intake tube into the engine's throttle body for a guaranteed power gain. The oversized cone shaped air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This air intake is relatively easy to install usually in 90 minutes or less using existing factory mounting points. The tools needed are a screwdriver, pliers, ratchet set and an Allen wrench. Some Typhoon air intakes are not legal for sale or use in California and other states adopting California emission standards while others are CARB exempt and 50 state legal. Check the K&N catalog or website for vehicle applications and specific CARB status for each vehicle and air intake.
Specifications:
| Description_DEF |
Engine Cold Air Intake Performance Kit |
| Description_DES |
Performance Air Intake System |
| Description_EXT |
K&N's easy-to-install Typhoon air intake system replaces the restrictive factory air filter and air intake housing delivering a guaranteed power gain. The low-restriction aluminum intake tube comes in a red powder coat finish. |
| Description_INV |
Performance Air Intake System |
| Description_MKT |
The K&N 69-8600TR Typhoon air intake system is a free-flowing, mandrel-bent aluminum tube air induction system designed to fit some Toyota Corolla, Toyota Matrix XR and Pontiac Vibe models. The restrictive factory air filter and air intake housing are replaced by the K&N Typhoon air intake which is designed to dramatically reduce air flow restriction as it smoothes and straightens air flow. This allows your engine to inhale a larger amount of air than the factory air intake. More air means more usable power and acceleration throughout the engine's RPM range. The 69-8600TR air intake comes with a black rubber topped K&N high-flow air filter that installs into the previous air box space. Air is directed through the intake tube into the engine's throttle body for a guaranteed power gain. The oversized cone shaped air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This air intake is relatively easy to install usually in 90 minutes or less using existing factory mounting points. The tools needed are a screwdriver, pliers, ratchet set and an Allen wrench. Some Typhoon air intakes are not legal for sale or use in California and other states adopting California emission standards while others are CARB exempt and 50 state legal. Check the K&N catalog or website for vehicle applications and specific CARB status for each vehicle and air intake. |
| Description_SHO |
Air Intake System |
| Estimated Horsepower Gain |
8.74 HP @ 6250 RPM |
| Oil Included |
Yes |
| Air Filter Material |
Cotton Gauze |
| Mounting Hardware Included |
Yes |
| Air Filter Washable |
Yes |
| Prop 65 - Short Label |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Air Filter Outlet Shape |
Round |
| Couplers Included |
2 |
| Air Box Included |
No |
| Air Filter Color |
Red |
| Clamp Style |
Regular |
| Mass Air Flow Sensor Adapter Included |
Yes |
| CARB EO Number |
D-269-30 |
| RPM |
6250 |
| Intake Pipe Color / Finish |
Red |
| Prop 65 Warning Label |
https://www.knfilters.com/images/l/prop65.jpg |
| Intake Pipe Ports |
All intake tube ports needed for the specified applications are included |
| Warranty |
No-Hassle Lifetime Limited |
| Intake Pipe Material |
Aluminum |
| Coupler Color/Finish |
Black |
| Clamp Color/Finish |
Natural |
| Clamps Included |
3 |
| Weight |
5.9 lb (2.7 kg) |
| Product Style |
69 Series Typhoon Kits |
| System Type |
Short-Ram Intake System |
| Prop 65 Yes/No |
Yes |
| Horse Power Increase |
9 HP |
| Package Material |
Paperboard |
| TUV Approved (Europe) |
No |
| Prop 65 (C, R or CR) |
CR |
| Replacement Filter |
RU-4960 |
| Clamp Material |
Stainless Steel |
| Street Legal In All US States |
Yes |
| Title |
K&N 69-8600TR Performance Air Intake System |
| Package Type |
Box |
| Length |
9.0000 |
| Width |
15.0000 |
| Height |
18.0000 |
| Weight |
6.0000 |
