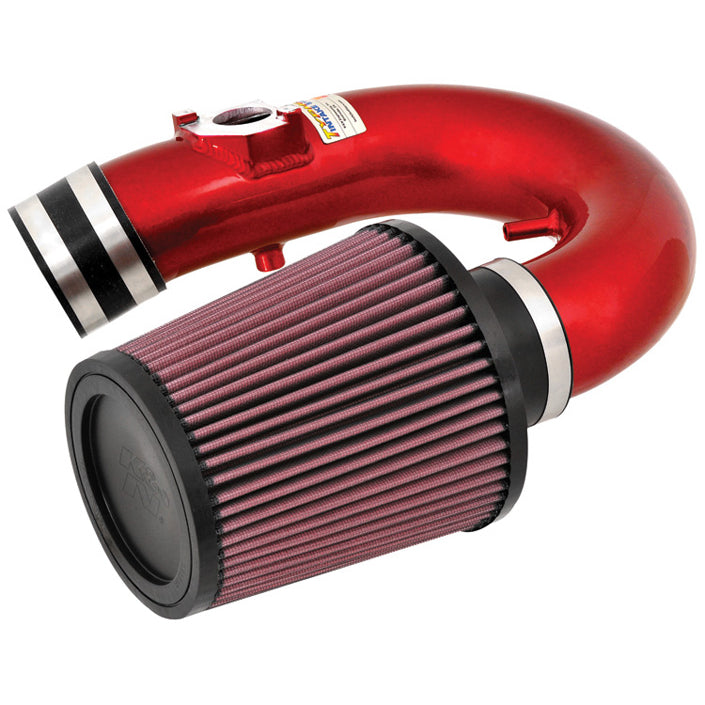

The K&N 69-8520TR Typhoon air intake system is a free-flowing, mandrel-bent aluminum tube air induction system designed to fit some Toyota Celica GT models. The restrictive factory air filter and air intake housing are replaced by the K&N Typhoon air intake which is designed to dramatically reduce air flow restriction as it smoothes and straightens air flow. This allows your engine to inhale a larger amount of air than the factory air intake. More air means more usable power and acceleration throughout the engine's RPM range. The 69-8520TR air intake comes with a black rubber topped K&N high-flow air filter that installs into the previous air box space. Air is directed through the intake tube into the engine's throttle body for a guaranteed power gain. The intake tube has an attractive red powder-coat finish that's made to last and it accommodates the factory mass air sensor and EVAP vent line. The oversized cone shaped air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This air intake is relatively easy to install usually in 90 minutes or less using existing factory mounting points. Some Typhoon air intakes are not legal for sale or use in California and other states adopting California emission standards while others are CARB exempt and 50 state legal. Check the vehicle applications and specific CARB status for each vehicle and air intake.
Specifications:
| Description_DEF |
Engine Cold Air Intake Performance Kit |
| Description_EXT |
K&N's easy-to-install Typhoon air intake system replaces the restrictive factory air filter and air intake housing delivering a guaranteed power gain. The low-restriction aluminum intake tube comes in a red powder coat finish. |
| Description_DES |
Performance Air Intake System |
| Description_MKT |
The K&N 69-8520TR Typhoon air intake system is a free-flowing, mandrel-bent aluminum tube air induction system designed to fit some Toyota Celica GT models. The restrictive factory air filter and air intake housing are replaced by the K&N Typhoon air intake which is designed to dramatically reduce air flow restriction as it smoothes and straightens air flow. This allows your engine to inhale a larger amount of air than the factory air intake. More air means more usable power and acceleration throughout the engine's RPM range. The 69-8520TR air intake comes with a black rubber topped K&N high-flow air filter that installs into the previous air box space. Air is directed through the intake tube into the engine's throttle body for a guaranteed power gain. The intake tube has an attractive red powder-coat finish that's made to last and it accommodates the factory mass air sensor and EVAP vent line. The oversized cone shaped air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This air intake is relatively easy to install usually in 90 minutes or less using existing factory mounting points. Some Typhoon air intakes are not legal for sale or use in California and other states adopting California emission standards while others are CARB exempt and 50 state legal. Check the vehicle applications and specific CARB status for each vehicle and air intake. |
| Description_SHO |
Air Intake System |
| Description_INV |
Performance Air Intake System |
| Mass Air Flow Sensor Adapter Included |
Yes |
| Air Filter Washable |
Yes |
| Clamp Style |
Regular |
| Air Box Included |
No |
| Air Filter Outlet Shape |
Round |
| Product Style |
69 Series Typhoon Kits |
| Estimated Horsepower Gain |
5.88 HP @ 6400 RPM |
| Intake Pipe Material |
Aluminum |
| Oil Included |
Yes |
| Intake Pipe Color / Finish |
Red |
| Package Type |
Box |
| Coupler Color/Finish |
Black |
| Couplers Included |
1 |
| Replacement Filter |
RU-4870 |
| Intake Pipe Ports |
All intake tube ports needed for the specified applications are included |
| Title |
K&N 69-8520TR Performance Air Intake System |
| Air Filter Material |
Cotton Gauze |
| Street Legal In All US States |
Yes |
| Weight |
6.6 lb (3 kg) |
| TUV Approved (Europe) |
No |
| CARB EO Number |
D-269-30 |
| Warranty |
No-Hassle Lifetime Limited |
| Horse Power Increase |
6 HP |
| Prop 65 - Short Label |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Clamps Included |
3 |
| Clamp Color/Finish |
Natural |
| Package Material |
Paperboard |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 Yes/No |
Yes |
| RPM |
6400 |
| Air Filter Color |
Red |
| Clamp Material |
Stainless Steel |
| Mounting Hardware Included |
Yes |
| Prop 65 Warning Label |
https://www.knfilters.com/images/l/prop65.jpg |
| System Type |
Short-Ram Intake System |
| Length |
9.0000 |
| Width |
15.0000 |
| Height |
18.0000 |
| Weight |
7.0000 |
