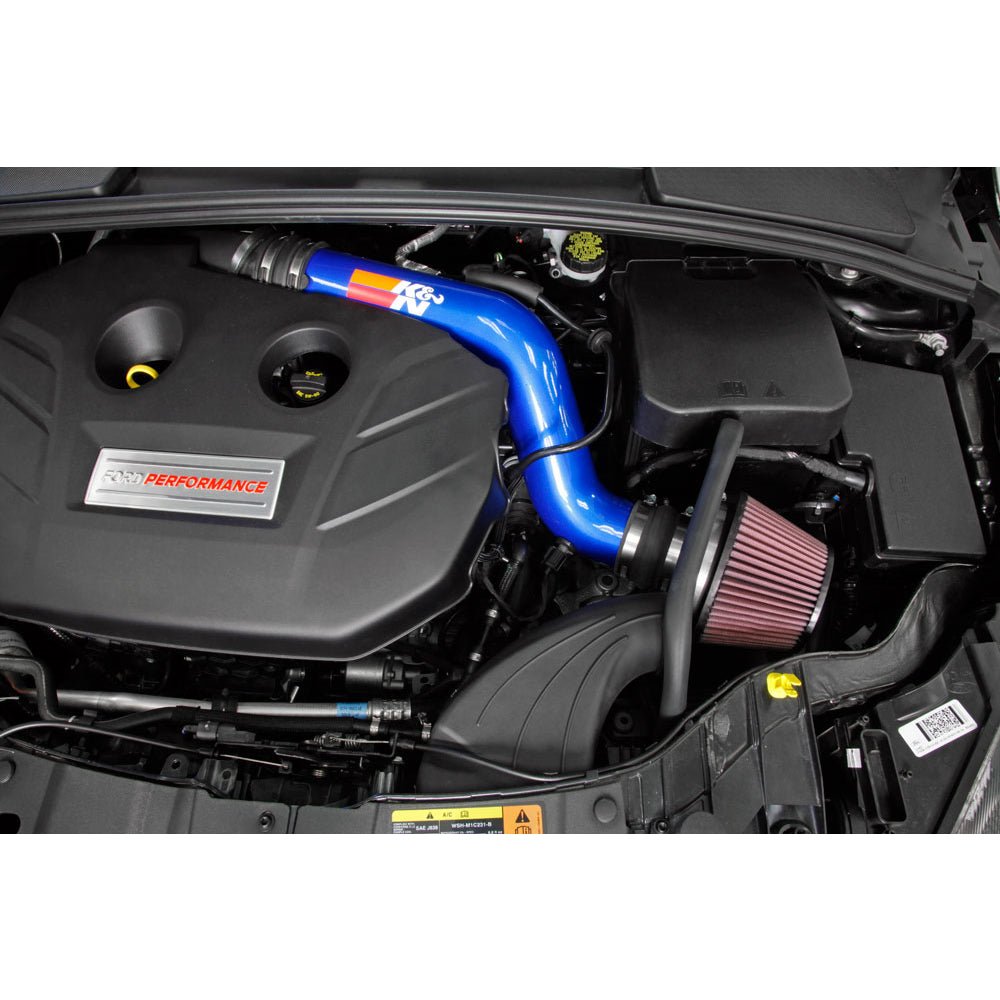

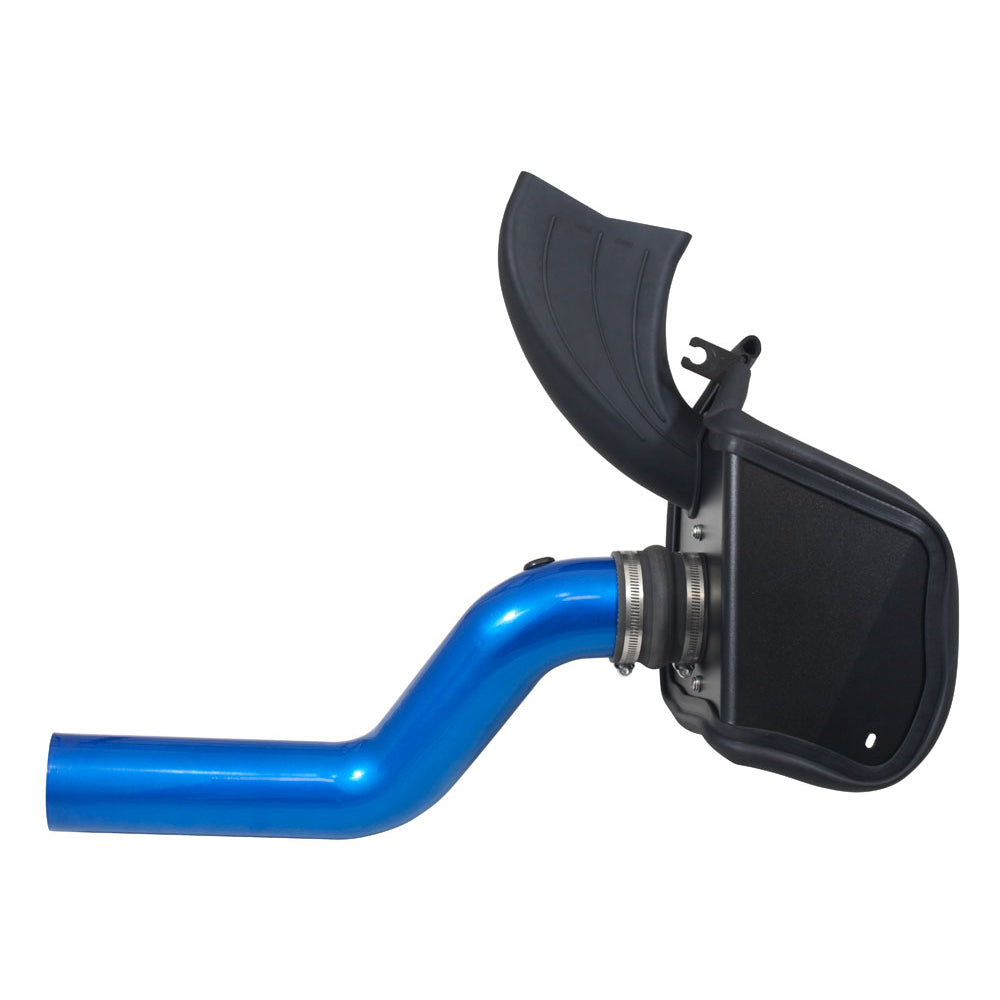

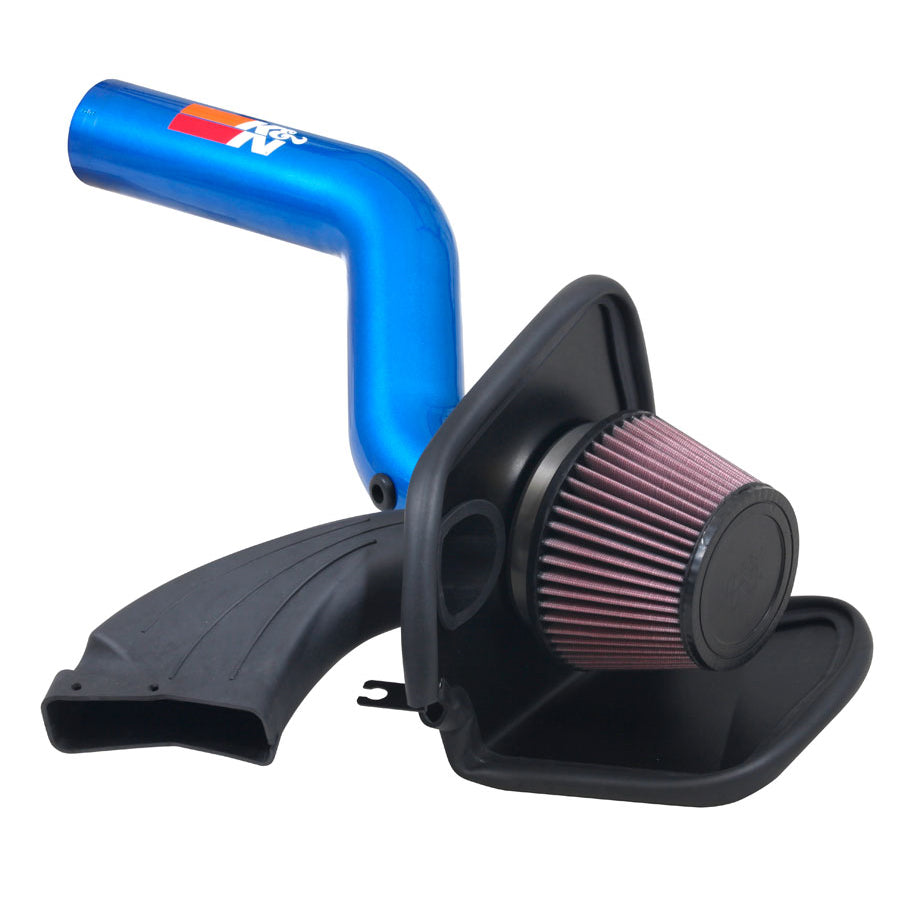

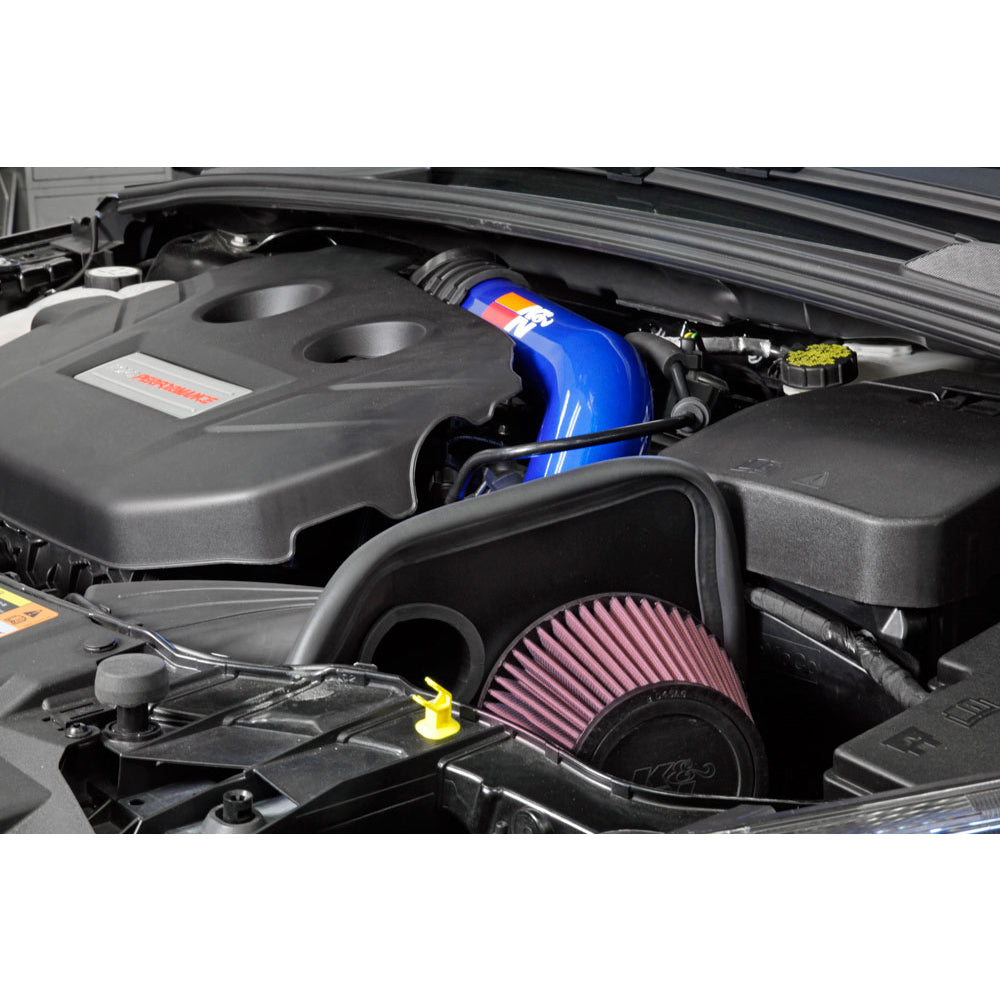

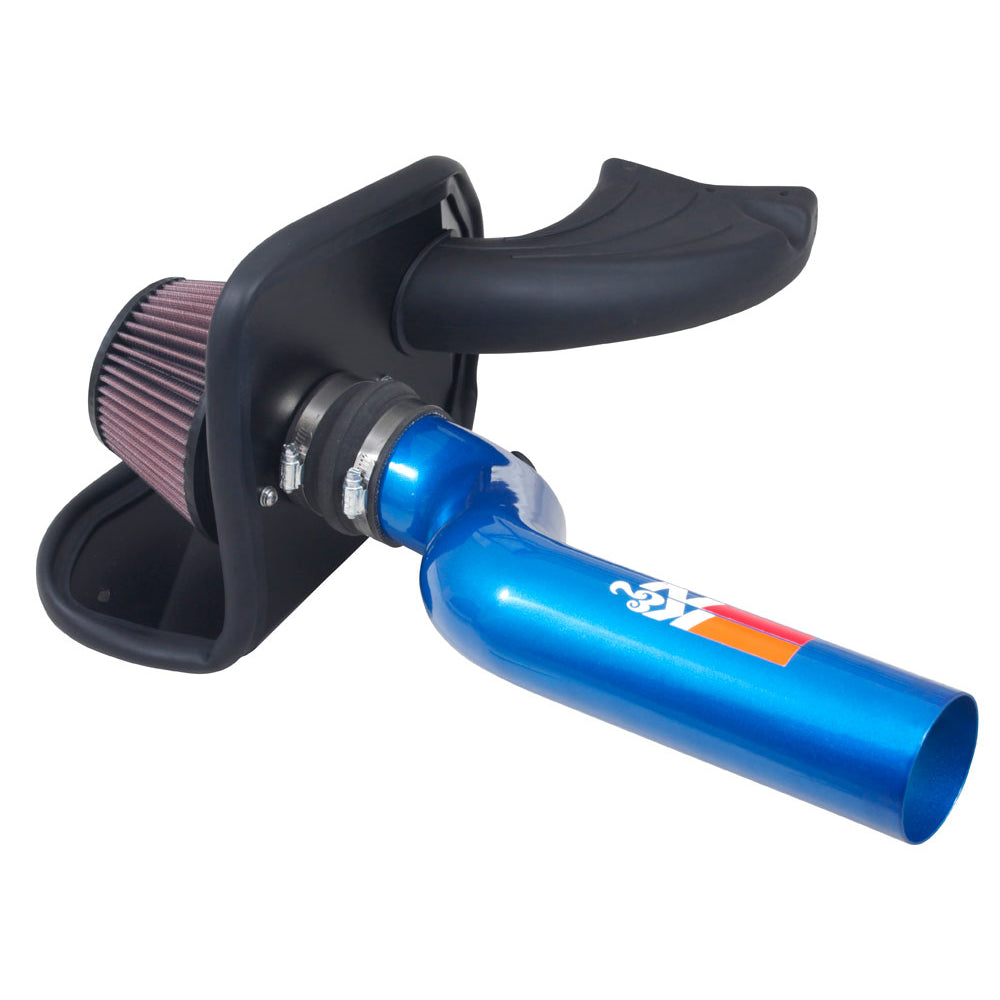

The K&N 69-3539TB Typhoon air intake system is a free-flowing, mandrel-bent aluminum tube air induction system designed to fit some Ford Focus models. The restrictive factory air filter and air intake housing are replaced by the K&N Typhoon air intake which is designed to dramatically reduce air flow restriction as it smoothens and straightens air flow. This allows your engine to inhale a larger amount of air than the factory air intake. More air means more usable power and acceleration throughout the engine's RPM range. The 69-3539TB air intake comes with a black rubber topped K&N high-flow air filter and a heat shield that installs using the factory mounting locations. A molded scoop funnels outside air towards the filter. Air is then directed through the intake tube into the engine's throttle body for a guaranteed power gain. The intake tube has an attractive blue powder-coat finish to match the car's badging and it accommodates the factory air pressure sensor. The oversized cone shaped air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This air intake is relatively easy to install usually in 90 minutes or less using existing factory mounting points. Installation can be done using common tools. Some Typhoon air intakes are not legal for sale or use in California and other states adopting California emission standards while others are CARB exempt and 50 state legal. Check the vehicle applications and specific CARB status for each vehicle and air intake.
Specifications:
| Description_DEF |
Engine Cold Air Intake Performance Kit |
| Description_DES |
Performance Air Intake System |
| Description_EXT |
K&N's easy-to-install Typhoon air intake system replaces the restrictive factory air filter and air intake housing delivering a guaranteed power gain. The low-restriction aluminum intake tube comes in a blue powder coat finish. |
| Description_INV |
Performance Air Intake System |
| Description_MKT |
The K&N 69-3539TB Typhoon air intake system is a free-flowing, mandrel-bent aluminum tube air induction system designed to fit some Ford Focus models. The restrictive factory air filter and air intake housing are replaced by the K&N Typhoon air intake which is designed to dramatically reduce air flow restriction as it smoothens and straightens air flow. This allows your engine to inhale a larger amount of air than the factory air intake. More air means more usable power and acceleration throughout the engine's RPM range. The 69-3539TB air intake comes with a black rubber topped K&N high-flow air filter and a heat shield that installs using the factory mounting locations. A molded scoop funnels outside air towards the filter. Air is then directed through the intake tube into the engine's throttle body for a guaranteed power gain. The intake tube has an attractive blue powder-coat finish to match the car's badging and it accommodates the factory air pressure sensor. The oversized cone shaped air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This air intake is relatively easy to install usually in 90 minutes or less using existing factory mounting points. Installation can be done using common tools. Some Typhoon air intakes are not legal for sale or use in California and other states adopting California emission standards while others are CARB exempt and 50 state legal. Check the vehicle applications and specific CARB status for each vehicle and air intake. |
| Description_SHO |
Air Intake System |
| Couplers Included |
1 |
| Clamp Material |
Stainless Steel |
| Intake Pipe Material |
Aluminum |
| Air Filter Material |
Cotton Gauze |
| Oil Included |
Yes |
| Mass Air Flow Sensor Adapter Included |
No |
| RPM |
4904 |
| Air Filter Washable |
Yes |
| Clamp Style |
Worm Gear |
| Intake Pipe Color / Finish |
Candy Blue Powder Coating |
| Title |
K&N 69-3539TB Performance Air Intake System |
| TUV Approved (Europe) |
No |
| Coupler Color/Finish |
Black |
| Prop 65 (C, R or CR) |
CR |
| Product Style |
69 Series Typhoon Kits |
| Air Filter Color |
Red |
| Prop 65 - Short Label |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Estimated Horsepower Gain |
33.01 HP @ 4904 RPM |
| Intake Pipe Ports |
All intake tube ports needed for the specified applications are included |
| Clamp Color/Finish |
Natural |
| Prop 65 Warning Label |
https://www.knfilters.com/images/l/prop65.jpg |
| Warranty |
No-Hassle Lifetime Limited |
| Air Box Included |
No |
| Clamps Included |
3 |
| Air Filter Outlet Shape |
Round |
| Mounting Hardware Included |
Yes |
| Weight |
9.4 lb (4.3 kg) |
| Replacement Filter |
RU-5163 |
| Package Material |
Corrugated |
| Prop 65 Yes/No |
Yes |
| Street Legal In All US States |
Yes |
| CARB EO Number |
D-269-70 |
| Package Type |
Box |
| Horse Power Increase |
33 HP |
| System Type |
Complete Cold-Air Intake System |
| Length |
13.0000 |
| Width |
14.0000 |
| Height |
22.0000 |
| Weight |
9.0000 |
