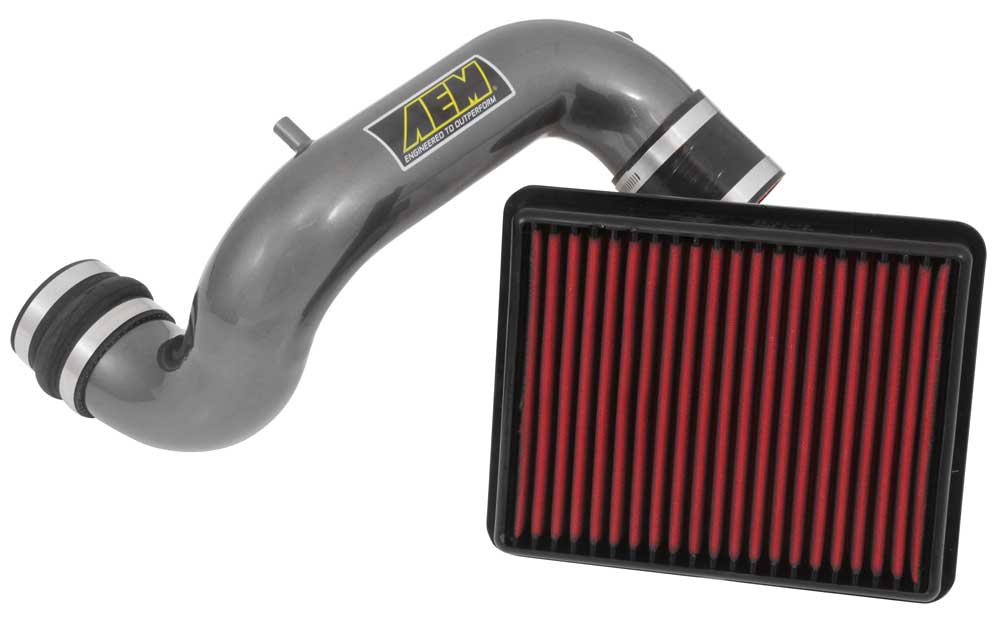

The AEM 22-685C Performance Air Intake System is a free-flowing, mandrel-bent aluminum tube air induction system designed to replace the restrictive factory air filter and air intake tubing while retaining the factory air box on some Hyundai Sonata and KIA Optima models. The air intake system comes with a replacement AEM high-flow air filter and a free-flowing aluminum intake tube that easily connects to your vehicle's factory air box and engine throttle body to dramatically increase air flow into your engine. With more air flowing through the custom-tuned intake tube you experience more horsepower and acceleration throughout the engine's RPM range. The intake tube is finished with an attractive and durable gunmetal gray powder-coat that provides a clean, high-performance look under the hood. The AEM Dryflow air filter is made from an oil-free, synthetic filter media that can be used for up to 100,000 miles before servicing is needed (depending on driving conditions). The air intake is designed for easy installation with commonly available tools. The intake tube accommodates factory emissions control devices including the valve cover breather line and vent line (where applicable). This air intake system is street legal in all 50 US states and comes with AEM's Lifetime Limited Warranty.
Specifications:
| Description_DEF |
Engine Cold Air Intake Performance Kit |
| Description_DES |
Cold Air Intake System |
| Description_INV |
Cold Air Intake System |
| Description_EXT |
AEM's easy-to-install air intake system gives you more power and acceleration by replacing the restrictive factory air filter and air intake tubing while retaining the stock air box. The intake tube has a gunmetal gray powder-coat finish. |
| Description_MKT |
The AEM 22-685C Performance Air Intake System is a free-flowing, mandrel-bent aluminum tube air induction system designed to replace the restrictive factory air filter and air intake tubing while retaining the factory air box on some Hyundai Sonata and KIA Optima models. The air intake system comes with a replacement AEM high-flow air filter and a free-flowing aluminum intake tube that easily connects to your vehicle's factory air box and engine throttle body to dramatically increase air flow into your engine. With more air flowing through the custom-tuned intake tube you experience more horsepower and acceleration throughout the engine's RPM range. The intake tube is finished with an attractive and durable gunmetal gray powder-coat that provides a clean, high-performance look under the hood. The AEM Dryflow air filter is made from an oil-free, synthetic filter media that can be used for up to 100,000 miles before servicing is needed (depending on driving conditions). The air intake is designed for easy installation with commonly available tools. The intake tube accommodates factory emissions control devices including the valve cover breather line and vent line (where applicable). This air intake system is street legal in all 50 US states and comes with AEM's Lifetime Limited Warranty. |
| Description_SHO |
Cold Air Intake Syst |
| Mounting Hardware Included |
Yes |
| Prop 65 Yes/No |
Yes |
| Air Filter Washable |
Yes |
| CARB EO Number |
D-670-20 |
| Package Material |
Paperboard |
| Prop 65 - Short Label |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Air Box Included |
No |
| Air Filter Material |
Non-woven Synthetic |
| Air Filter Outlet Shape |
Not Flanged |
| Air Filter Outlet Width |
0 in (0 mm) |
| Horse Power Increase |
4 HP |
| Intake Pipe Material |
Aluminum |
| Weight |
6.1 lb (2.8 kg) |
| Clamp Color/Finish |
Natural |
| Clamp Material |
Stainless Steel |
| Clamp Style |
Regular |
| Clamps Included |
4 |
| Couplers Included |
2 |
| Estimated Horsepower Gain |
4 HP @ 4500 RPM |
| Intake Pipe Color / Finish |
Gunmetal Gray |
| Intake Pipe Outlet Shape |
Round |
| Oil Included |
No |
| Package Type |
Box |
| Product Style |
AEM Cold Air Intake System |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 Warning Label |
https://www.knfilters.com/images/l/prop65.jpg |
| Replacement Filter |
28-20448 |
| RPM |
4500 |
| Street Legal In All US States |
See Vehicle Applications |
| Title |
AEM AEM-22-685C Cold Air Intake System |
| Air Filter Color |
Red |
| Air Filter Height |
1.688 in (43 mm) |
| Coupler Color/Finish |
Black |
| Intake Pipe Ports |
All intake tube ports needed for the specified applications are included |
| Mass Air Flow Sensor Adapter Included |
No |
| TUV Approved (Europe) |
No |
| Warranty |
Limited Lifetime |
| Length |
9.0000 |
| Width |
15.0000 |
| Height |
18.0000 |
| Weight |
6.0000 |
