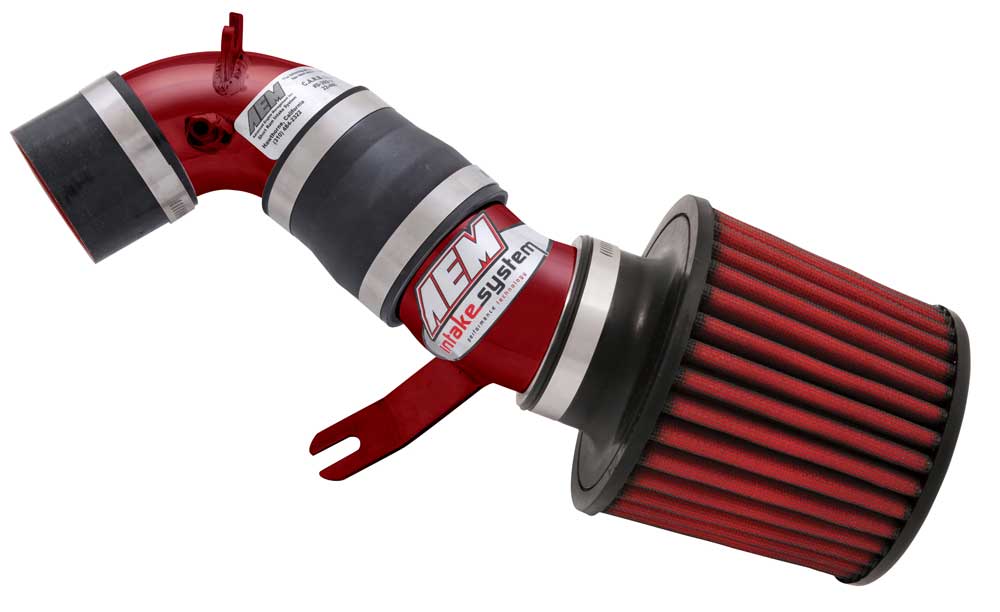

The AEM 22-480R Performance Short Ram Air Intake System has been engineered to be an affordable and easy way to boost the horsepower and torque of your engine. The restrictive factory air filter and air intake housing are replaced with this AEM air intake system which was designed, tuned and dyno-tested to fit specific Mazda Protege and Protege 5 models. Air enters the system through an oversized AEM Dryflow synthetic washable air filter for outstanding air flow, filtration and performance. The sound your engine makes when accelerating is also modified to a fuller, more aggressive resonance allowing you to hear and feel the horsepower upgrade. The intake tubing is constructed from mandrel-bent aluminum featuring a durable red powder coated finish. This air intake system was developed to accommodate the engine's factory emissions control devices including the mass airflow sensor, inlet air temperature sensor, ventilation hose and purge solenoid valve. The tapered cylinder shaped AEM Dryflow air filter is made from an oil-free, synthetic filter media that can be used for up to 100,000 miles before cleaning is needed (depending on driving conditions). The air intake system is easy to install with commonly available tools. Some AEM air intakes are not legal for sale or use in California and other states adopting California emission standards, while others are 50 state legal. View the 22-480R vehicle applications to determine the legal status for each vehicle.
Specifications:
| Description_DEF |
Engine Cold Air Intake Performance Kit |
| Description_DES |
AEM Short Ram Intake System |
| Description_INV |
AEM Short Ram Intake System |
| Description_EXT |
AEM's Performance Short Ram Air Intake System gives you more power and acceleration by replacing the restrictive factory air filter and air intake assembly. The intake tube has an attractive yet durable powder-coated finish. |
| Description_MKT |
The AEM 22-480R Performance Short Ram Air Intake System has been engineered to be an affordable and easy way to boost the horsepower and torque of your engine. The restrictive factory air filter and air intake housing are replaced with this AEM air intake system which was designed, tuned and dyno-tested to fit specific Mazda Protege and Protege 5 models. Air enters the system through an oversized AEM Dryflow synthetic washable air filter for outstanding air flow, filtration and performance. The sound your engine makes when accelerating is also modified to a fuller, more aggressive resonance allowing you to hear and feel the horsepower upgrade. The intake tubing is constructed from mandrel-bent aluminum featuring a durable red powder coated finish. This air intake system was developed to accommodate the engine's factory emissions control devices including the mass airflow sensor, inlet air temperature sensor, ventilation hose and purge solenoid valve. The tapered cylinder shaped AEM Dryflow air filter is made from an oil-free, synthetic filter media that can be used for up to 100,000 miles before cleaning is needed (depending on driving conditions). The air intake system is easy to install with commonly available tools. Some AEM air intakes are not legal for sale or use in California and other states adopting California emission standards, while others are 50 state legal. View the 22-480R vehicle applications to determine the legal status for each vehicle. |
| Description_SHO |
Air Intake System |
| Clamps Included |
7 |
| Prop 65 Yes/No |
Yes |
| Package Material |
Paperboard |
| Prop 65 (C, R or CR) |
CR |
| Air Filter Color |
Red |
| CARB EO Number |
D-670-15 |
| Package Type |
Box |
| Street Legal In All US States |
Yes |
| Weight |
6 lb (2.7 kg) |
| Air Box Included |
No |
| Air Filter Outlet Shape |
Round |
| Mounting Hardware Included |
Yes |
| Prop 65 - Short Label |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Air Filter Material |
Non-woven Synthetic |
| Air Filter Washable |
Yes |
| Clamp Color/Finish |
Natural |
| Clamp Material |
Steel |
| Clamp Style |
Regular |
| Coupler Color/Finish |
Not Applicable |
| Couplers Included |
None |
| Intake Pipe Color / Finish |
Red |
| Intake Pipe Material |
Aluminum |
| Intake Pipe Ports |
All intake tube ports needed for the specified applications are included |
| Mass Air Flow Sensor Adapter Included |
Yes |
| Oil Included |
No |
| Product Style |
AEM Short Ram Intake System |
| Prop 65 Warning Label |
https://www.knfilters.com/images/l/prop65.jpg |
| Replacement Filter |
21-202DK |
| Title |
AEM AEM-22-480R AEM Short Ram Intake System |
| TUV Approved (Europe) |
No |
| Warranty |
Limited Lifetime |
| Length |
9.0000 |
| Width |
15.0000 |
| Height |
18.0000 |
| Weight |
6.0000 |
