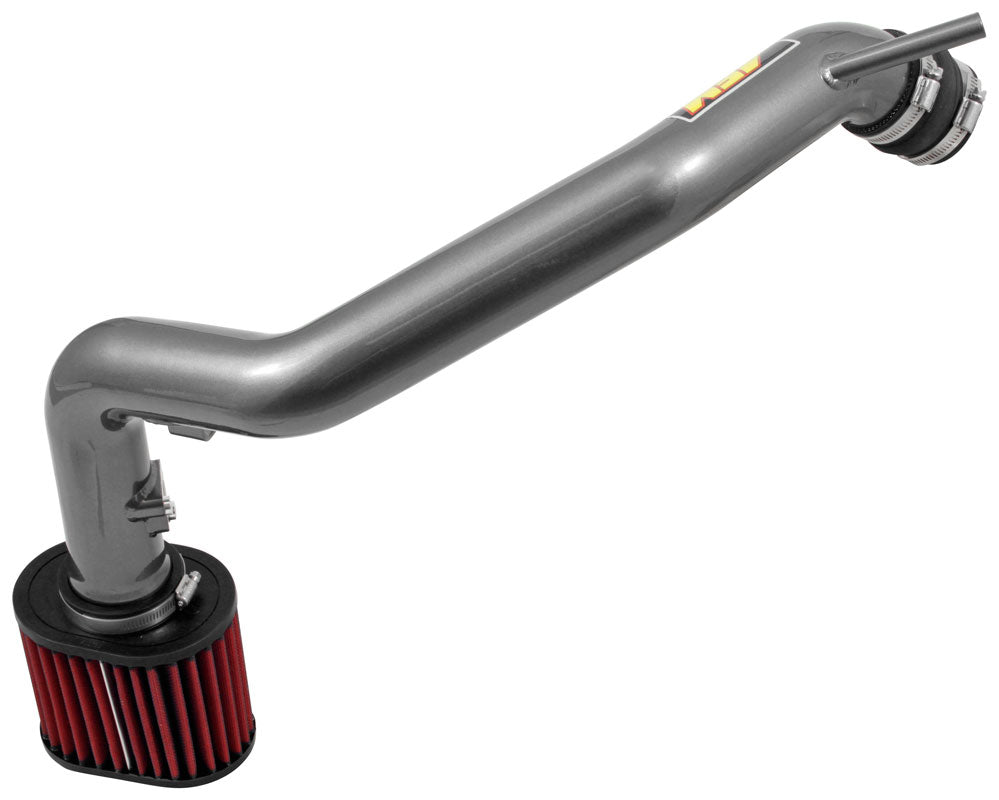

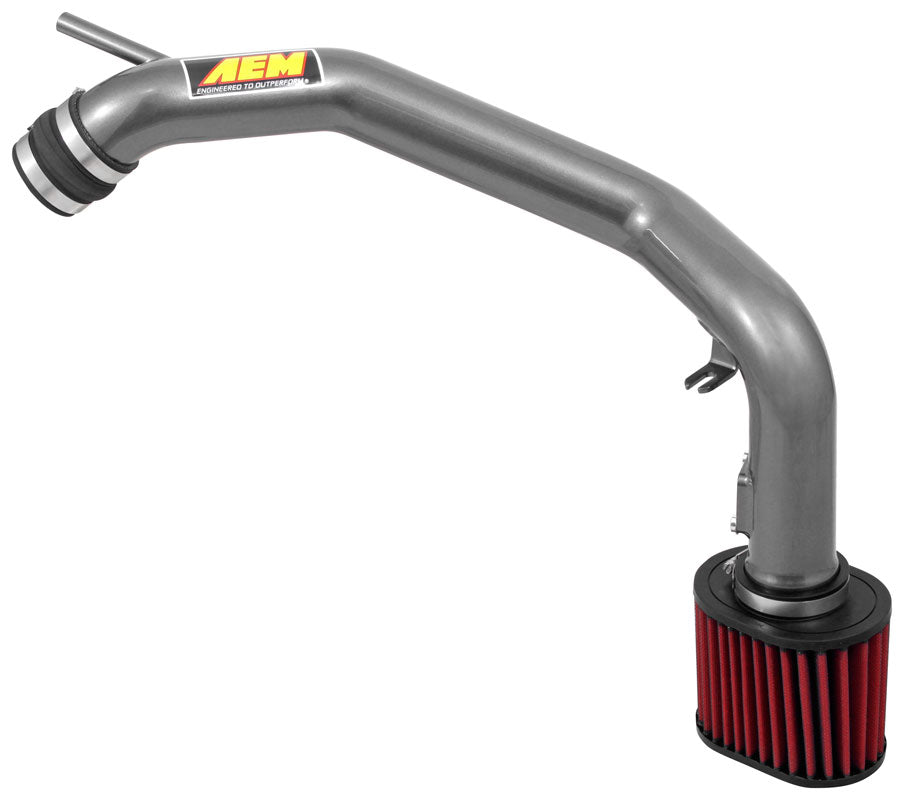

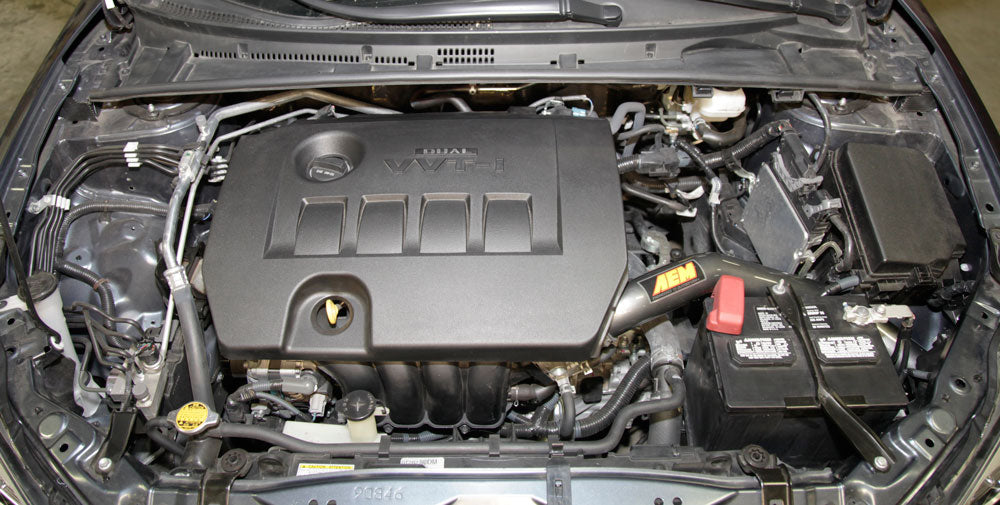

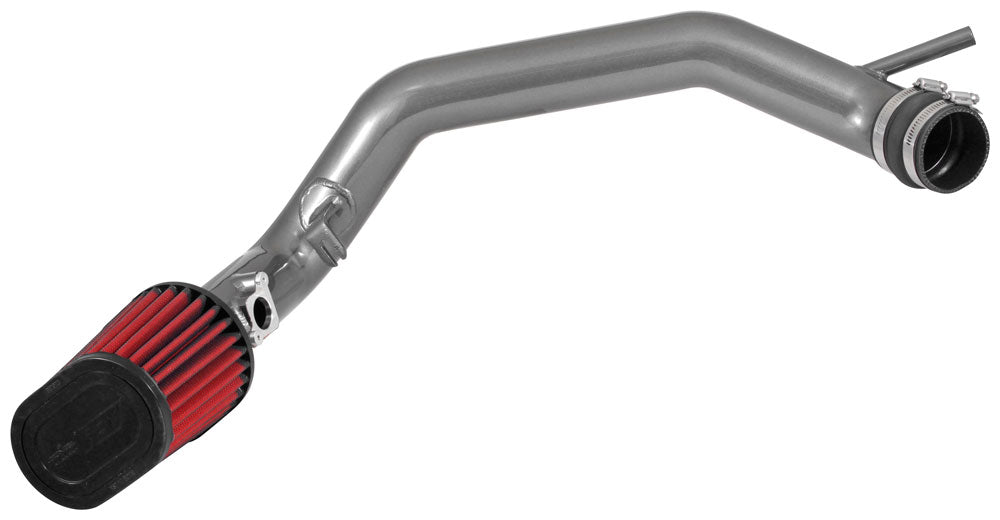

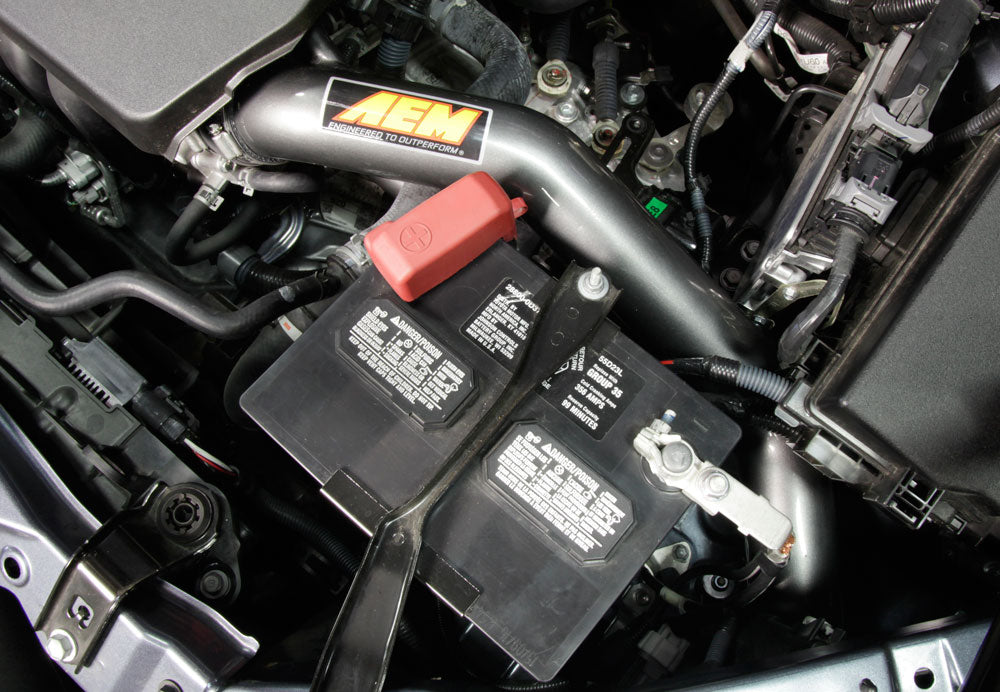

The AEM 21-814C Performance Cold Air Intake System produces horsepower and torque gains by replacing your vehicle's restrictive factory air filter and air intake housing. This Air Intake System was designed, tuned and dyno-tested to fit specific Toyota Corolla models. The oversized cone-shaped AEM DryFlow filter is made from an oil-free, synthetic filter media and can be used for up to 100,000 miles before cleaning is needed (depending on driving conditions). This system puts the air filter low and towards the front of the car on the drivers side where cooler air can be found. Cooler and denser air is then channeled through the mandrel-bent aluminum intake tube into the throttle body. The factory PCV and MAF sensor mount directly on the intake tube. Included is an extension harness for the MAF sensor and other hardware for installation. The Air Intake System is backed by AEM's Lifetime Limited Warranty. Some AEM air intakes are not legal for sale or use in California and other states adopting California emission standards, while others are 50 state legal. View the 21-814C vehicle applications to determine the legal status for each vehicle.
Specifications:
| Description_DEF |
Engine Cold Air Intake Performance Kit |
| Description_DES |
Cold Air Intake System |
| Description_EXT |
The AEM 21-814C Performance Cold Air Intake System produces horsepower and torque gains by replacing your vehicle's restrictive factory air filter and air intake housing. Designed, tuned and dyno-tested to some Toyota Corolla models. |
| Description_INV |
Cold Air Intake System |
| Description_SHO |
Cold Air Intake Syst |
| Description_MKT |
The AEM 21-814C Performance Cold Air Intake System produces horsepower and torque gains by replacing your vehicle's restrictive factory air filter and air intake housing. This Air Intake System was designed, tuned and dyno-tested to fit specific Toyota Corolla models. The oversized cone-shaped AEM DryFlow filter is made from an oil-free, synthetic filter media and can be used for up to 100,000 miles before cleaning is needed (depending on driving conditions). This system puts the air filter low and towards the front of the car on the drivers side where cooler air can be found. Cooler and denser air is then channeled through the mandrel-bent aluminum intake tube into the throttle body. The factory PCV and MAF sensor mount directly on the intake tube. Included is an extension harness for the MAF sensor and other hardware for installation. The Air Intake System is backed by AEM's Lifetime Limited Warranty. Some AEM air intakes are not legal for sale or use in California and other states adopting California emission standards, while others are 50 state legal. View the 21-814C vehicle applications to determine the legal status for each vehicle. |
| Couplers Included |
1 |
| Horse Power Increase |
4 HP |
| Mass Air Flow Sensor Adapter Included |
Yes |
| Oil Included |
No |
| Clamps Included |
2 |
| Estimated Horsepower Gain |
4 HP @ 4800 RPM |
| Street Legal In All US States |
No |
| Title |
AEM AEM-21-814C Cold Air Intake System |
| TUV Approved (Europe) |
No |
| Air Filter Color |
Red |
| Clamp Color/Finish |
Natural |
| Intake Pipe Color / Finish |
Gunmetal Gray |
| Intake Pipe Ports |
All intake tube ports needed for the specified applications are included |
| Package Type |
Box |
| Prop 65 Warning Label |
https://www.knfilters.com/images/l/prop65.jpg |
| Replacement Filter |
21-2127DK |
| RPM |
4800 |
| Air Filter Outlet Shape |
Oval |
| Air Filter Washable |
Yes |
| California Restricted |
Not legal for sale or use in California |
| Clamp Material |
Stainless Steel |
| Coupler Color/Finish |
Black |
| Mounting Hardware Included |
Yes |
| Package Material |
Corrugated |
| Product Style |
AEM Cold Air Intake System |
| Prop 65 - Short Label |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 Yes/No |
Yes |
| Warranty |
Limited Lifetime |
| Weight |
9.8 lb (4.4 kg) |
| Air Box Included |
No |
| Air Filter Material |
Non-woven Synthetic |
| Clamp Style |
Worm Gear |
| Intake Pipe Material |
Aluminum |
| Length |
11.0000 |
| Width |
13.0000 |
| Height |
35.0000 |
| Weight |
10.0000 |
