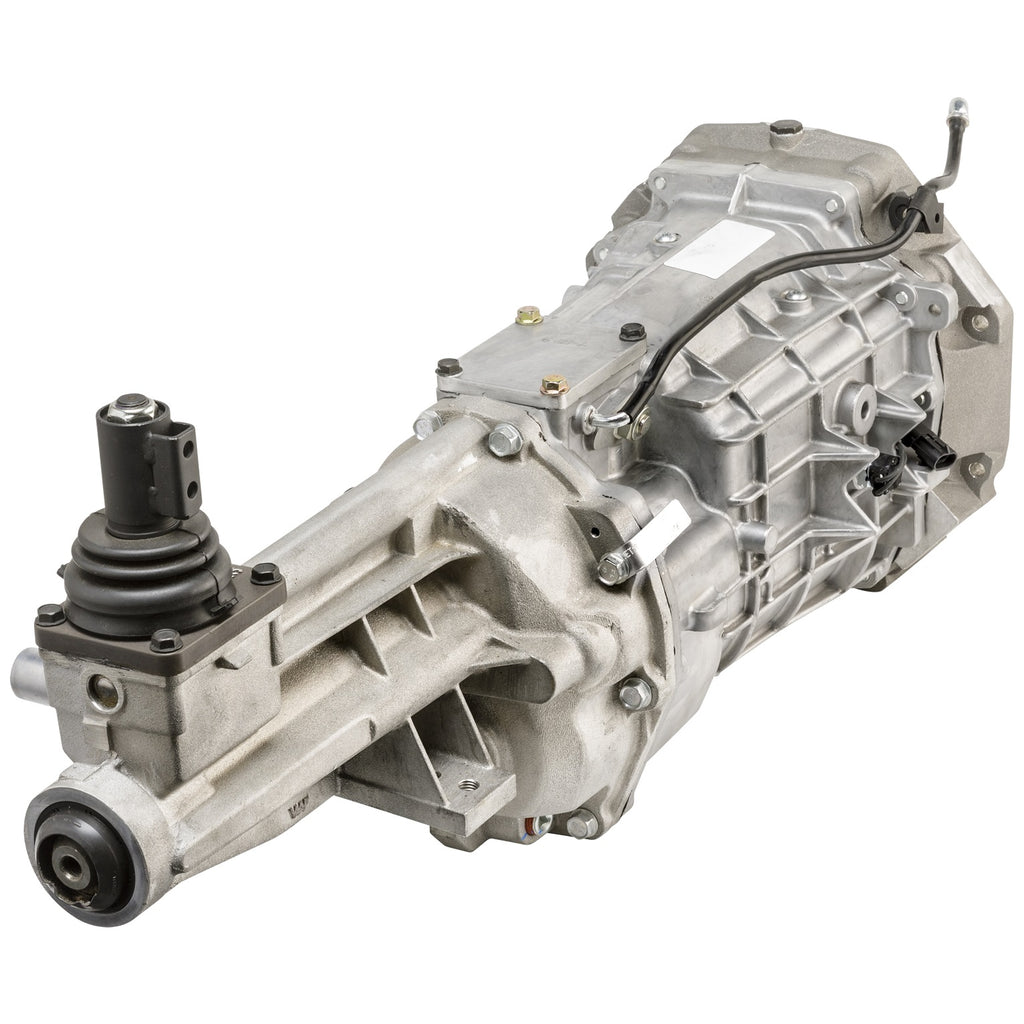

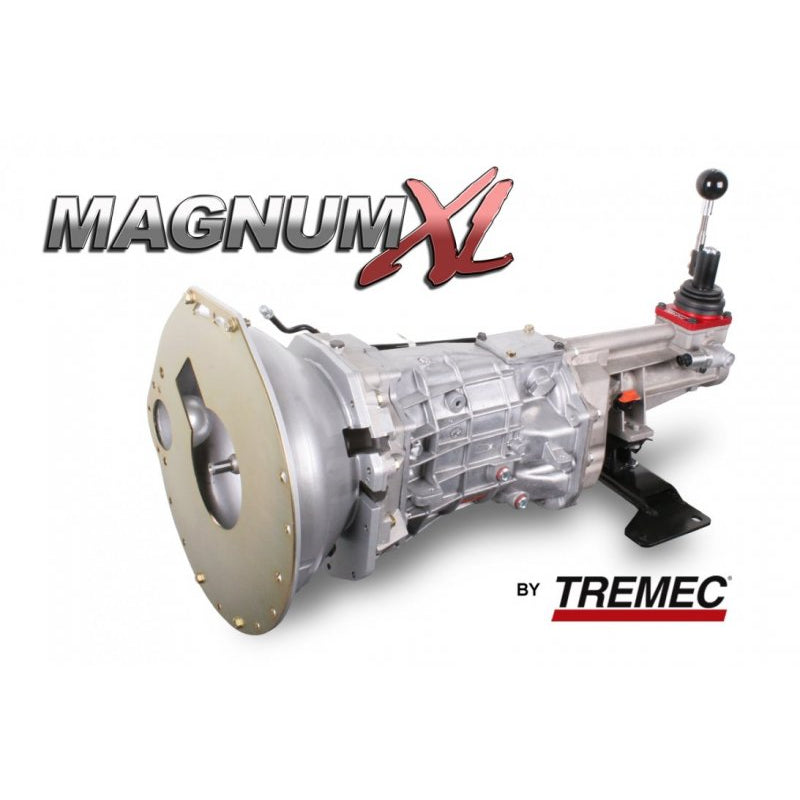

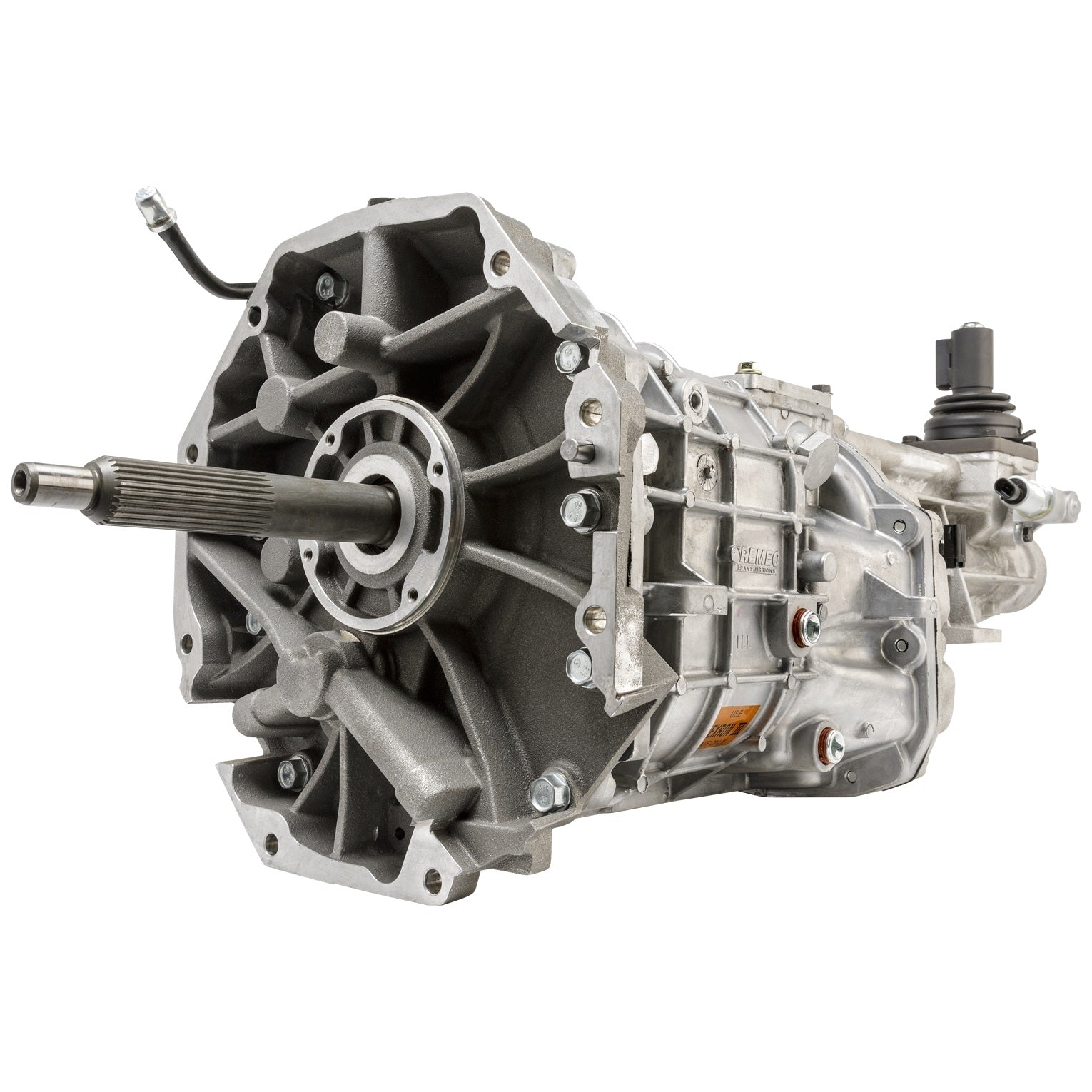

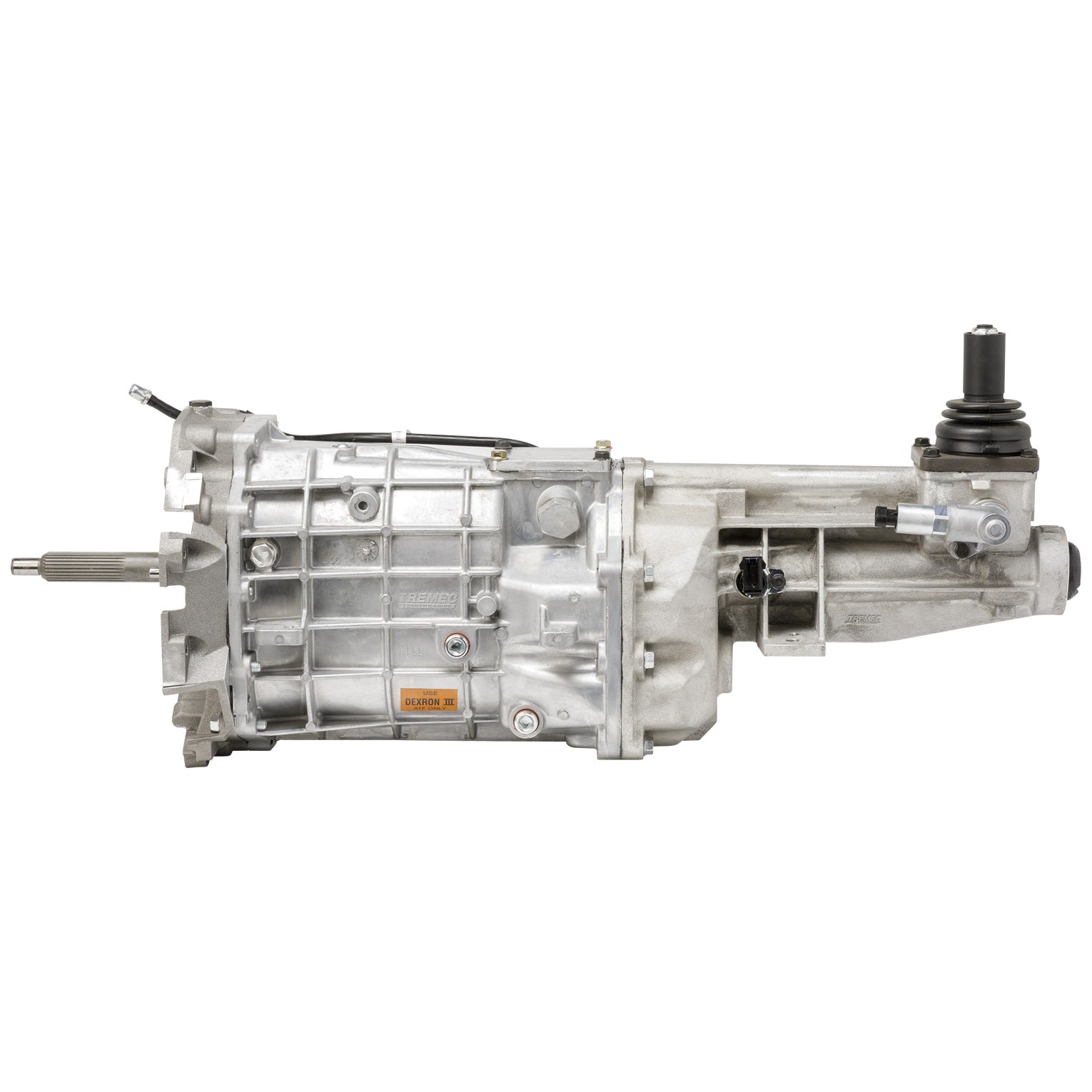

McLeod Racing TUKT 16901 Tremec Magnum XL 6 Spd Transmission

2 sold in last 8 days

Brand: McLeod Racing

SKU: ds_BHGR_TUKT 16901

In-Store:

Dist. Ctr: Out of stock

Product Code:

$7,526.91

Quantity

Quantity must be 1 or more

I agree to the Terms & Conditions, including Refund and Shipping Policies.

0 customers are viewing this product

McLeod Racing TUKT 16901 Tremec Magnum XL 6 Spd Transmission

Details
Reviews

Details

The Magnum XL is an extension of our revered Magnum 6-speed series. Featuring all the most important content from the original, the XL retains the Magnum's brute strength and sophistication, but eliminates its multiple shifter locations and dual speedo outputs. Refinements include a new extended length tail section designed to eliminate the semi-remote shifter found in many popular late-model applications. Initially Available For 2005-Up "S197" Mustangs, The Magnum XL Also Includes An SFI-Approved Steel Bellhousing, Swap Specific Crossmember And OE-Quality Mount. For Strength Purposes the Magnum XL Requires A 26-Spline Clutch and One-Piece Driveshaft.

Specifications:

Description_ASM	Ford: Mustang 11 - 18 5 L Engine, Ford: Mustang 15 - 18 5.2 L Engine, Ford: Mustang 05 - 10 4.6 L Engine, Ford: Mustang 07 - 12 5.4 L Engine, Ford: Mustang 13 - 14 5.8 L Engine
Description_DEF	Manual Transmission Manual Transmission Assembly
Description_DES	Tremec Magnum XL 6 Spd Transmission
Description_MKT	The Magnum XL is an extension of our revered Magnum 6-speed series. Featuring all the most important content from the original, the XL retains the Magnum's brute strength and sophistication, but eliminates its multiple shifter locations and dual speedo outputs. Refinements include a new extended length tail section designed to eliminate the semi-remote shifter found in many popular late-model applications. Initially Available For 2005-Up "S197" Mustangs, The Magnum XL Also Includes An SFI-Approved Steel Bellhousing, Swap Specific Crossmember And OE-Quality Mount. For Strength Purposes the Magnum XL Requires A 26-Spline Clutch and One-Piece Driveshaft.
Description_INV	Transmission
Description_EXT	Tremec Magnum XL 6 Speed Transmission Kit Includes Bellhousing, Crossmember, Shifter, and Hardware
Description_FAB	Direct Replacement for 2005-Up Mustangs.
Description_KEY	TREMEC TKX, T-56 MAGNUM, T-56 MAGNUM XL, TKO 500, TKO 600
Description_SHO	Transmission
Sixth Gear Ratio	0.63:1
First Gear Ratio	2.66:1
Fifth Gear Ratio	0.80:1
Bellhousing Included	Yes
Number of Gears	Six
Shifter Included	Yes
Forth Gear Ratio	1.00:1
Second Gear Ratio	1.78:1
Bellhousing Material	Steel
Input Shaft Spline Quantity	26
Torque Capacity	700
Yoke Included	No
Case Material	Aluminum
Reverse Gear Ratio	2.90:1
Input Shaft Diameter	1.125
Third Gear Ratio	1.30:1
Output Shaft Spline Quantity	31
Yoke Style	Slip-on
Length	25.0000
Width	22.0000
Height	46.0000
Weight	235.0000
