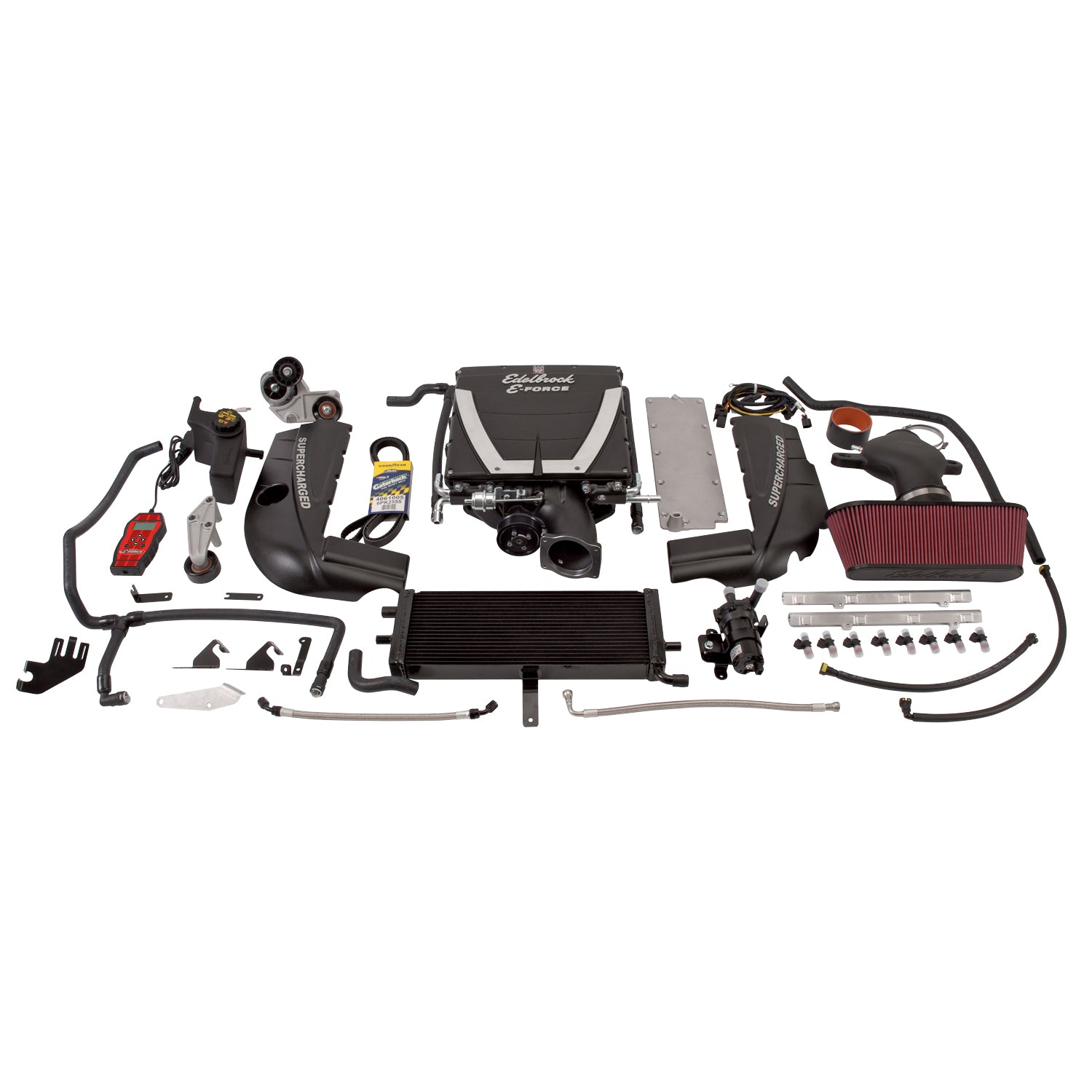

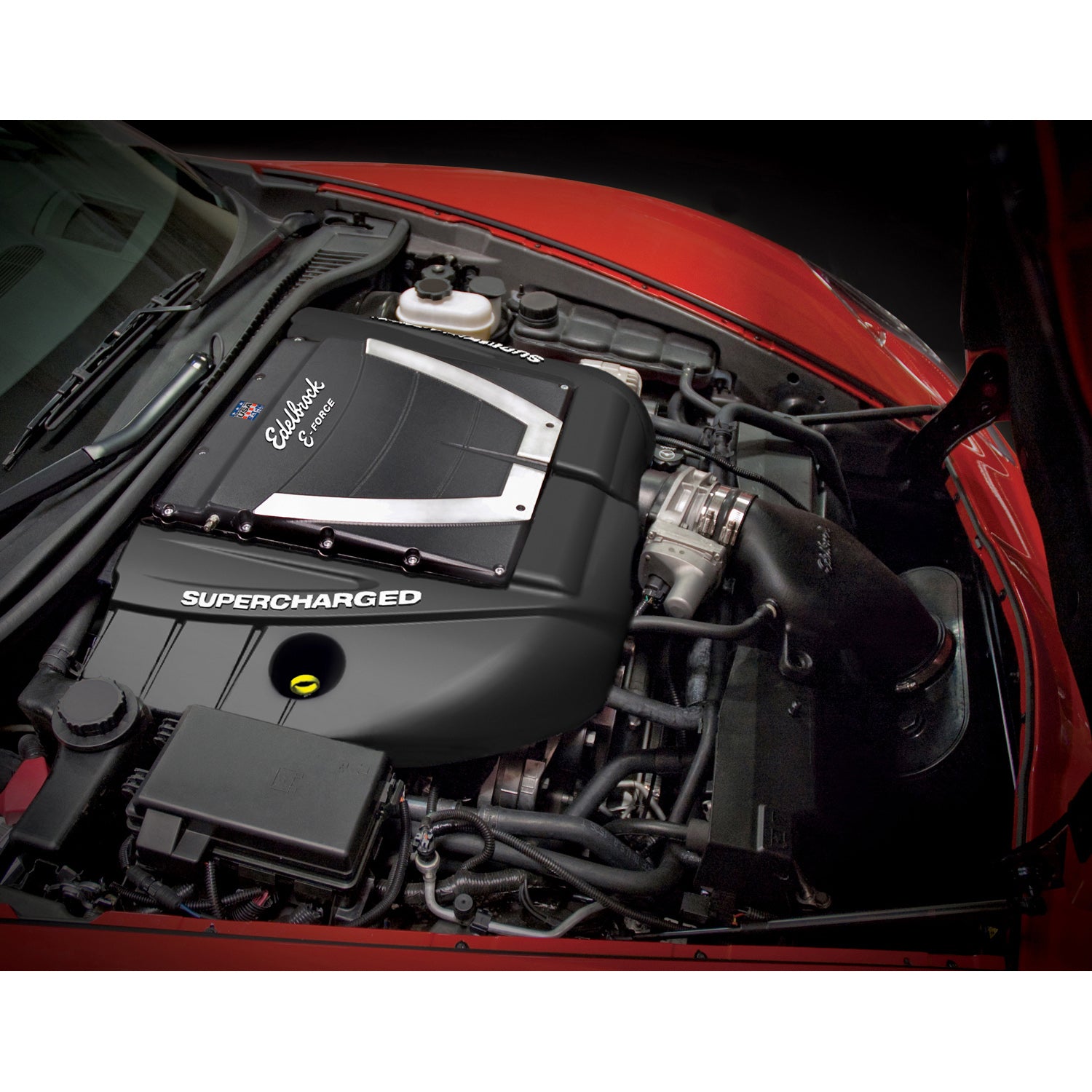

The Edelbrock supercharger Stage 1 Street system part #1590 for 2008-13 Corvette increases the performance of your LS3 engine to 554 horsepower and 515 ft-lbs of torque to the rear wheels. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1590 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.
Specifications:
| Description_ABR |
SuperchrgrKt |
| Description_ASM |
Chevrolet:Small-Block Gen IV LS3:376 (6.2L) |
| Description_DEF |
Supercharger Kit |
| Description_INV |
Edelbrock supercharger #1590 |
| Description_EXT |
The Edelbrock Supercharger System part #1590 is for the 2008-13 LS3 corvette. This kit produces 554 horsepower and 515 ft-lbs of torque. |
| Description_MKT |
The Edelbrock supercharger Stage 1 Street system part #1590 for 2008-13 Corvette increases the performance of your LS3 engine to 554 horsepower and 515 ft-lbs of torque to the rear wheels. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1590 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust. |
| Description_TRA |
Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting. |
| Description_TRA |
Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada. |
| Description_LAB |
Edelbrock Stage 1 Supercharger Kit #1590 For 2008-13 Corvette LS3 W/ Tune |
| Vehicle Model |
Corvette |
| Tensioner Included |
Yes |
| Air Filter Included |
Yes |
| Pulley Belt Width |
6-Rib |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Gasket Or Seal Included |
Yes |
| Maximum Horsepower |
554 |
| Mounting Hardware Included |
Yes |
| Fuel Injector Type |
52 |
| Internal Step Up |
Yes |
| Hose Included |
Yes |
| Maximum Boost Pressure |
5.5 |
| Maximum Torque |
515 |
| Finish |
Black Powder Coated |
| Mounting Bracket Included |
Yes |
| Rotor Type |
Eaton TVS 2300 |
| Harmonic Balancer Diameter |
7.5 |
| System Type |
Stage 1 - Street System |
| Quantity |
Kit |
| Universal Or Specific Fit |
Specific |
| Oil Capacity |
150 |
| Center Housing Cooling Type |
Intercooler |
| Maximum Pressure Reading |
5.5 |
| Calibration |
Yes |
| Housing Material |
Cast Aluminum |
| Outside Pulley Diameter |
3.875 |
| Length |
18.0000 |
| Width |
34.0000 |
| Height |
42.0000 |
| Weight |
164.0000 |
