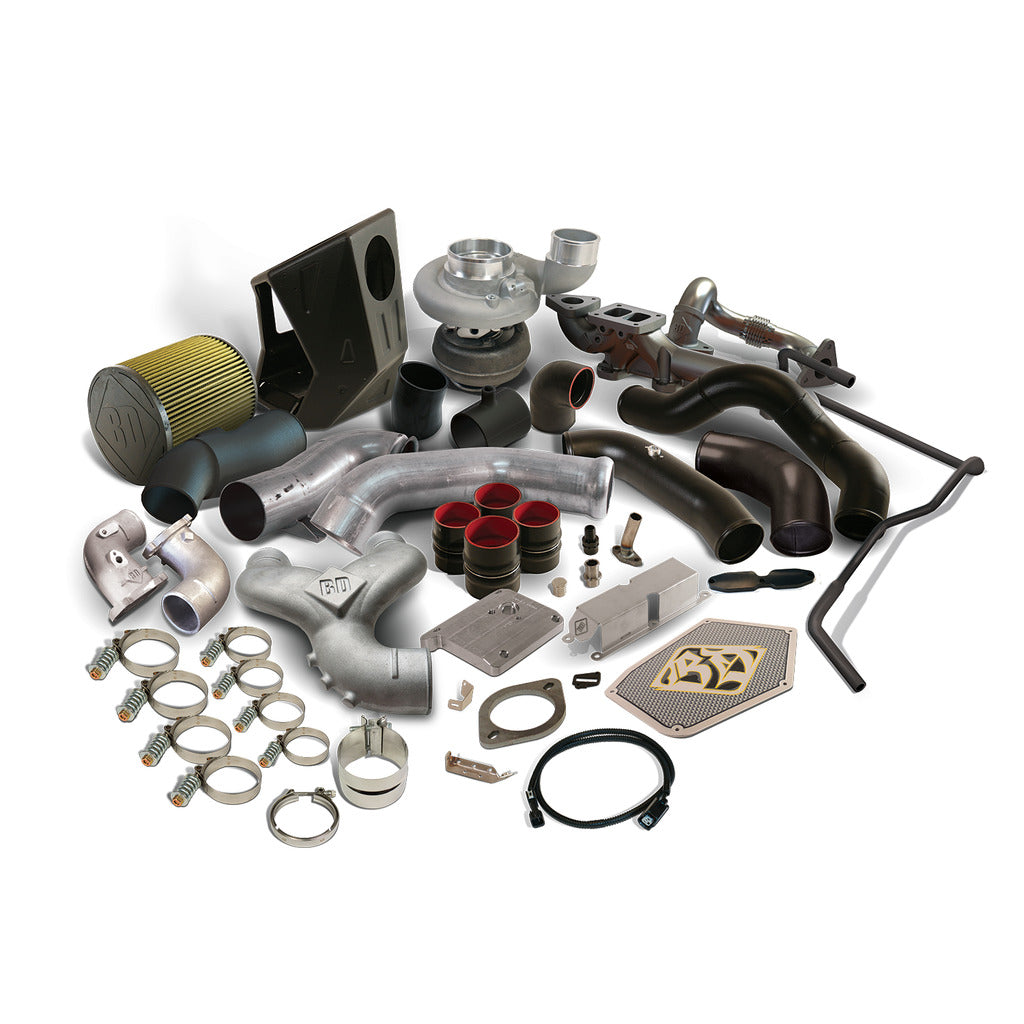

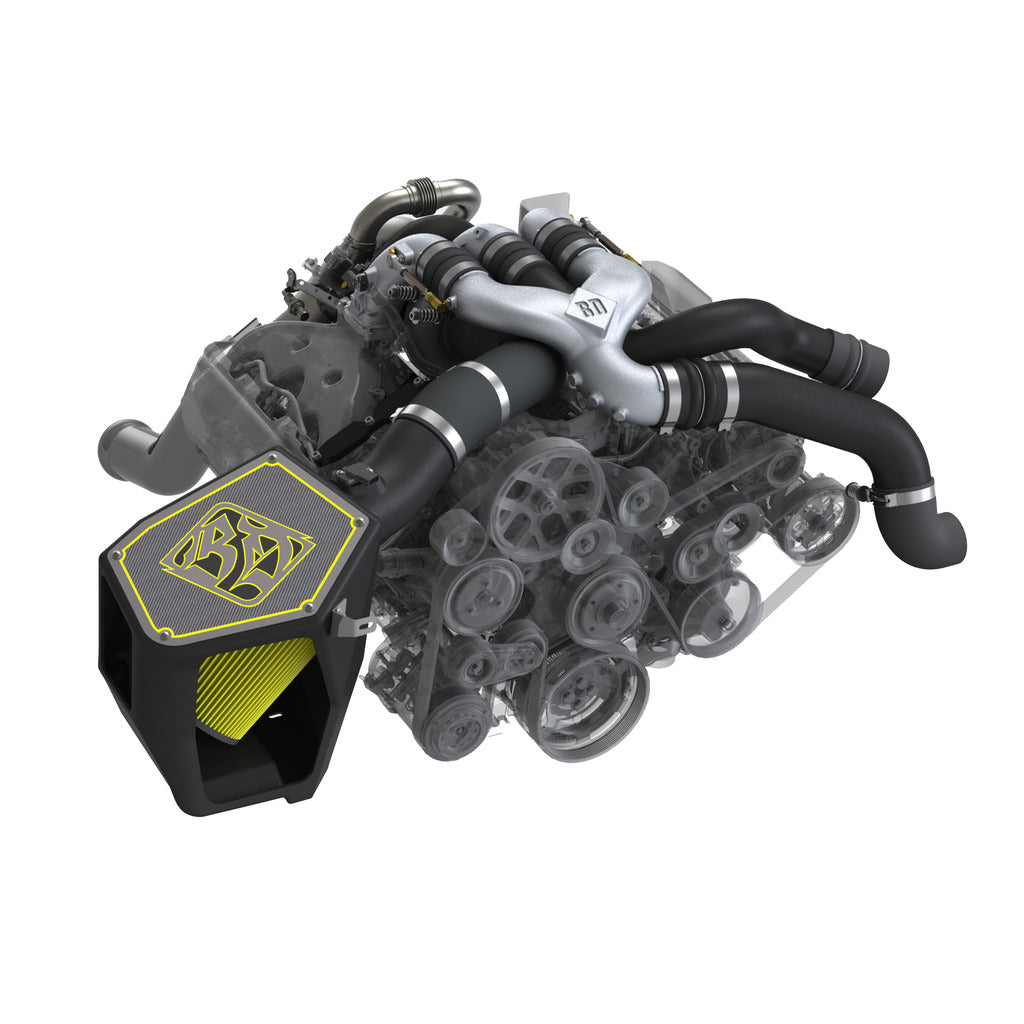

Designed with both reliability and performance in mind, the BD scorpion kit grants you the opportunity to take advantage of high-flow Borg Warner S300 SXE or S400 SXE turbochargers. The turbocharger is mounted directly to a BD cast iron T4 manifold, built to maximize both durability and performance. To minimize EGT's, a smooth-wall Y-bridge evenly distributes air to all eight cylinders. From stock hp levels, to those wanting to push past 700hp, the BD Scorpion Kit is the perfect combination of performance a reliability.
Specifications:
| Description_DEF |
Turbocharger Kit |
| Description_EXT |
Scorpion S363SX-E Turbo Kit - Ford 2011-2016 6.7L F250/F350 |
| Description_DES |
Scorpion S363SX-E Turbo Kit - Ford 2011-2016 6.7L F250/F350 |
| Description_FAB |
Borg Warner S363SX-E series turbocharger with FMW |
| Description_FAB |

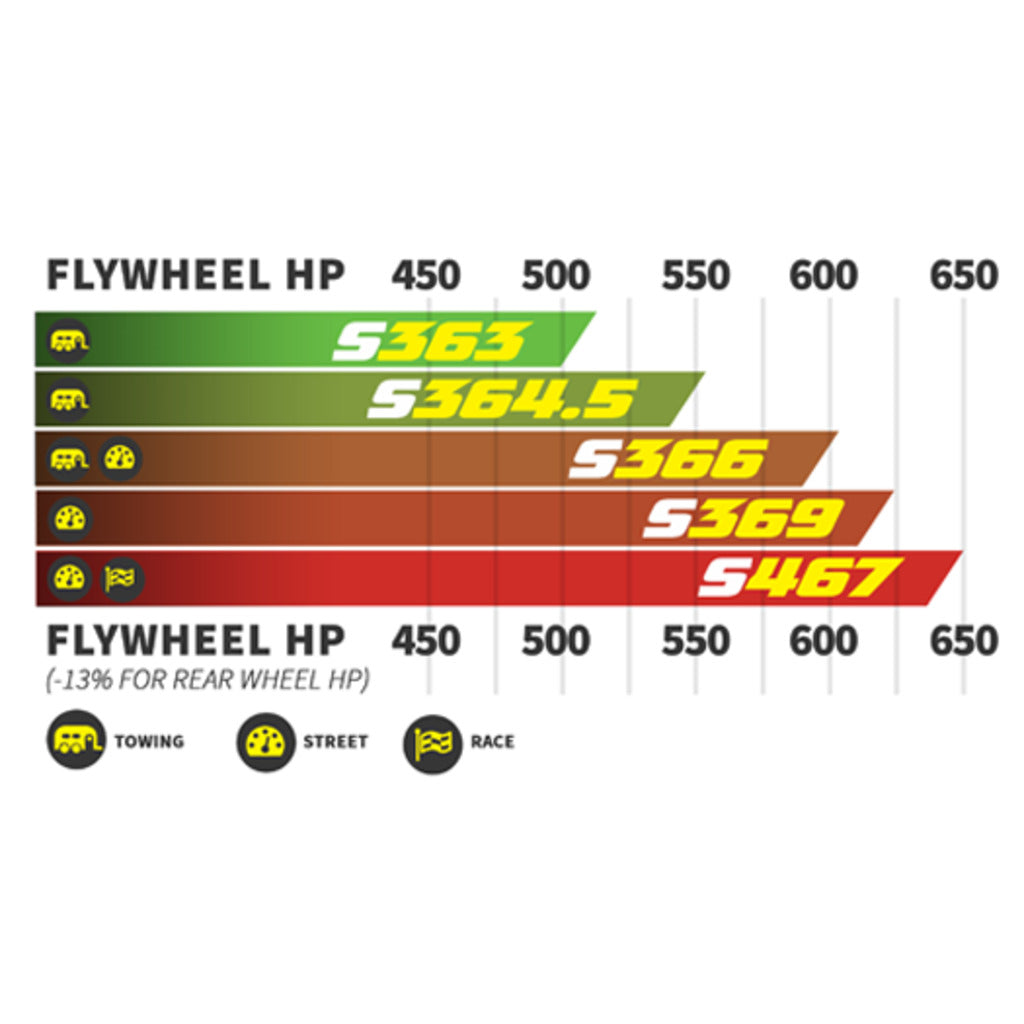

Larger turbochargers available for even higher horsepower |
| Description_FAB |
Race tune required (not included) |
| Description_FAB |
0.91 AR Ratio |
| Description_FAB |
BD 90-deg compressor cover with 2.75in outlet |
| Description_FAB |
BD high performance T4 flanged exhaust manifold, stainless heatshield and crossover tube |
| Description_FAB |
BD billet aluminum pedestal block with oil drain and feed. Includes 1/8 NPT water feed port if using water cooled waste gate (Or CHRA). |
| Description_FAB |
BD high strength A356 aluminum intake horns |
| Description_FAB |
BD high strength A356 Y-Intake with meth, NOS and boost pressure sensor bosses |
| Description_FAB |
BD custom 4in cold air intake with 8in OD high-flow velocity stacked filter |
| Description_FAB |
BD complete high flow aluminized 4in downpipe that mates to stock flange position for easy install to stock or aftermarket exhaust systems |
| Description_FAB |
BD cold air charge tubes, 3.5in intercooler to intake tubes with pressure sensor provision |
| Description_FAB |
Stainless heat shield keeps heat in and intake temperatures down |
| Description_FAB |
Incorporated dual 1/8 NPT EGT ports as well as the provision to use a factory EGT sensor |
| Description_FAB |
BD Boot Lock ready with boss positions on intake and outlets |
| Description_FAB |
Compatible with stock or aftermarket water-to-air intercooler |
| Description_INV |
TURBO SCORPION S363 FORD 6.7L |
| Description_MKT |
Designed with both reliability and performance in mind, the BD scorpion kit grants you the opportunity to take advantage of high-flow Borg Warner S300 SXE or S400 SXE turbochargers. The turbocharger is mounted directly to a BD cast iron T4 manifold, built to maximize both durability and performance. To minimize EGT's, a smooth-wall Y-bridge evenly distributes air to all eight cylinders. From stock hp levels, to those wanting to push past 700hp, the BD Scorpion Kit is the perfect combination of performance a reliability. |
| Description_SHO |
TURBO SCORPION S363 |
| Box 1 Height |
24.00 |
| Box 1 Width |
24.00 |
| Make |
Ford |
| Title |
Scorpion S363SX-E Turbo Kit - Ford 2011-2016 6.7L F250/F350 |
| Box 1 Length |
24.00 |
| Box 2 Height |
14.00 |
| Box 2 Width |
14.00 |
| Category |
Performance Kits |
| Prop 65 Warning |
WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov |
| Box 1 Weight |
87.00 |
| Box 2 Length |
14.00 |
| Box 2 Weight |
41.00 |
| Engine |
6.7L Powerstroke 11-16 |
| Prop 65 - Short Label |
bddiesel_prop65_warning.png |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 Yes/No |
Yes |
| Suggested Product |
1045805 |
| Length |
38.0000 |
| Width |
24.0000 |
| Height |
24.0000 |
| Weight |
128.0000 |
