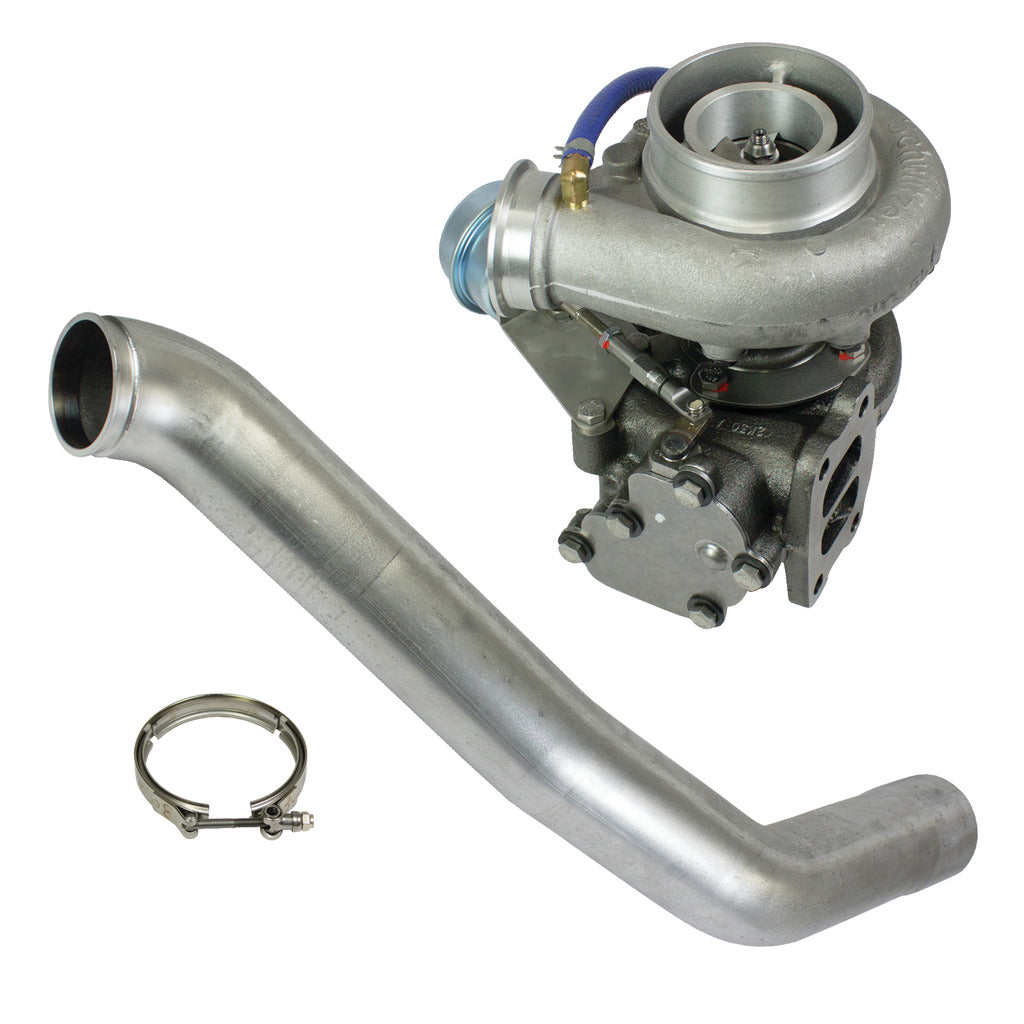

Designed for 1994-2007 5.9L Dodge trucks, the Super B Single supports modified applications making 250-425 rwhp. Featuring Borg Warner's unique Extended Tip compressor wheel technology and low inertia, full-floating journal bearings, these turbos utilize BD's unique dual-volute turbine housing. This proven design utilizes low rpm exhaust pulses for improved turbine response, while the dual-action waste gate bleeds off turbine drive pressure from both volutes. BD's turbo systems also feature a heavy-duty waste gate actuator that prevents premature opening caused by high exhaust pressure. You can even fine-tune for ambient temperature and barometric pressure changes using BD's adjustable waste gate control. The Super B single offers quick spool-up, cooler EGT's and no compressor surge. All kits come with everything you need to allow for an easy install.
Specifications:
| Description_DEF |
Turbocharger Kit |
| Description_DES |
Super B Single SX S358 Turbo Kit w/FMW Billet Wheel - Dodge 1994-2002 5.9L |
| Description_EXT |
Super B Single SX S358 Turbo Kit w/FMW Billet Wheel - Dodge 1994-2002 5.9L |
| Description_SHO |
TURBO SUPER B |
| Description_MKT |
Designed for 1994-2007 5.9L Dodge trucks, the Super B Single supports modified applications making 250-425 rwhp. Featuring Borg Warner's unique Extended Tip compressor wheel technology and low inertia, full-floating journal bearings, these turbos utilize BD's unique dual-volute turbine housing. This proven design utilizes low rpm exhaust pulses for improved turbine response, while the dual-action waste gate bleeds off turbine drive pressure from both volutes. BD's turbo systems also feature a heavy-duty waste gate actuator that prevents premature opening caused by high exhaust pressure. You can even fine-tune for ambient temperature and barometric pressure changes using BD's adjustable waste gate control. The Super B single offers quick spool-up, cooler EGT's and no compressor surge. All kits come with everything you need to allow for an easy install. |
| Description_INV |
TURBO SUPER B DODGE 1994-2002 5.9L |
| Description_FAB |
Forged Milled Billet Wheel |
| Description_FAB |
Custom built to BD specifications, not a box turbo |
| Description_FAB |
Quick spool-up with no surging |
| Description_FAB |
Cooler EGTs & less smoke |
| Description_FAB |
Special low inertia, full-floating 6-pad thrust bearings, not 3 pad like box turbos |
| Description_FAB |
Dual volute T3 turbine housing utilizes low rpm exhaust pulses for improved turbine response |
| Description_FAB |
Efficient positive boost-to-drive pressure ratio yields high power with low EGTs |
| Description_FAB |
Perfect fitment to the stock turbocharger inlet connection points |
| Description_FAB |
BD's HD Waste gate and bracket holds boost and prevents over speed damage |
| Description_FAB |
Turnbuckle Boost Control allows for ease of adjustment for altitude and extreme tuning |
| Description_FAB |
Most systems can be upgraded to a twin system for more power or even better towing performance |
| Description_FAB |
870 CFM / 450 HP |
| Description_FAB |
Comp Wheel: 58mm 2.28in |
| Description_FAB |
A/R Ratio: 0.80 |
| Description_FAB |
Downpipe, V-Band Clamp, Band Clamp |
| Description_FAB |
Turbine Wheel: 74mm 2.91in |
| Engine |
5.9L Cummins 98.5-02 24-Valve |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 Warning |
WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov |
| Category |
Single Turbo Performance |
| Make |
Dodge |
| Prop 65 - Short Label |
bddiesel_prop65_warning.png |
| Prop 65 Yes/No |
Yes |
| Suggested Product |
1042520 |
| Title |
Super B Single SX S358 Turbo Kit w/FMW Billet Wheel - Dodge 1994-2002 5.9L |
| Length |
13.0000 |
| Width |
14.0000 |
| Height |
64.0000 |
| Weight |
65.0000 |
