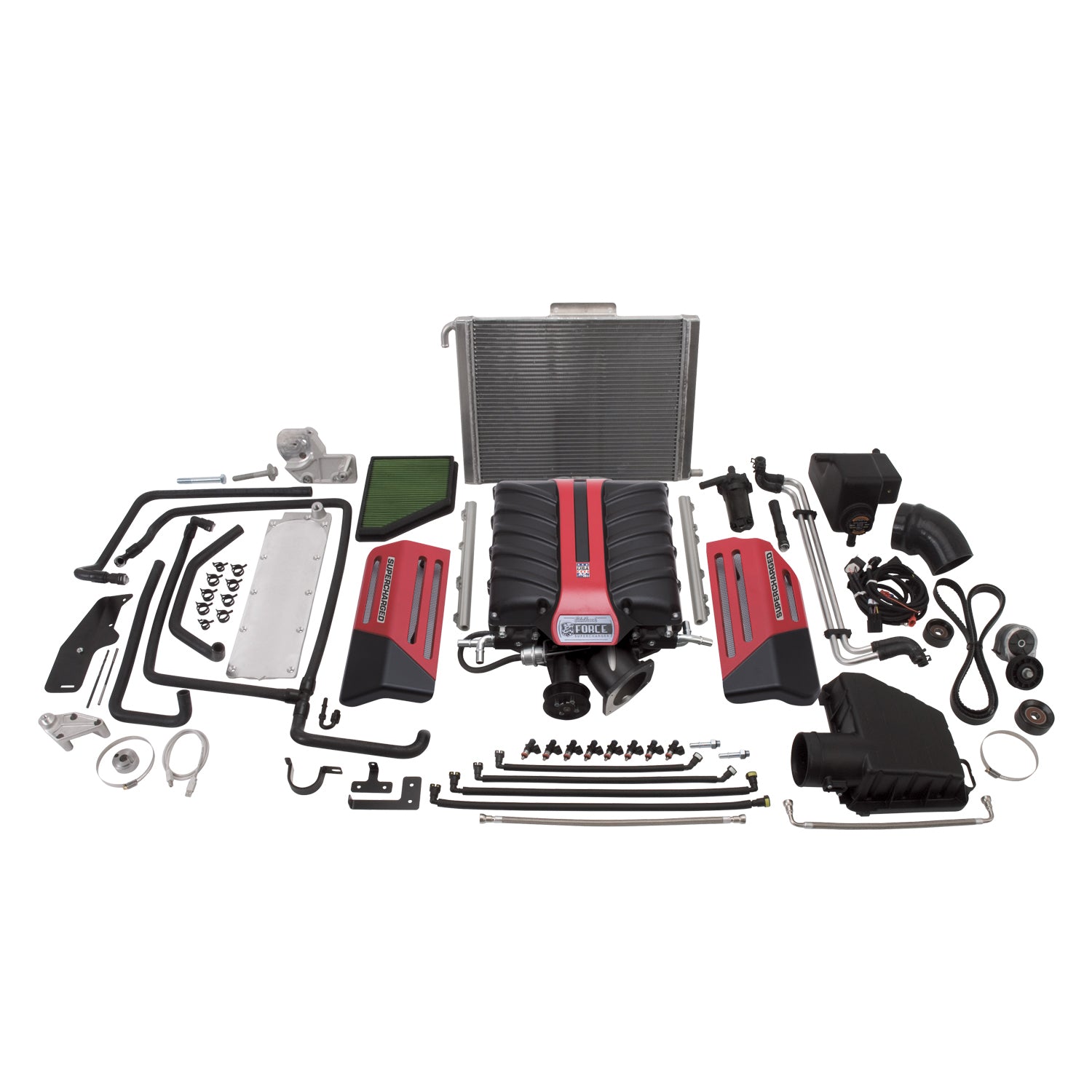

The Edelbrock supercharger Stage 1 Street system part #15980 for 2010-2013, Manual Trans, LS3 Camaro SS increases the performance of your LS3 engine to 599 horsepower and 547 ft-lbs of torque at the crank when used with the Edelbrock Tune (not supplied in this kit). The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. HANDHELD PROGRAMMER NOT INCLUDED. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program. 2010-15 convertible installations will require the use of Edelbrock Convertible Brace #15956 (sold separately).
Specifications:
| Description_ABR |
SuperchrgrKt |
| Description_ASM |
Chevrolet:Small-Block Gen IV LS3:376 (6.2L) |
| Description_DEF |
Supercharger Kit |
| Description_INV |
Edelbrock supercharger #15980 |
| Description_EXT |
The Edelbrock Supercharger System part #15980 is for the 2010-13 Camaro SS with a MANUAL transmission. No Programmer is included which requires custom tuning done by the customer. |
| Description_MKT |
The Edelbrock supercharger Stage 1 Street system part #15980 for 2010-2013, Manual Trans, LS3 Camaro SS increases the performance of your LS3 engine to 599 horsepower and 547 ft-lbs of torque at the crank when used with the Edelbrock Tune (not supplied in this kit). The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. HANDHELD PROGRAMMER NOT INCLUDED. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program. 2010-15 convertible installations will require the use of Edelbrock Convertible Brace #15956 (sold separately). |
| Description_TRA |
Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting. |
| Description_TRA |
Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada. |
| Description_LAB |
Edelbrock Stg 1 Supercharger #15980, 10-13 Camaro SS LS3 Manual Trans W/O Tune |
| Internal Step Up |
Yes |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Mounting Hardware Included |
Yes |
| Rotor Type |
Eaton TVS 2300 |
| System Type |
Stage 1 - Street System |
| Fuel Injector Type |
52 |
| Mounting Bracket Included |
Yes |
| Gasket Or Seal Included |
Yes |
| Tensioner Included |
Yes |
| Vehicle Model |
Camaro |
| Air Filter Included |
Yes |
| Harmonic Balancer Diameter |
7.5 |
| Center Housing Cooling Type |
Intercooler |
| Quantity |
Kit |
| Outside Pulley Diameter |
3.5 |
| Pulley Belt Width |
6-Rib |
| Universal Or Specific Fit |
Specific |
| Oil Capacity |
150 |
| Transmission Type |
Manual |
| Calibration |
No |
| Housing Material |
Cast Aluminum |
| Finish |
Black Powder Coated |
| Hose Included |
Yes |
| Length |
26.0000 |
| Width |
33.0000 |
| Height |
42.0000 |
| Weight |
176.0000 |
