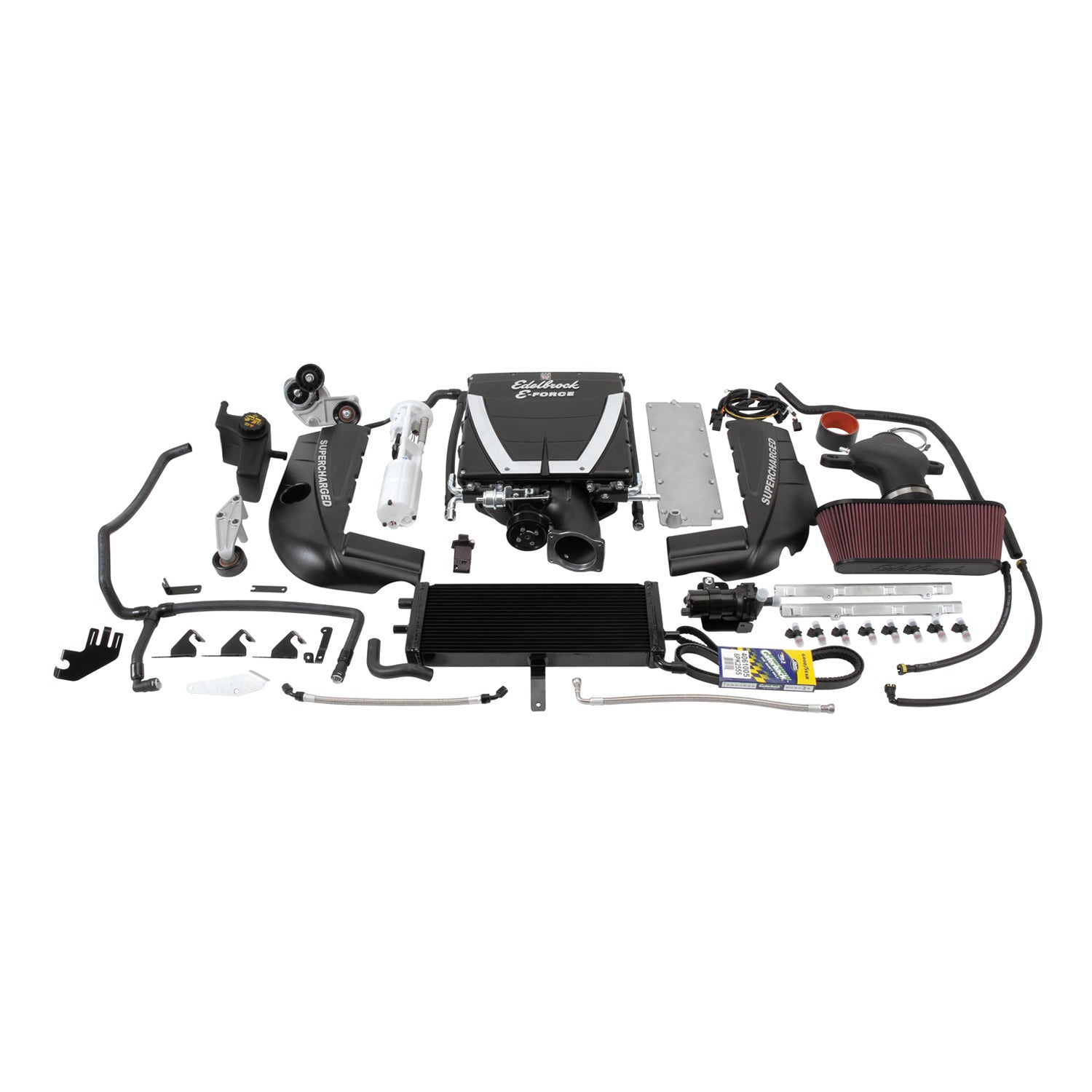

The Edelbrock supercharger stage 2 street/strip system part #15940 for 2005-07 Chevy Corvette increases the performance of your LS2 engine to 599 horsepower and 547 ft-lbs of torque at the crank when used with Edelbrock tune (kit supplied without a programmer). The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. HANDHELD PROGRAMMER NOT INCLUDED. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program.
Specifications:
| Description_ABR |
SuperchrgrKt |
| Description_ASM |
Chevrolet:Small-Block Gen IV LS3:376 (6.2L) |
| Description_DEF |
Supercharger Kit |
| Description_INV |
Edelbrock supercharger #15940 |
| Description_EXT |
The Edelbrock Stage 2 street/strip system part #15940 is designed for your 2005-07 LS2 base model corvette. No Programmer is included which requires custom tuning done by the customer. |
| Description_TRA |
Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting. |
| Description_TRA |
Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada. |
| Description_LAB |
Edelbrock Stage 2 Supercharger Kit #15940 For 2005-07 Corvette LS2 W/O Tune |
| Description_MKT |
The Edelbrock supercharger stage 2 street/strip system part #15940 for 2005-07 Chevy Corvette increases the performance of your LS2 engine to 599 horsepower and 547 ft-lbs of torque at the crank when used with Edelbrock tune (kit supplied without a programmer). The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. HANDHELD PROGRAMMER NOT INCLUDED. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program. |
| Calibration |
No |
| Finish |
Black Powder Coated |
| Quantity |
Kit |
| Housing Material |
Cast Aluminum |
| Oil Capacity |
150 |
| Universal Or Specific Fit |
Specific |
| Hose Included |
Yes |
| Center Housing Cooling Type |
Intercooler |
| Harmonic Balancer Diameter |
7.5 |
| Outside Pulley Diameter |
3.5 |
| Gasket Or Seal Included |
Yes |
| Vehicle Model |
Corvette |
| Air Filter Included |
Yes |
| Rotor Type |
Eaton TVS 2300 |
| Internal Step Up |
Yes |
| System Type |
Stage 2 - Street/Strip System |
| Mounting Bracket Included |
Yes |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Tensioner Included |
Yes |
| Fuel Injector Type |
52 |
| Mounting Hardware Included |
Yes |
| Pulley Belt Width |
6-Rib |
| Length |
18.0000 |
| Width |
34.0000 |
| Height |
42.0000 |
| Weight |
186.0000 |
