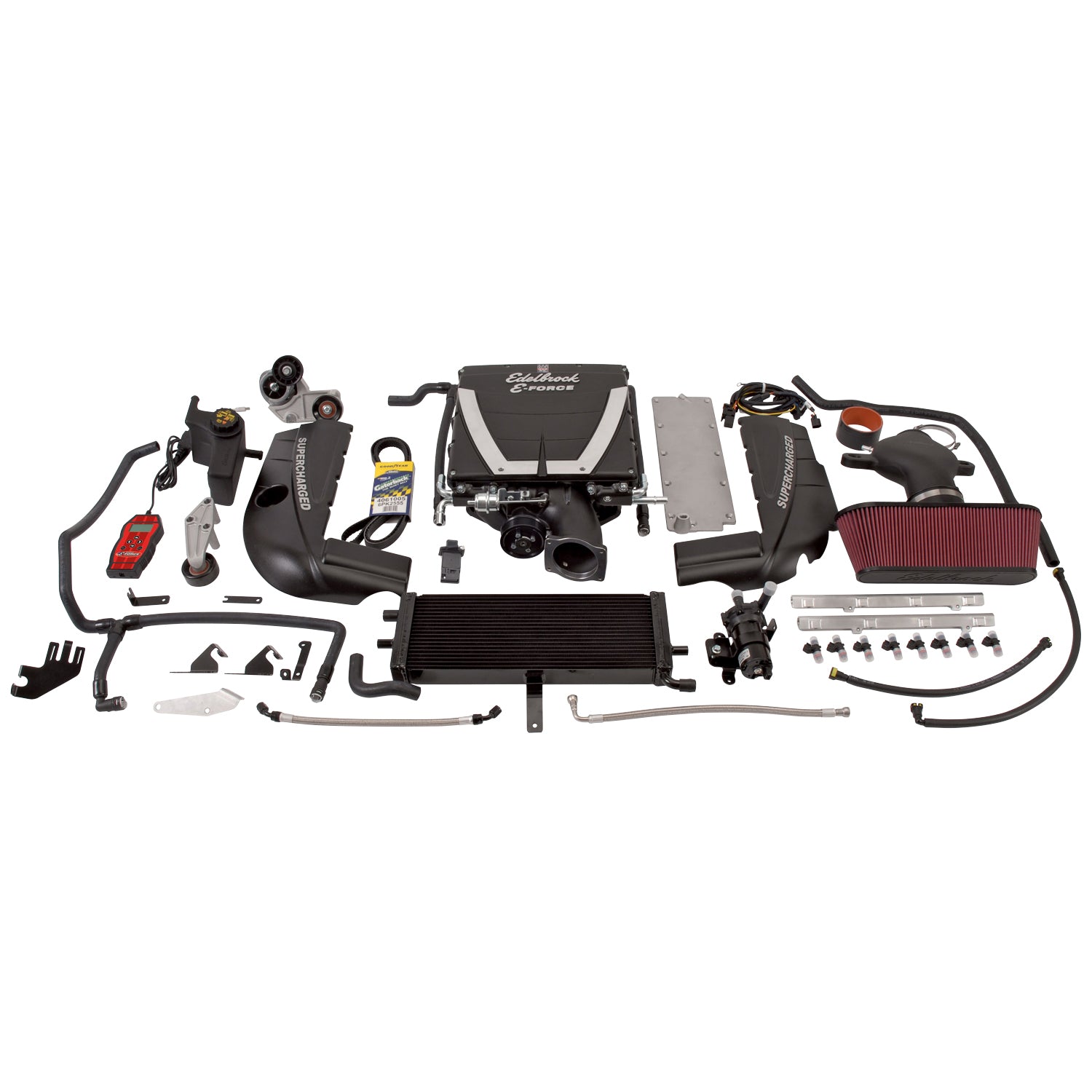

The Edelbrock supercharger Stage 1 Street system part #1593 for 2005-07 Chevy Corvette increases the performance of your LS2 engine to 554 horsepower and 515 ft-lbs of torque at the crank. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1593 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.
Specifications:
| Description_ABR |
SuperchrgrKt |
| Description_ASM |
Chevrolet:Small-Block Gen IV LS3:376 (6.2L) |
| Description_DEF |
Supercharger Kit |
| Description_EXT |
The Edelbrock Supercharger System part #1593 is for the 2005-07 LS2 base model corvette. This kit produces 554 horsepower and 515 ft-lbs of torque. |
| Description_INV |
Edelbrock supercharger #1593 |
| Description_MKT |
The Edelbrock supercharger Stage 1 Street system part #1593 for 2005-07 Chevy Corvette increases the performance of your LS2 engine to 554 horsepower and 515 ft-lbs of torque at the crank. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1593 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust. |
| Description_TRA |
Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting. |
| Description_TRA |
Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada. |
| Description_LAB |
Edelbrock Stage 1 Supercharger Kit #1593 For 2005-07 Corvette LS2 W/ Tune |
| Pulley Belt Width |
6-Rib |
| Tensioner Included |
Yes |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Rotor Type |
Eaton TVS 2300 |
| Maximum Boost Pressure |
5.5 |
| System Type |
Stage 1 - Street System |
| Fuel Injector Type |
52 |
| Vehicle Model |
Corvette |
| Mounting Hardware Included |
Yes |
| Internal Step Up |
Yes |
| Gasket Or Seal Included |
Yes |
| Maximum Horsepower |
554 |
| Maximum Torque |
515 |
| Calibration |
Yes |
| Finish |
Black Powder Coated |
| Housing Material |
Cast Aluminum |
| Oil Capacity |
150 |
| Harmonic Balancer Diameter |
7.5 |
| Outside Pulley Diameter |
3.875 |
| Air Filter Included |
Yes |
| Hose Included |
Yes |
| Mounting Bracket Included |
Yes |
| Center Housing Cooling Type |
Intercooler |
| Maximum Pressure Reading |
5.5 |
| Quantity |
Kit |
| Universal Or Specific Fit |
Specific |
| Length |
18.0000 |
| Width |
34.0000 |
| Height |
42.0000 |
| Weight |
164.0000 |
