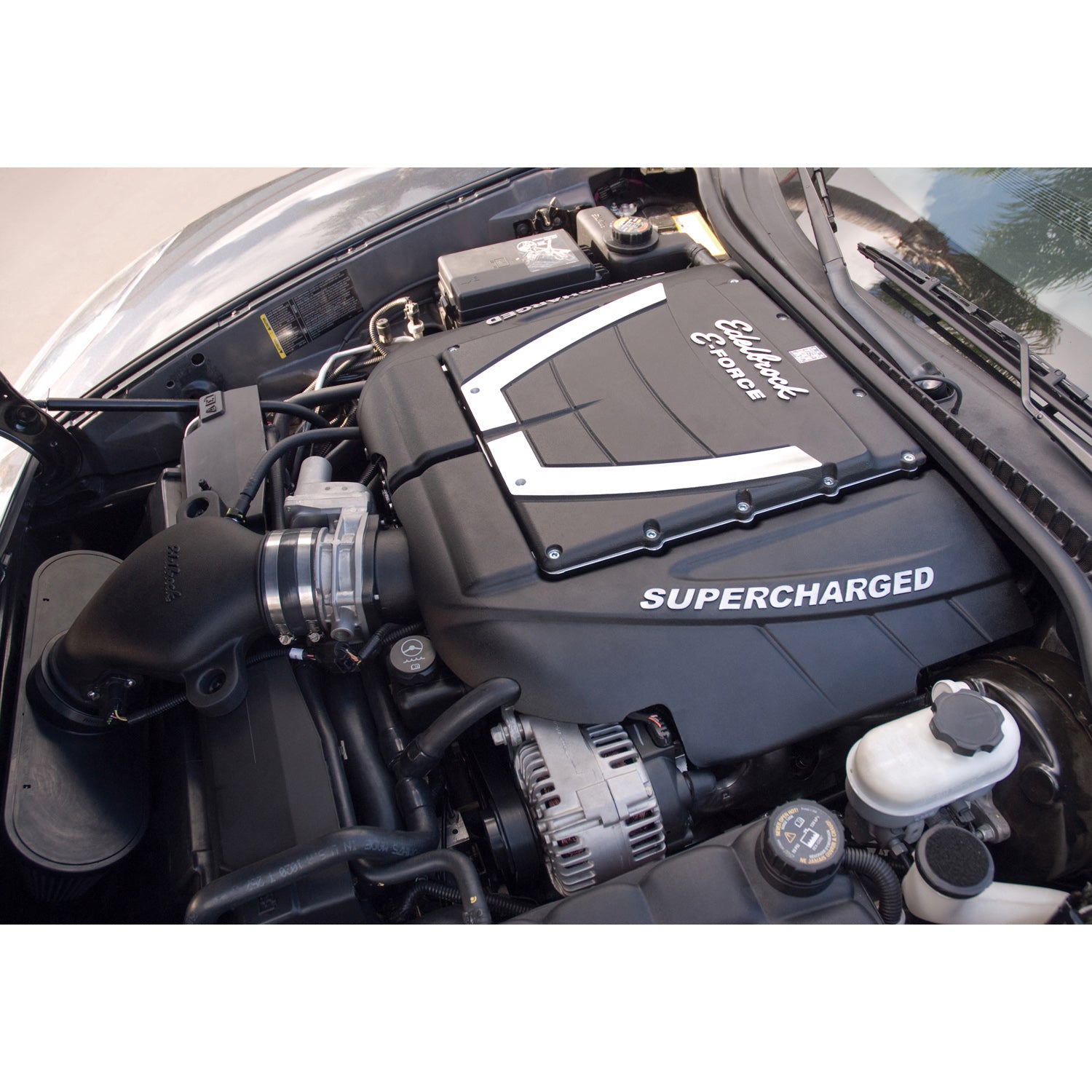

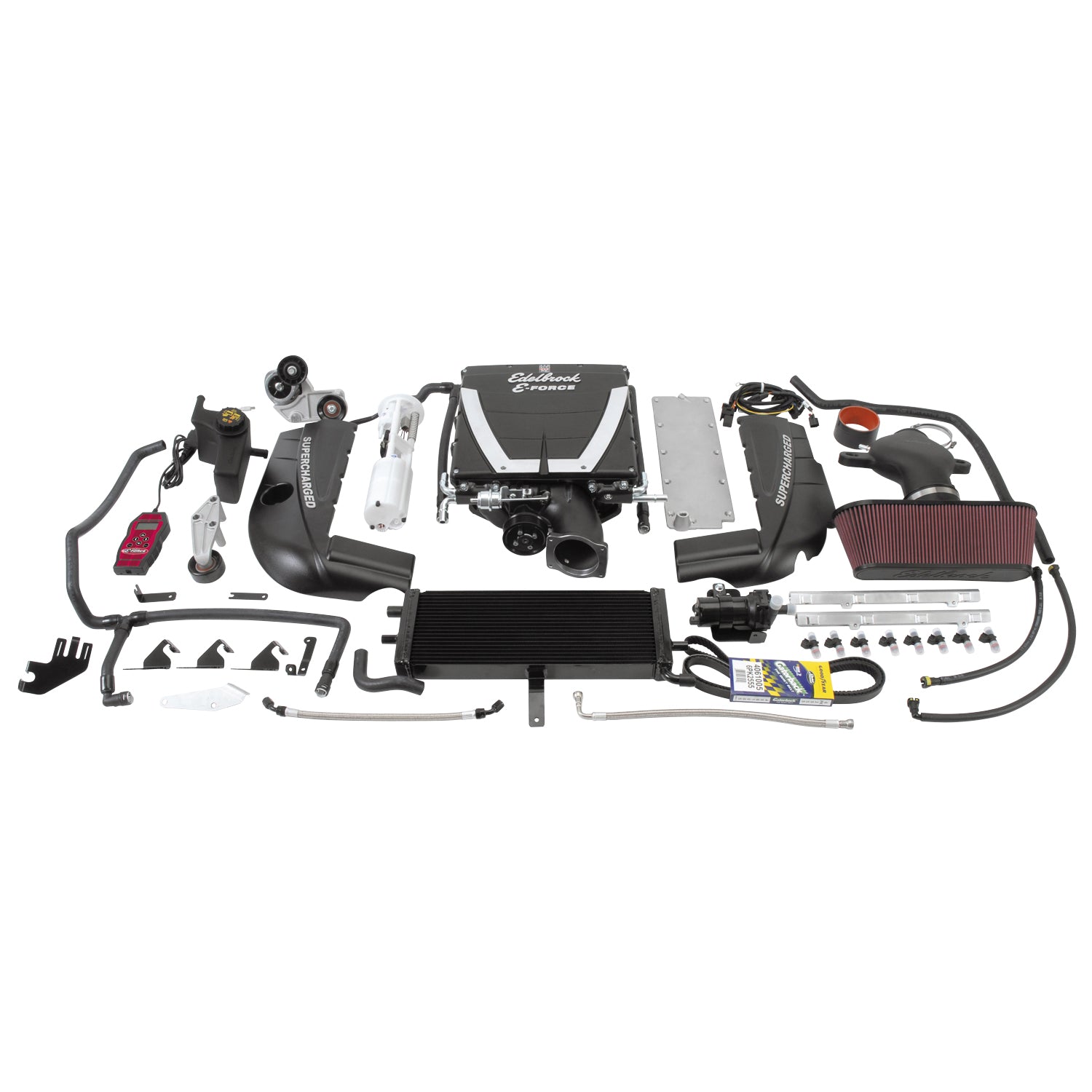

The Edelbrock supercharger stage 2 street/strip system part #1591 for 2008-13 Corvette increases the performance of your LS3 engine to 599 horsepower and 547 ft-lbs of torque at the crank. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1591 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.
Specifications:
| Description_ABR |
SuperchrgrKt |
| Description_ASM |
Chevrolet:Small-Block Gen IV LS3:376 (6.2L) |
| Description_DEF |
Supercharger Kit |
| Description_INV |
Edelbrock supercharger #1591 |
| Description_EXT |
The Edelbrock Stage 2 street/strip system part #1591 is for your 2008-13 LS3 corvette. This kit produces 599 horsepower and 547 ft-lbs of torque. |
| Description_LAB |
Edelbrock Stage 2 Supercharger Kit #1591 For 2008-13 Corvette LS3 W/ Tune |
| Description_MKT |
The Edelbrock supercharger stage 2 street/strip system part #1591 for 2008-13 Corvette increases the performance of your LS3 engine to 599 horsepower and 547 ft-lbs of torque at the crank. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1591 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust. |
| Description_TRA |
Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting. |
| Description_TRA |
Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada. |
| Internal Step Up |
Yes |
| Gasket Or Seal Included |
Yes |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Pulley Belt Width |
6-Rib |
| Tensioner Included |
Yes |
| Air Filter Included |
Yes |
| Maximum Horsepower |
599 |
| Maximum Boost Pressure |
7.5 |
| Maximum Torque |
547 |
| System Type |
Stage 2 - Street/Strip System |
| Hose Included |
Yes |
| Mounting Hardware Included |
Yes |
| Finish |
Black Powder Coated |
| Rotor Type |
Eaton TVS 2300 |
| Universal Or Specific Fit |
Specific |
| Center Housing Cooling Type |
Intercooler |
| Calibration |
Yes |
| Fuel Injector Type |
52 |
| Outside Pulley Diameter |
3.5 |
| Maximum Pressure Reading |
7.5 |
| Harmonic Balancer Diameter |
7.5 |
| Mounting Bracket Included |
Yes |
| Oil Capacity |
150 |
| Quantity |
Kit |
| Housing Material |
Cast Aluminum |
| Vehicle Model |
Corvette |
| Length |
26.0000 |
| Width |
50.0000 |
| Height |
40.0000 |
| Weight |
186.0000 |
