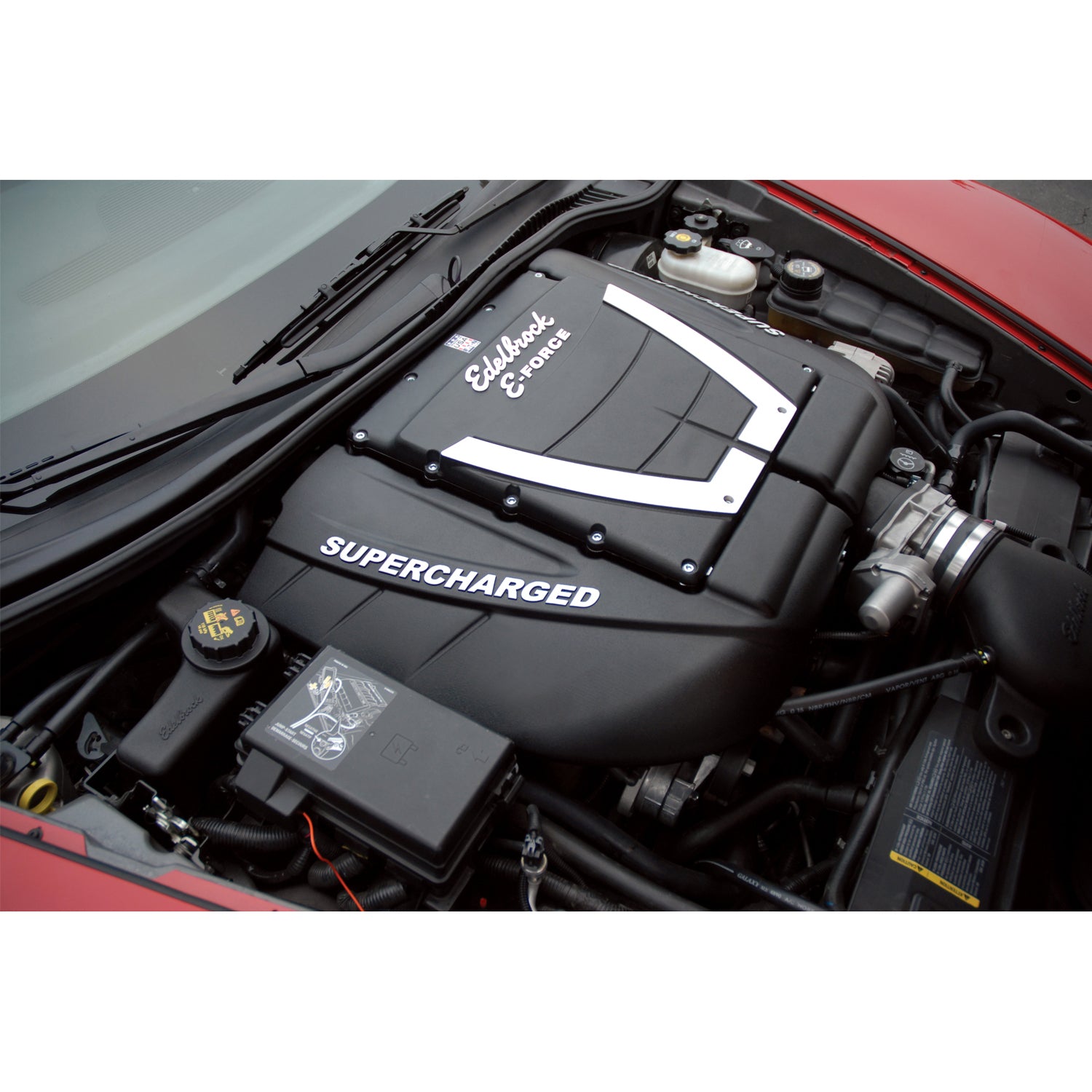

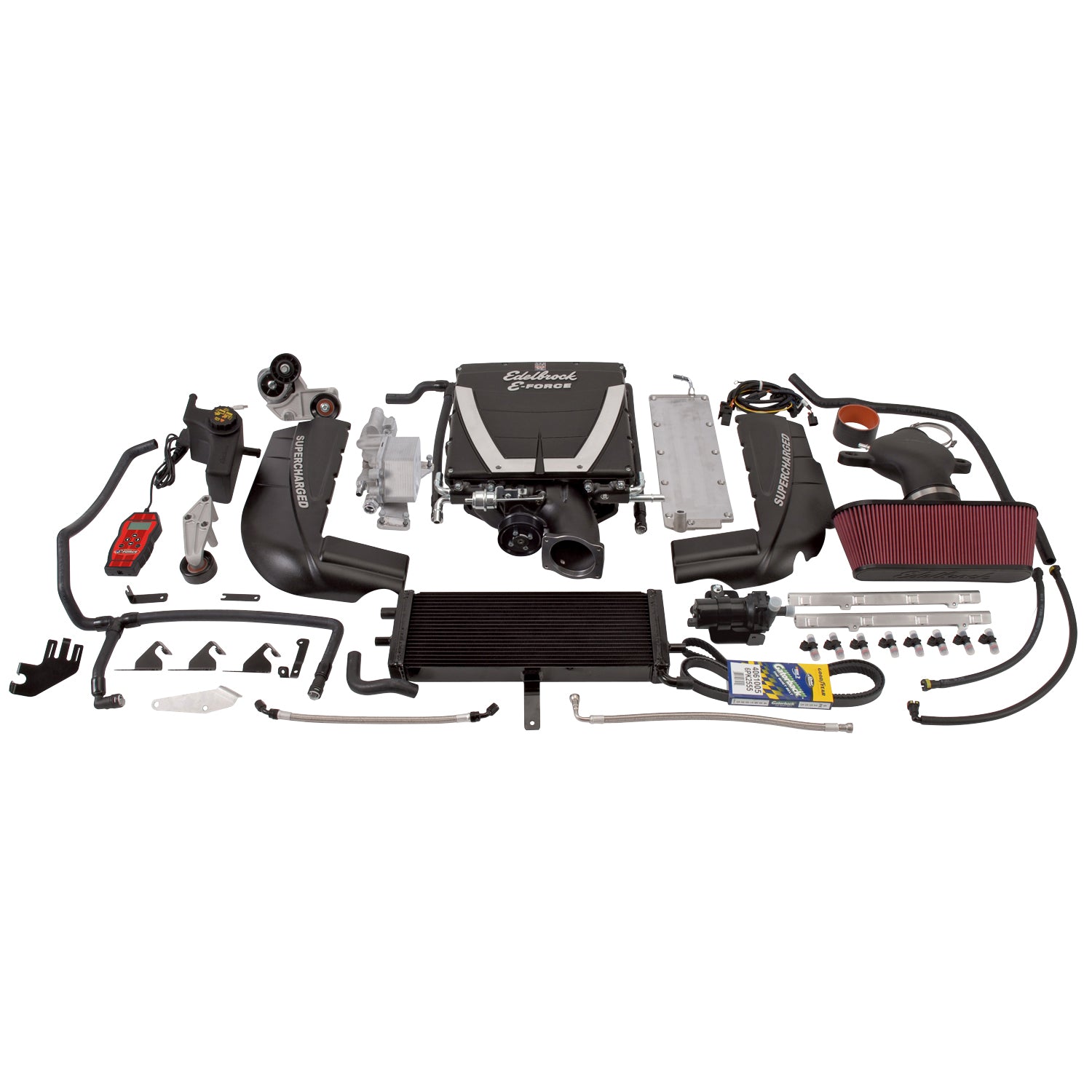

The Edelbrock supercharger Stage 1 Street System part #1572 for 2006-13 Corvette ZO6 with Dry sump increases the performance of your LS7 engine to 657 horsepower and 582 ft-lbs of torque to the flywheel. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1572 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.
Specifications:
| Description_ABR |
SuperchrgrKt |
| Description_ASM |
Chevrolet:Small-Block Gen IV LS7:427 (7.0L) |
| Description_DEF |
Supercharger Kit |
| Description_EXT |
The Edelbrock Supercharger System part #1572 supercharger kit is for the 2006-13 LS7 Corvette Z06. This kit produces 657 horsepower and 582 ft-lbs of torque. |
| Description_MKT |
The Edelbrock supercharger Stage 1 Street System part #1572 for 2006-13 Corvette ZO6 with Dry sump increases the performance of your LS7 engine to 657 horsepower and 582 ft-lbs of torque to the flywheel. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1572 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust. |
| Description_INV |
Edelbrock supercharger #1572 |
| Description_LAB |
Edelbrock Stage 1 Supercharger Kit #1572 For 2006-13 Corvette Z06 LS7 W/ Tune |
| Description_TRA |
Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting. |
| Description_TRA |
Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada. |
| Vehicle Model |
Corvette |
| Rotor Type |
Eaton TVS 2300 |
| Internal Step Up |
Yes |
| System Type |
Stage 1 - Street System |
| Fuel Injector Type |
60 |
| Tensioner Included |
Yes |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Maximum Torque |
582 |
| Mounting Hardware Included |
Yes |
| Harmonic Balancer Diameter |
7.5 |
| Maximum Pressure Reading |
5.5 |
| Mounting Bracket Included |
Yes |
| Gasket Or Seal Included |
Yes |
| Housing Material |
Cast Aluminum |
| Pulley Belt Width |
6-Rib |
| Maximum Boost Pressure |
5.5 |
| Outside Pulley Diameter |
3.25 |
| Hose Included |
Yes |
| Maximum Horsepower |
657 |
| Air Filter Included |
Yes |
| Oil Capacity |
150 |
| Finish |
Black Powder Coated |
| Calibration |
Yes |
| Quantity |
Kit |
| Universal Or Specific Fit |
Specific |
| Center Housing Cooling Type |
Intercooler |
| Length |
21.0000 |
| Width |
19.0000 |
| Height |
27.0000 |
| Weight |
172.0000 |
