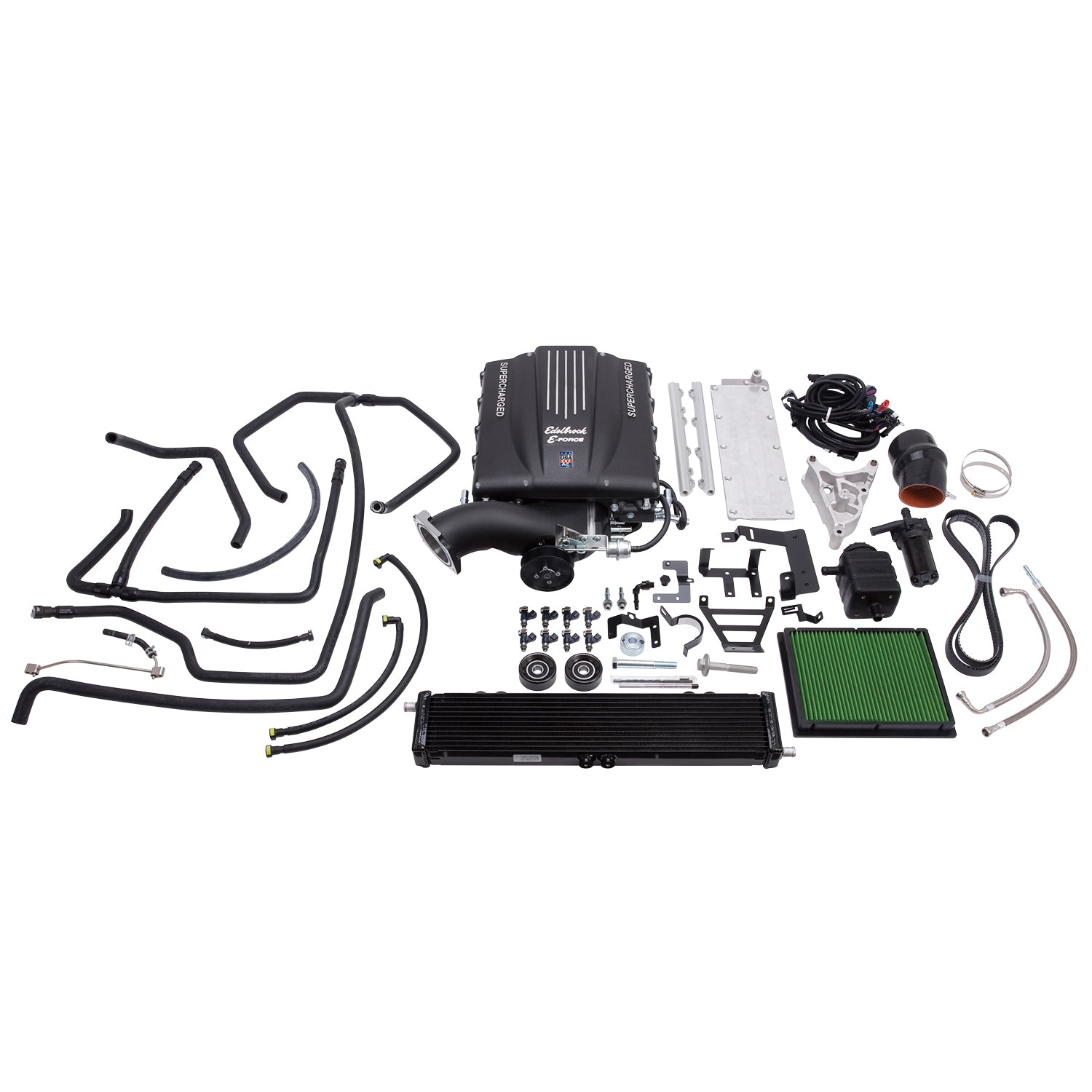

The Edelbrock supercharger Stage 1 Street System part #15640 for 2007-14 Suburban, Tahoe, Yukon & Yukon XL increases the performance of your 5.3L Gen IV engine to 384 horsepower and 390 ft-lbs of torque at the rear wheels when used with Edelbrock tune (kit supplied without a programmer). The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. HANDHELD PROGRAMMER NOT INCLUDED. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program.
Specifications:
| Description_ABR |
SuperchrgrKt |
| Description_ASM |
Chevrolet:Small-Block LC9:325 (5.3L) |
| Description_DEF |
Supercharger Kit |
| Description_EXT |
Edelbrock supercharger Stage 1 Street System part #15640 for 2007-14 Suburban, Tahoe, Yukon & Yukon XL increases the performance of your 5.3L Gen IV engine to 384 horsepower and 390 ft-lbs of torque at the rear wheels |
| Description_INV |
Edelbrock supercharger #15640 |
| Description_MKT |
The Edelbrock supercharger Stage 1 Street System part #15640 for 2007-14 Suburban, Tahoe, Yukon & Yukon XL increases the performance of your 5.3L Gen IV engine to 384 horsepower and 390 ft-lbs of torque at the rear wheels when used with Edelbrock tune (kit supplied without a programmer). The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. HANDHELD PROGRAMMER NOT INCLUDED. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program. |
| Description_TRA |
Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting. |
| Description_TRA |
Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada. |
| Description_LAB |
Edelbrock Stg 1 Supercharger #15640 For 07-14 Tahoe/Suburban/Yukon 5.3L W/O Tune |
| Rotor Type |
Eaton TVS 2300 |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| System Type |
Stage 1 - Street System |
| Mounting Hardware Included |
Yes |
| Harmonic Balancer Diameter |
Stock |
| Vehicle Model |
Escalade EXT |
| Gasket Or Seal Included |
Yes |
| Internal Step Up |
Yes |
| Fuel Injector Type |
42 |
| Housing Material |
Cast Aluminum |
| Outside Pulley Diameter |
4.125 |
| Mounting Bracket Included |
Yes |
| Air Filter Included |
Yes |
| Universal Or Specific Fit |
Specific |
| Quantity |
Kit |
| Oil Capacity |
150 |
| Finish |
Black Powder Coated |
| Center Housing Cooling Type |
Intercooler |
| Pulley Belt Width |
6-Rib |
| Hose Included |
Yes |
| Calibration |
No |
| Length |
26.0000 |
| Width |
33.0000 |
| Height |
42.0000 |
| Weight |
177.0000 |
