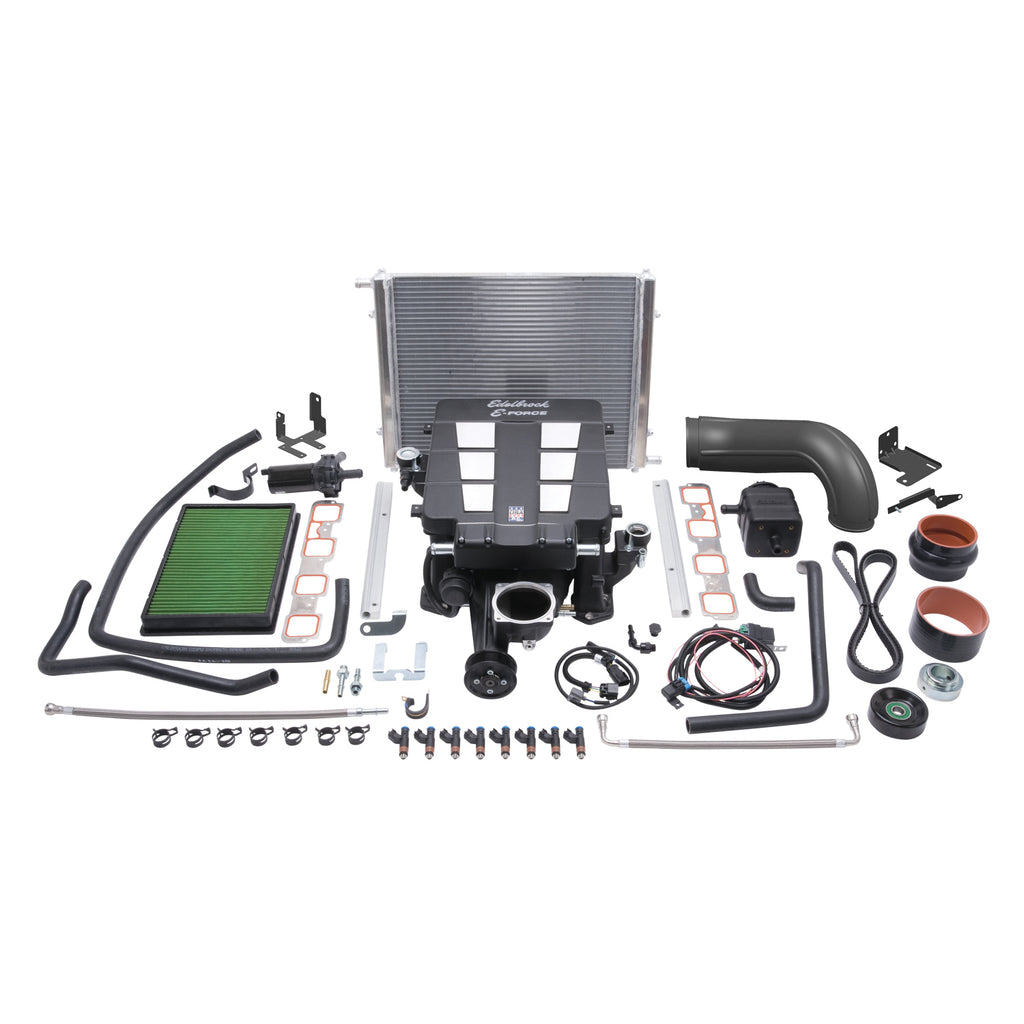

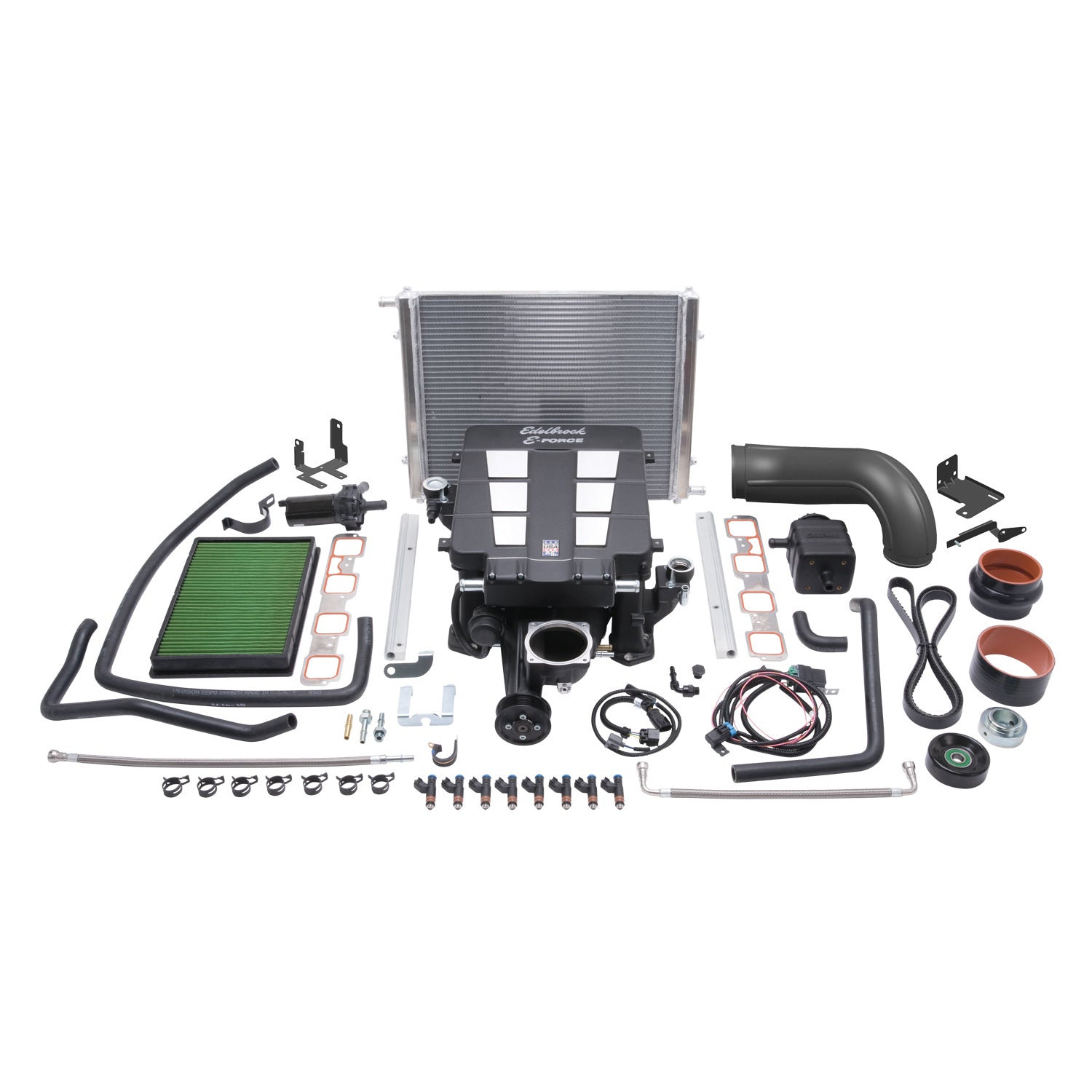

The Edelbrock Supercharger System part #15380 delivers excellent horsepower and torque for your 2009-14 5.7L HEMI Dodge Ram Truck. This kit allows you to take our Stage 1 kit and get the custom tune you desire. Featuring a unique design with minimal components makes it possible to fit an Edelbrock supercharger under the stock hood. The core of each system is the Eaton Gen VI 2300 Supercharger rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. For safety, the Edelbrock-supplied program will retain the factory vehicle speed limiter setting. This kit is NOT supplied with a programmer. Supercharger systems without tuners are not eligible for supplemental warranty. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program.
Specifications:
| Description_ABR |
SuperchrgrKt |
| Description_ASM |
Chrysler:Gen III HEMI:345 (5.7L) |
| Description_DEF |
Supercharger Kit |
| Description_INV |
Edelbrock supercharger #15380 |
| Description_EXT |
Edelbrock supercharger part #15380 2009-14 5.7L Dodge Ram 1500 Supercharger systems without tuners are not eligible for supplemental warranty |
| Description_MKT |
The Edelbrock Supercharger System part #15380 delivers excellent horsepower and torque for your 2009-14 5.7L HEMI Dodge Ram Truck. This kit allows you to take our Stage 1 kit and get the custom tune you desire. Featuring a unique design with minimal components makes it possible to fit an Edelbrock supercharger under the stock hood. The core of each system is the Eaton Gen VI 2300 Supercharger rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. For safety, the Edelbrock-supplied program will retain the factory vehicle speed limiter setting. This kit is NOT supplied with a programmer. Supercharger systems without tuners are not eligible for supplemental warranty. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program. |
| Description_LAB |
Edelbrock Stage 1 Supercharger #15380 For 2009-18 Dodge Ram 1500 5.7L W/O Tune |
| Description_TRA |
Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting. |
| Description_TRA |
Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada. |
| Quantity |
Kit |
| Pulley Belt Width |
6-Rib |
| Internal Step Up |
Yes |
| Rotor Type |
Eaton TVS 2300 |
| System Type |
Stage 1 - Street System |
| Gasket Or Seal Included |
Yes |
| Vehicle Model |
Ram Truck |
| Housing Material |
Cast Aluminum |
| Outside Pulley Diameter |
3.25 |
| Mounting Bracket Included |
Yes |
| Universal Or Specific Fit |
Specific |
| Fuel Injector Type |
46 |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Air Filter Included |
Yes |
| Mounting Hardware Included |
Yes |
| Finish |
Black Powder Coated |
| Hose Included |
Yes |
| Center Housing Cooling Type |
Intercooler |
| Maximum Pressure Reading |
6 |
| Harmonic Balancer Diameter |
6.3 |
| Calibration |
No |
| Oil Capacity |
150 |
| Length |
32.0000 |
| Width |
44.0000 |
| Height |
44.0000 |
| Weight |
198.0000 |
