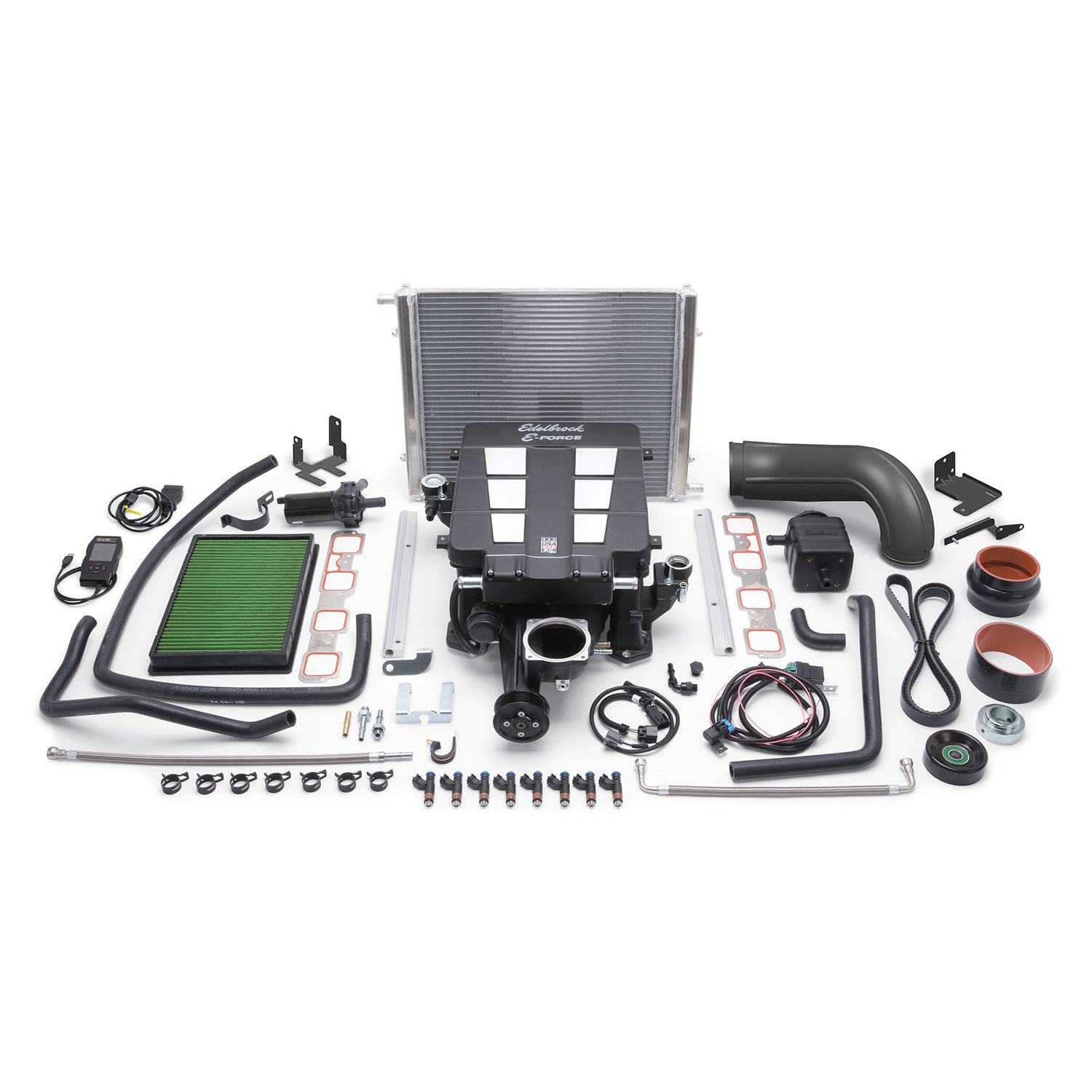

The Edelbrock Supercharger System part #15175 for 2015-18 Dodge RAM trucks equipped with a 5.7 HEMI V8 engine delivers 439 RWHP and 444 RWTQ. Featuring a unique design with minimal components makes it possible to fit an Edelbrock supercharger under the stock hood. The core of each system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. ALL 2015-Later Chrysler/Dodge Supercharger Systems will require the ECM to be sent in for modification.. HANDHELD PROGRAMMER NOT INCLUDED. This is an 8-10 day process/waiting period from the time they are received! Every step of the process is handled with next day shipping. Supercharger systems without tuners are not eligible for supplemental warranty. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program.
Specifications:
| Description_ABR |
SuperchrgrKt |
| Description_ASM |
Chrysler:Gen III HEMI:345 (5.7L) |
| Description_DEF |
Supercharger Kit |
| Description_LAB |
Edelbrock Stage 1 Supercharger #15175 For 2015-18 Dodge Ram 1500 5.7L W/ Tune |
| Description_EXT |
Edelbrock Supercharger System part #15175 for 2015-18 Dodge RAM 5.7 HEMI V8 delivers 439 RWHP and 444 RWTQ, NO HANDHELD PROGRAMMER INCLUDED |
| Description_INV |
Edelbrock #15175 2015-18 Dodge RAM 5.7L |
| Description_MKT |
The Edelbrock Supercharger System part #15175 for 2015-18 Dodge RAM trucks equipped with a 5.7 HEMI V8 engine delivers 439 RWHP and 444 RWTQ. Featuring a unique design with minimal components makes it possible to fit an Edelbrock supercharger under the stock hood. The core of each system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. ALL 2015-Later Chrysler/Dodge Supercharger Systems will require the ECM to be sent in for modification.. HANDHELD PROGRAMMER NOT INCLUDED. This is an 8-10 day process/waiting period from the time they are received! Every step of the process is handled with next day shipping. Supercharger systems without tuners are not eligible for supplemental warranty. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program. |
| Description_TRA |
Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting. |
| Description_TRA |
Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada. |
| Center Housing Cooling Type |
Intercooler |
| Oil Capacity |
150 |
| Pulley Belt Width |
6-Rib |
| Calibration |
Yes |
| Maximum Horsepower |
439RW |
| Finish |
Black Powder Coated |
| Universal Or Specific Fit |
Specific |
| Housing Material |
Cast Aluminum |
| Quantity |
Kit |
| Air Filter Included |
Yes |
| Maximum Torque |
444RW |
| Maximum Boost Pressure |
14 |
| Mounting Bracket Included |
Yes |
| Hose Included |
Yes |
| Mounting Hardware Included |
Yes |
| Maximum Pressure Reading |
14 |
| Internal Step Up |
Yes |
| Outside Pulley Diameter |
3.25 |
| Gasket Or Seal Included |
Yes |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Harmonic Balancer Diameter |
Stock |
| Rotor Type |
Eaton TVS 2300 |
| Vehicle Model |
Ram Truck |
| System Type |
Stage 1 - Street System |
| Fuel Injector Type |
46 |
| Length |
20.0000 |
| Width |
26.0000 |
| Height |
36.0000 |
| Weight |
137.0000 |
