| Description_DEF |
Intercooler Kit |
| Description_DES |
Subaru WRX Front-Mount Intercooler Kit, 2008-2014 Gold |
| Description_EXT |
Front-Mount Intercooler Kit, fits Subaru WRX 2008-2014 |
| Description_FAB |
Fits the 2008--2014 WRX |
| Description_FAB |
Intercooler design optimized for maximum flow |
| Description_FAB |
Smooth cast end tanks allow the best possible airflow in and out of the intercooler |
| Description_FAB |
Optimal core design for maximum cooling efficiency with minimal pressure drop |
| Description_FAB |
Rated to 600 whp |
| Description_INV |
Mishimoto MMINT-WRX-08AIG |
| Description_SHO |
Intercooler Kit |
| Description_MKT |

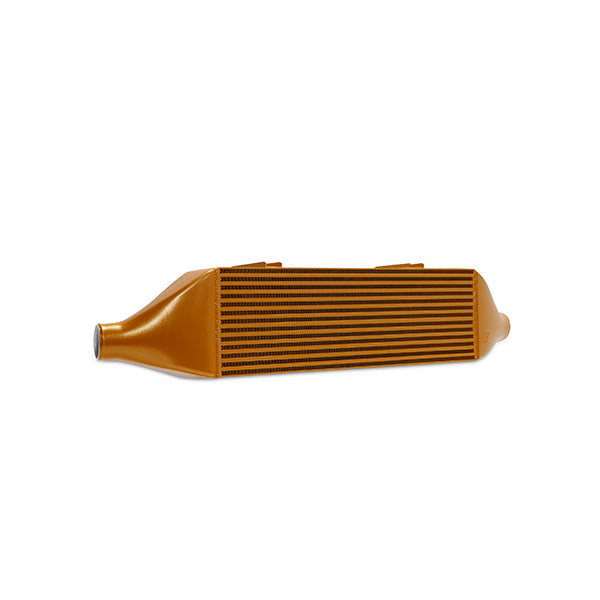

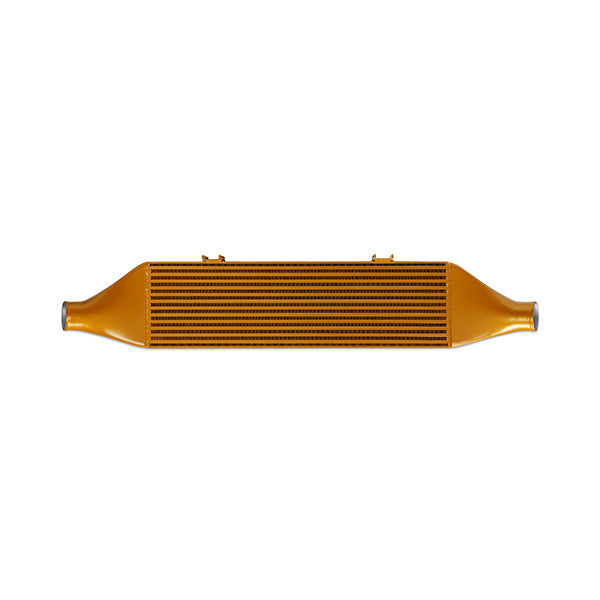

Designed for applications that demand the greatest airflow and cooling capabilities, the Mishimoto WRX STI front-mount intercooler kit will provide your Subaru with the ability to make the most horsepower and torque possible. This front-mount intercooler was designed with a large, 28in intercooler core that provides the maximum cooling capability without excessive pressure drops that will wear out any turbocharger over time. The intercooler features smooth cast end tanks that are CFD tested for maximum airflow with no sharp walls or bends from cut-and-weld end tanks that disrupt airflow. The intercooler provides the best airflow and heat exchange properties for those time-attack laps, or a 10-second blast down the quarter mile. |
| Install Difficulty |
5 |
| OptionLabel |
Gold Intercooler with Intake |
| SellingPoint01 |
Fits the 2008-2014 WRX |
| SellingPoint02 |
Intercooler design optimized for maximum flow |
| SellingPoint03 |
Smooth cast end tanks allow the best possible airflow in and out of the intercooler |
| SellingPoint04 |
Optimal core design for maximum cooling efficiency with minimal pressure drop |
| SellingPoint05 |
Rated to 600 whp |
| SellingPoint06 |
Includes all necessary hardware, brackets, and accessories |
| SellingPoint07 |
Fits left-hand and right-hand drive models |
| SellingPoint08 |
Intercooler available in Sleek Silver or Stealth Black |
| SellingPoint09 |
Works with stock bypass valve or aftermarket blow-off valve |
| SellingPoint10 |
Available with optional Mishimoto Subaru WRX/STI Performance Race Intake |
| SellingPoint11 |
Mishimoto Lifetime Warranty |
| SellingPoint12 |
N/A |
| SellingPoint13 |
N/A |
| SellingPoint14 |
N/A |
| SellingPoint15 |
N/A |
| TechSpec Applications |
2008-2014 Subaru WRX |
| TechSpec Centerline Radius |
N/A |
| TechSpec Chassis Codes |
GH--GE--GR--GV |
| TechSpec Core Height (in) |
8.25 |
| TechSpec Core Length (in) |
28 |
| TechSpec Core Thickness (in) |
3.5 |
| TechSpec Core Type |
Bar-and-Plate |
| TechSpec Engine Codes |
EJ205--EJ255 |

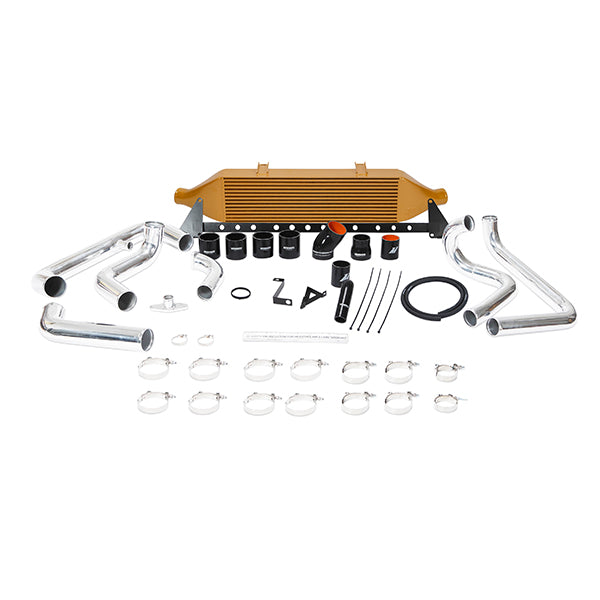

| TechSpec Includes |
(1) Bar-and-Plate Intercooler--(1) Steel Crash Bar w/Mounting Hardware--(3) Hot-Side Intercooler Pipes--(3) Cold-Side Intercooler Pipes--(1) BPV Flange Adapter--(1) Relocation Brackets for Aluminum Overflow Can--(2) 2.25-in Straight Couplers--(3) 2.75-in Straight Couplers--(1) 2-in to 2.75-in Transition Coupler--(1) BPV Recirculation Hose--(1) Intercooler to Throttle Body Hose--(1) 2-in T-bolt Clamp--(5) 2.5-in T-bolt Clamps--(9) 3-in T-bolt Clamps--(2) 1.5-in T-bolt Clamps--(1) 12-in of Thermal Wrap--(1) 3-ft of 1/4 Rubber Hose--(5) Black Zip Ties--Optional Air Intake Kit--(1) Oiled Filter--(1) Aluminum Intake Pipe--(1) 3-in to 2.75-in Transition Coupler--(2) 3-in Worm Gear Clamps--(2) Black High-Temp Zip Ties |
| TechSpec Inlet (in) |
2.75 |
| TechSpec Installation Notes |
N/A |
| TechSpec Maximum Recommended Boost Pressure (PSI) |
30 |
| TechSpec Maximum Recommended Horsepower |
600 |
| TechSpec Note |
Mishimoto recommends that this intercooler kit, with or without the optional air intake, not be used with the stock ECU programming. It is highly recommended that the customer be able to retune the vehicle's ECU after installing the intercooler kit. Power gains will vary depending on the size of the turbo, exhaust system, fuel system, and type of ECU tune that is applied to the vehicle.----This kit is rated for approximately 700 whp, or 30PSI of turbo boost. Exceeding these horsepower or pressure limits could require a custom-size front-mount intercooler.----This FMIC kit is not compatible with OEM fog lights. |
| TechSpec Outlet (in) |
3 |
| TechSpec Overall Height (in) |
9 |
| TechSpec Overall Length (in) |
44 |
| TechSpec Overall Width (in) |
5.5 |
| TechSpec Pipe Diameter |
N/A |
| TechSpec Pipe Length |
N/A |
| TechSpec Pipe Shape |
N/A |
| TechSpec Weight (lbs) |
25 |
| Length |
22.0000 |
| Width |
12.0000 |
| Height |
48.0000 |
| Weight |
58.0000 |
