| Description_DEF |
Intercooler Kit |
| Description_DES |
Subaru WRX/STI Front-Mount Intercooler Kit, 2001-2007 |
| Description_EXT |
Front-Mount Intercooler Kit, fits Subaru WRX/STI 2001-2007 |
| Description_MKT |

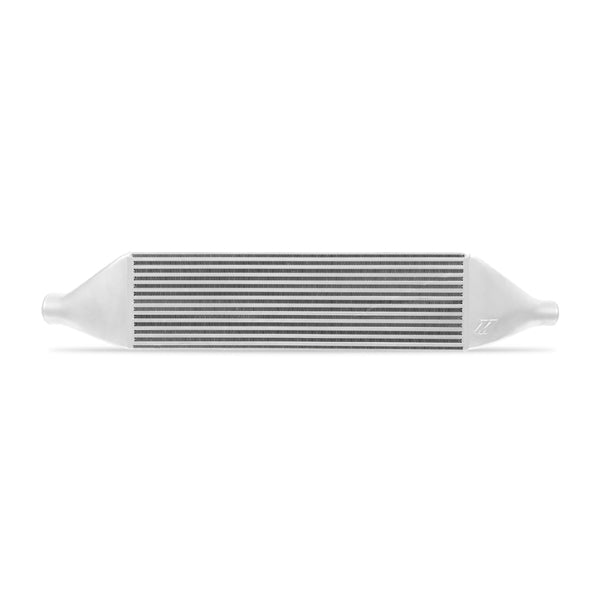

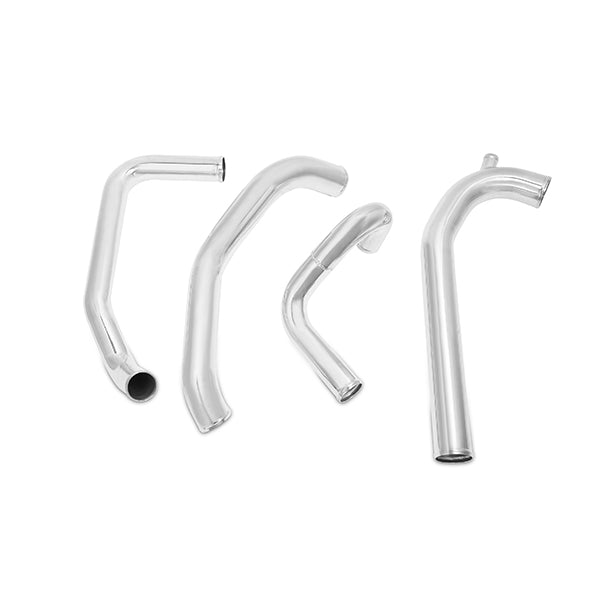

Designed for applications that demand the greatest airflow and cooling capabilities, the Mishimoto WRX/STI Front-Mount Intercooler Kit will provide your Subaru with the ability to make the most horsepower and torque possible. This front-mount intercooler was designed with a large, 28in intercooler core that provides the maximum cooling capability without excessive pressure drops that will wear out any turbocharger over time. The intercooler features smooth cast end tanks that are CFD tested for maximum airflow with no sharp walls or bends from cut-and-weld end tanks that disrupt airflow. The intercooler provides the best airflow and heat exchange properties for those time-attack laps, or a 10-second blast down the quarter mile. The Mishimoto Subaru WRX/STI Front-Mount Intercooler also features four mandrel-bent aluminum pipes for optimum airflow. The hot-side pipes are 2.25in in diameter to keep airflow velocities high, giving your car instant response without excessive throttle lag that plagues many front-mount intercooler designs. The cold side of the system features 3in mandrel-bent aluminum tubing designed for maximum airflow and to match the diameter of your throttle body. The kit is compatible with both stock and aftermarket bypass or blow off valves. The kit contains everything needed for a worry-free installation, including an application-specific crash bar that both supports the intercooler and mounts to existing points on the vehicle. No cutting or drilling is required to install the crash bar and intercooler. The kit also includes all necessary mounting brackets, including a resistor block relocation bracket to move the resistor block out of the way of the intercooler piping. All mounting brackets will come with applicable hardware, zip ties, and thermal wrap. The kit also includes every coupler and clamp needed for a clean install. For larger-than-stock turbos, Mishimoto has included a larger turbo hot-side pipe that will fit turbochargers with an out |
| Description_FAB |
Fits the 2001-2007 Subaru WRX/STI |
| Description_FAB |
Intercooler design optimized for maximum flow, and smooth cast end tanks allow the best possible airflow in and out of the intercooler |
| Description_FAB |
Optimal core design for maximum cooling efficiency with minimal pressure drop |
| Description_FAB |
Flow rated to approximately 600 whp/30 psi of turbo boost (See Tech Specs below) |
| Description_FAB |
Includes all necessary hardware, brackets, and accessories |
| Description_FAB |
Also fits right-hand drive models |
| Description_FAB |
Available in Sleek Silver or Stealth Black |
| Description_FAB |
Works with stock bypass valve or aftermarket blow-off valve |
| Description_FAB |
Optional Subaru WRX/STI Performance Air Intake works perfectly with intercooler kit and provides a rich and aggressive intake tone |
| Description_FAB |
Mishimoto Lifetime Warranty |
| Description_INV |
Mishimoto MMINT-WRX-01SL |
| Description_SHO |
Intercooler Kit |
| TechSpec Core Length (in) |
28 |
| SellingPoint06 |
Also fits right-hand drive models |
| TechSpec Overall Height (in) |
9 |
| TechSpec Overall Width (in) |
5.5 |
| SellingPoint03 |
Optimal core design for maximum cooling efficiency with minimal pressure drop |
| SellingPoint09 |
Optional Subaru WRX/STI Performance Air Intake works perfectly with intercooler kit and provides a rich and aggressive intake tone |
| SellingPoint10 |
Mishimoto Lifetime Warranty |
| TechSpec Applications |
Saab 9-2X H4 (2.0L) 2005--Saab 9-2X H4 (2.5L) 2006--Subaru WRX H4 (2.0) 2002-2005--Subaru WRX H4 (2.5) 2006-2007--Subaru WRX STI H4 (2.5) 2004-2007 |
| TechSpec Inlet (in) |
2.75 |
| TechSpec Pipe Shape |
N/A |
| Install Difficulty |
5 |
| OptionLabel |
Silver Intercooler without Intake |
| SellingPoint04 |
Flow rated to approximately 600 whp/30 psi of turbo boost (See Tech Specs below) |
| SellingPoint07 |
Available in Sleek Silver or Stealth Black |
| SellingPoint08 |
Works with stock bypass valve or aftermarket blow-off valve |
| SellingPoint13 |
N/A |
| TechSpec Chassis Codes |
GD--GG |
| TechSpec Core Height (in) |
8.25 |
| TechSpec Core Thickness (in) |
3.5 |
| TechSpec Engine Codes |
EJ205--EJ255--EJ257 |
| TechSpec Includes |

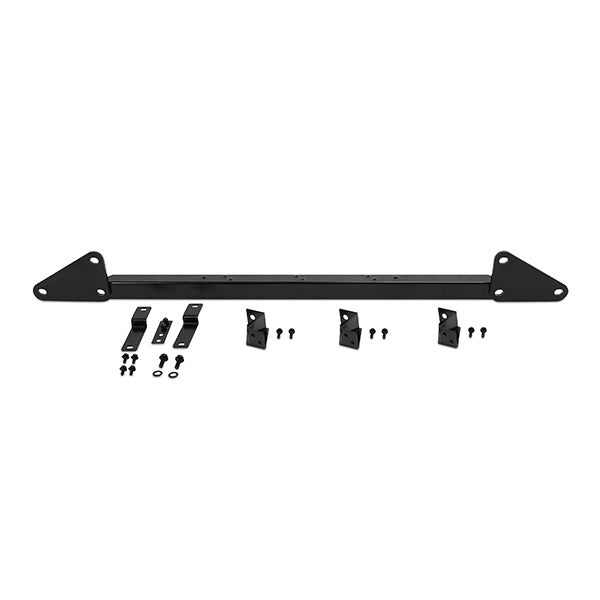

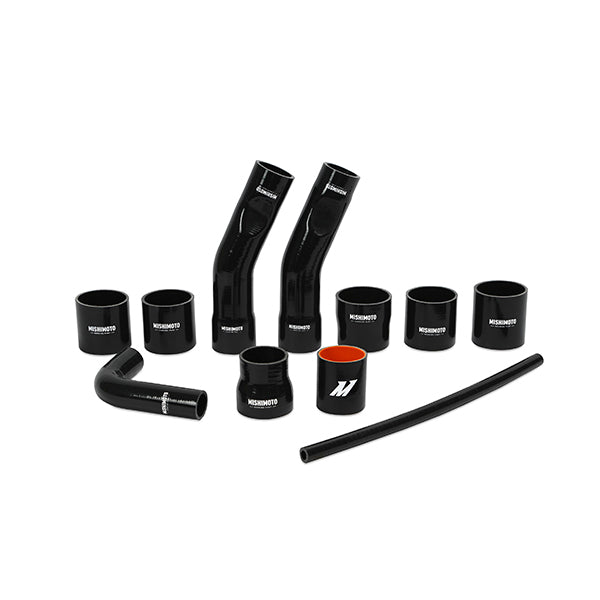

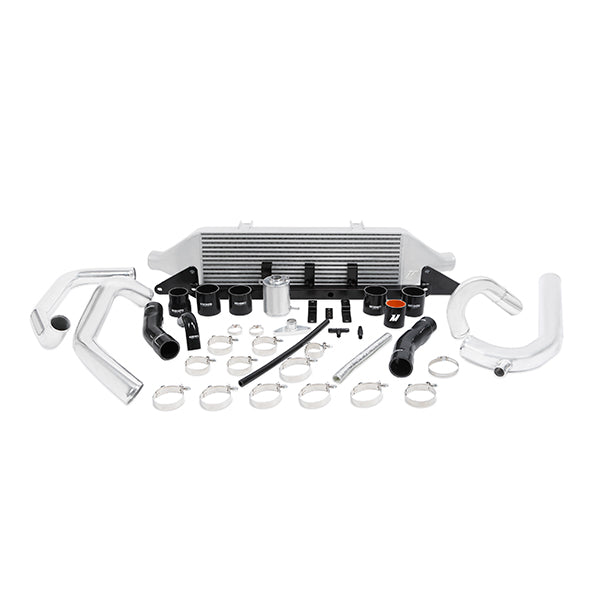

(1) Bar-and-Plate Intercooler--(1) Steel Crash Bar w/ Mounting Hardware--(2) Hot-Side Intercooler Pipes--(2) Cold-Side Intercooler Pipes--(1) BPV Flange Adapter--(1) Resistor Block Relocation Bracket w/ Mounting Hardware--(2) Lower Intercooler Brackets w/ Mounting Hardware--(1) Aluminum Overflow Can w/ Mounting Hardware--(1) Turbo to Hot Pipe Coupler (for stock turbo)--(1) Turbo to Hot Pipe Coupler (for aftermarket turbo)--(1) 2.25-in Straight Coupler--(2) 2.75-in Straight Couplers--(1) 2.75-in x 3.25-in Long Straight Coupler--(1) 2.00-in-2.75-in Transition Coupler--(1) BPV Recirculation Hose--(1) PCV hose--(1) 2.00-in T-bolt Clamp--(4) 2.5-in T-bolt Clamps--(7) 3-in T-bolt Clamps--(1) 1.5-in Worm Gear Clamp--(1) Bypass Valve Gasket--(1) Black Nylon Hose Fitting, 3/4-in I.D.--(1) Black Nylon Tee Hose Fitting, 3/4-in I.D.--(1) 12-in of Thermal Wrap |
| TechSpec Maximum Recommended Horsepower |
600 |
| TechSpec Outlet (in) |
3 |
| SellingPoint01 |
Fits the 2001-2007 Subaru WRX/STI |
| SellingPoint02 |
Intercooler design optimized for maximum flow, and smooth cast end tanks allow the best possible airflow in and out of the intercooler |
| SellingPoint05 |
Includes all necessary hardware, brackets, and accessories |
| SellingPoint11 |
N/A |
| SellingPoint12 |
N/A |
| SellingPoint14 |
N/A |
| SellingPoint15 |
N/A |
| TechSpec Centerline Radius |
N/A |
| TechSpec Core Type |
Bar-and-Plate |
| TechSpec Installation Notes |
N/A |
| TechSpec Maximum Recommended Boost Pressure (PSI) |
30 |
| TechSpec Note |
Reservoir tank may require modification for proper fitment--Mishimoto recommends that this intercooler kit, with or without the optional air intake, is not used with the stock ECU programming. It is highly recommended that the customer retune the vehicle's ECU after installing the intercooler kit. Power gains will vary depending on the size of the turbo, exhaust system, fuel system, and type of ECU tune that is applied to the vehicle. This kit is rated for approximately 700 whp, or 30 psi of turbo boost. Exceeding these horsepower or pressure limits may require a custom-sized front-mount intercooler. This intercooler kit cannot retain the use of your fog lights if equipped. |
| TechSpec Overall Length (in) |
44 |
| TechSpec Pipe Diameter |
N/A |
| TechSpec Pipe Length |
N/A |
| TechSpec Weight (lbs) |
25.5 |
| Length |
23.0000 |
| Width |
12.0000 |
| Height |
48.0000 |
| Weight |
58.0000 |
