| Description_DEF |
Intercooler Kit |
| Description_DES |
Subaru WRX STI front-mount intercooler kit, W/ Air Box, 2008-2014 Black |
| Description_EXT |
Front-Mount Intercooler Kit, fits Subaru STI 2008-2014 |
| Description_INV |
Mishimoto MMINT-STI-08AIBK |
| Description_FAB |
Fits the 2008-2014 STI |
| Description_FAB |
Optimal core design for maximum cooling efficiency with minimal pressure drop |
| Description_FAB |
Rated to 600 whp |
| Description_FAB |
Smooth cast end tanks allow the best possible airflow in and out of the intercooler |
| Description_FAB |
Includes two different turbo outlet hoses for stock or aftermarket turbos |
| Description_FAB |
Works with stock bypass valve or aftermarket blow-off valve |
| Description_FAB |
Available with optional Mishimoto Subaru WRX/STI Performance Race Intake |
| Description_FAB |
Intercooler available in Silver, Black, or Gold |
| Description_FAB |
Mishimoto Lifetime Warranty |
| Description_MKT |

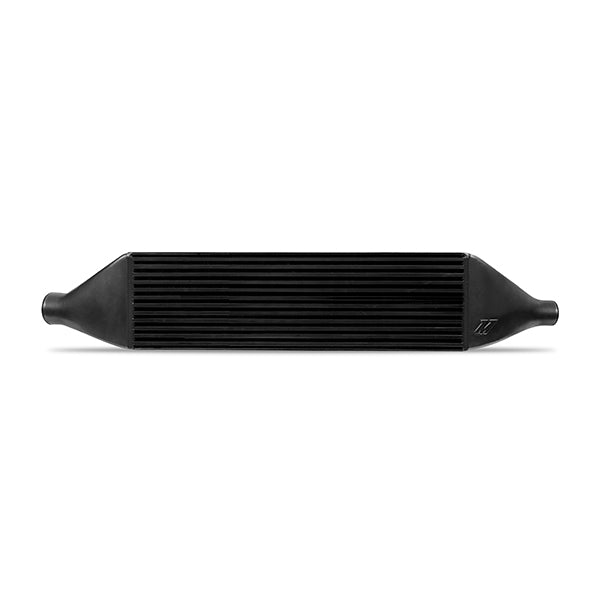

Designed for applications that demand the greatest airflow and cooling capabilities, the Mishimoto WRX STI front-mount intercooler kit will provide your Subaru with the ability to make the most horsepower and torque possible. This front-mount intercooler was designed with a large, 28in intercooler core that provides the maximum cooling capability without excessive pressure drops that will wear out any turbocharger over time. The intercooler features smooth cast end tanks that are CFD tested for maximum airflow with no sharp walls or bends from cut-and-weld end tanks that disrupt airflow. The intercooler provides the best airflow and heat exchange properties for those time-attack laps, or a 10-second blast down the quarter mile. |
| Description_SHO |
Intercooler Kit |
| CARB EO Number |
D-759 |
| Install Difficulty |
5 |
| OptionLabel |
Black Intercooler with Intake |
| SellingPoint01 |
Fits the 2008-2014 STI |
| SellingPoint02 |
Intercooler design optimized for maximum flow |
| SellingPoint03 |
Smooth cast end tanks allow the best possible airflow in and out of the intercooler |
| SellingPoint04 |
Optimal core design for maximum cooling efficiency with minimal pressure drop |
| SellingPoint05 |
Rated to 600 whp |
| SellingPoint06 |
Includes all necessary hardware, brackets, and accessories |
| SellingPoint07 |
Fits left-hand and right-hand drive models |
| SellingPoint08 |
Intercooler available in Sleek Silver or Stealth Black |
| SellingPoint09 |
Includes two different turbo outlet hoses for stock or aftermarket turbos |
| SellingPoint10 |
Works with stock bypass valve or aftermarket blow-off valve |
| SellingPoint11 |
Available with optional Mishimoto Subaru WRX/STI Performance Race Intake |
| SellingPoint12 |
Mishimoto Lifetime Warranty |
| SellingPoint13 |
N/A |
| SellingPoint14 |
N/A |
| SellingPoint15 |
N/A |
| TechSpec Applications |
2008-2014 Subaru STI |
| TechSpec Centerline Radius |
N/A |
| TechSpec Chassis Codes |
GH--GE--GR--GV |
| TechSpec Core Height (in) |
8.25 |
| TechSpec Core Length (in) |
28 |
| TechSpec Core Thickness (in) |
2.76 |
| TechSpec Core Type |
Bar-and-Plate |
| TechSpec Engine Codes |
EJ205--EJ255 |
| TechSpec Includes |

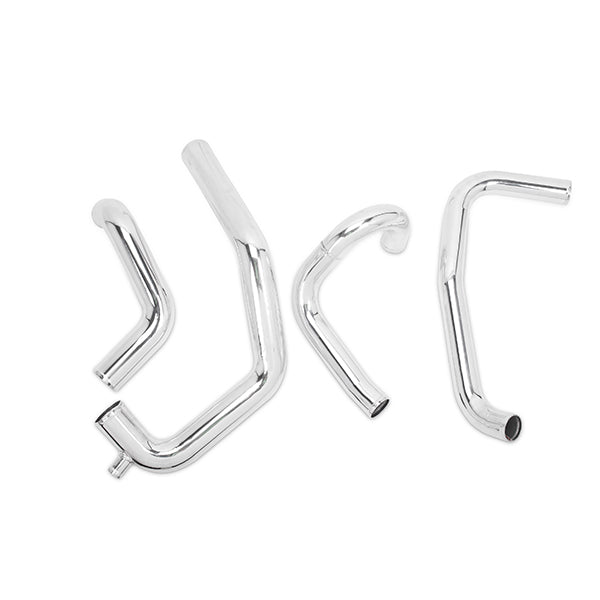

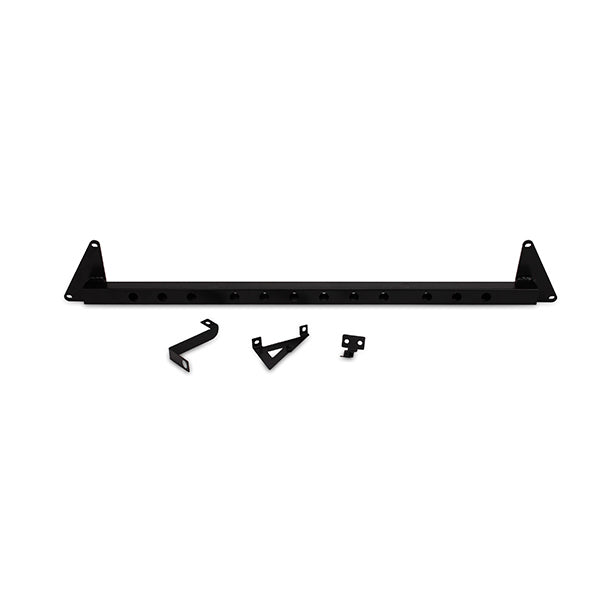

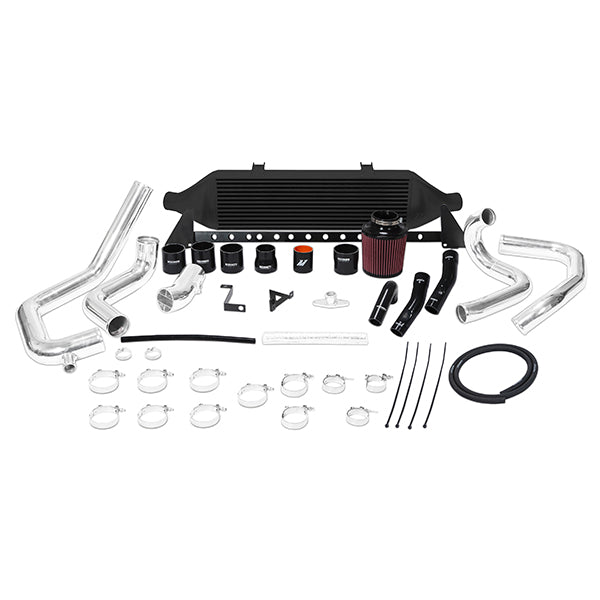

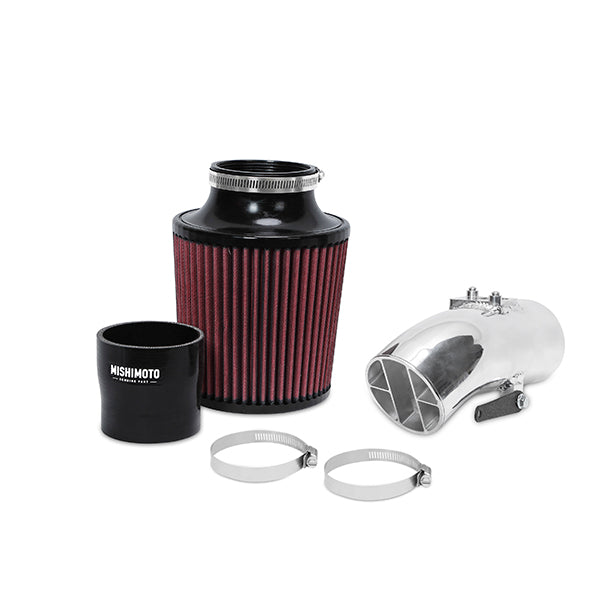

(1) Bar-and-Plate Intercooler--(1) Steel Crash Bar w/Mounting Hardware--(2) Hot-Side Intercooler Pipes--(2) Cold-Side Intercooler Pipes--(1) BPV Flange Adapter--(1) Relocation Bracket w/Mounting Hardware for Coolant Overflow--(1) Turbo to Hot-Pipe Coupler (for Stock Turbo)--(1) Turbo to Hot-Pipe Coupler (for Aftermarket Turbo)--(1) 2.25-in Straight Coupler--(2) 2.75-in Straight Couplers--(1) 2.75-in x 3.25-in Long Straight Coupler--(1) 2-in to 2.75-in Transition Coupler--(1) BPV Recirculation Hose--(1) PCV Hose--(1) 2-in T-bolt Clamp--(4) 2.5-in T-bolt Clamps--(7) 3-in T-bolt Clamps--(1) 1.5-in Worm Gear Clamp--(1) Bypass Valve Gasket--(1) Black Nylon Hose Fitting, 1/2 I.D.--(1) Black Nylon Tee Hose Fitting, 1/2 I.D.--(1) 12-in of Thermal Wrap--(1) 3-ft of 1/4 Rubber Hose--(1) Black Zip Ties--Optional Air Intake Kit--(1) Oiled Filter--(1) Aluminum Intake Pipe--(1) 3-in to 2.75-in Transition Coupler--(2) 3-in Worm Gear Clamps--(2) Black High-Temp Zip Ties |
| TechSpec Inlet (in) |
2.75 |
| TechSpec Installation Notes |
N/A |
| TechSpec Maximum Recommended Boost Pressure (PSI) |
30 |
| TechSpec Maximum Recommended Horsepower |
700 |
| TechSpec Note |
Mishimoto recommends that this intercooler kit, with or without the optional air intake, is not used with the stock ECU programming. It is highly recommended that the customer retune the vehicle's ECU after installing the intercooler kit. Power gains will vary depending on the size of the turbo, exhaust system, fuel system, and type of ECU tune that is applied to the vehicle. This kit is rated for approximately 700 whp, or 30 psi of turbo boost. Exceeding these horsepower or pressure limits may require a custom-sized front-mount intercooler. |
| TechSpec Outlet (in) |
3 |
| TechSpec Overall Height (in) |
9 |
| TechSpec Overall Length (in) |
44 |
| TechSpec Overall Width (in) |
5.5 |
| TechSpec Pipe Diameter |
N/A |
| TechSpec Pipe Length |
N/A |
| TechSpec Pipe Shape |
N/A |
| TechSpec Weight (lbs) |
25.5 |
| Length |
26.0000 |
| Width |
12.0000 |
| Height |
48.0000 |
| Weight |
57.0000 |
