| Description_DEF |
Intercooler Kit |
| Description_DES |

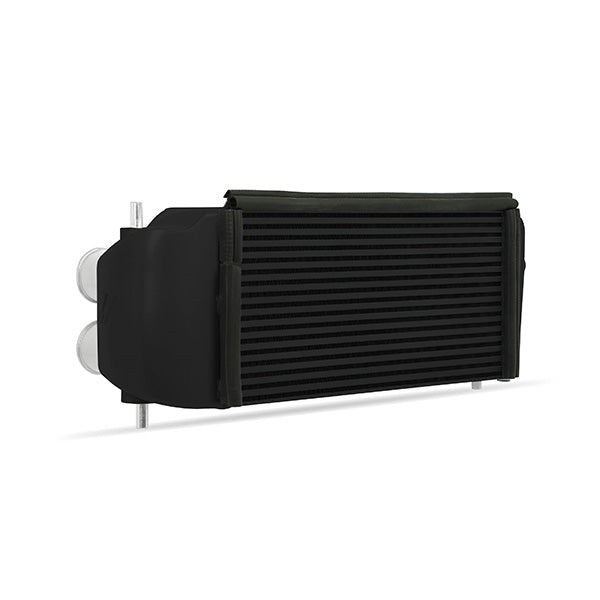

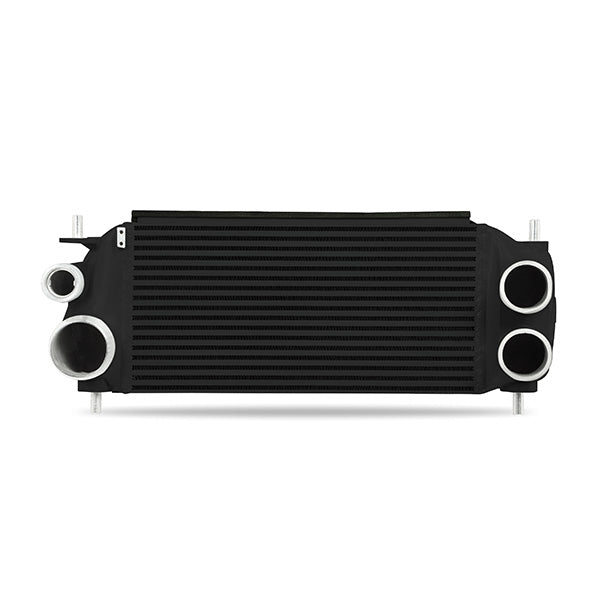

2015+ Ford F-150 EcoBoost Intercooler |
| Description_FAB |
Direct fit for the 2015+ Ford F-150 EcoBoost |
| Description_FAB |
10 F (5.5 C) reduction in intake air temp |
| Description_FAB |
77-percent increase in internal core volume |
| Description_FAB |
163-percent increase in external fin surface area |
| Description_FAB |
Mishimoto Lifetime Warranty |
| Description_INV |
Mishimoto MMINT-F150-15BK |
| Description_EXT |
Intercooler, fits Ford F-150 EcoBoost 2015+ |
| Description_SHO |
Intercooler Kit |
| Description_MKT |
Keep those air intake temps down! With Mishimoto's Performance Intercooler for the 2015+ Ford F-150 EcoBoost, your engine will reach a better level of cooling from the help of both an increase in core volume by 77-percent over stock and external fin surface area by 163-percent. We put our core through some grueling tests to see how our design can alleviate the effects of heat soak. With temperature drops averaging 10 degrees under the stock numbers, your F-150 will take in cooler air, providing better performance and increased tuning potential. |
| SellingPoint06 |
All-aluminum, TIG-welded construction |
| TechSpec Outlet (in) |
3 |
| TechSpec Overall Height (in) |
9.5 |
| TechSpec Overall Width (in) |
7 |
| SellingPoint03 |
77-percent increase in internal core volume |
| SellingPoint10 |
Available in Sleek Silver or Stealth Black |
| TechSpec Applications |
2015+ Ford F-150 EcoBoost--2017+ Ford Raptor 3.5L V6 EcoBoost--2018+ Ford Expedition 3.5L V6 EcoBoost--2018+ Lincoln Navigator 3.5L V6 EcoBoost |
| CARB EO Number |
D-759-6 |
| Install Difficulty |
3 |
| SellingPoint04 |
163-percent increase in external fin surface area |
| SellingPoint12 |
N/A |
| SellingPoint13 |
N/A |
| TechSpec Chassis Codes |
N/A |
| TechSpec Engine Codes |
2.7L V6 EcoBoost--3.5L V6 EcoBoost |
| TechSpec Inlet (in) |
2.5 |
| TechSpec Maximum Recommended Horsepower |
N/A |
| TechSpec Weight (lbs) |
N/A |
| OptionLabel |
Stealth Black |
| SellingPoint01 |
Direct fit for the 2015+ Ford F-150 EcoBoost |
| SellingPoint02 |
10F (5.5C) reduction in intake air temp |
| SellingPoint05 |

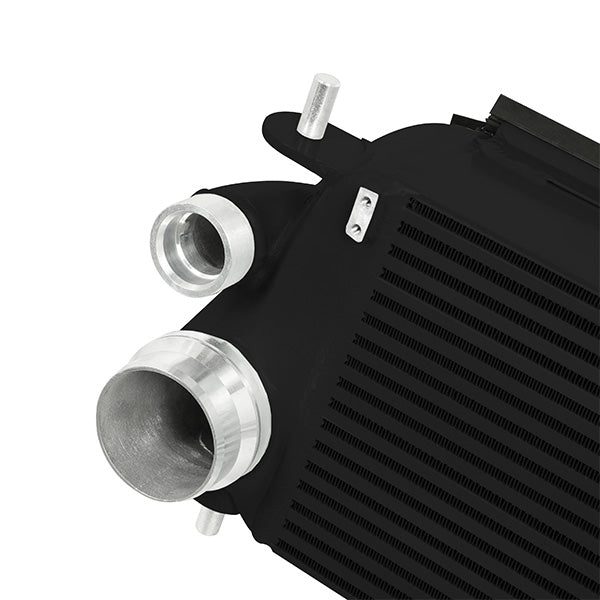

CNC-machined inlets and outlets are ridged for greater holding power |
| SellingPoint07 |
Internal fin design for maximum heat transfer with minimal pressure drop |
| SellingPoint08 |
Fits with stock and Mishimoto 2.7L and 3.5L intercooler pipe kits |
| SellingPoint09 |
Fits with stock intercooler fans without modification |
| SellingPoint11 |
Mishimoto Lifetime Warranty |
| SellingPoint14 |
N/A |
| SellingPoint15 |
N/A |
| TechSpec Centerline Radius |
N/A |
| TechSpec Core Height (in) |
9.4 |
| TechSpec Core Length (in) |
19.6 |
| TechSpec Core Thickness (in) |
4.72 |
| TechSpec Core Type |
Bar-and-Plate |
| TechSpec Includes |

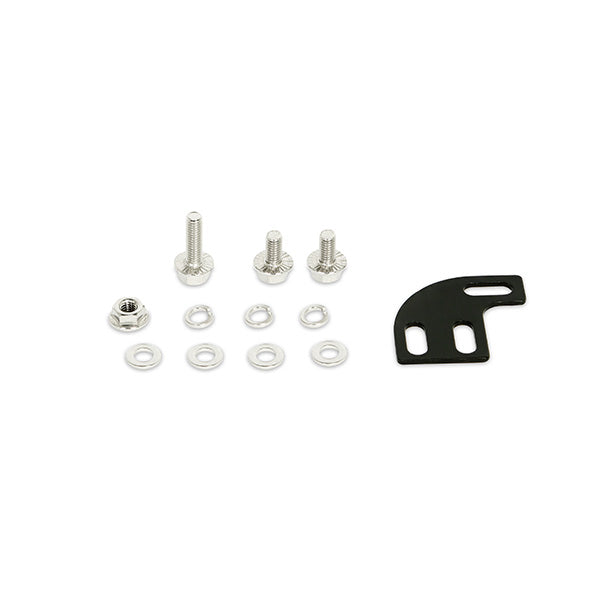

(1) Mishimoto Intercooler w/ Assembled Rubber Trim--(1) Bypass Valve Bracket--Mounting Hardware--Bypass Valve Hardware--Mishimoto Lifetime Warranty |
| TechSpec Installation Notes |
27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM). |
| TechSpec Maximum Recommended Boost Pressure (PSI) |
50 |
| TechSpec Note |
N/A |
| TechSpec Overall Length (in) |
29 |
| TechSpec Pipe Diameter |
N/A |
| TechSpec Pipe Length |
N/A |
| TechSpec Pipe Shape |
N/A |
| Length |
14.0000 |
| Width |
20.0000 |
| Height |
49.0000 |
| Weight |
43.0000 |
