| Description_DEF |
Intercooler Pipe Set |
| Description_EXT |
Intake Elbow, fits Ford 6.0L Powerstroke 2003-2007 |
| Description_DES |
Ford 6.0L Powerstroke Intake Elbow |
| Description_INV |
Mishimoto MMIE-F2D-03P |
| Description_FAB |
Direct fit for all 2003--2007 Ford 6.0 Powerstroke |
| Description_FAB |
Made from 5052 aluminum tubing for smooth airflow and high strength |
| Description_FAB |
Fits with stock and Mishimoto intercooler pipes |
| Description_FAB |

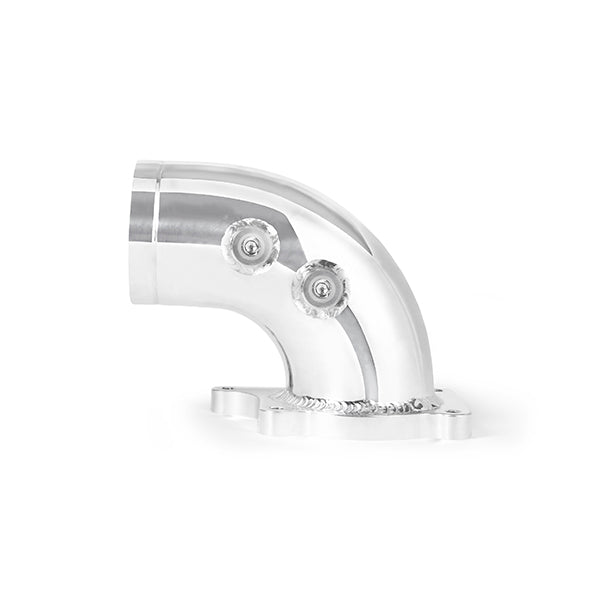

Includes two raised ports for sensors or injection nozzles |
| Description_FAB |
Easy installation, installs in less than 30 minutes |
| Description_MKT |

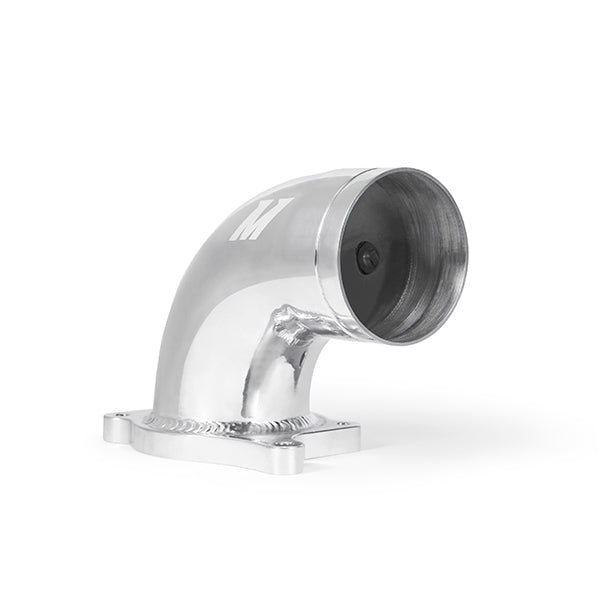

Mishimoto has developed an aluminum intake elbow specifically for the 2003--2007 Ford 6.0L Powerstroke! This intake elbow removes the tight bend that is evident on the stock inake elbow and allows for greater airflow! The Mishimoto intake elbow works with either the stock plastic or aluminum cold side pipe or the Mishimoto cold side pipe! The Mishimoto intake elbow also comes with a new silicone cold side boot with Duracore Technology to replace your worn out stock boot. In addition, we also include a new O-ring gasket and constant-tension T-bolt clamps for hassle-free installation. The Mishimoto intake elbow also features two pre-tapped 1/8inin NPT sensor bungs for any added sensors or injection systems to make this product extremely versatile. The indented beadroll allows the stock or Mishimoto boot to grip onto the edge of the pipe, eliminating the chance of boost leaks. The Mishimoto intake elbow comes in a polished, wrinkle black, or all-new wrinkle blue finish to really set your truck apart! Like all products, this also comes with the Mishimoto lifetime warranty you can trust!in |
| Description_SHO |
Turbo Intercool Pipe |
| Install Difficulty |
2 |
| OptionLabel |
Polished |
| SellingPoint01 |
Direct fit for the 2003-2007 Ford 6.0 Powerstroke |
| SellingPoint02 |
Made from 5052 aluminum tubing for smooth airflow and high strength |
| SellingPoint03 |
Easy installation, installs in less than 30 minutes |
| SellingPoint04 |
Fits with stock and Mishimoto intercooler pipes |
| SellingPoint05 |
Includes two raised ports for sensors or injection nozzles |
| SellingPoint06 |
Includes new rubber O-ring, specified for high boost pressures |
| SellingPoint07 |
Includes new DuraCore boot and Mishimoto Constant-Tension T-bolt Clamps |
| SellingPoint08 |
Available with a polished, wrinkle black, or wrinkle blue finish |
| SellingPoint09 |
Mishimoto lifetime warranty |
| SellingPoint10 |
N/A |
| SellingPoint11 |
N/A |
| SellingPoint12 |
N/A |
| SellingPoint13 |
N/A |
| SellingPoint14 |
N/A |
| SellingPoint15 |
N/A |
| TechSpec Applications |
2003-2007 Ford F-250 w/ 6.0L Powerstroke--2003-2007 Ford F-350 w/ 6.0L Powerstroke--2003-2007 Ford F-450 w/ 6.0L Powerstroke--2003-2007 Ford F-550 w/ 6.0L Powerstroke |
| TechSpec Centerline Radius |
N/A |
| TechSpec Chassis Codes |
N/A |
| TechSpec Core Height (in) |
N/A |
| TechSpec Core Length (in) |
N/A |
| TechSpec Core Thickness (in) |
N/A |
| TechSpec Core Type |
N/A |
| TechSpec Engine Codes |
N/A |
| TechSpec Includes |

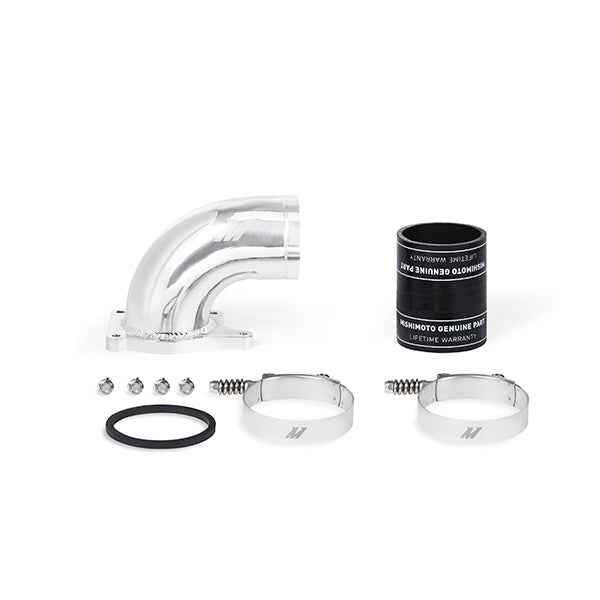

(1) Aluminum intake pipe--(1) Silicone boot with Duracore Technology--(2) 3.25-in Constant-Tension T-bolt Clamps--(1) O-ring gasket--Mounting Hardware--Mishimoto Lifetime Warranty |
| TechSpec Inlet (in) |
N/A |
| TechSpec Installation Notes |
N/A |
| TechSpec Maximum Recommended Boost Pressure (PSI) |
N/A |
| TechSpec Maximum Recommended Horsepower |
N/A |
| TechSpec Note |
2003.5-2004 models will require aftermarket engine tuning to use this product----For 2003-2004 models, the engine's throttle body assembly must be removed from the intake manifold prior to installing this product, specific engine tuning will be needed once this throttle body assembly is removed. |
| TechSpec Outlet (in) |
N/A |
| TechSpec Overall Height (in) |
N/A |
| TechSpec Overall Length (in) |
N/A |
| TechSpec Overall Width (in) |
N/A |
| TechSpec Pipe Diameter |
N/A |
| TechSpec Pipe Length |
N/A |
| TechSpec Pipe Shape |
N/A |
| TechSpec Weight (lbs) |
N/A |
| Length |
8.0000 |
| Width |
10.0000 |
| Height |
14.0000 |
| Weight |
6.0000 |
