| Description_DEF |
Intercooler Pipe Set |
| Description_DES |
Ford F-150 3.5L EcoBoost Hot-Side Intercooler Pipe Kit, 2011-2014 |
| Description_EXT |
Hot-Side Intercooler Pipe Kit, fits Ford F-150 3.5L EcoBoost 2011-2014 |
| Description_FAB |
Direct fit for the 2011-2014 Ford F-150 3.5L EcoBoost |
| Description_FAB |
41% greater internal volume than stock |
| Description_FAB |
10% greater flow than stock |
| Description_FAB |

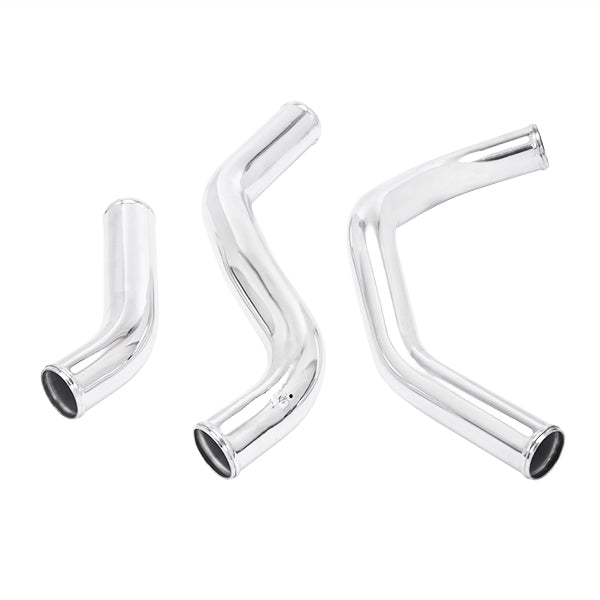

2.5" Aluminum intercooler pipes replace weak stock plastic pipes |
| Description_FAB |
No trimming of the engine cover or modifications necessary for installation |
| Description_FAB |
Includes all boots necessary for easy installation, including couplers to the intercooler |
| Description_FAB |

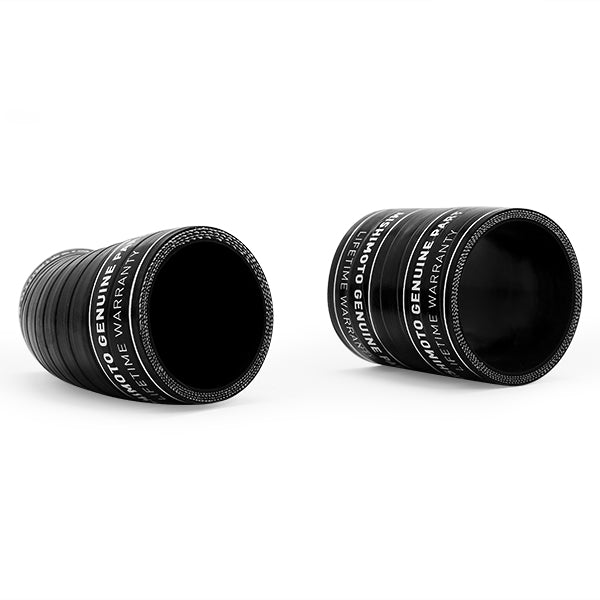

Includes Mishimoto Silicone Boots with DuraCore (TM) technology for superior resistance to heat, pressure, fuel, and oil |
| Description_FAB |
Max gains of +15whp/+21wtq when using Mishimoto's full kit |
| Description_FAB |
Available in polished or wrinkle black powder-coated finish |
| Description_FAB |
Mishimoto Lifetime Warranty |
| Description_INV |
Mishimoto MMICP-F150-11HP |
| Description_MKT |
The Mishimoto 2011?2014 F?150 EcoBoost Hot?Side Intercooler Pipe Kit is an ideal upgrade in reliability and performance. The Mishimoto kit features polished aluminum or wrinkle black piping accompanied by silicone couplers with DuraCore? technology. Engineered to eliminate restrictive bends, this hot?side pipe kit increases average airflow by 10-percent and internal volume by 41-percent when compared to stock. The DuraCore? couplers provide superior resistance to heat, pressure, fuel, and oil. This effectively increases the life of our couplers by preventing leaks and blowouts. To add even more reliability, Mishimoto's Constant Tension T?bolt clamps are included for an accurate and secure installation. Pairing this kit with our Mishimoto 2011?2014 F?150 EcoBoost Cold?Side Intercooler Pipe kit gives your truck the efficient, unimpeded airflow it needs to make up to 15 more horsepower and 21 ft/lbs more torque. To further improve your charge?air system, combine this pipe kit with the Mishimoto 2011?2014 F?150 EcoBoost performance intercooler. Of course, this kit is backed by our Mishimoto Lifetime Warranty, so you never need to worry about buying another intercooler pipe kit again. |
| Description_SHO |
Turbo Intercool Pipe |
| Install Difficulty |
4 |
| SellingPoint01 |
Direct fit for the 2011-2014 Ford F-150 3.5L EcoBoost |
| SellingPoint14 |
N/A |
| TechSpec Centerline Radius |
N/A |
| TechSpec Includes |

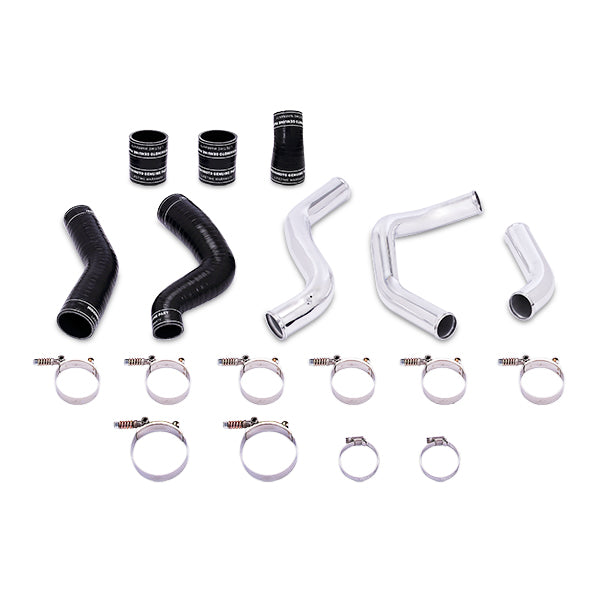

(3) Aluminum Intercooler Pipes--(5) Silicone Boots w/ DuraCore Technology--(2) High-Torque Worm Gear Clamps--(8) Constant-Tension T-Bolt Clamps--Mishimoto Lifetime Warranty |
| SellingPoint05 |
No trimming of the engine cover or modifications necessary for installation |
| TechSpec Core Height (in) |
N/A |
| TechSpec Installation Notes |
27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM). |
| TechSpec Maximum Recommended Boost Pressure (PSI) |
N/A |
| TechSpec Pipe Diameter |
N/A |
| TechSpec Weight (lbs) |
N/A |
| SellingPoint03 |
10-percent greater flow than stock |
| SellingPoint06 |
Includes all boots necessary for easy installation, including couplers to the intercooler |
| SellingPoint09 |
Available in polished or wrinkle black powder-coated finish |
| SellingPoint10 |
Mishimoto Lifetime Warranty |
| SellingPoint12 |
N/A |
| TechSpec Core Length (in) |
N/A |
| TechSpec Core Thickness (in) |
N/A |
| TechSpec Outlet (in) |
2.36 |
| TechSpec Overall Height (in) |
N/A |
| TechSpec Overall Width (in) |
N/A |
| CARB EO Number |
D-759-6 |
| OptionLabel |
Polished |
| SellingPoint02 |
41-percent greater internal volume than stock |
| SellingPoint04 |
2.5-in Aluminum intercooler pipes replace weak stock plastic pipes |
| SellingPoint07 |
Includes Mishimoto Silicone Boots with DuraCore technology for superior resistance to heat, pressure, fuel, and oil |
| SellingPoint08 |
Max gains of 15whp/21wtq when using Mishimoto's full kit |
| SellingPoint11 |
N/A |
| SellingPoint13 |
N/A |
| SellingPoint15 |
N/A |
| TechSpec Applications |
2011-2014 Ford F-150 3.5L V6 EcoBoost--2015-2017 Ford Expedition 3.5L V6 EcoBoost--2015-2017 Lincoln Navigator 3.5L V6 EcoBoost |
| TechSpec Chassis Codes |
P415 |
| TechSpec Engine Codes |
3.5L V6 EcoBoost |
| TechSpec Inlet (in) |
2.1 |
| TechSpec Maximum Recommended Horsepower |
N/A |
| TechSpec Note |
N/A |
| TechSpec Pipe Length |
N/A |
| TechSpec Pipe Shape |
N/A |
| TechSpec Core Type |
N/A |
| TechSpec Overall Length (in) |
N/A |
| Length |
18.0000 |
| Width |
18.0000 |
| Height |
28.0000 |
| Weight |
12.0000 |
