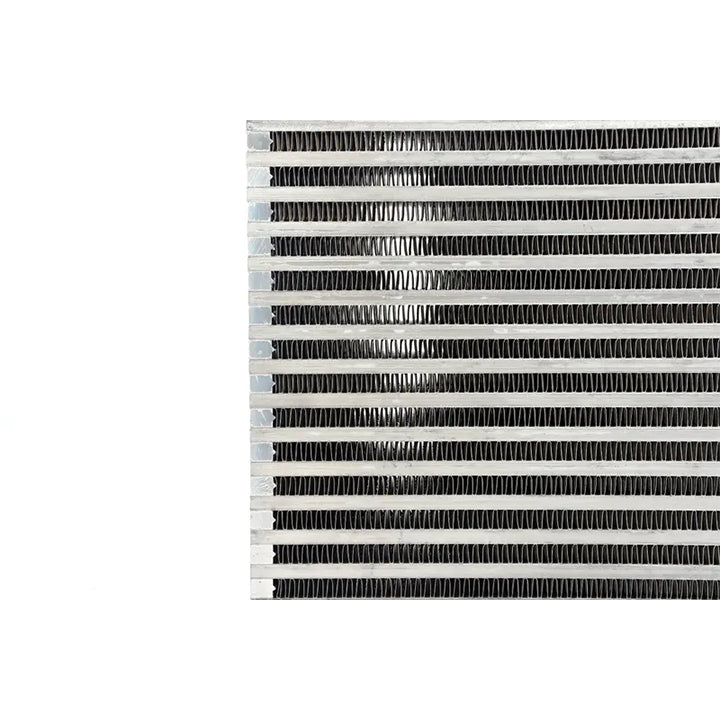

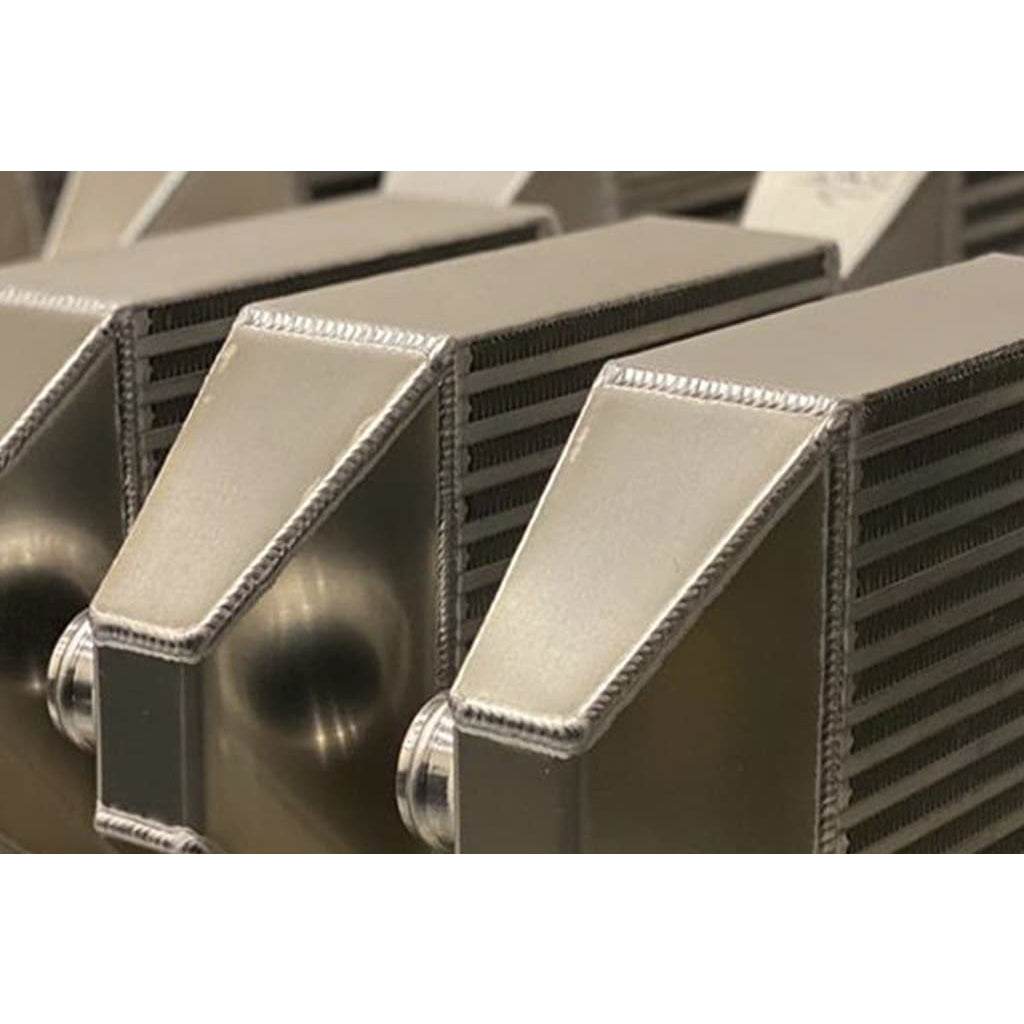

CSF Bar & Plate Intercooler Cores are used by some of the most renowned tuning and performance companies in the industry. This 20" x 12" x 3" Horizontal Flow Core is rated for 700 WHP and the perfect fit for your custom high-performance intercooler. Each CSF Intercooler core is pressure tested at 120psi for maximum reliability in extreme boost applications. Hand-Built using jigs & fixtures for a perfectly straight core in a clean room using gloves inside the CSF factory to ensure proper brazing and a clean surface for future welding. Featuring a multi-louvered high precision staggered fin design (for both ambient and pressure sides of the core) for the best heat transfer possible.
Specifications:
| Description_DEF |
Intercooler Core |
| Description_DES |
High-Performance Bar & Plate Intercooler Core 20x12x3 |
| Description_INV |
CSF 8056 - Universal Intercooler Core |
| Description_FAB |
Heavy-Duty Bar & Plate Intercooler Cores |
| Description_FAB |
Pressure Tested at 120psi for Maximum Reliability in Extreme Boost Applications |
| Description_FAB |
Hand-Built Using Jigs & Fixtures for a Perfectly Straight Core for Easy Welding |
| Description_FAB |
Manufactured by Hand in a Clean Room Using Gloves Inside the CSF Cooling Factory to Ensure Proper Brazing and a Clean Surface for Future Welding |
| Description_FAB |

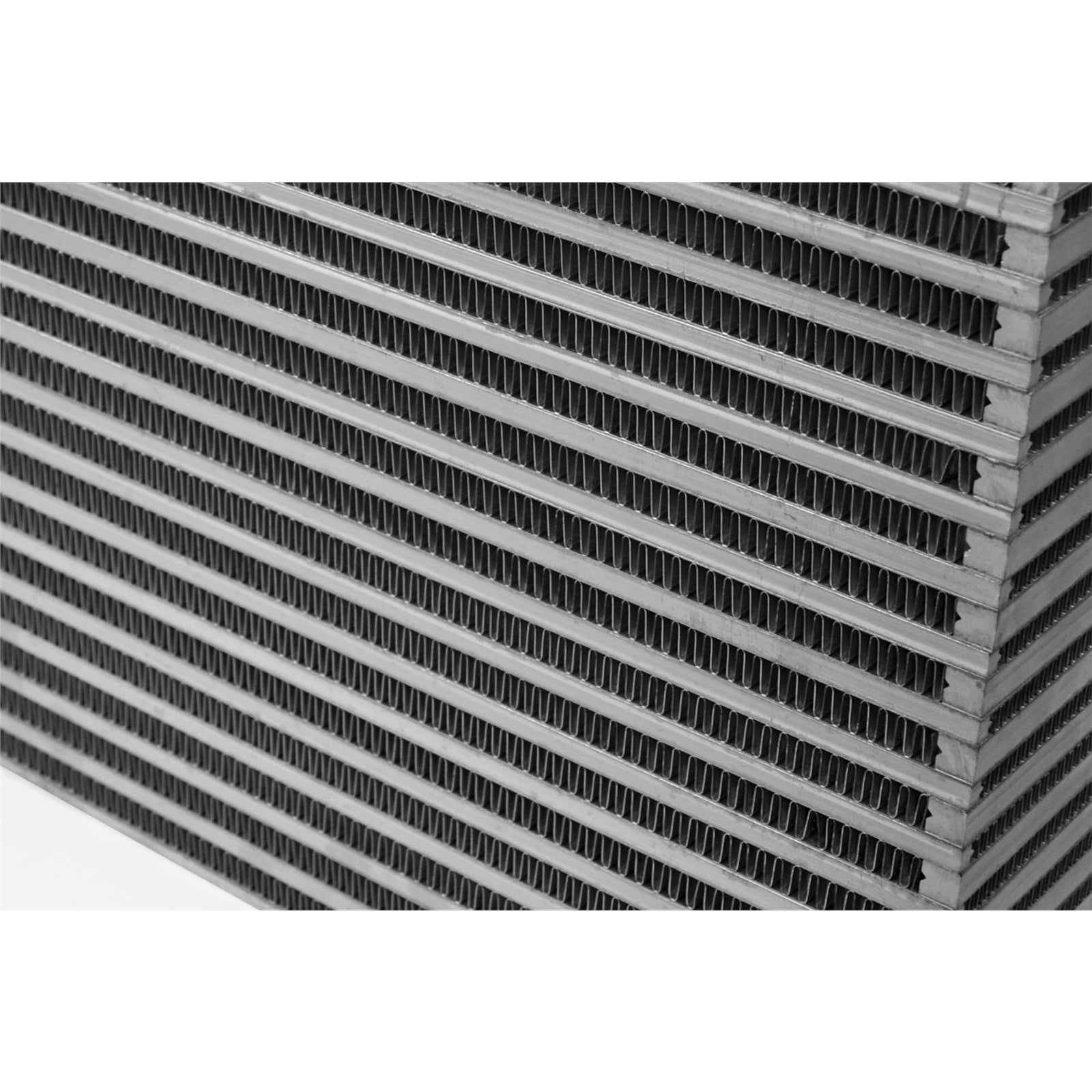

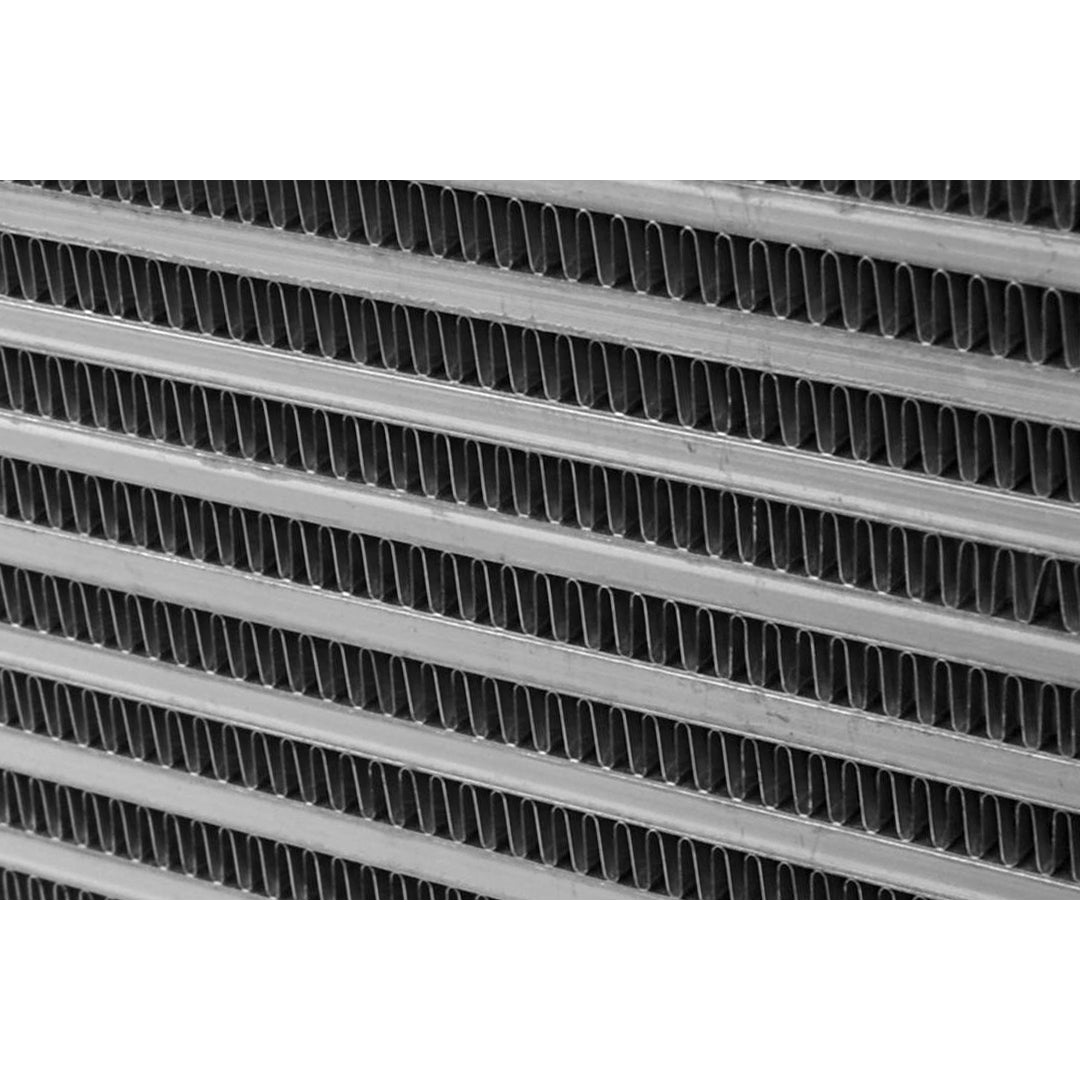

Multi-Louvered High Precision Staggered Fin Design (for Both Ambient and Pressure Sides of the Core) |
| Description_FAB |
Batch Brazed in CSF's State-of-the-Art Digital Vacuum Brazing Oven (12 Ovens in Total) |
| Description_FAB |
Strict Quality Control and Quality Testing, Including Individual Pressure Testing |
| Description_FAB |
Individually Boxed and Protected for Secure Transport Through Single Piece Mail Services |
| Description_FAB |
Dimensions: 20"x12"x3" (505mm x 300mm x 75mm) |
| Description_FAB |
HP Rating: 700 |
| Description_FAB |
Cross-flow |
| Description_EXT |
CSF Bar & Plate Intercooler Cores are used by some of the most renowned tuning and performance companies in the industry. This Horizontal Flow Core is rated for 700 WHP and the perfect fit for your custom high-performance intercooler. |
| Description_SHO |
CSF Intercooler Core |
| Description_MKT |
CSF Bar & Plate Intercooler Cores are used by some of the most renowned tuning and performance companies in the industry. This 20" x 12" x 3" Horizontal Flow Core is rated for 700 WHP and the perfect fit for your custom high-performance intercooler. Each CSF Intercooler core is pressure tested at 120psi for maximum reliability in extreme boost applications. Hand-Built using jigs & fixtures for a perfectly straight core in a clean room using gloves inside the CSF factory to ensure proper brazing and a clean surface for future welding. Featuring a multi-louvered high precision staggered fin design (for both ambient and pressure sides of the core) for the best heat transfer possible. |
| Core Material |
Aluminum |
| HP Rating |
700 |
| Core Length |
20 |
| Core Length |
505 |
| Title |
High-Performance Bar & Plate Intercooler Core 20x12x3 |
| Core Height |
12 |
| Core Height |
300 |
| Core Width |
3 |
| Core Width |
75 |
| Intercooler Flow Direction |
Horizontal |
| Intercooler Type |
Air-to-Air |
| Length |
15.0000 |
| Width |
5.0000 |
| Height |
22.0000 |
| Weight |
19.0000 |
