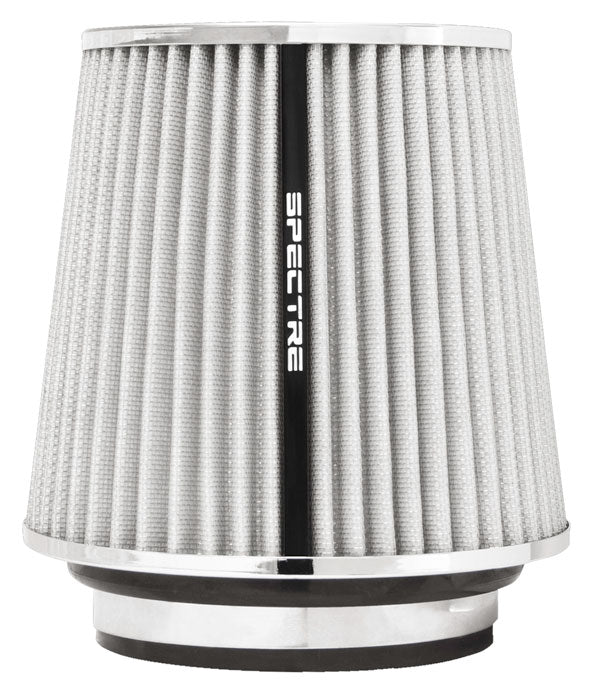

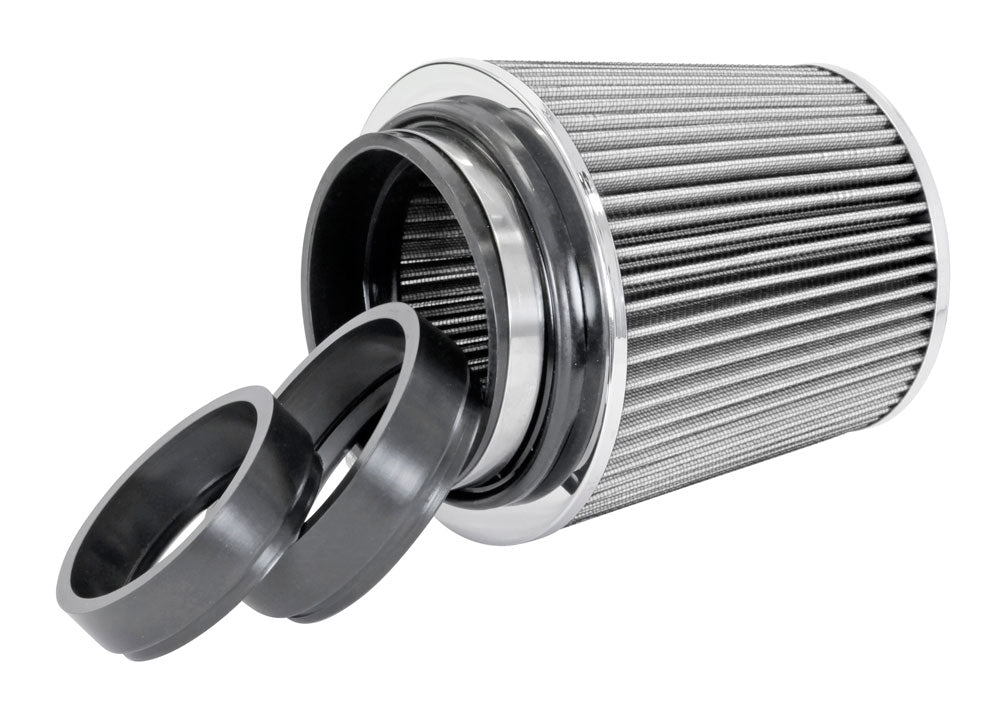

For many types of applications, Spectre offers this High Performance Racing (HPR) Air Filter. This white media clamp-on filter features a top that houses an inverted cone filter for improved service life and even more enhanced flow potential. Included are adapter rings which can fit 3 inch, 3-1/2 inch, and 4-inch diameter tubes. Only the highest quality materials were used including the oiled synthetic media, urethane, and steel mesh. This filter will allow low restriction, better performance, and long service life. This 5-1/2-inch-tall air filter comes factory pre-oiled and ready to use.
Specifications:
Description_DEF |
Air Filter |
Description_DES |
Spectre Conical Filter |
Description_EXT |
This white media clamp-on filter features a top that houses an inverted cone filter for improved service life and even more enhanced flow potential. |
Description_INV |
Spectre Conical Filter |
Description_MKT |
For many types of applications, Spectre offers this High Performance Racing (HPR) Air Filter. This white media clamp-on filter features a top that houses an inverted cone filter for improved service life and even more enhanced flow potential. Included are adapter rings which can fit 3 inch, 3-1/2 inch, and 4-inch diameter tubes. Only the highest quality materials were used including the oiled synthetic media, urethane, and steel mesh. This filter will allow low restriction, better performance, and long service life. This 5-1/2-inch-tall air filter comes factory pre-oiled and ready to use. |
Description_SHO |
Conical Filter |
Prop 65 Yes/No |
Yes |
Weight |
1.7 lb (0.8 kg) |
Height |
5.5 in (140 mm) |
Package Material |
Paperboard |
Package Quantity |
1 |
Prop 65 - Short Label |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |

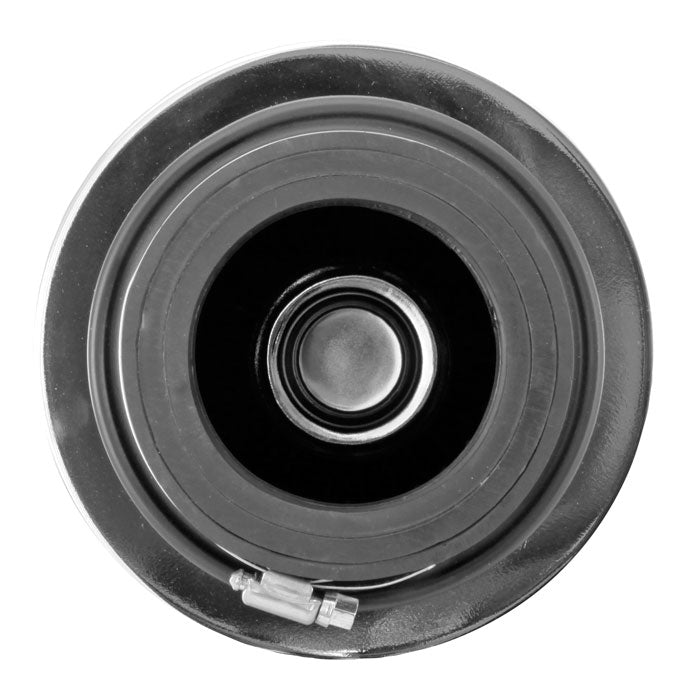

Base Outside Diameter |
6 in (152 mm) |
Flange Offset |
0 in (0 mm) |
Flanges |
1 |
Frame Design |
Flexible |
Item Type |
High Performance |
Pre-Screened |
No |
Title |
Spectre SPE-8138 Spectre Conical Filter |
Air Filter Large End Diameter |
6 in (152 mm) |
Air Filter Material |
Non-woven Synthetic |
Air Filter Shape |
Tapered Conical |
Color |
White |
Filter Re-Oiling Amount |
1.18 oz (35 ml) |
Flange Angle |
0 degrees |
Flange Inside Diameter |
4 in (102 mm) |
Flange Inside Diameter 2 |
3.5 in (89 mm) |
Flange Inside Diameter 3 |
3 in (76 mm) |
Flange Length |
1.125 in (29 mm) |
Flange Type |
Centered |
Inner Wire |
No |
Oil Included |
Yes |
Package Contents |
1 Air Filter |
Package Type |
Box |
Product Style |
Spectre Conical Air Filter |
Prop 65 (C, R or CR) |
CR |
Prop 65 Warning Label |
https://www.knfilters.com/images/l/prop65.jpg |
Top Material |
Chrome |
Top Outside Diameter |
4.75 in (121 mm) |

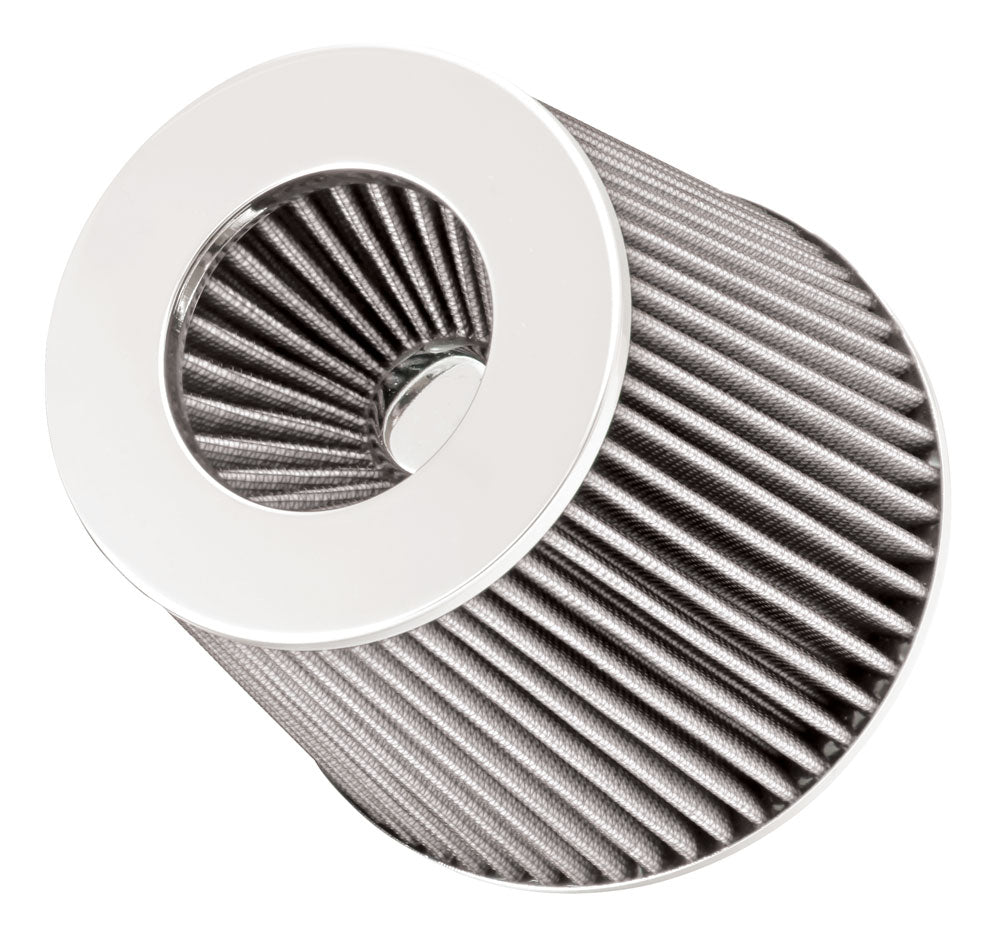

Top Style |
Inverted |
Warranty |
90 Days |
Washable |
Yes |
Length |
7.0000 |
Width |
6.0000 |
Height |
7.0000 |
Weight |
2.0000 |
