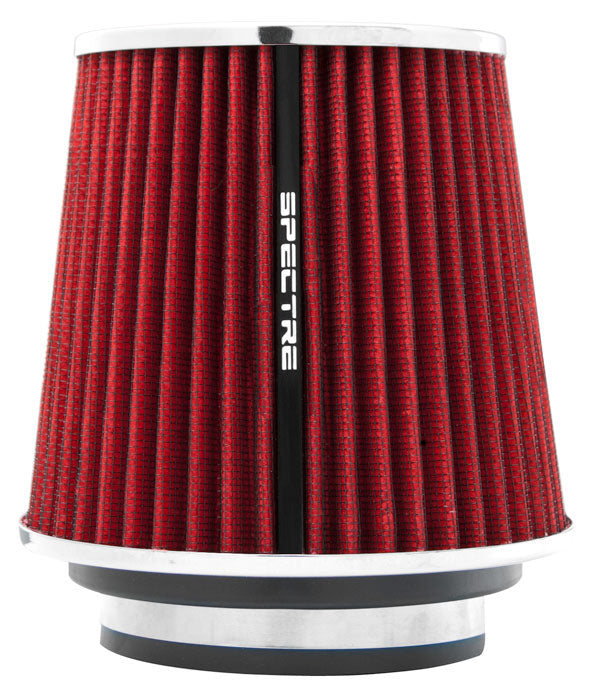

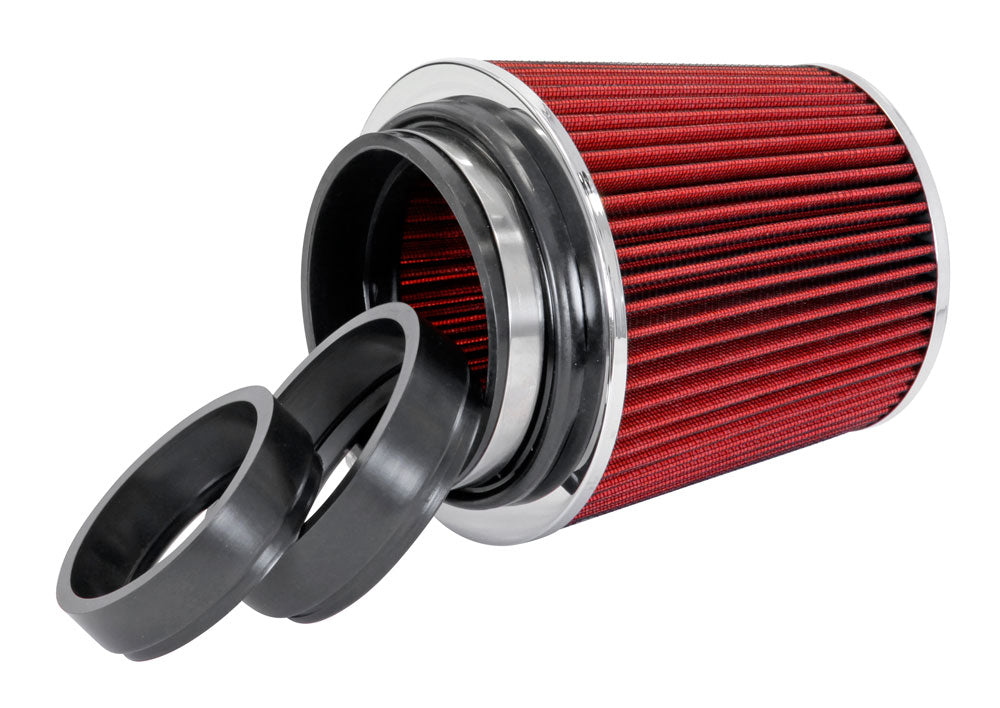

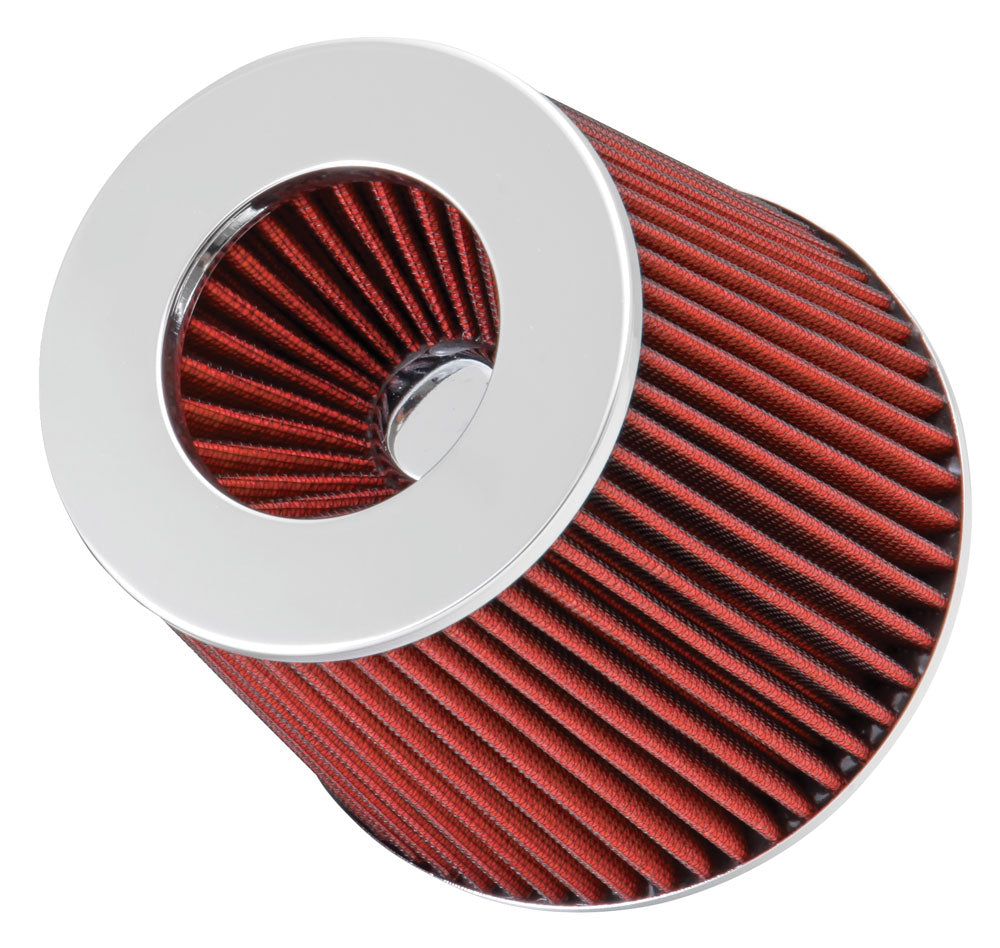

For many types of applications, Spectre offers their High Performance Racing (HPR) Air Filter. This red media clamp-on filter features a top that houses an inverted cone filter for improved service life and enhanced flow potential. Included are adapter rings which can fit 3 inch, 3-1/2 inch, and 4 inch diameter tubes. Only the highest quality materials were used including the oiled synthetic media, urethane, and steel mesh. This filter will allow low restriction, better performance, and long service life. This 5-1/2 inch tall air filter comes factory pre-oiled and ready to use.
Specifications:
| Description_DEF |
Air Filter |
| Description_DES |
Spectre Conical Filter |
| Description_EXT |
This red media clamp-on filter features a top that houses an inverted cone filter for improved service life and enhanced flow potential. |
| Description_INV |
Spectre Conical Filter |
| Description_MKT |
For many types of applications, Spectre offers their High Performance Racing (HPR) Air Filter. This red media clamp-on filter features a top that houses an inverted cone filter for improved service life and enhanced flow potential. Included are adapter rings which can fit 3 inch, 3-1/2 inch, and 4 inch diameter tubes. Only the highest quality materials were used including the oiled synthetic media, urethane, and steel mesh. This filter will allow low restriction, better performance, and long service life. This 5-1/2 inch tall air filter comes factory pre-oiled and ready to use. |
| Description_SHO |
Conical Filter |
| Package Type |
Box |
| Air Filter Shape |
Tapered Conical |
| Color |
Red |
| Prop 65 (C, R or CR) |
CR |
| Top Outside Diameter |
4.75 in (121 mm) |
| Warranty |
90 Days |
| Weight |
1.7 lb (0.8 kg) |
| Flange Offset |
0 in (0 mm) |
| Flanges |
1 |
| Height |
5.5 in (140 mm) |
| Item Type |
High Performance |
| Package Material |
Paperboard |
| Air Filter Material |
Non-woven Synthetic |
| Base Inside Diameter |
0 in (0 mm) |
| Flange Length |
1.125 in (29 mm) |
| Frame Design |
Flexible |
| Pre-Screened |
No |
| Prop 65 - Short Label |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Prop 65 Warning Label |
https://www.knfilters.com/images/l/prop65.jpg |
| Prop 65 Yes/No |
Yes |
| Washable |
Yes |
| Air Filter Large End Diameter |
6 in (152 mm) |
| Base Outside Diameter |
6 in (152 mm) |
| Filter Re-Oiling Amount |
1.18 oz (35 ml) |
| Flange Angle |
0 degrees |
| Flange Inside Diameter |
4 in (102 mm) |
| Flange Inside Diameter 2 |
3.5 in (89 mm) |
| Flange Inside Diameter 3 |
3 in (76 mm) |
| Flange Type |
Centered |
| Inner Wire |
No |
| Oil Included |
Yes |
| Package Contents |
1 Air Filter |
| Package Quantity |
1 |
| Product Style |
Spectre Conical Air Filter |
| Title |
Spectre SPE-8132 Spectre Conical Filter |
| Top Material |
Chrome |
| Top Style |
Inverted |
| Length |
7.0000 |
| Width |
6.0000 |
| Height |
7.0000 |
| Weight |
2.0000 |
