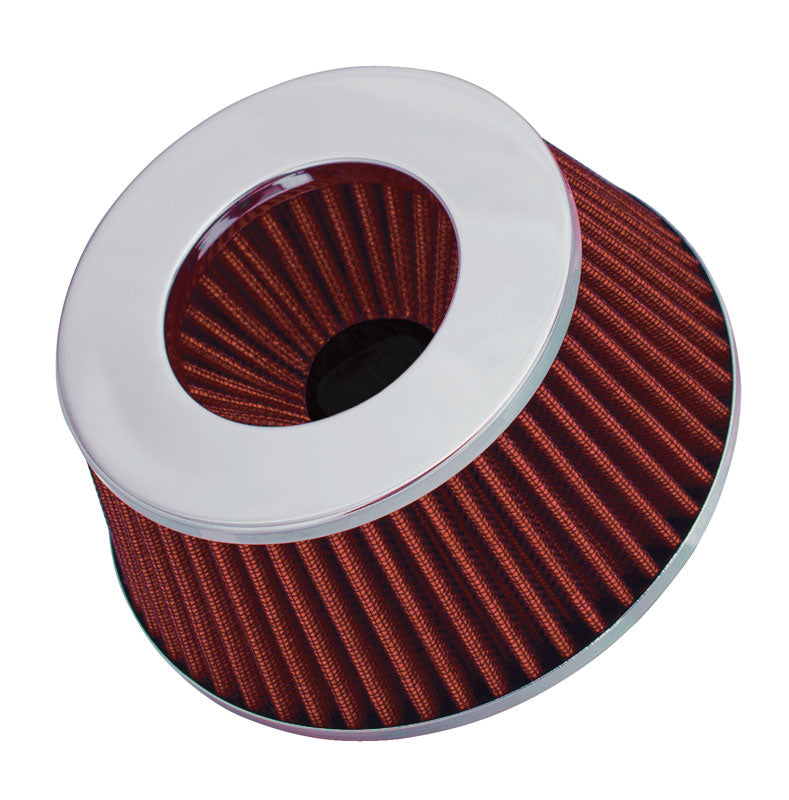

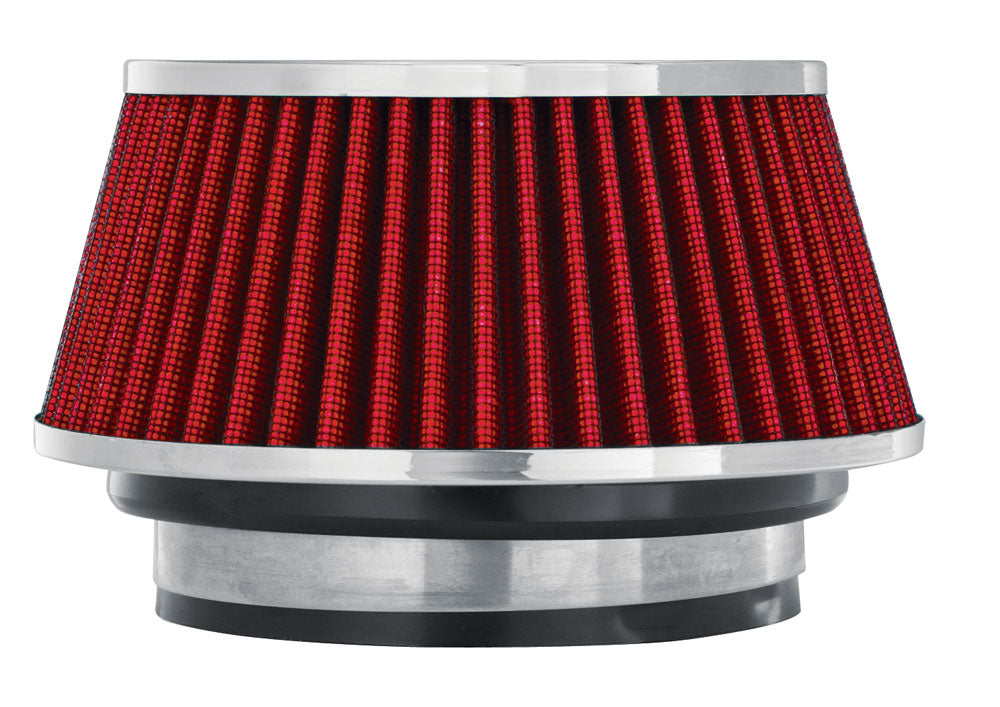

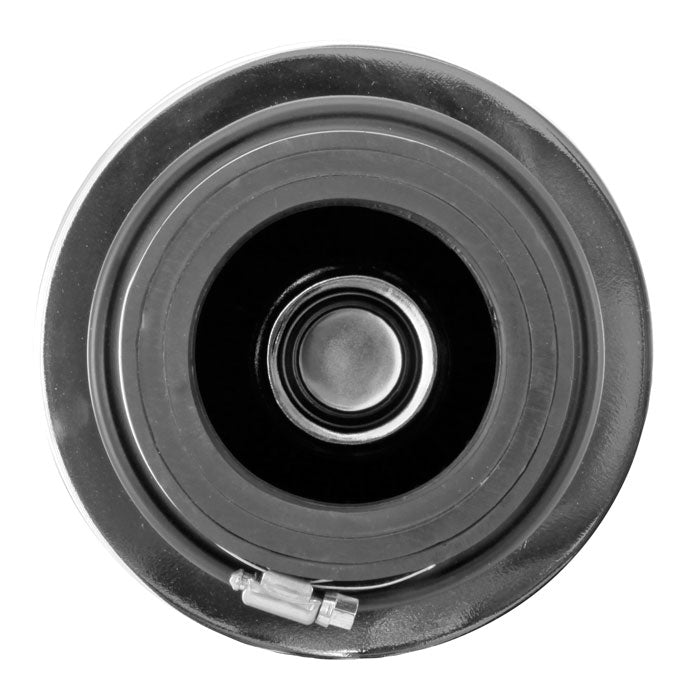

This Spectre High Performance Racing (HPR) Air Filter is a red media clamp-on cone filter that can be used for a wide variety of applications. Using the included adapter rings, this filter can fit 3 inch, 3-1/2 inch, and 4 inch diameter tubes. Manufactured using high quality materials throughout, including oiled synthetic media, urethane, and steel mesh, this washable performance filter is precision engineered for low restriction and better performance. This filter's top houses an inverted cone filter for improved service life and enhanced flow potential. Designed with a triple chrome plated steel top and base, this 2-1/2 inch tall air filter is factory pre-oiled and ready to use.
Specifications:
| Description_DEF |
Air Filter |
| Description_DES |
Spectre Conical Filter |
| Description_EXT |
This Spectre High Performance Racing (HPR) Air Filter is a red media clamp-on filter that can be used for many applications. It is designed to fit 3 inch, 3 1/2 inch and 4 inch diameter tubes. |
| Description_SHO |
Conical Filter |
| Description_MKT |
This Spectre High Performance Racing (HPR) Air Filter is a red media clamp-on cone filter that can be used for a wide variety of applications. Using the included adapter rings, this filter can fit 3 inch, 3-1/2 inch, and 4 inch diameter tubes. Manufactured using high quality materials throughout, including oiled synthetic media, urethane, and steel mesh, this washable performance filter is precision engineered for low restriction and better performance. This filter's top houses an inverted cone filter for improved service life and enhanced flow potential. Designed with a triple chrome plated steel top and base, this 2-1/2 inch tall air filter is factory pre-oiled and ready to use. |
| Description_INV |
Spectre Conical Filter |
| Prop 65 Yes/No |
Yes |
| Package Material |
Paperboard |
| Weight |
1.5 lb (0.7 kg) |
| Flange Offset |
0 in (0 mm) |
| Flanges |
1 |
| Frame Design |
Flexible |
| Height |
2.625 in (67 mm) |
| Inner Wire |
No |
| Item Type |
High Performance |
| Pre-Screened |
No |
| Prop 65 - Short Label |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Air Filter Material |
Non-woven Synthetic |
| Base Outside Diameter |
6 in (152 mm) |
| Flange Inside Diameter 3 |
3 in (76 mm) |
| Flange Length |
1.125 in (29 mm) |
| Flange Type |
Centered |
| Package Quantity |
1 |
| Prop 65 Warning Label |
https://www.knfilters.com/images/l/prop65.jpg |
| Title |
Spectre SPE-8162 Spectre Conical Filter |
| Top Material |
Chrome |
| Top Outside Diameter |
4.75 in (121 mm) |
| Top Style |
Inverted |
| Warranty |
90 Days |
| Air Filter Large End Diameter |
6 in (152 mm) |
| Air Filter Shape |
Tapered Conical |
| Color |
Red |
| Filter Re-Oiling Amount |
0.68 oz (20 ml) |
| Flange Angle |
0 degrees |
| Flange Inside Diameter |
4 in (102 mm) |
| Flange Inside Diameter 2 |
3.5 in (89 mm) |
| Oil Included |
Yes |
| Package Contents |
1 Air Filter |
| Package Type |
Box |
| Product Style |
Spectre Conical Air Filter |
| Prop 65 (C, R or CR) |
CR |
| Washable |
Yes |
| Length |
4.0000 |
| Width |
6.0000 |
| Height |
7.0000 |
| Weight |
2.0000 |
