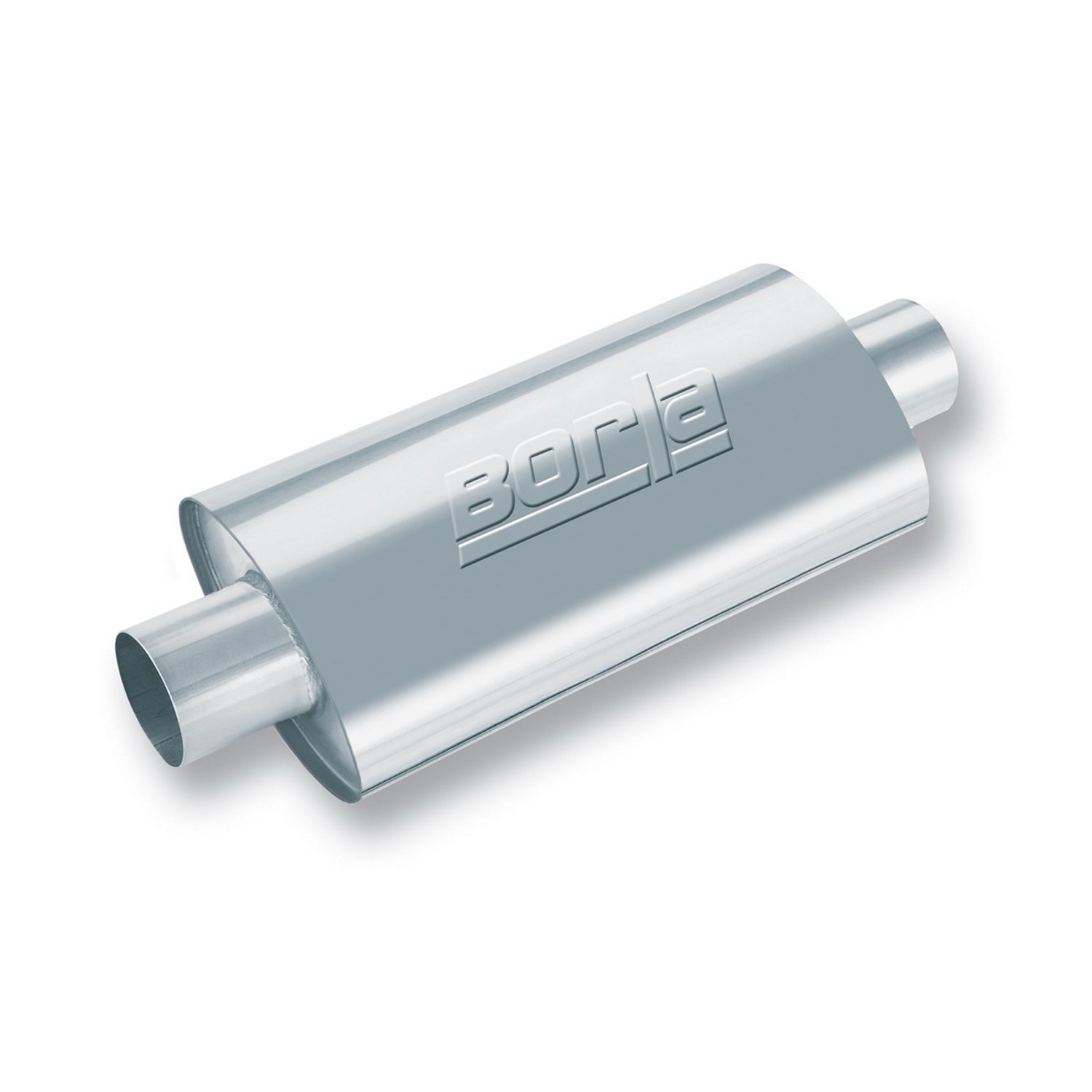

Compact size is perfect for applications with limited space. Reversible design for installation flexibility. High-quality T-304 austenitic stainless steel will never rust. 100% welded construction for strength. Free Flow design for improved performance. High-temperature continuous-filament fiber (CFF) acoustic material for sound control. Natural mill finish can be brushed or polished prior to installation. Hands down, Borla's XR-1 raceline parts offer the best balance of sound and power.
Specifications:
| Description_ASM |
XR-1? Sportsman Racing Muffler - 4" Center Inlet/ 4" Center Outlet 4.25" x 7.88" Oval x 16" Long Body 21" Overall Length. Universal Part. Reversible Design. |
| Description_DEF |
Exhaust Muffler |
| Description_DES |
XR-1 Sportsman Muffler |
| Description_EXT |
XR-1? Sportsman Racing Muffler - 4" Center Inlet/ 4" Center Outlet 4.25" x 7.88" Oval x 16" Long Body 21" Overall Length. Universal Part. Reversible Design. |
| Description_MKT |
Compact size is perfect for applications with limited space. Reversible design for installation flexibility. High-quality T-304 austenitic stainless steel will never rust. 100% welded construction for strength. Free Flow design for improved performance. High-temperature continuous-filament fiber (CFF) acoustic material for sound control. Natural mill finish can be brushed or polished prior to installation. Hands down, Borla's XR-1? raceline parts offer the best balance of sound and power. |
| Description_INV |
BorlaXR-1 Sportsman Muffler |
| Description_SHO |
XR-1 Sportsman Muffl |
| Main Piping Diameter |
4.000 in. |
| Tip / Outlet Finish |
N/A |
| Muffler Count |
1 |
| Overall Length |
21.000 in. |
| Prop 65 - Long Label |
WARNING: This product in the physical form it is sold does not present a hazard. However; operations including; but not limited to welding; brazing; or thermal cutting can expose you to chemicals including Chromium; Nickel; Cobalt; Arsenic; Cadmium and Le |
| Prop 65 - Short Label |
Proposition 65 Warning.JPG |
| Inlet Position |
Center |
| Off Road Use Only |
No |
| Body Height |
7.880 in. |
| Inlet Type |
Single Center |
| Outlet Type |
Single Center Outlet |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 Yes/No |
Yes |
| Shape |
Oval |
| Title Extended |
XR-1 Sportsman 4in Center-Center 16inx4.5inx7.88in - Racing Muffler Part # 40948 |
| Grade Type |
Performance |
| Body Length |
16.000 in. |
| Body Width |
4.500 in. |
| Construction |
All Welded |
| Inlet Connection Type |
Pipe |
| Material |
T-304 Stainless Steel |
| Outlet Outside Diameter |
4.000 in. |
| Outlet Position |
Center |
| Title |
XR-1 Sportsman Racing Muffler 4in Center Inlet/ 4in Center Outlet 4.25in x 7.88in Oval x 16in Long Body |
| Length |
23.0000 |
| Width |
10.0000 |
| Height |
7.0000 |
| Weight |
10.0000 |
