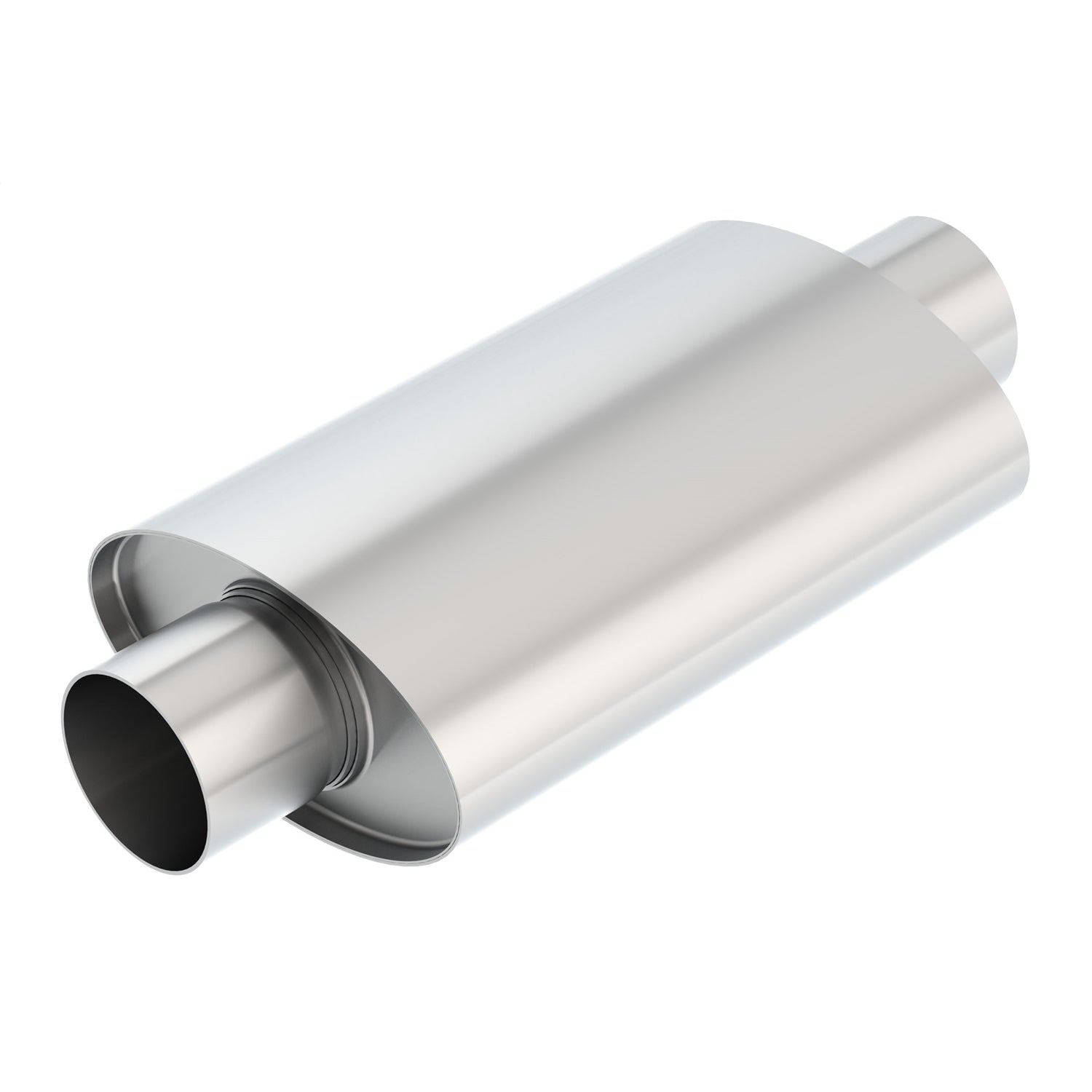

Designed for rotary engine equipped vehicles, but can be used on other applications. Compact design is perfect for applications with limited space. Reversible design for installation flexibility. Patented Multicore design for maximum power. Recommend for high horsepower applications. T-304 Stainless steel will never rust. 100% welded construction for strength. High-temperature continuous-filament fiber (CRF) accoustic material for sound control. There is no logo embossment on this part. Best of all, it's made in the USA. Just what you d expect from the world s most experienced (and most winning) exhaust brand.
Specifications:
| Description_ASM |
XR-1? Multi-Core Racing Muffler For Rotary Engine Equipped Vehicles - 3" Center Inlet/ 3" Center Outlet 4.25" x 7.88" Oval x 12" Long Body 17" Overall Length. Universal Part. Reversible Design. |
| Description_DEF |
Exhaust Muffler |
| Description_DES |
XR-1 Multicore Muffler |
| Description_INV |
BorlaXR-1 Multi-Core Muffler |
| Description_EXT |
XR-1? Multi-Core Racing Muffler For Rotary Engine Equipped Vehicles - 3" Center Inlet/ 3" Center Outlet 4.25" x 7.88" Oval x 12" Long Body 17" Overall Length. Universal Part. Reversible Design. |
| Description_MKT |
Designed for rotary engine equipped vehicles, but can be used on other applications. Compact design is perfect for applications with limited space. Reversible design for installation flexibility. Patented Multicore design for maximum power. Recommend for high horsepower applications. T-304 Stainless steel will never rust. 100% welded construction for strength. High-temperature continuous-filament fiber (CRF) accoustic material for sound control. There is no logo embossment on this part. Best of all, it's made in the USA. Just what you?d expect from the world?s most experienced (and most winning) exhaust brand. |
| Description_SHO |
XR-1 Multi-Core |
| Inlet Type |
Single Center |
| Title Extended |
XR-1 Multi-Core 3in Center-Center 12inx4.25inx7.88in - Rotary Engine Equipped Racing Muffler Part # 400372 |
| Construction |
All Welded |
| Prop 65 - Long Label |
WARNING: This product in the physical form it is sold does not present a hazard. However; operations including; but not limited to welding; brazing; or thermal cutting can expose you to chemicals including Chromium; Nickel; Cobalt; Arsenic; Cadmium and Le |
| Title |
XR-1 Multi-Core Racing Muffler 3in Center Inlet/ 3in Center Outlet 4.25in x 7.88in Oval x 12in Long Body Rotary Engine Equipped Vehicles |
| Grade Type |
Performance |
| Body Height |
4.250 in. |
| Body Width |
7.880 in. |
| Main Piping Diameter |
3.000 in. |
| Material |
T-304 Stainless Steel |
| Prop 65 - Short Label |
Proposition 65 Warning.JPG |
| Shape |
Oval |
| Body Length |
12.000 in. |
| Inlet Connection Type |
Pipe |
| Inlet Outside Diameter |
3.000 in. |
| Inlet Position |
Center |
| Muffler Count |
1 |
| Off Road Use Only |
No |
| Outlet Outside Diameter |
3.000 in. |
| Outlet Position |
Center |
| Outlet Type |
Single Center Outlet |
| Overall Length |
19.000 in. |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 Yes/No |
Yes |
| Tip / Outlet Finish |
N/A |
| Length |
6.0000 |
| Width |
19.0000 |
| Height |
10.0000 |
| Weight |
12.0000 |
