Mahle 930217998 345ci,3.898bore,3.622stroke,6.125rod,1.314ch,0.927pin,-4cc,388g,10.1cr,4032
2
sold in last
8
hours
$1,182.72
Guaranteed Fitment
Always the correct part
Added Value
Performance matched parts
In-House Experts
We know our products
Nationwide Delivery
Economy shipping
Mahle
ds_DGJH_930217998

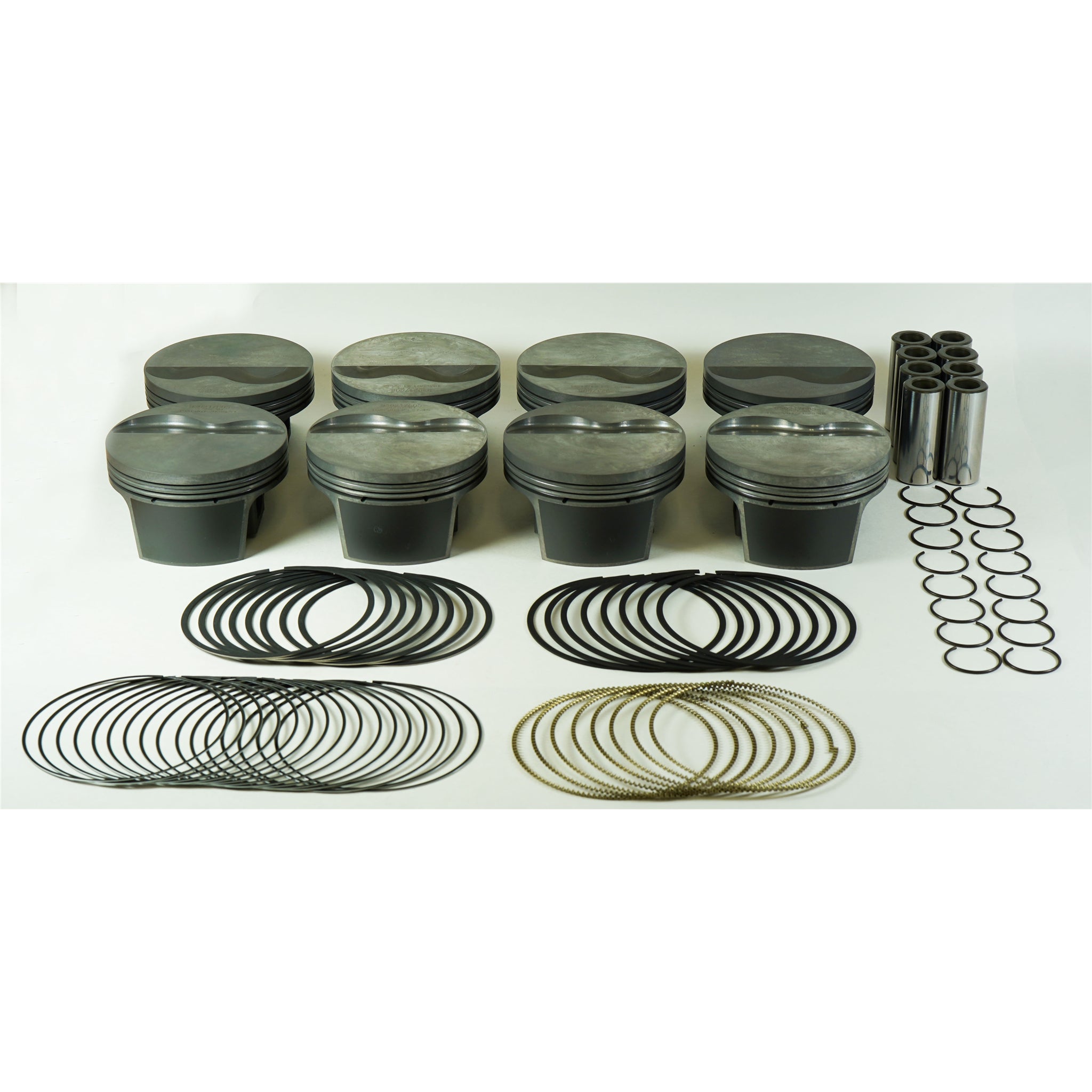

Engine Piston Kit
LS 5.7L & 6.0L FLAT TOP - compatable with LS1/2/6 style cathedral port heads 346cid 3.898 x 1.314CH, 3.622stroke,6.125rod,0.927pin,-4.1cc,406g,10.2CR, 4032.
Specifications:
Description_ASM | Chevrolet LS |
Description_DEF | Engine Piston Kit |
Description_DES | 345ci,3.898bore,3.622stroke,6.125rod,1.314ch,0.927pin,-4cc,388g,10.1cr,4032 |
Description_EXT | LS 5.7L & 6.0L FLAT TOP - compatable with LS1/2/6 style cathedral port heads 346cid 3.898 x 1.314CH, 3.622stroke,6.125rod,0.927pin,-4.1cc,406g,10.2CR, 4032. |
Description_SHO | Piston Kit |
Clip Style | Round Wire |
Clips Included | Yes |
Coatings | Phosphate plus Grafal |
Pin Length | 2.287 |
Crown Vol | -4.1cc |
Pin Diameter | 0.927 |
Package Qty | Sold as a set of 8 |
Piston Material | Forged, 4032 |
Pins Included | Yes |
Pin Style | Floating |
Piston Ring Thickness | 1.0mm, 1.0mm, 2.0mm |
Pin Material | Steel |
Pin Mass | 118g |
Piston Mass | 406g |
Prop 65 (C, R or CR) | CR |
Prop 65 - Short Label | prop-65-warning-label_text_image.jpg |
Rings Included | Yes |
Title | Mahle Motorsport LS 5.7L & 6.0L FLAT TOP - compatable with LS1/2/6 style cathedral port heads 346cid 3.898 x 1.314CH, 3.622stroke,6.125rod,0.927pin,-4.1cc,406g,10.2CR, 4032 |
Prop 65 Yes/No | Yes |

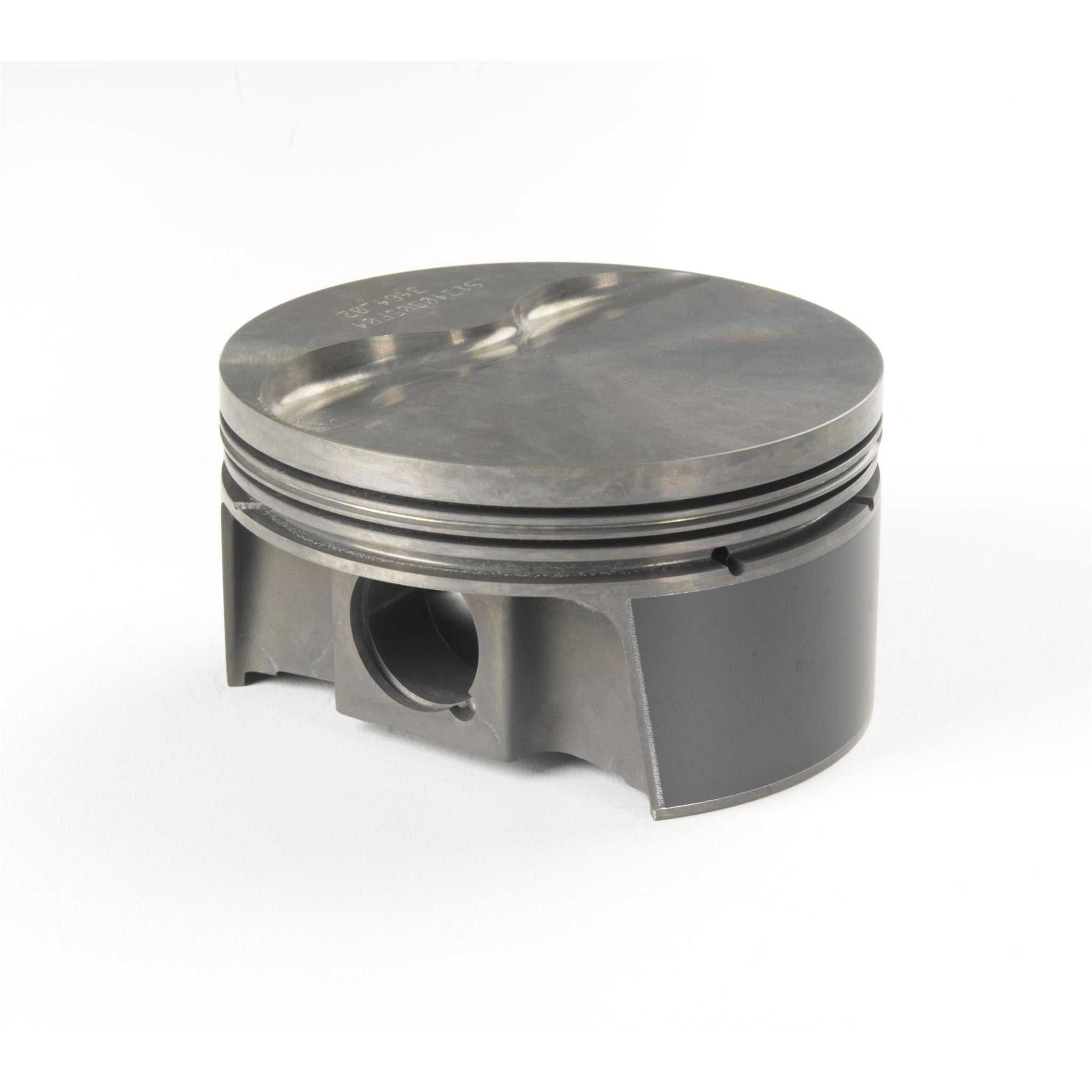

Piston Style | Flattop, w/ 2 valve reliefs |
Length | 7.0000 |
Width | 12.0000 |
Height | 14.0000 |
Weight | 14.0000 |
