Mahle 930036255 4.055bore,3.898stroke,6.417rod,1.956ch,1.358pin,-41.8cc,846g,16.3cr, M142P
2
sold in last
8
hours
$3,921.30
Guaranteed Fitment
Always the correct part
Added Value
Performance matched parts
In-House Experts
We know our products
Nationwide Delivery
Economy shipping
Mahle
ds_DGJH_930036255
Engine Piston Kit

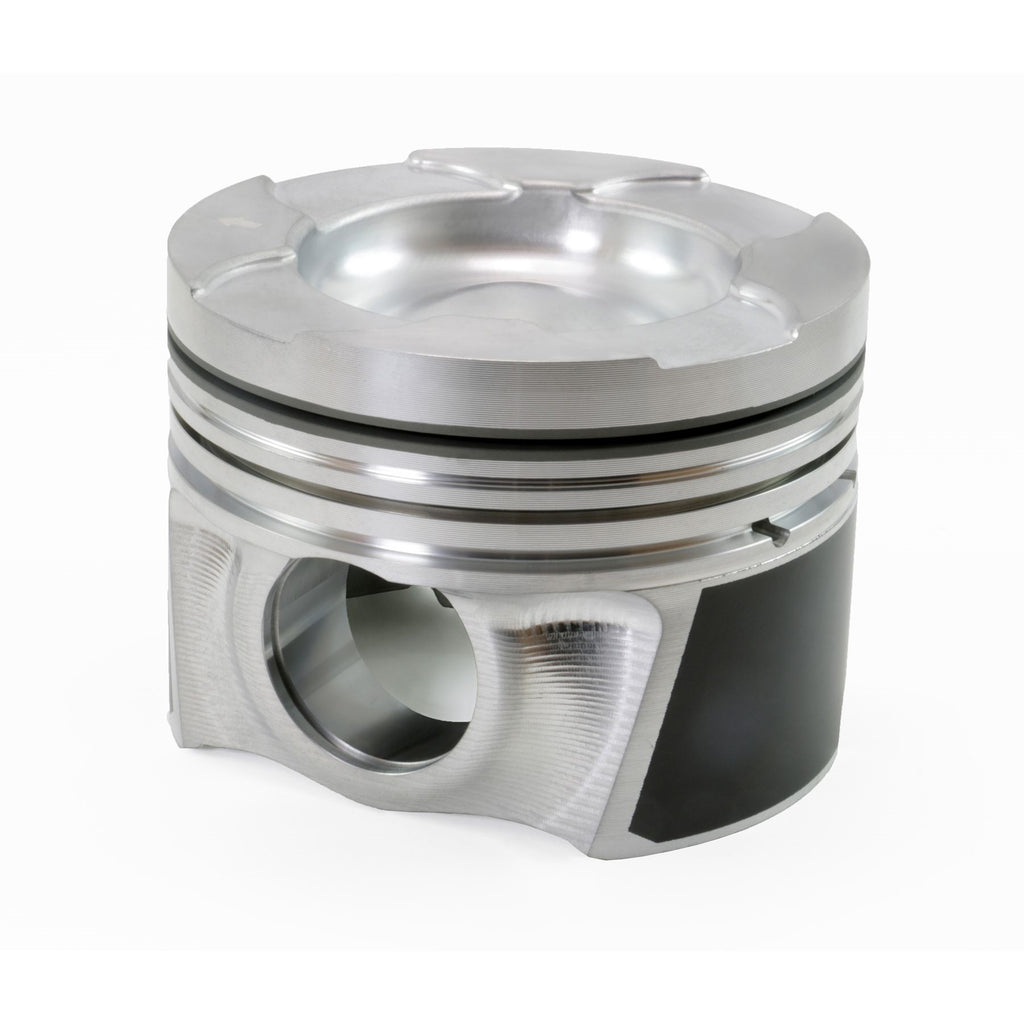

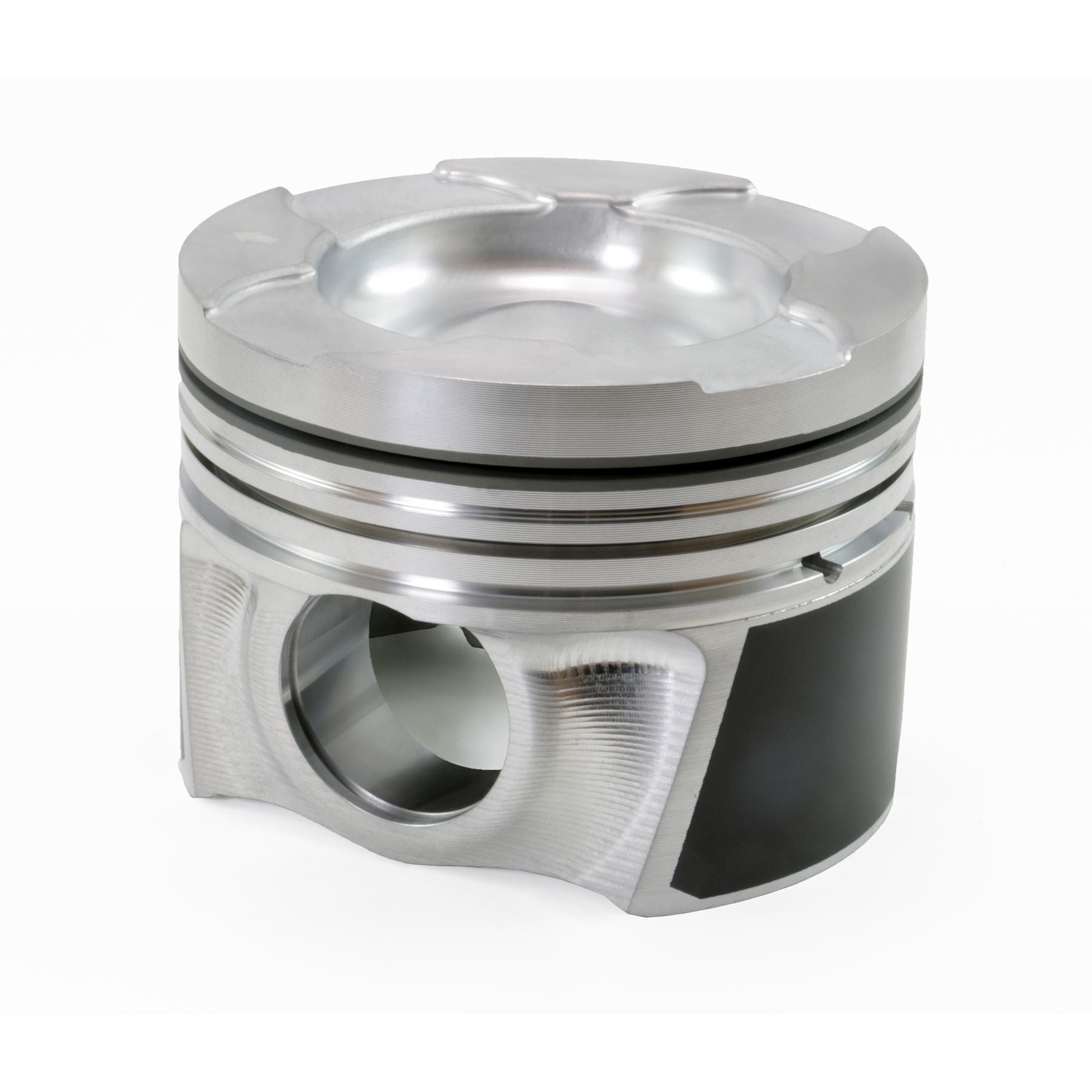

GM 6.6L Duramax Forged Aluminum Race Pistons w/ 0.075" Deep Valve Pockets 403cid 4.055 x 1.951CH, 3.898stroke,6.417rod,1.358pin,-41.8cc,774g,16.3CR, M124P.
Specifications:
Description_ASM | GM 6.6L Duramax |
Description_DES | 4.055bore,3.898stroke,6.417rod,1.956ch,1.358pin,-41.8cc,846g,16.3cr, M142P |
Description_DEF | Engine Piston Kit |
Description_SHO | Piston Kit |
Description_EXT | GM 6.6L Duramax Forged Aluminum Race Pistons w/ 0.075" Deep Valve Pockets 403cid 4.055 x 1.951CH, 3.898stroke,6.417rod,1.358pin,-41.8cc,774g,16.3CR, M124P. |
Clip Style | Snap Ring |
Clips Included | Yes |
Coatings | Grafal plus Hard Anodized top ring groove |
Package Qty | Sold as a set of 8 |
Crown Vol | -41.8cc |
Pins Included | Yes |
Pin Material | Steel |
Pin Style | Floating |
Pin Mass | 410g |
Pin Length | 3.051 |
Pin Diameter | 1.358 |
Rings Included | Yes |
Piston Material | Forged, M124P |
Title | Mahle Motorsport GM 6.6L Duramax Forged Aluminum Race Pistons w/ 0.075in Deep Valve Pockets 403cid 4.055 x 1.951CH, 3.898stroke,6.417rod,1.358pin,-41.8cc,774g,16.3CR, M124P |
Piston Mass | 774g |
Piston Ring Thickness | 1/16, 2.0mm, 3.0mm |
Prop 65 Yes/No | Yes |
Prop 65 - Short Label | prop-65-warning-label_text_image.jpg |
Piston Style | Dish, w/ 4 valve reliefs |
Prop 65 (C, R or CR) | CR |
Length | 10.0000 |
Width | 12.0000 |
Height | 14.0000 |
Weight | 27.0000 |
