As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet 360 ASCS Sprint |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

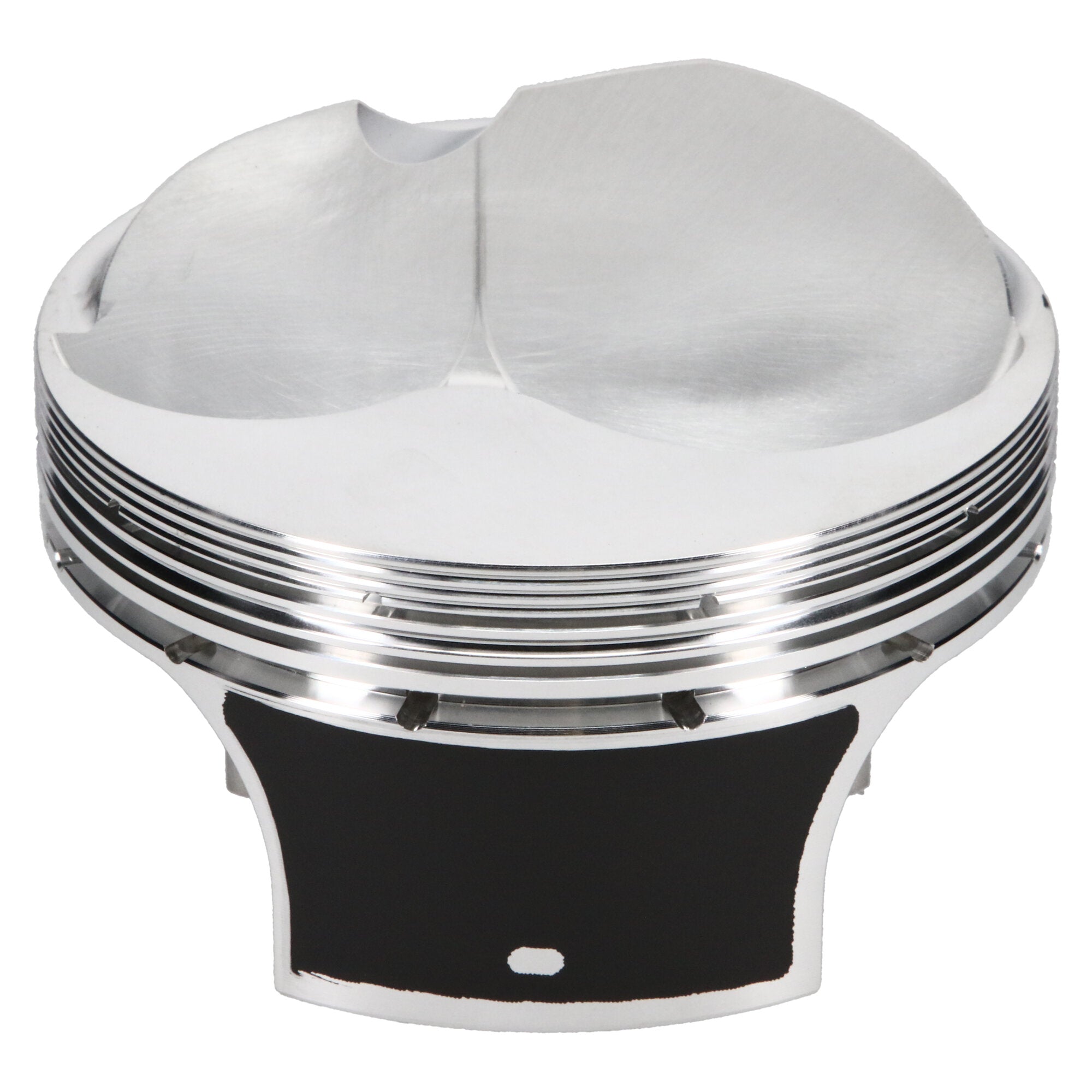

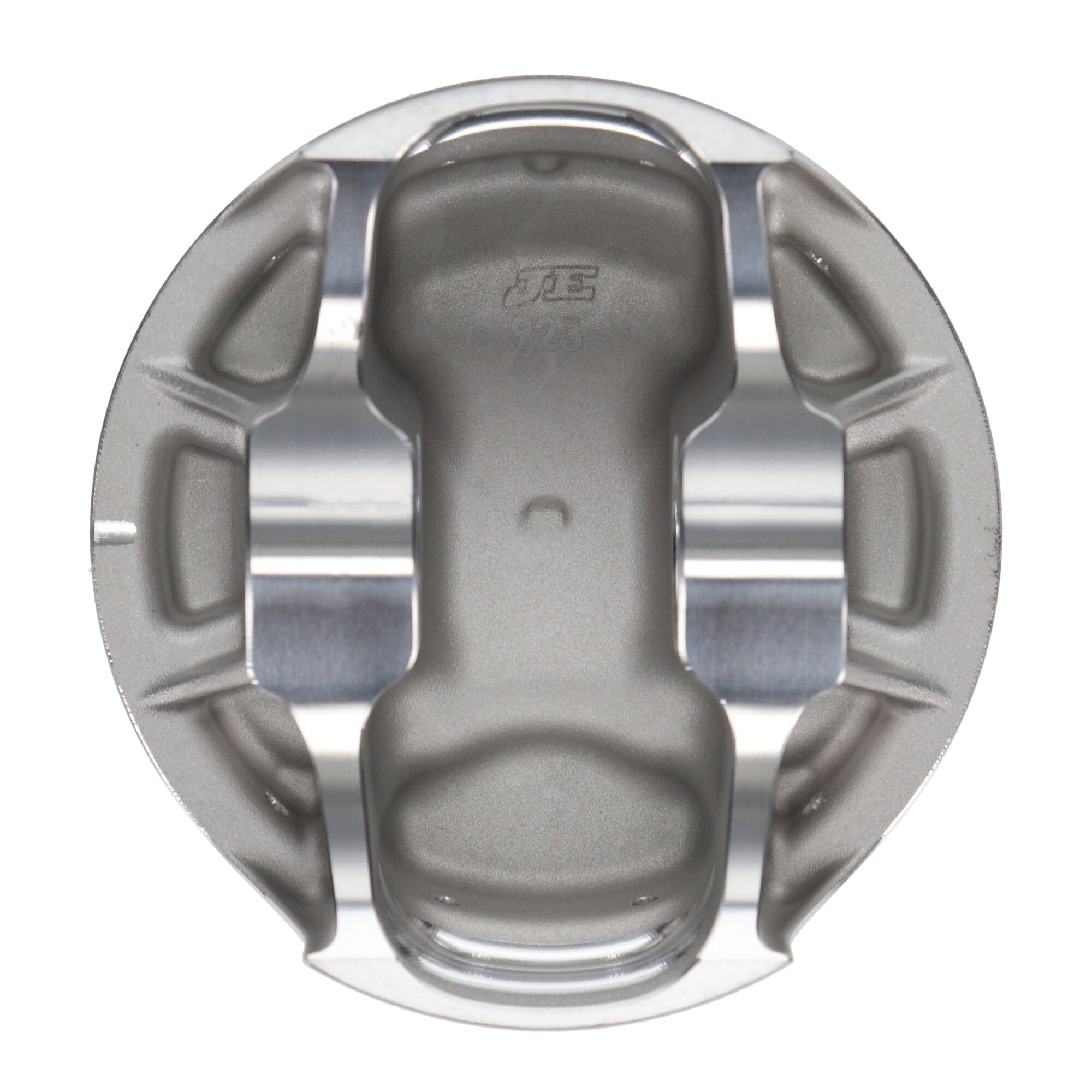

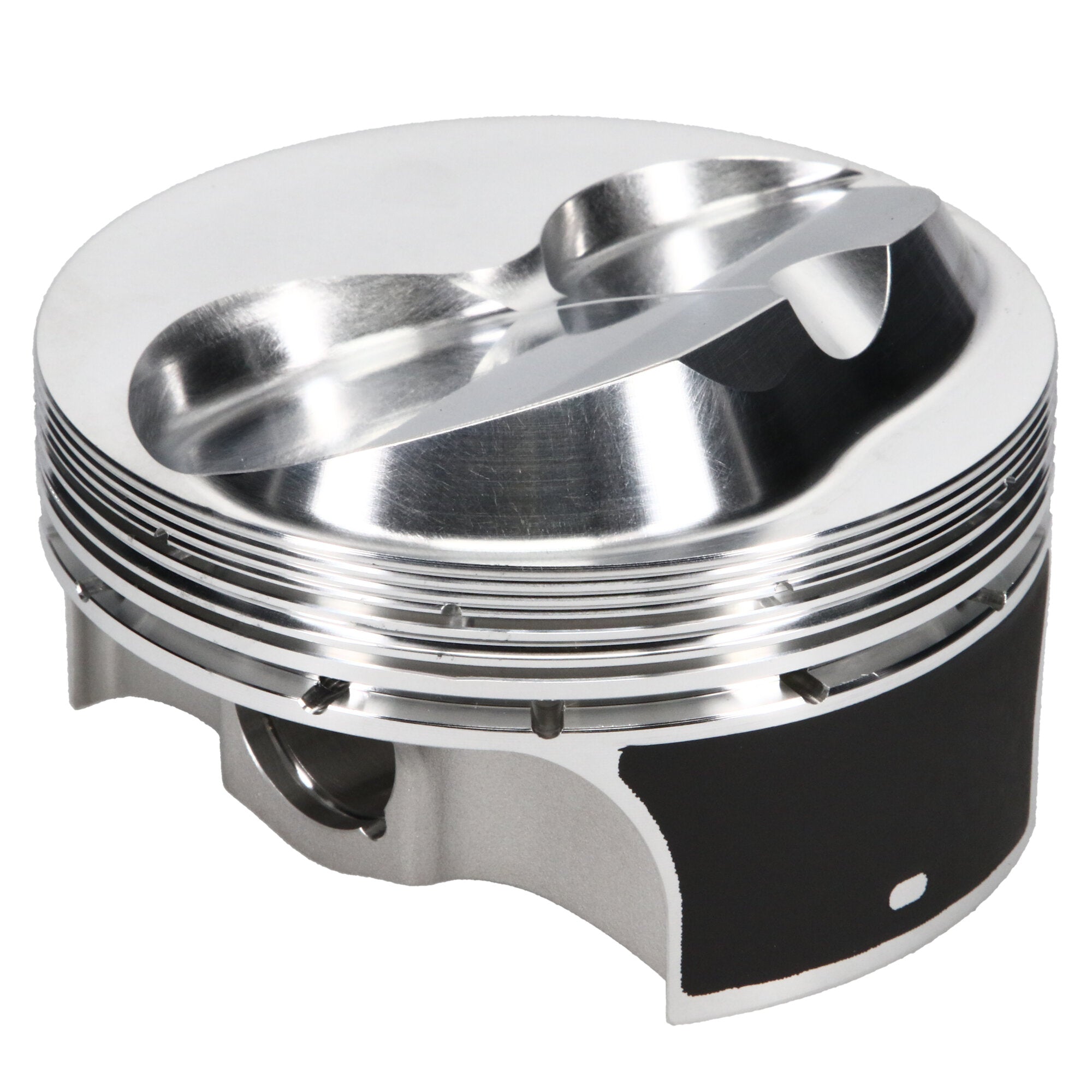

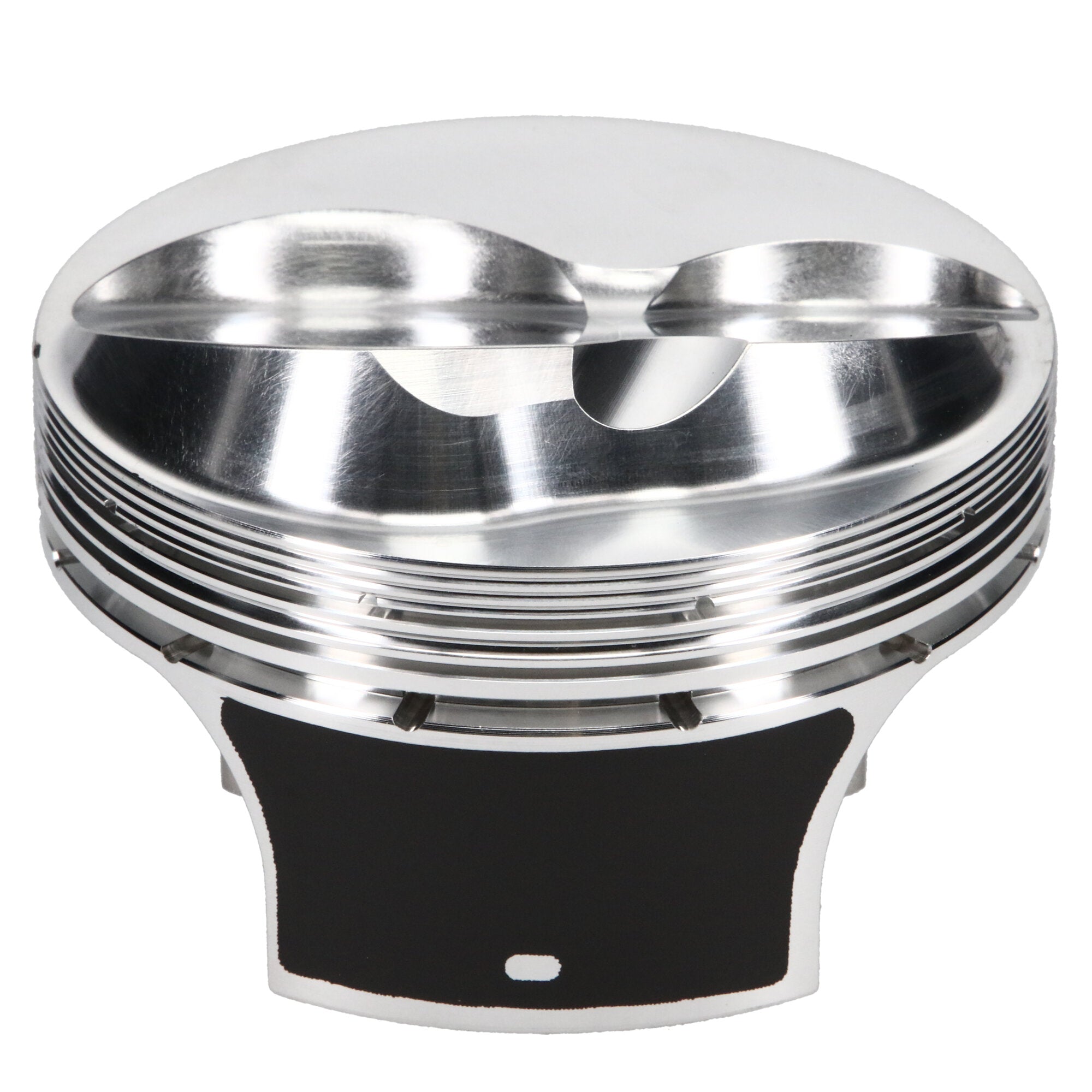

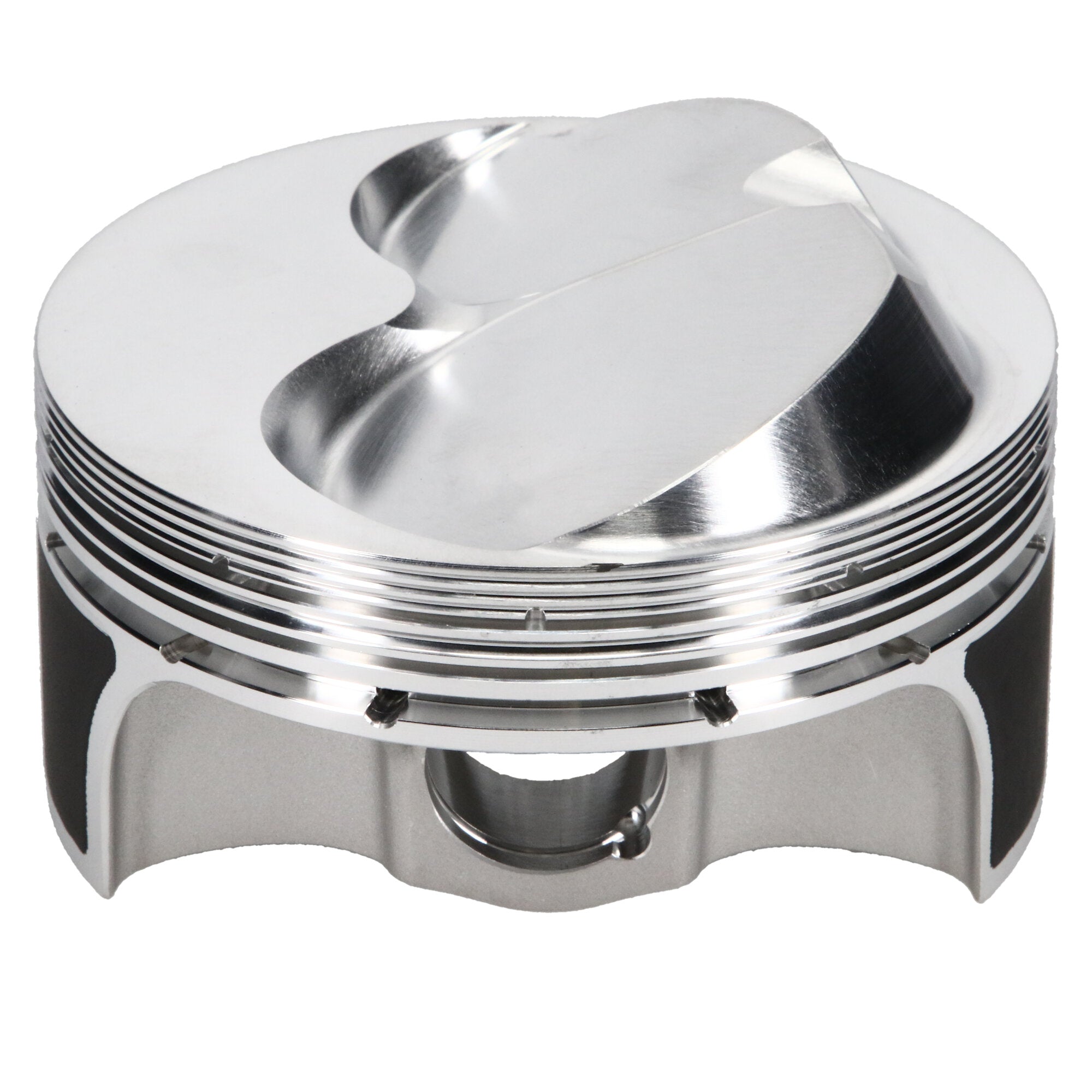

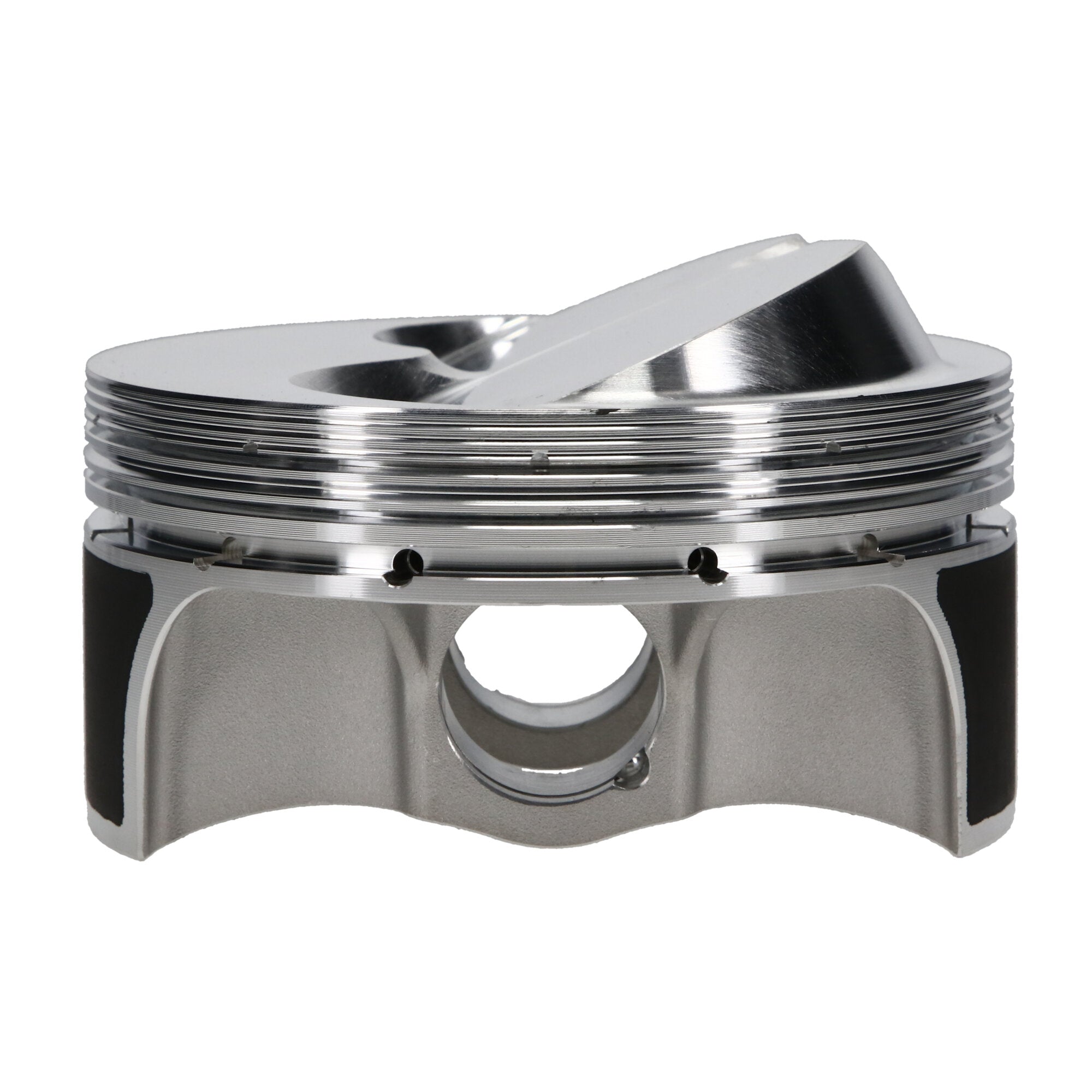

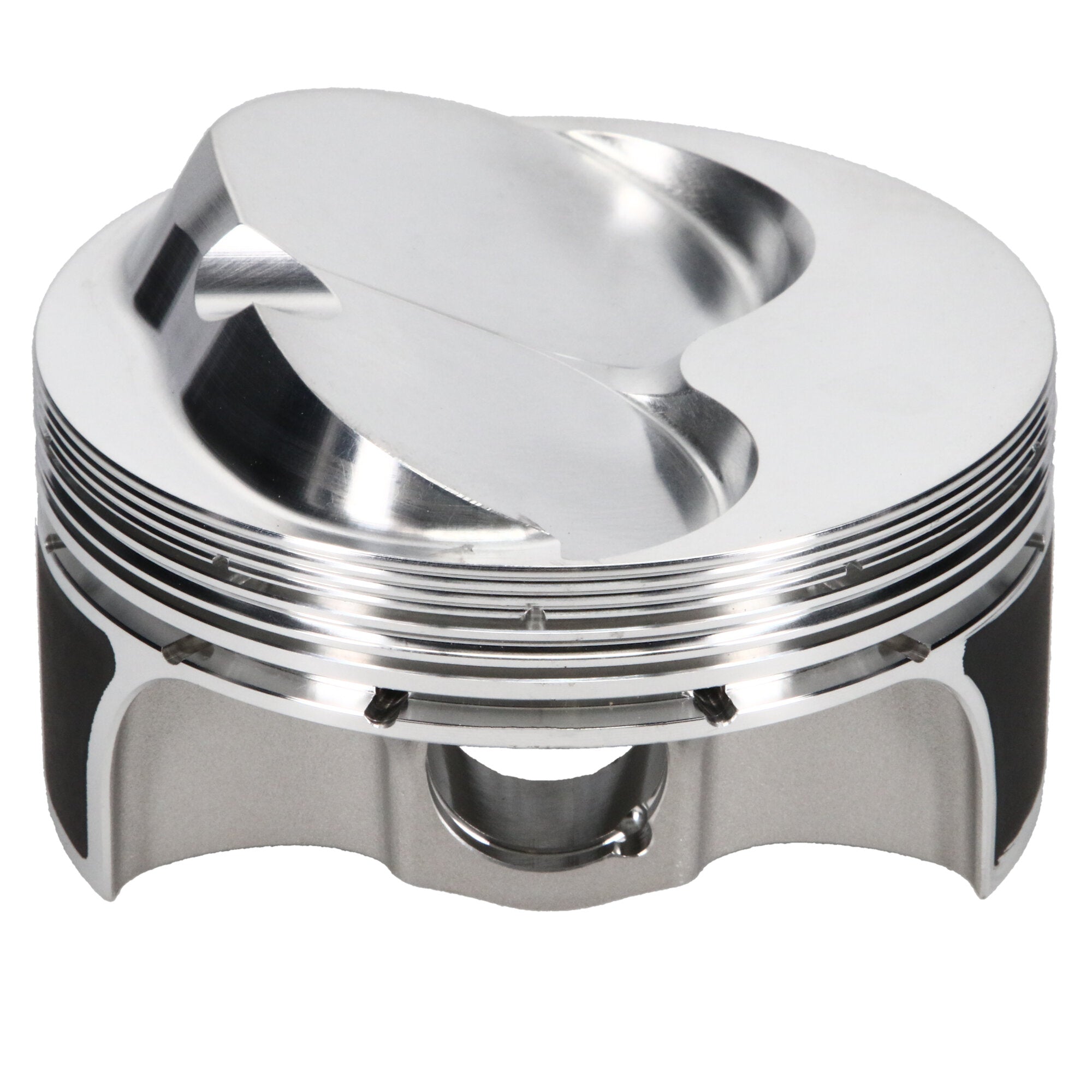

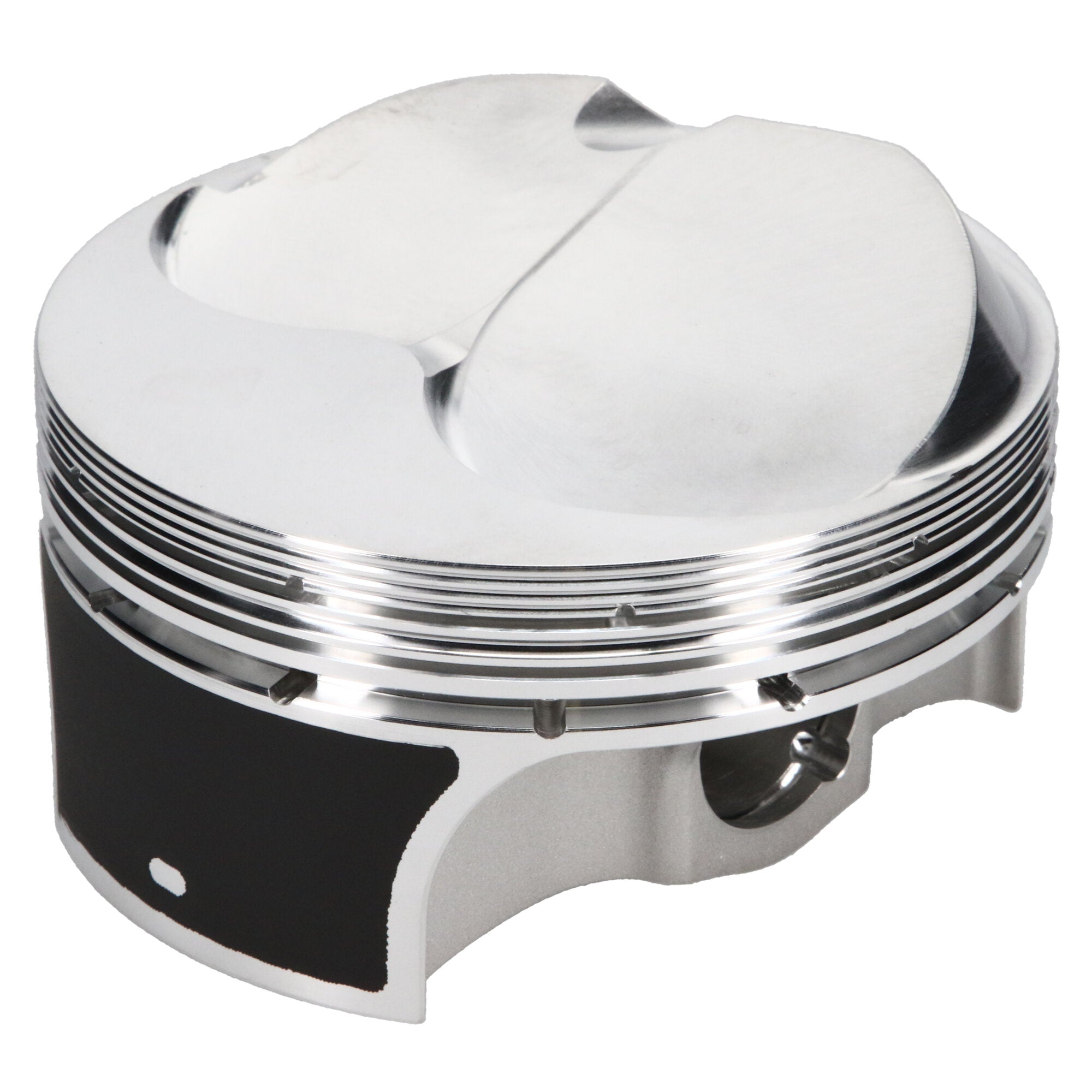

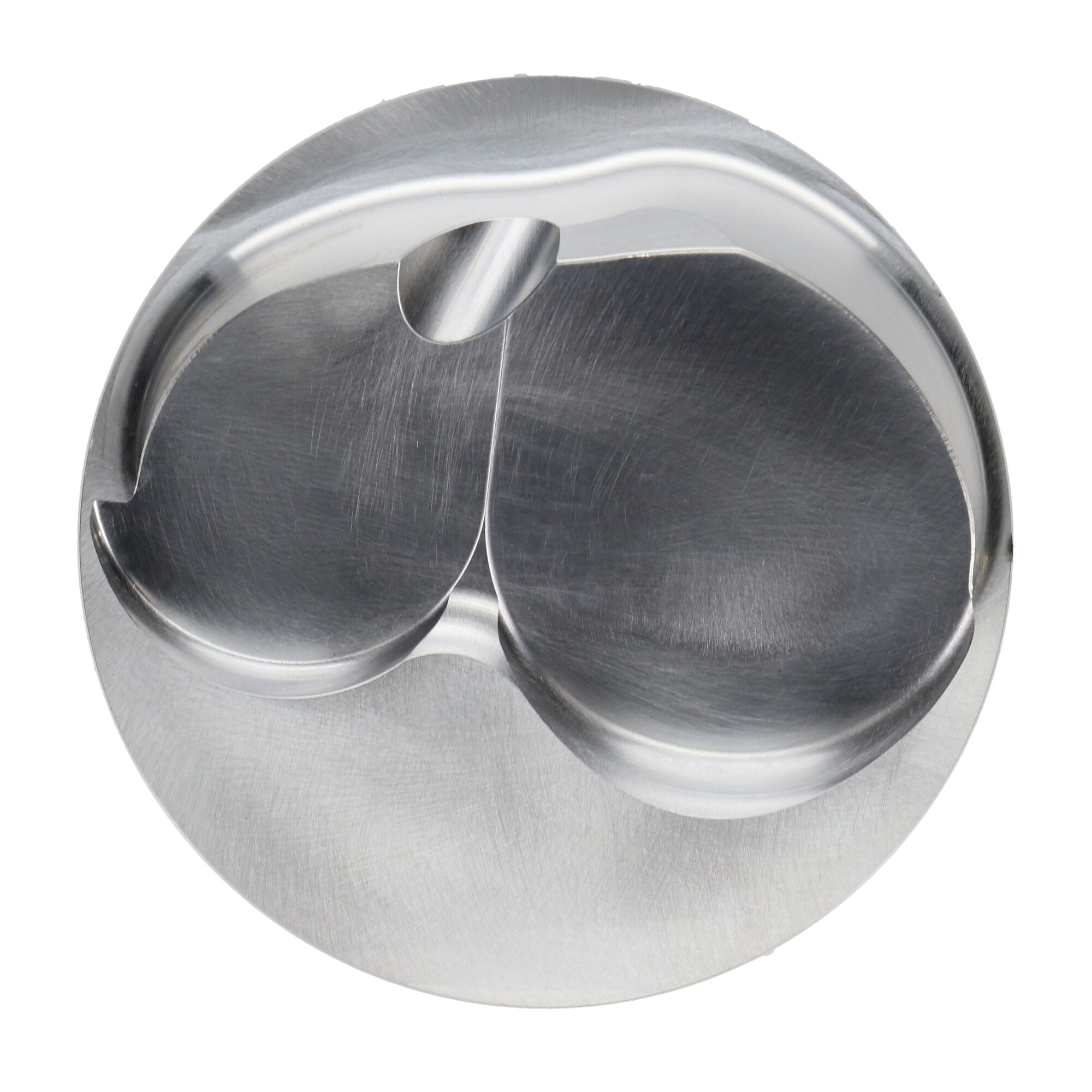

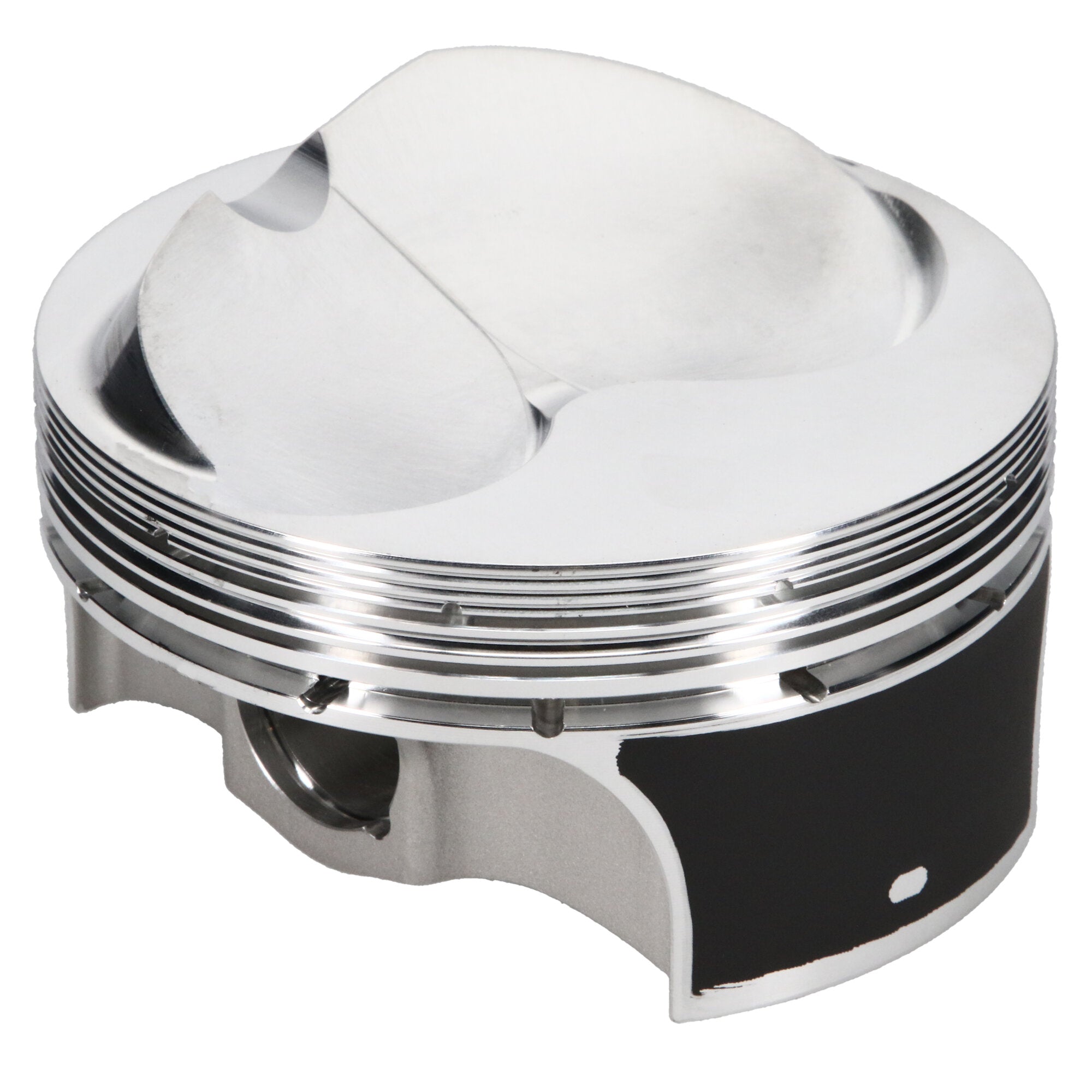

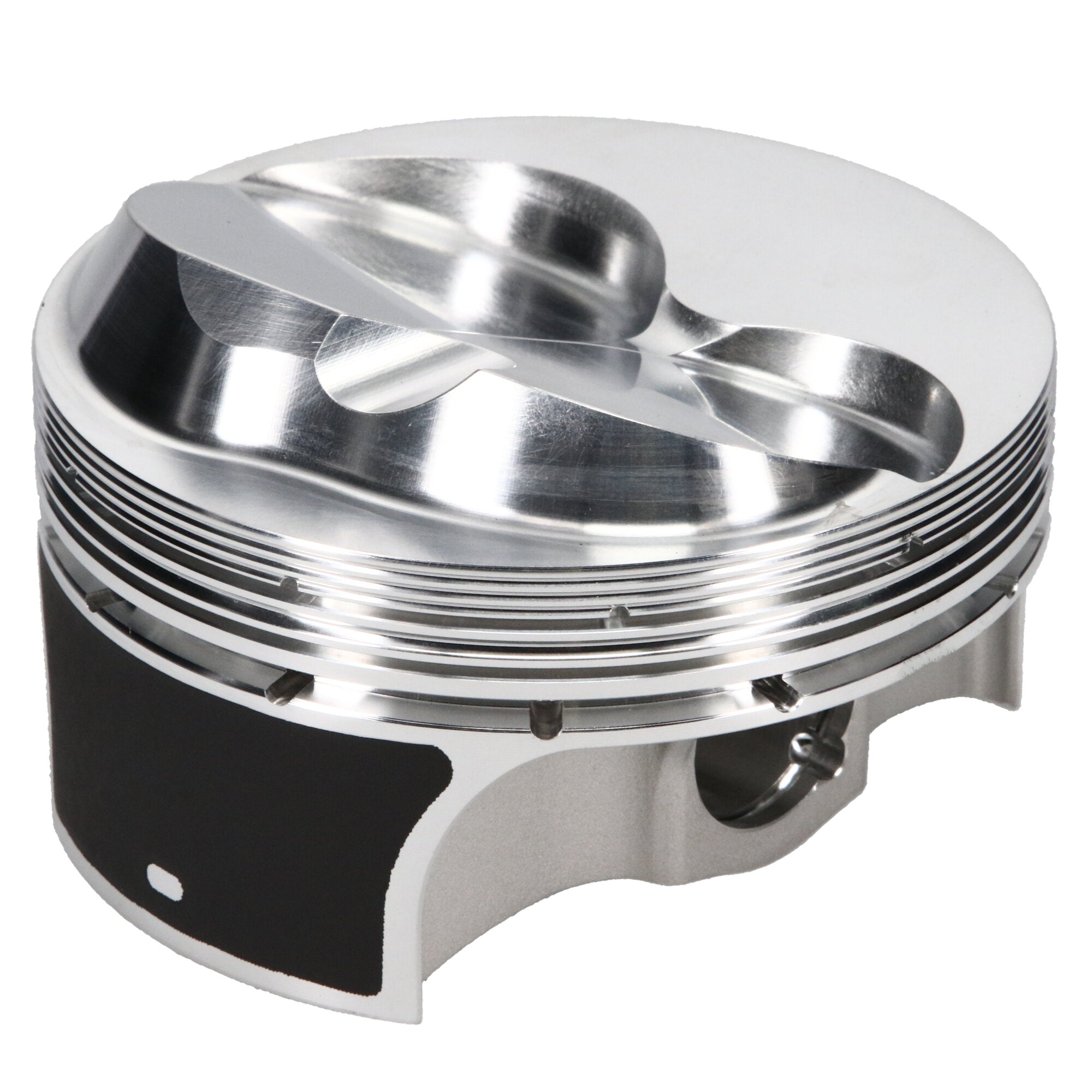

Piston Set, 2618, Dome, 4.165 Bore, 1.335 CD, 0.927 Pin Dia, Set of 8. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet 360 ASCS Sprint, 4.165 Bore, Dome, Set of 8 |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Product Market |
Domestic |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Wrist Pin Length |
2.750 |
| Product Type |
Engine Piston Kit |
| Engine - Web |
Small Block |
| Compression Height |
1.335 |
| Piston Material |
2618 |
| Piston Quantity |
8 |
| Piston Pin Outside Diameter |
0.927 |
| Bore Diameter |
4.165 |
| Piston Volume |
14.50 |
| Industry |
Automotive |
| Add-On |
927-2750-17-93C |
| Prop 65 (C, R or CR) |
CR |
| Out of Stock Message |
Call for Availibility |
| Title |
JE Pistons - Chevrolet, Small Block, 4.165 in. Bore, Piston Kit |
| Prop 65 Yes/No |
Yes |
| Wrist Pin Material |
9310 Nickel Carbon Steel Alloy |
| Piston Series |
JE Pistons |
| Piston Pin Material |
9310 |
| Engine |
Small Block |
| Engine Type |
ICE |
| Piston Pin Wall Thickness |
0.170 |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.165 in. Bore - 1.335 in. CH, 14.50 CC |
| Make |
CHEVROLET |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Wall Thickness |
0.170 |
| Make - Web |
Chevrolet |
| Piston Head Type |
Dome |
| Piston Pin Length |
2.750 |
| Wrist Pin Outer Diameter |
0.927 |
| Length |
1.0000 |
| Width |
1.0000 |
| Height |
1.0000 |
| Weight |
14.0000 |
