As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet 360 ASCS Sprint |
| Description_DES |

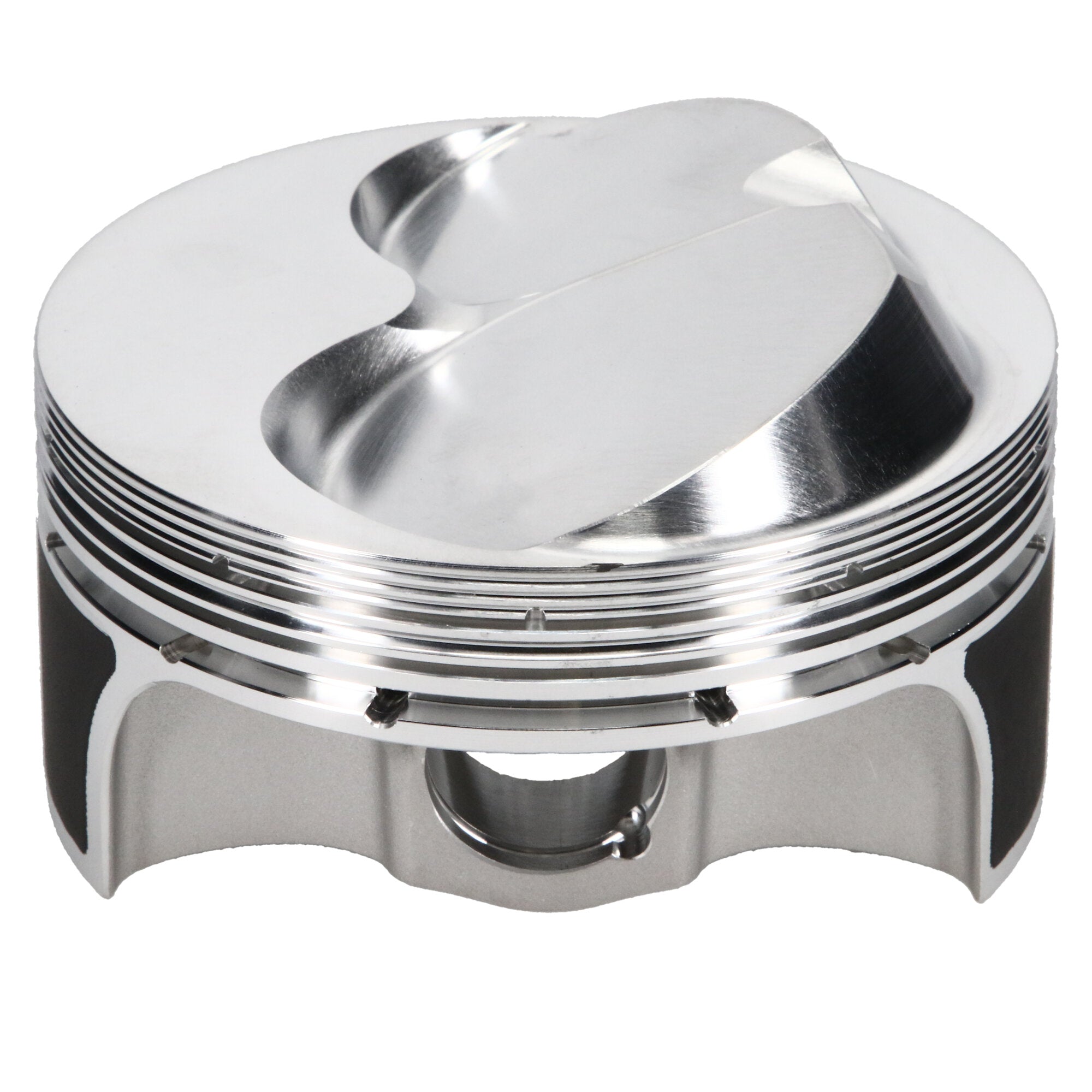

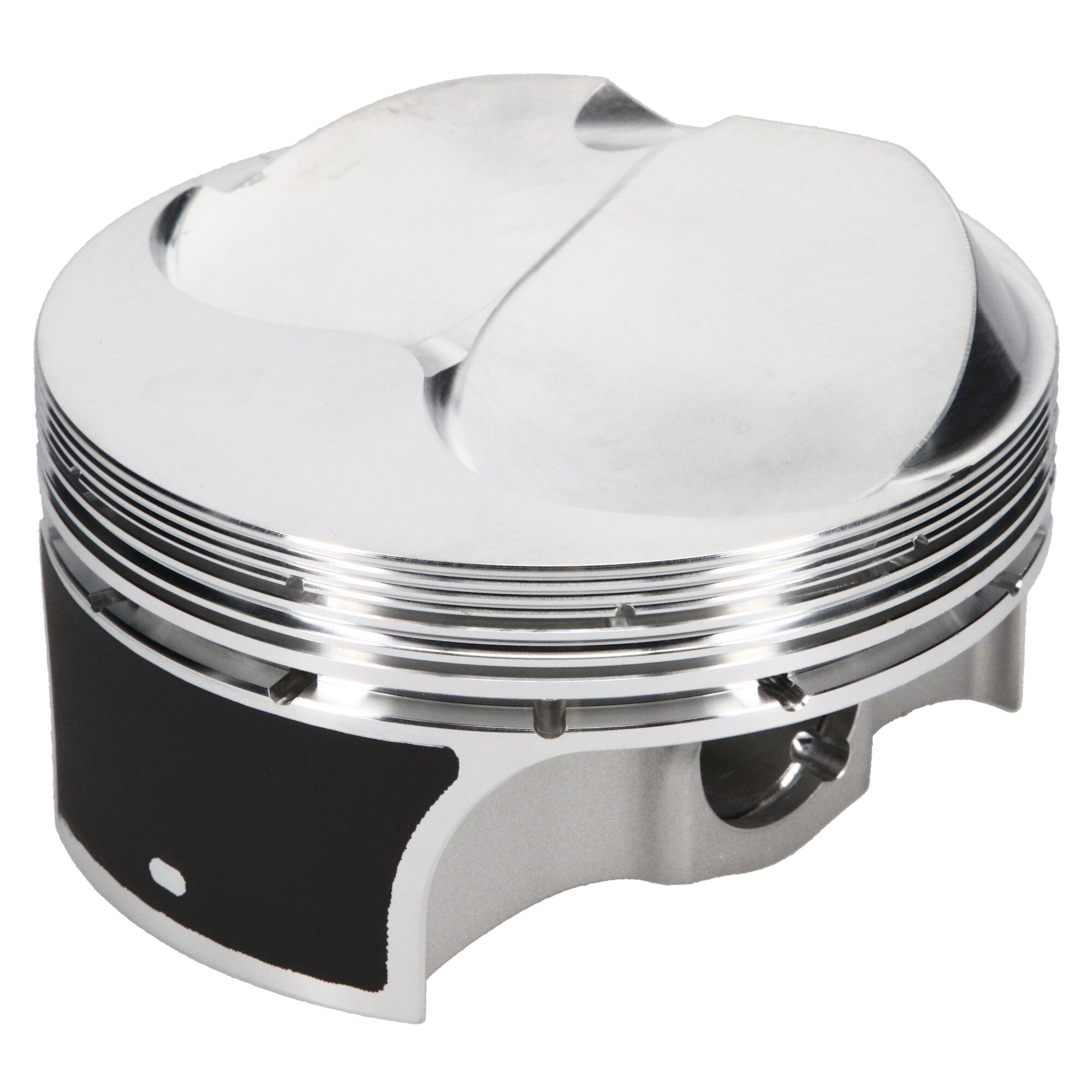

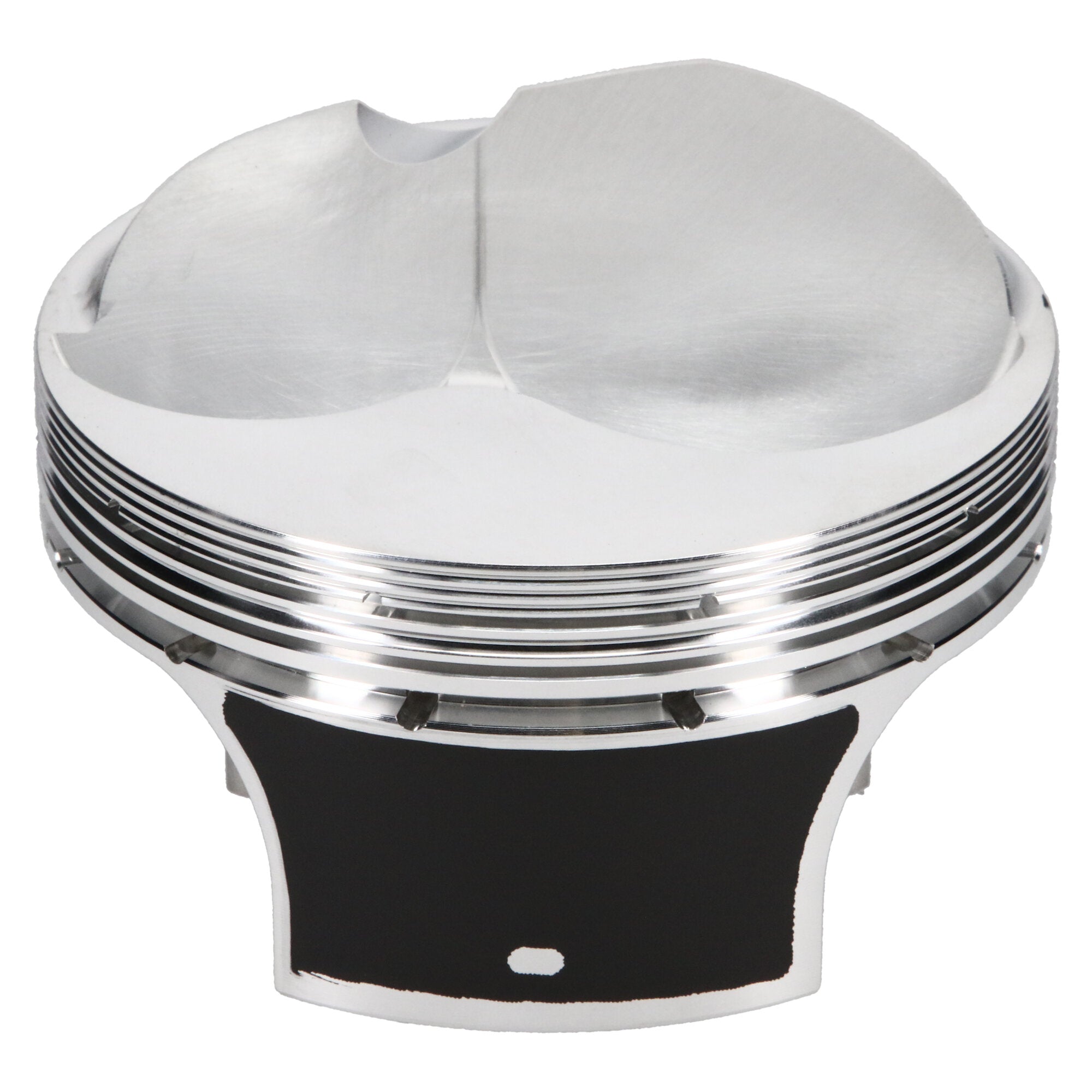

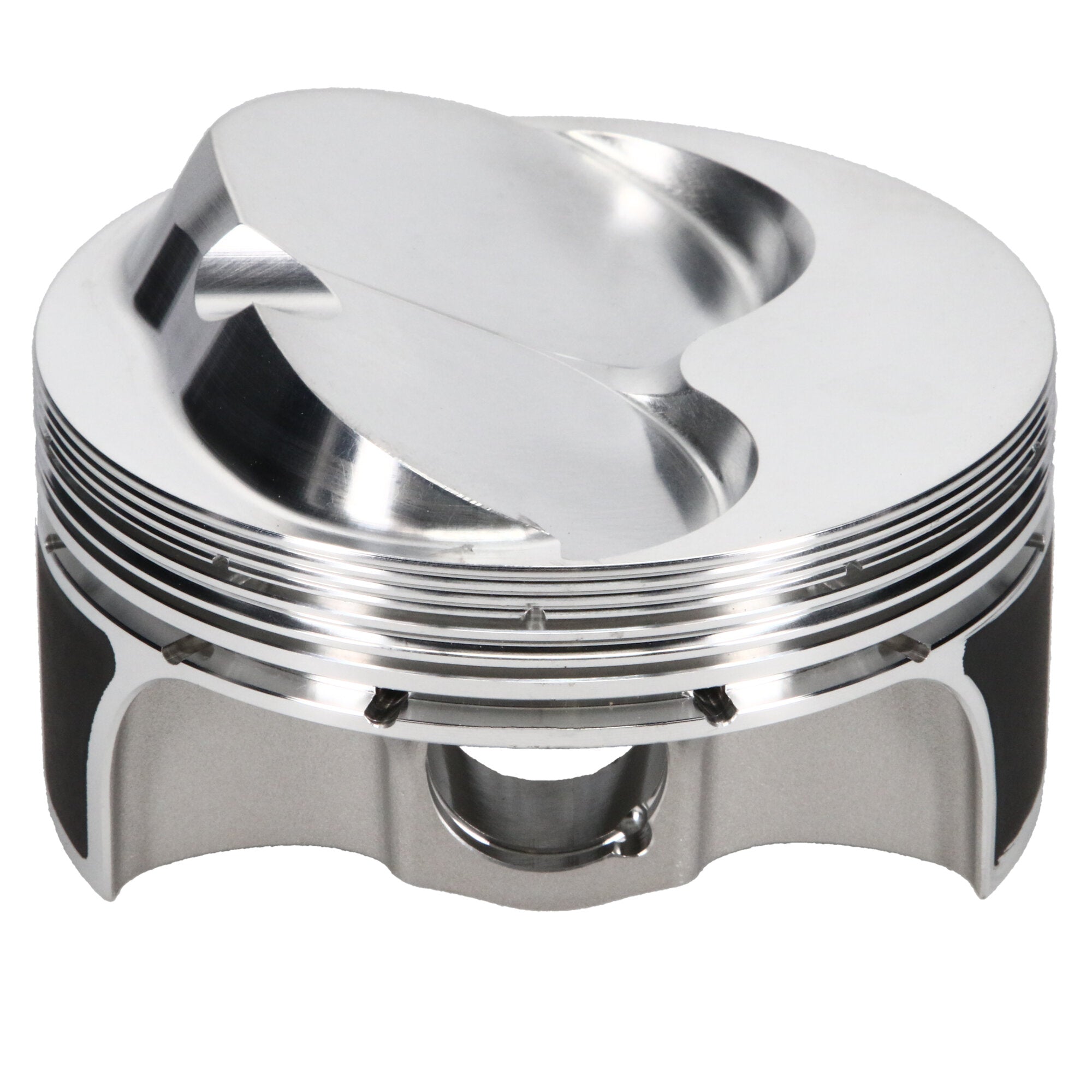

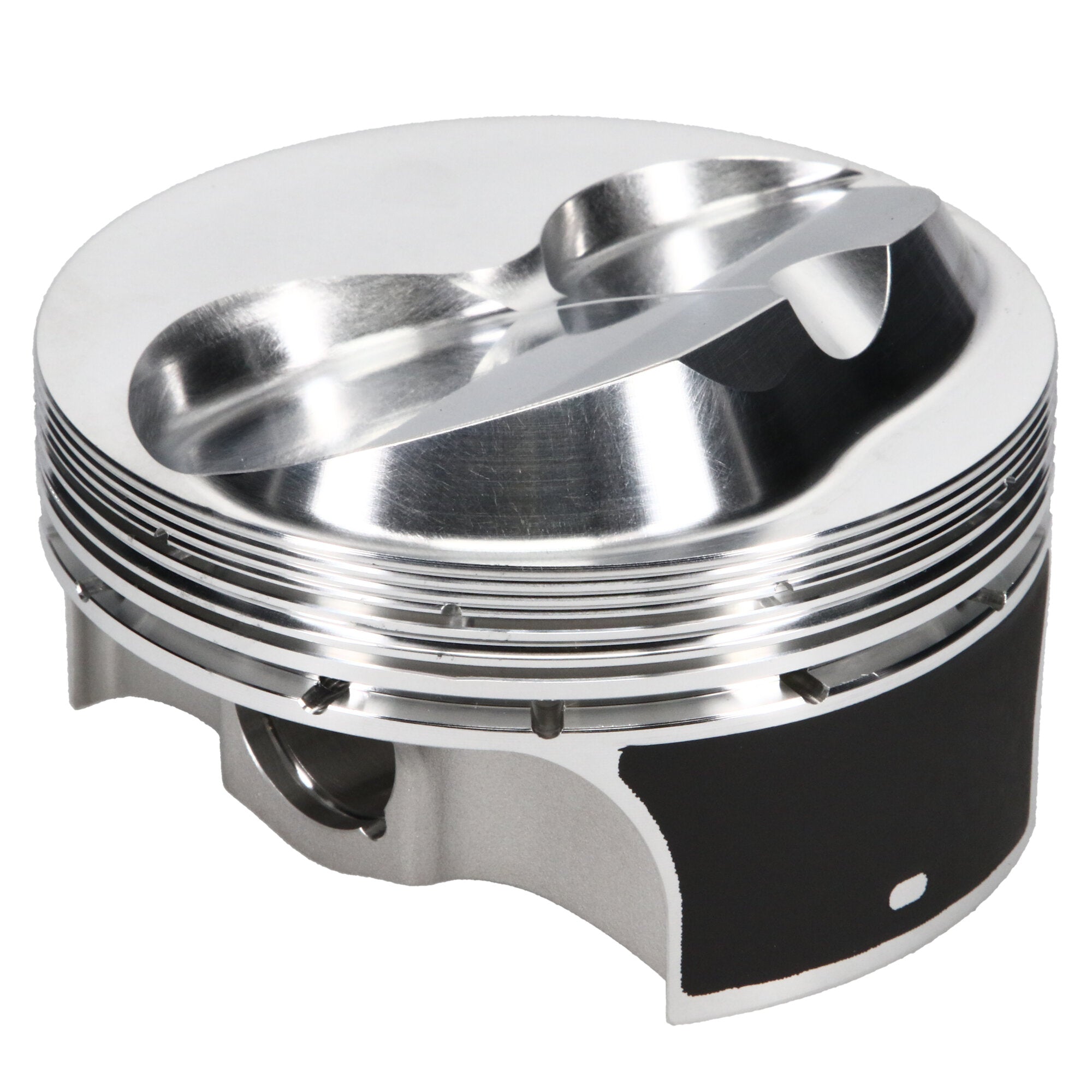

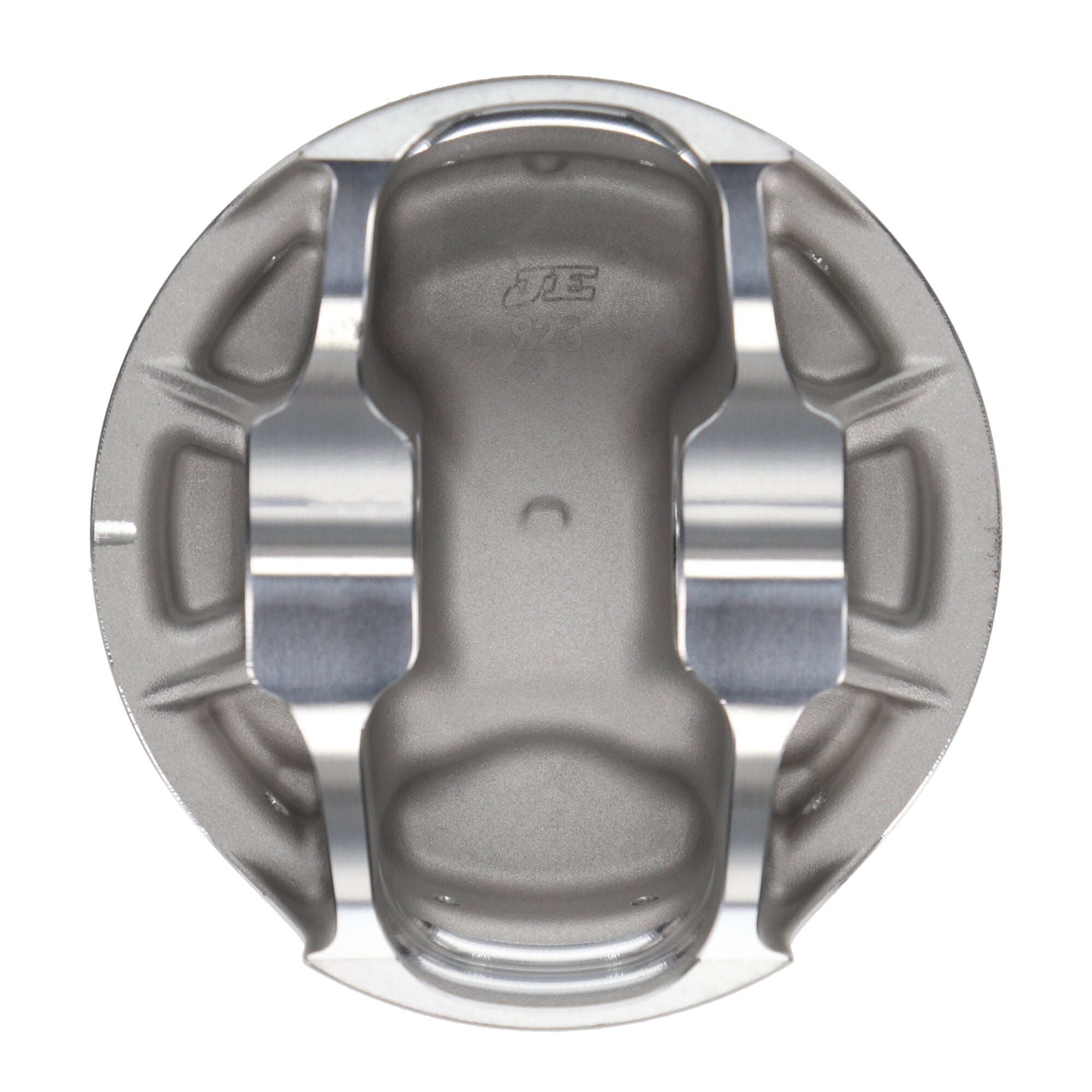

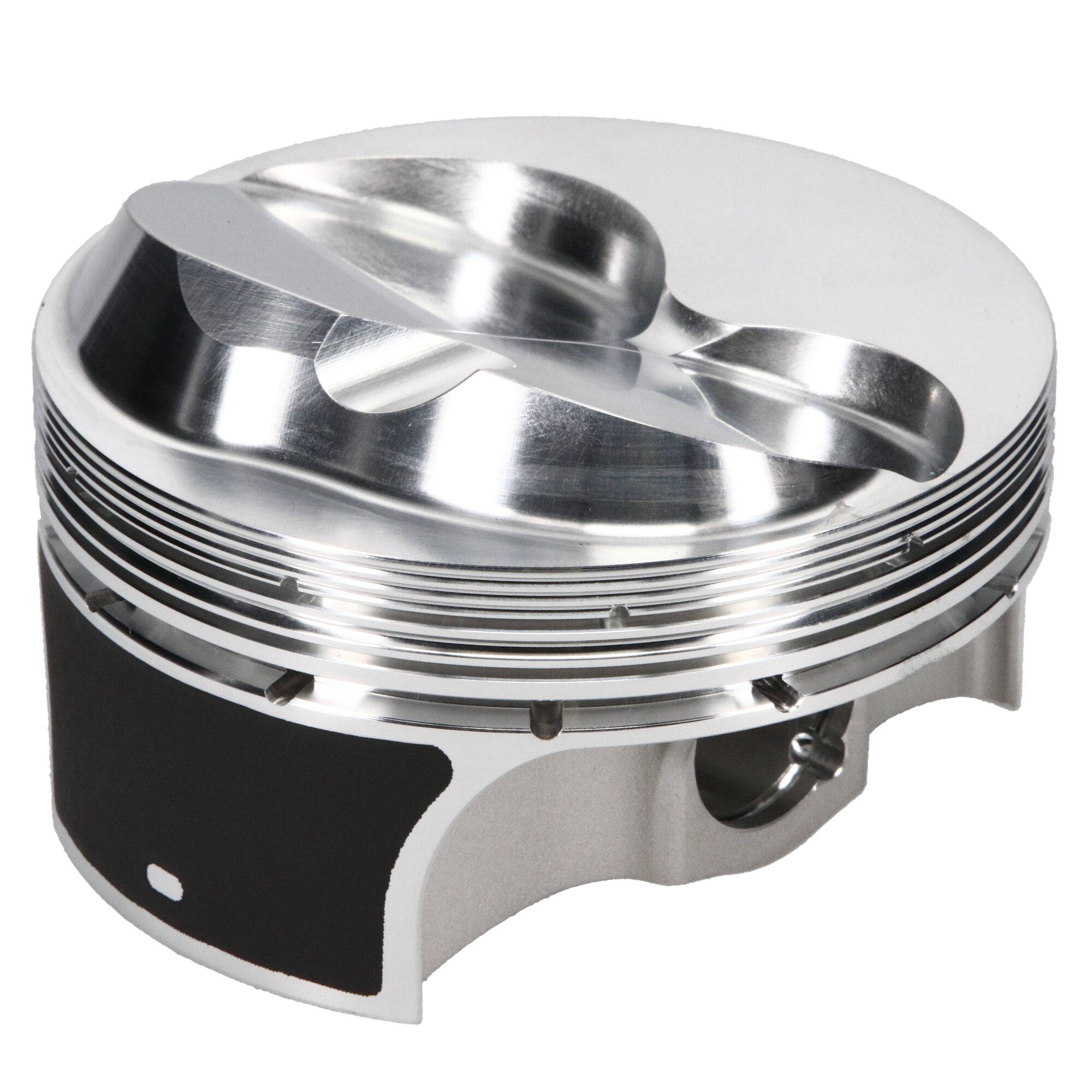

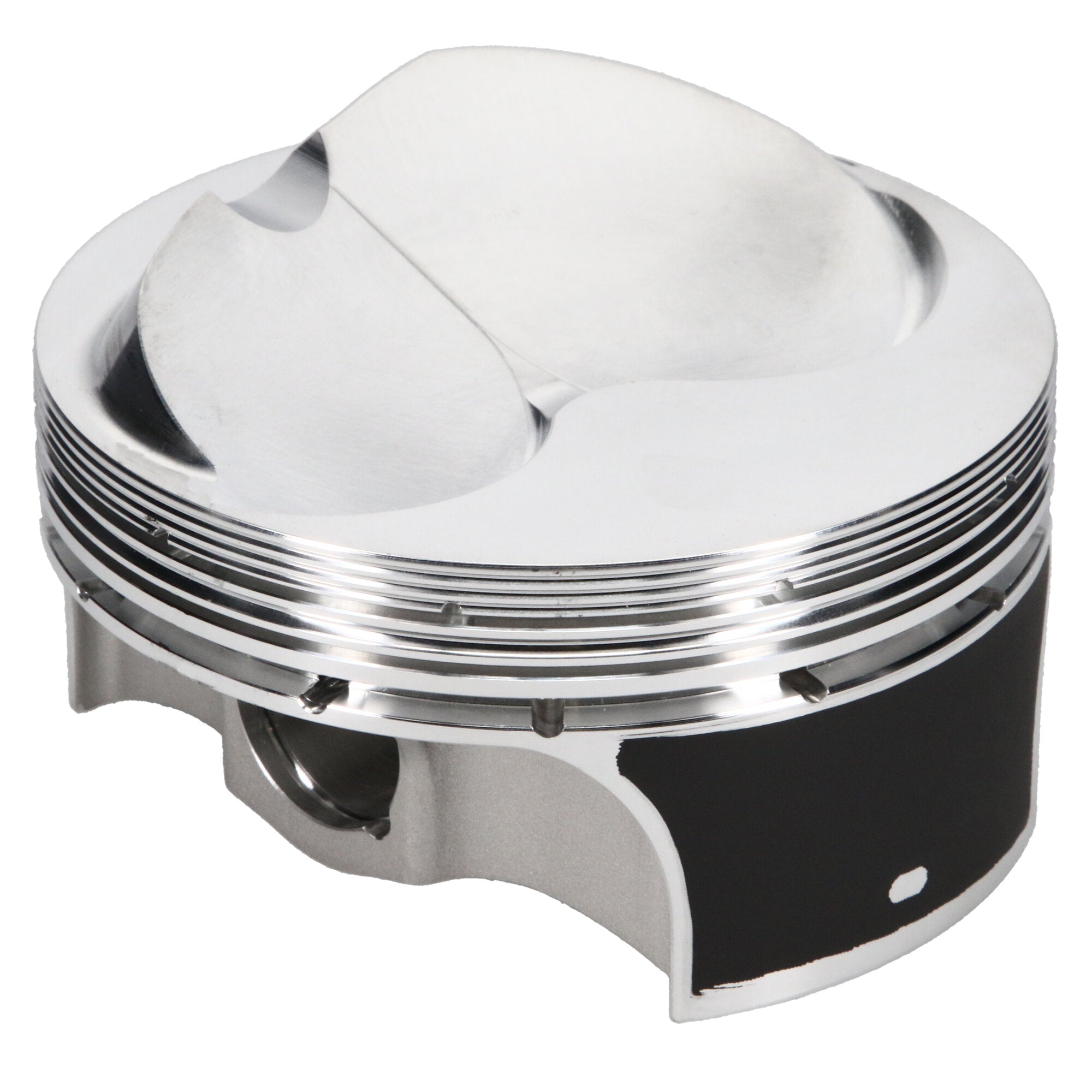

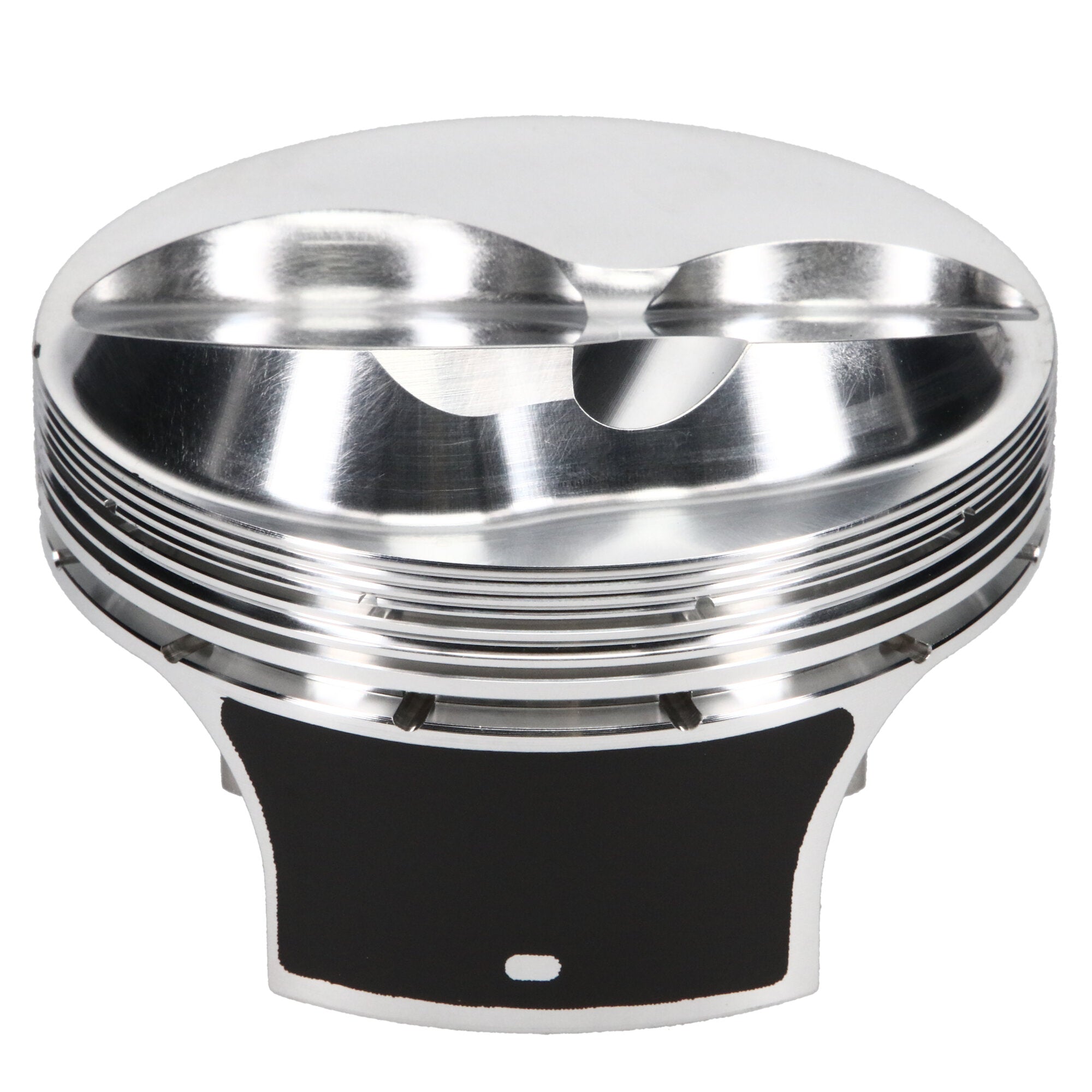

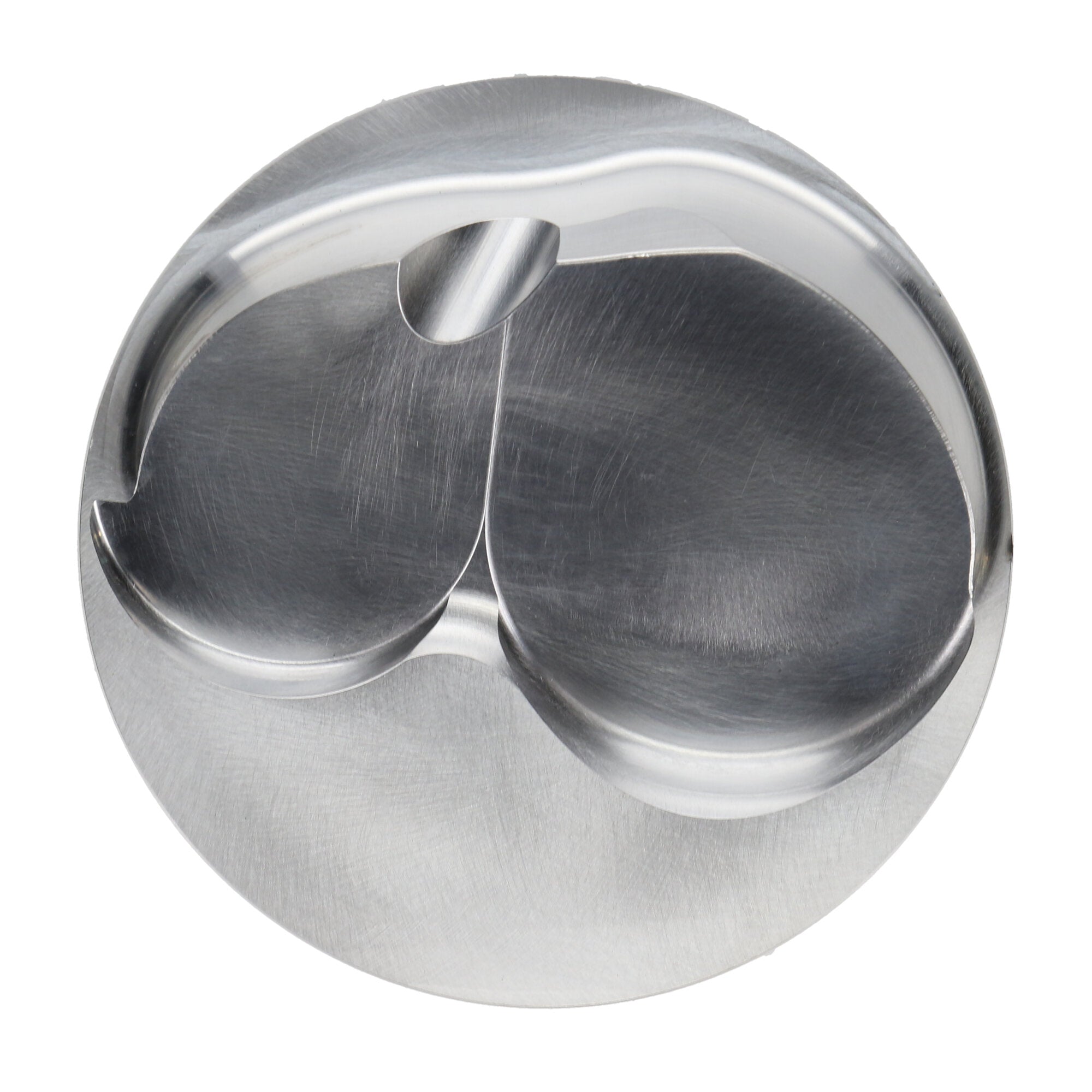

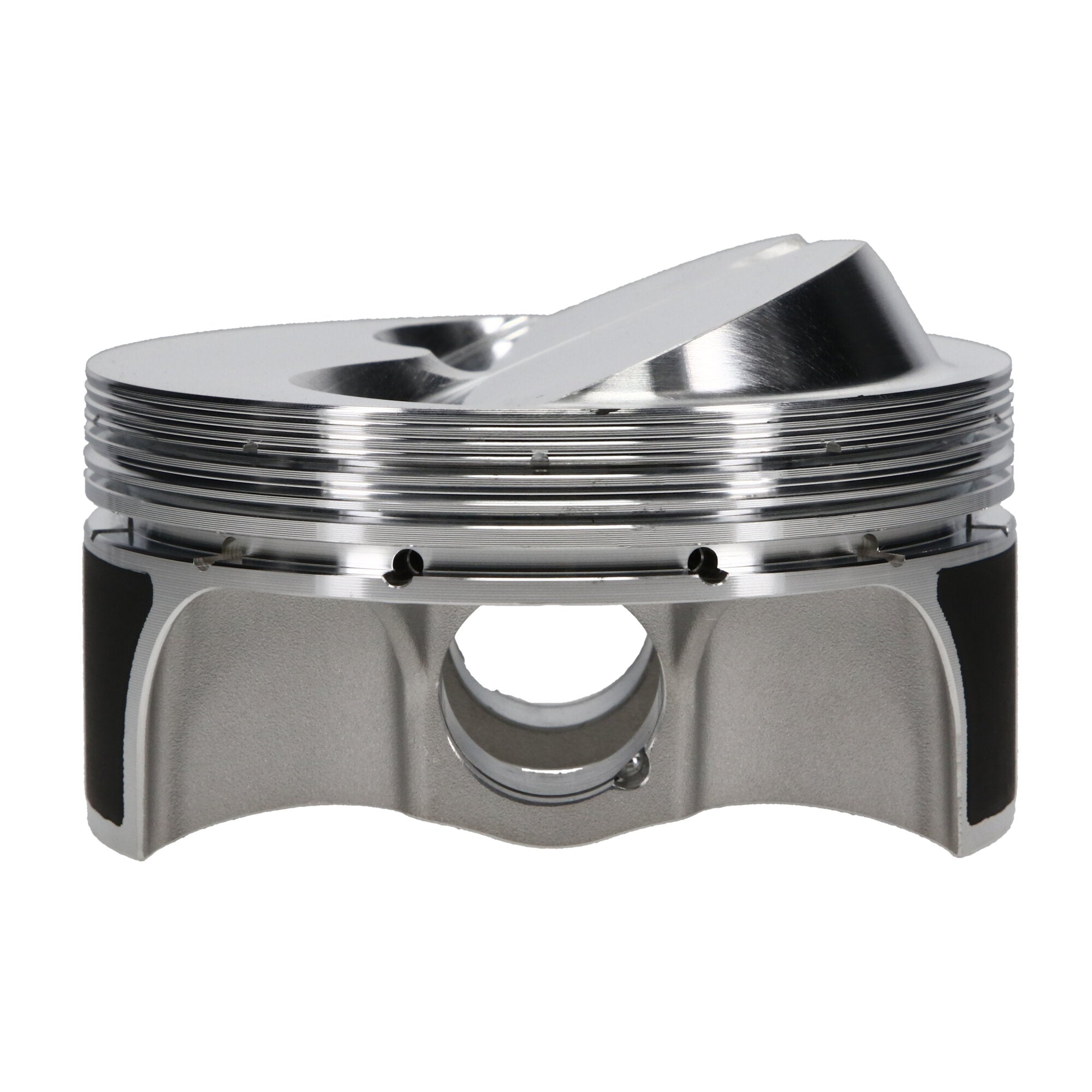

Piston Set, 2618, Dome, 4.140 Bore, 1.335 CD, 0.927 Pin Dia, Set of 8. |
| Description_DEF |
Engine Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Chevrolet 360 ASCS Sprint, 4.140 Bore, Dome, Set of 8 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Bore Diameter |
4.140 |
| Product Market |
Domestic |
| Make |
CHEVROLET |
| Piston Series |
JE Pistons |
| Title |
JE Pistons - Chevrolet, Small Block, 4.140 in. Bore, Piston Kit |
| Piston Pin Wall Thickness |
0.170 |
| Wrist Pin Outer Diameter |
0.927 |
| Engine Type |
ICE |
| Piston Pin Outside Diameter |
0.927 |
| Piston Head Type |
Dome |
| Compression Height |
1.335 |
| Product Type |
Engine Piston Kit |
| Piston Pin Material |
9310 |
| Piston Volume |
14.50 |
| Wrist Pin Length |
2.750 |
| Wrist Pin Wall Thickness |
0.170 |
| Engine - Web |
Small Block |
| Piston Material |
2618 |
| Engine |
Small Block |
| Prop 65 Yes/No |
Yes |
| Piston Pin Length |
2.750 |
| Industry |
Automotive |
| Add-On |
927-2750-17-93C |
| Prop 65 (C, R or CR) |
CR |
| Piston Quantity |
8 |
| Out of Stock Message |
Call for Availibility |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.140 in. Bore - 1.335 in. CH, 14.50 CC |
| Wrist Pin Material |
9310 Nickel Carbon Steel Alloy |
| Make - Web |
Chevrolet |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Length |
1.0000 |
| Width |
1.0000 |
| Height |
1.0000 |
| Weight |
14.0000 |
