As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet 360 ASCS Sprint |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

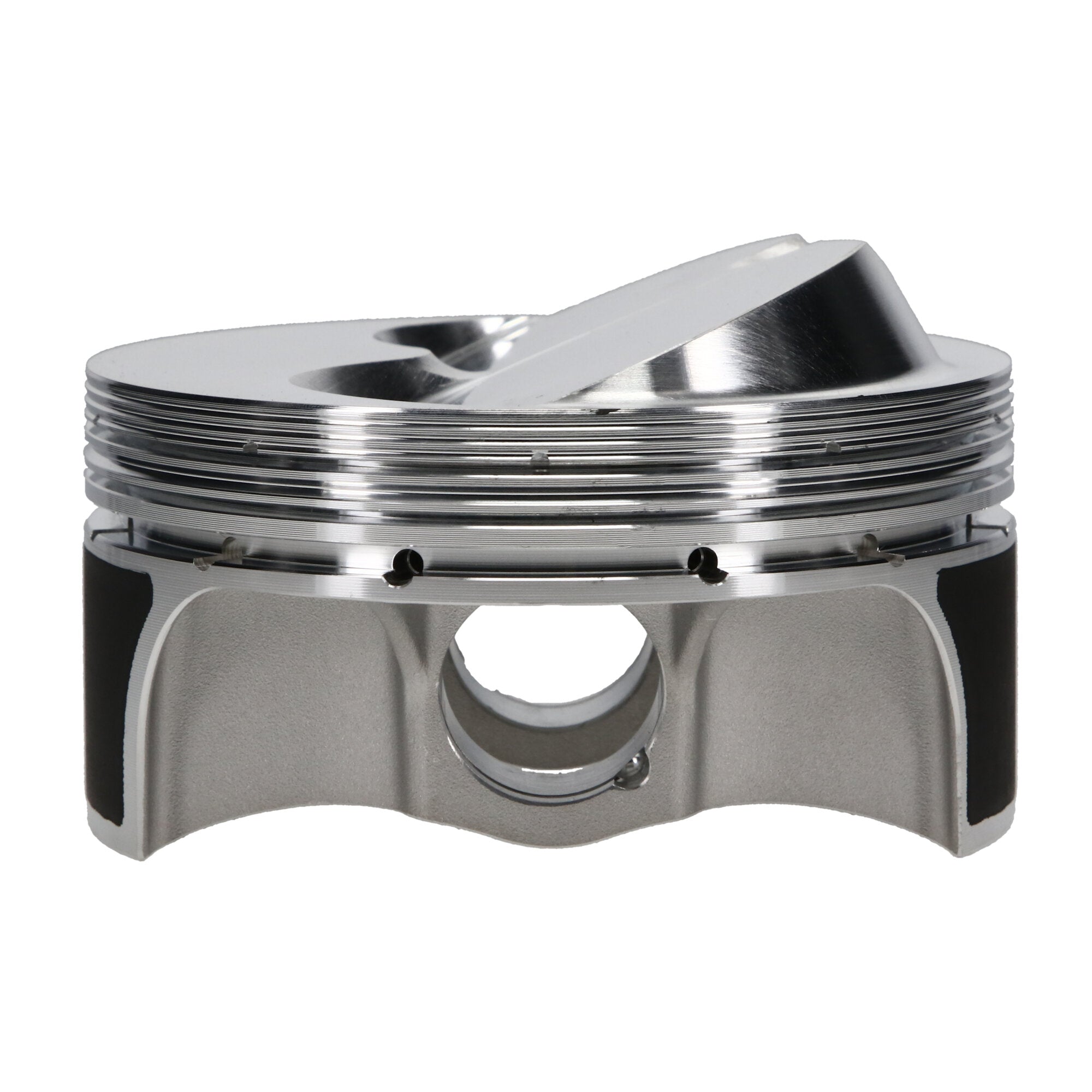

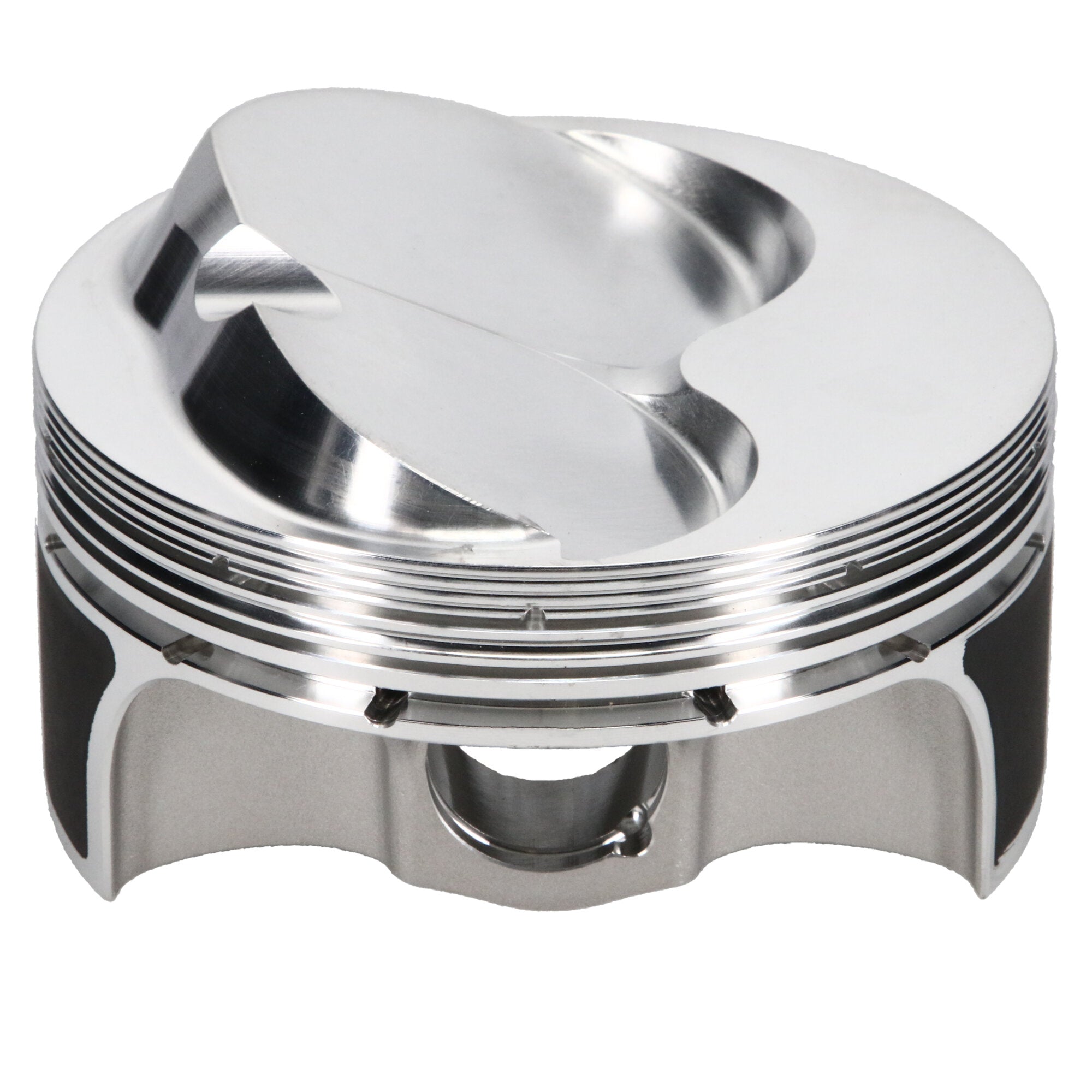

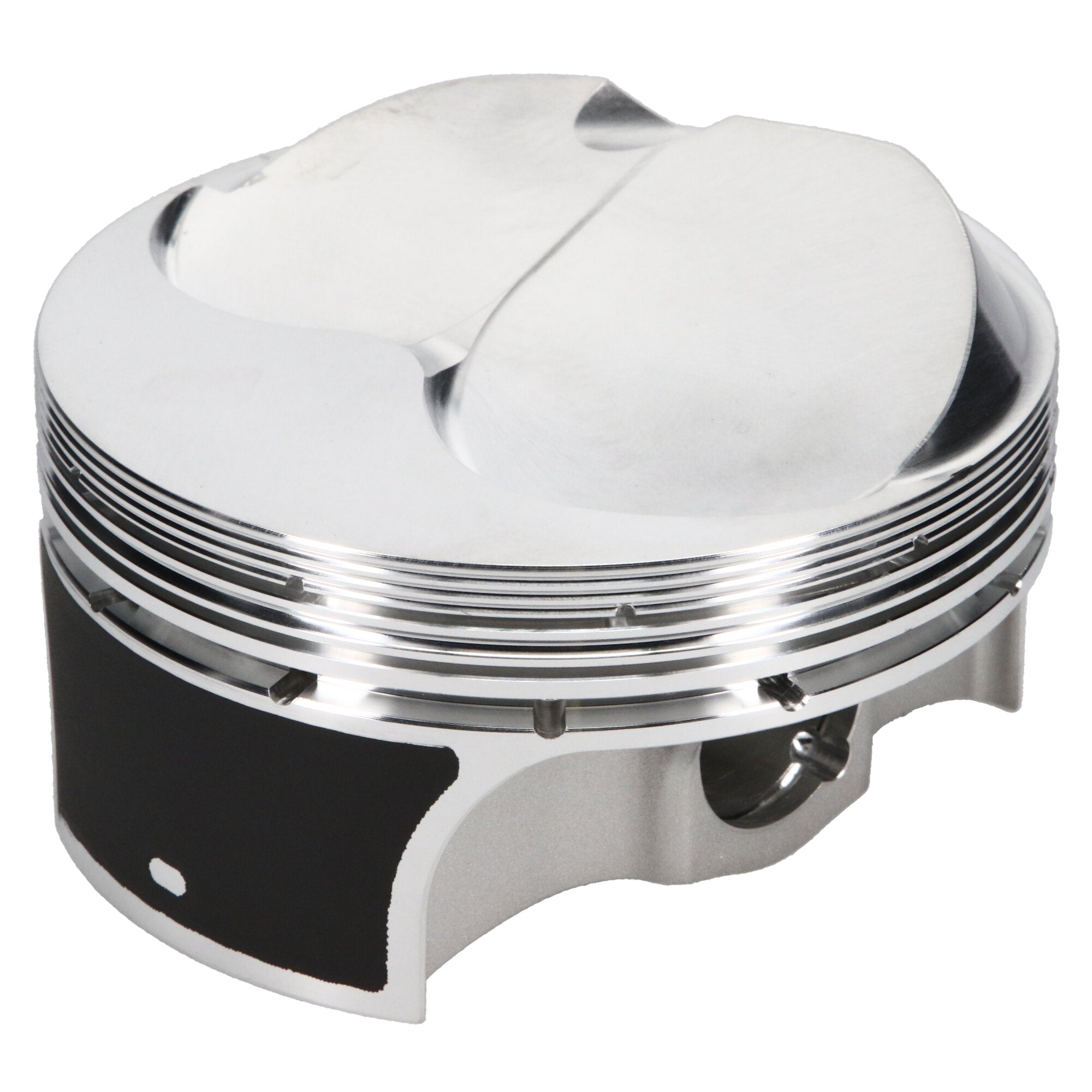

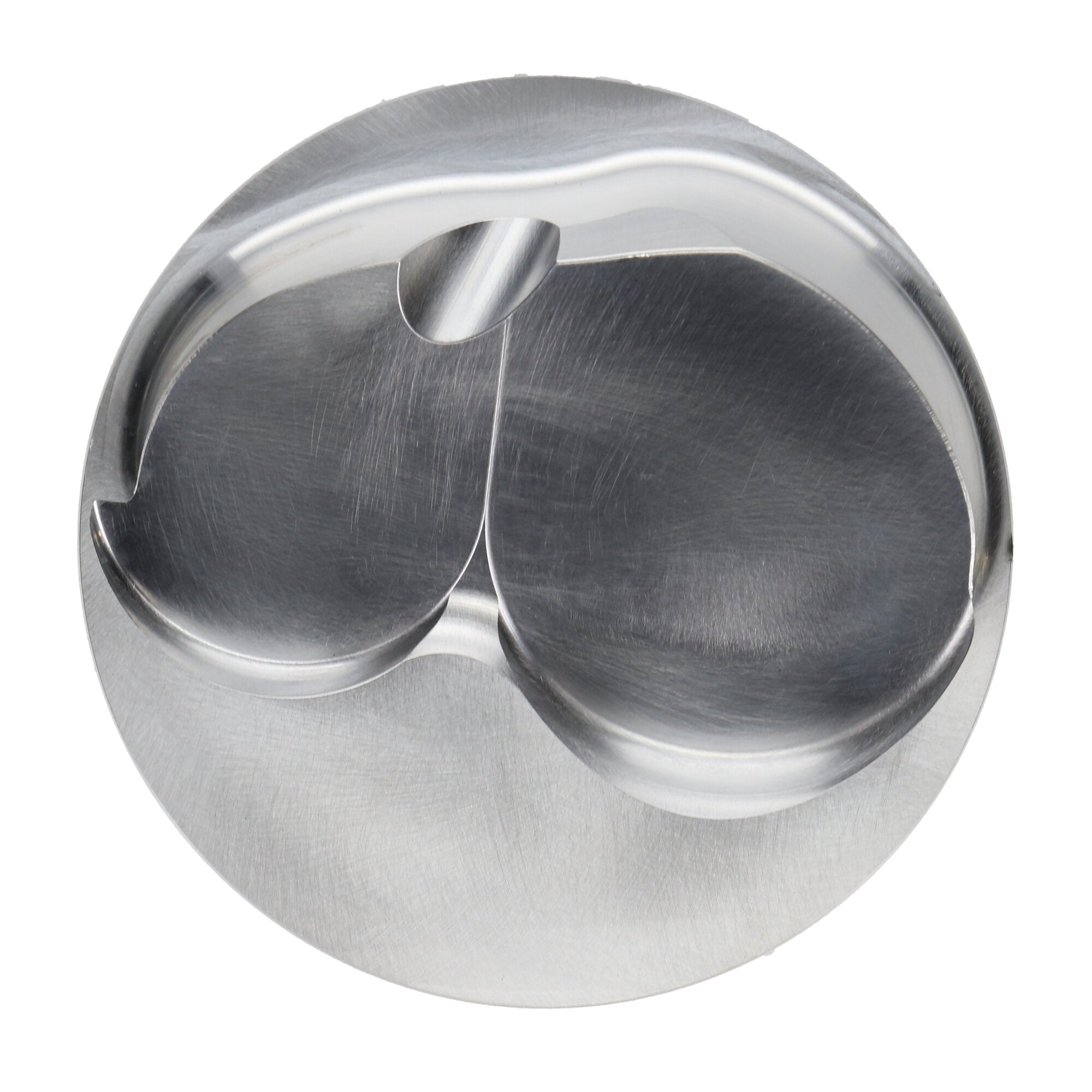

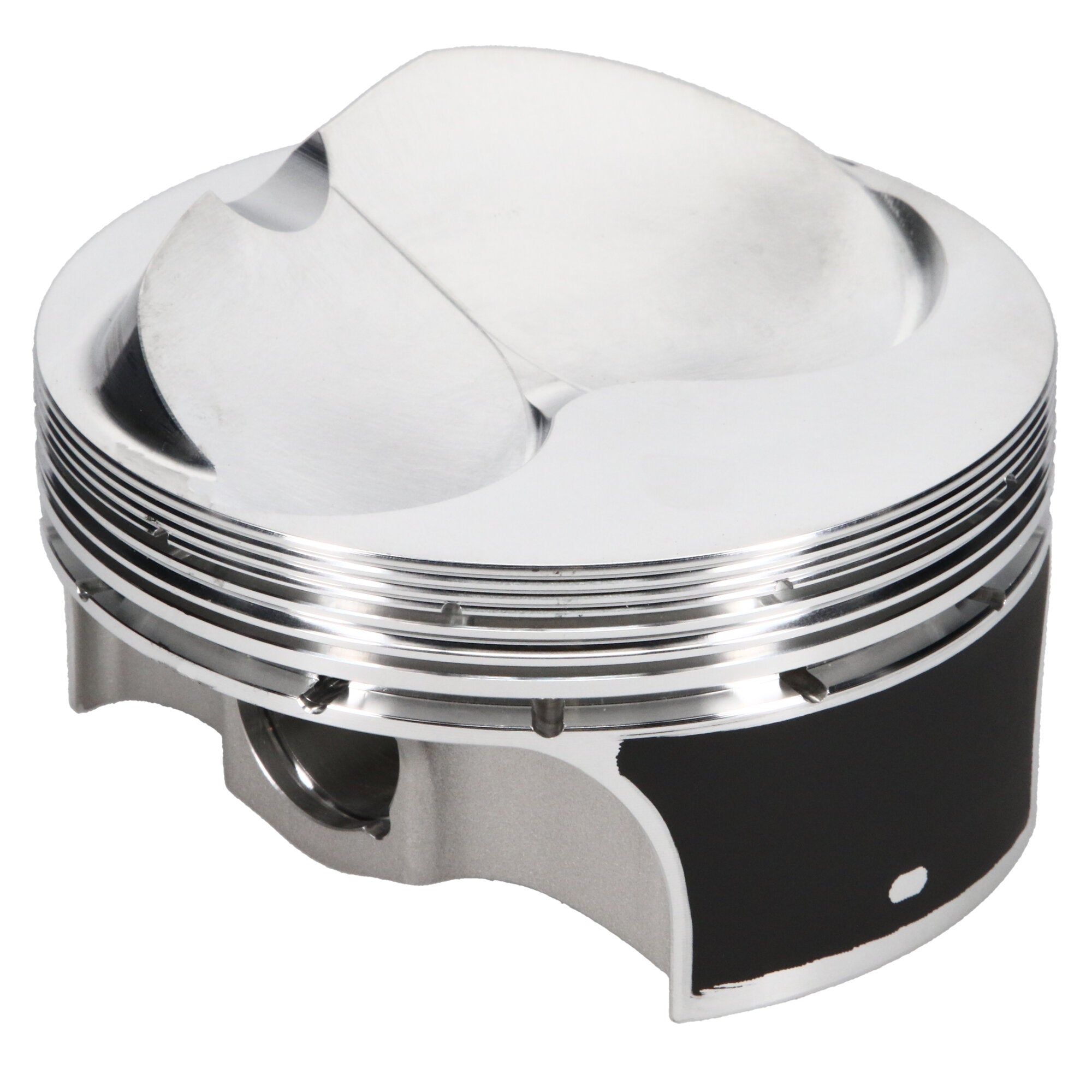

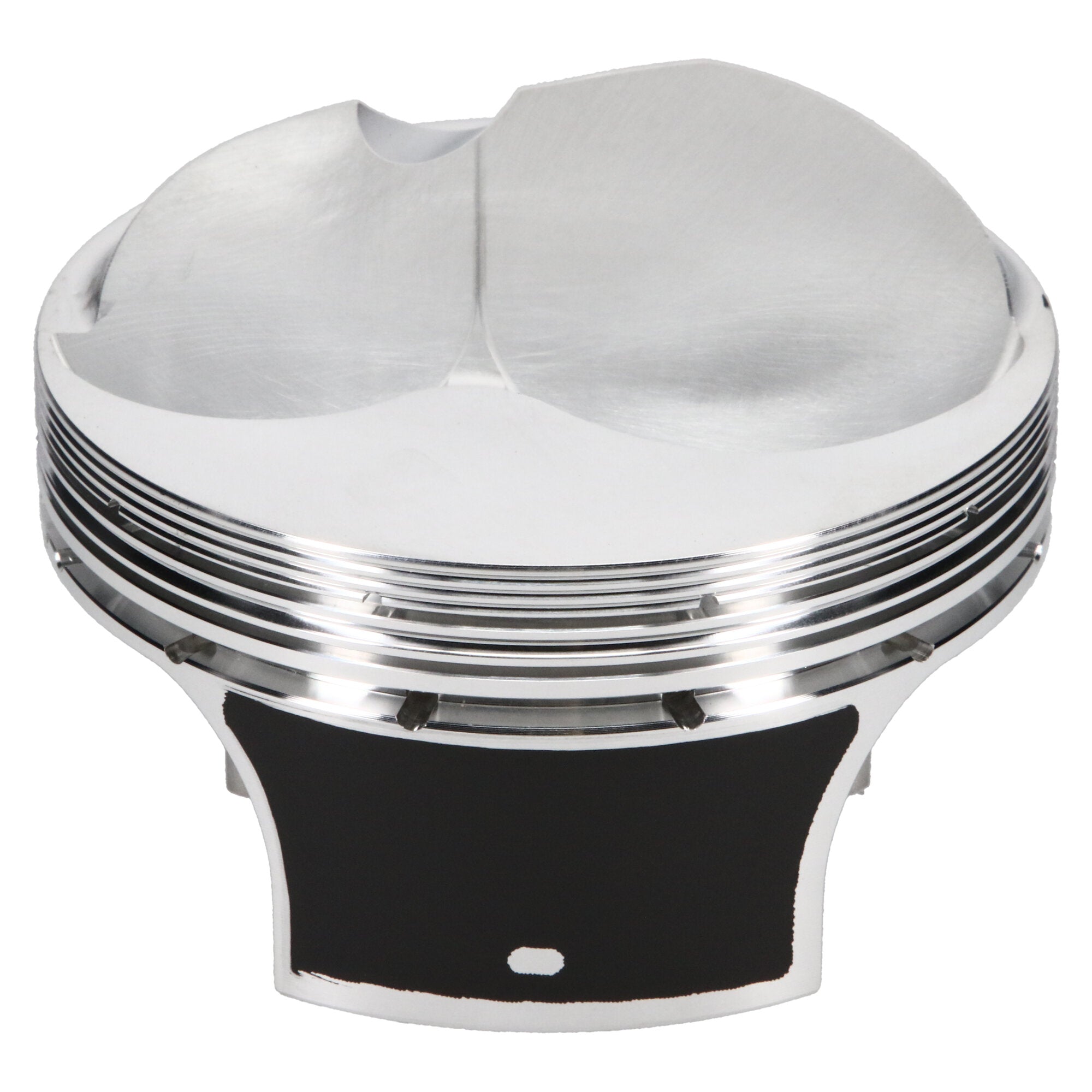

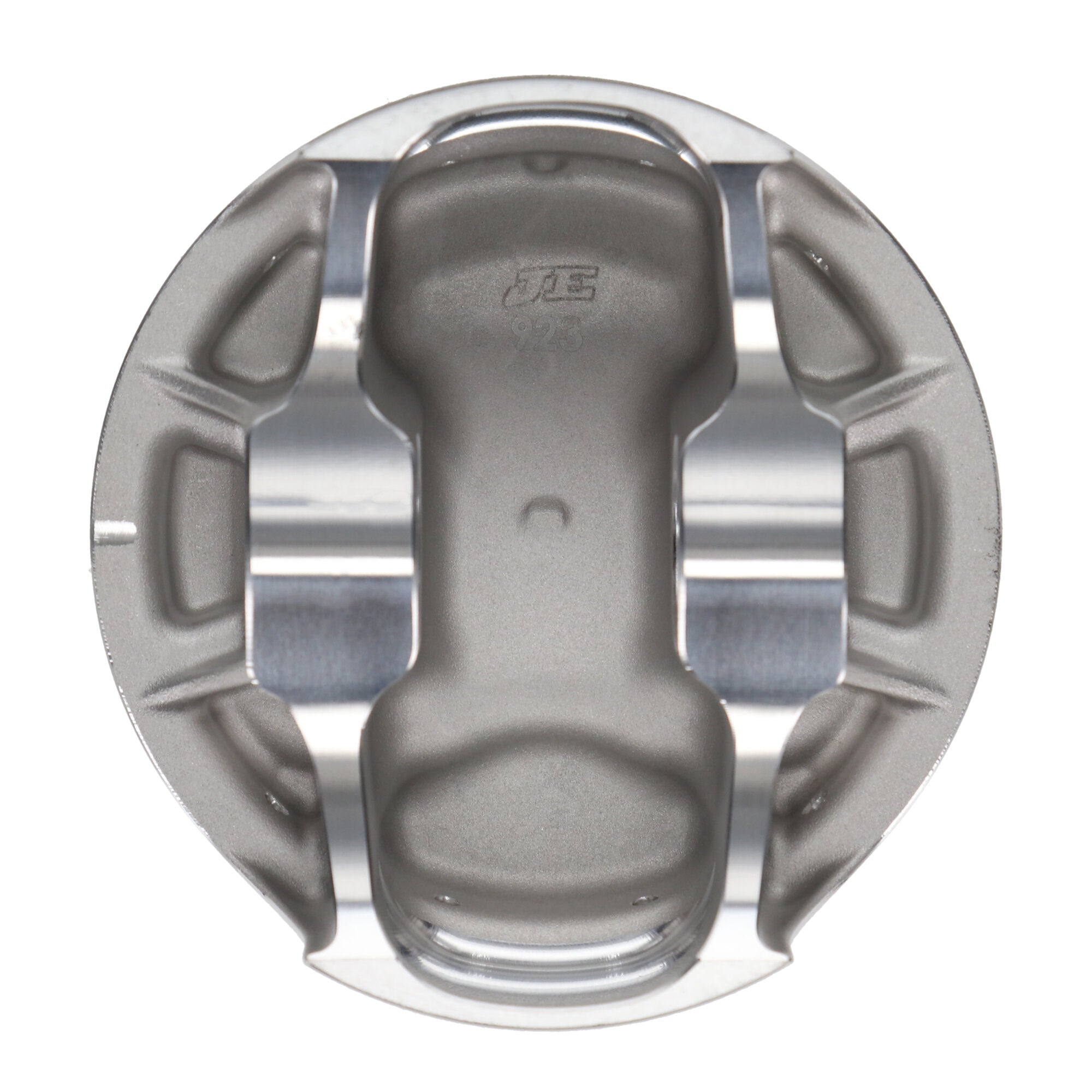

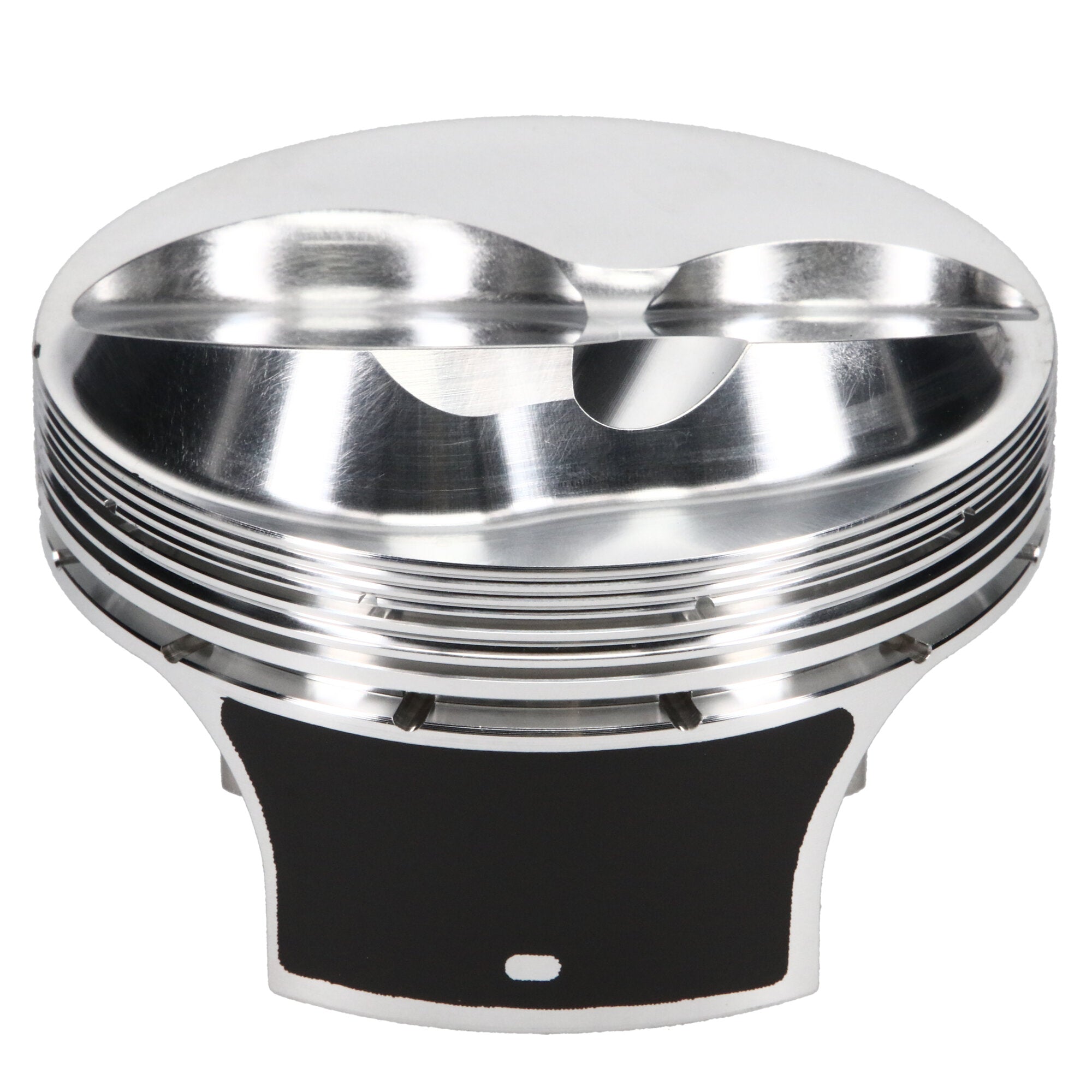

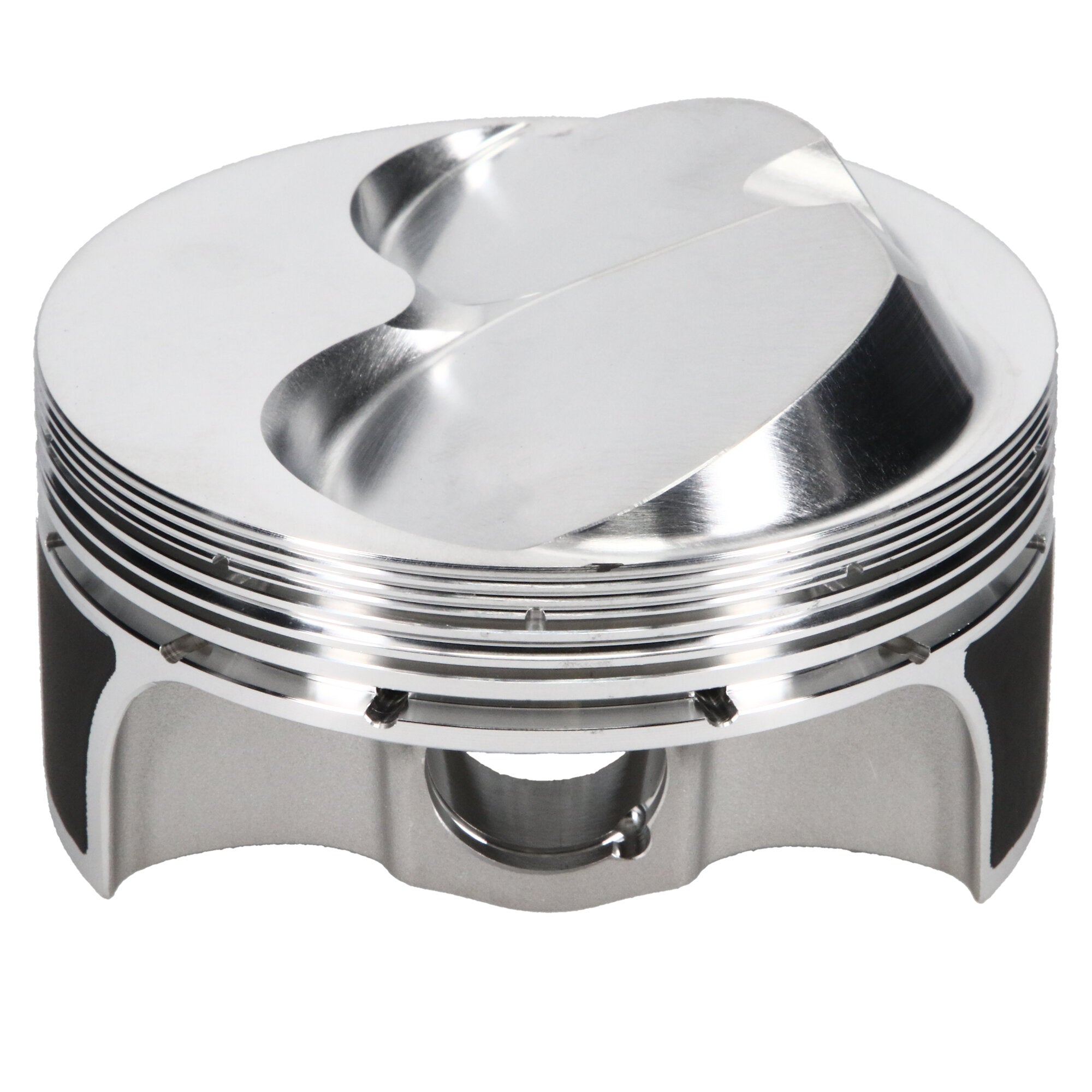

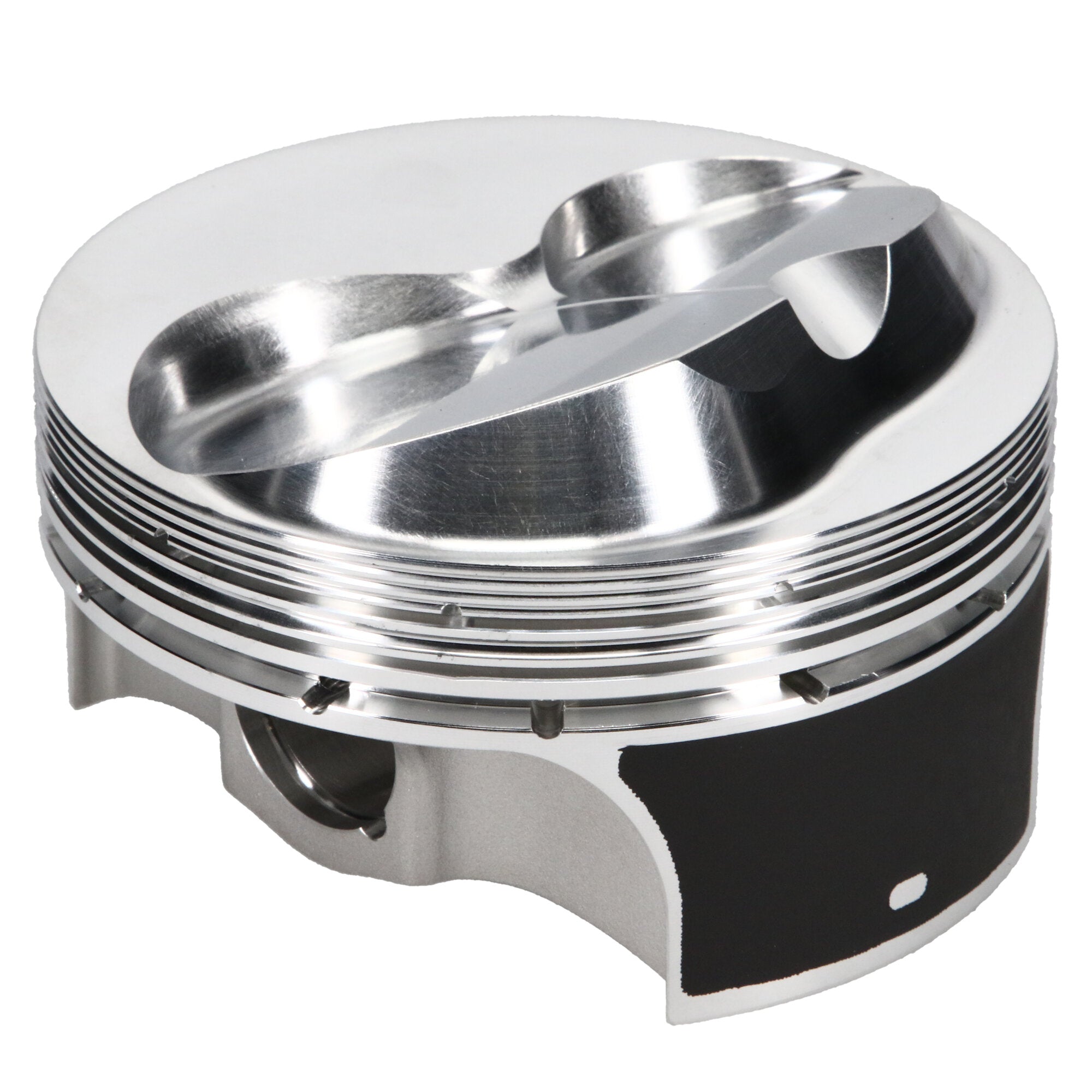

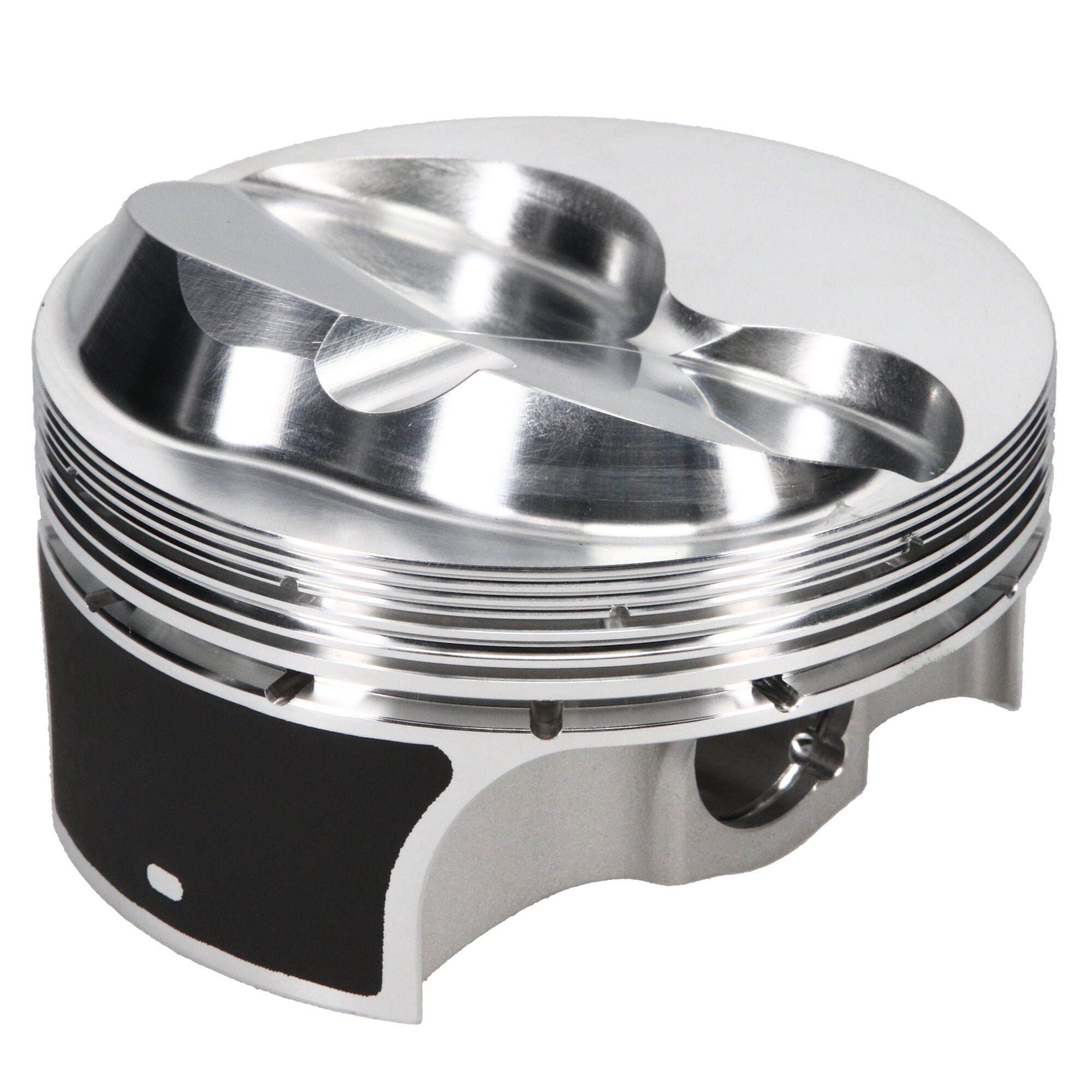

Piston Set, 2618, Dome, 4.130 Bore, 1.335 CD, 0.927 Pin Dia, Set of 8. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Chevrolet 360 ASCS Sprint, 4.130 Bore, Dome, Set of 8 |
| Description_SHO |
Piston Kit |
| Make |
CHEVROLET |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.130 in. Bore - 1.335 in. CH, 14.50 CC |
| Wrist Pin Outer Diameter |
0.927 |
| Make - Web |
Chevrolet |
| Engine |
Small Block |
| Piston Head Type |
Dome |
| Piston Series |
JE Pistons |
| Engine Type |
ICE |
| Piston Pin Material |
9310 |
| Piston Pin Wall Thickness |
0.170 |
| Piston Pin Length |
2.750 |
| Wrist Pin Wall Thickness |
0.170 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Piston Material |
2618 |
| Bore Diameter |
4.130 |
| Industry |
Automotive |
| Piston Pin Outside Diameter |
0.927 |
| Product Type |
Engine Piston Kit |
| Piston Quantity |
8 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Out of Stock Message |
Call for Availibility |
| Product Market |
Domestic |
| Compression Height |
1.335 |
| Add-On |
927-2750-17-93C |
| Piston Volume |
14.50 |
| Title |
JE Pistons - Chevrolet, Small Block, 4.130 in. Bore, Piston Kit |
| Engine - Web |
Small Block |
| Wrist Pin Material |
9310 Nickel Carbon Steel Alloy |
| Wrist Pin Length |
2.750 |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 Yes/No |
Yes |
| Length |
1.0000 |
| Width |
1.0000 |
| Height |
1.0000 |
| Weight |
14.0000 |
