As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet 360 ASCS Sprint |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

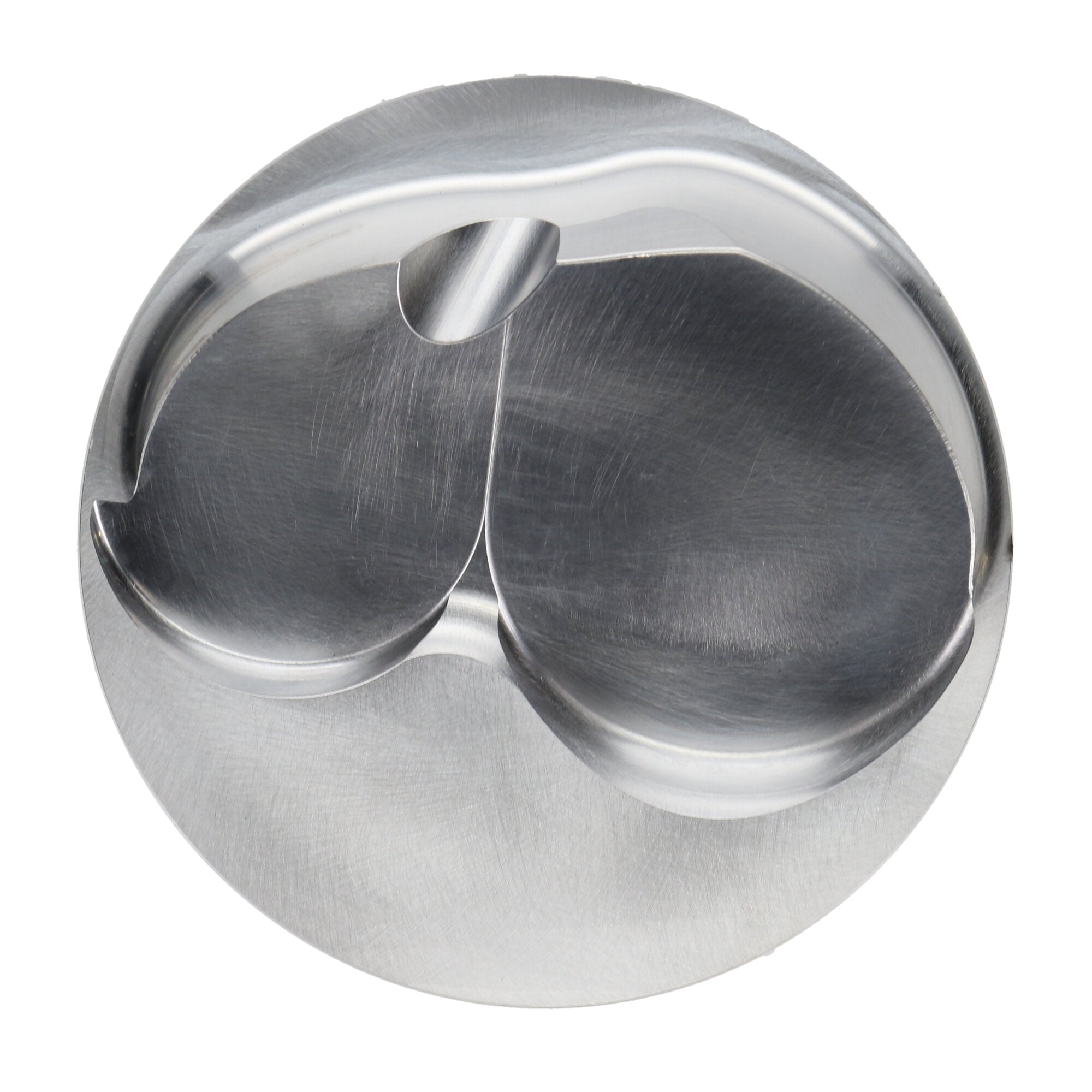

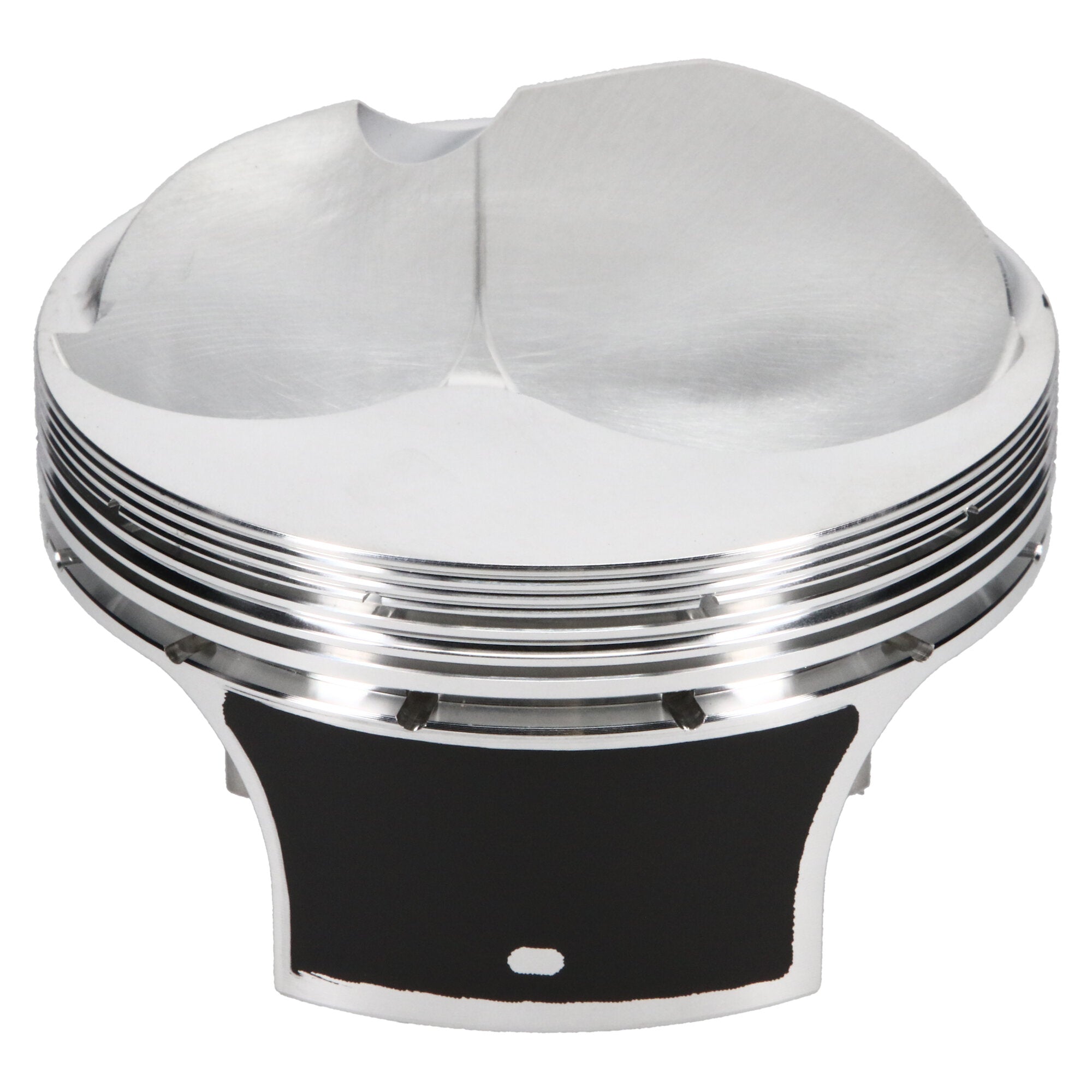

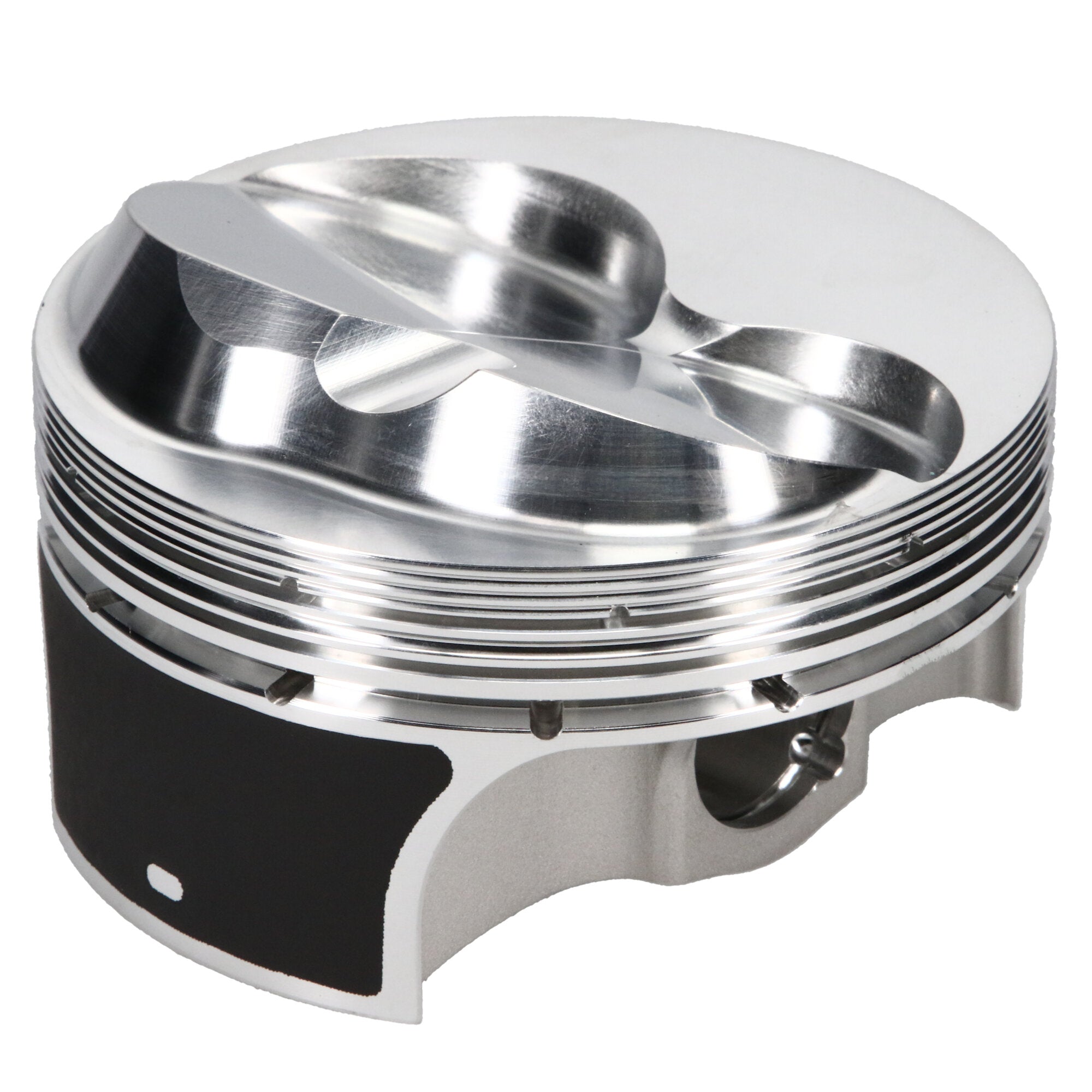

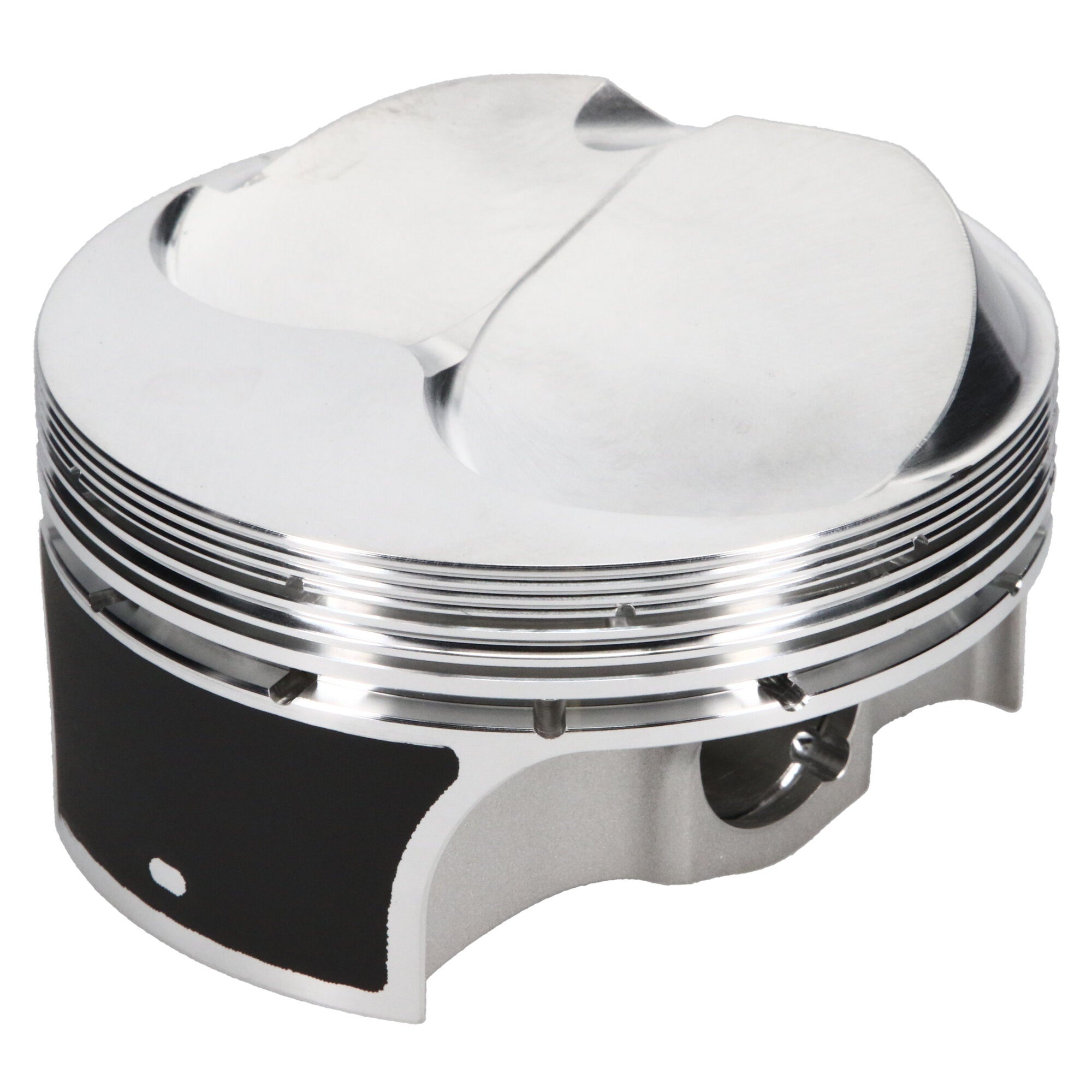

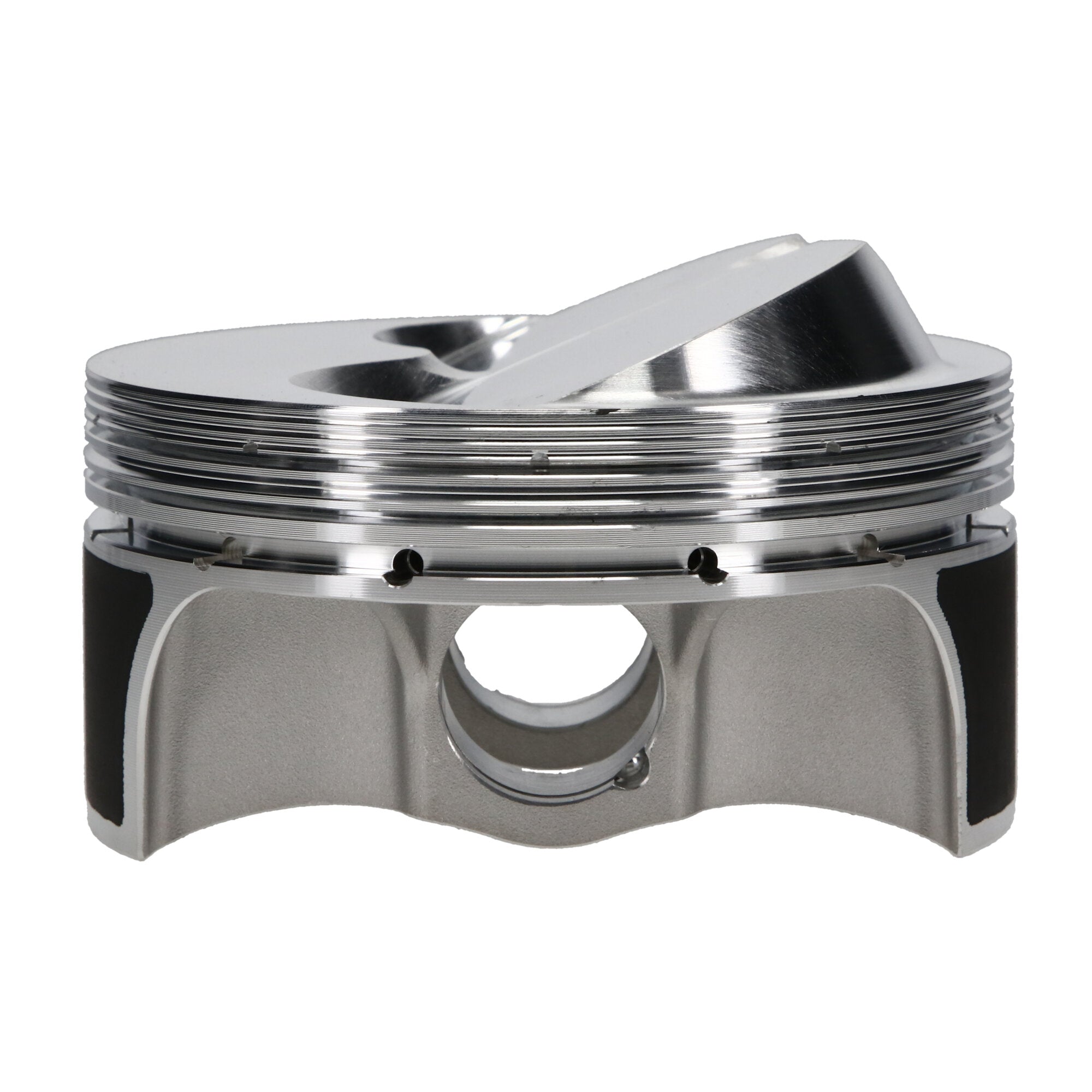

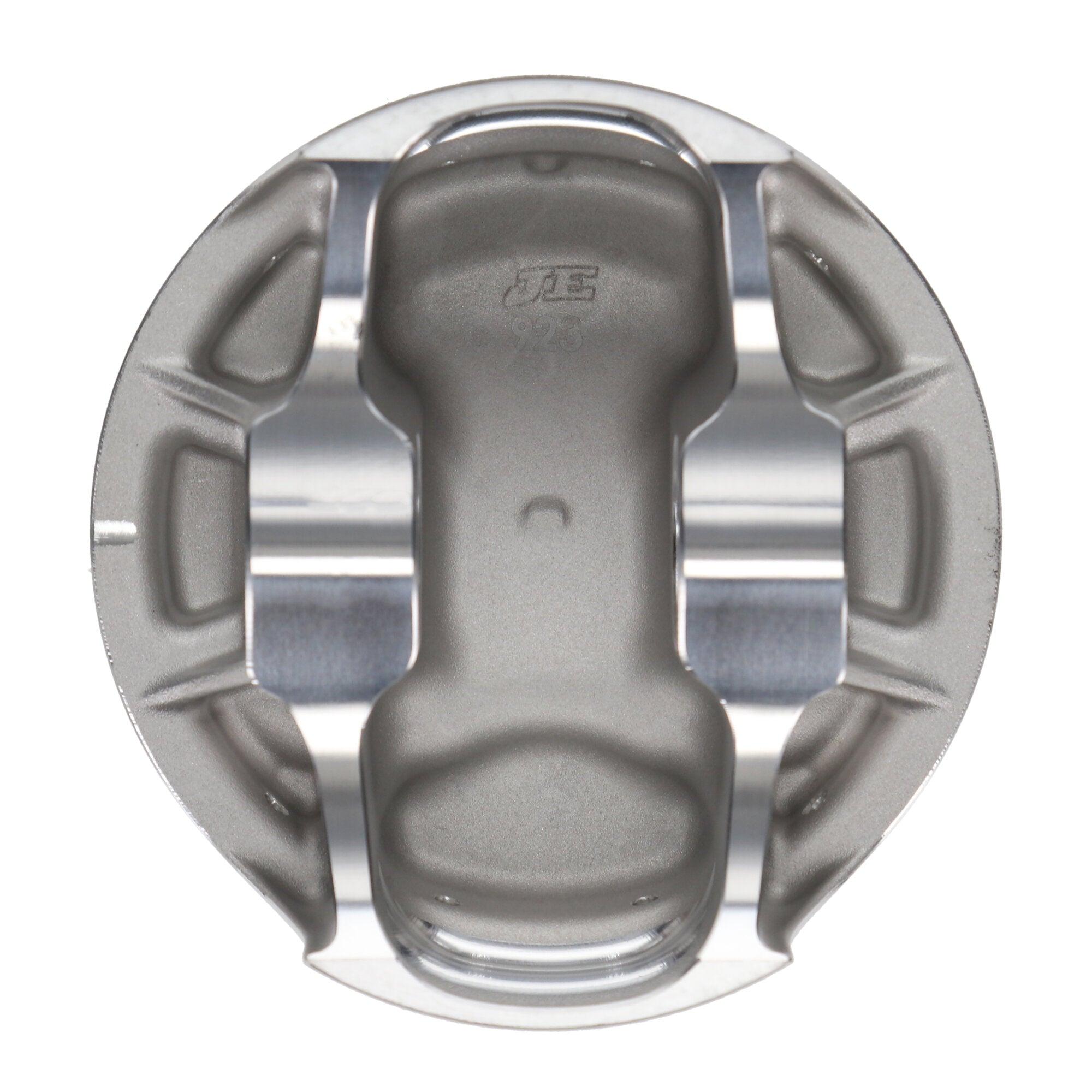

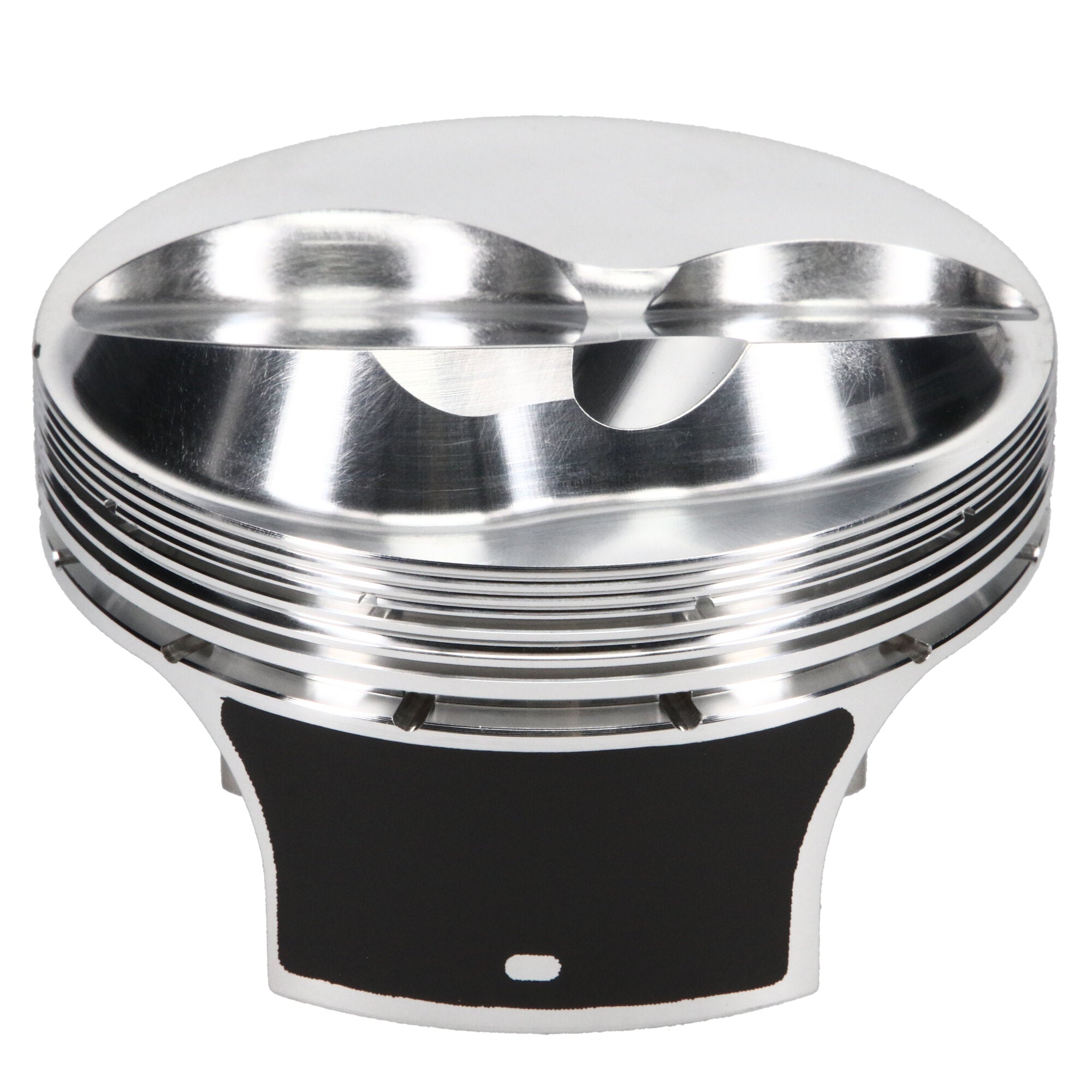

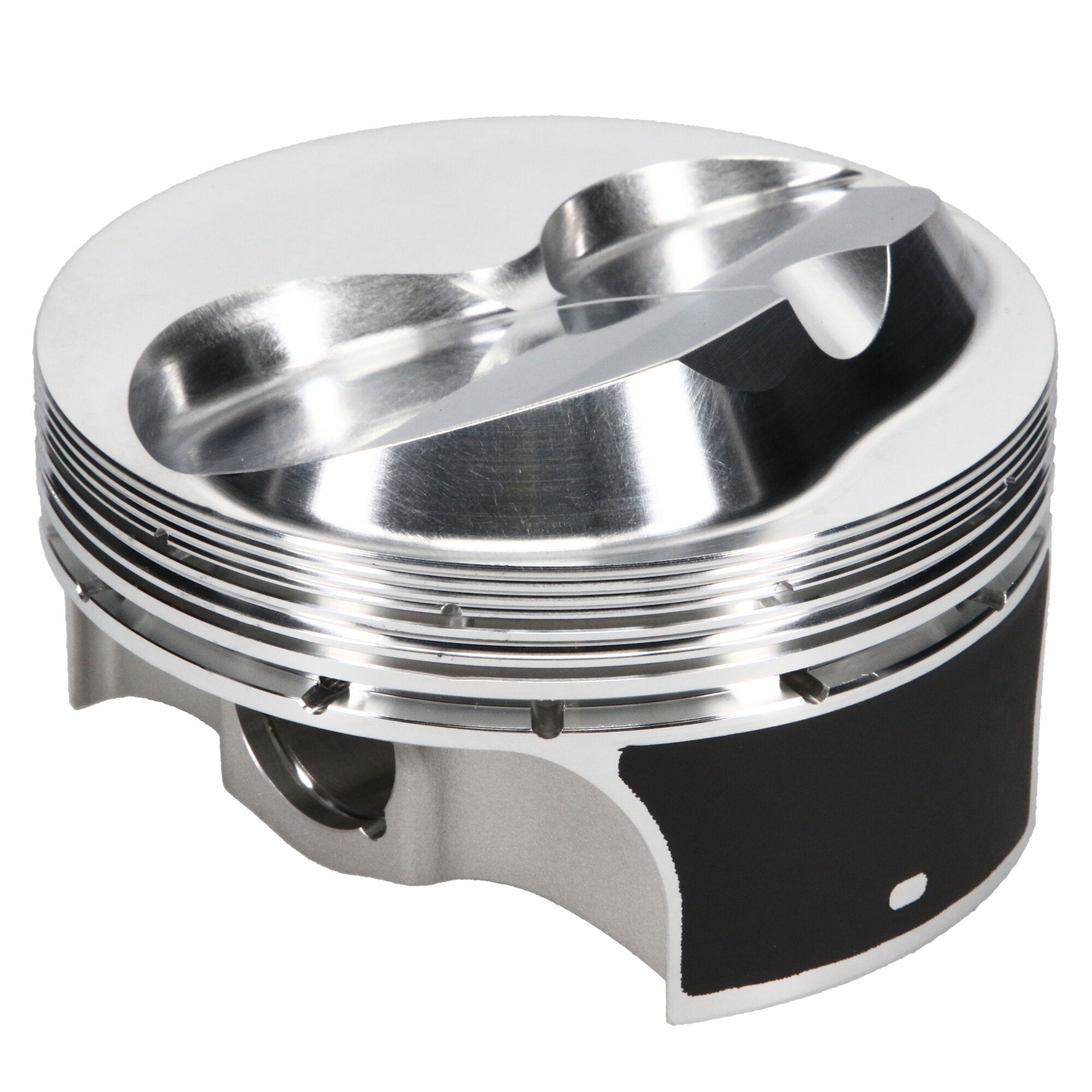

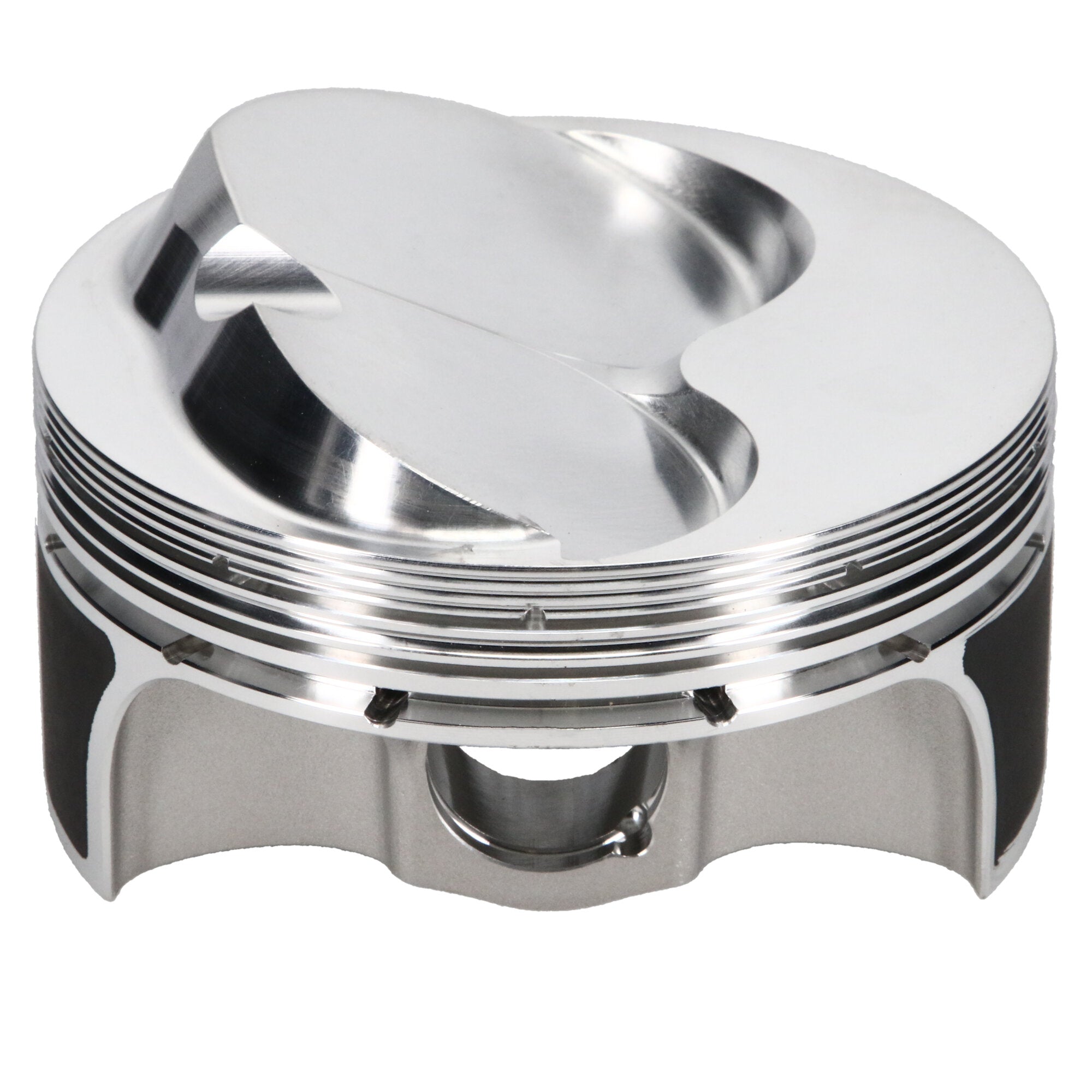

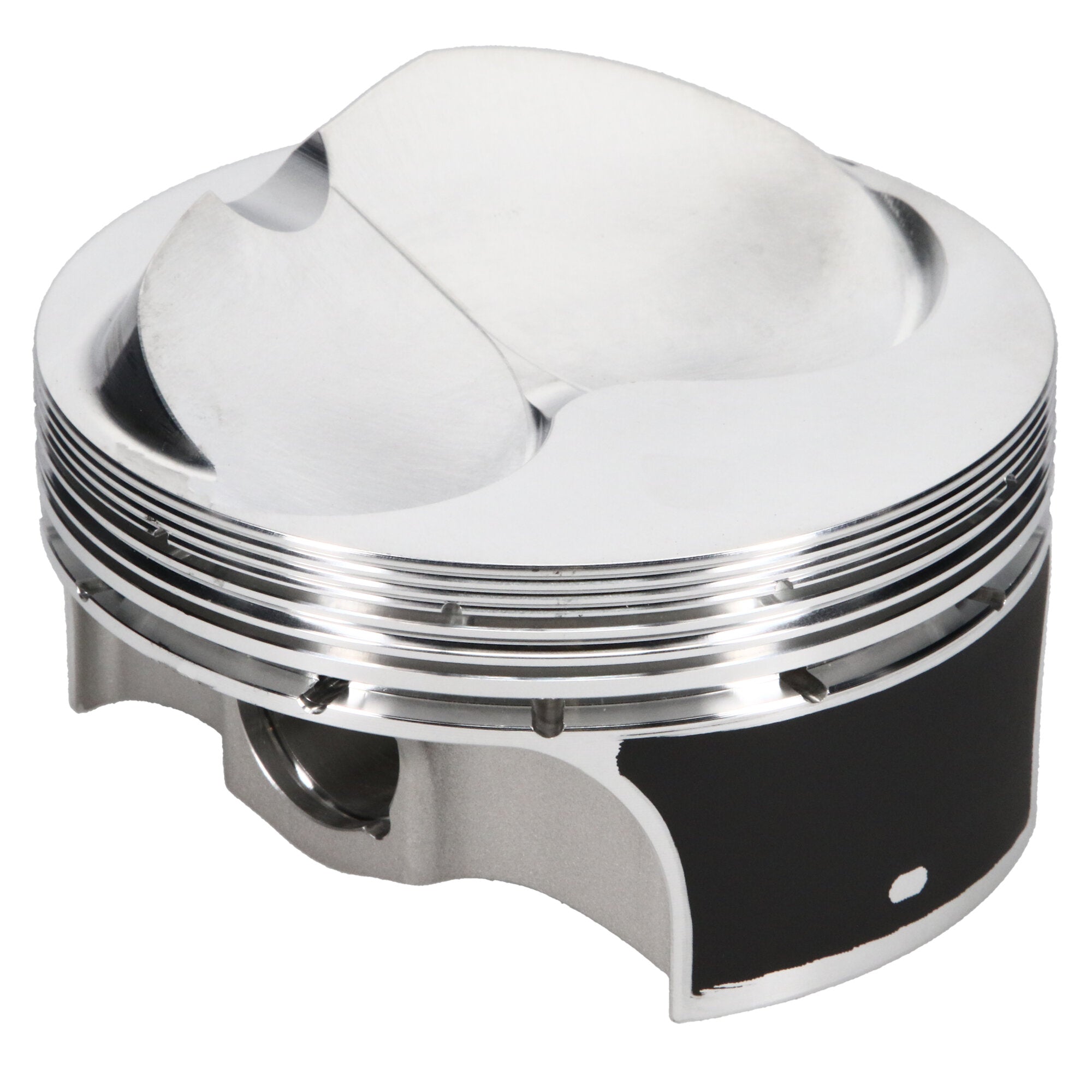

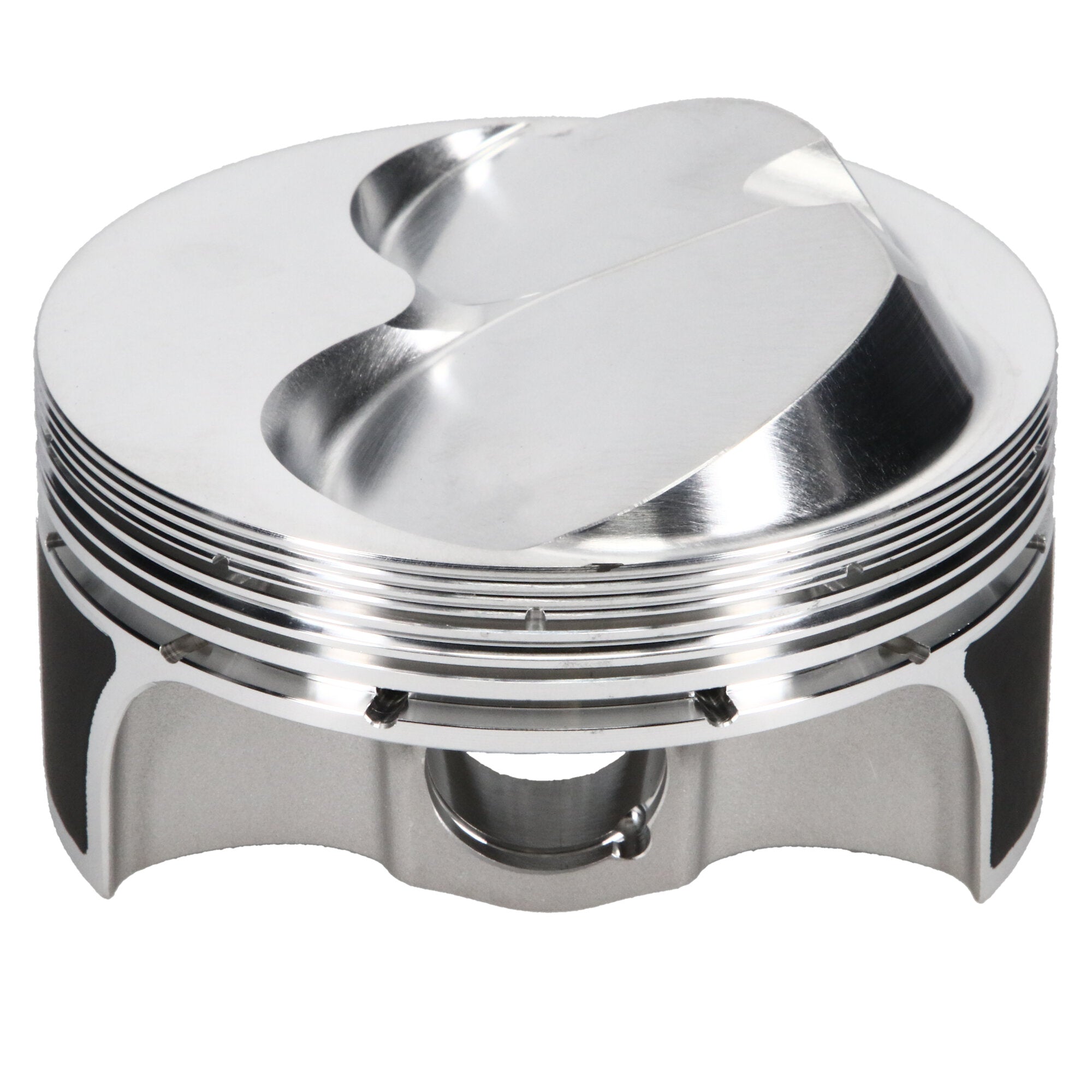

Piston Set, 2618, Dome, 4.040 Bore, 1.250 CD, 0.927 Pin Dia, Set of 8. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet 360 ASCS Sprint, 4.040 Bore, Dome, Set of 8 |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Wrist Pin Outer Diameter |
0.927 |
| Piston Pin Material |
9310 |
| Piston Pin Outside Diameter |
0.927 |
| Engine - Web |
Small Block |
| Compression Height |
1.250 |
| Engine Type |
ICE |
| Piston Pin Wall Thickness |
0.170 |
| Product Market |
Domestic |
| Wrist Pin Wall Thickness |
0.170 |
| Bore Diameter |
4.040 |
| Piston Material |
2618 |
| Title |
JE Pistons - Chevrolet, Small Block, 4.040 in. Bore, Piston Kit |
| Prop 65 (C, R or CR) |
CR |
| Piston Quantity |
8 |
| Industry |
Automotive |
| Add-On |
927-2750-17-93C |
| Piston Pin Length |
2.750 |
| Product Type |
Engine Piston Kit |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Make |
CHEVROLET |
| Piston Series |
JE Pistons |
| Engine |
Small Block |
| Prop 65 Yes/No |
Yes |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.040 in. Bore - 1.250 in. CH, 14.50 CC |
| Piston Volume |
14.50 |
| Out of Stock Message |
Call for Availibility |
| Wrist Pin Length |
2.750 |
| Wrist Pin Material |
9310 Nickel Carbon Steel Alloy |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Make - Web |
Chevrolet |
| Piston Head Type |
Dome |
| Length |
1.0000 |
| Width |
1.0000 |
| Height |
1.0000 |
| Weight |
14.0000 |
