As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet 360 ASCS Sprint |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

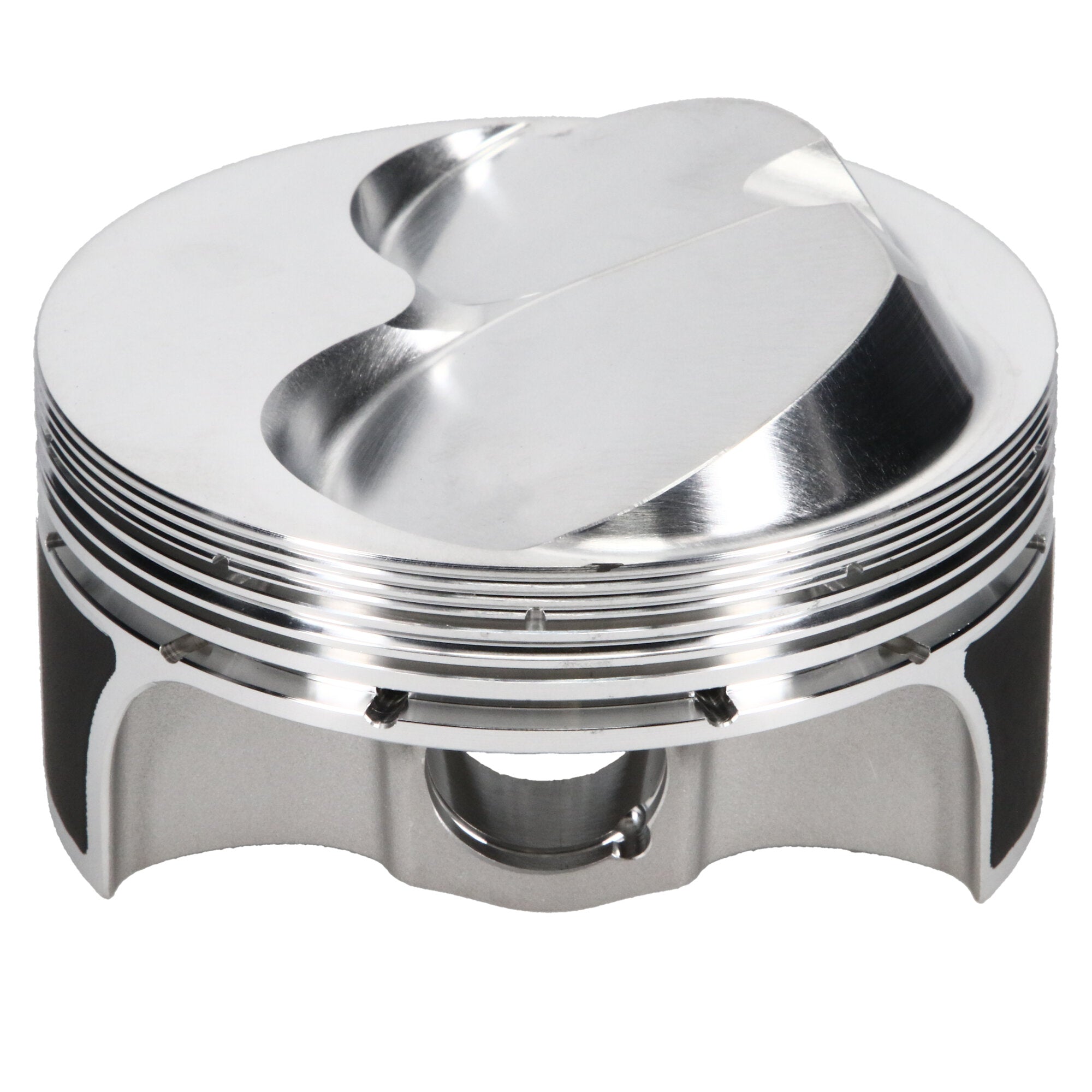

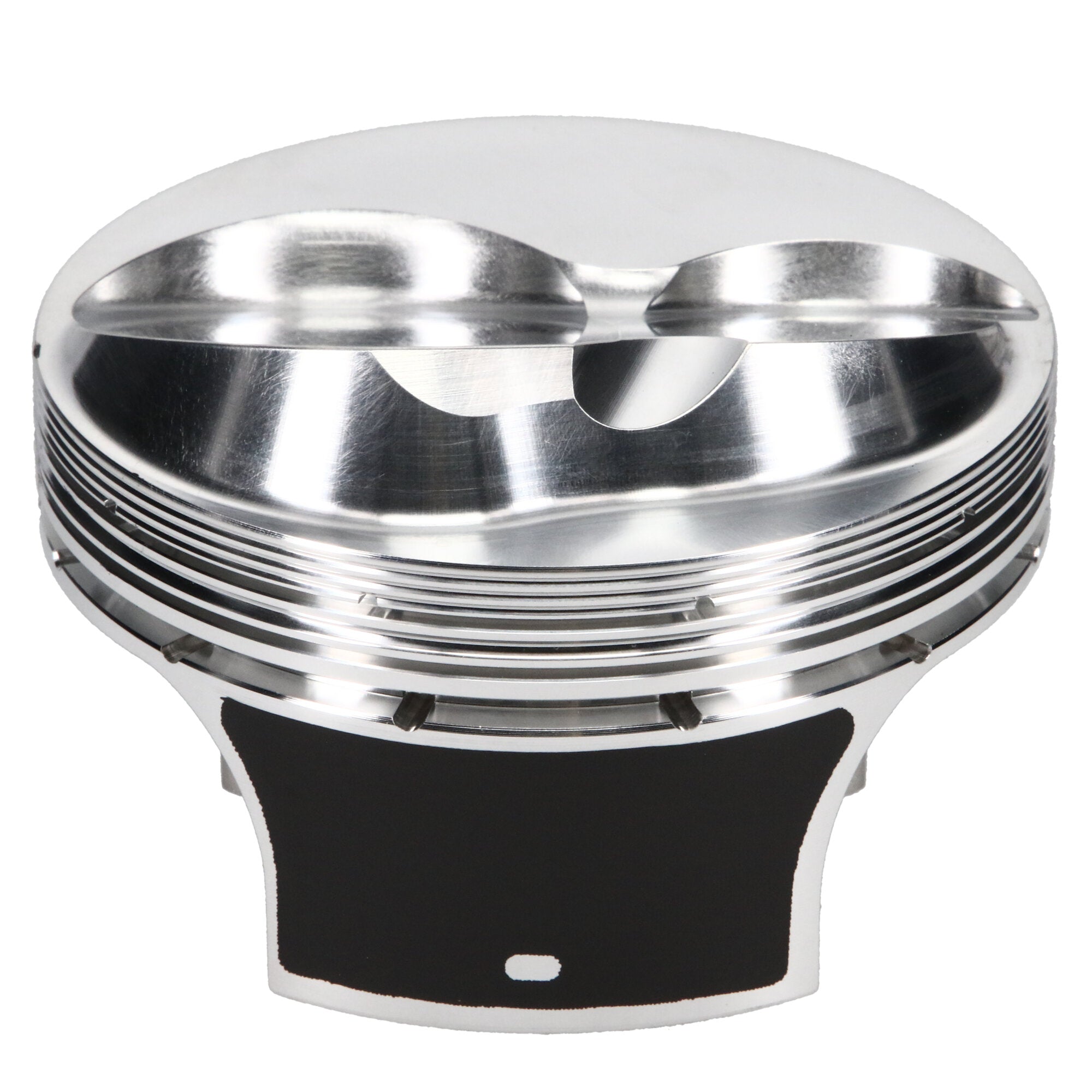

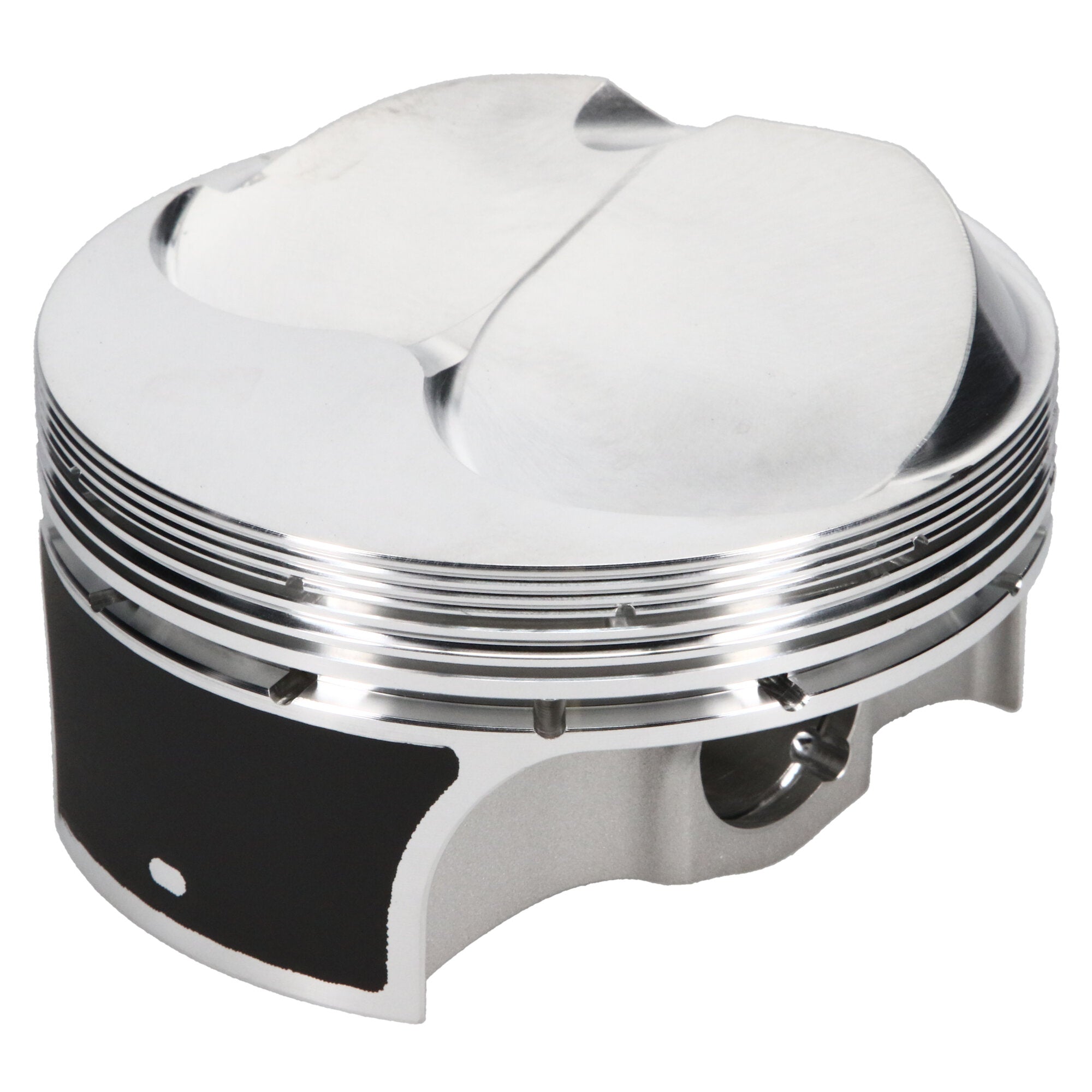

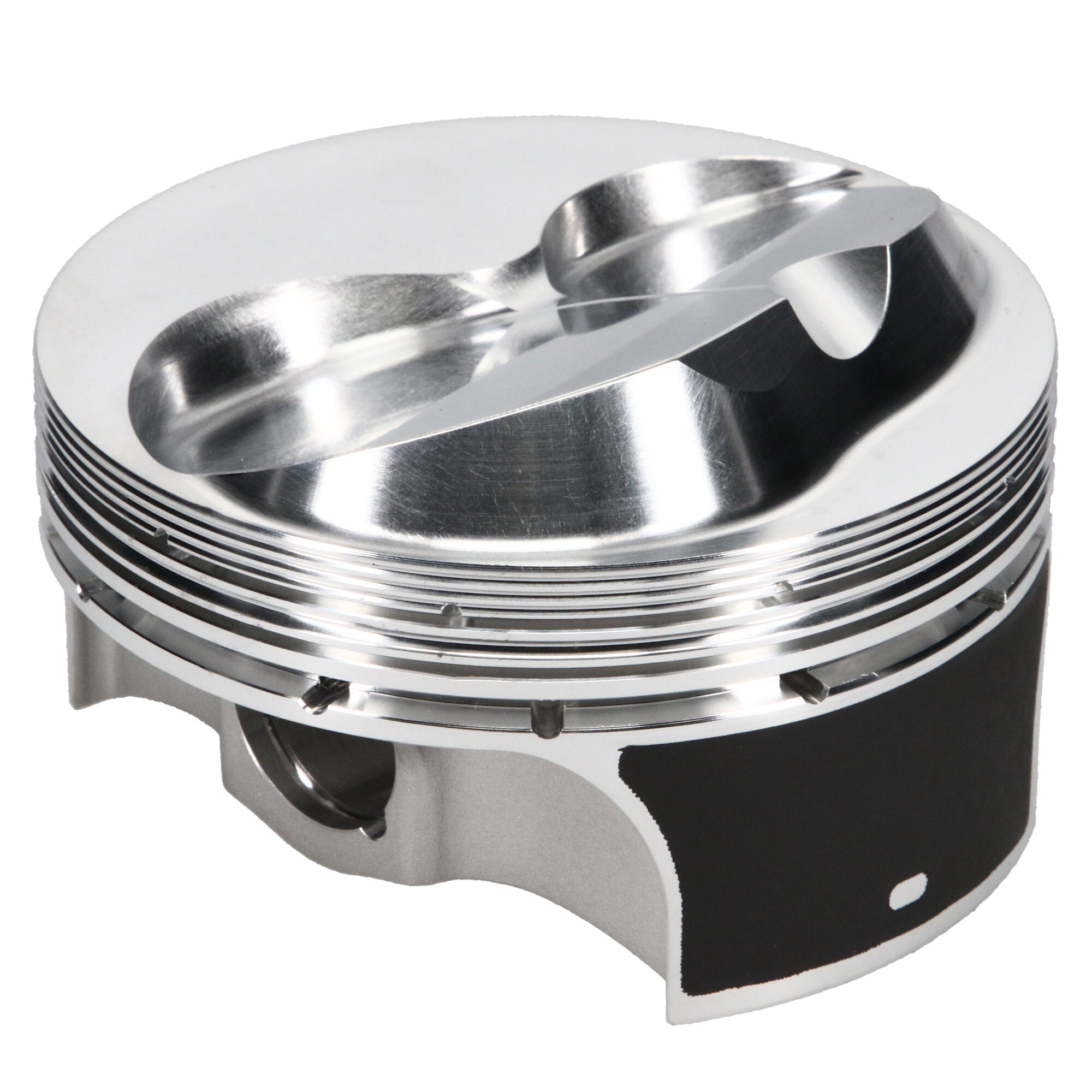

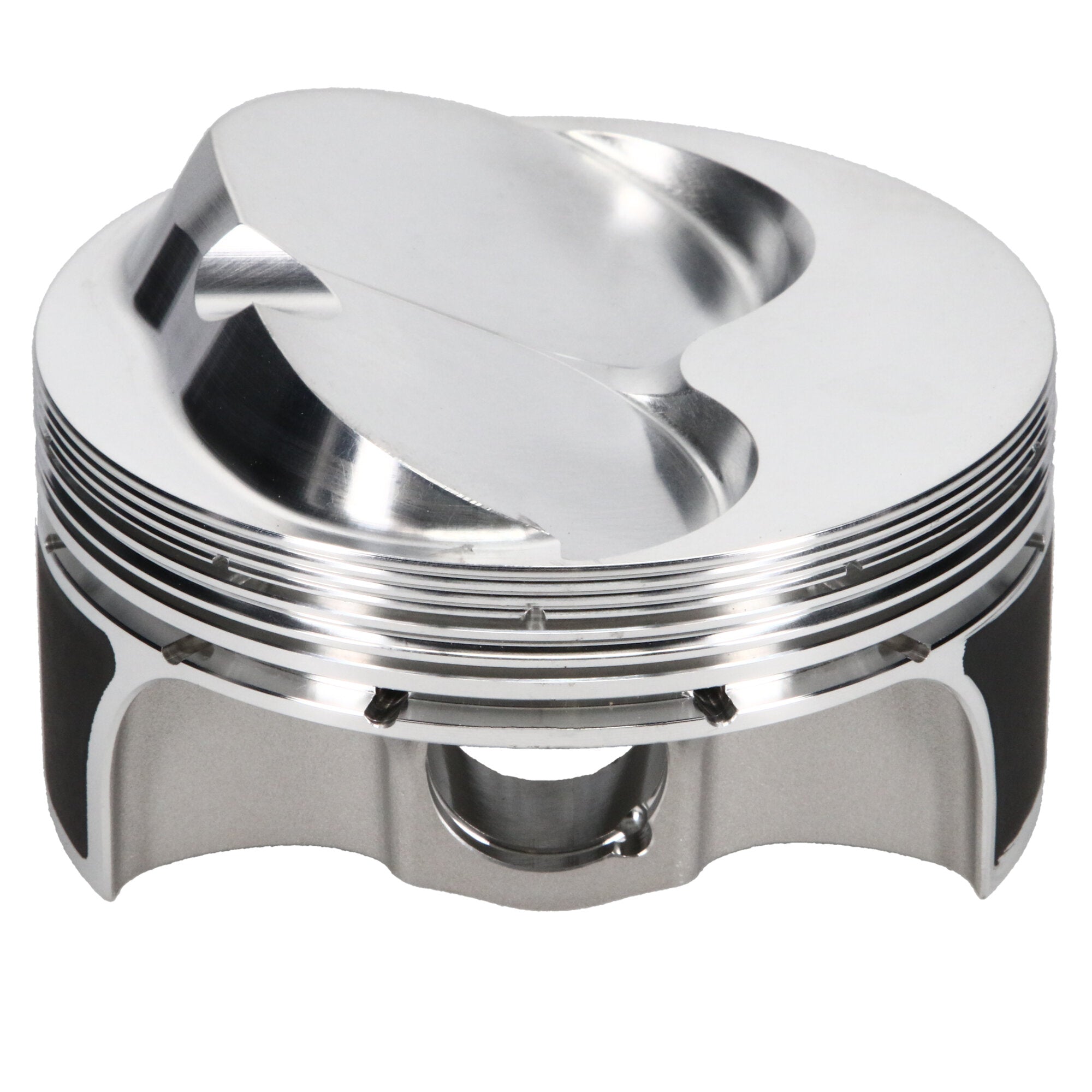

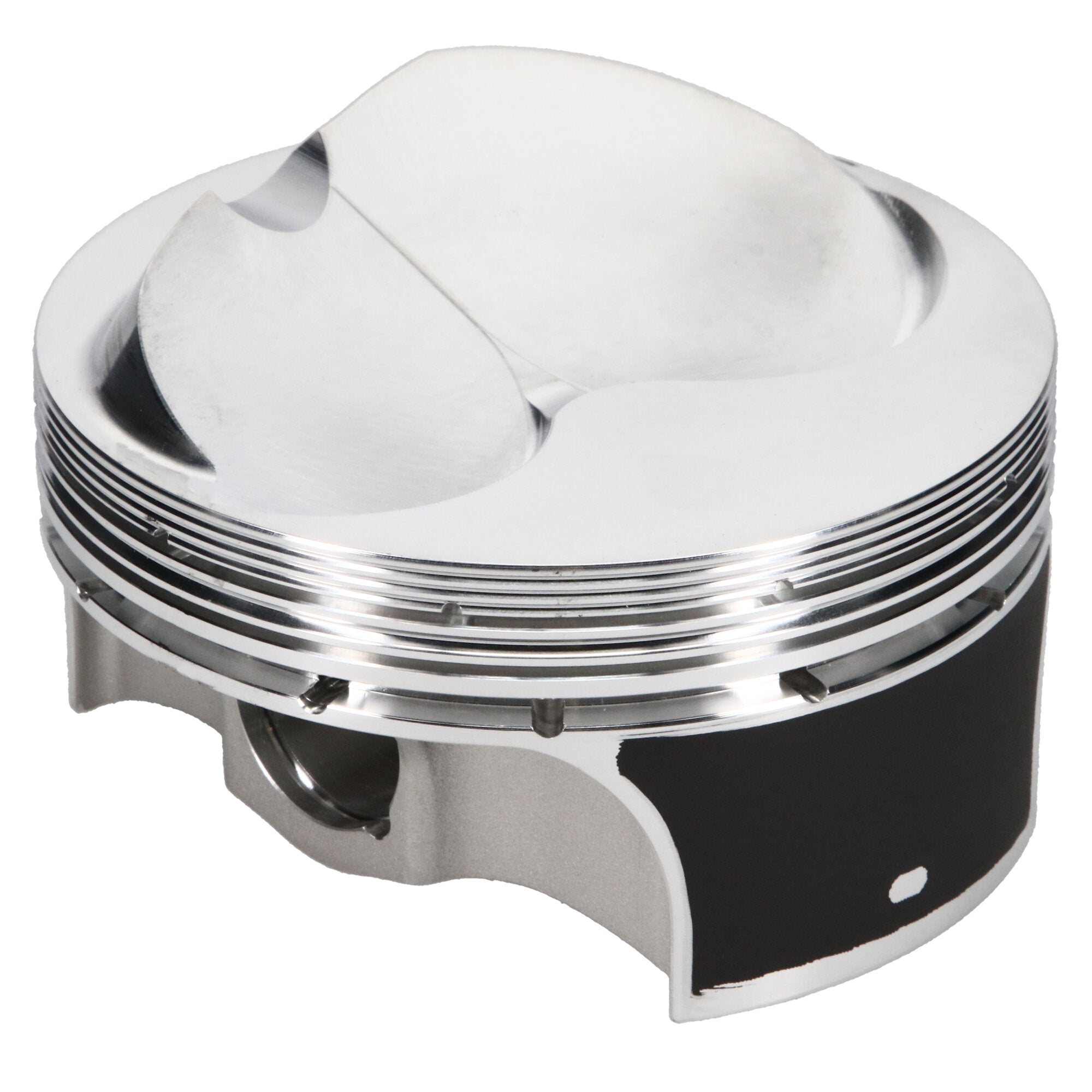

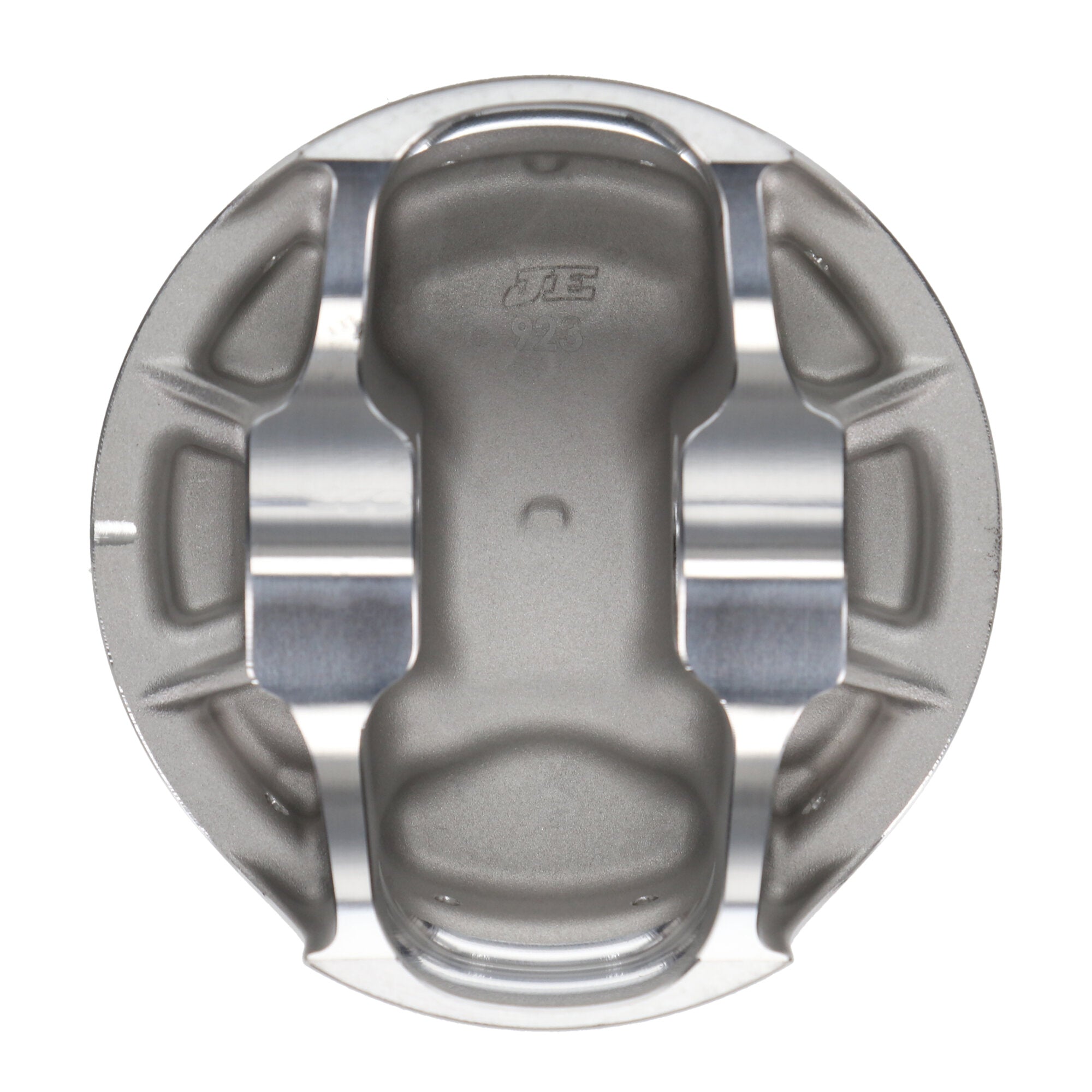

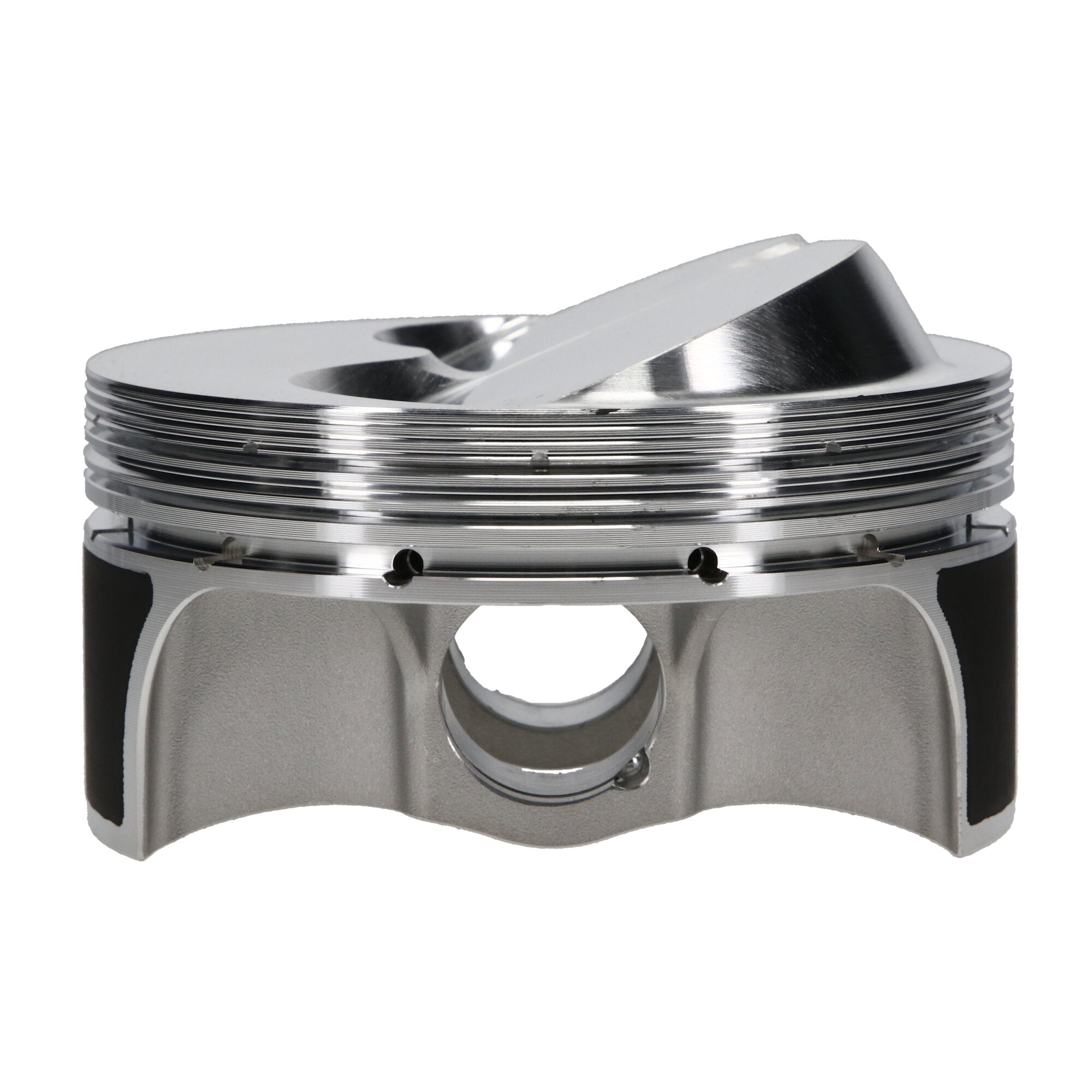

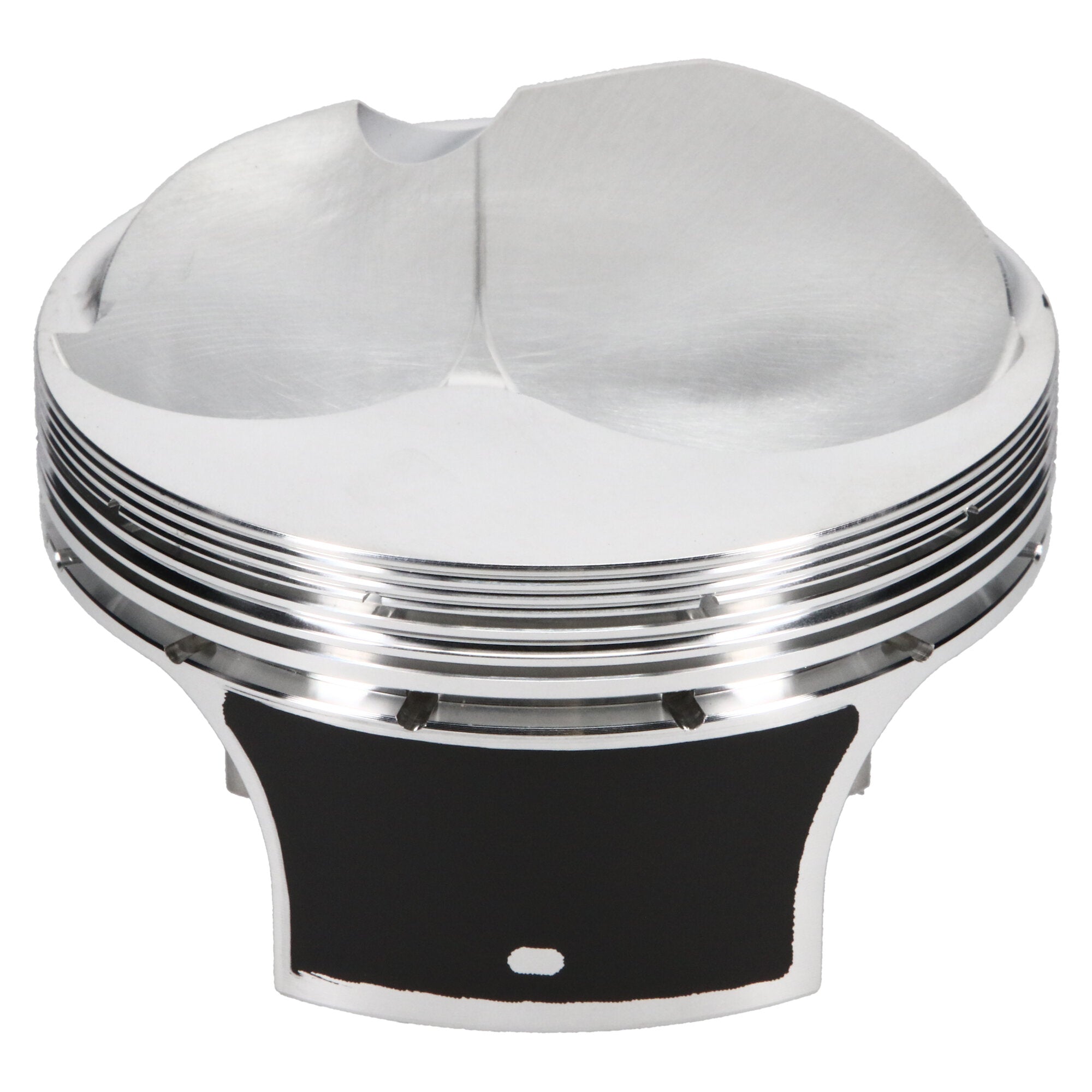

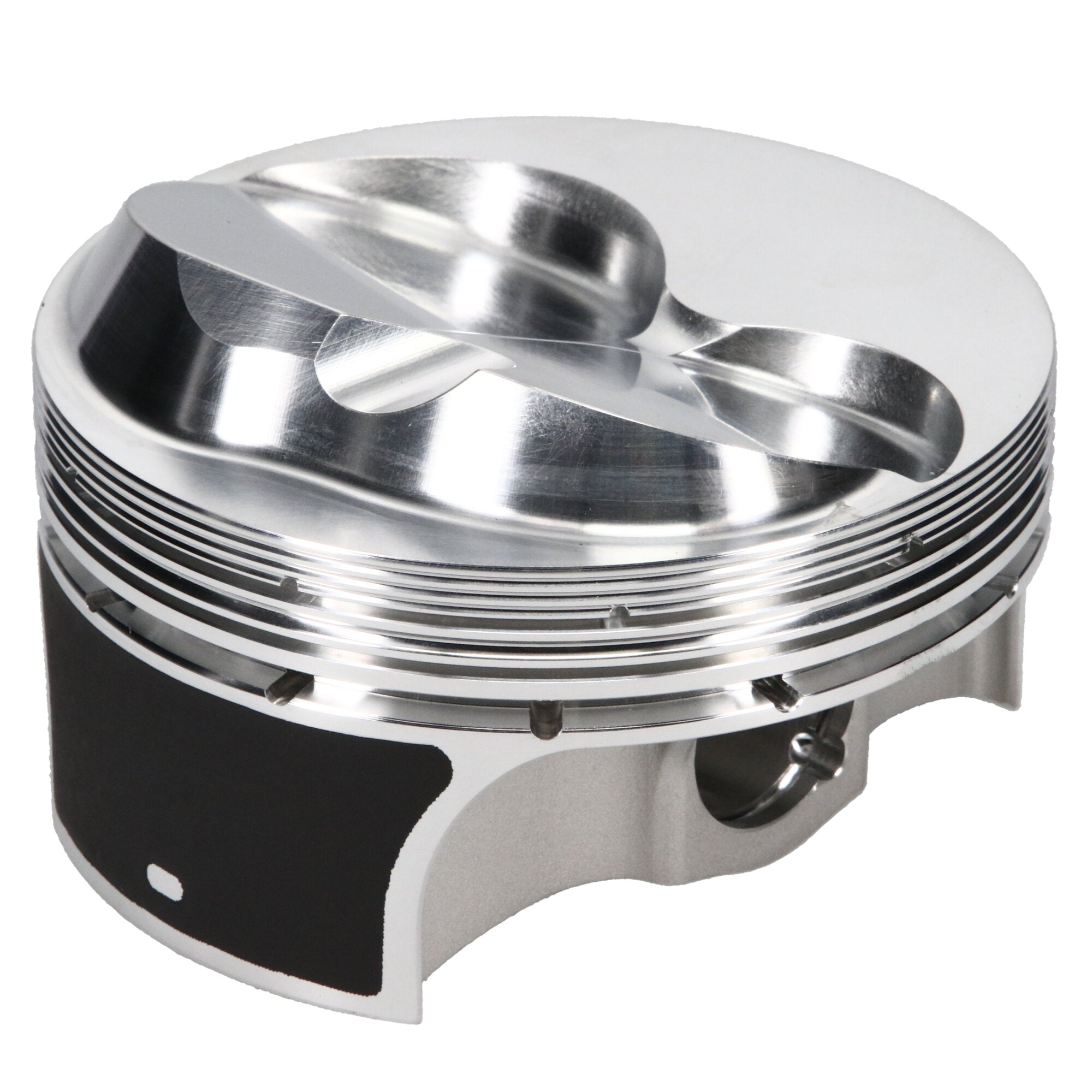

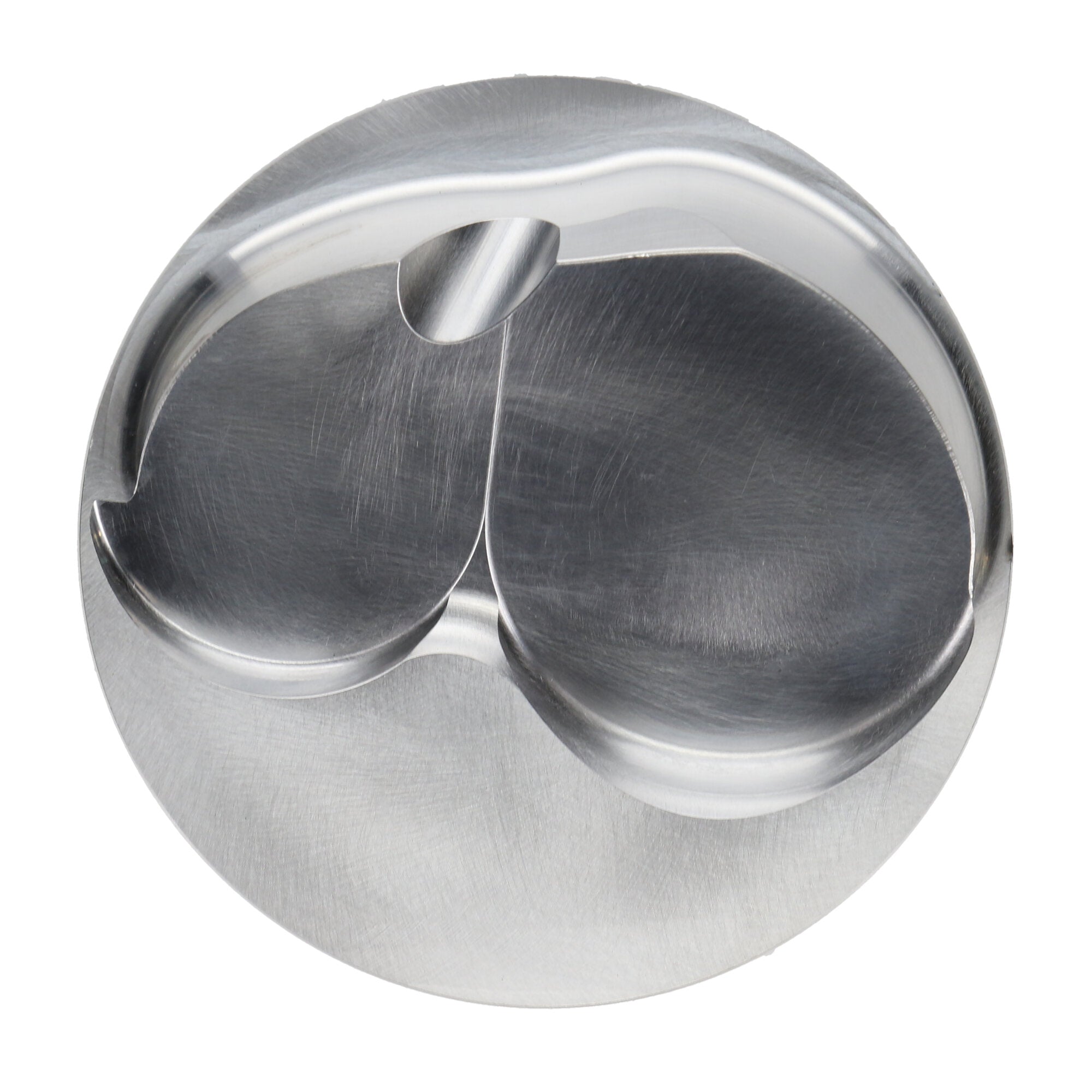

Piston Set, 2618, Dome, 4.035 Bore, 1.250 CD, 0.927 Pin Dia, Set of 8. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_TLE |
Chevrolet 360 ASCS Sprint, 4.035 Bore, Dome, Set of 8 |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Piston Series |
JE Pistons |
| Make |
CHEVROLET |
| Piston Pin Material |
9310 |
| Piston Head Type |
Dome |
| Piston Pin Outside Diameter |
0.927 |
| Engine Type |
ICE |
| Wrist Pin Outer Diameter |
0.927 |
| Bore Diameter |
4.035 |
| Compression Height |
1.250 |
| Piston Quantity |
8 |
| Piston Pin Wall Thickness |
0.170 |
| Product Market |
Domestic |
| Title |
JE Pistons - Chevrolet, Small Block, 4.035 in. Bore, Piston Kit |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Wrist Pin Wall Thickness |
0.170 |
| Engine - Web |
Small Block |
| Piston Material |
2618 |
| Piston Pin Length |
2.750 |
| Prop 65 Yes/No |
Yes |
| Engine |
Small Block |
| Out of Stock Message |
Call for Availibility |
| Prop 65 (C, R or CR) |
CR |
| Product Type |
Engine Piston Kit |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.035 in. Bore - 1.250 in. CH, 14.50 CC |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Length |
2.750 |
| Make - Web |
Chevrolet |
| Wrist Pin Material |
9310 Nickel Carbon Steel Alloy |
| Add-On |
927-2750-17-93C |
| Industry |
Automotive |
| Piston Volume |
14.50 |
| Length |
1.0000 |
| Width |
1.0000 |
| Height |
1.0000 |
| Weight |
14.0000 |
