As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet 400 SBC - 13 |
| Description_DES |

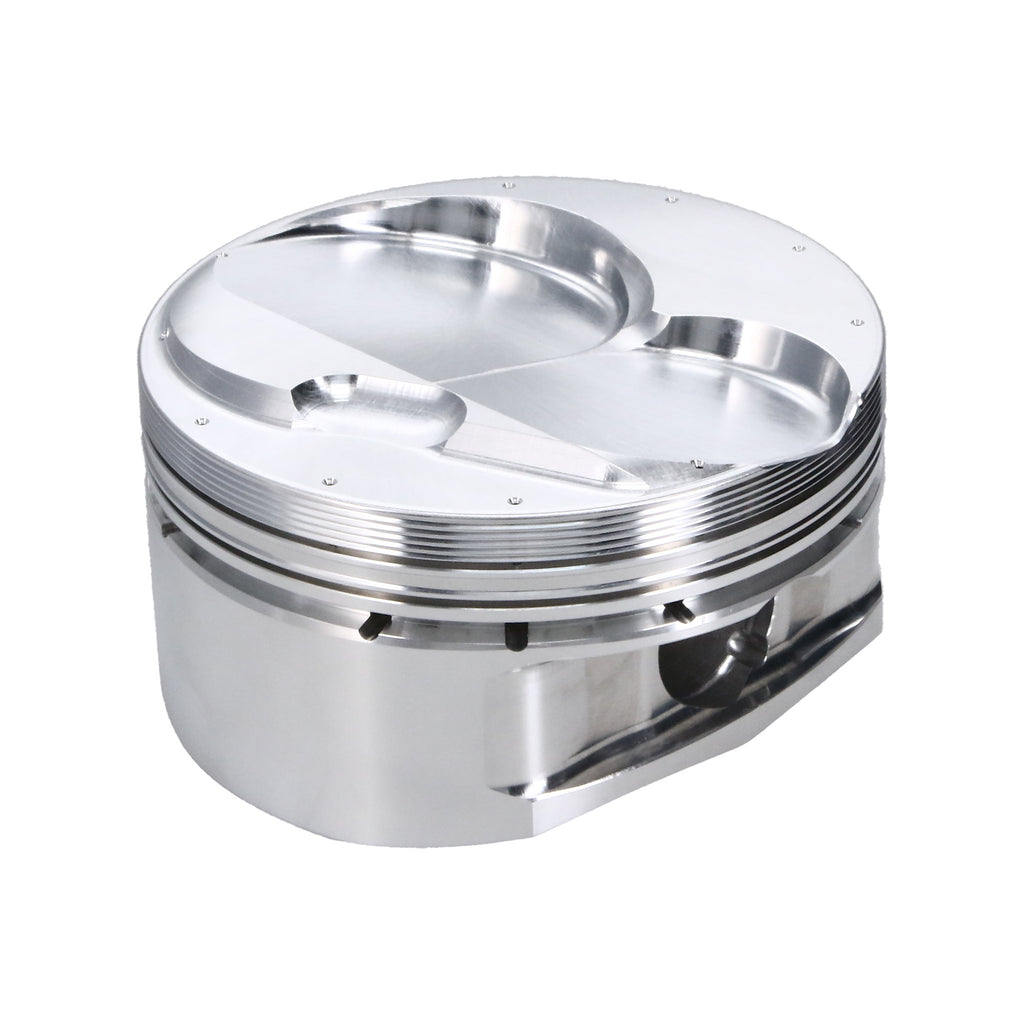

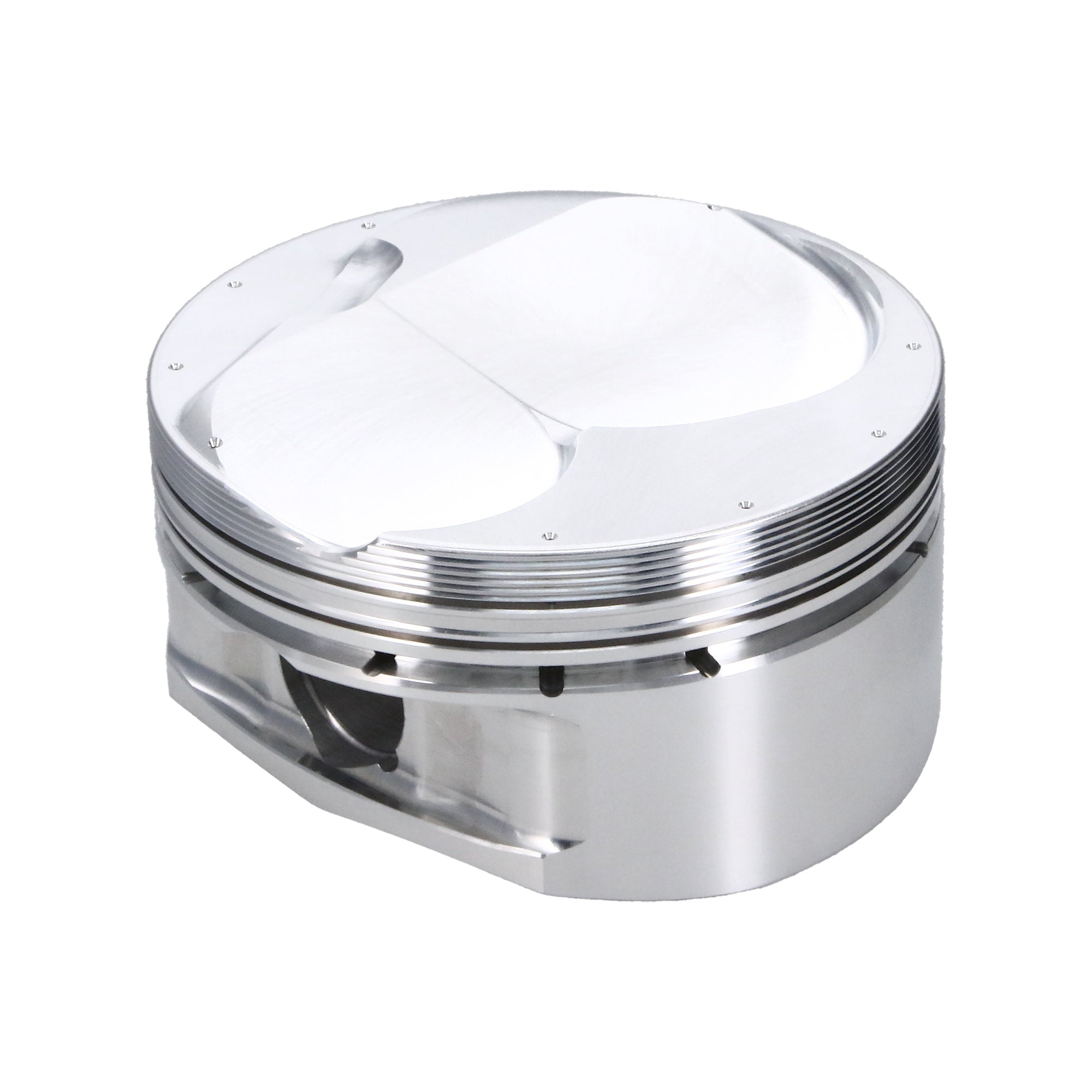

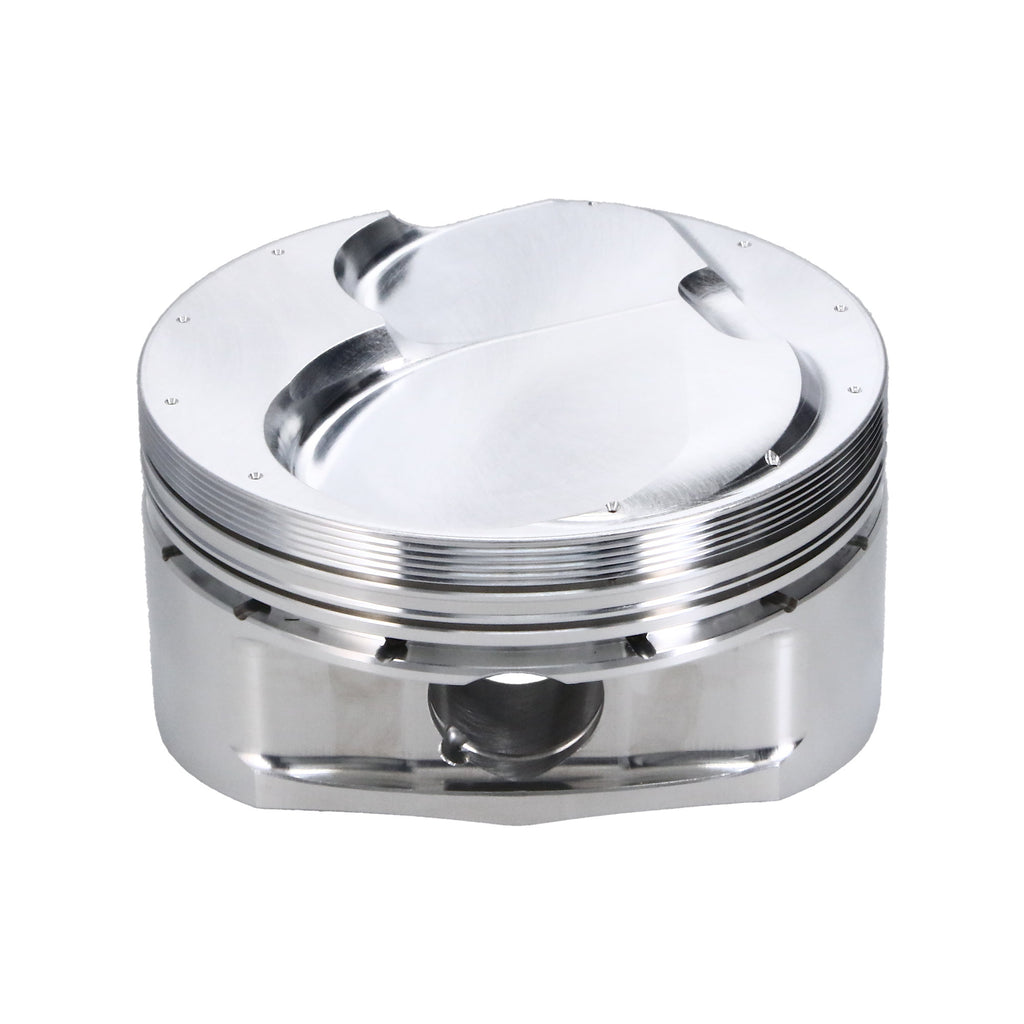

Piston Set, 2618, Dome, 4.155 Bore, 1.125 CD, 0.927 Pin Dia, Set of 8. |
| Description_DEF |
Engine Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Chevrolet 400 SBC - 13, 4.155 Bore, Dome, Set of 8 |
| Description_SHO |
Piston Kit |
| Piston Pin Outside Diameter |
0.927 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Wrist Pin Length |
2.750 |
| Bore Diameter |
4.155 |
| Product Type |
Engine Piston Kit |
| Product Market |
Domestic |
| Piston Pin Wall Thickness |
0.170 |
| Add-On |
927-2750-17-93C |
| Industry |
Automotive |
| Title |
JE Pistons - Chevrolet, Small Block, 4.155 in. Bore, Piston Kit |
| Piston Volume |
-4.50 |
| Out of Stock Message |
Call for Availibility |
| Compression Height |
1.125 |
| Make |
CHEVROLET |
| Wrist Pin Wall Thickness |
0.170 |
| Engine - Web |
Small Block |
| Prop 65 Yes/No |
Yes |
| Piston Material |
2618 |
| Piston Quantity |
8 |
| Prop 65 (C, R or CR) |
CR |
| Wrist Pin Outer Diameter |
0.927 |
| Piston Pin Material |
9310 |
| Piston Pin Length |
2.750 |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.155 in. Bore - 1.125 in. CH, -4.50 CC |
| Piston Head Type |
Dome |
| Piston Series |
JE Pistons |
| Engine |
Small Block |
| Engine Type |
ICE |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
9310 Nickel Carbon Steel Alloy |
| Make - Web |
Chevrolet |
| Length |
1.0000 |
| Width |
1.0000 |
| Height |
1.0000 |
| Weight |
14.0000 |
