As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet 400 SBC - 13 |
| Description_DES |

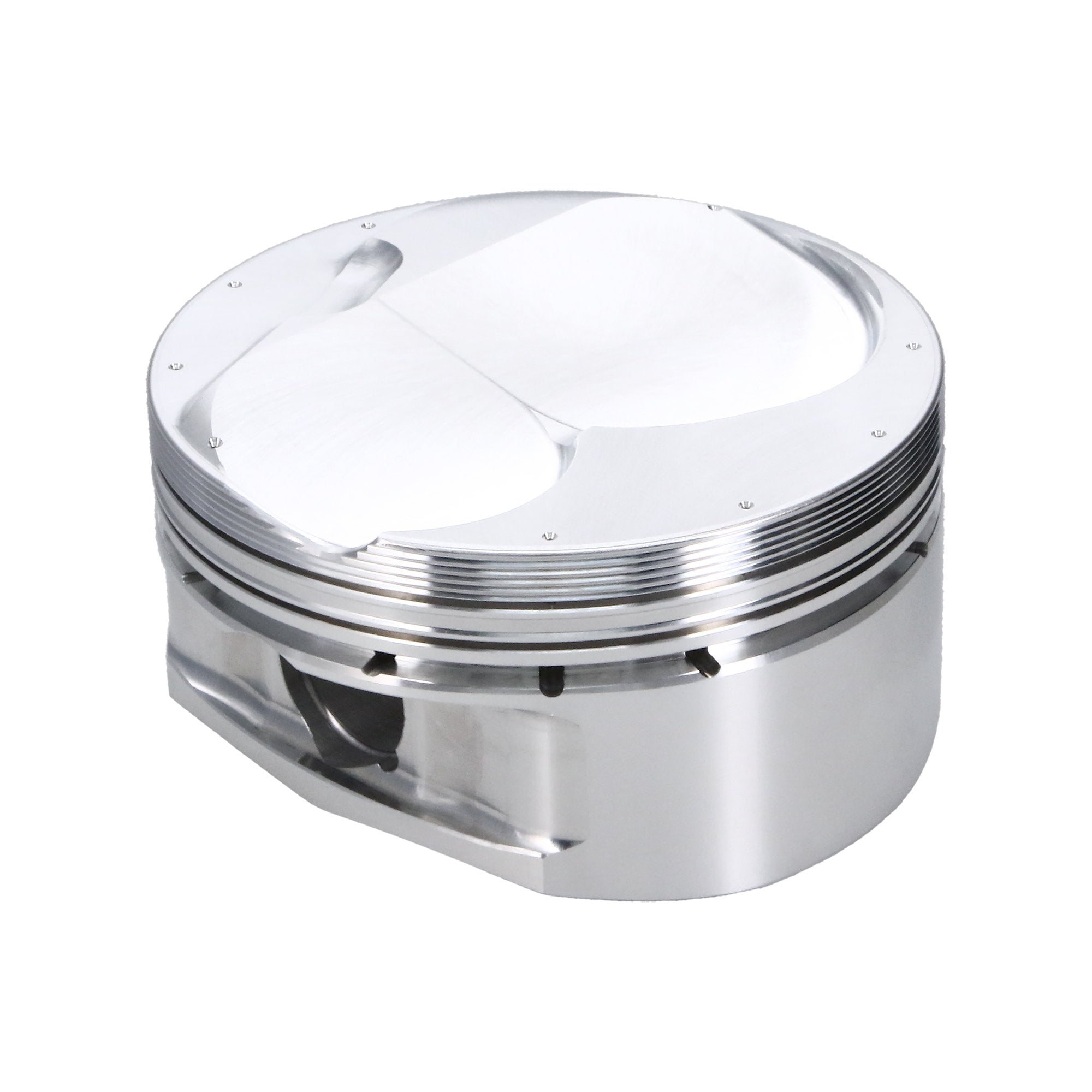

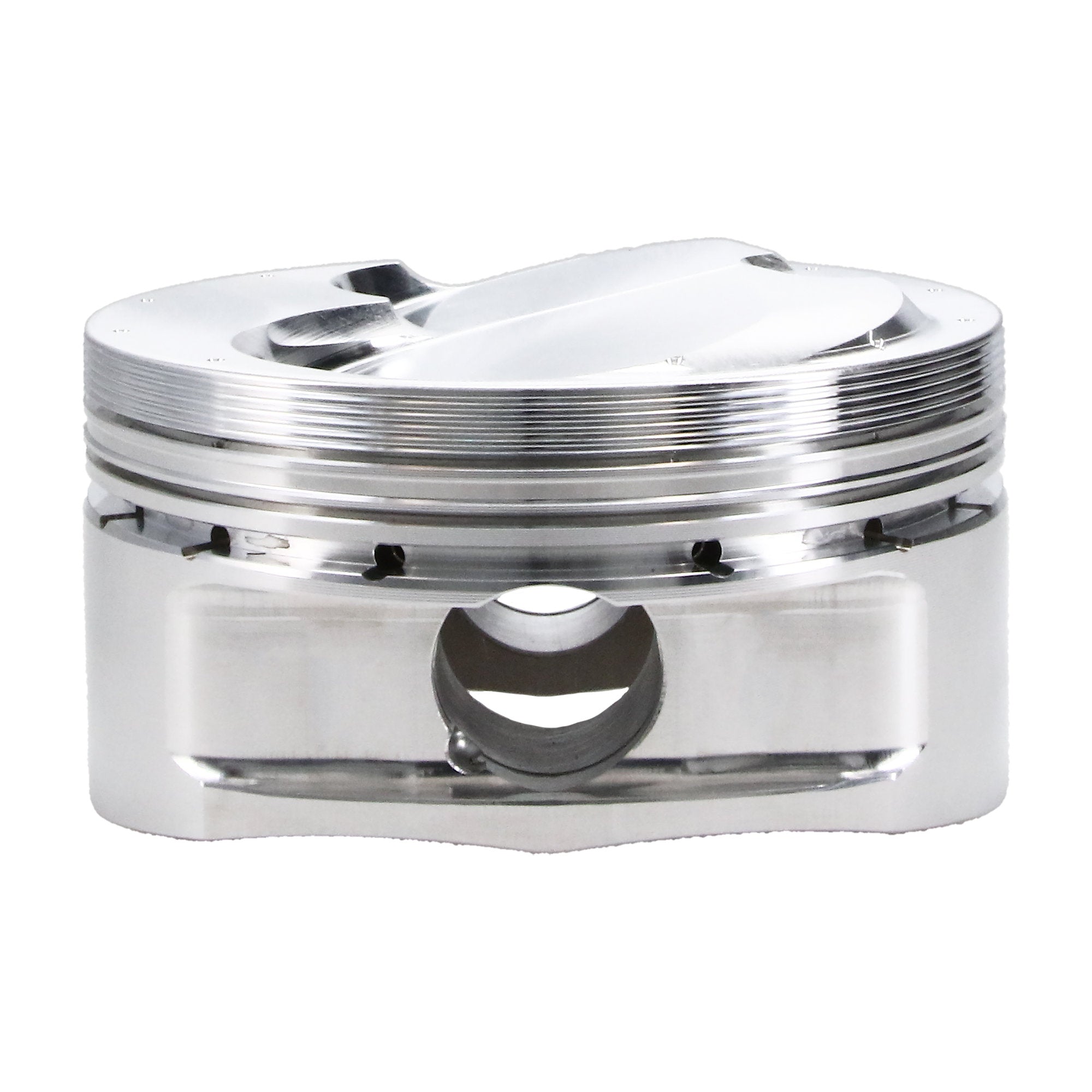

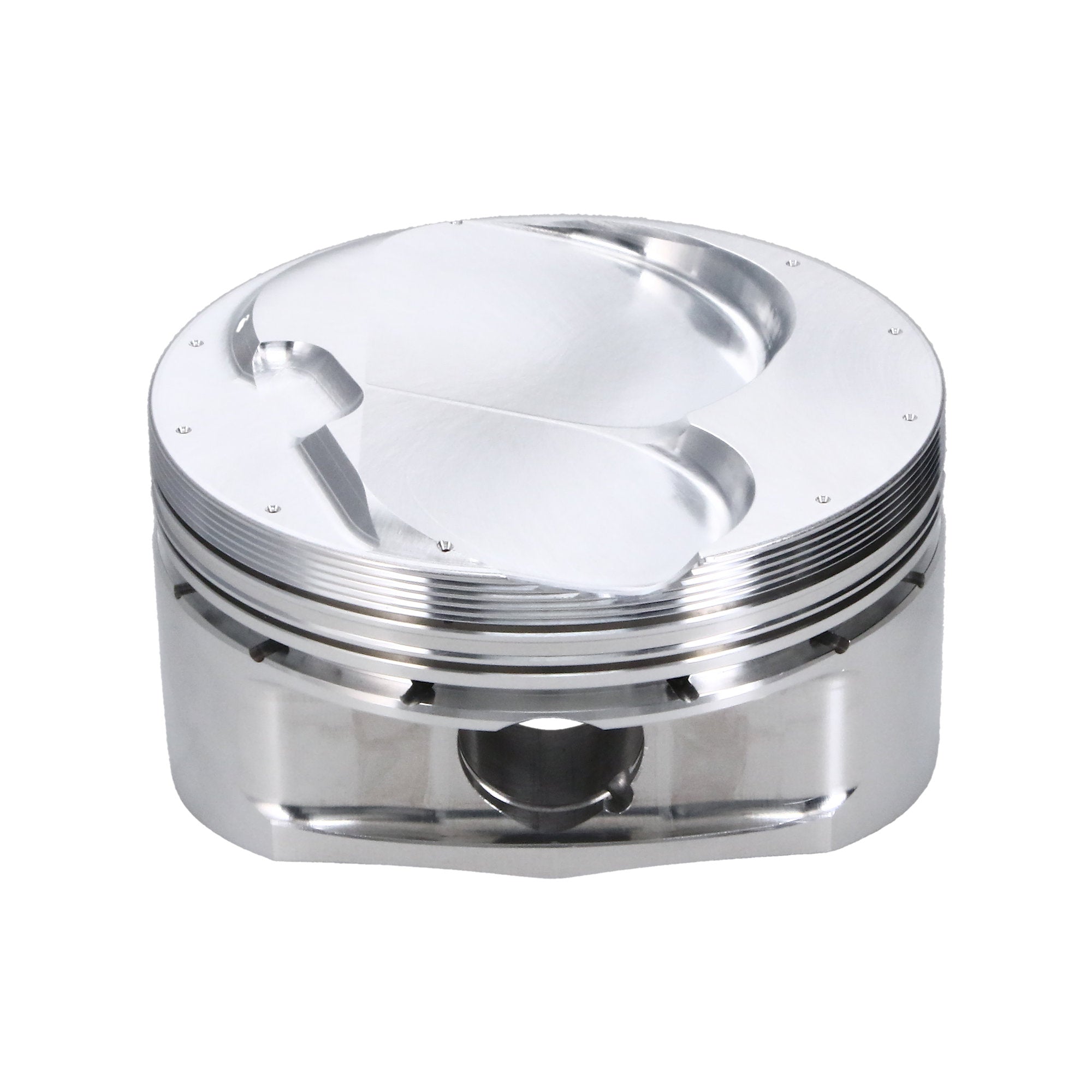

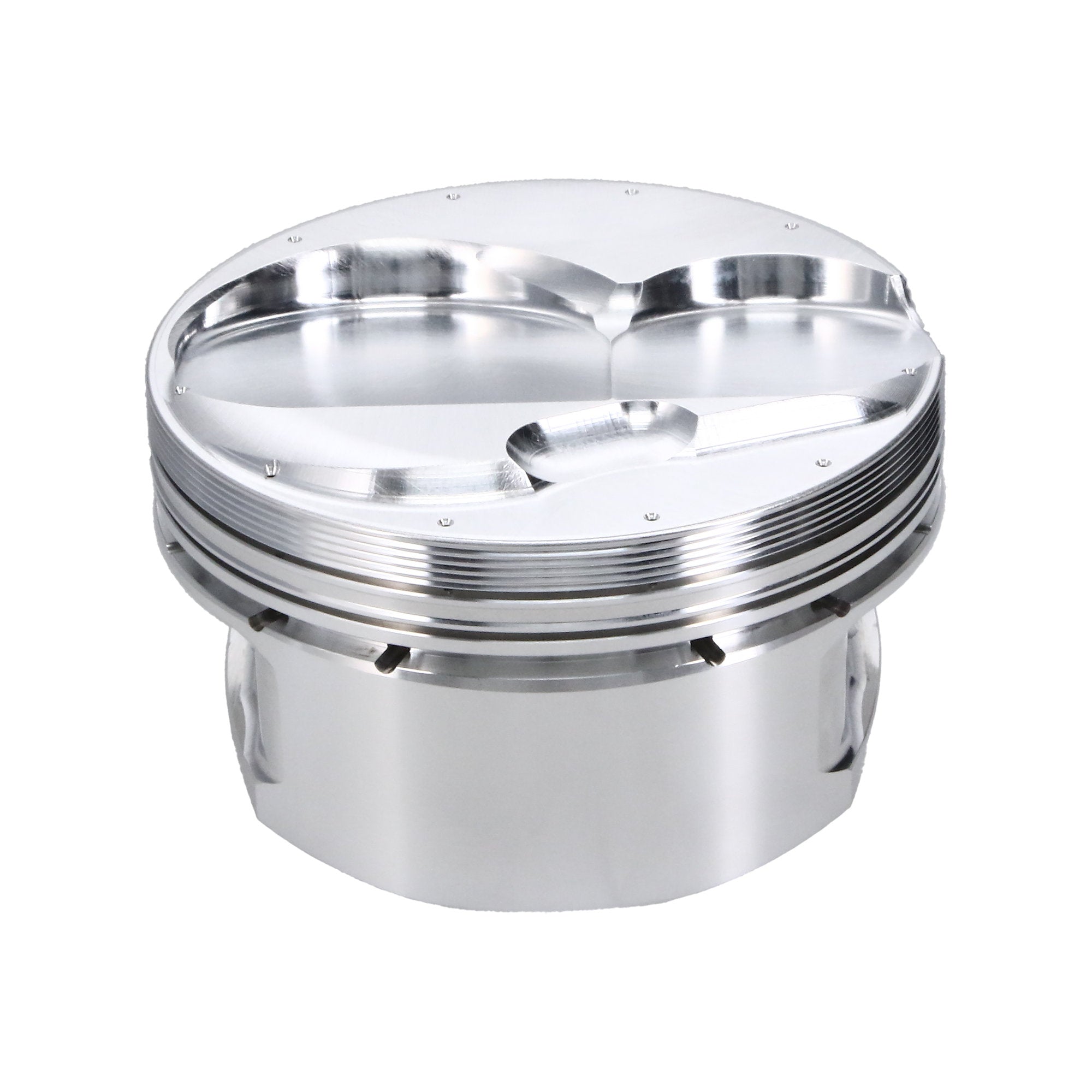

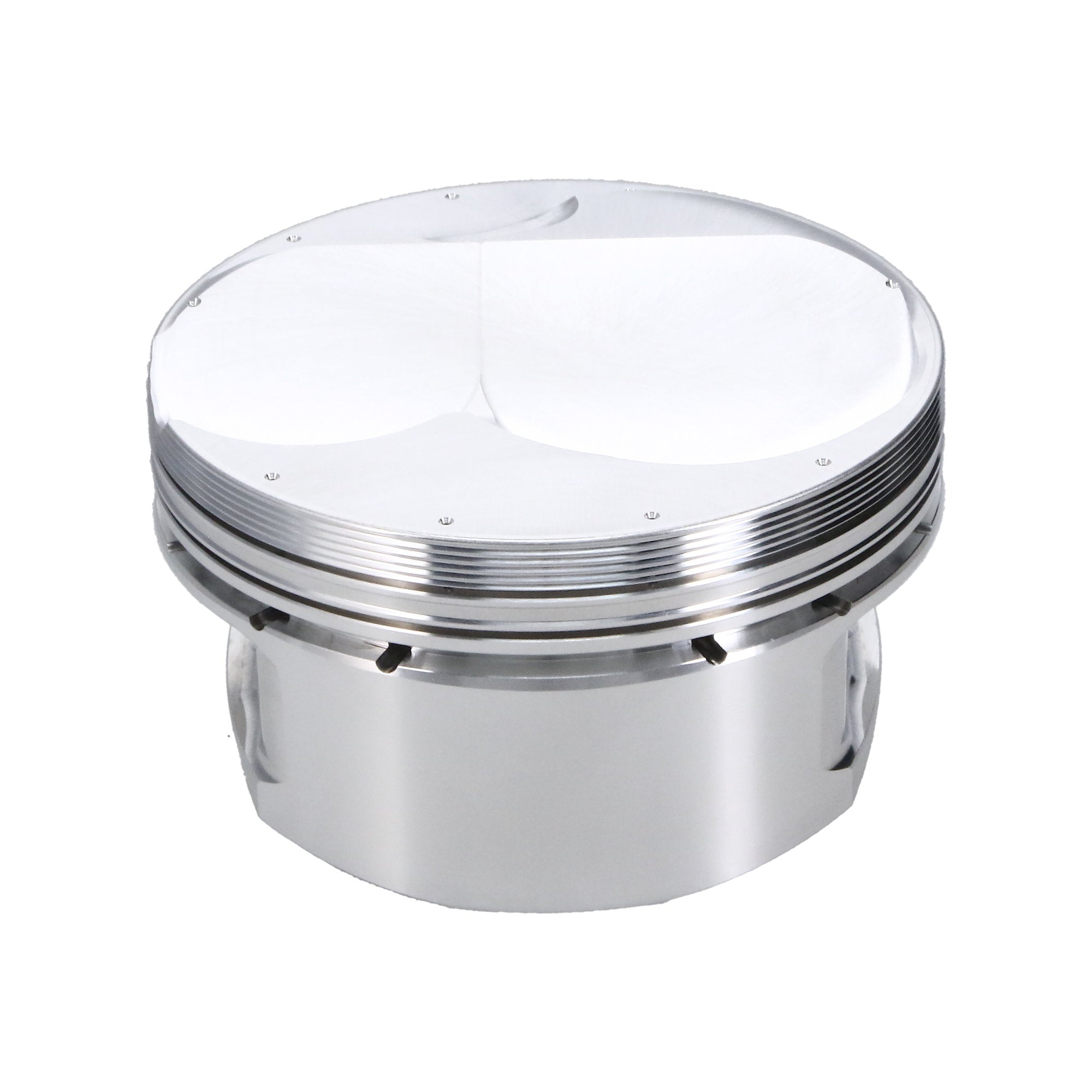

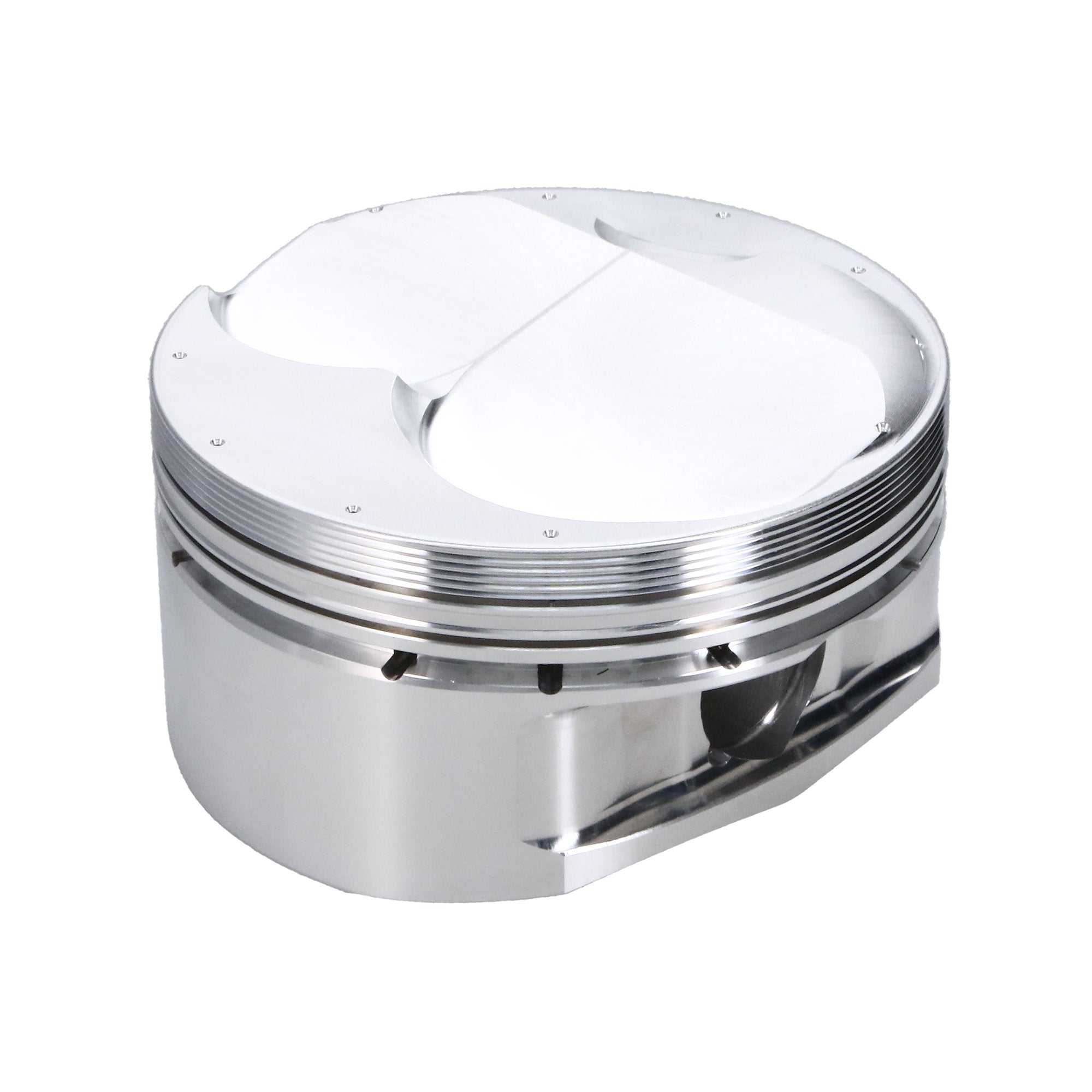

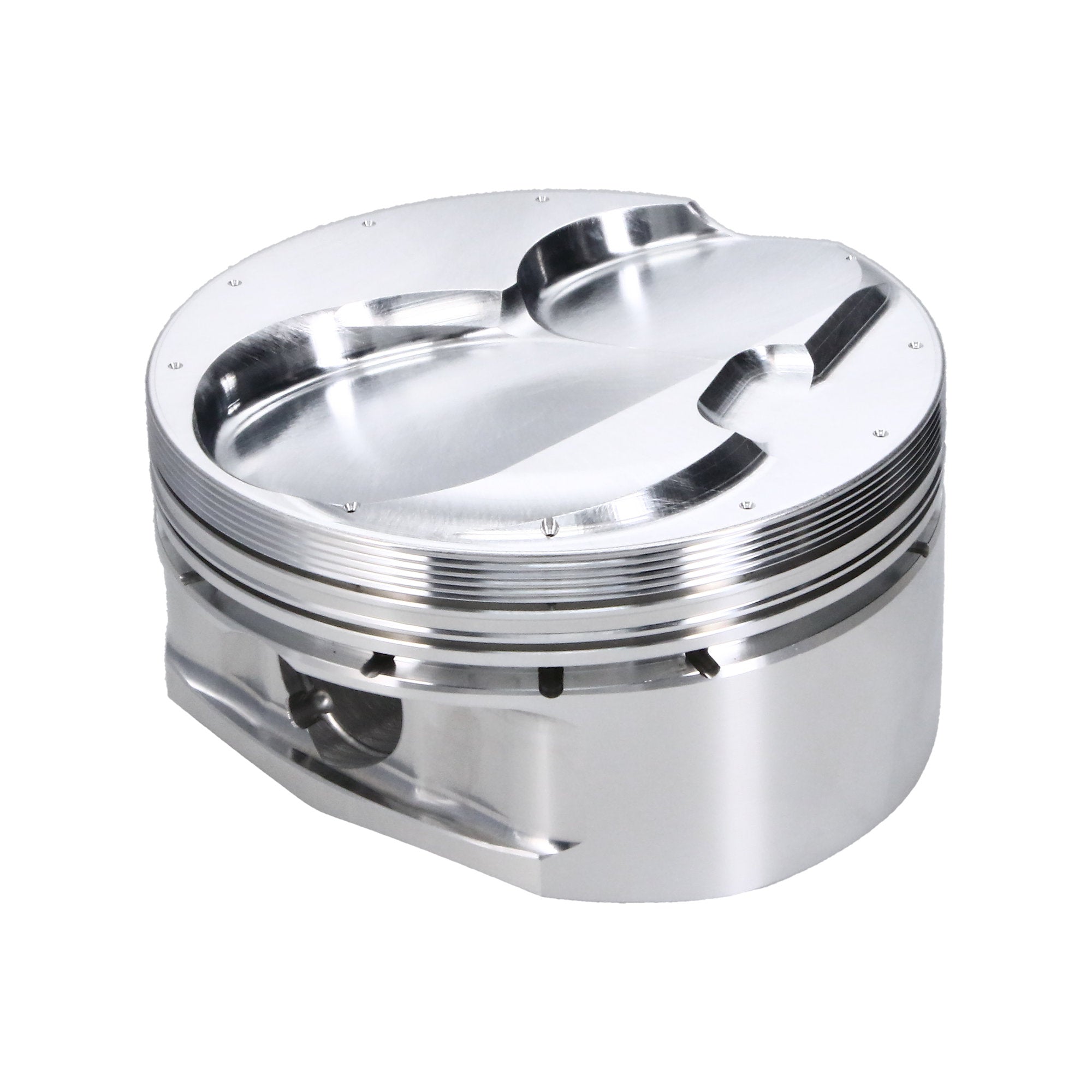

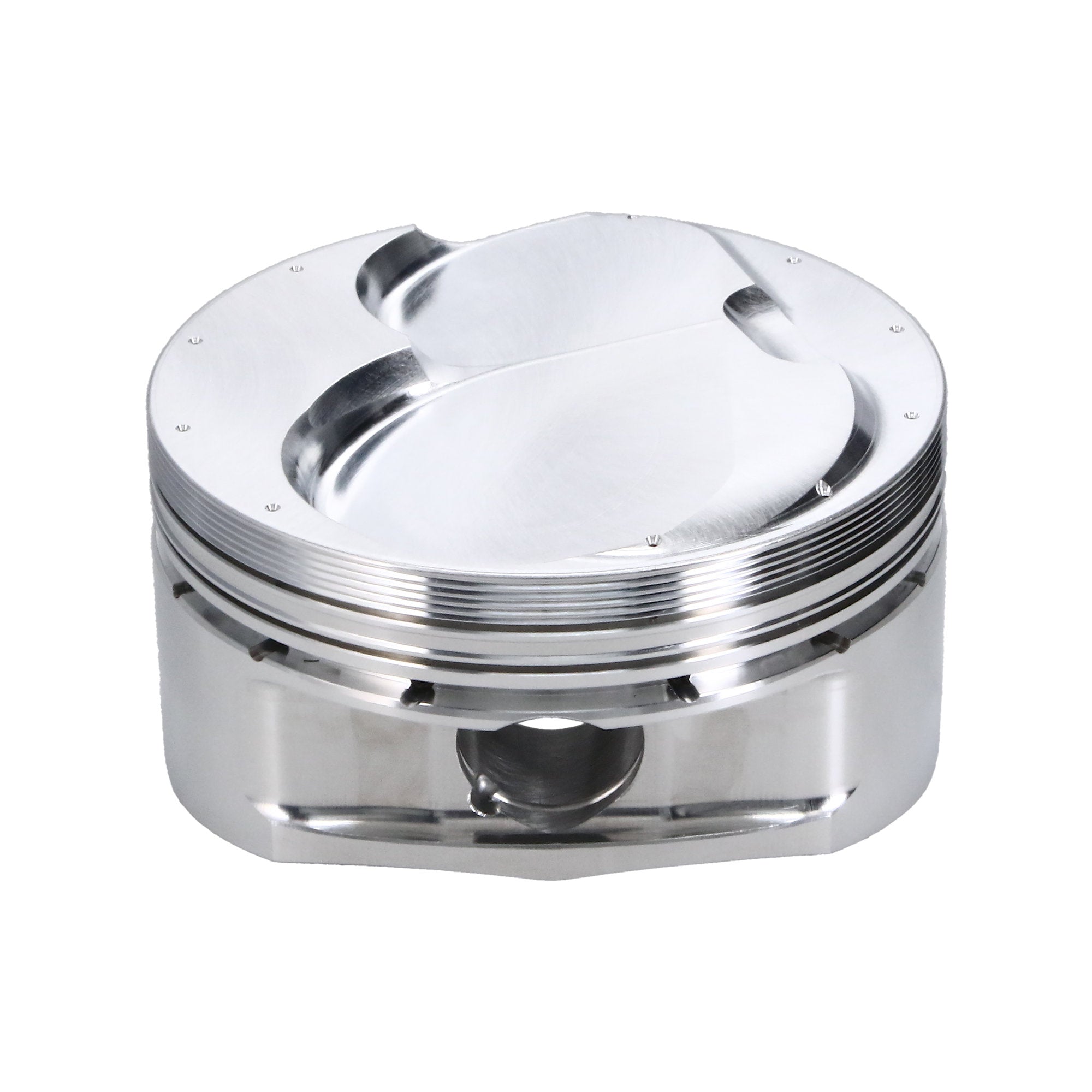

Piston Set, 2618, Dome, 4.150 Bore, 1.125 CD, 0.927 Pin Dia, Set of 8. |
| Description_DEF |
Engine Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability

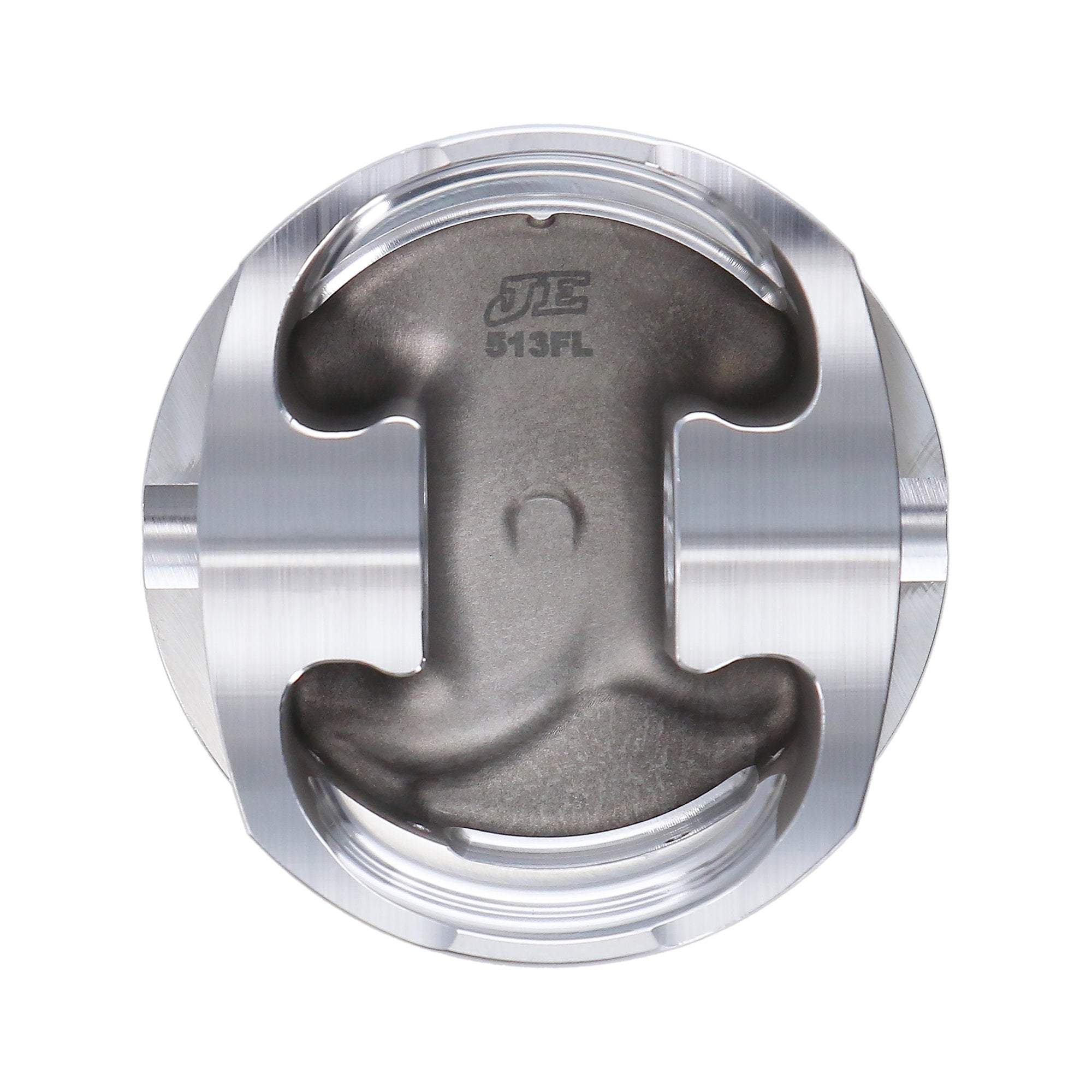

- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Chevrolet 400 SBC - 13, 4.150 Bore, Dome, Set of 8 |
| Wrist Pin Wall Thickness |
0.170 |
| Piston Series |
JE Pistons |
| Piston Head Type |

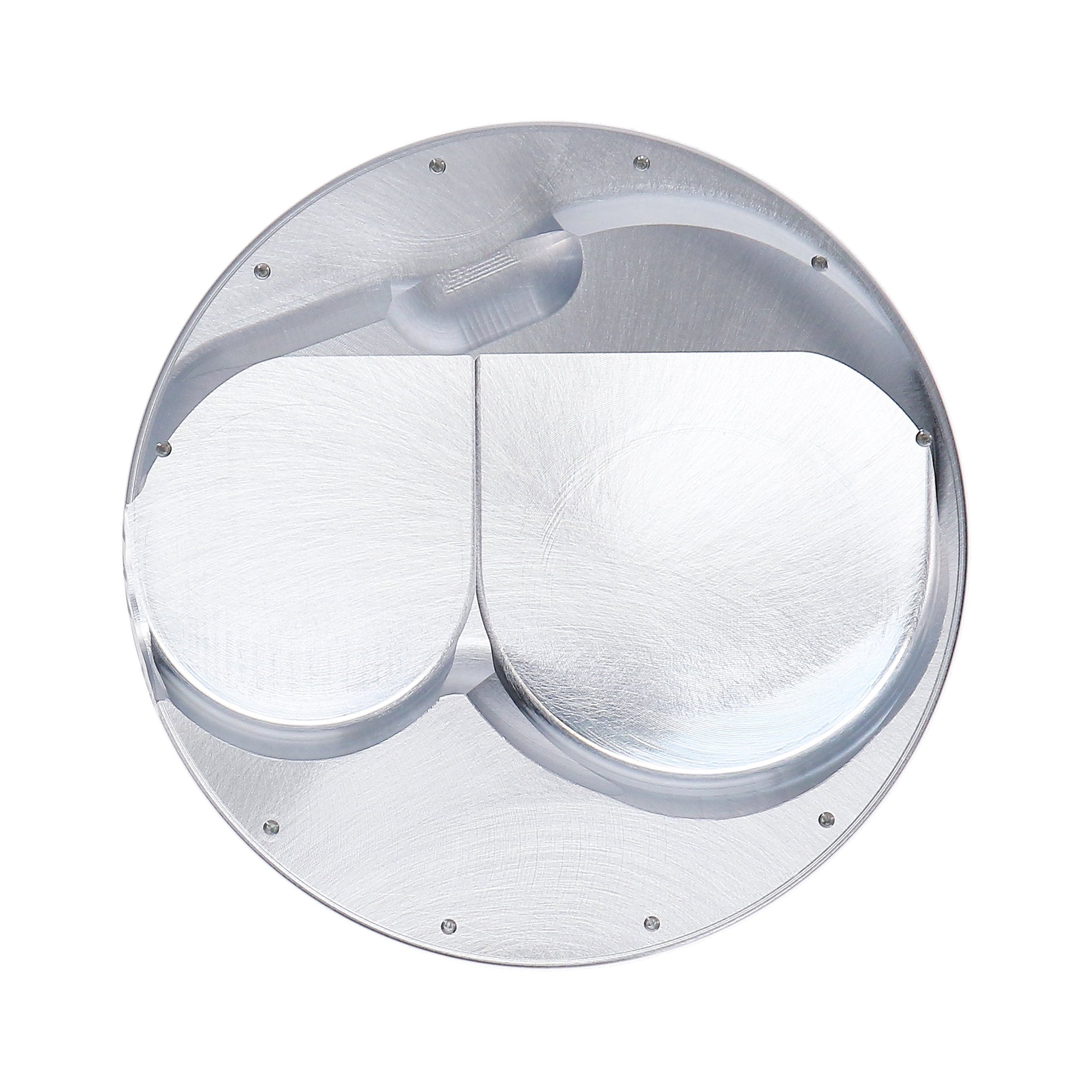

Dome |
| Piston Quantity |
8 |
| Make |
CHEVROLET |
| Piston Pin Material |
9310 |
| Title |

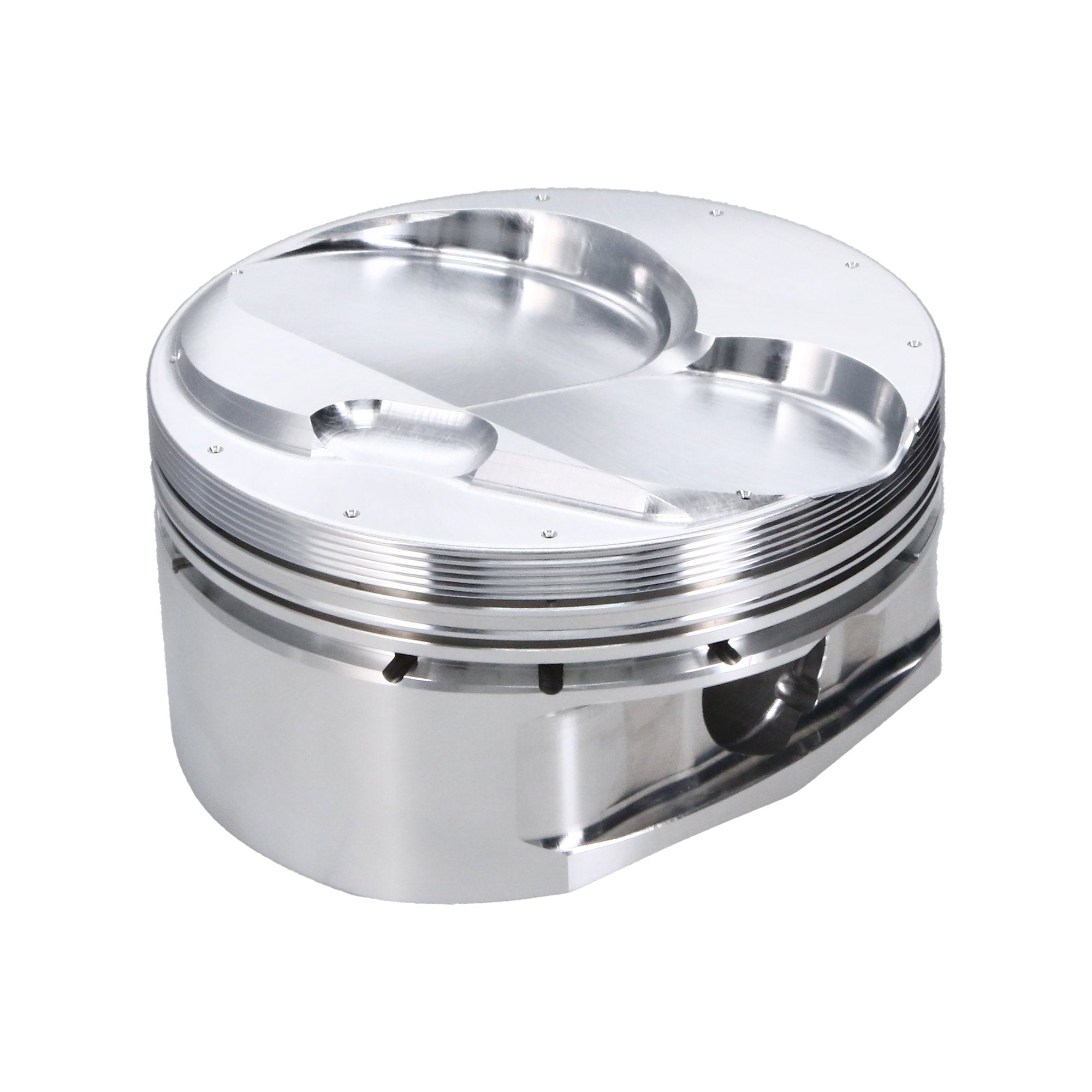

JE Pistons - Chevrolet, Small Block, 4.150 in. Bore, Piston Kit |
| Compression Height |
1.125 |
| Engine - Web |
Small Block |
| Wrist Pin Outer Diameter |
0.927 |
| Engine Type |
ICE |
| Piston Pin Outside Diameter |
0.927 |
| Bore Diameter |
4.150 |
| Product Market |
Domestic |
| Product Type |
Engine Piston Kit |
| Piston Pin Wall Thickness |
0.170 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Piston Volume |
-4.50 |
| Wrist Pin Length |
2.750 |
| Piston Material |
2618 |
| Add-On |
927-2750-17-93C |
| Engine |
Small Block |
| Out of Stock Message |
Call for Availibility |
| Industry |
Automotive |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 Yes/No |
Yes |
| Piston Pin Length |
2.750 |
| Make - Web |
Chevrolet |
| Wrist Pin Material |
9310 Nickel Carbon Steel Alloy |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.150 in. Bore - 1.125 in. CH, -4.50 CC |
| Length |
1.0000 |
| Width |
1.0000 |
| Height |
1.0000 |
| Weight |
14.0000 |
