As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet 350 SBC - Stock Car |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

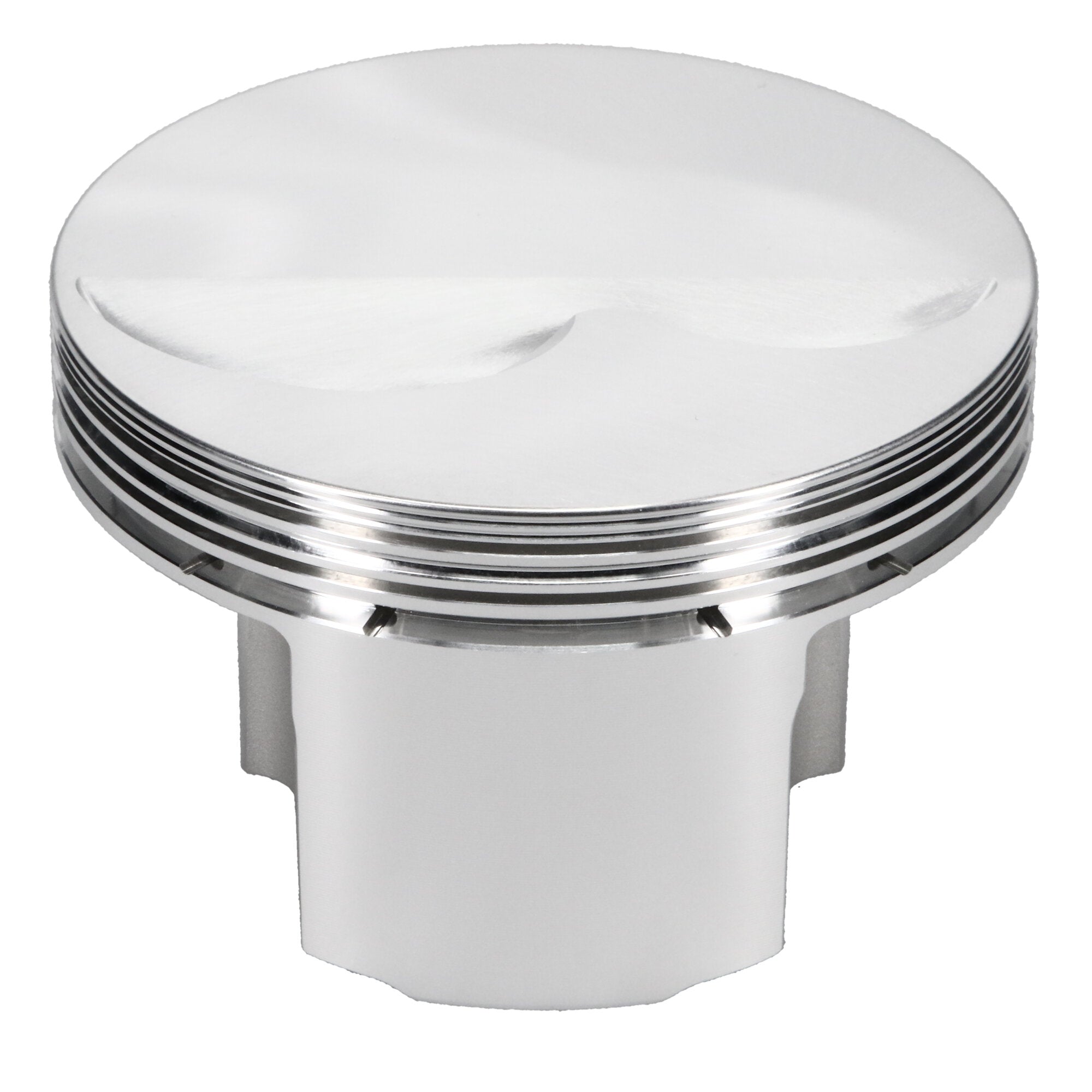

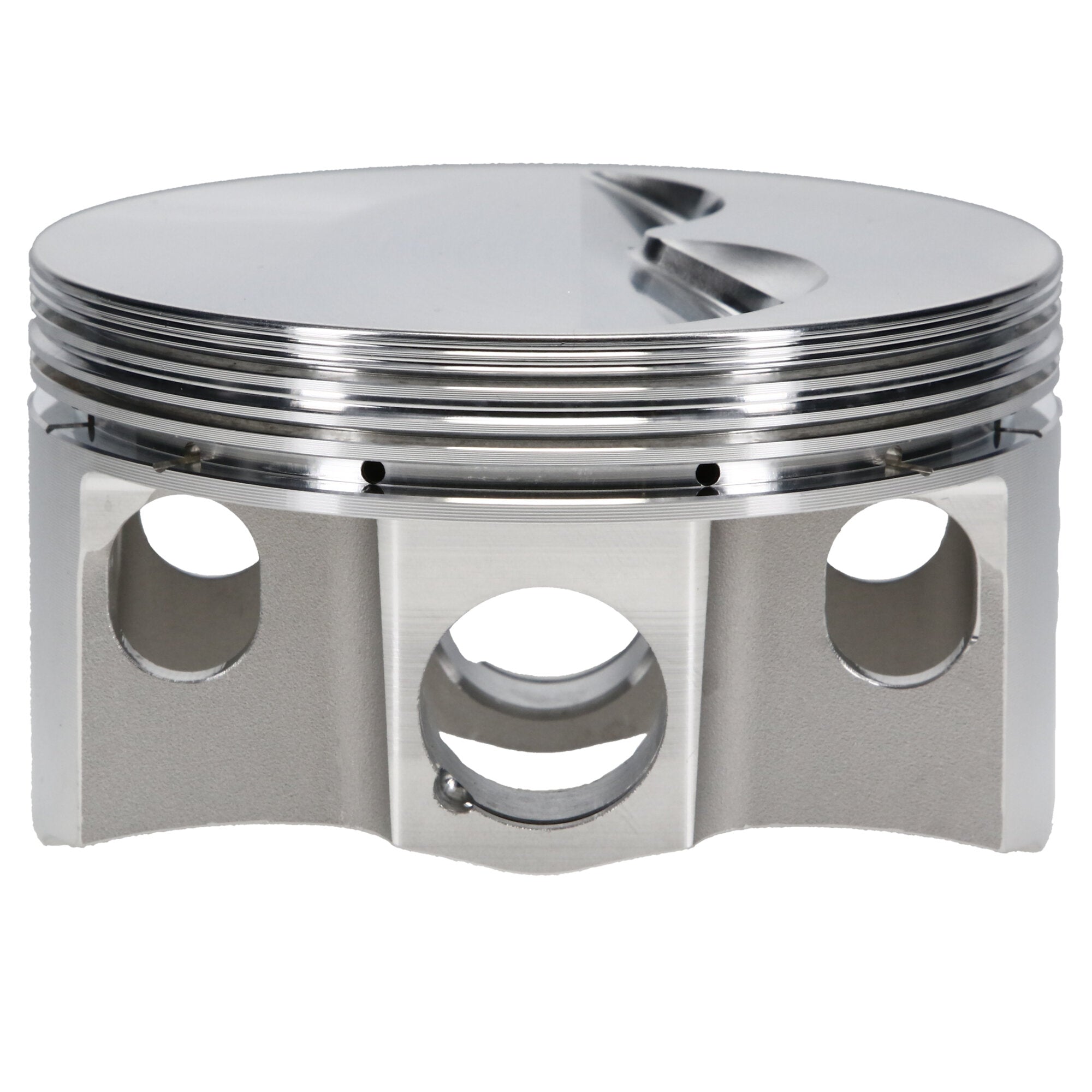

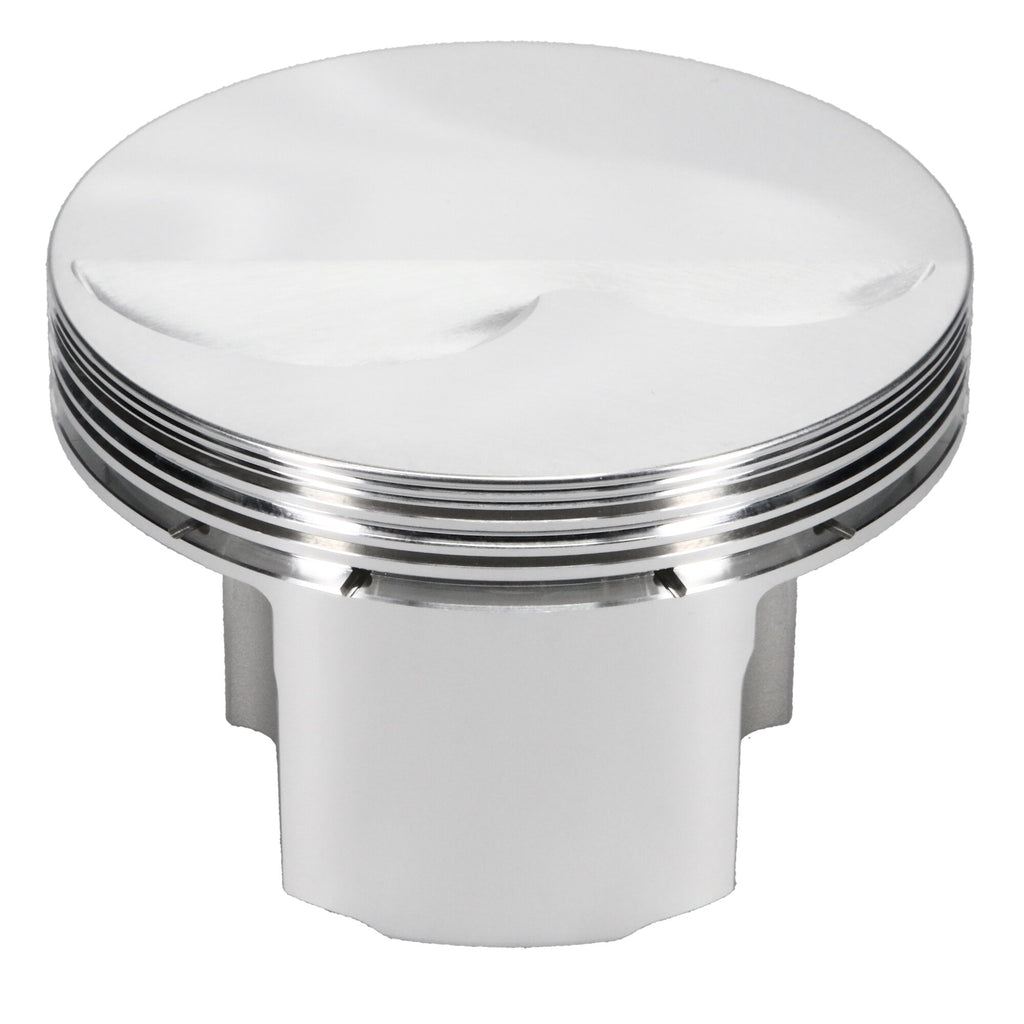

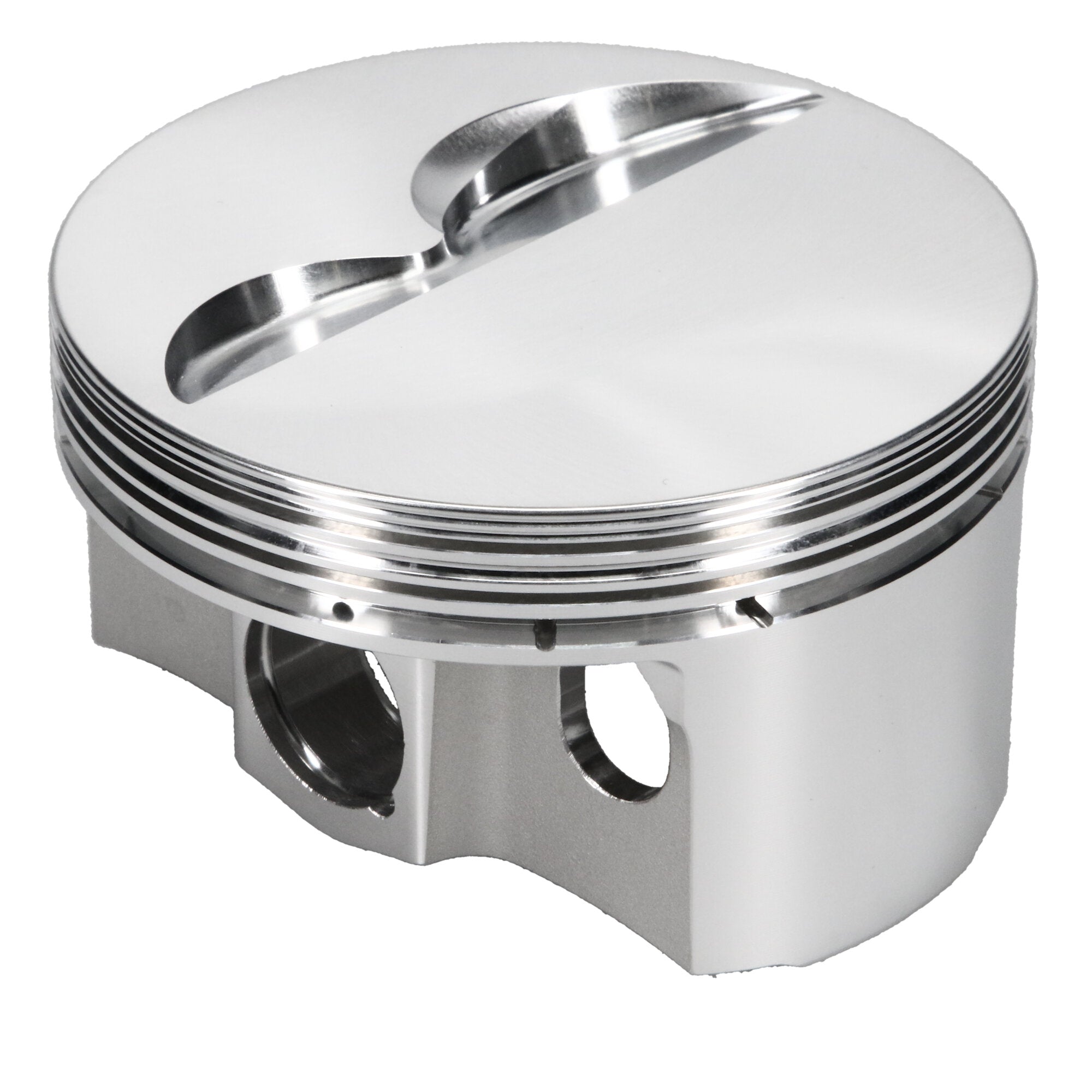

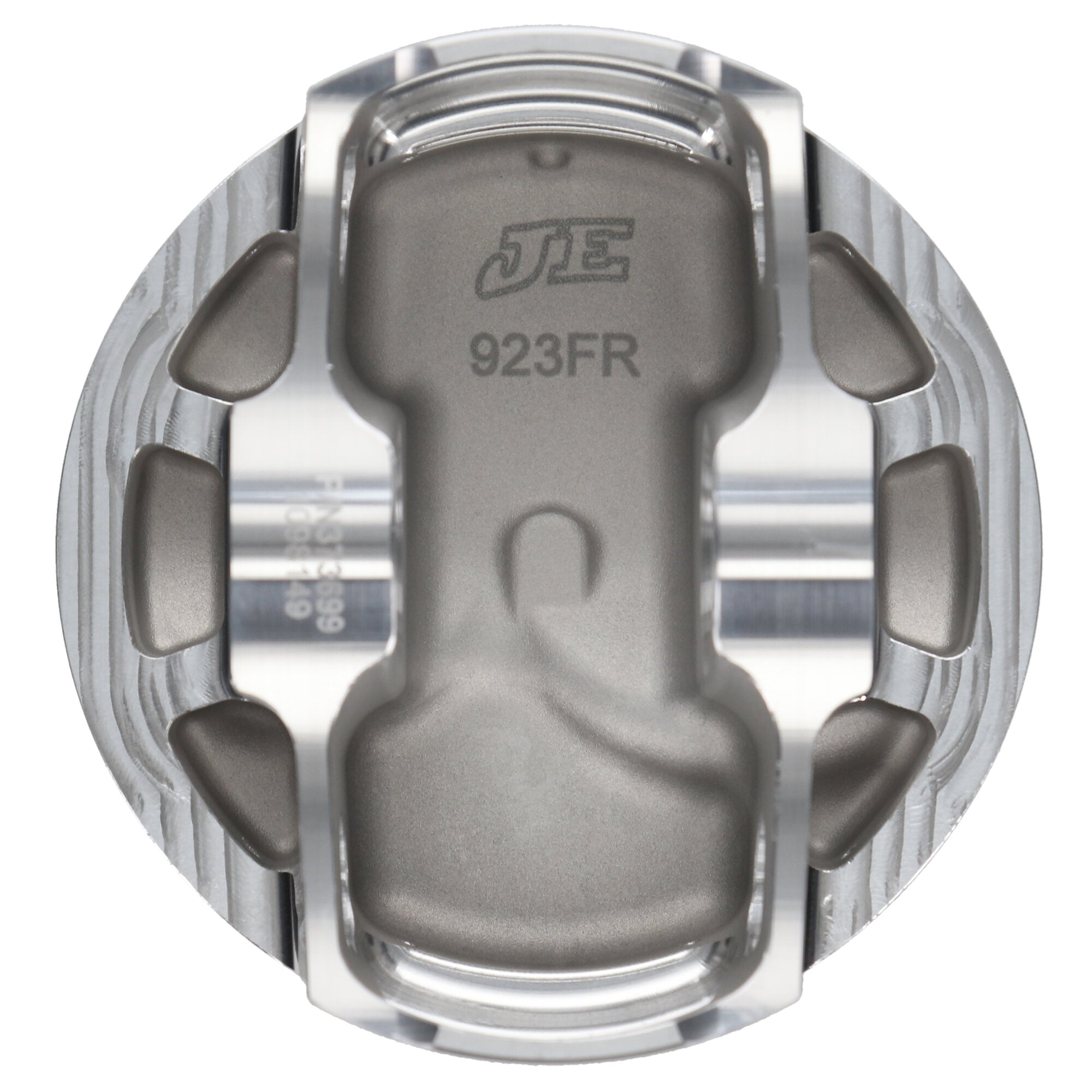

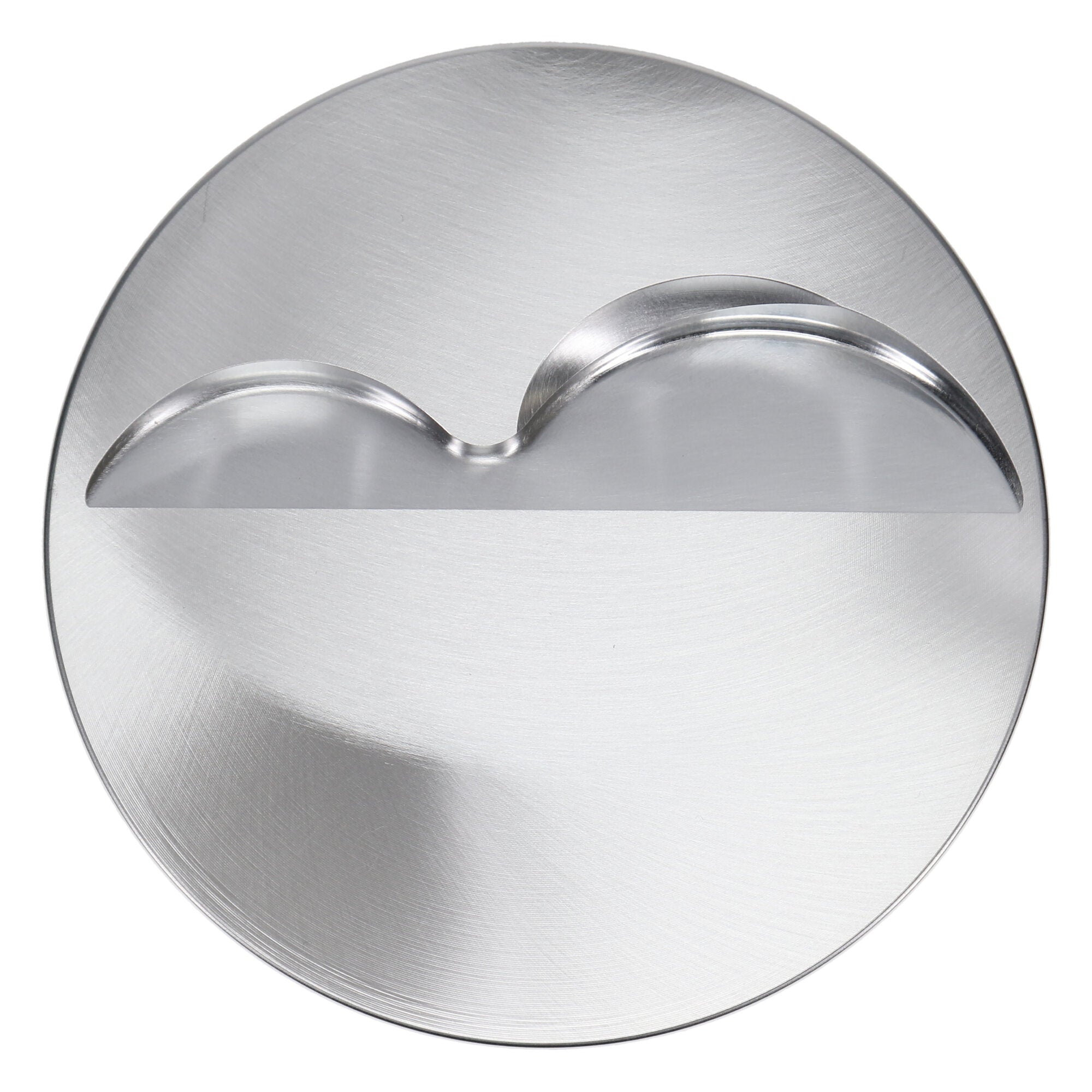

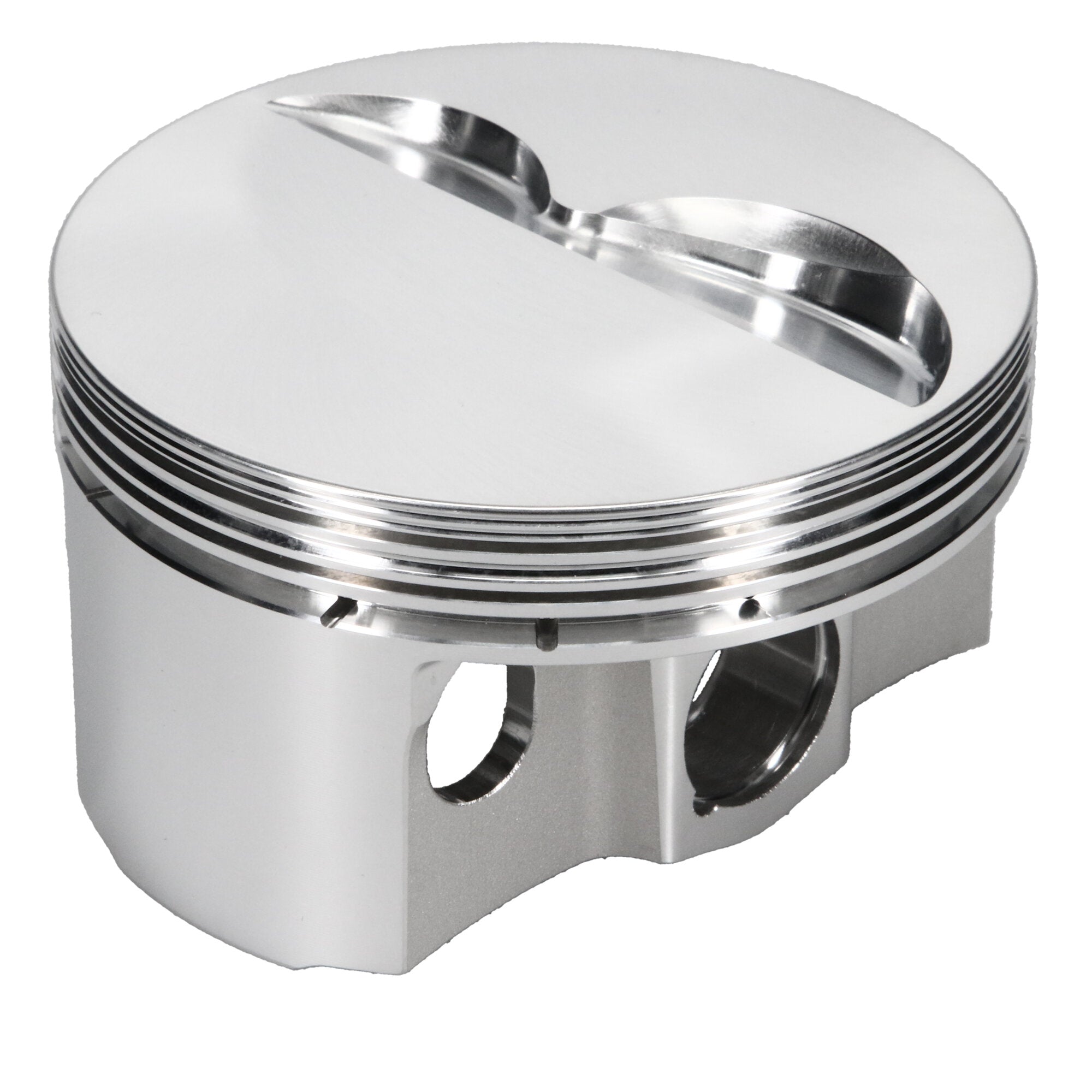

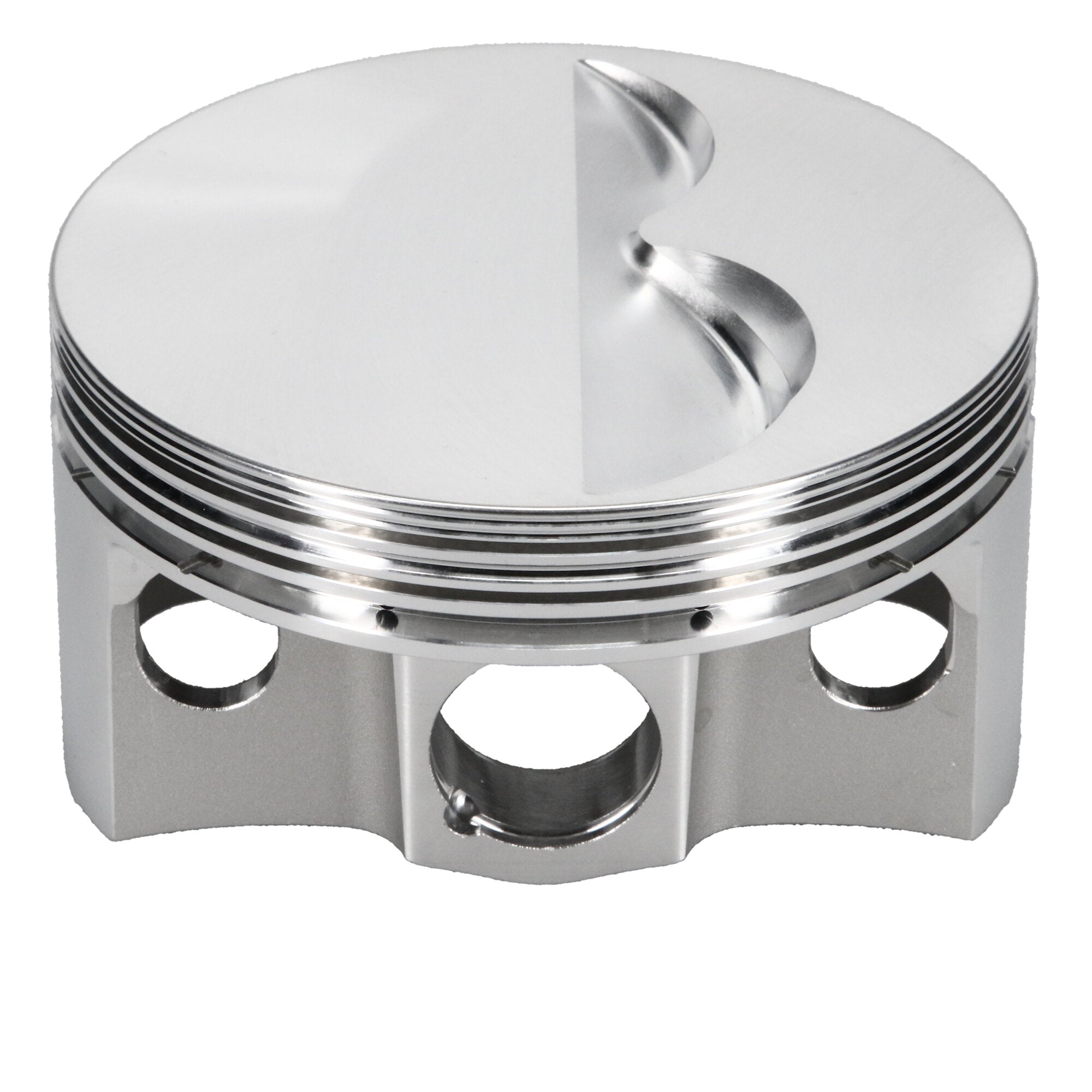

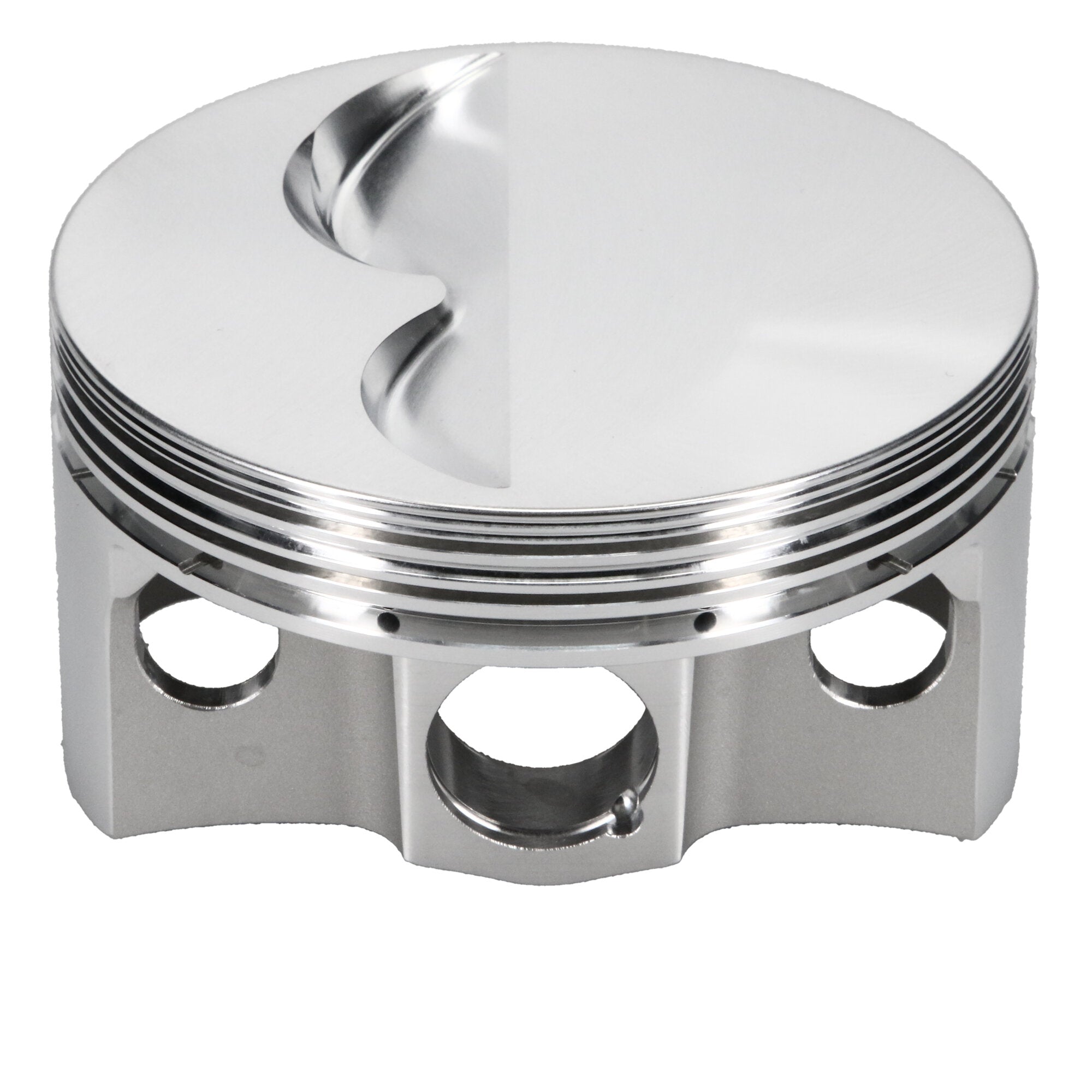

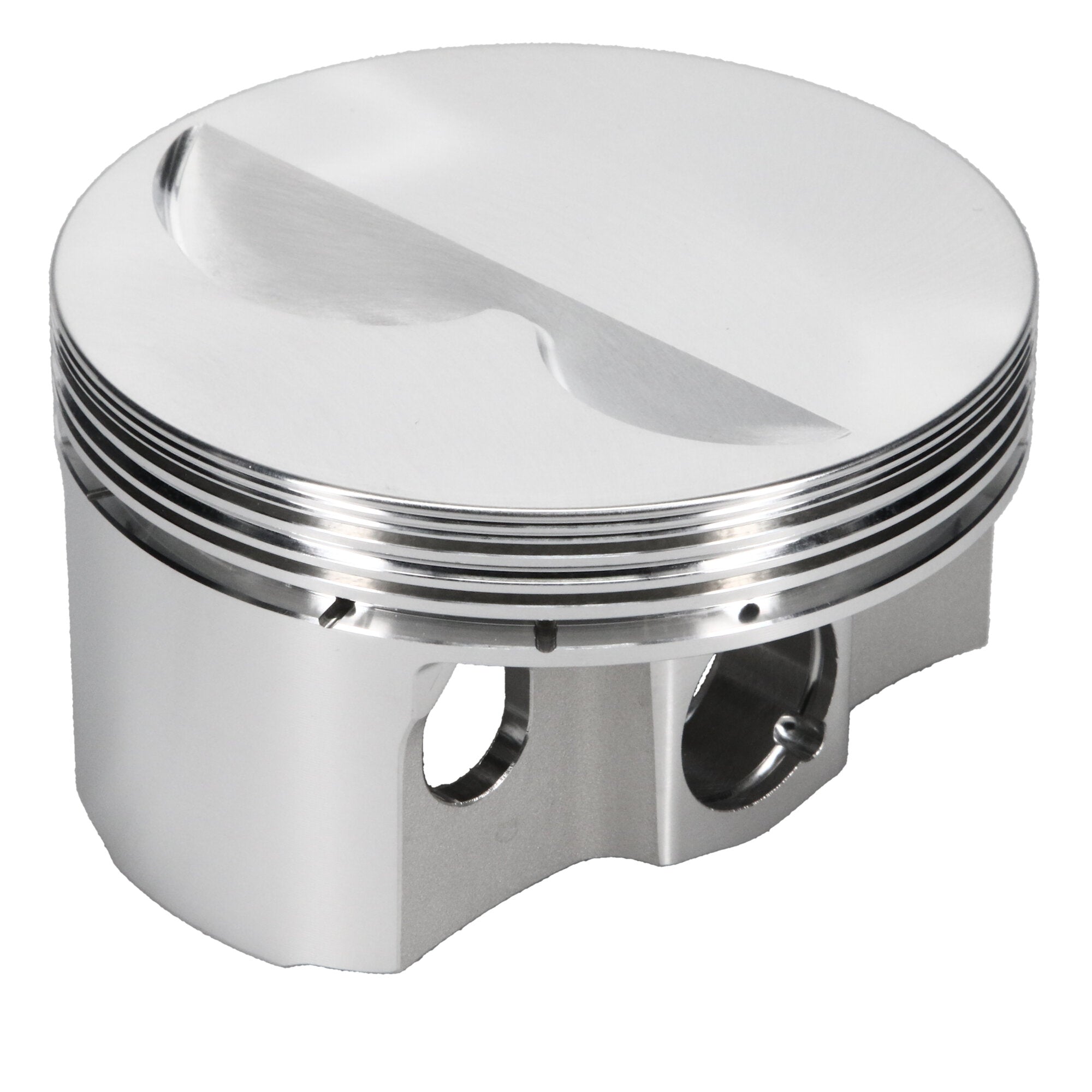

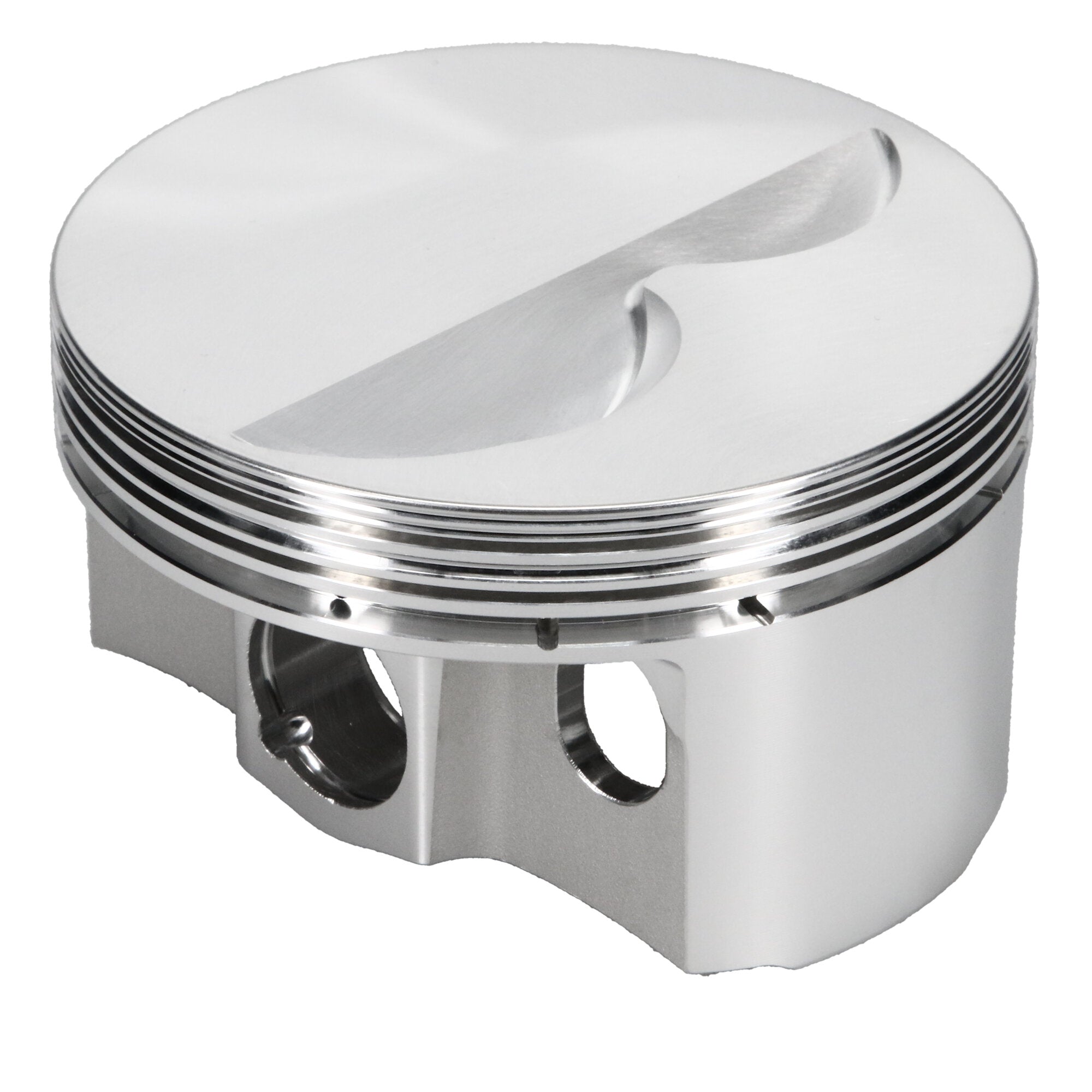

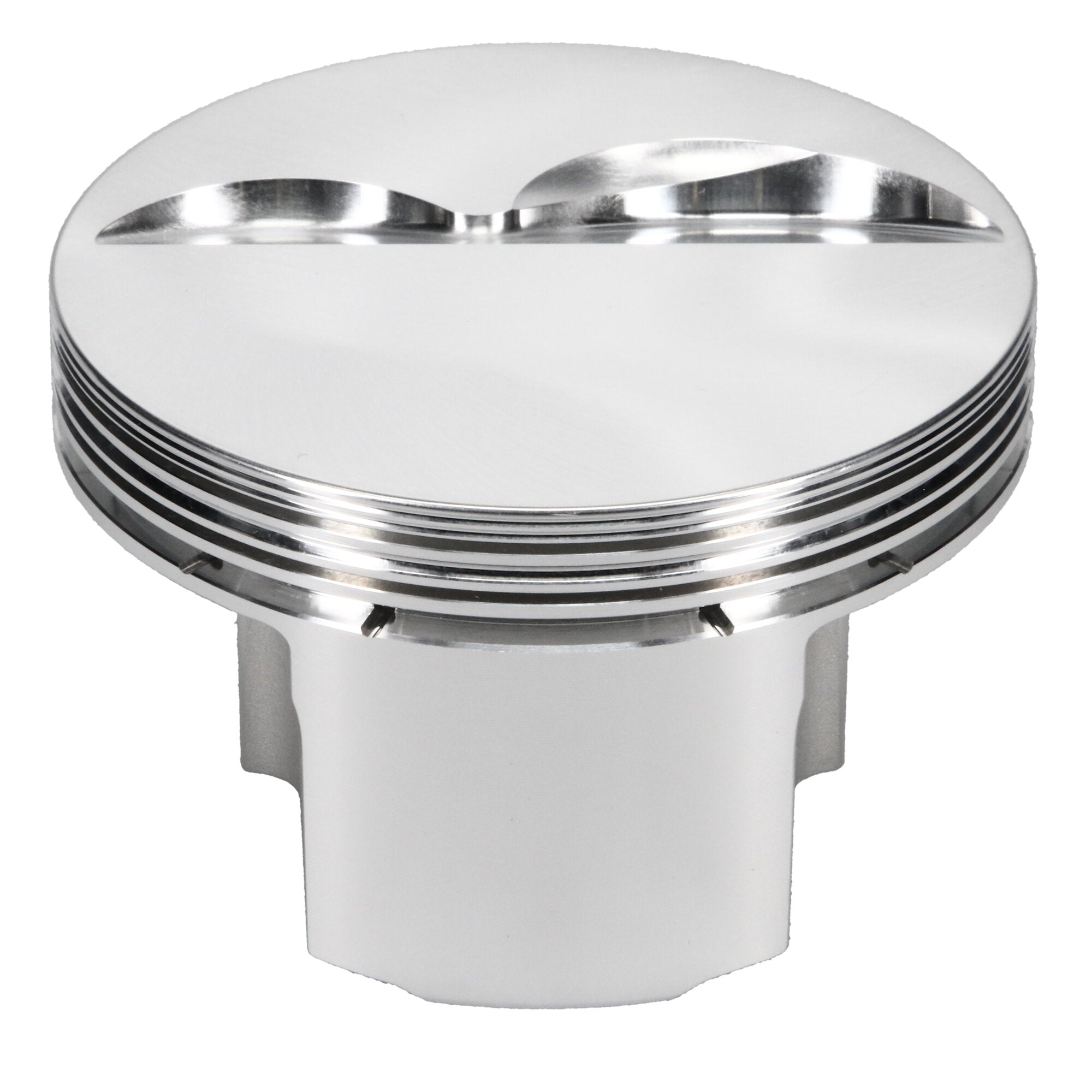

Piston Set, 2618, Flat Top, 4.045 Bore, 1.250 CD, 0.927 Pin Dia, Set of 8. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_TLE |
Chevrolet 350 SBC - Stock Car, 4.045 Bore, Flat Top, Set of 8 |
| Description_SHO |
Piston Kit |
| Engine |
Small Block |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Wall Thickness |
0.150 |
| Engine Type |
ICE |
| Piston Pin Length |
2.250 |
| Make - Web |
Chevrolet |
| Piston Series |
JE Pistons |
| Piston Head Type |
Flat Top |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.045 in. Bore - 1.250 in. CH, -3.80 CC |
| Piston Pin Material |
5115 |
| Piston Material |
2618 |
| Compression Height |
1.250 |
| Piston Pin Outside Diameter |
0.927 |
| Bore Diameter |
4.045 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Piston Quantity |
8 |
| Prop 65 Yes/No |
Yes |
| Add-On |
927-2250-15-51C |
| Prop 65 (C, R or CR) |
CR |
| Industry |
Automotive |
| Product Market |
Domestic |
| Make |
CHEVROLET |
| Out of Stock Message |
Call for Availibility |
| Piston Volume |
-3.80 |
| Piston Pin Wall Thickness |
0.150 |
| Wrist Pin Outer Diameter |
0.927 |
| Wrist Pin Length |
2.250 |
| Engine - Web |
Small Block |
| Product Type |
Engine Piston Kit |
| Title |
JE Pistons - Chevrolet, Small Block, 4.045 in. Bore, Piston Kit |
| Length |
1.0000 |
| Width |
1.0000 |
| Height |
1.0000 |
| Weight |
14.0000 |
