As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet 350 SBC - Stock Car |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

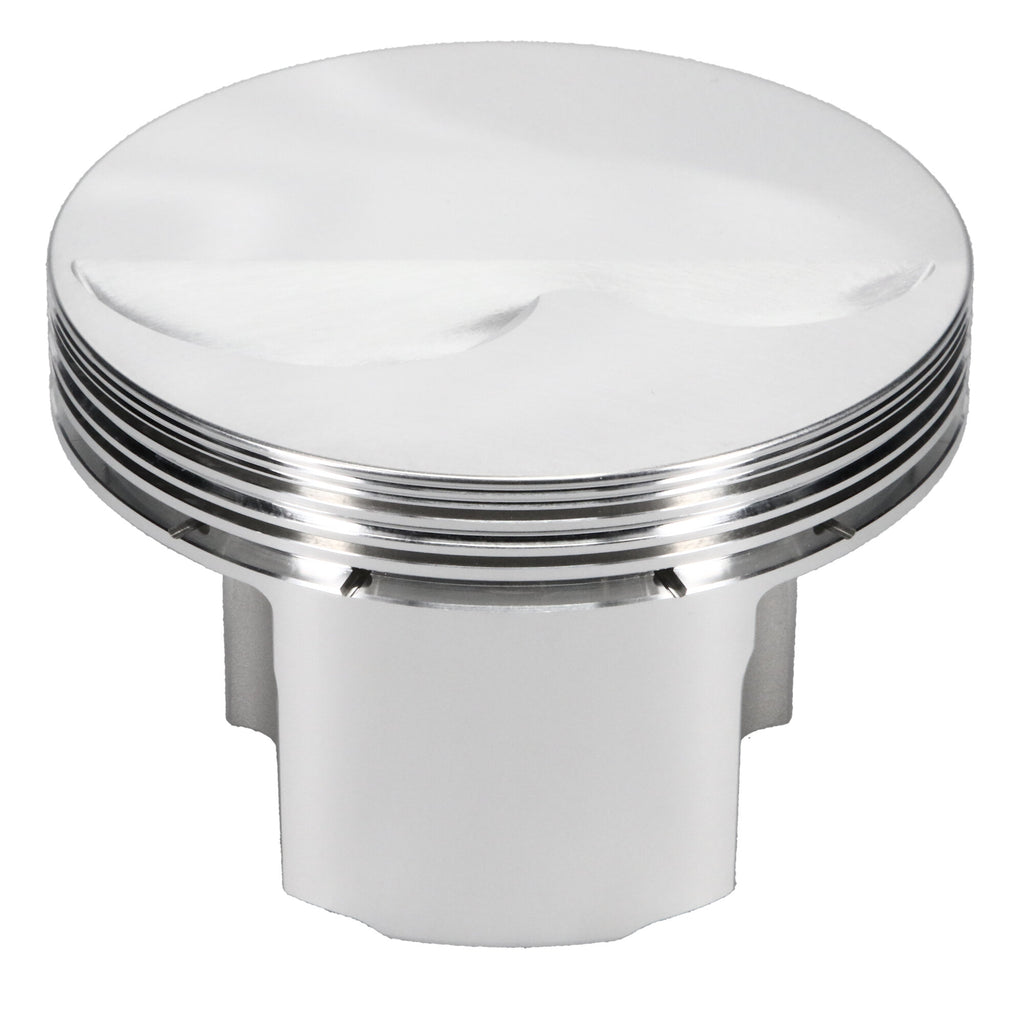

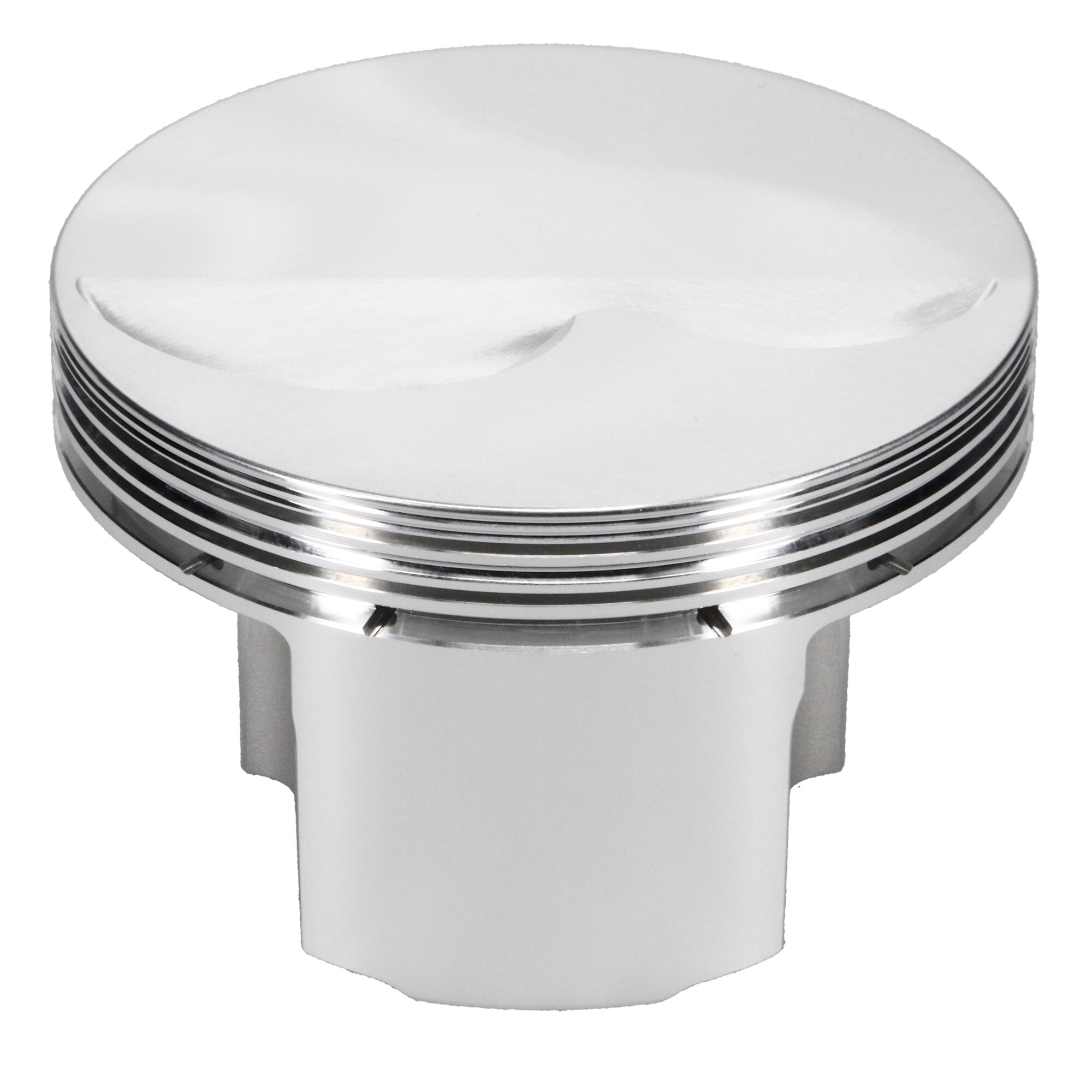

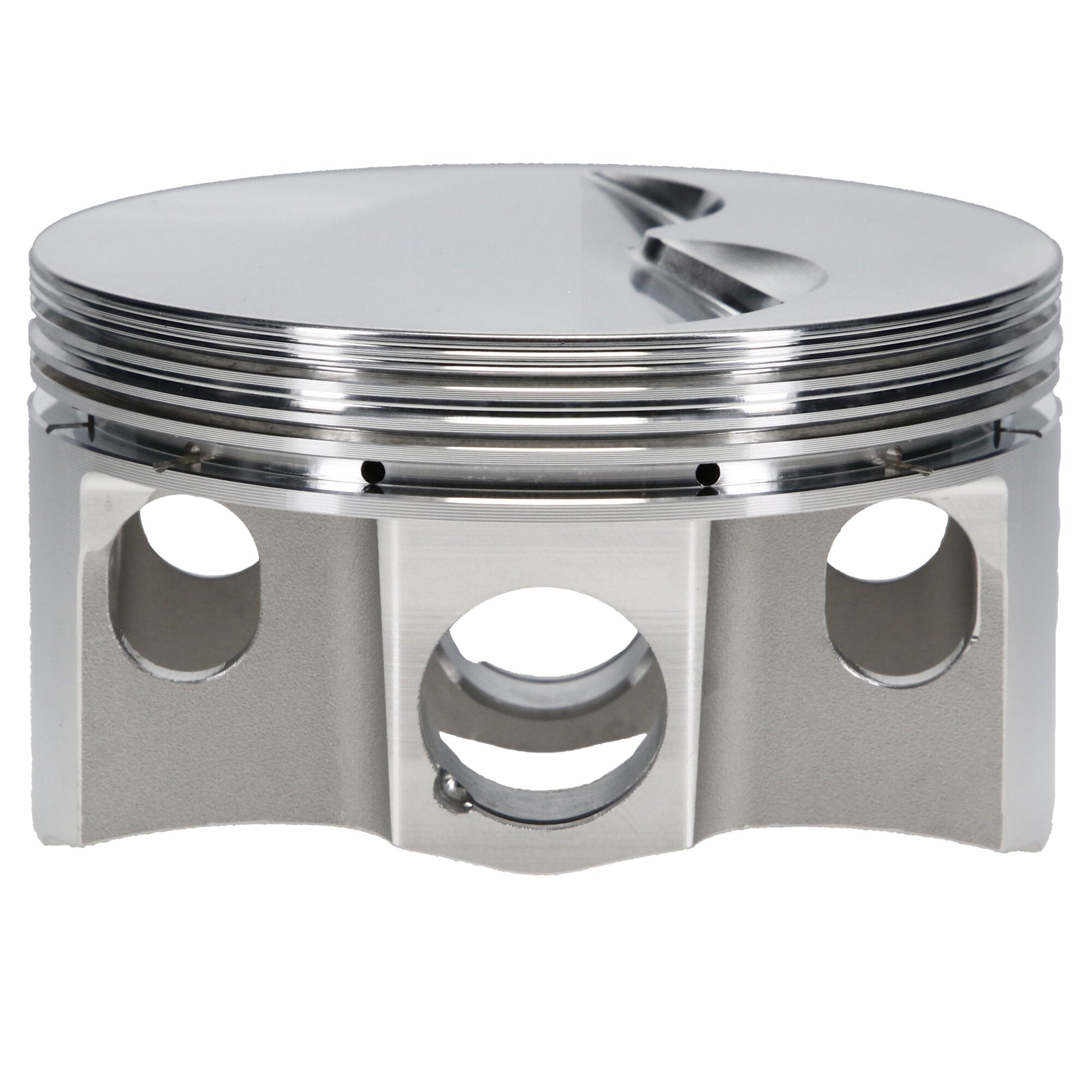

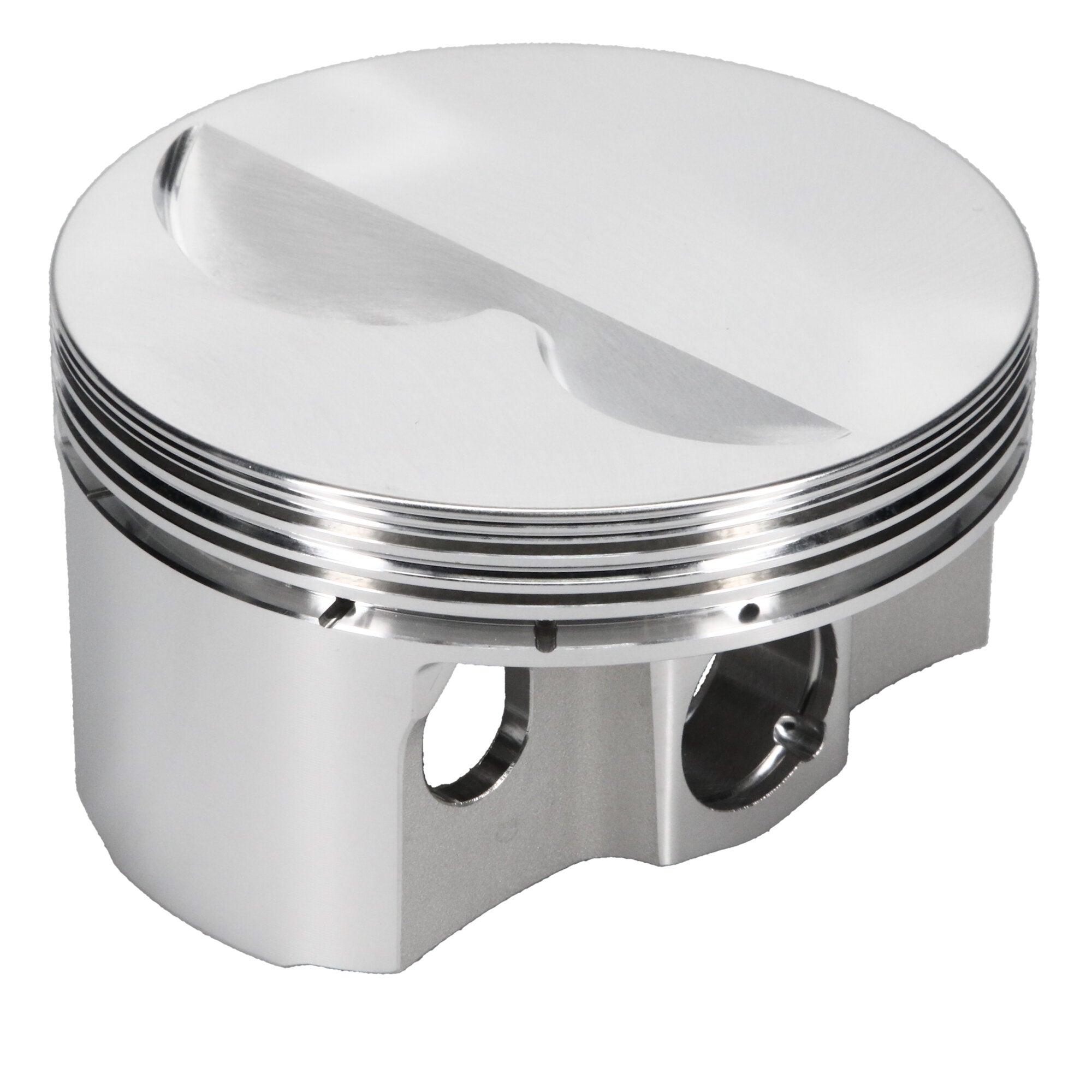

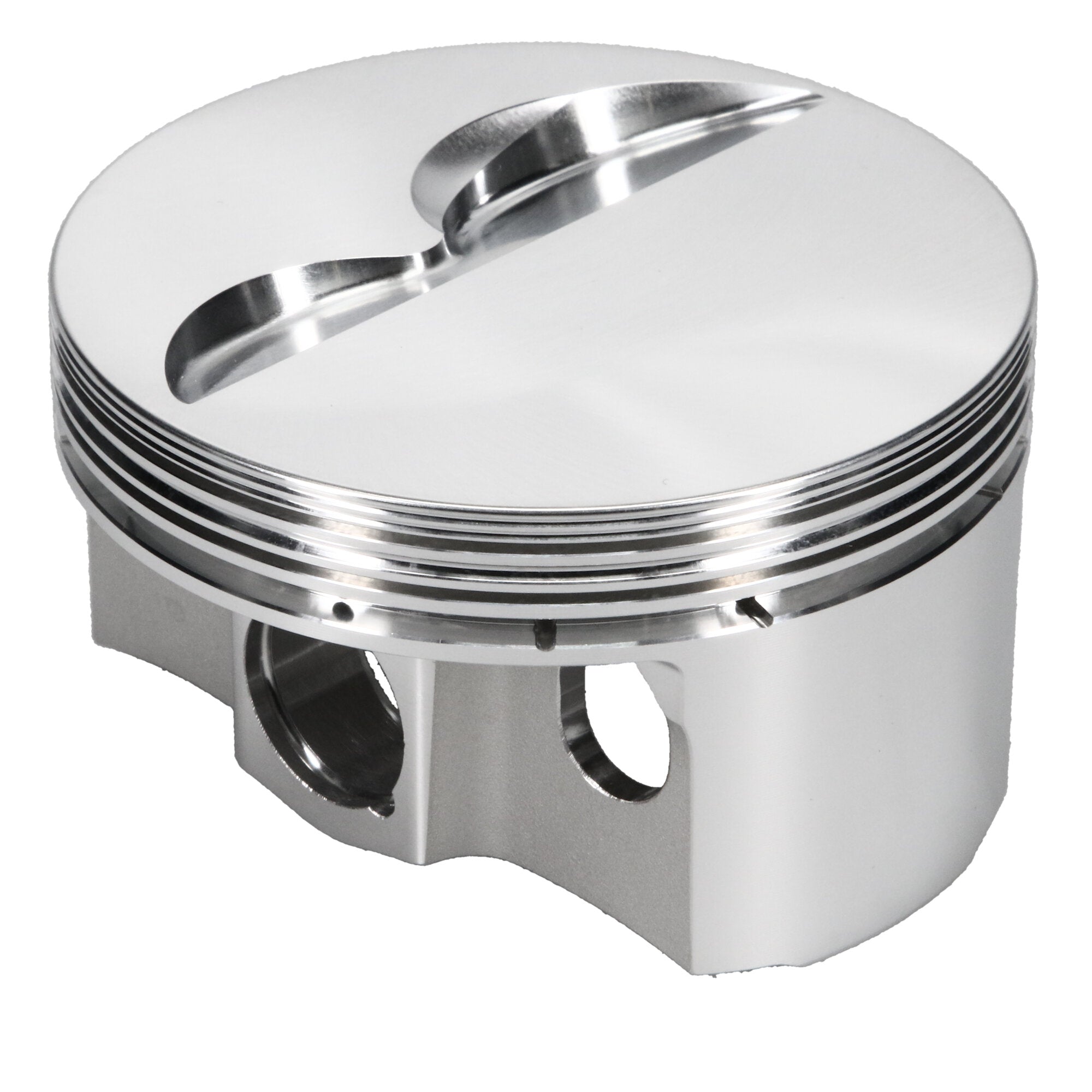

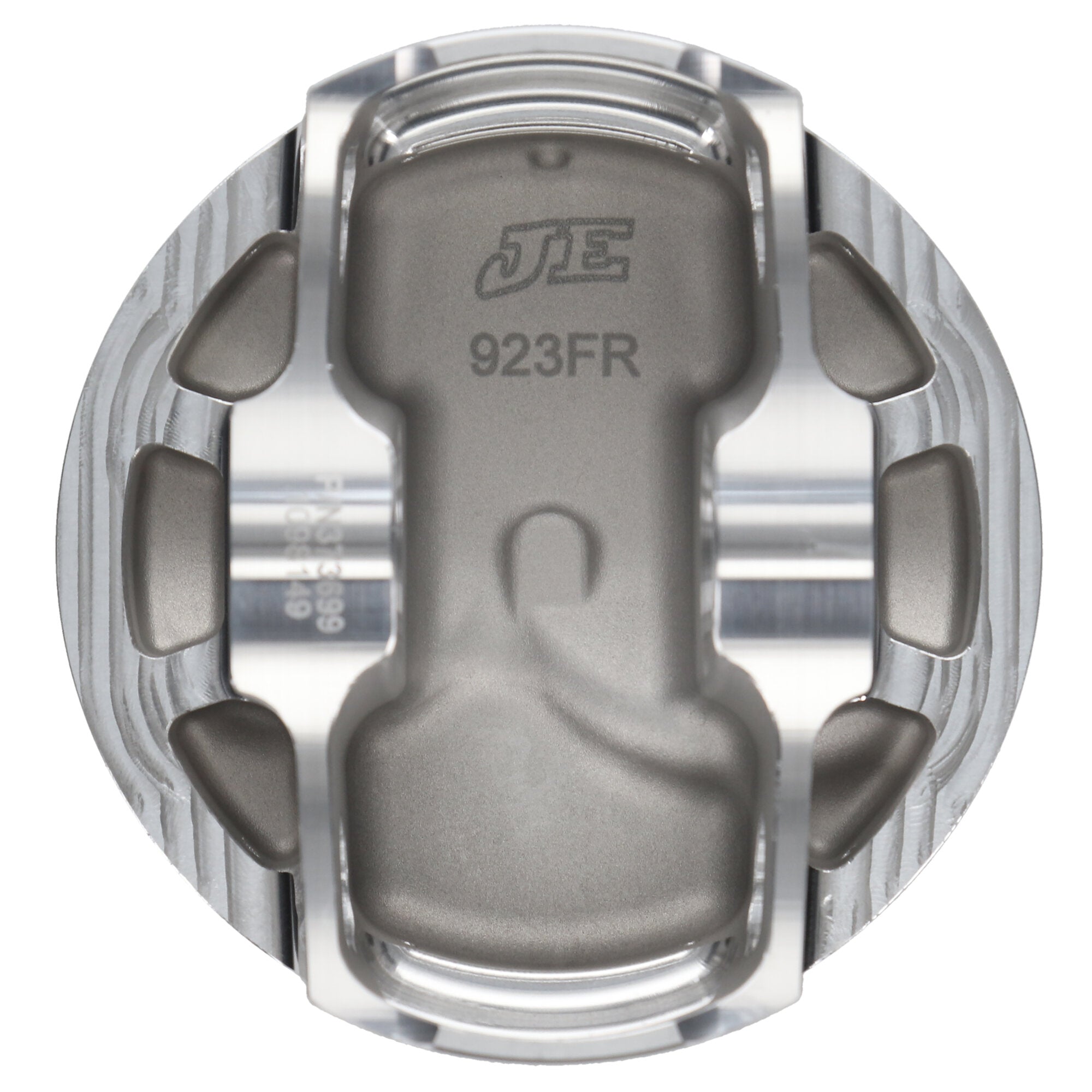

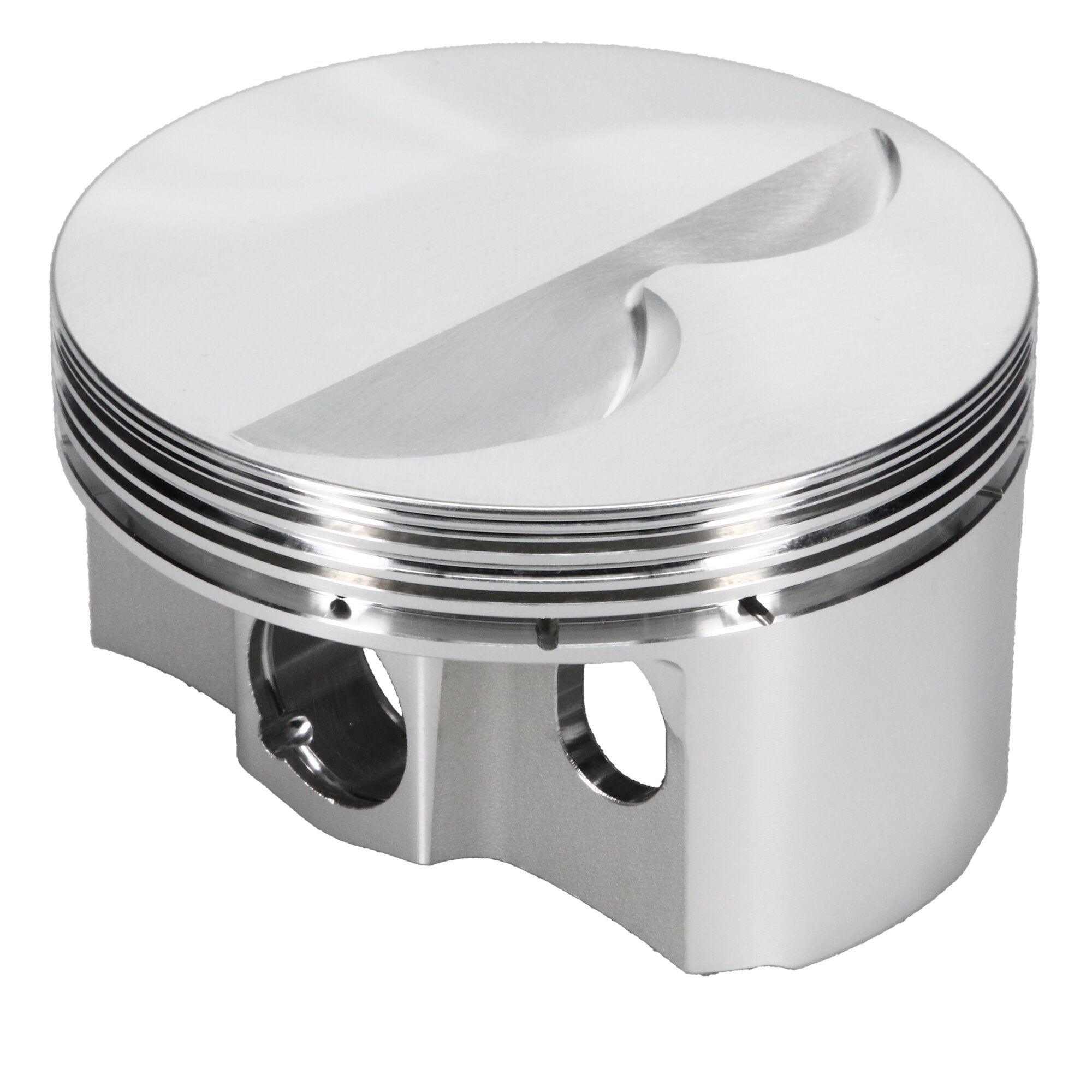

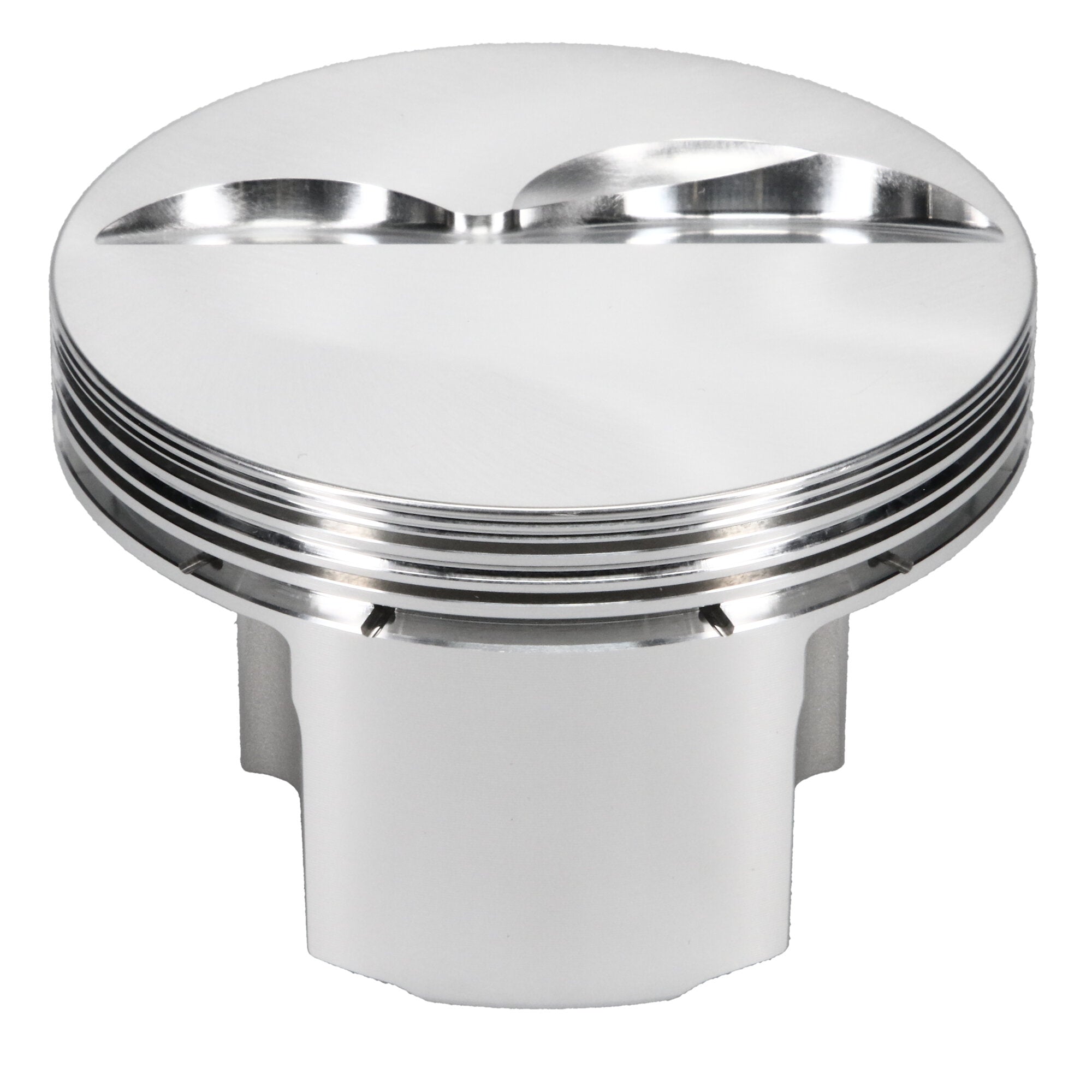

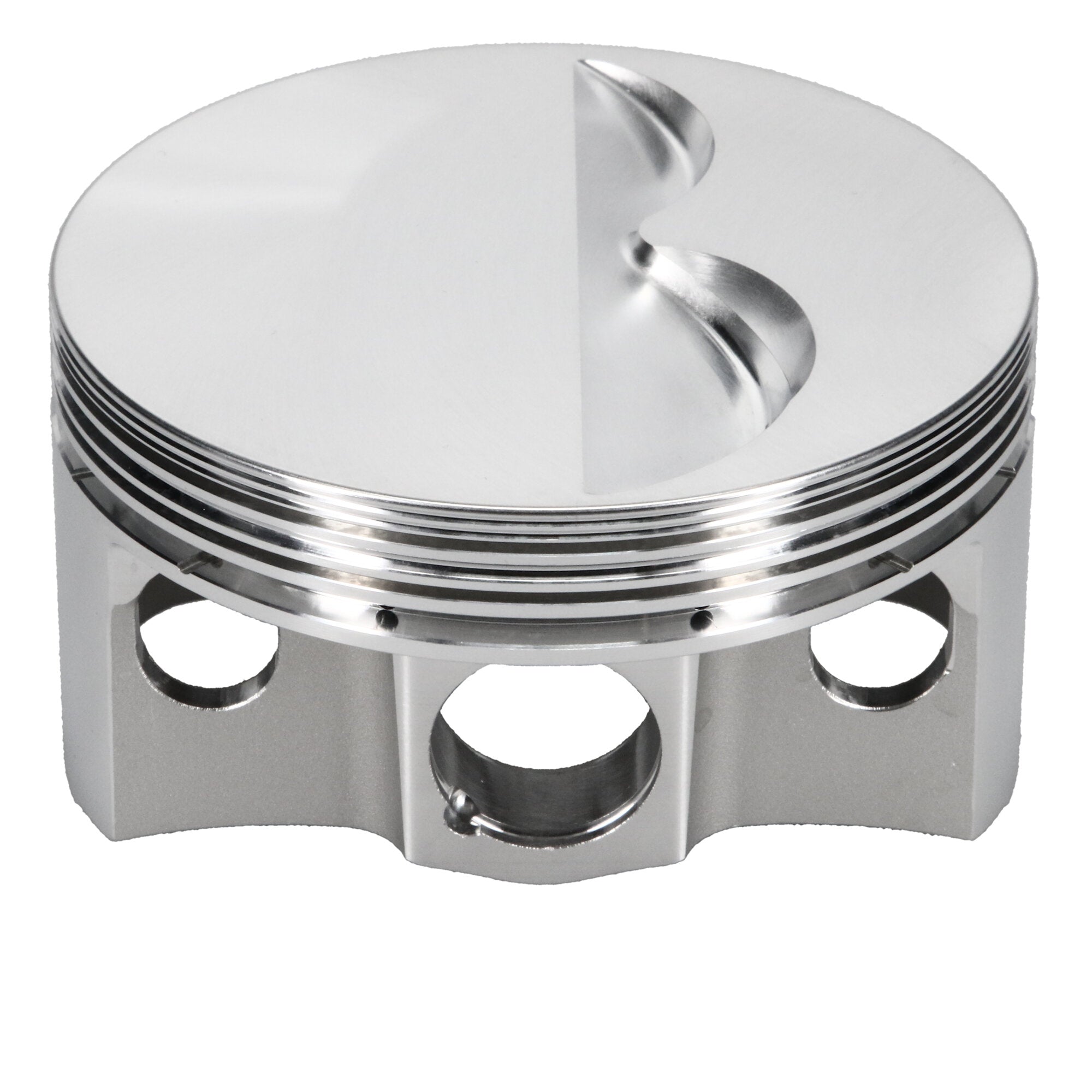

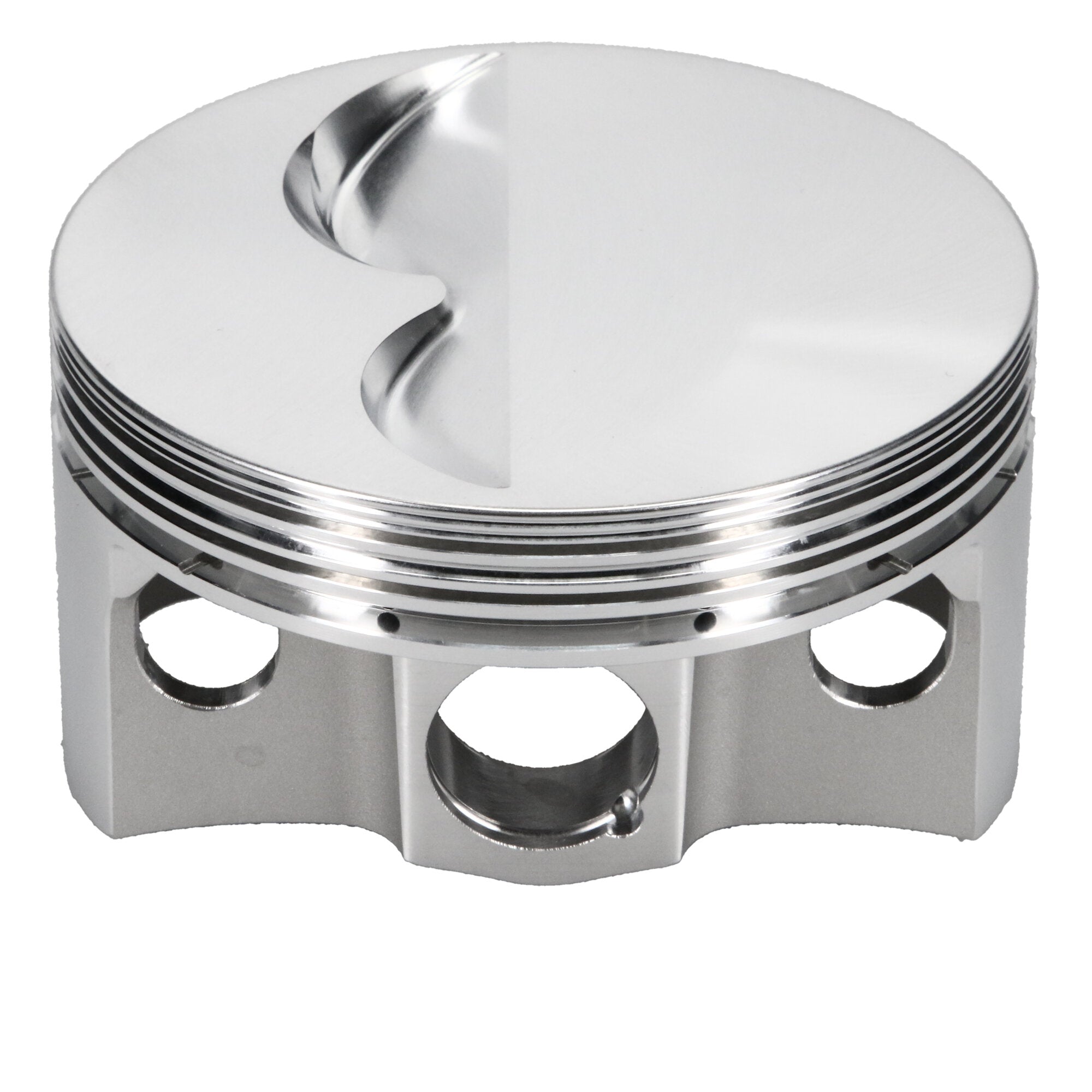

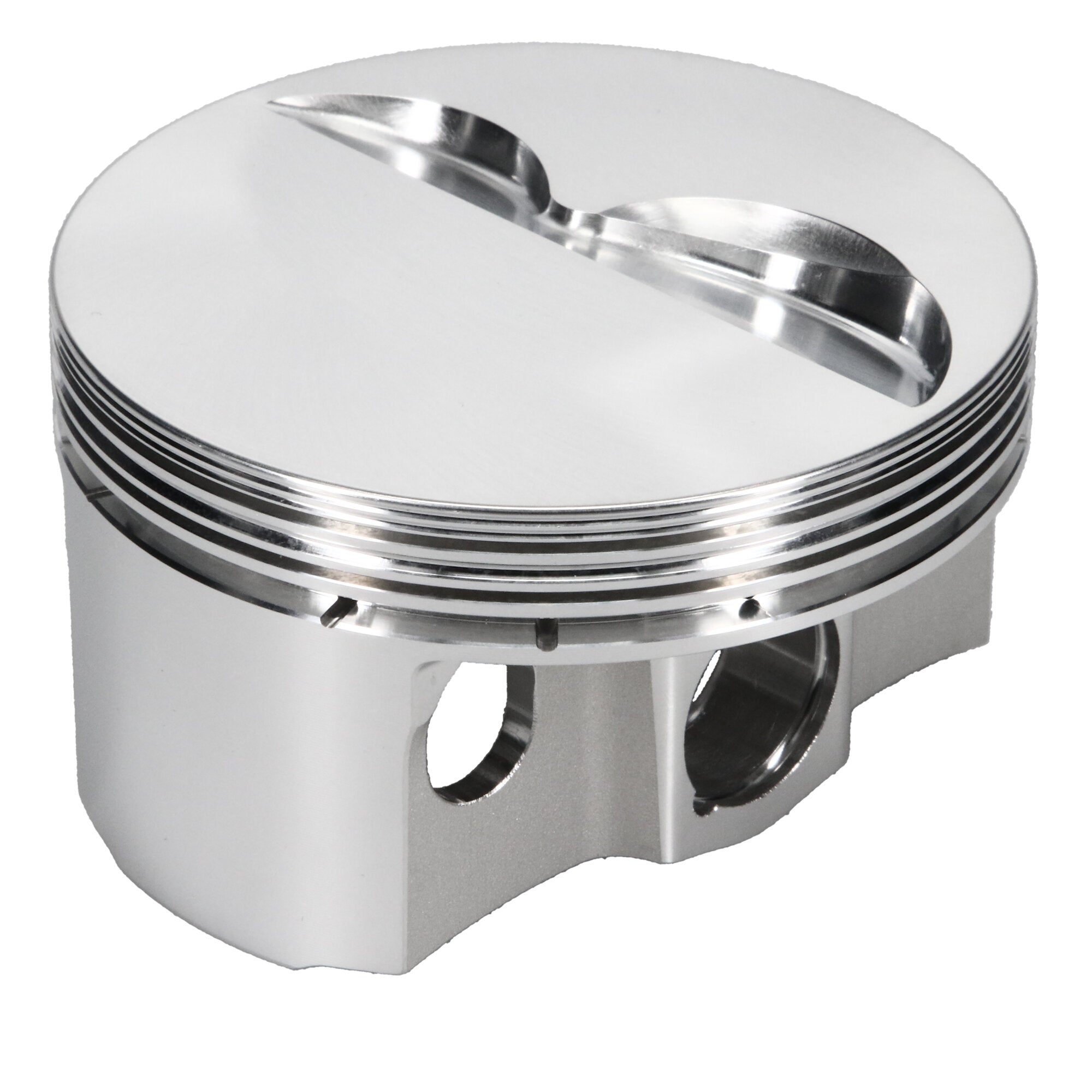

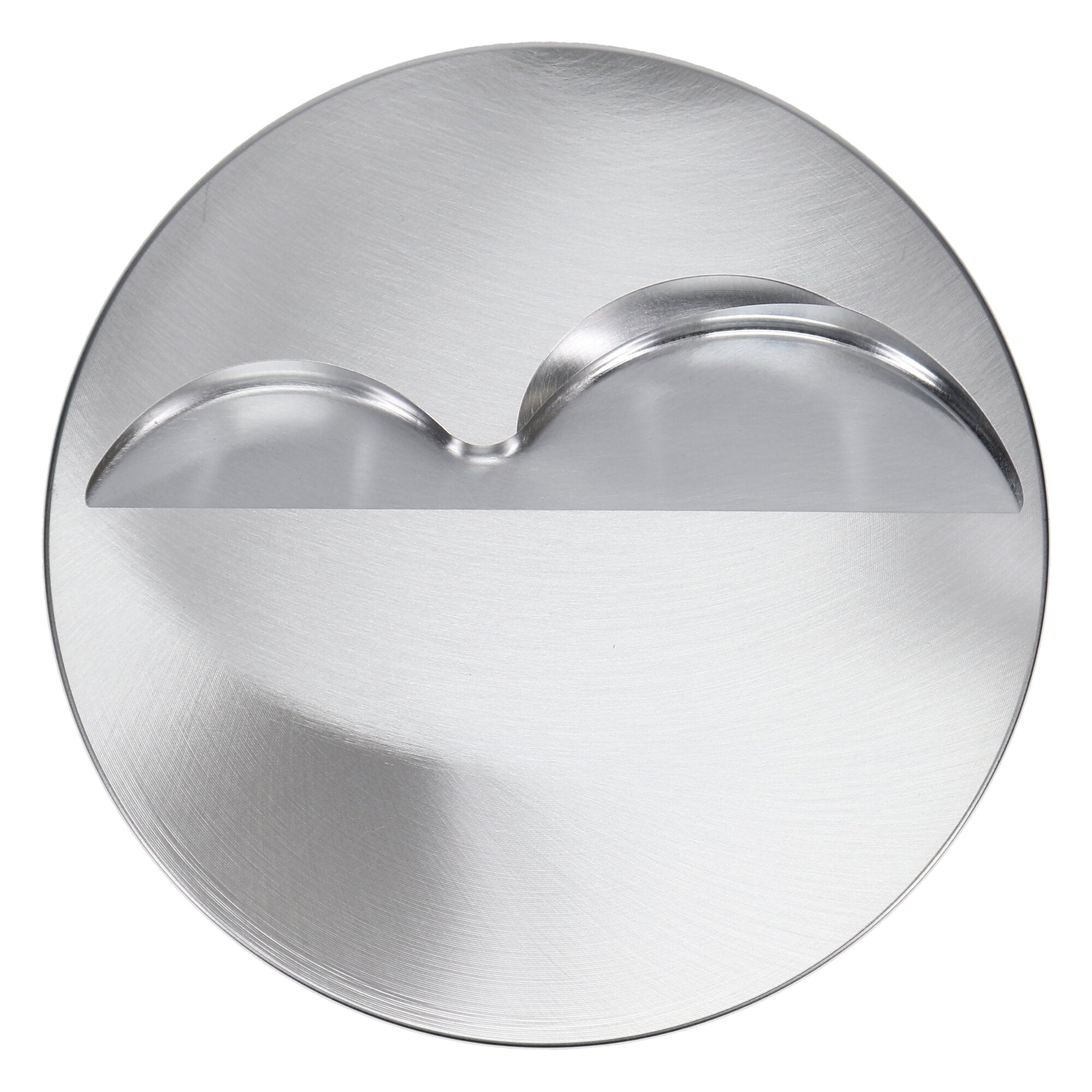

Piston Set, 2618, Flat Top, 4.040 Bore, 1.250 CD, 0.927 Pin Dia, Set of 8. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_TLE |
Chevrolet 350 SBC - Stock Car, 4.040 Bore, Flat Top, Set of 8 |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Compression Height |
1.250 |
| Title |
JE Pistons - Chevrolet, Small Block, 4.040 in. Bore, Piston Kit |
| Wrist Pin Outer Diameter |
0.927 |
| Piston Pin Outside Diameter |
0.927 |
| Engine Type |
ICE |
| Piston Pin Wall Thickness |
0.150 |
| Piston Pin Material |
5115 |
| Wrist Pin Wall Thickness |
0.150 |
| Piston Quantity |
8 |
| Piston Volume |
-3.80 |
| Make |
CHEVROLET |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Piston Series |
JE Pistons |
| Product Market |
Domestic |
| Wrist Pin Length |
2.250 |
| Piston Head Type |
Flat Top |
| Piston Material |
2618 |
| Product Type |
Engine Piston Kit |
| Bore Diameter |
4.040 |
| Prop 65 Yes/No |
Yes |
| Industry |
Automotive |
| Piston Pin Length |
2.250 |
| Engine |
Small Block |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.040 in. Bore - 1.250 in. CH, -3.80 CC |
| Out of Stock Message |
Call for Availibility |
| Prop 65 (C, R or CR) |
CR |
| Add-On |
927-2250-15-51C |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Make - Web |
Chevrolet |
| Engine - Web |
Small Block |
| Length |
1.0000 |
| Width |
1.0000 |
| Height |
1.0000 |
| Weight |
14.0000 |
