As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Small Block |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

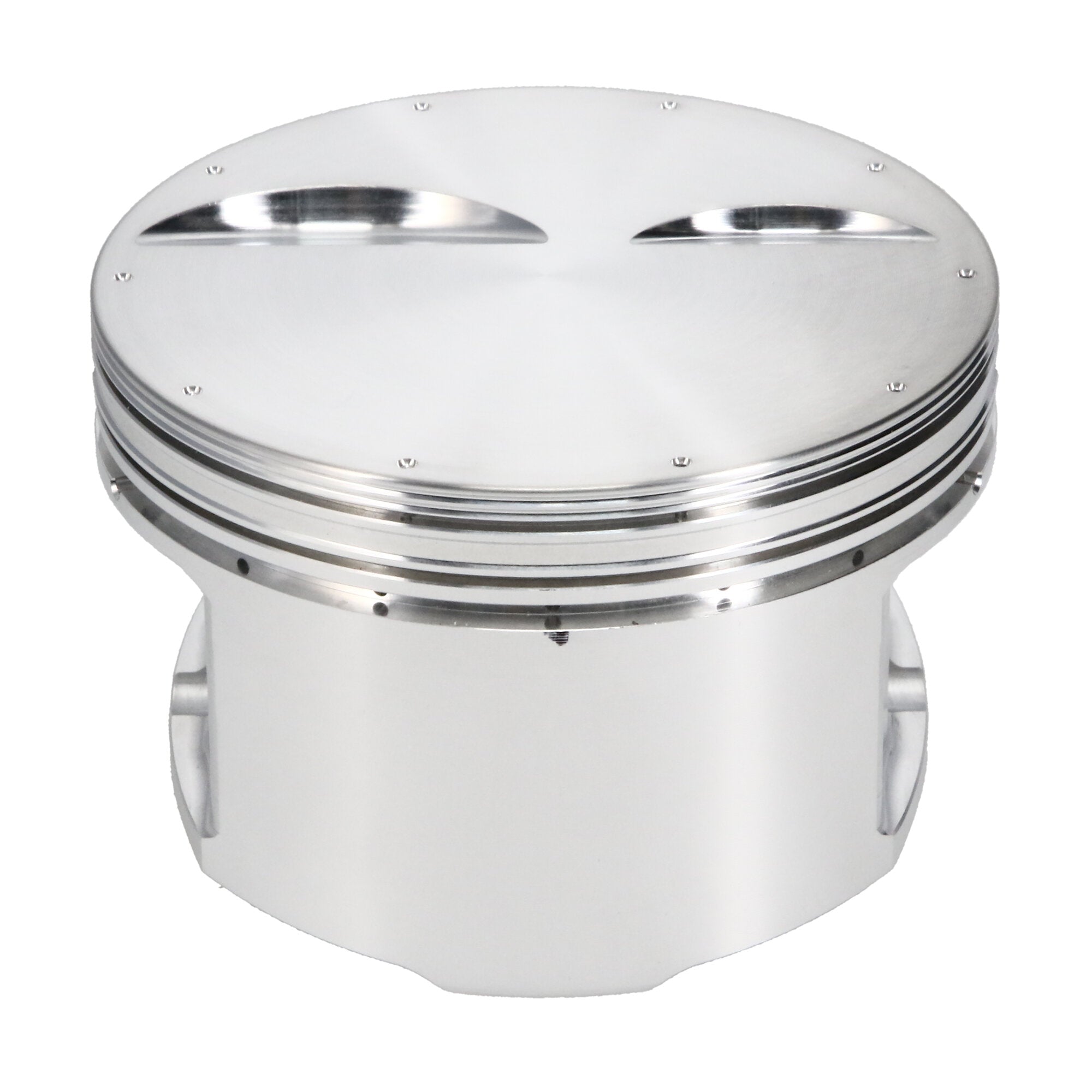

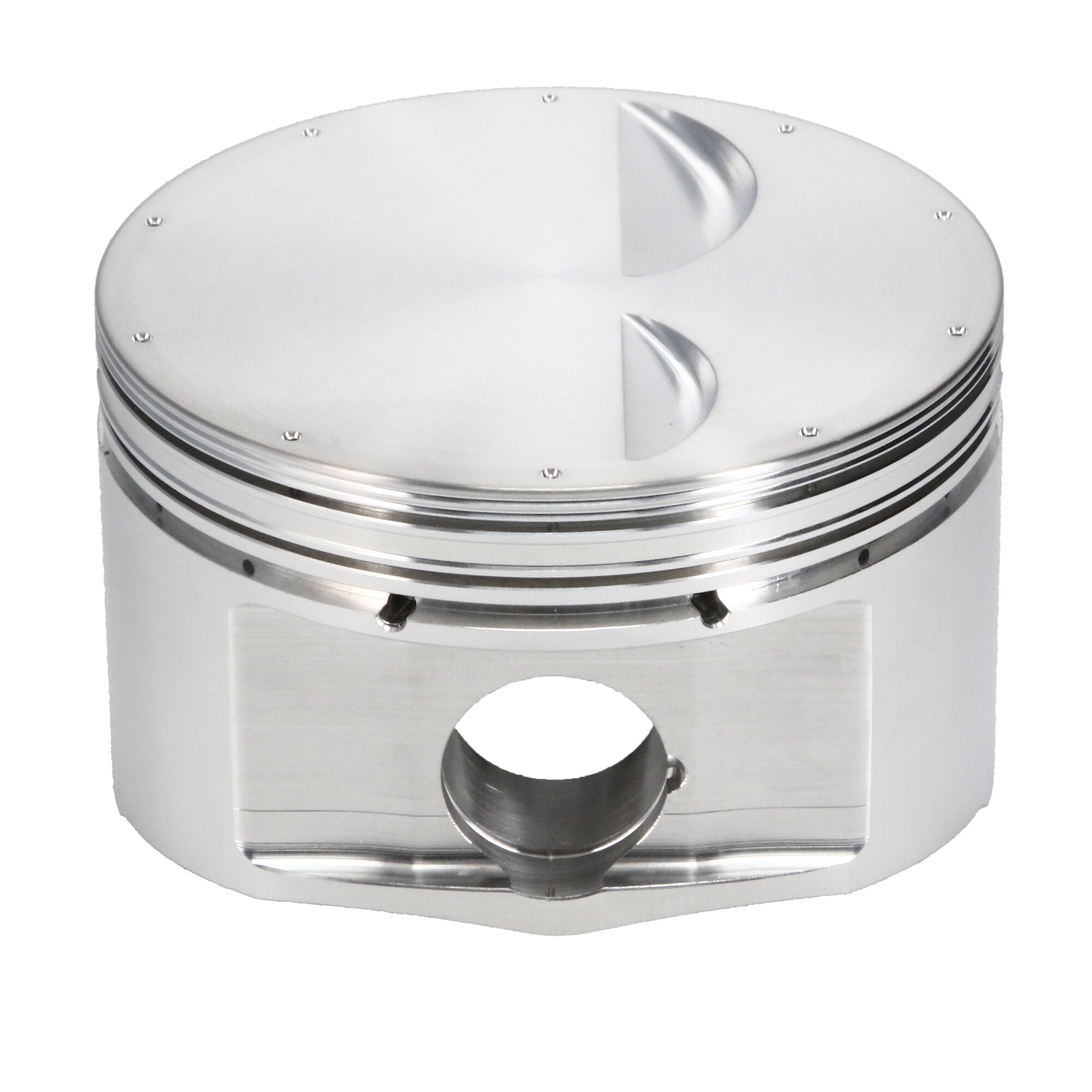

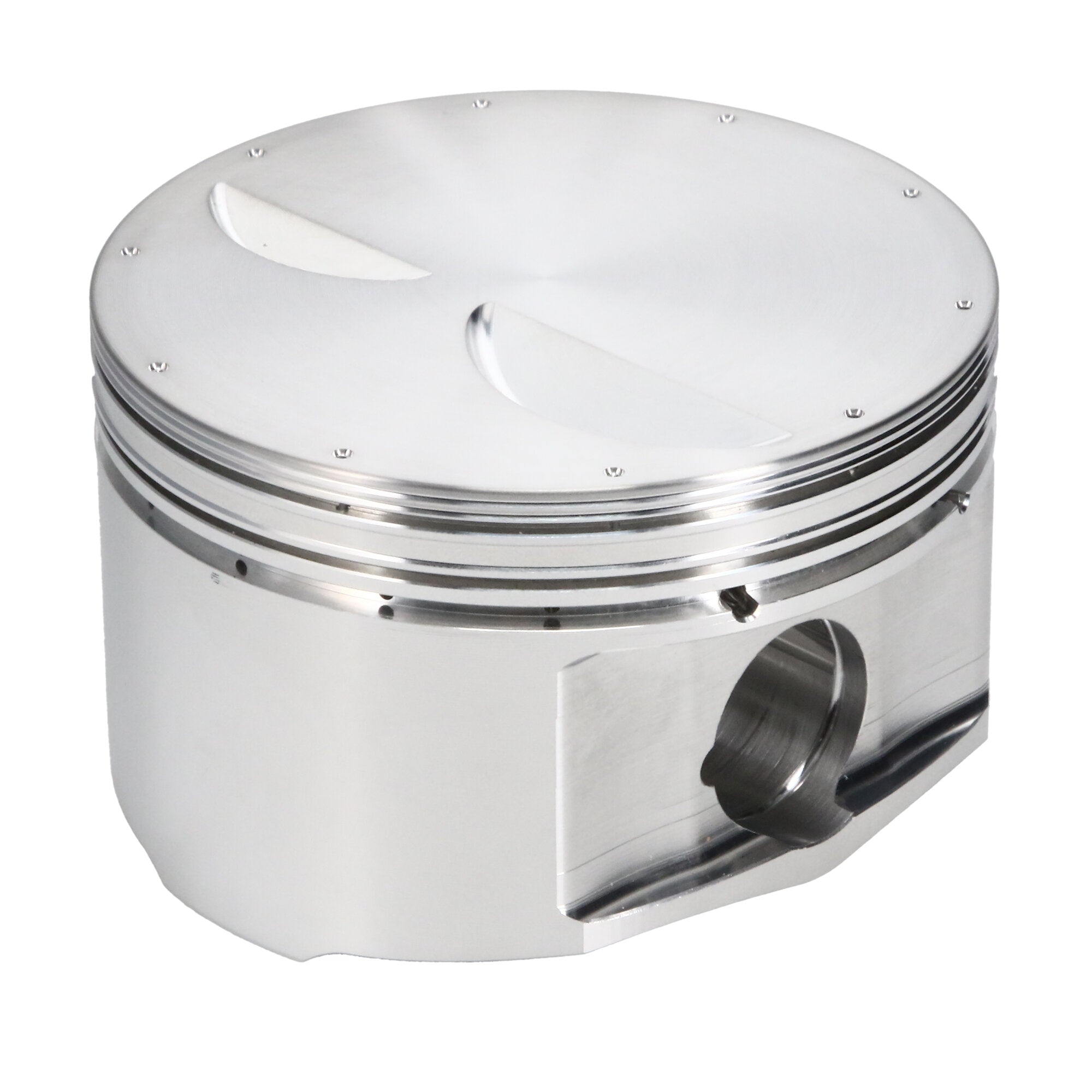

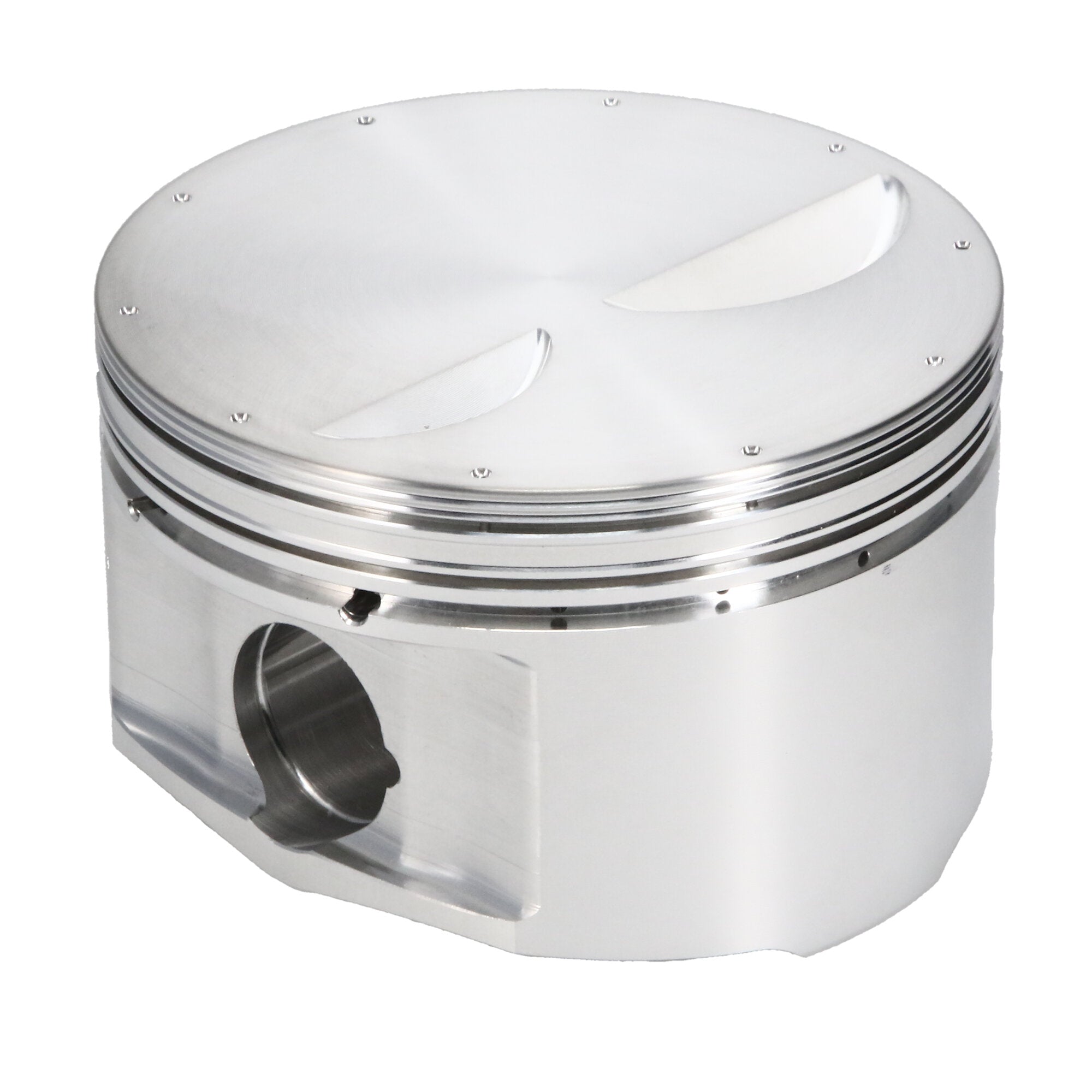

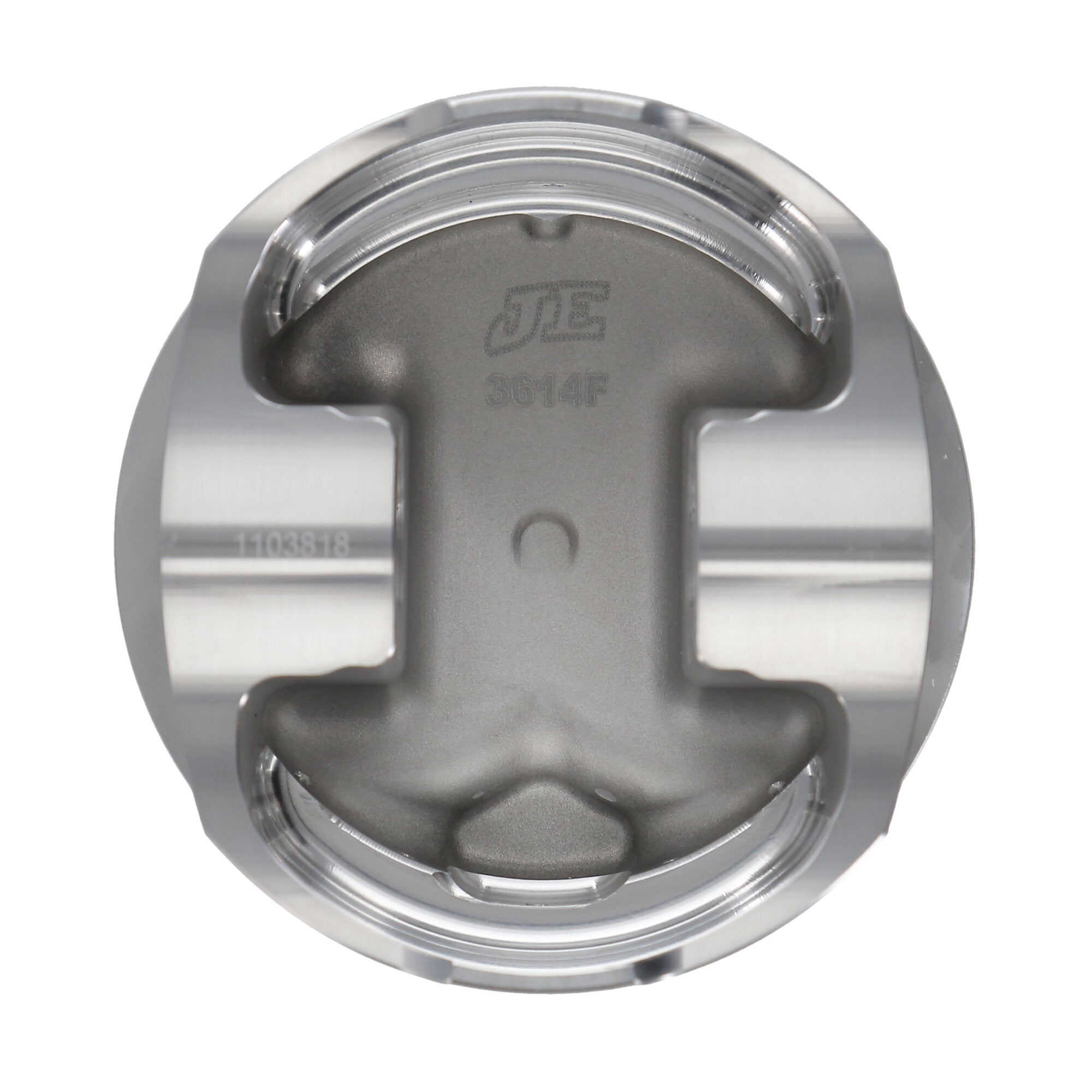

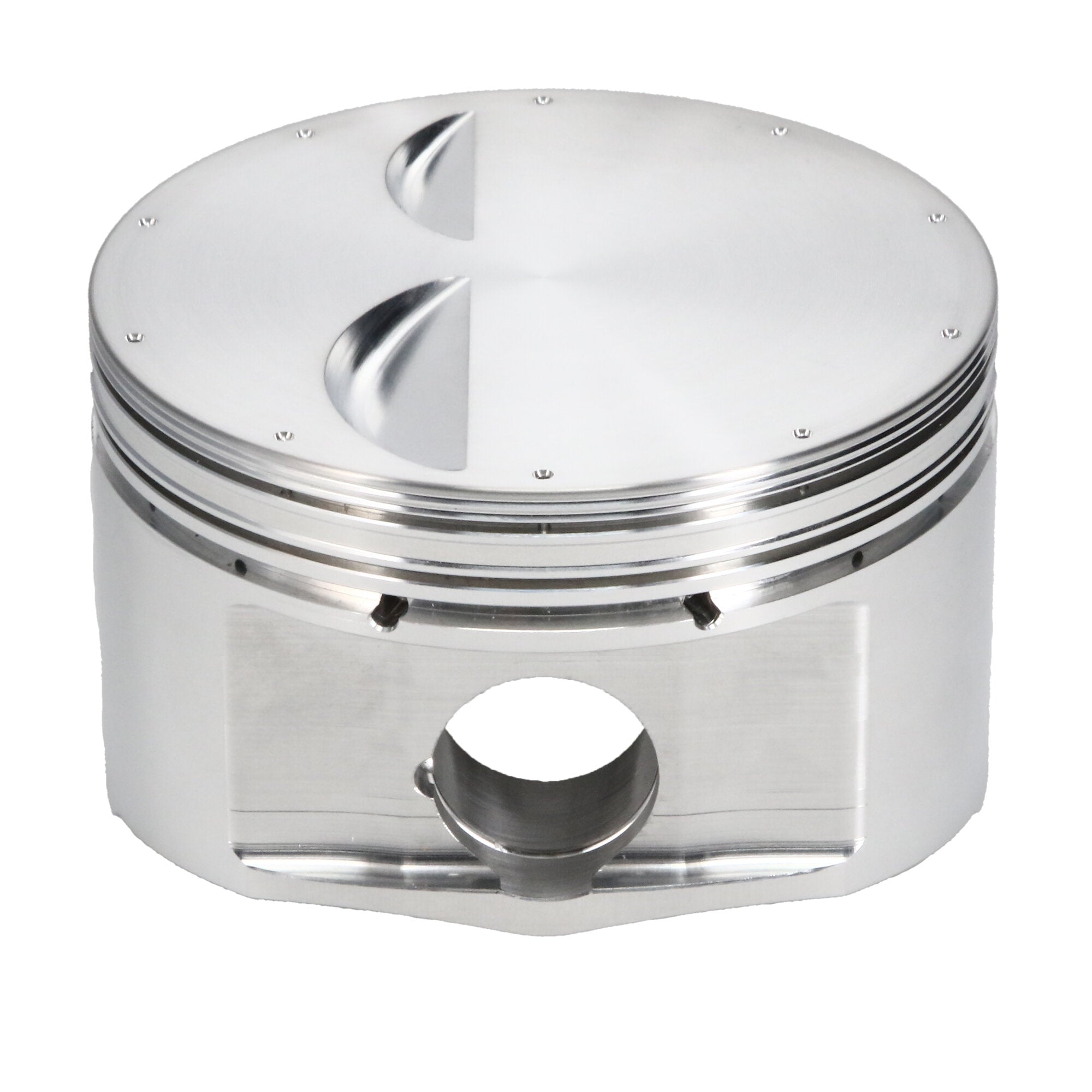

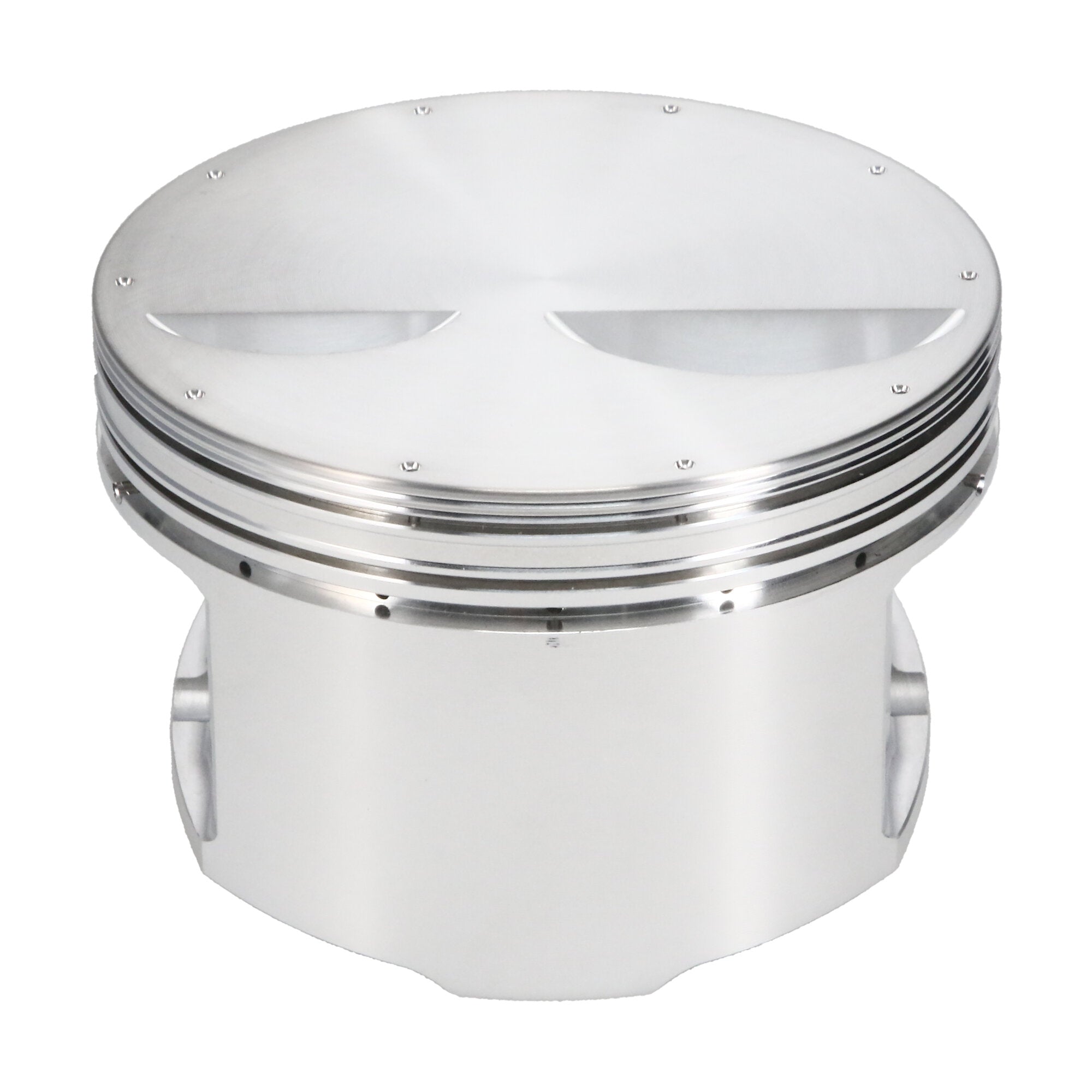

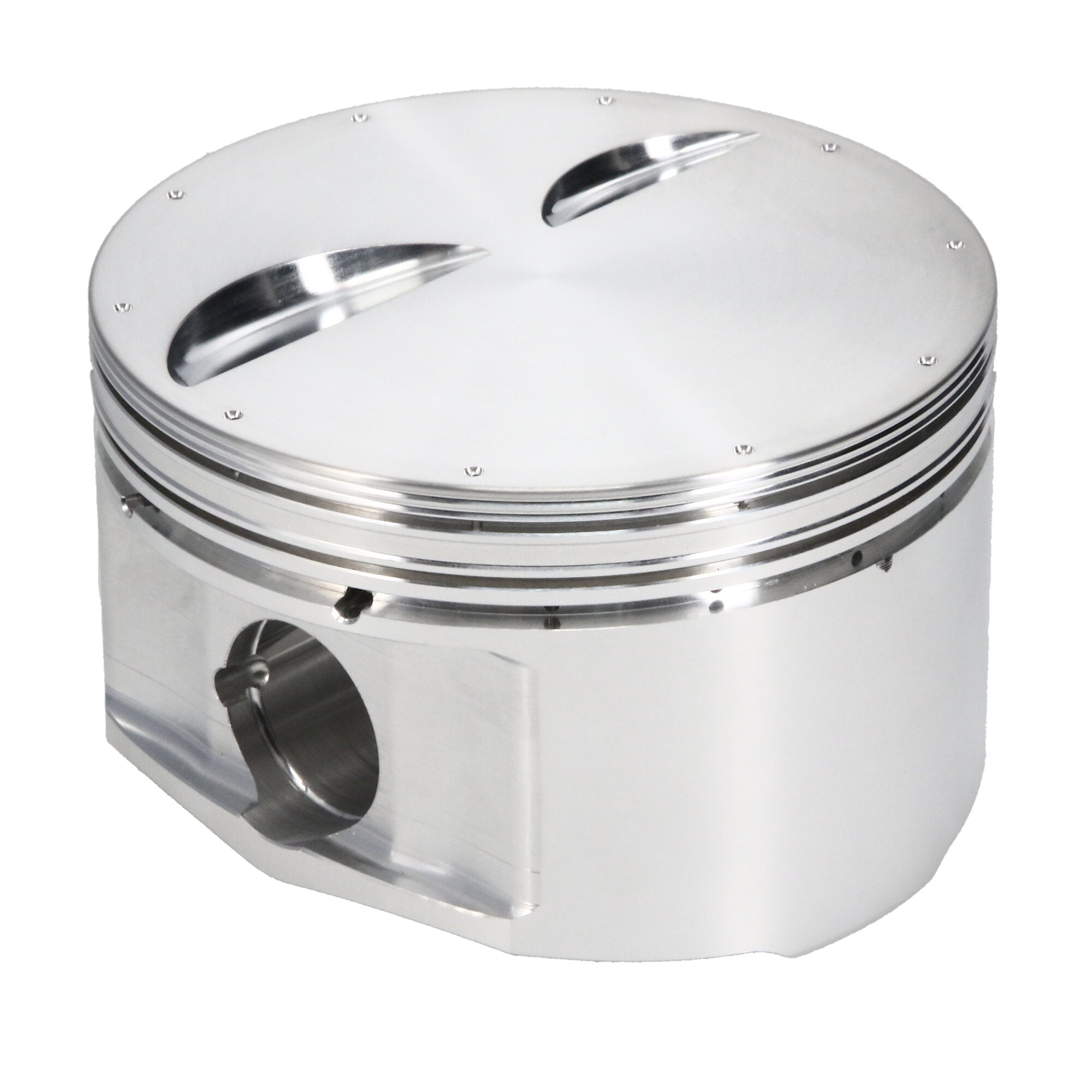

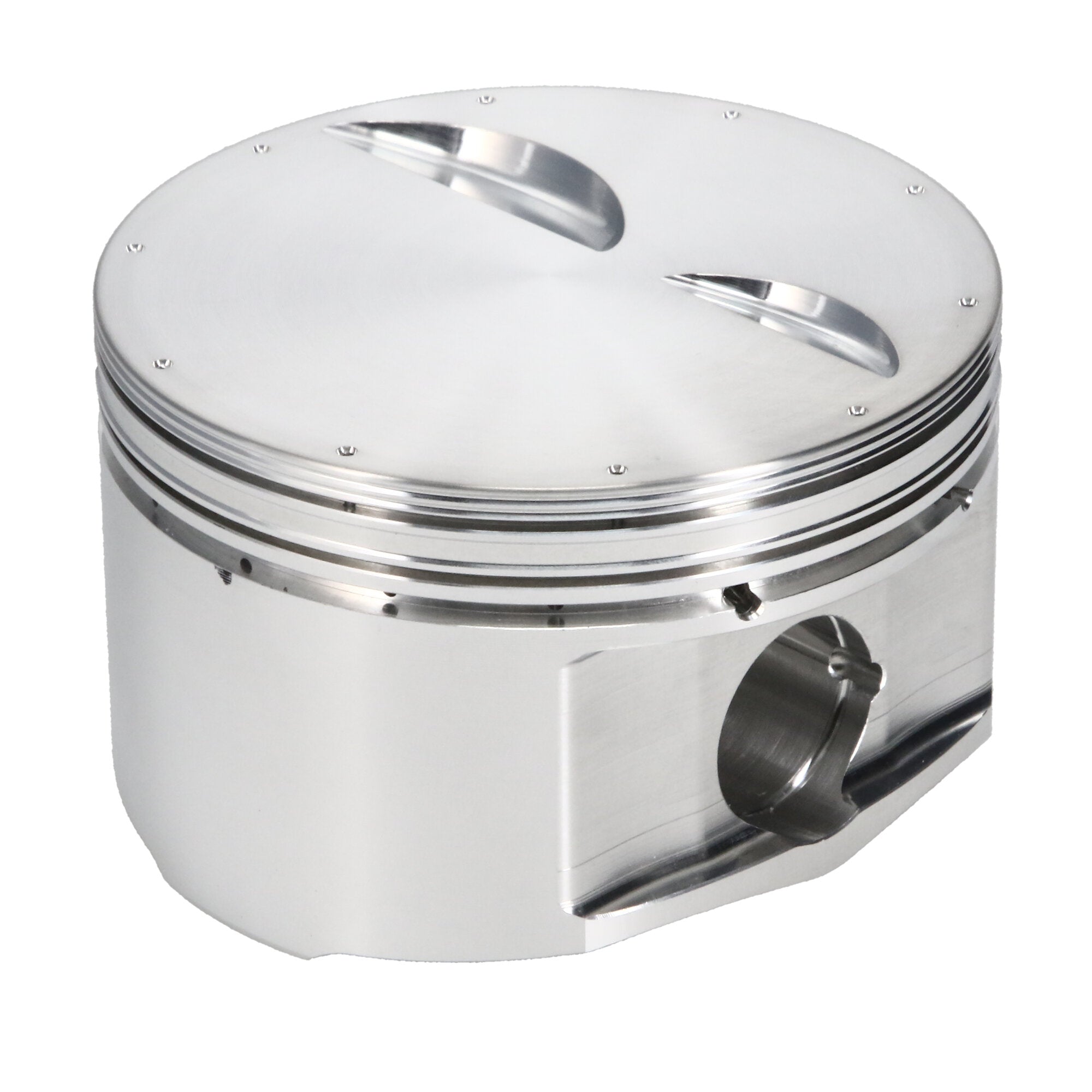

Piston Set, 2618, Flat Top, 3.766 Bore, 1.560 CD, 0.927 Pin Dia, Set of 8. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_TLE |
Chevrolet Small Block, 3.766 Bore, Flat Top, Set of 8 |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Make |
CHEVROLET |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 3.766 in. Bore - 1.560 in. CH, -1.80 CC |
| Piston Pin Length |
2.500 |
| Make - Web |
Chevrolet |
| Wrist Pin Outer Diameter |
0.927 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Piston Pin Material |
5115 |
| Piston Series |
JE Pistons |
| Piston Head Type |

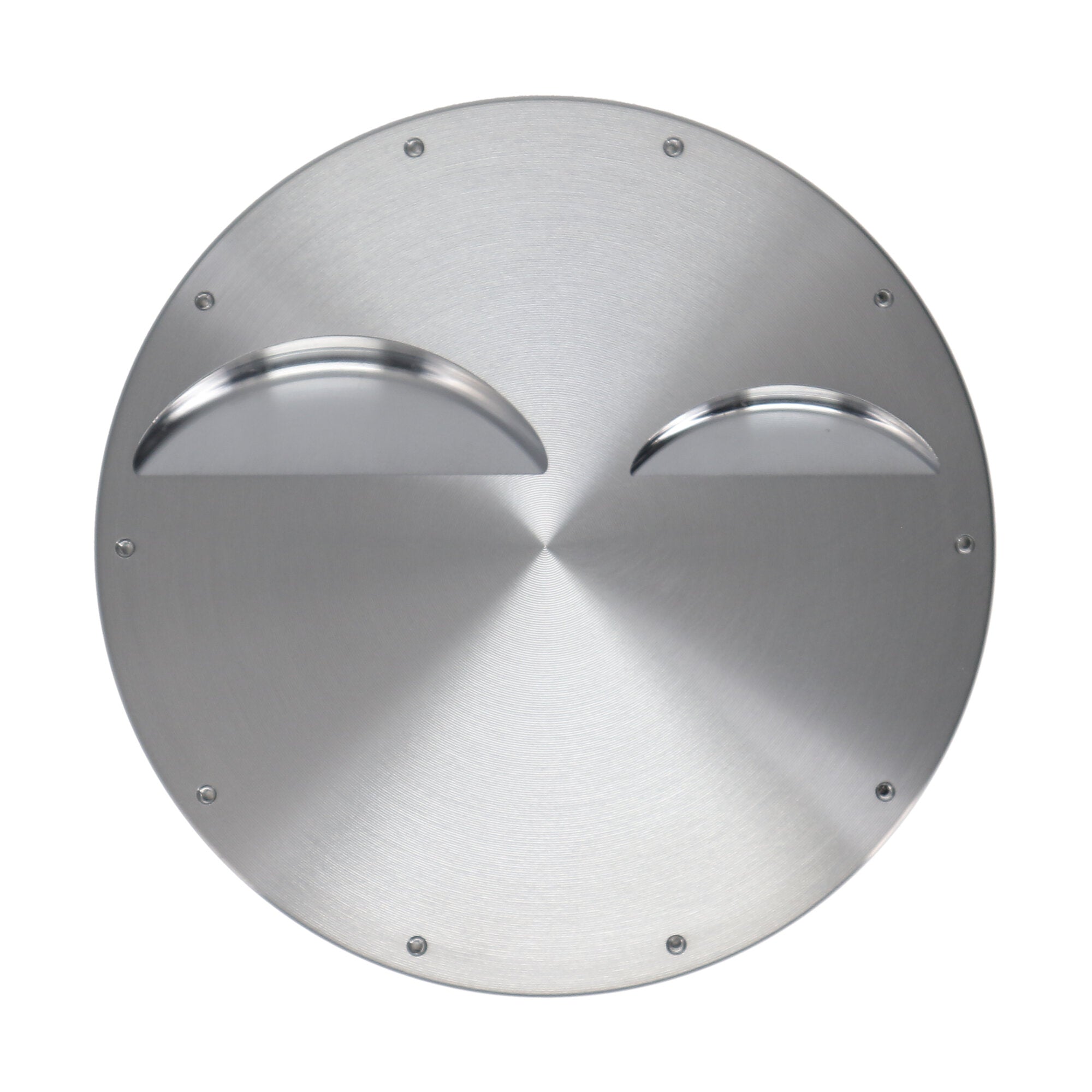

Flat Top |
| Engine Type |
ICE |
| Engine |
Small Block |
| Piston Pin Wall Thickness |
0.150 |
| Wrist Pin Wall Thickness |
0.150 |
| Piston Quantity |
8 |
| Product Market |
Domestic |
| Piston Volume |
-1.80 |
| Title |
JE Pistons - Chevrolet, Small Block, 3.766 in. Bore, Piston Kit |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Prop 65 Yes/No |
Yes |
| Product Type |
Engine Piston Kit |
| Piston Material |
2618 |
| Piston Pin Outside Diameter |
0.927 |
| Add-On |
927-2500-15-51C |
| Industry |
Automotive |
| Out of Stock Message |
Call for Availibility |
| Compression Height |
1.560 |
| Bore Diameter |
3.766 |
| Prop 65 (C, R or CR) |
CR |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Engine - Web |
Small Block |
| Wrist Pin Length |
2.500 |
| Length |
1.0000 |
| Width |
1.0000 |
| Height |
1.0000 |
| Weight |
16.0000 |
