As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Small Block |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

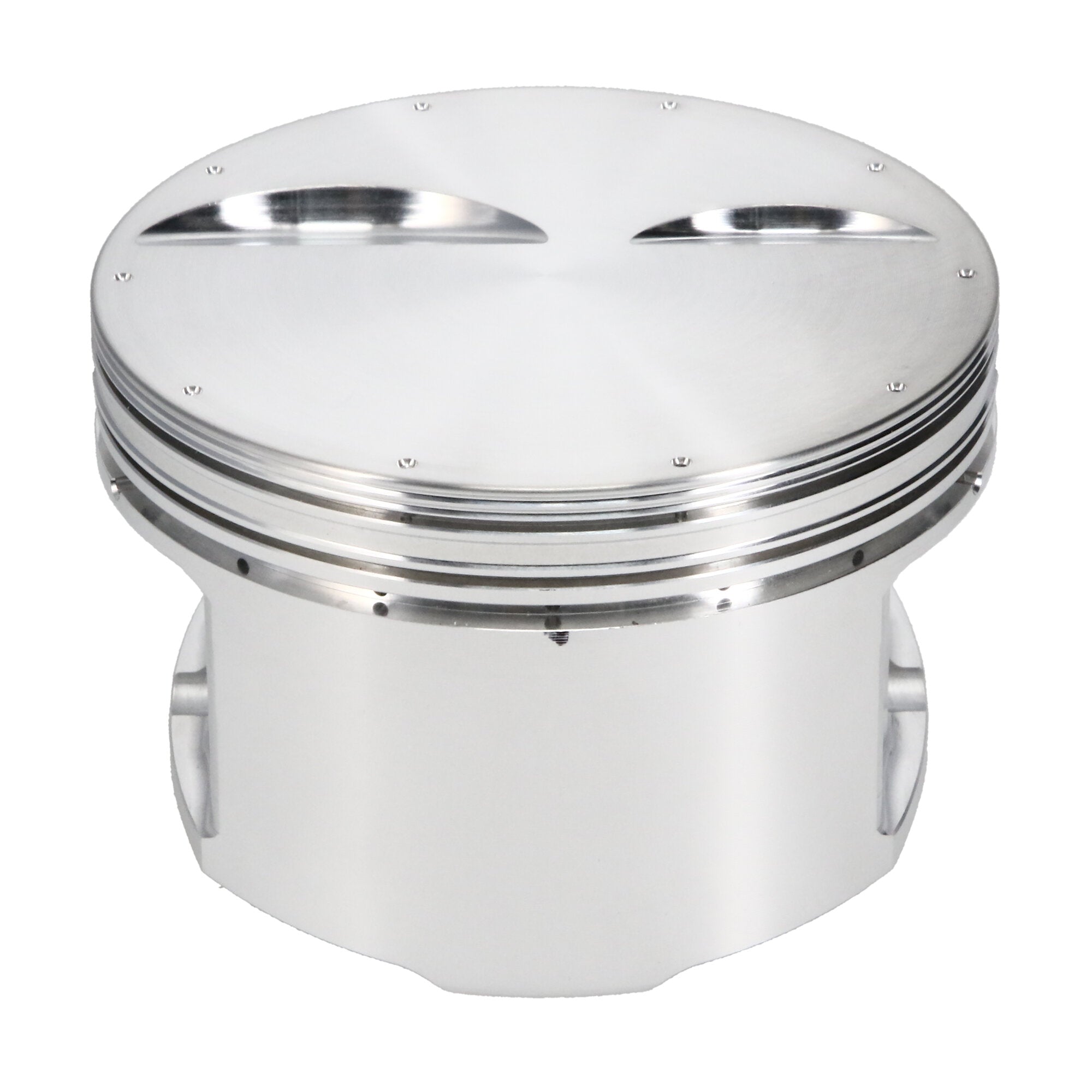

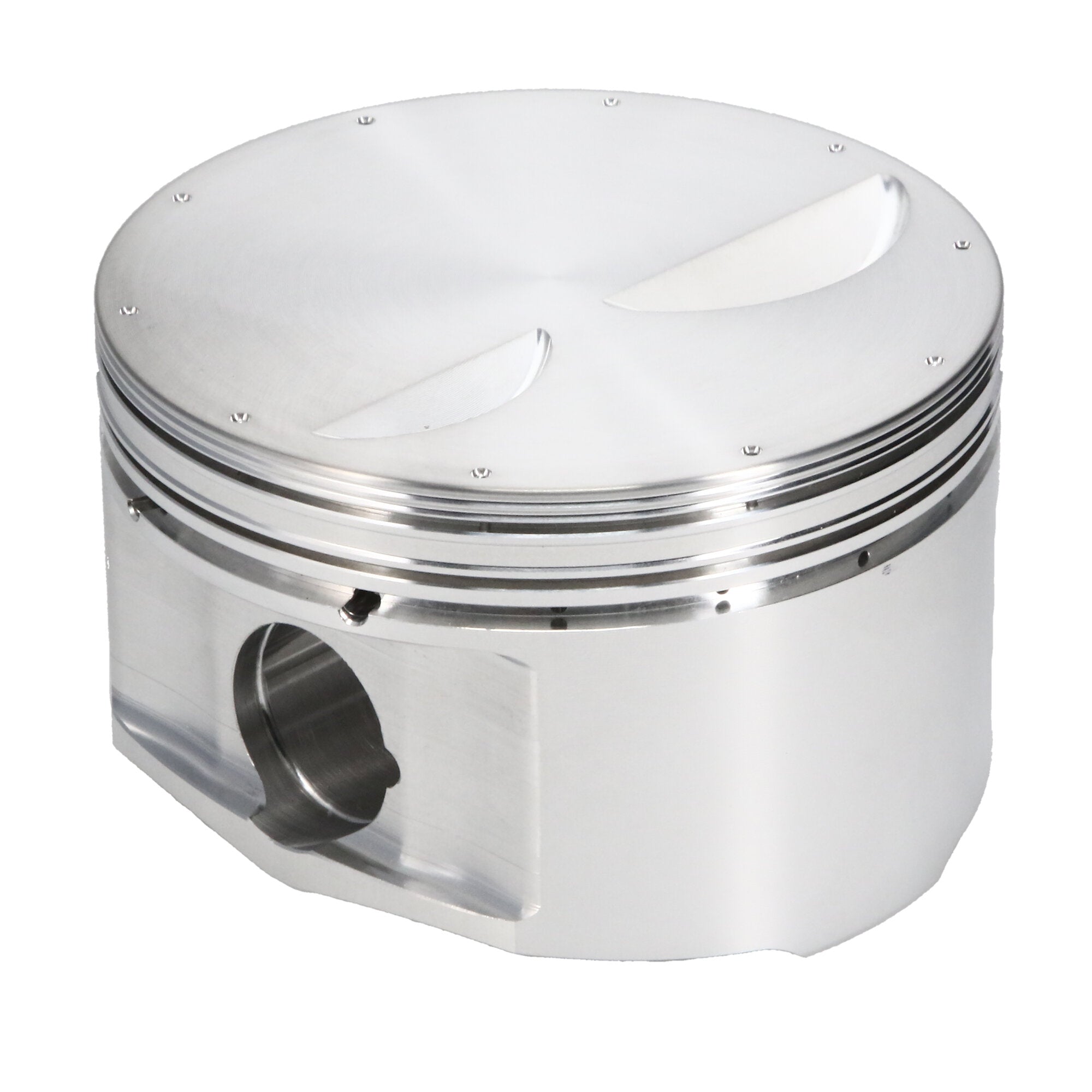

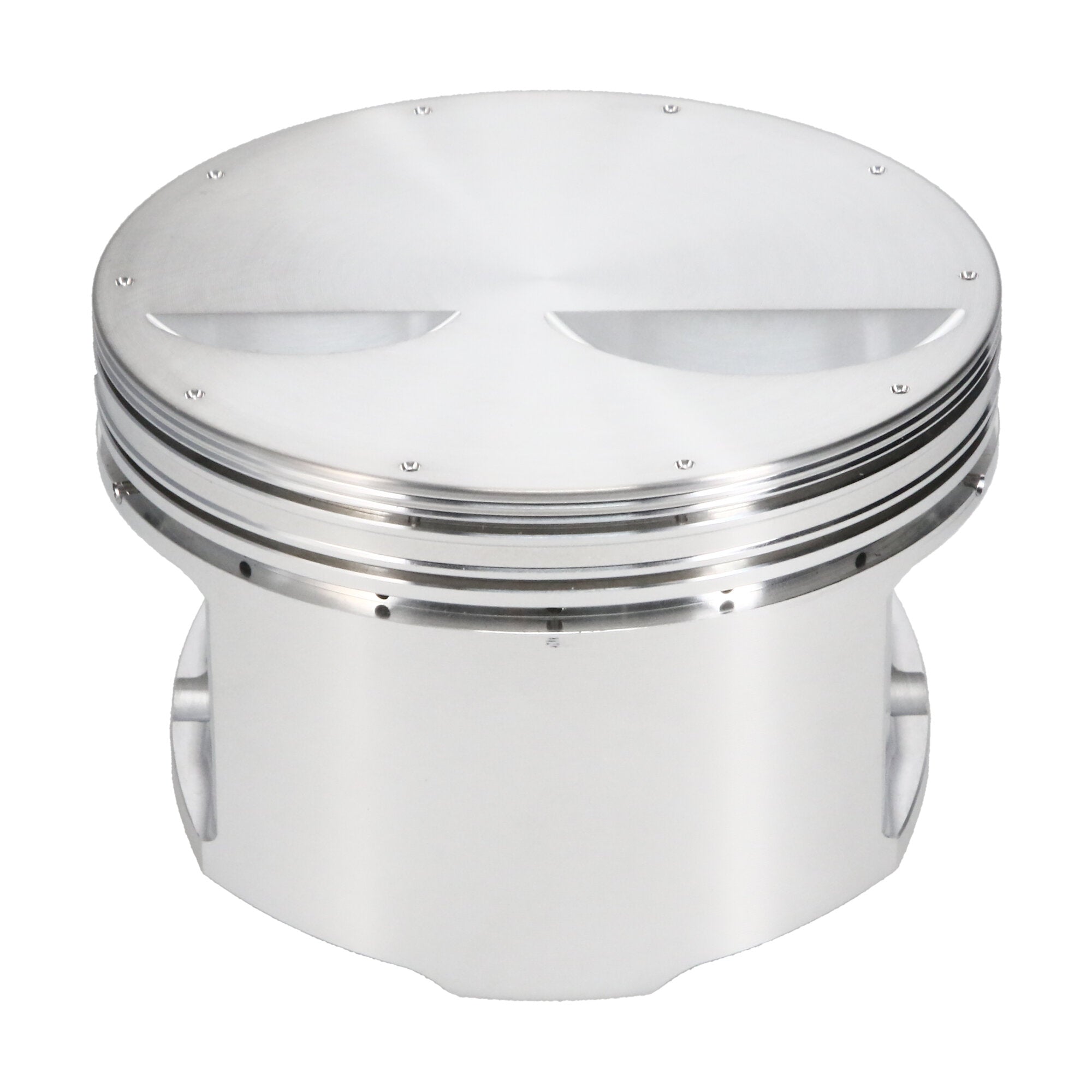

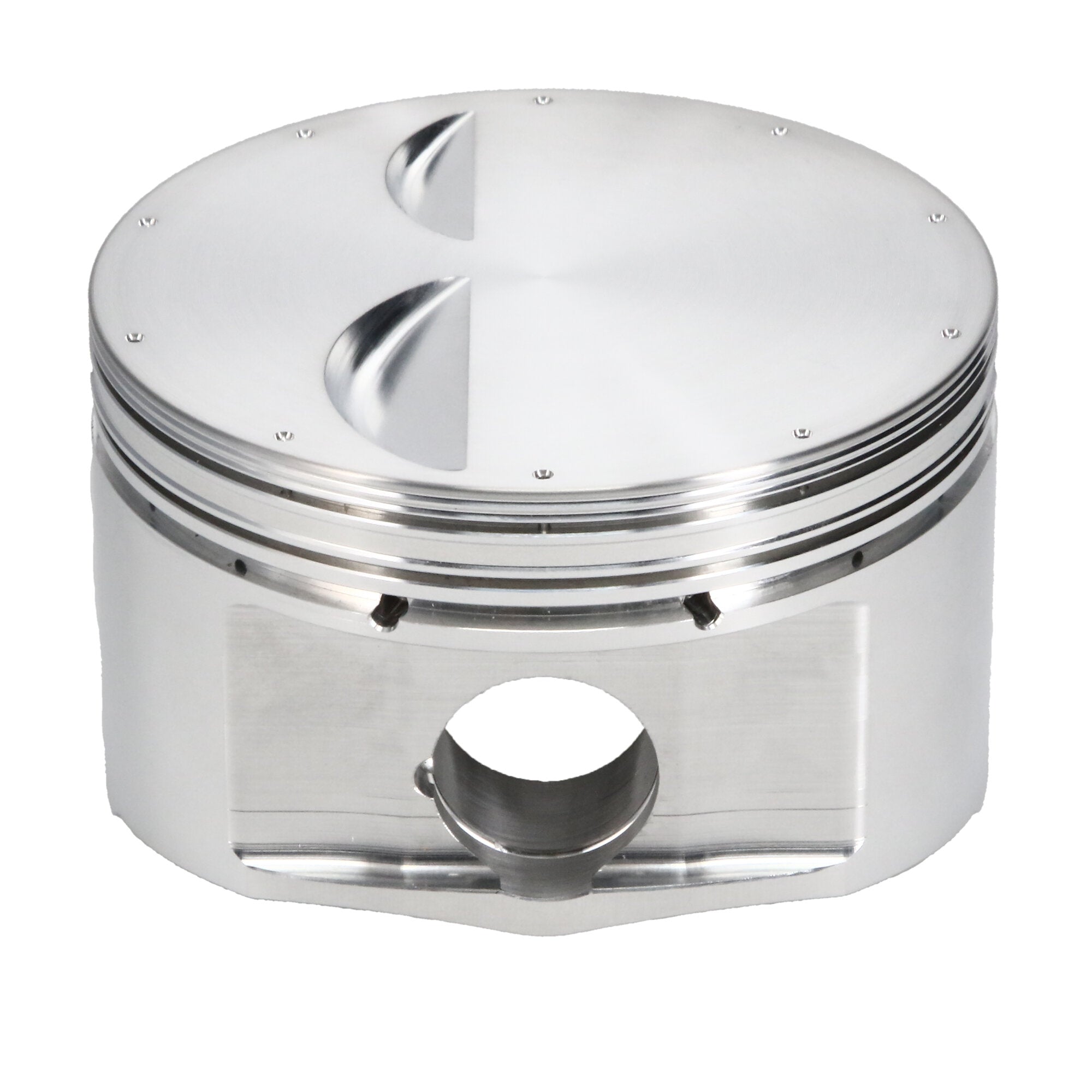

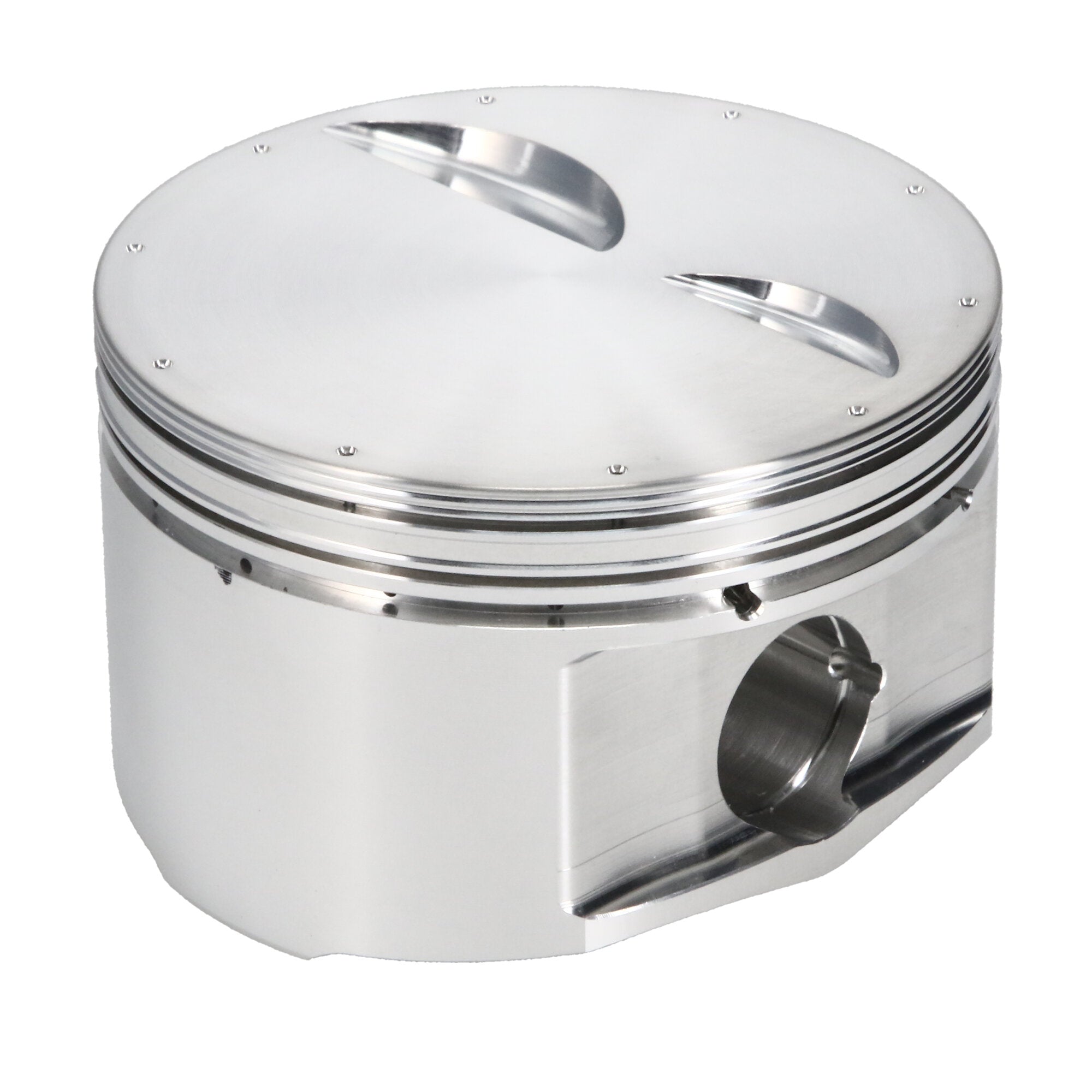

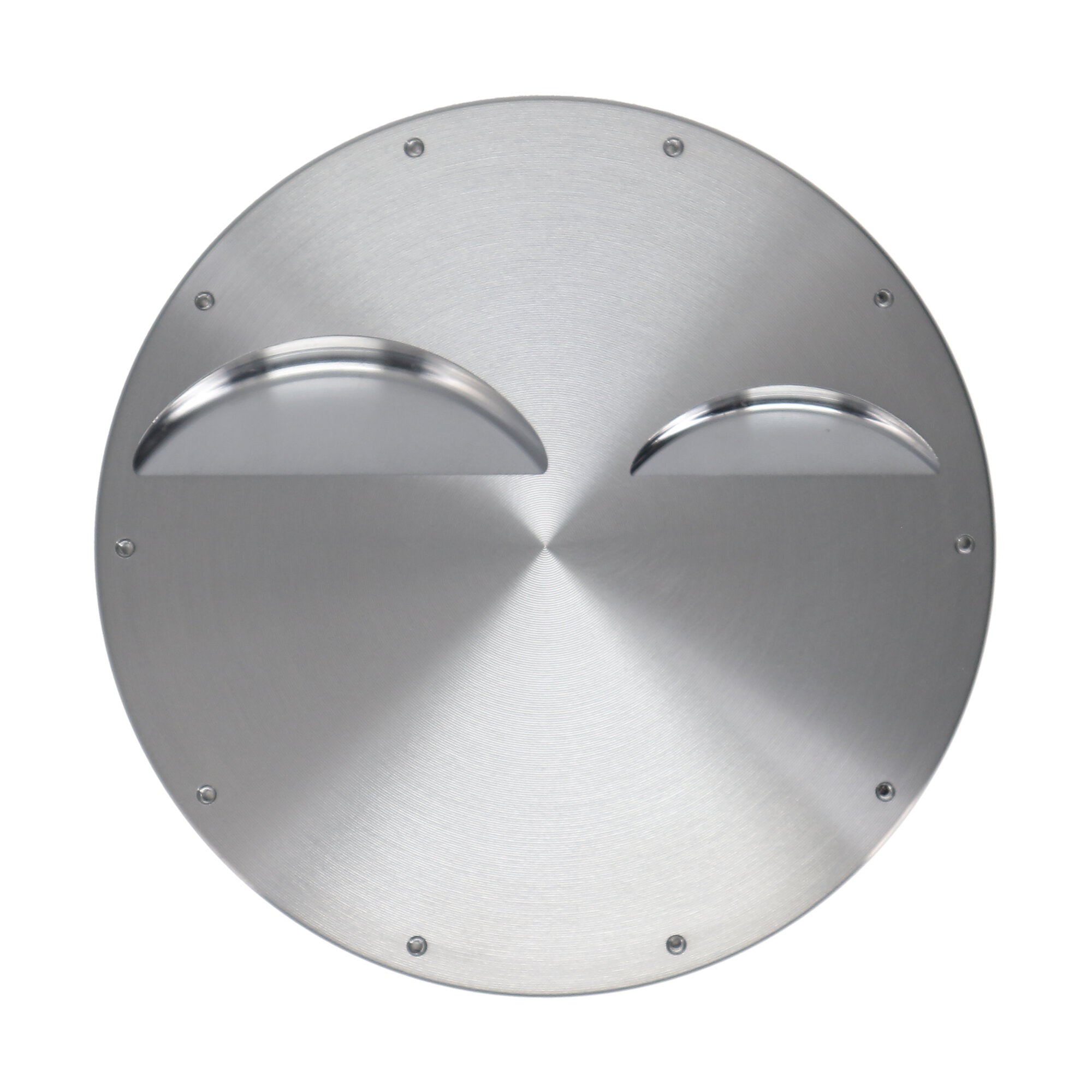

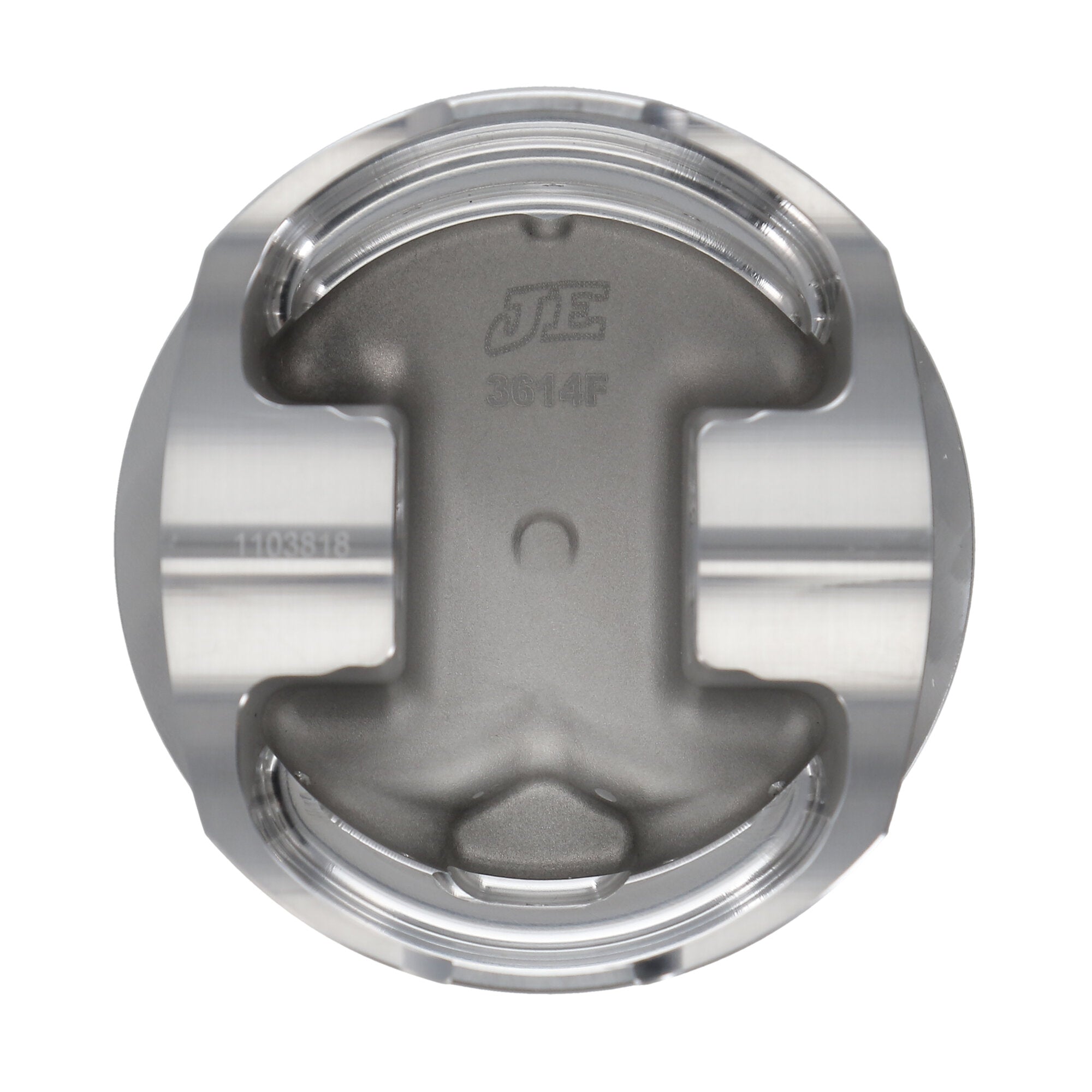

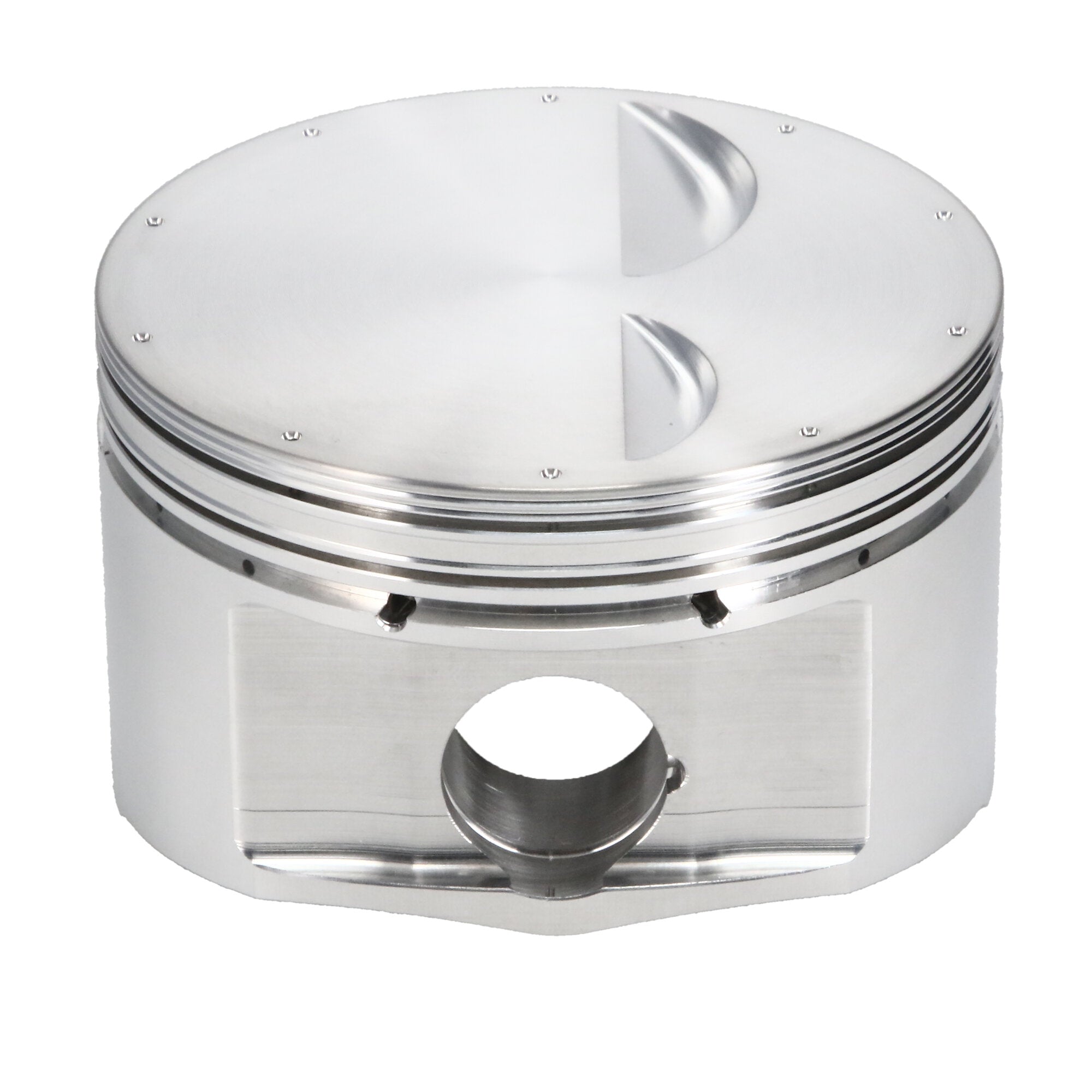

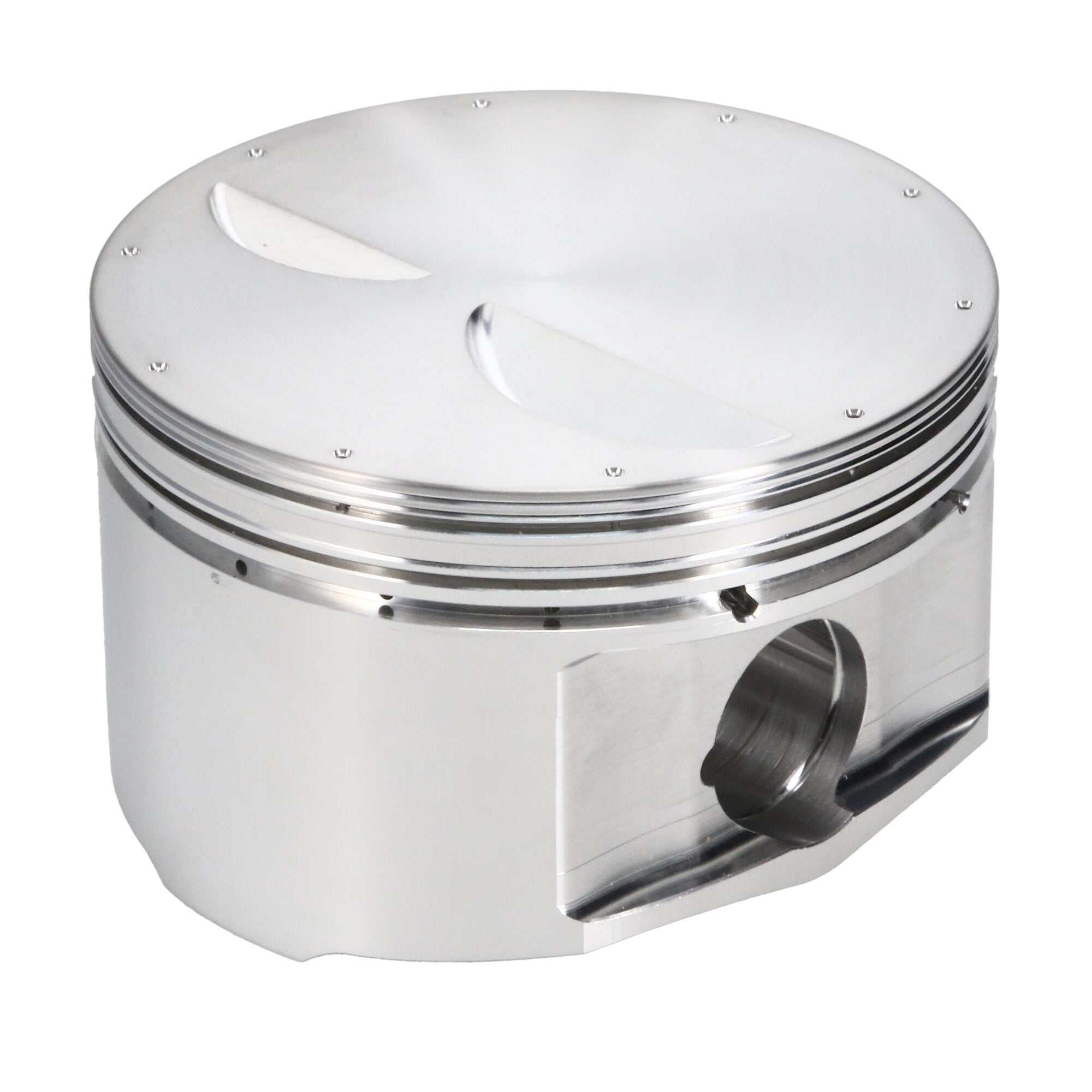

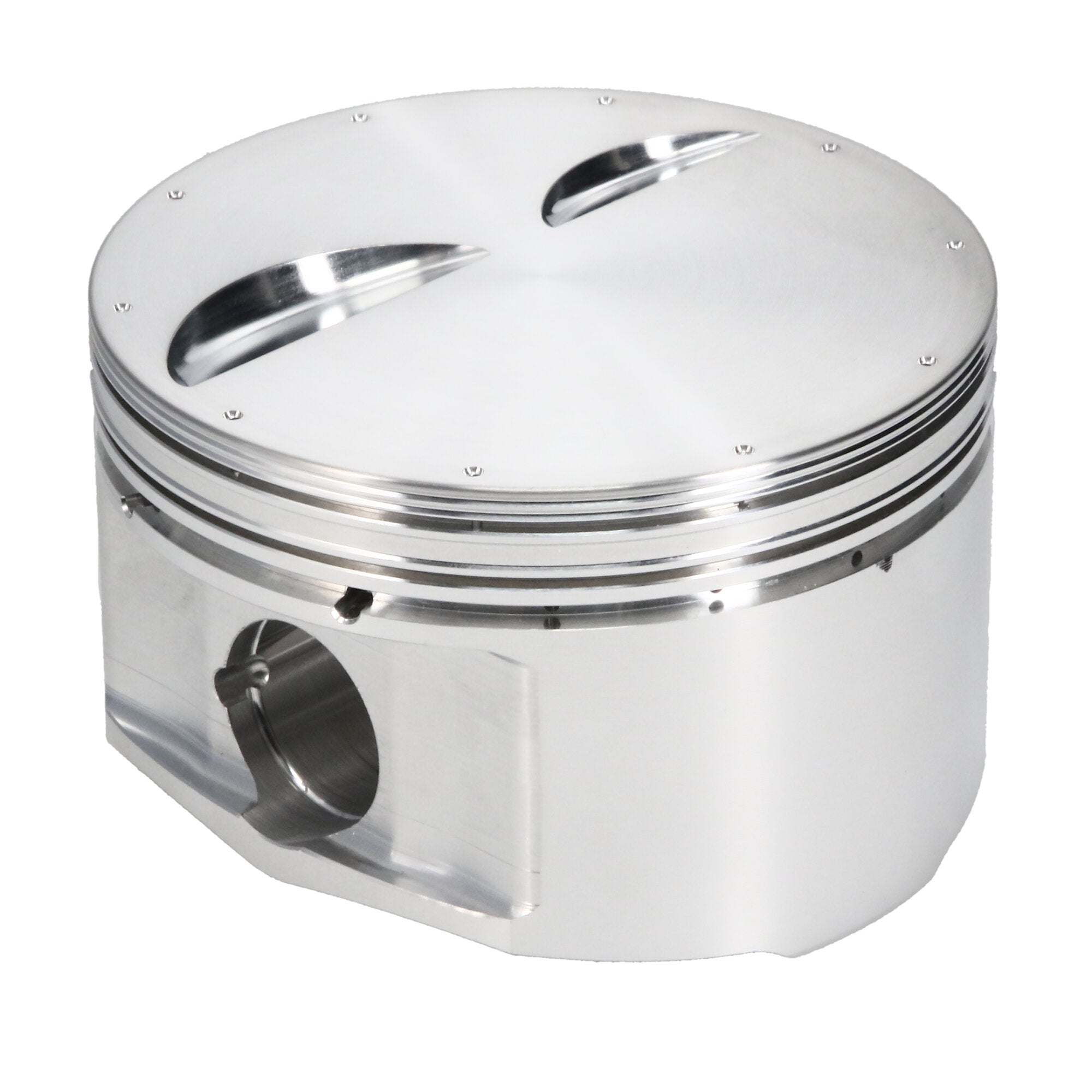

Piston Set, 2618, Flat Top, 3.756 Bore, 1.560 CD, 0.927 Pin Dia, Set of 8. |
| Description_TLE |
Chevrolet Small Block, 3.756 Bore, Flat Top, Set of 8 |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_SHO |
Piston Kit |
| Bore Diameter |
3.756 |
| Product Market |
Domestic |
| Wrist Pin Wall Thickness |
0.150 |
| Piston Pin Outside Diameter |
0.927 |
| Make |
CHEVROLET |
| Add-On |
927-2500-15-51C |
| Title |
JE Pistons - Chevrolet, Small Block, 3.756 in. Bore, Piston Kit |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Piston Pin Material |
5115 |
| Wrist Pin Outer Diameter |
0.927 |
| Piston Pin Wall Thickness |
0.150 |
| Piston Pin Length |
2.500 |
| Product Type |
Engine Piston Kit |
| Prop 65 (C, R or CR) |
CR |
| Piston Quantity |
8 |
| Industry |
Automotive |
| Piston Volume |
-1.80 |
| Compression Height |
1.560 |
| Piston Material |
2618 |
| Engine - Web |
Small Block |
| Wrist Pin Length |
2.500 |
| Make - Web |
Chevrolet |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 3.756 in. Bore - 1.560 in. CH, -1.80 CC |
| Prop 65 Yes/No |
Yes |
| Out of Stock Message |
Call for Availibility |
| Engine |
Small Block |
| Piston Head Type |
Flat Top |
| Engine Type |
ICE |
| Piston Series |
JE Pistons |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Length |
1.0000 |
| Width |
1.0000 |
| Height |
1.0000 |
| Weight |
16.0000 |
