As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Chevrolet Small Block 350 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

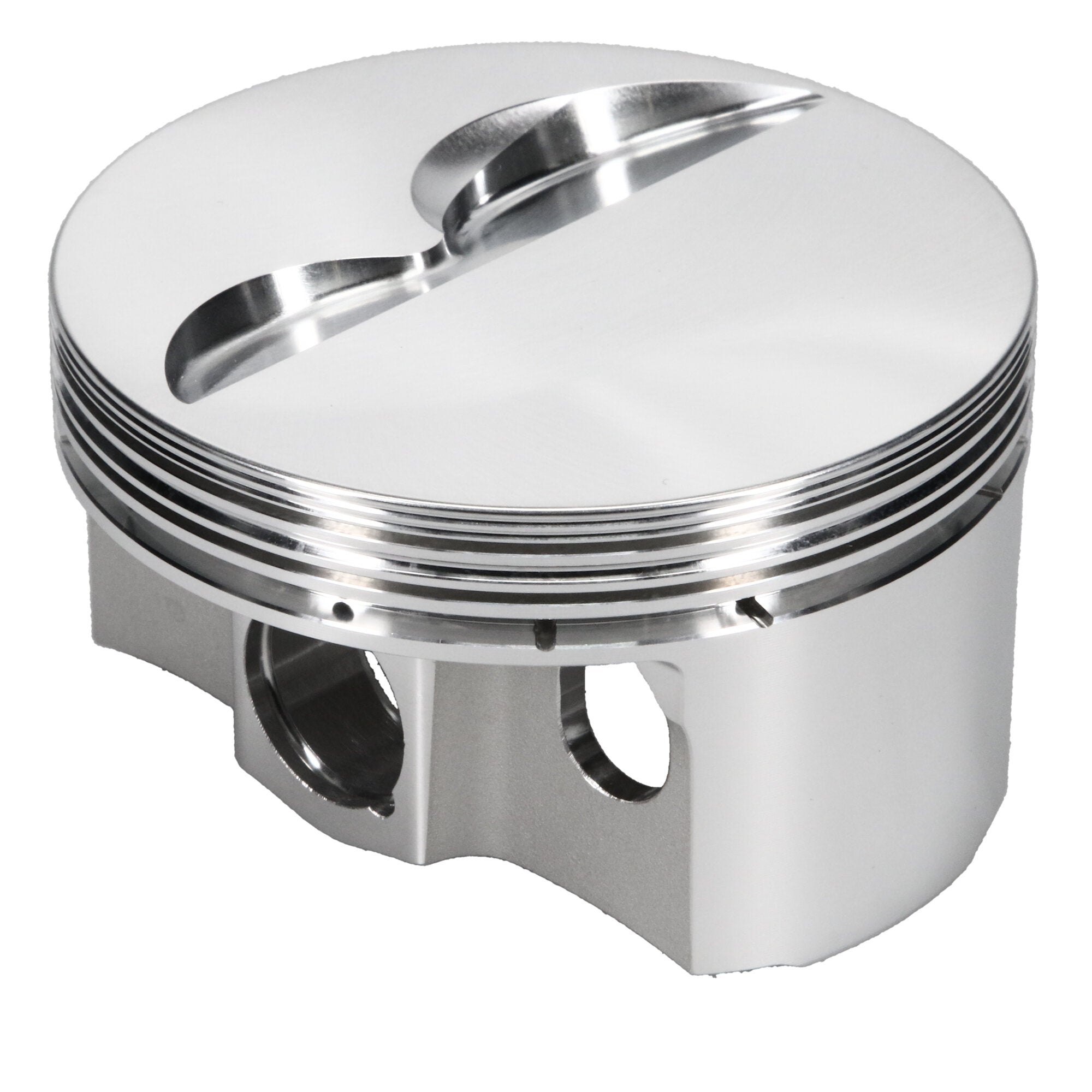

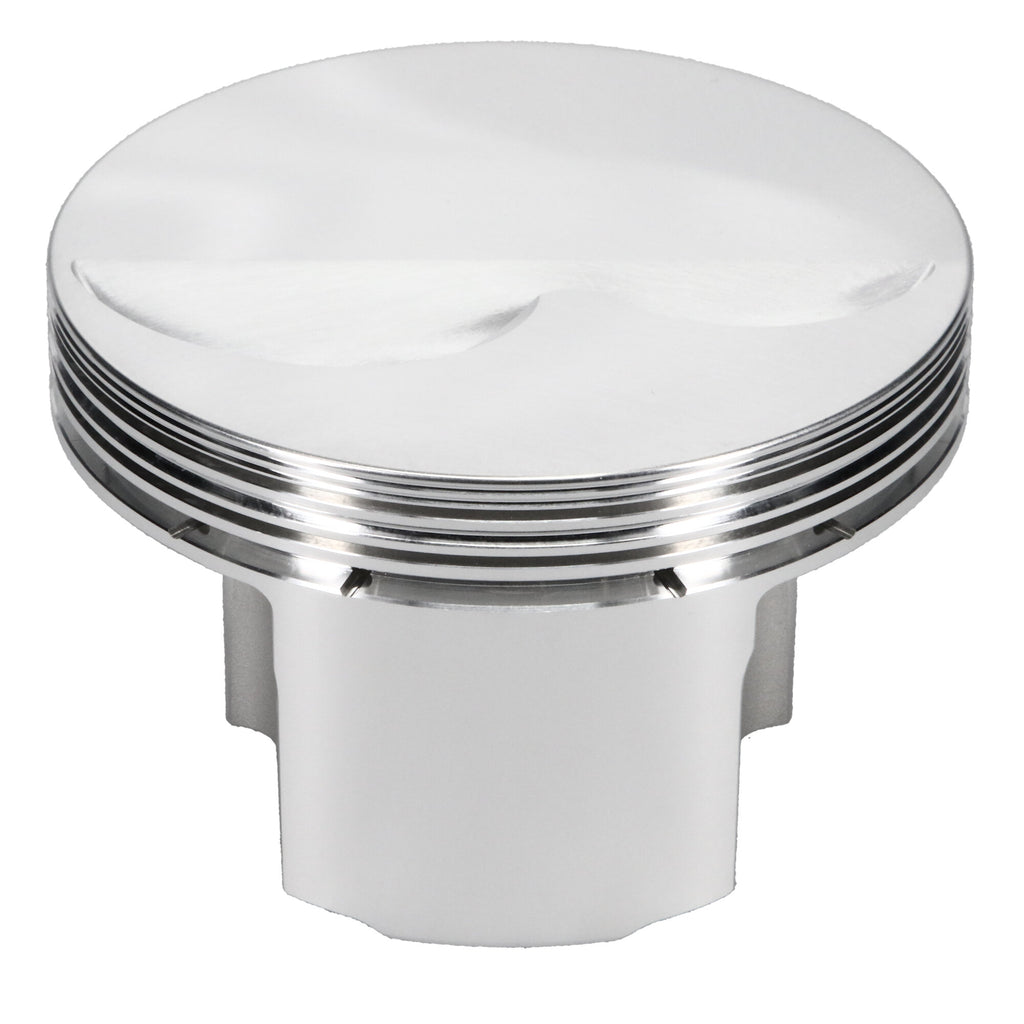

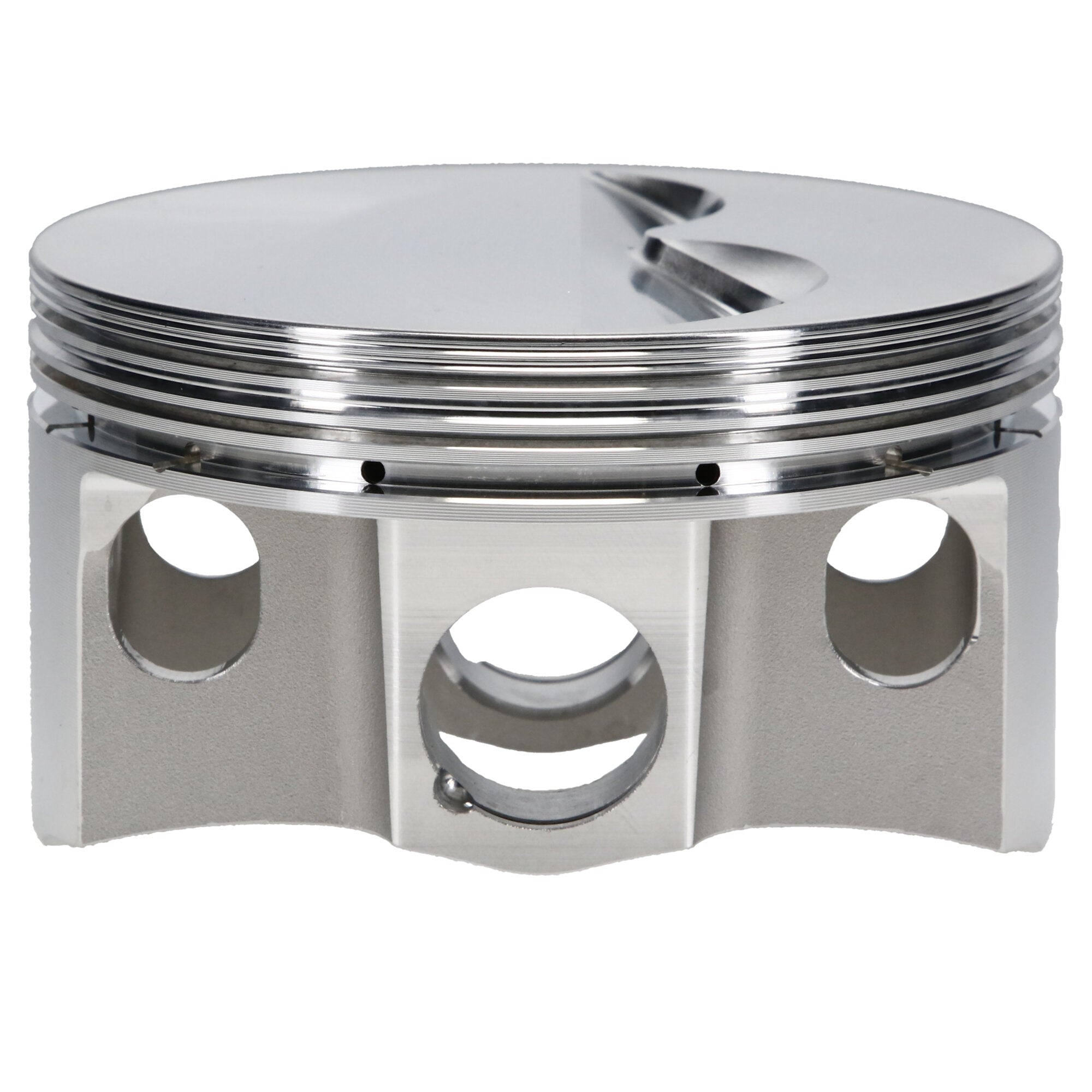

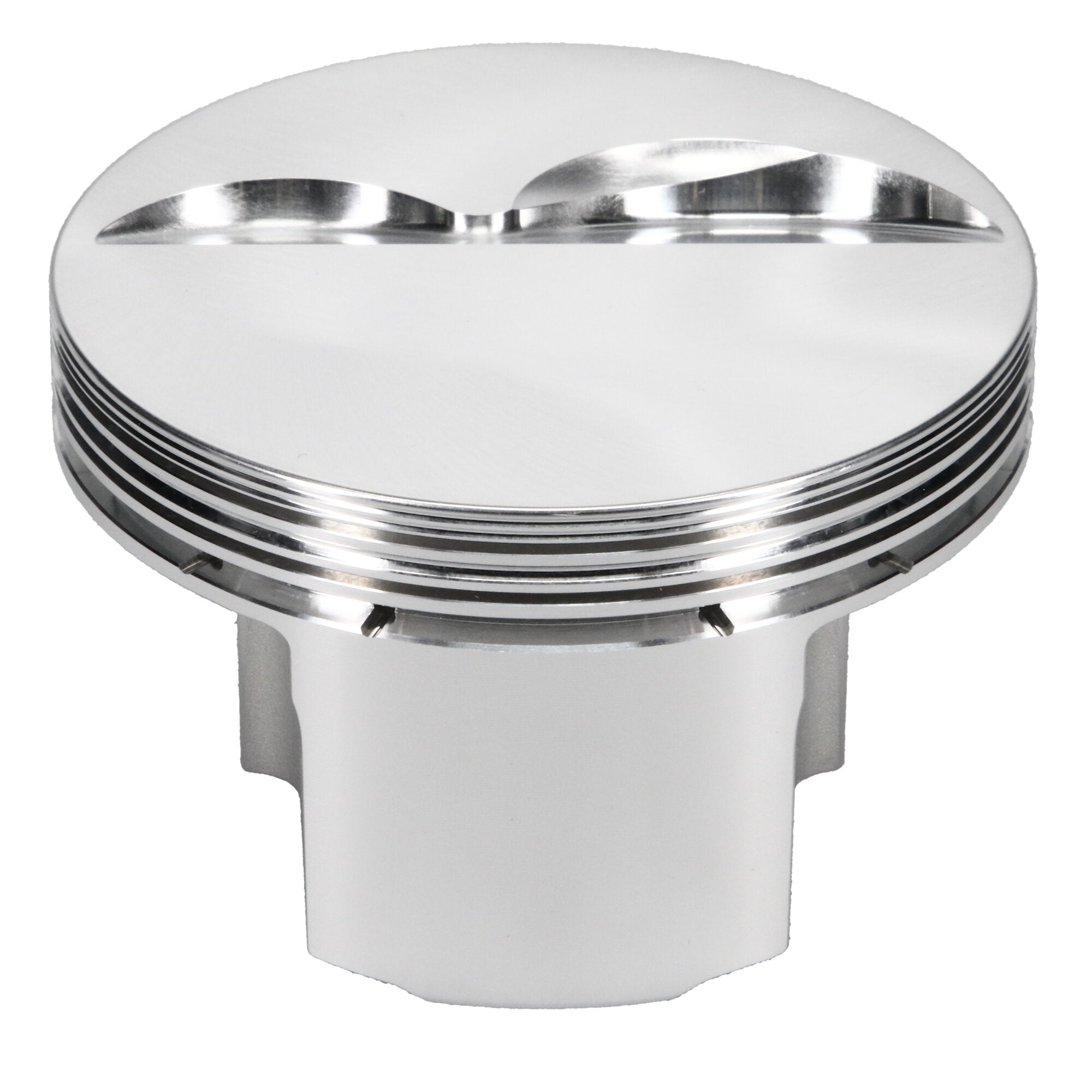

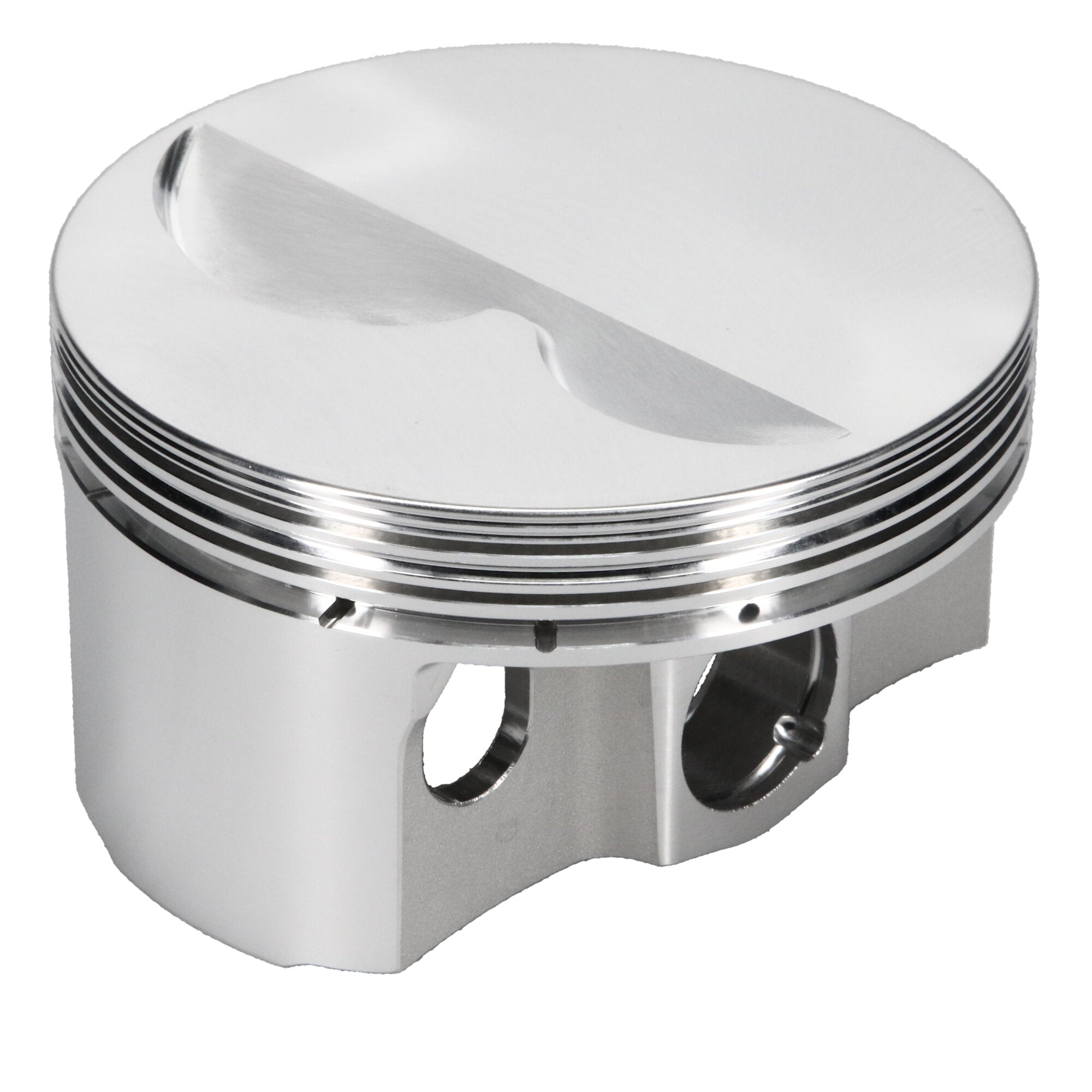

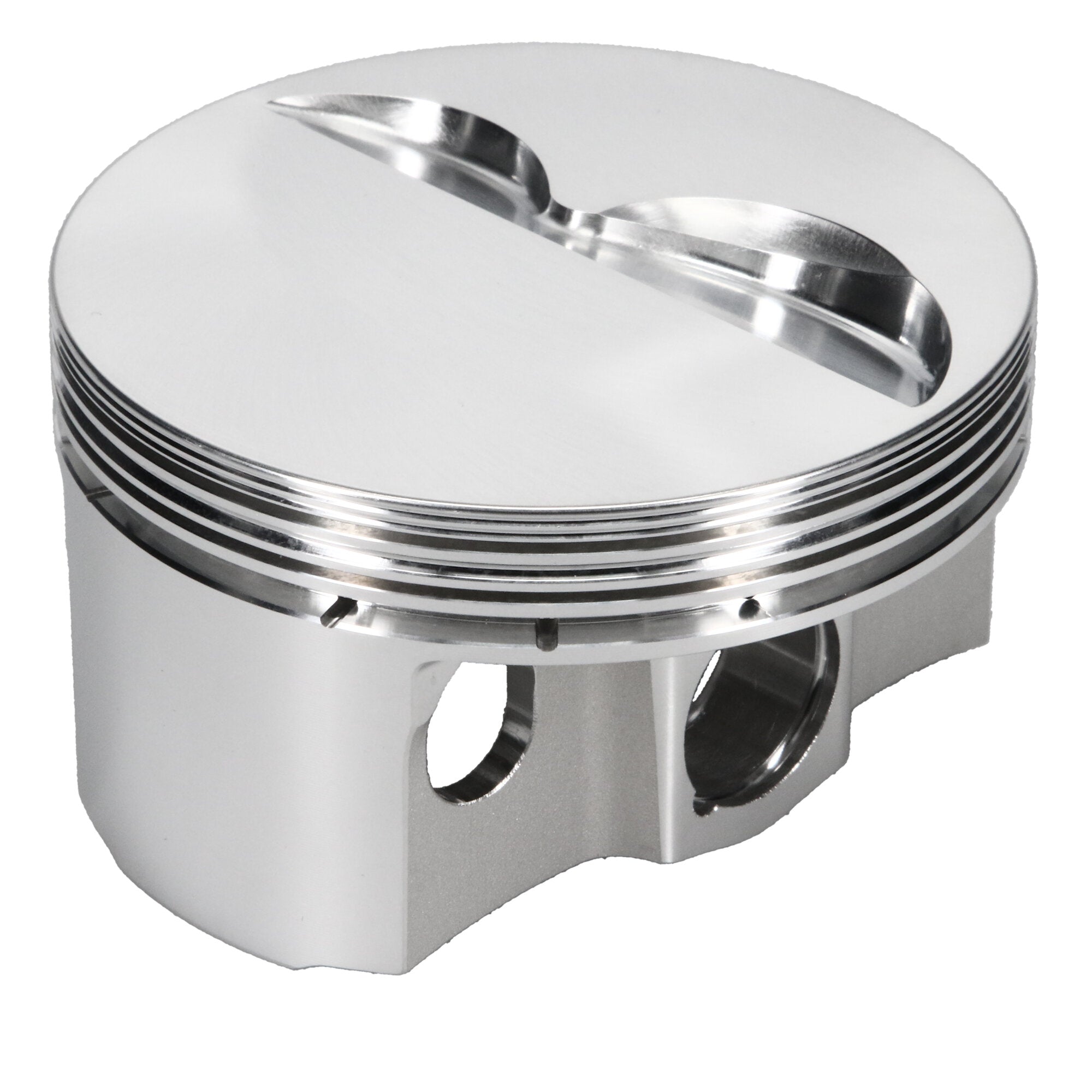

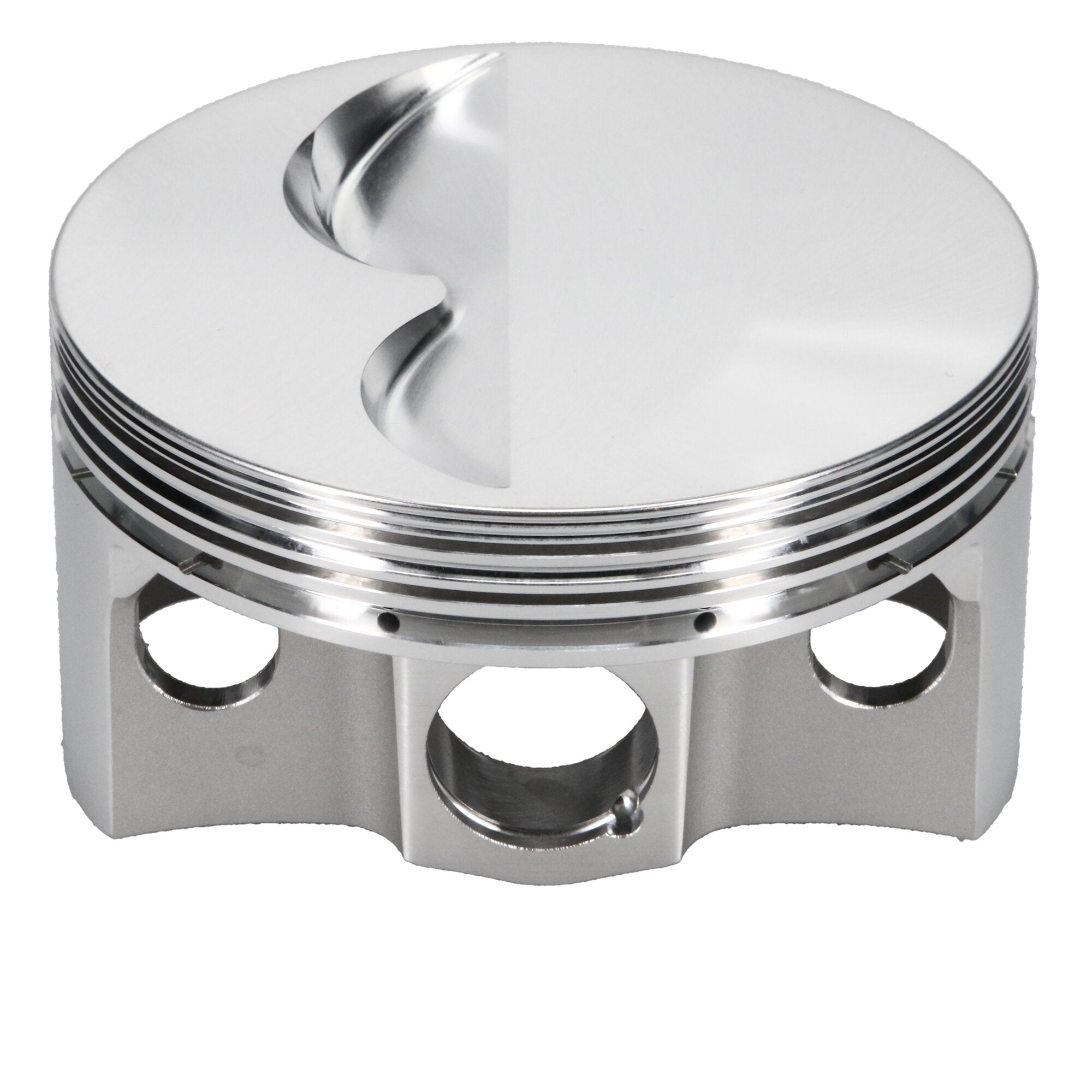

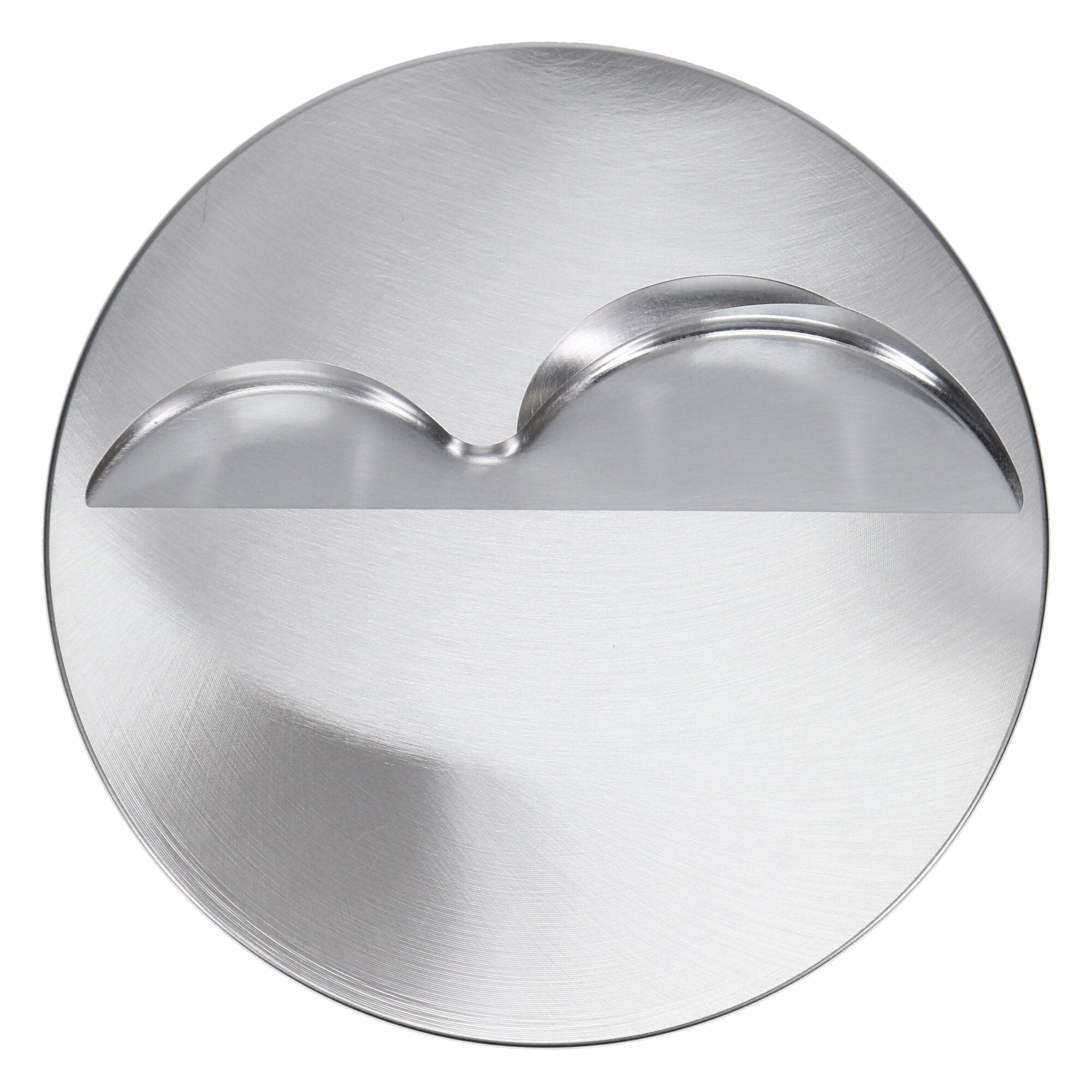

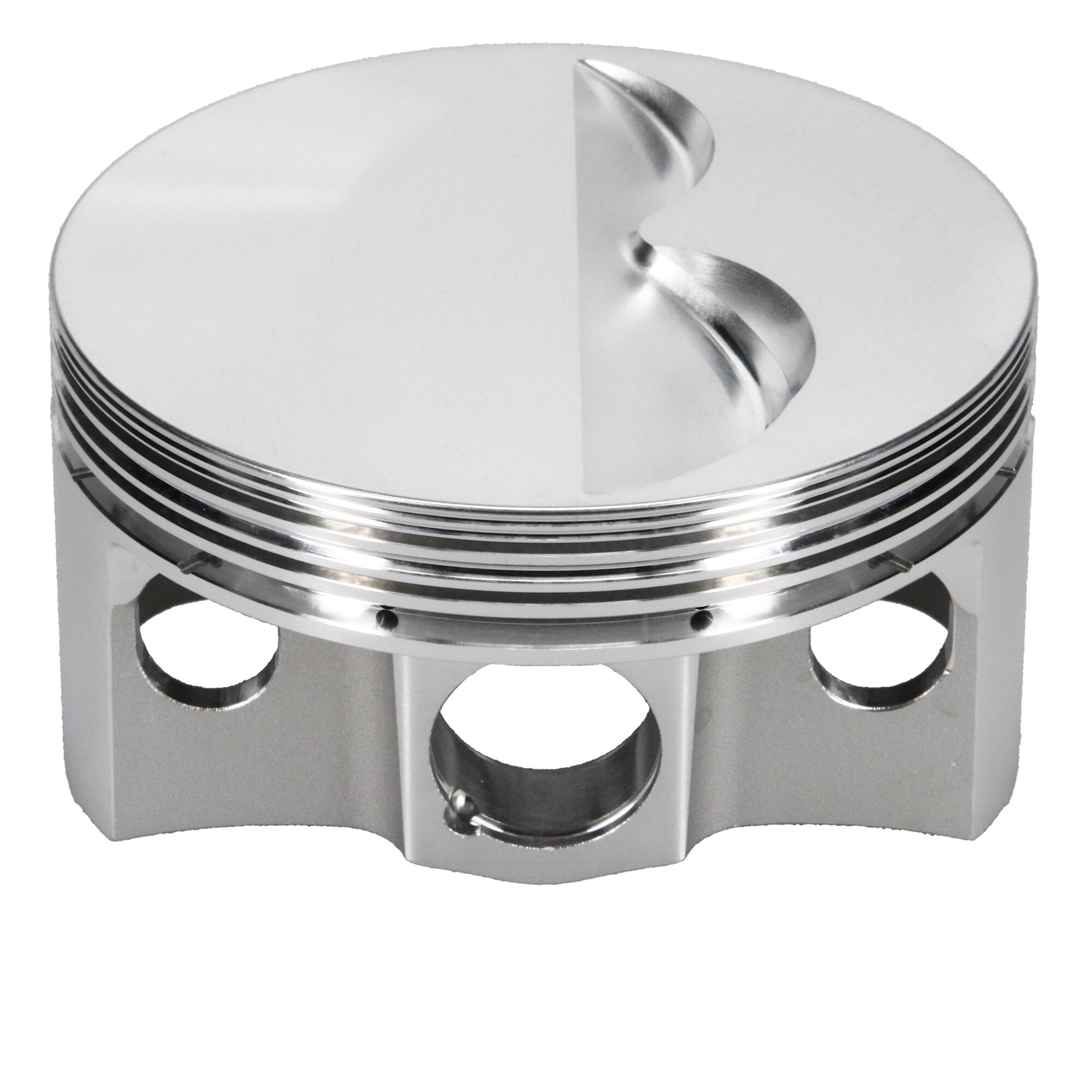

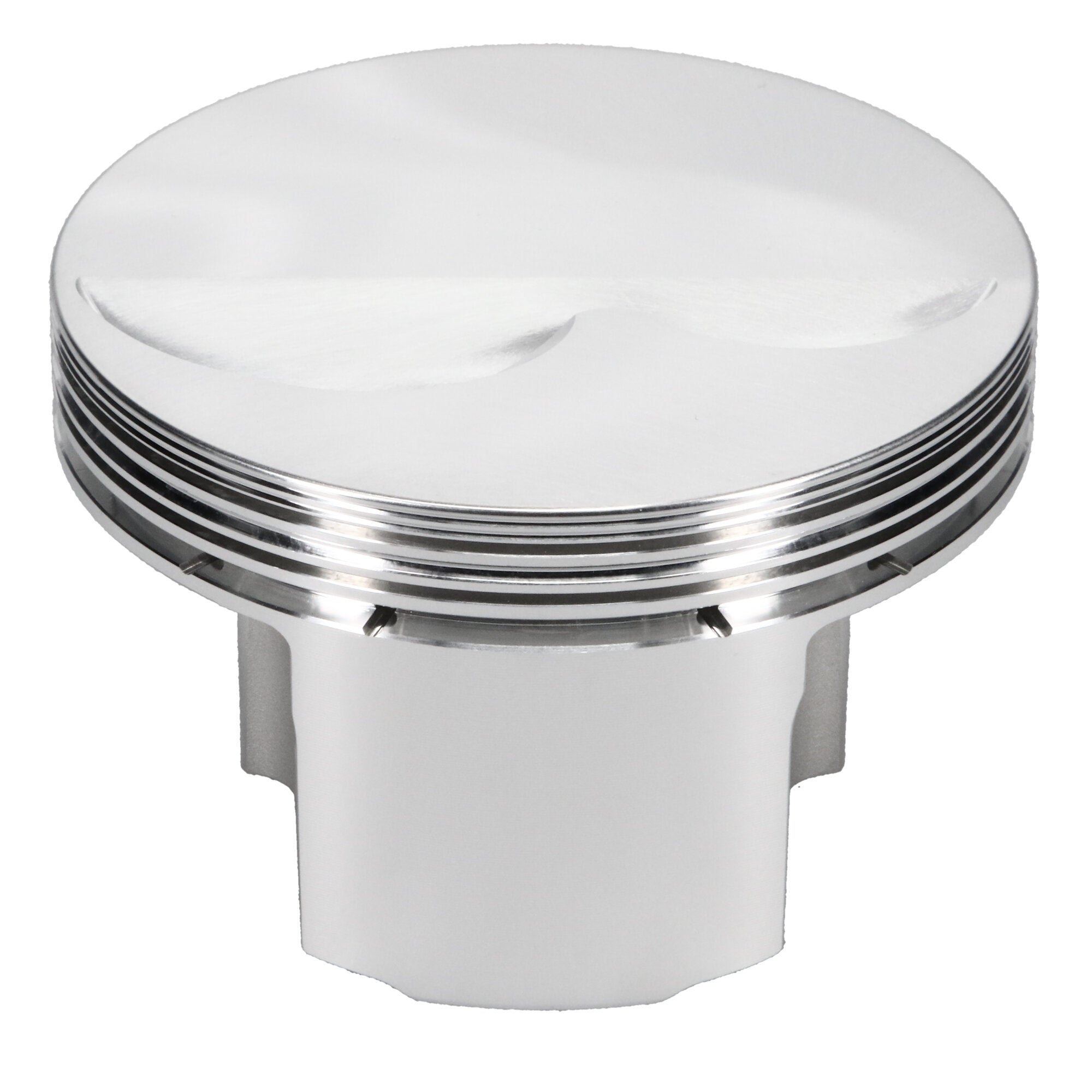

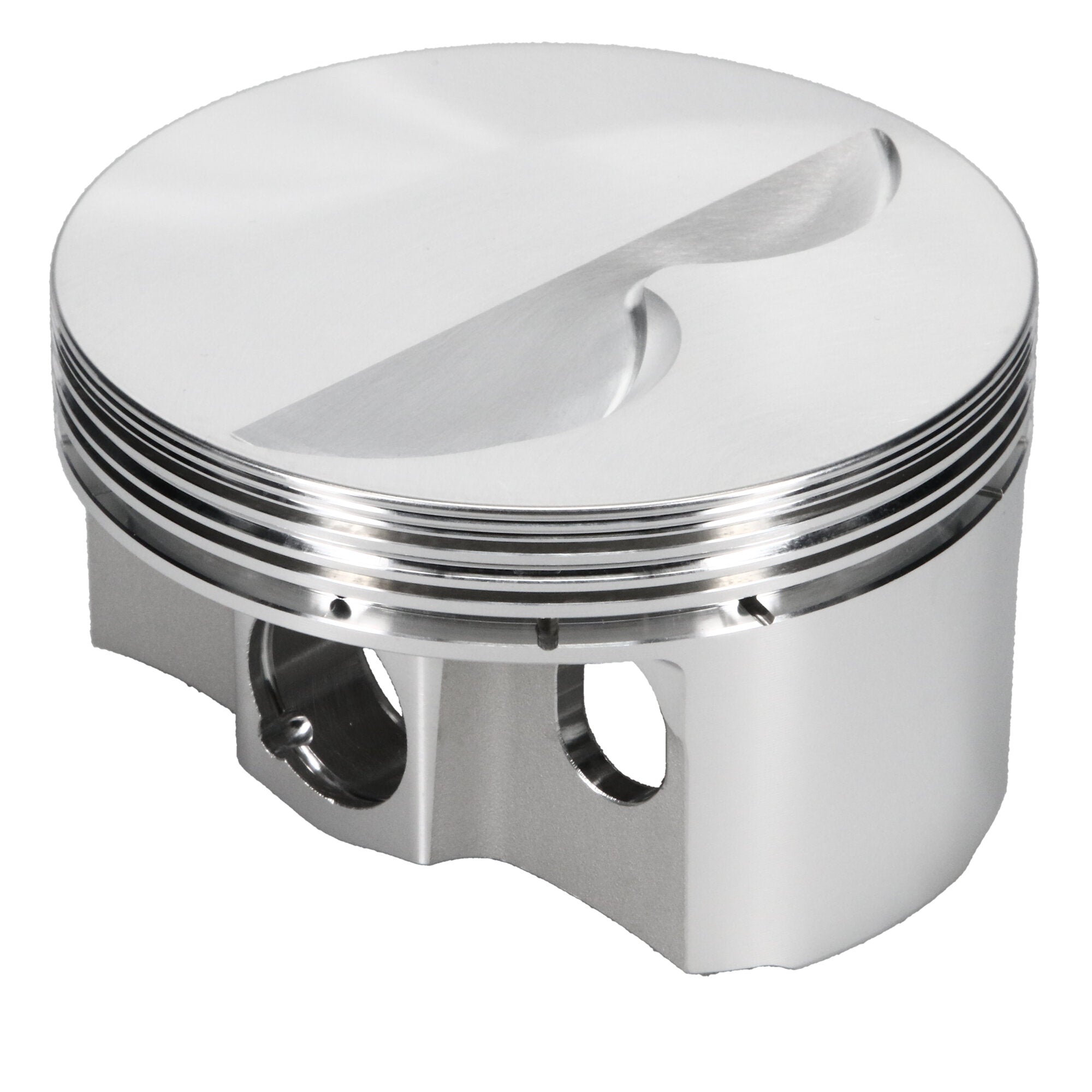

Piston Set, 2618, Flat Top, 4.030 Bore, 1.560 CD, 0.927 Pin, Set of 8. |
| Description_EXT |
JE, Chevrolet, Small Block Chevrolet, 4.030 in. Bore, 1.560 CD, Flat Top, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability

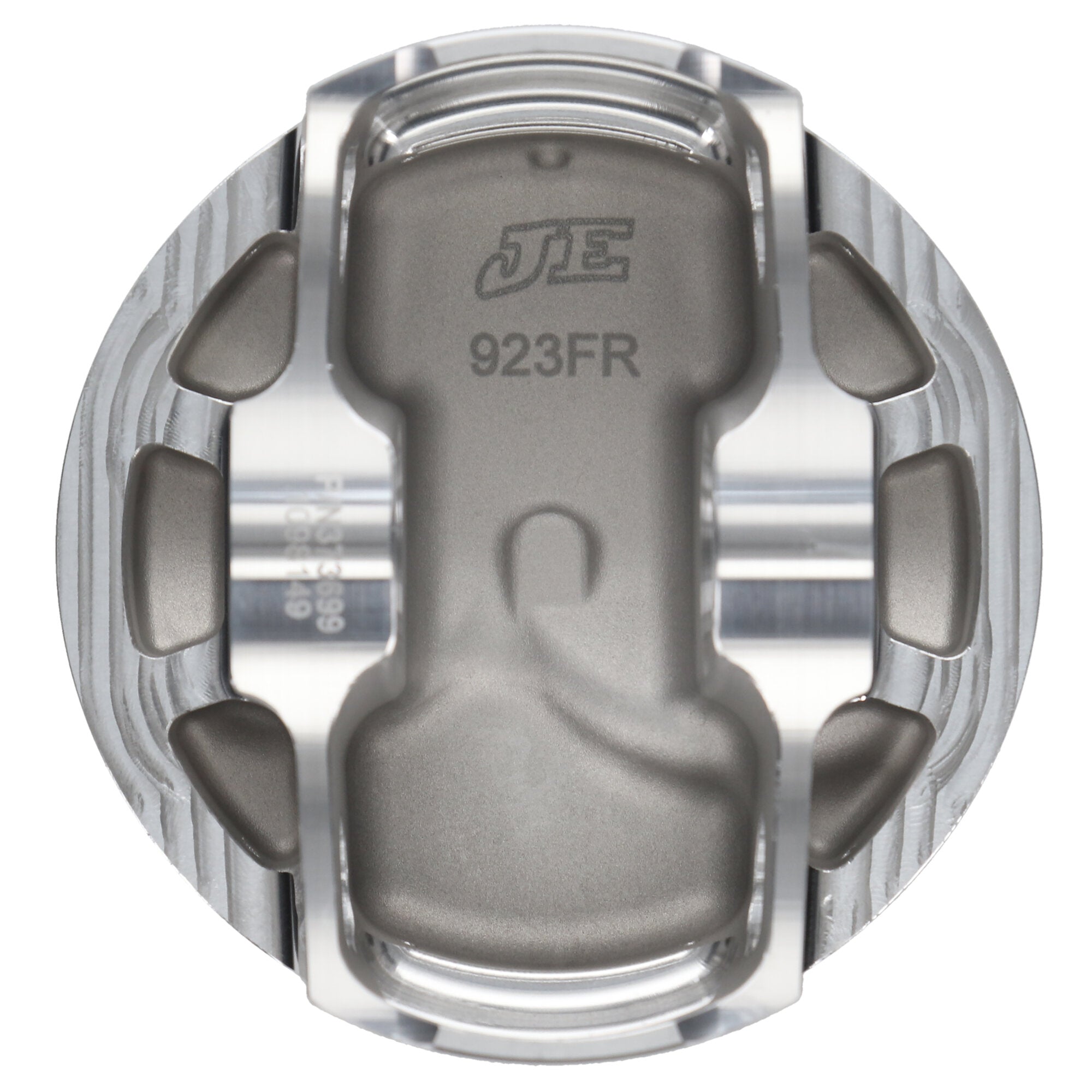

- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_TLE |
Chevrolet 350, 4.030 Bore, Flat, Set of 8 |
| Piston Pin Wall Thickness |
0.150 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Top Compression Ring Thickness |
0.0430 |
| Wrist Pin Outer Diameter |
0.927 |
| Wrist Pin Wall Thickness |
0.150 |
| Title |
JE Pistons - Chevrolet, Small Block, 4.030 in. Bore, Piston Kit |
| Compression Height |
1.560 |
| Piston Pin Material |
5115 |
| Piston Pin Outside Diameter |
0.927 |
| Oil Ring Thickness |
0.1181 |
| Make |
CHEVROLET |
| Engine - Web |
Small Block |
| Piston Head Type |
Flat |
| Cylinder Head |
STD CHEVROLET 23 DEG |
| Piston Average Weight |
383 |
| Piston Volume |
-3.80 |
| Piston Material |
2618 |
| Piston Pin Length |
2.250 |
| Piston Quantity |
8 |
| Product Market |
Domestic |
| Industry |
Automotive |
| Prop 65 (C, R or CR) |
CR |
| Product Type |
Engine Piston Kit |
| Bore Diameter |
4.030 |
| Ring Set Included |
No |
| Wrist Pin Length |
2.250 |
| Second Compression Ring Thickness |
0.0430 |
| Out of Stock Message |
Call for Availability |
| Add-On |
927-073-MW |
| Engine Type |
ICE |
| Title - Web |
JE Pistons Chevrolet Small Block Piston Kit - 4.030 in. Bore - 1.560 in. CH, -3.80 CC |
| Add-On |
927-2250-15-51C |
| Add-On |
JG7708-4030-5 |
| Prop 65 Yes/No |
Yes |
| Engine |
Small Block |
| Forging Type |
FSR |
| Ringset Included |
No |
| Piston Series |
JE Pistons |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Make - Web |
Chevrolet |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
