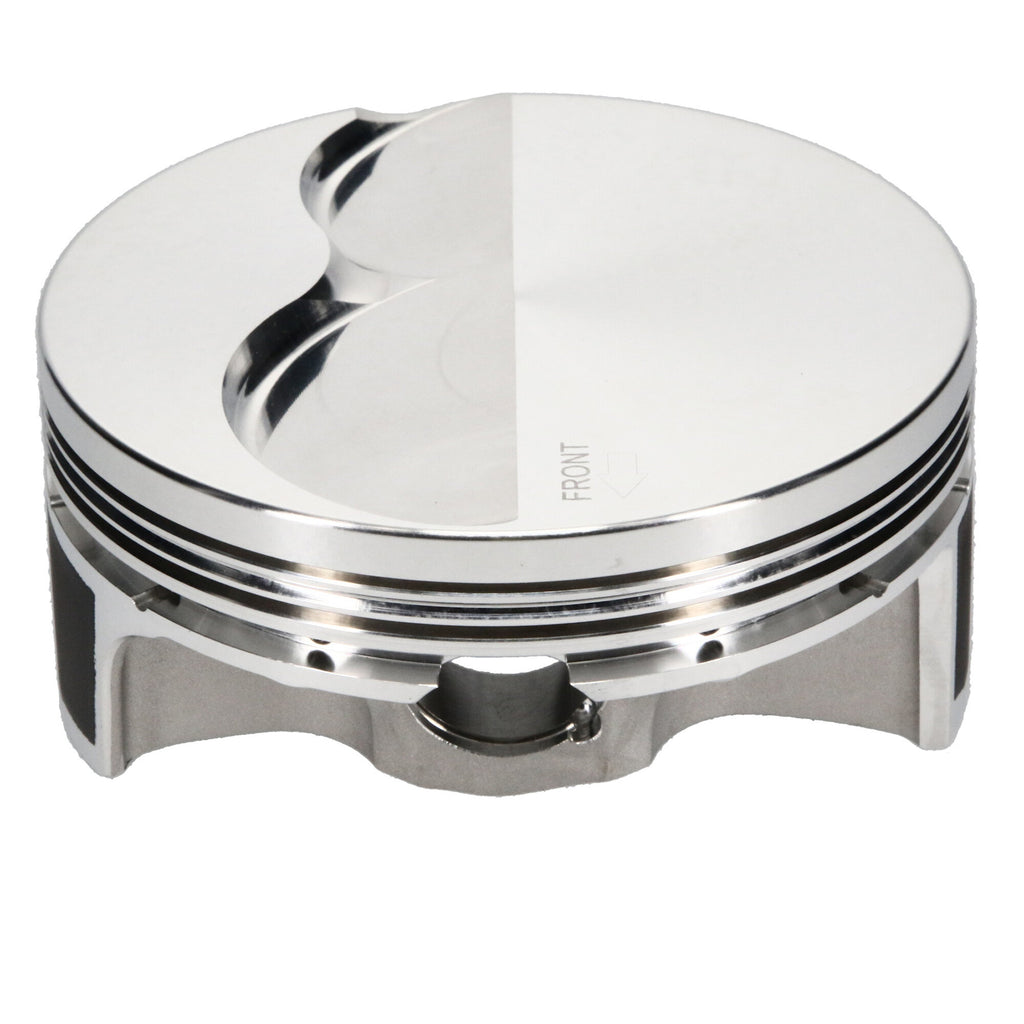

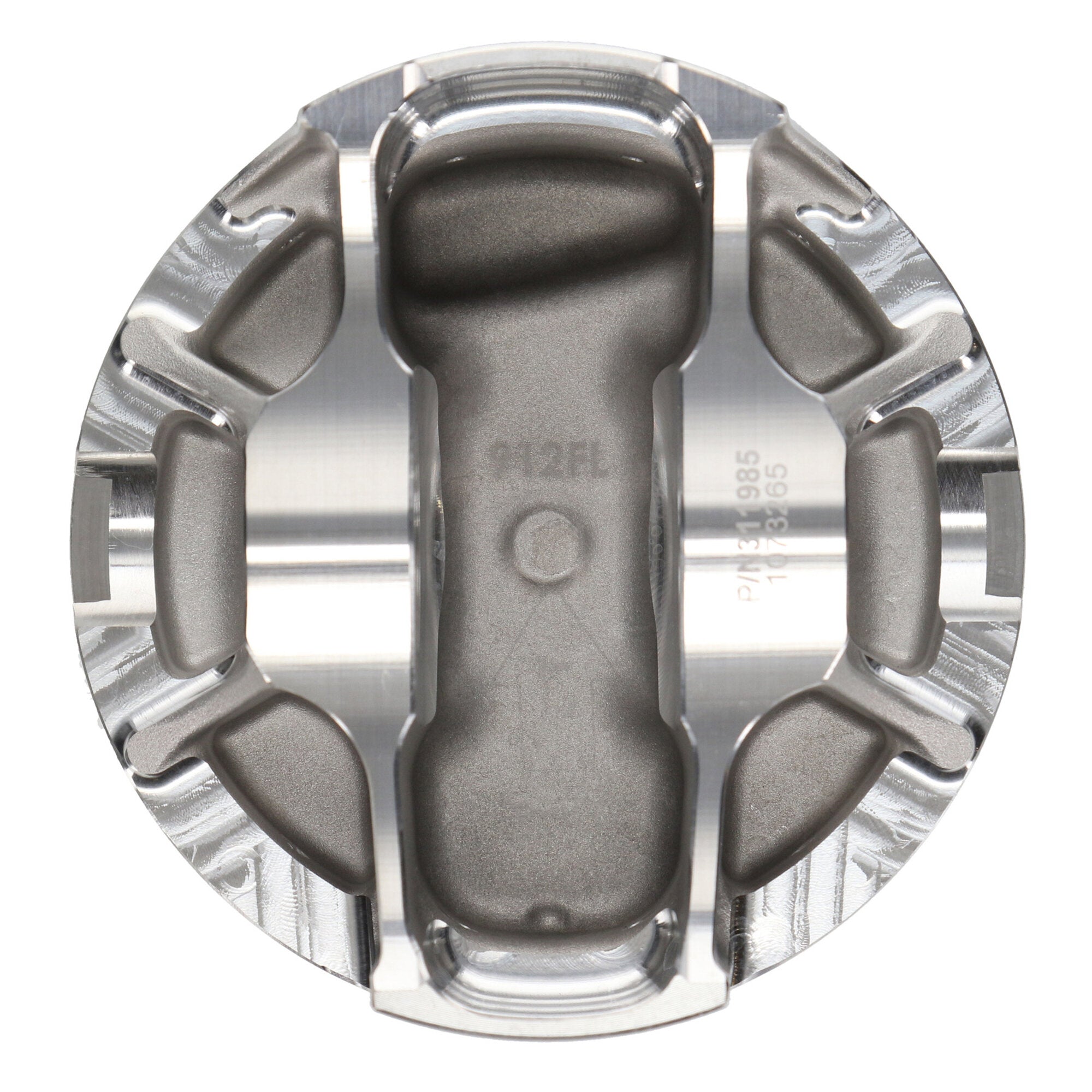

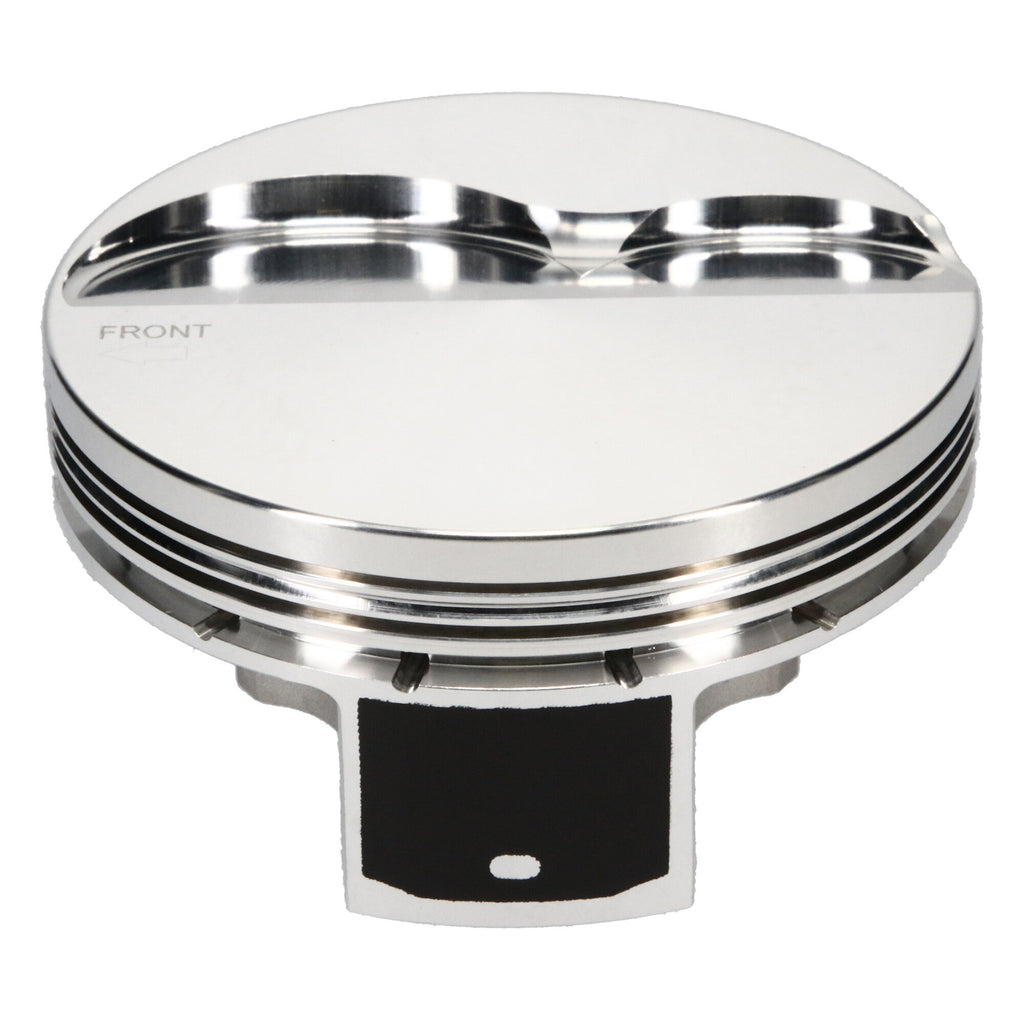

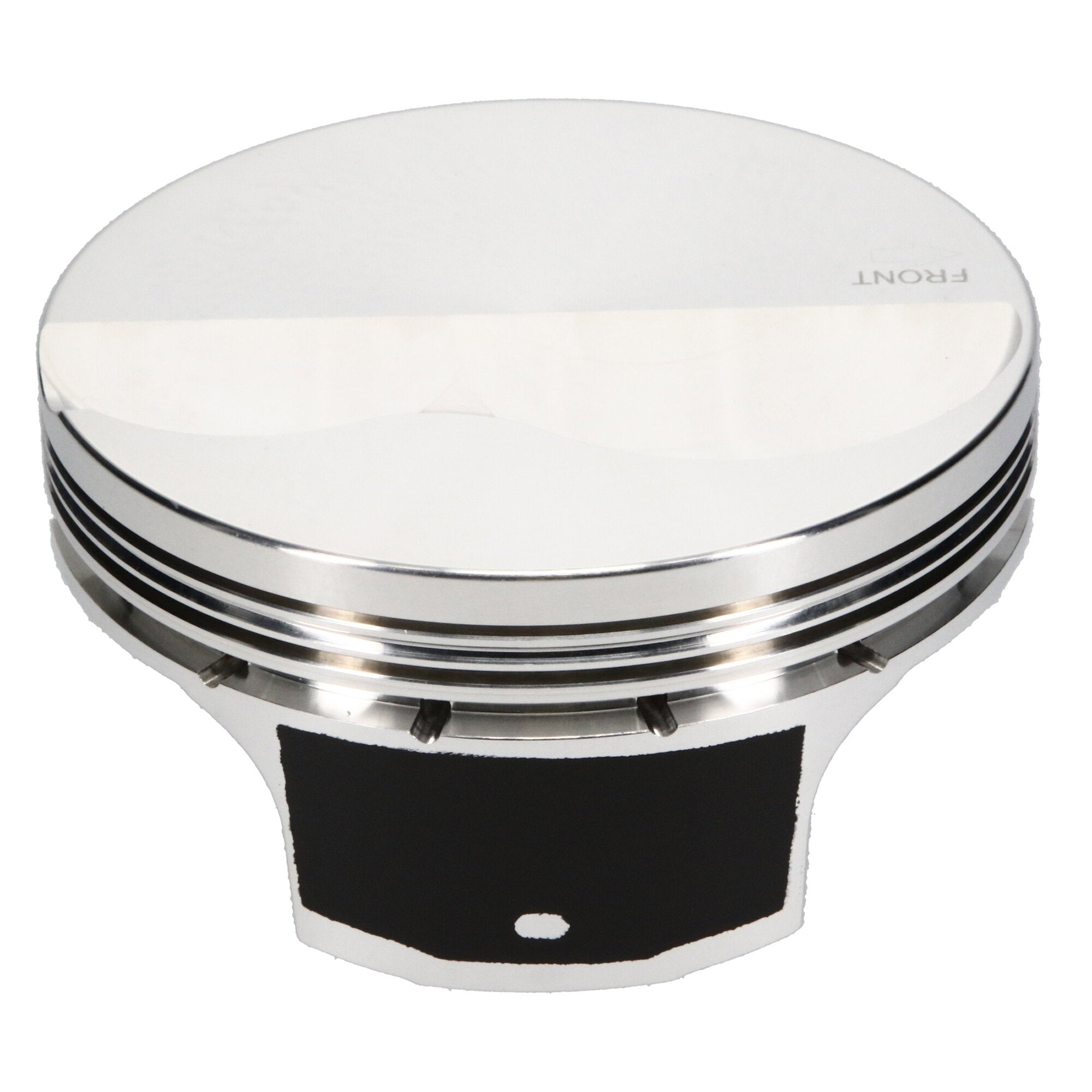

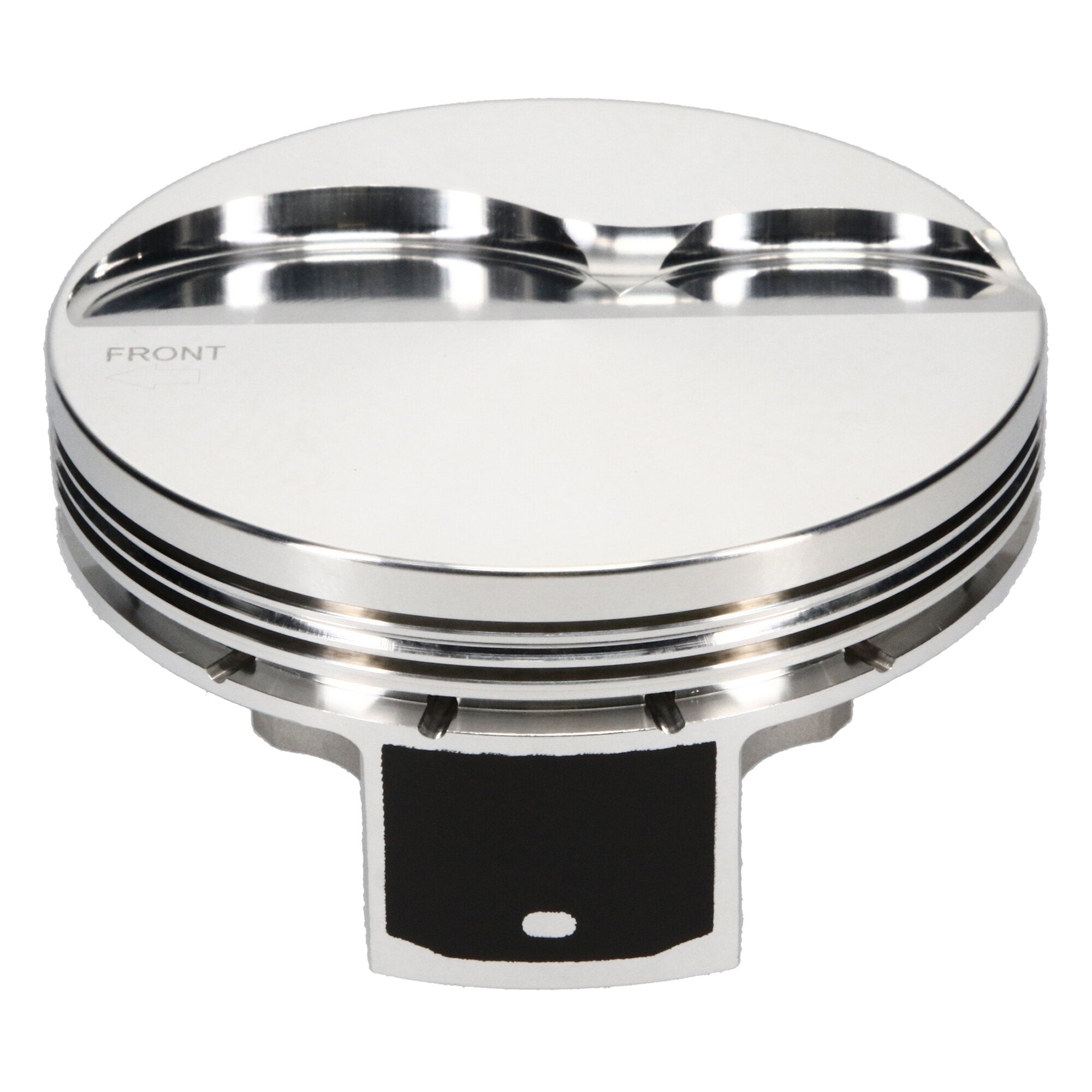

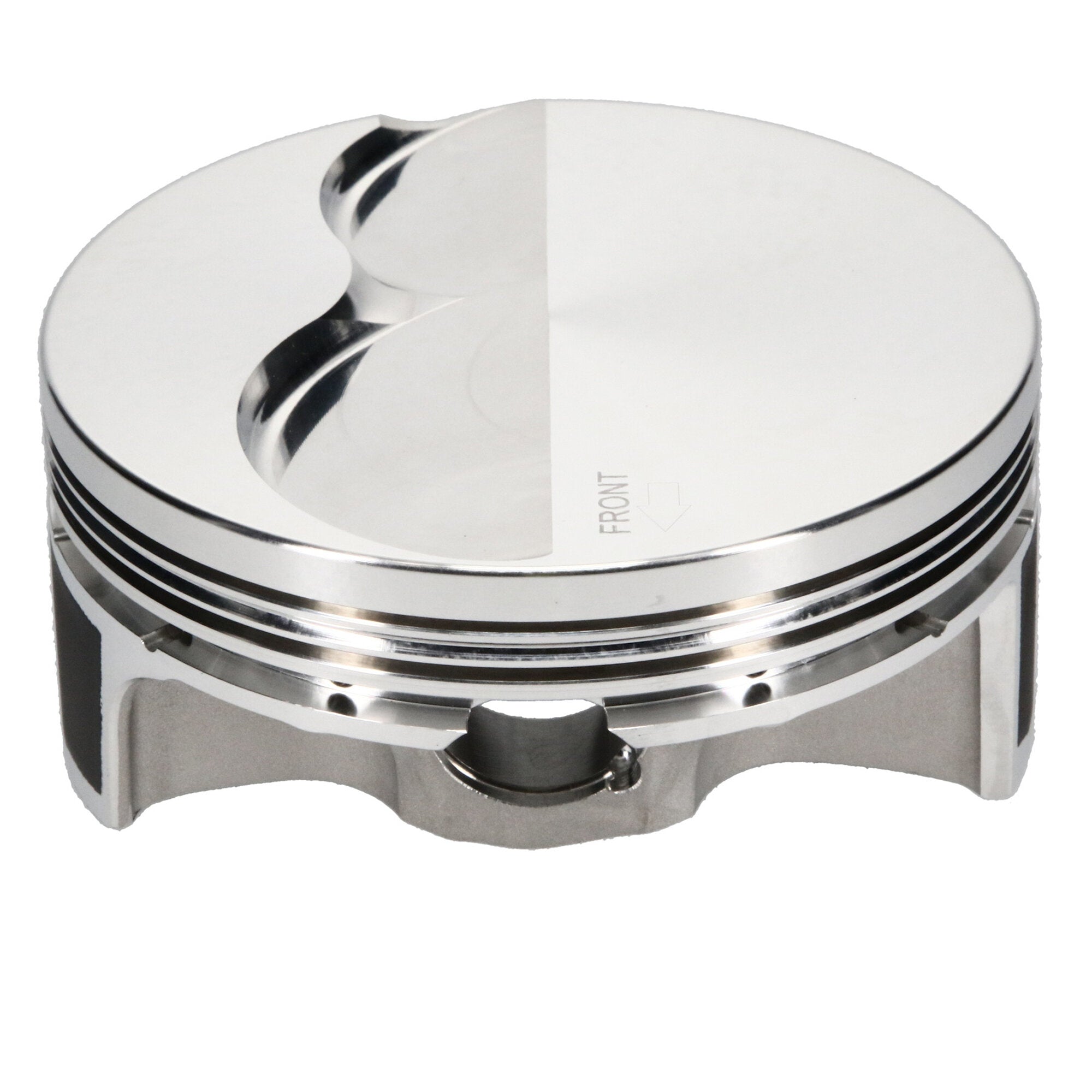

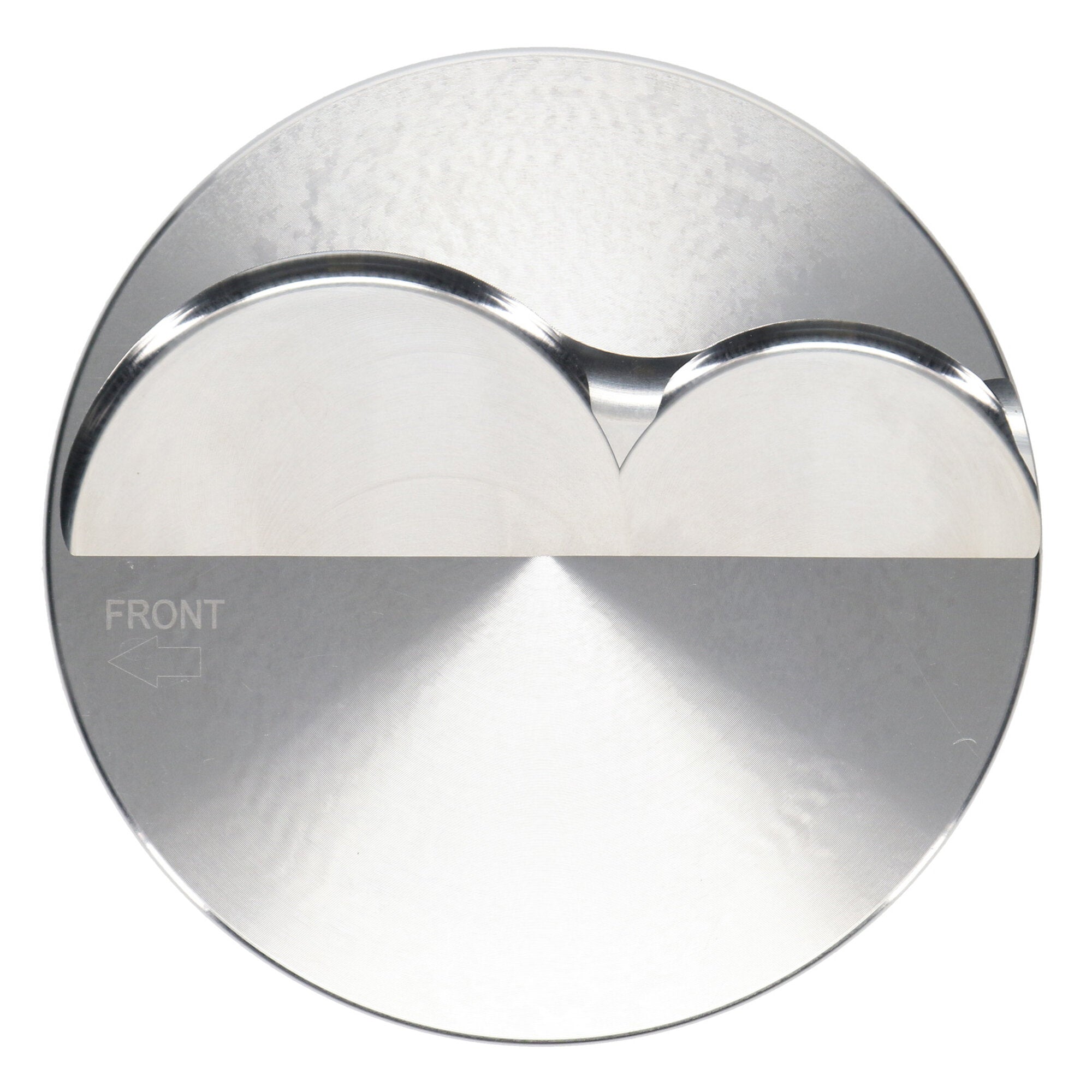

SRP Professional pistons combine forged piston durability with modern performance technology for an extremely capable forged piston kit that doesn t break the bank. Forged from 4032 aluminum, SPR Pro pistons experience minimal thermal expansion, making them perfect for a high-performance, reliable engine build from the track to the drag strip. All SRP Pro pistons include premium ring sets, wrist pins and locks. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications:
| Description_ASM |
Chevrolet LS |
| Description_DEF |
Engine Piston Kit |
| Description_DES |
Piston Set, 2618, Flat Top, 4.070 Bore, 1.050 CD, 0.927 Pin Dia, Set of 8. |
| Description_INV |
SRP, Piston Set |
| Description_FAB |
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Low-friction skirt coating reduces wear and reduces operating noise while optimizing performance
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Accumulator groove helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_SHO |
Piston Kit |
| Description_MKT |
SRP Professional pistons combine forged piston durability with modern performance technology for an extremely capable forged piston kit that doesn?t break the bank. Forged from 4032 aluminum, SPR Pro pistons experience minimal thermal expansion, making them perfect for a high-performance, reliable engine build from the track to the drag strip. All SRP Pro pistons include premium ring sets, wrist pins and locks. As with all JE Pistons products, SRP pistons are made 100% in the USA. |
| Description_TLE |
Chevrolet LS, 4.070 Bore, Flat Top, Set of 8 |
| Piston Volume |
-5.00 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Industry |
Automotive |
| Prop 65 (C, R or CR) |
CR |
| Piston Material |
2618 |
| Add-On |
927-2250-17-51C |
| Make - Web |
Chevrolet |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Out of Stock Message |
Call for Availibility |
| Product Type |
Engine Piston Kit |
| Title - Web |
SRP Pro 4032 Chevrolet LS Gen III/IV Piston Kit - 4.070 in. Bore - 1.050 in. CH, -5.00 CC |
| Wrist Pin Length |
2.250 |
| Engine Type |
ICE |
| Product Market |
Domestic |
| Piston Pin Length |
2.250 |
| Engine |
LS Gen III/IV |
| Category Hierarchy |
Auto>SRP Pistons>SRP Pro>Piston Kits |
| Bore Diameter |
4.070 |
| Prop 65 Yes/No |
Yes |
| Piston Series |
SRP Pro 4032 |
| Wrist Pin Wall Thickness |
0.170 |
| Piston Pin Wall Thickness |
0.170 |
| Make |
CHEVROLET |
| Piston Pin Outside Diameter |
0.927 |
| Piston Head Type |
Flat Top |
| Title |
SRP Pro 4032 - Chevrolet, LS Gen III/IV, 4.070 in. Bore, Piston Kit |
| Piston Pin Material |
5115 |
| Compression Height |
1.050 |
| Wrist Pin Outer Diameter |
0.927 |
| Engine - Web |
LS Gen III/IV |
| Length |
1.0000 |
| Width |
1.0000 |
| Height |
1.0000 |
| Weight |
13.0000 |
