As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford Flathead V8 |
| Description_DES |

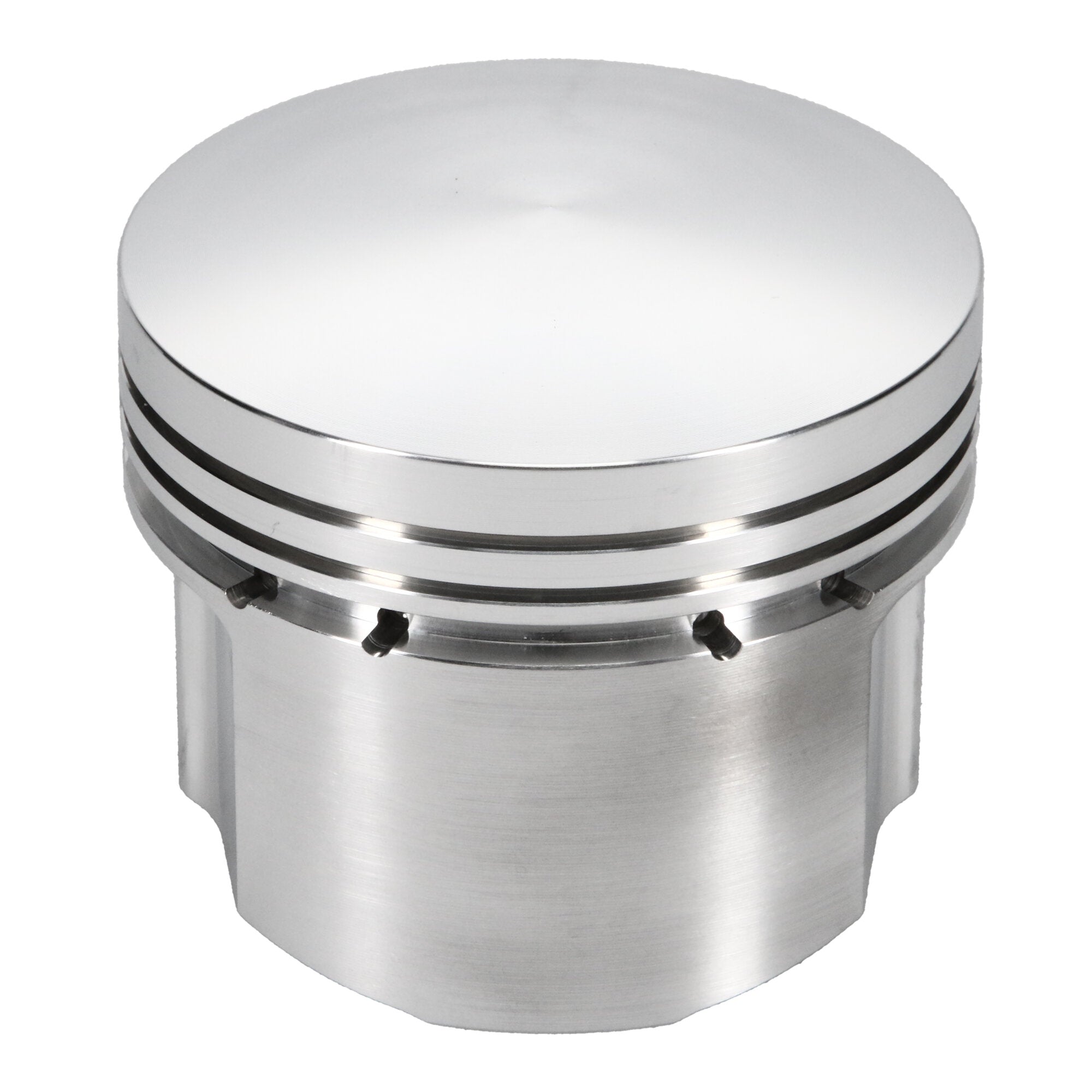

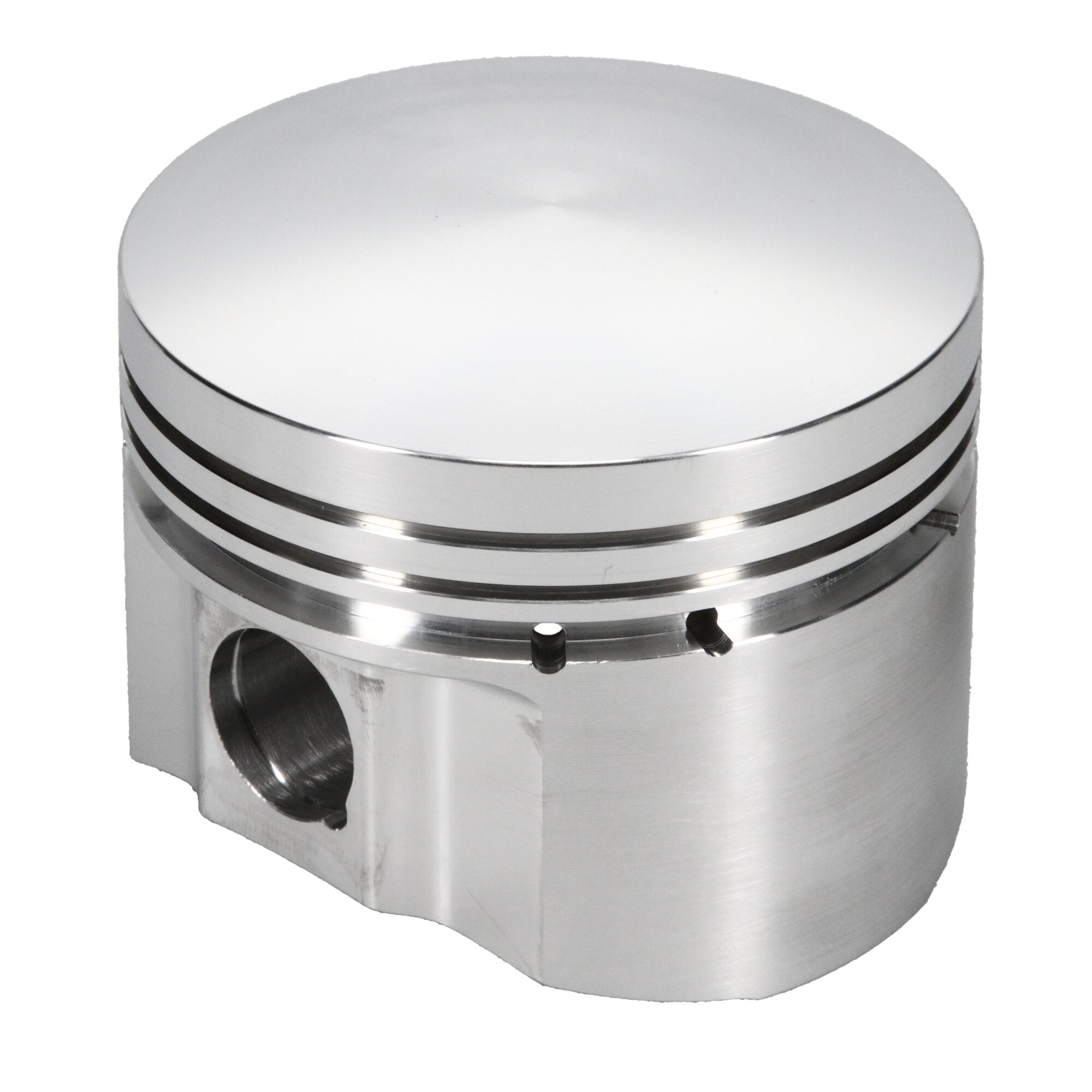

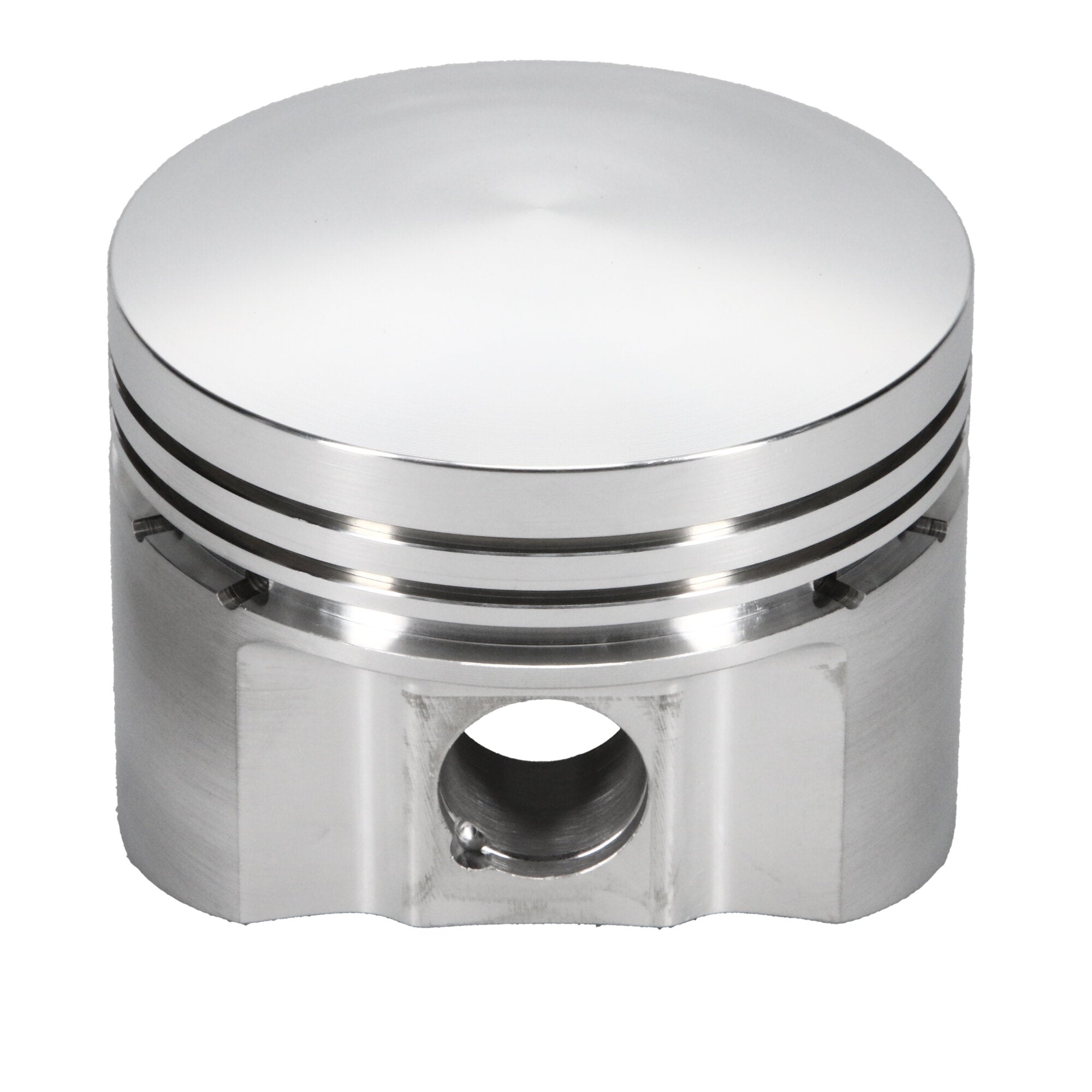

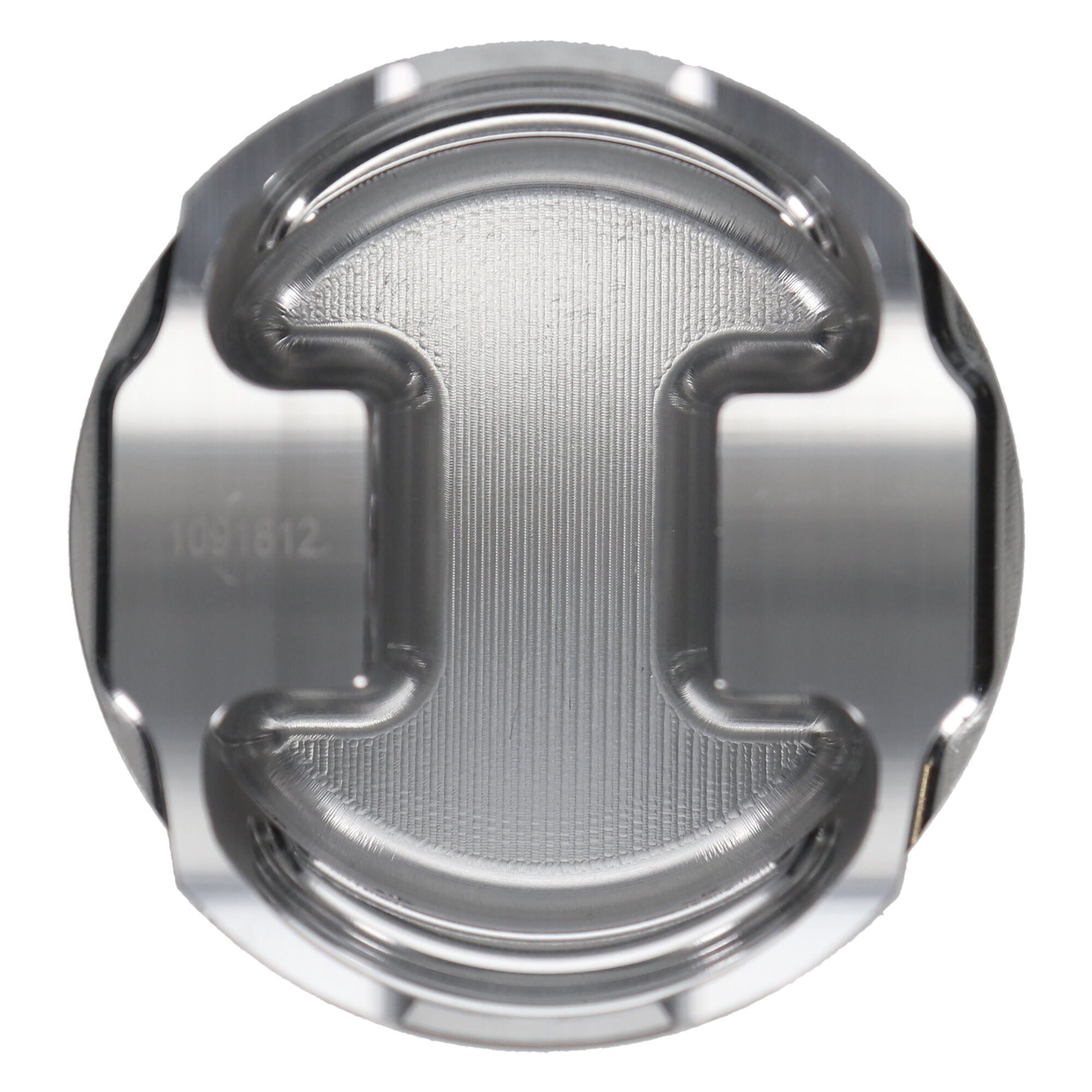

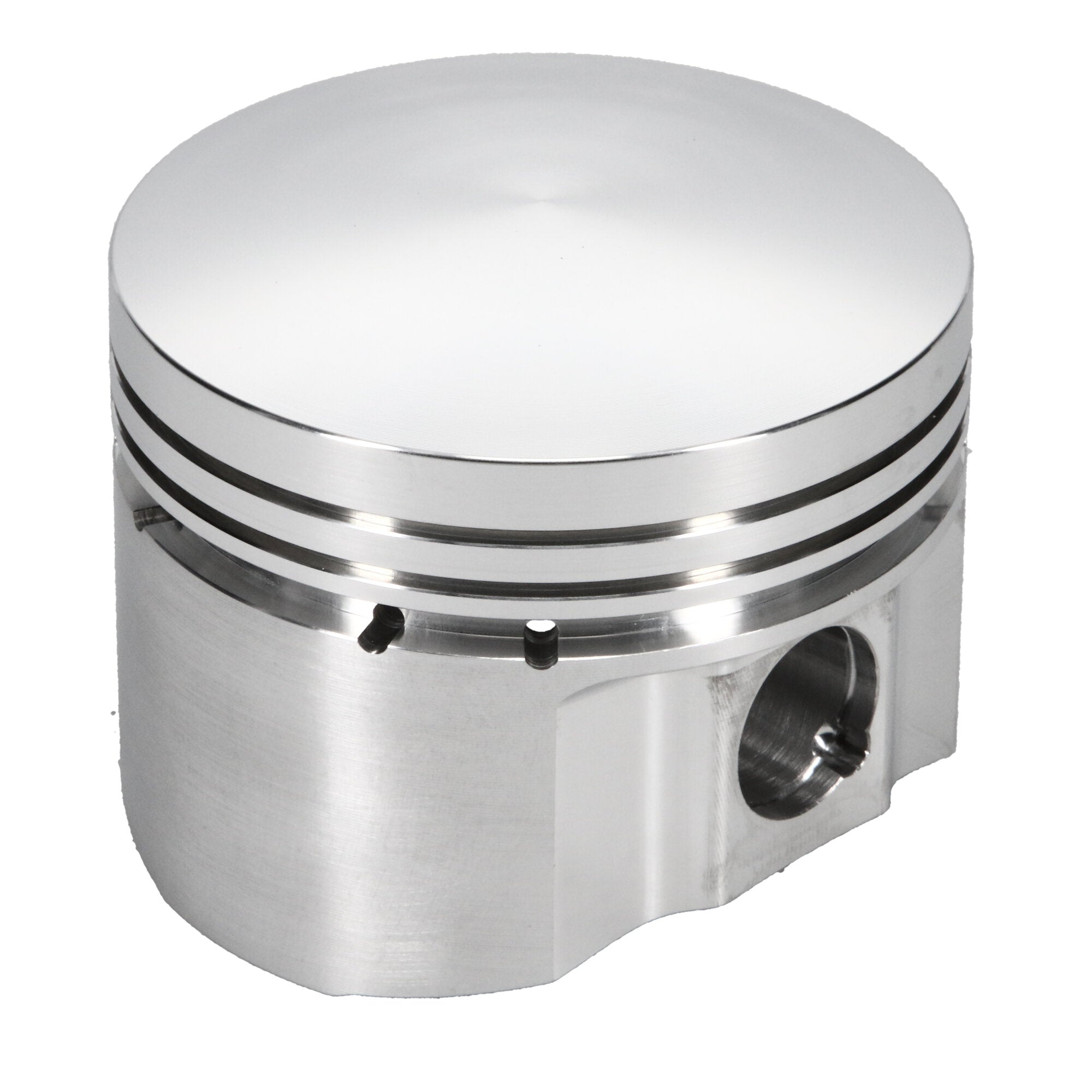

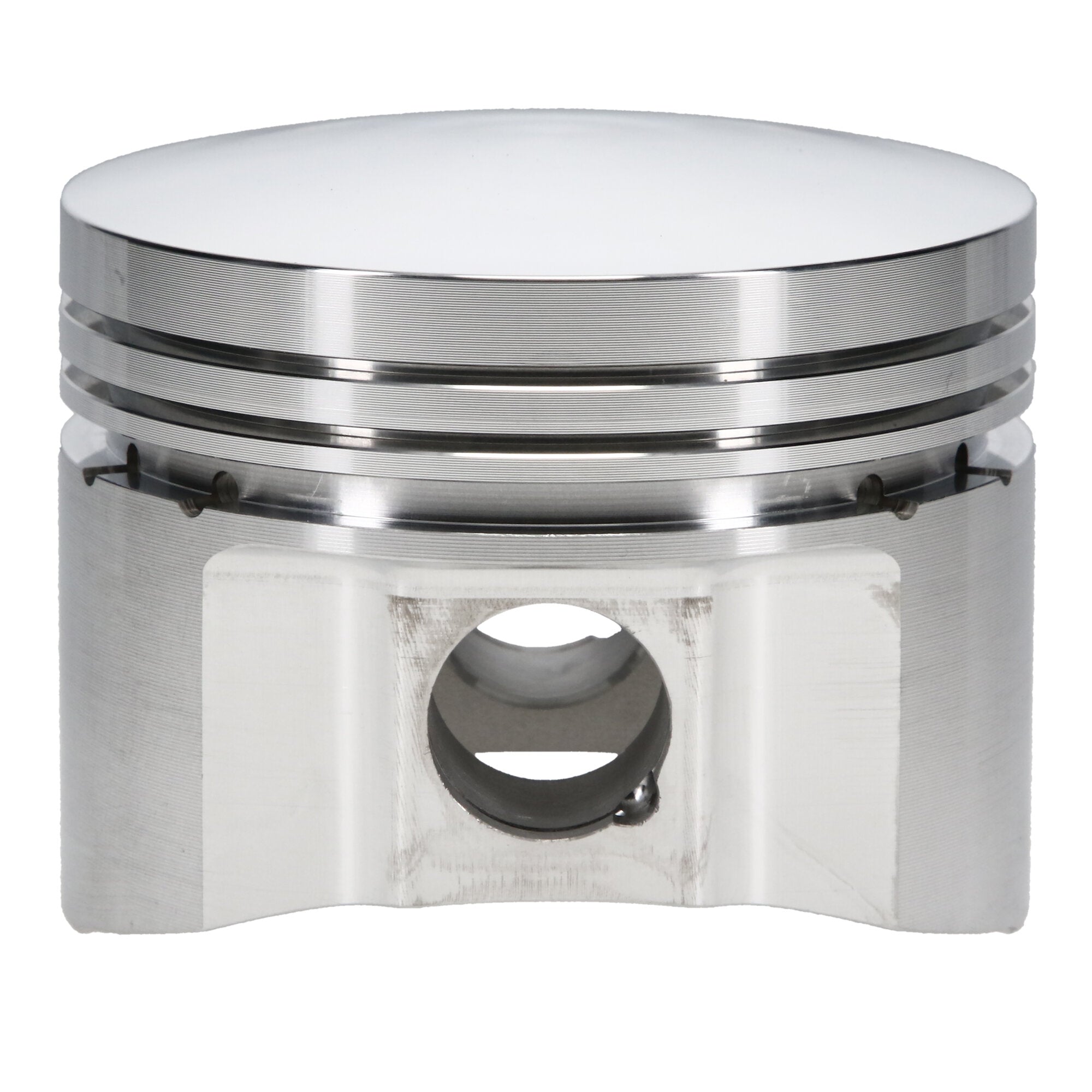

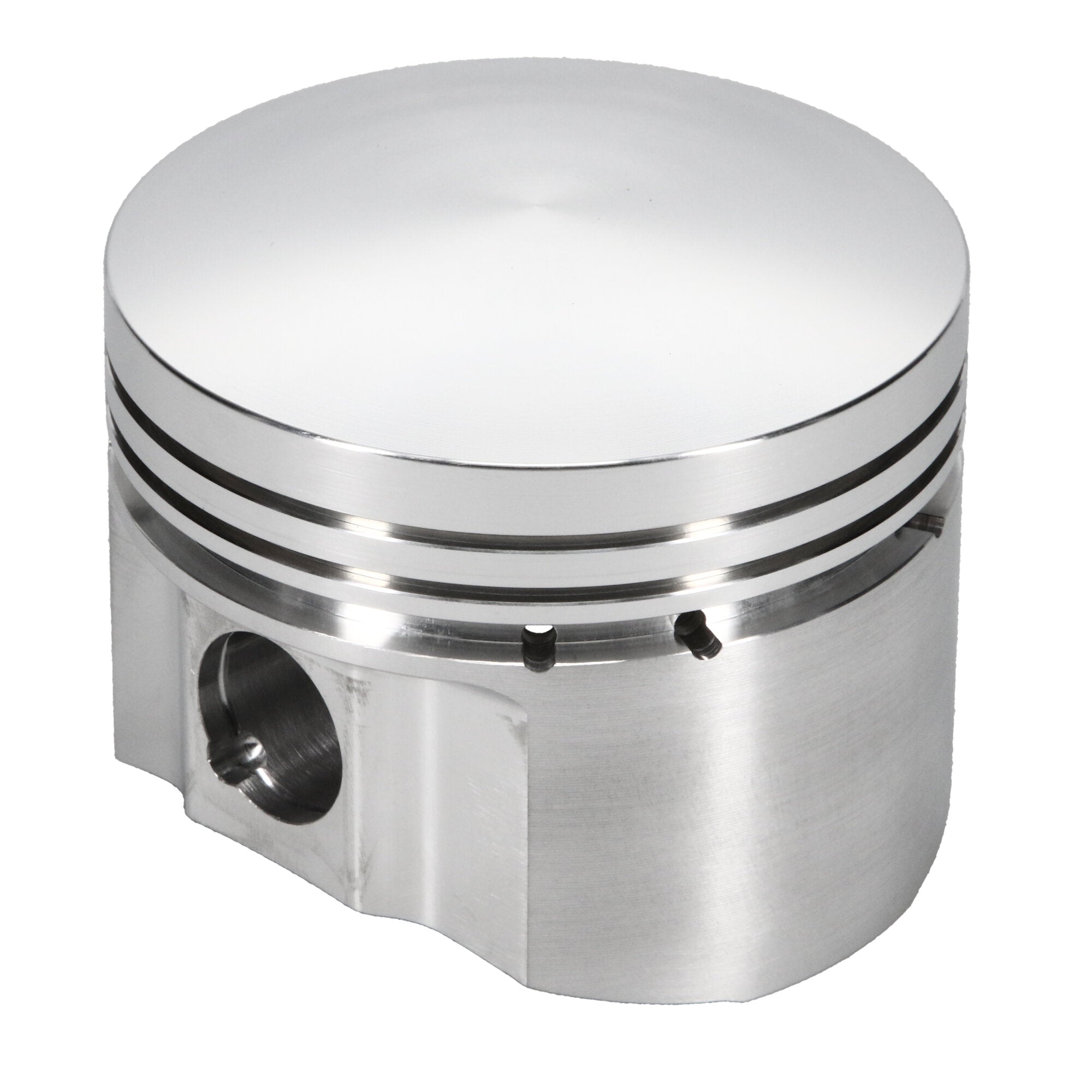

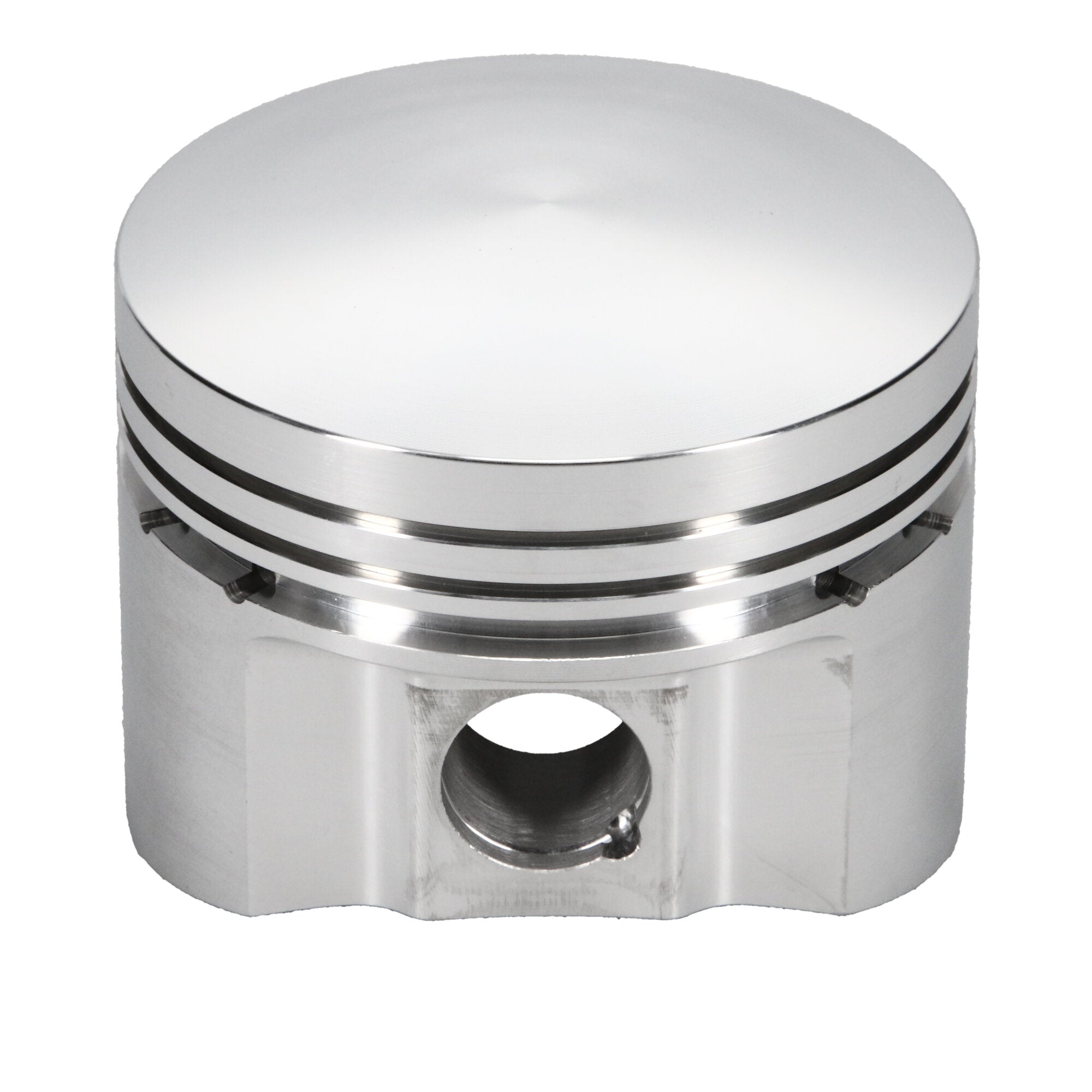

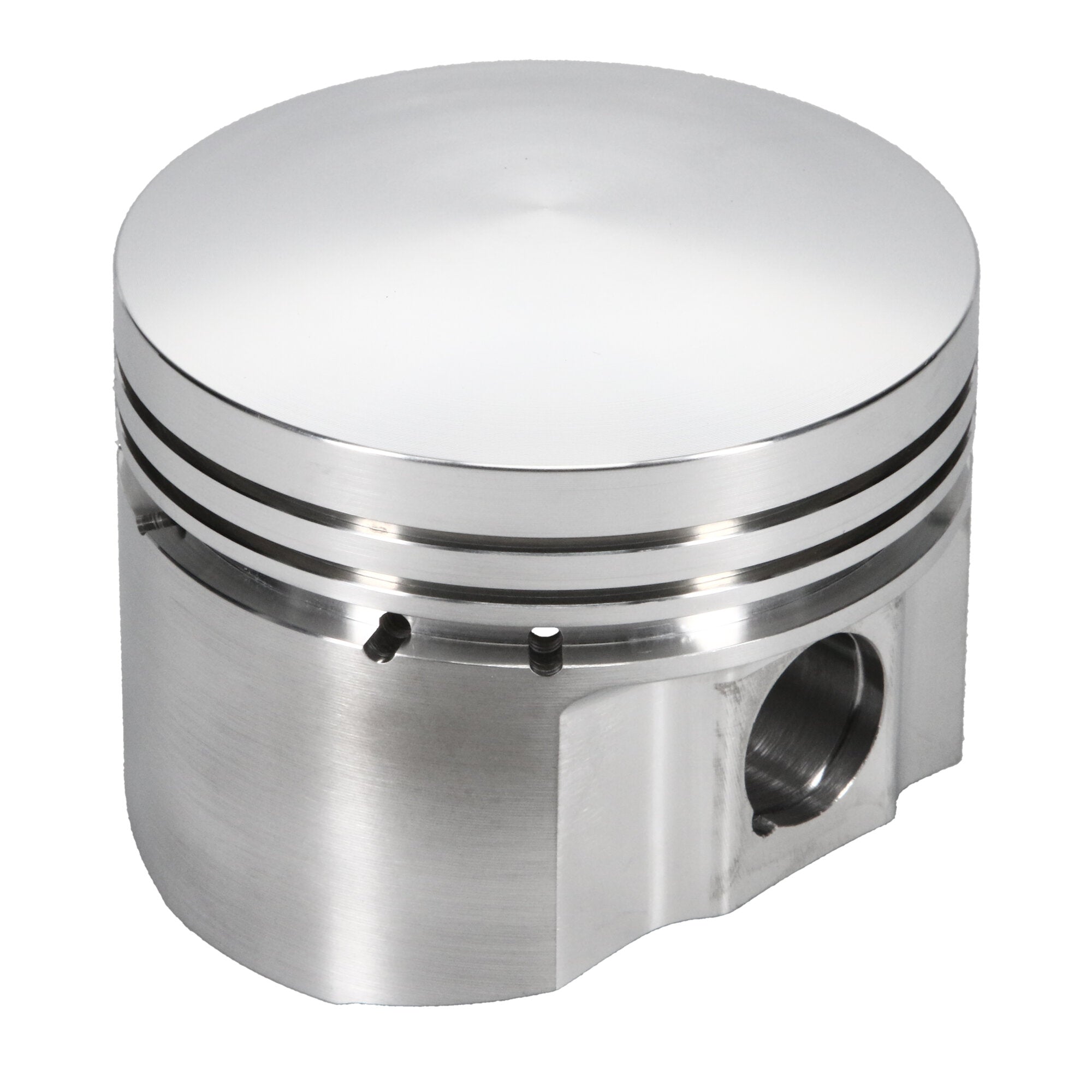

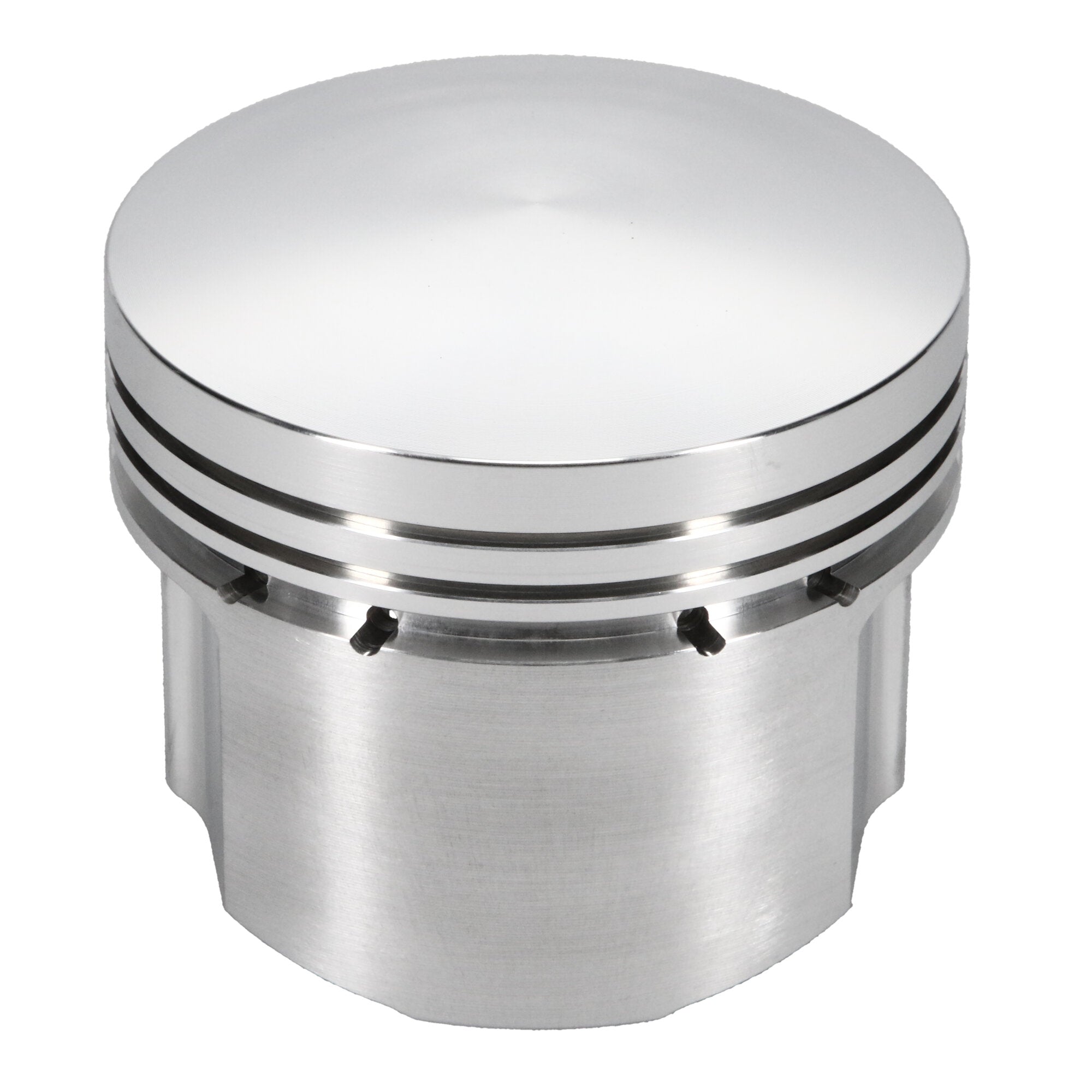

Piston Set, 4032, Dome, 3.342 Bore, 1.311 CD, 0.750 Pin, Set of 8. |
| Description_DEF |
Engine Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_EXT |
JE, Ford, Flathead, 3.342 in. Bore, 1.311 CD, Dome, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_TLE |
Ford Flathead V8, 3.342 Bore, Dome, Set of 8 |
| Description_SHO |
Piston Kit |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Piston Pin Material |
5115 |
| Piston Pin Outside Diameter |
0.750 |
| Forging Type |
Round |
| Make |
FORD |

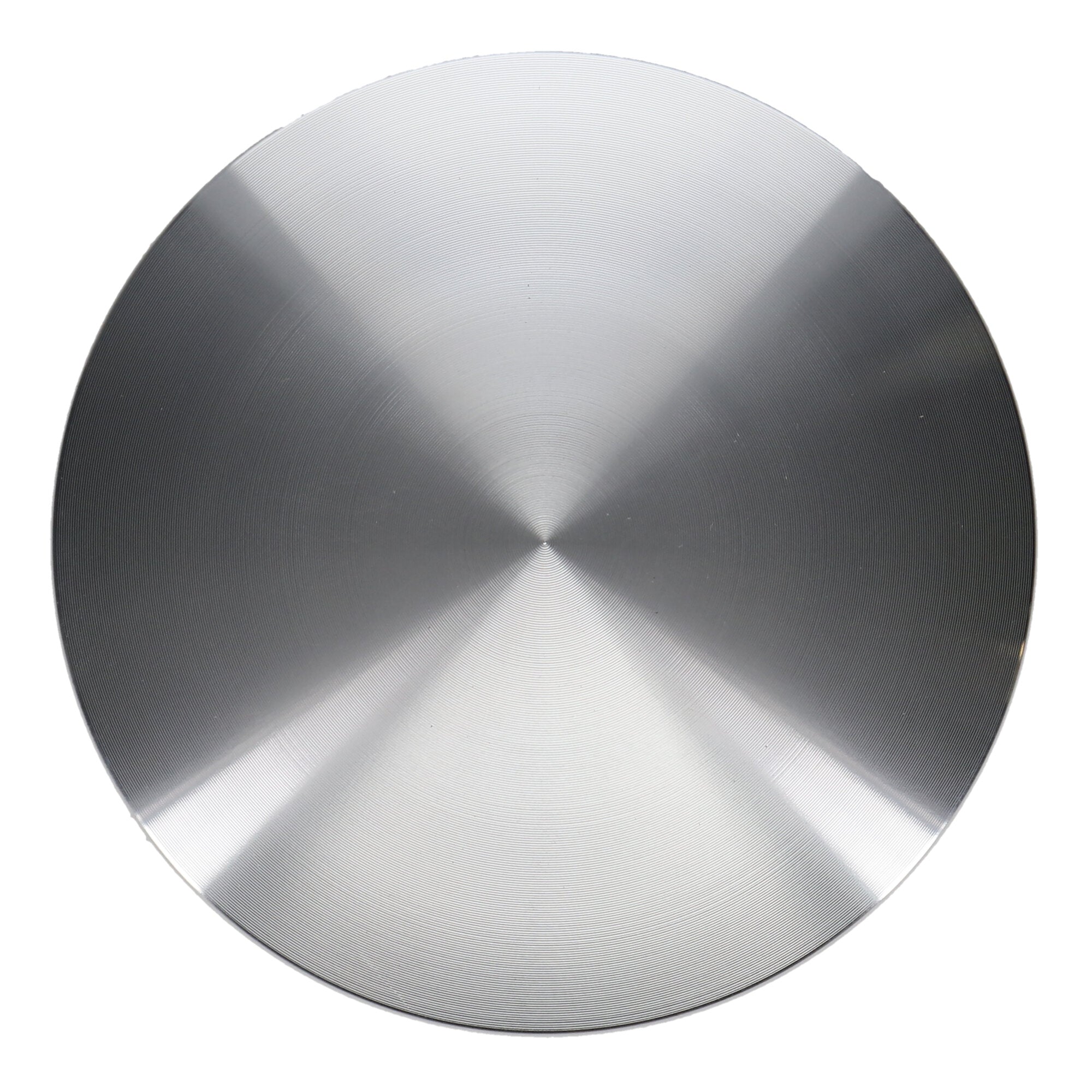

| Piston Head Type |
Dome |
| Piston Volume |
0.00 |
| Wrist Pin Length |
2.500 |
| Piston Quantity |
8 |
| Oil Ring Thickness |
0.159 |
| Engine Type |
ICE |
| Product Type |
Engine Piston Kit |
| Piston Series |
JE Pistons |
| Ring Set Included |
Yes |
| Bore Diameter |
3.342 |
| Piston Pin Wall Thickness |
0.140 |
| Compression Height |
1.311 |
| Product Market |
Domestic |
| Top Compression Ring Thickness |
0.5950 |
| Title |
JE Pistons - Ford, Flathead, 3.342 in. Bore, Piston Kit |
| Prop 65 Yes/No |
Yes |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Wrist Pin Wall Thickness |
0.140 |
| Wrist Pin Outer Diameter |
0.750 |
| Engine - Web |
Flathead |
| Title - Web |
JE Pistons Ford Flathead Piston Kit - 3.342 in. Bore - 1.311 in. CH, 0.00 CC |
| Add-On |
750-2500-14-51C |
| Add-On |
J641F8-3346 |
| Piston Pin Length |
2.500 |
| Cylinder Head |
FLATHEAD |
| Second Compression Ring Thickness |
0.5950 |
| Industry |
Automotive |
| Engine |
FLATHEAD |
| Out of Stock Message |
Call for Availability |
| Ringset Included |
Yes |
| Piston Material |
4032 |
| Add-On |
748-050-MW |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Make - Web |
Ford |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
