As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford Flathead V8 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

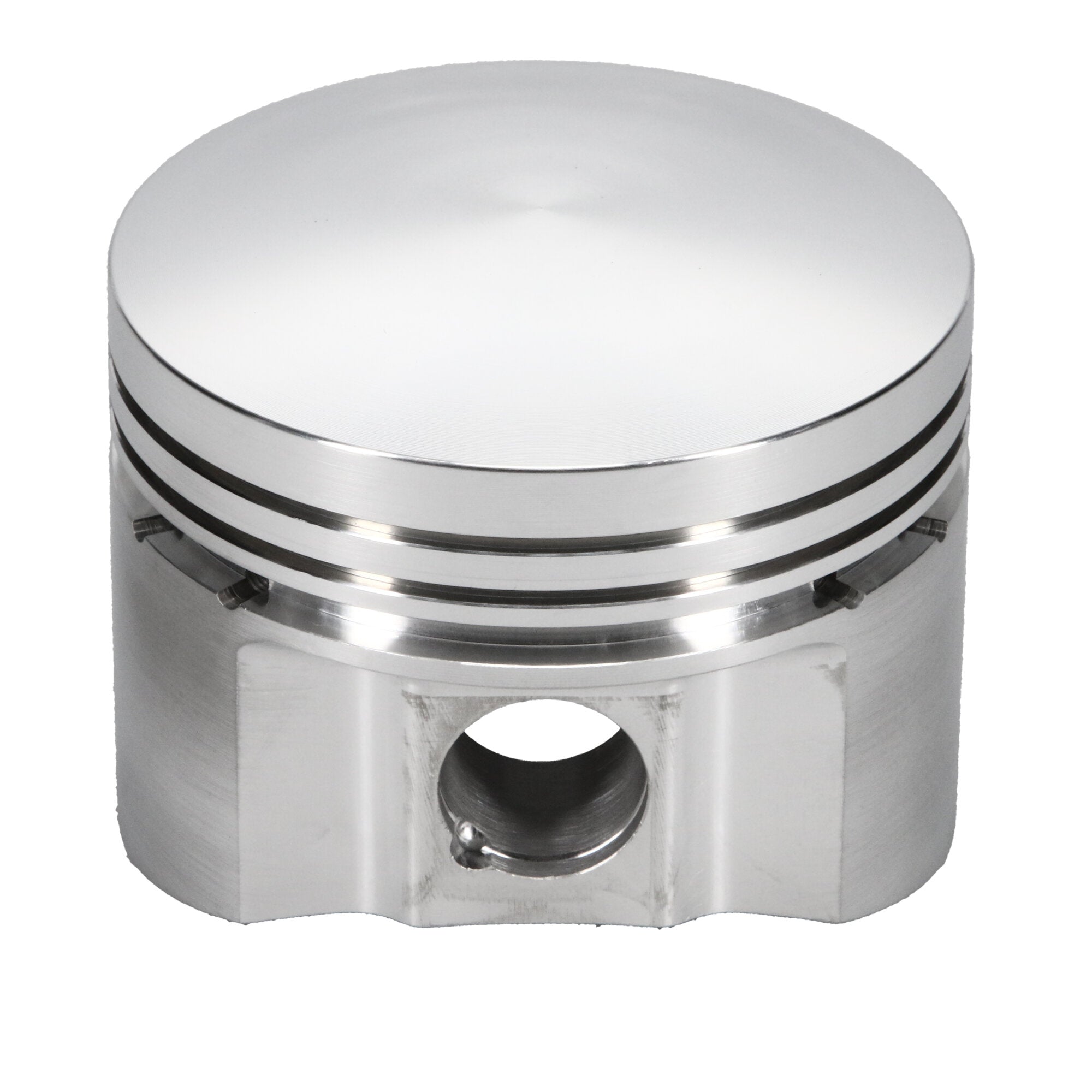

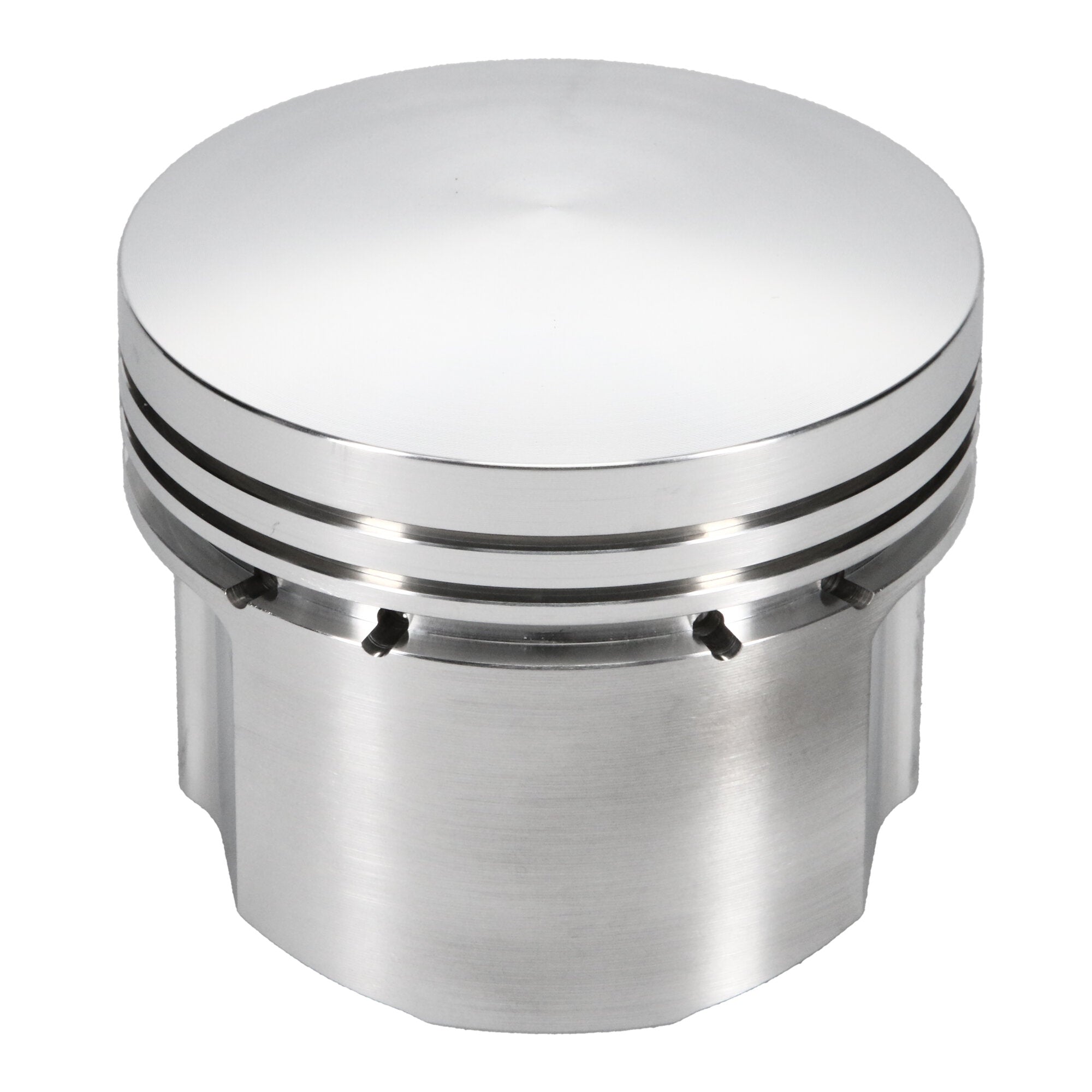

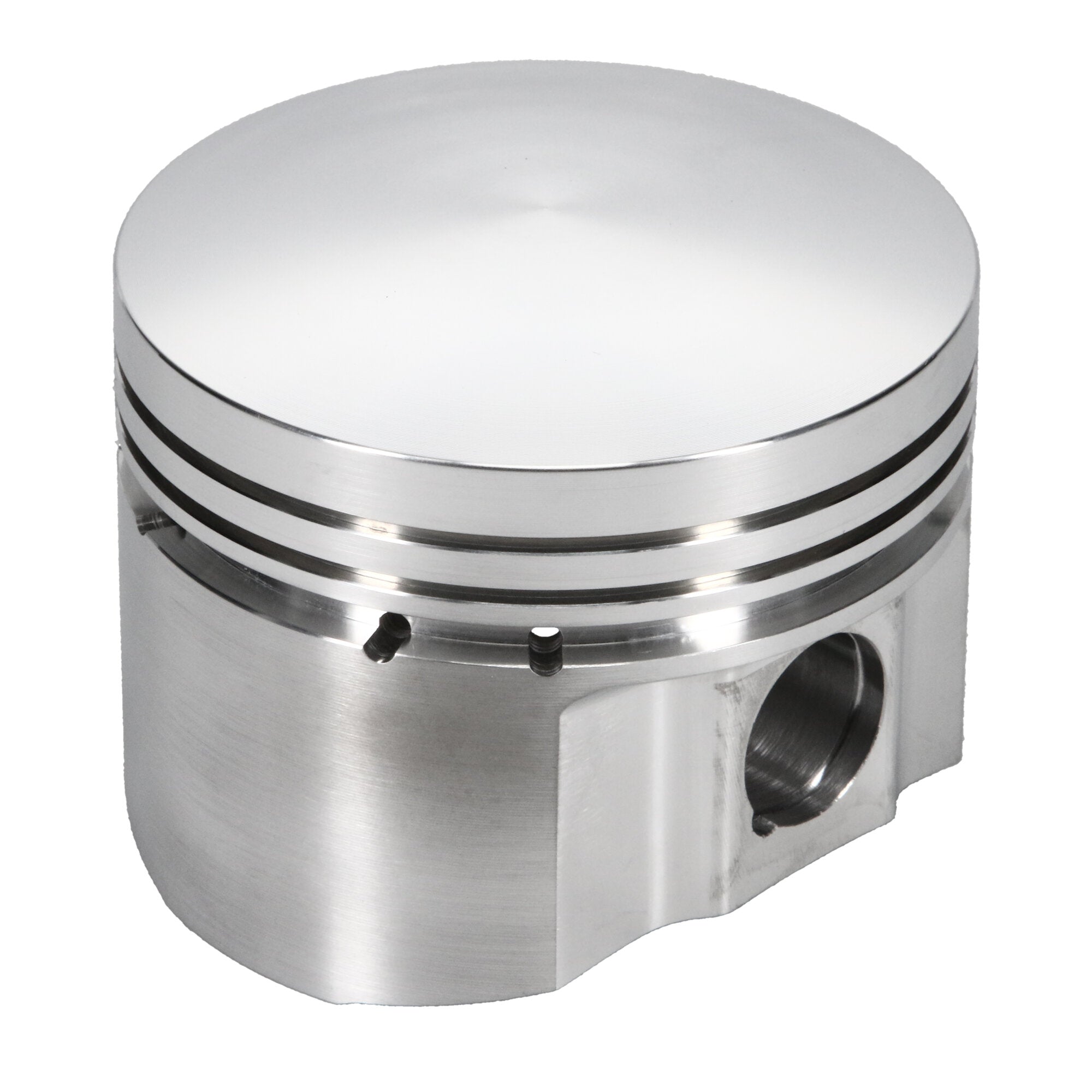

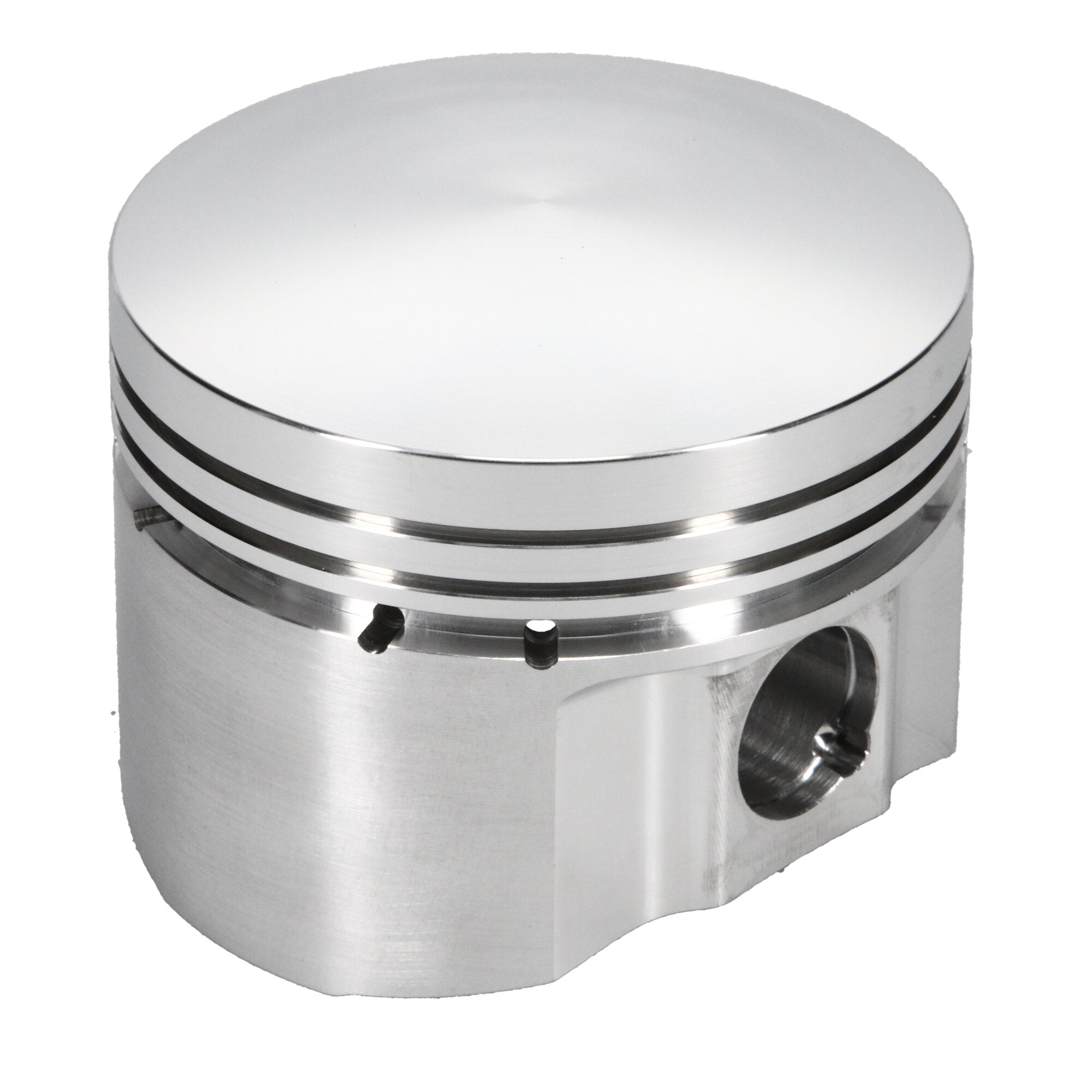

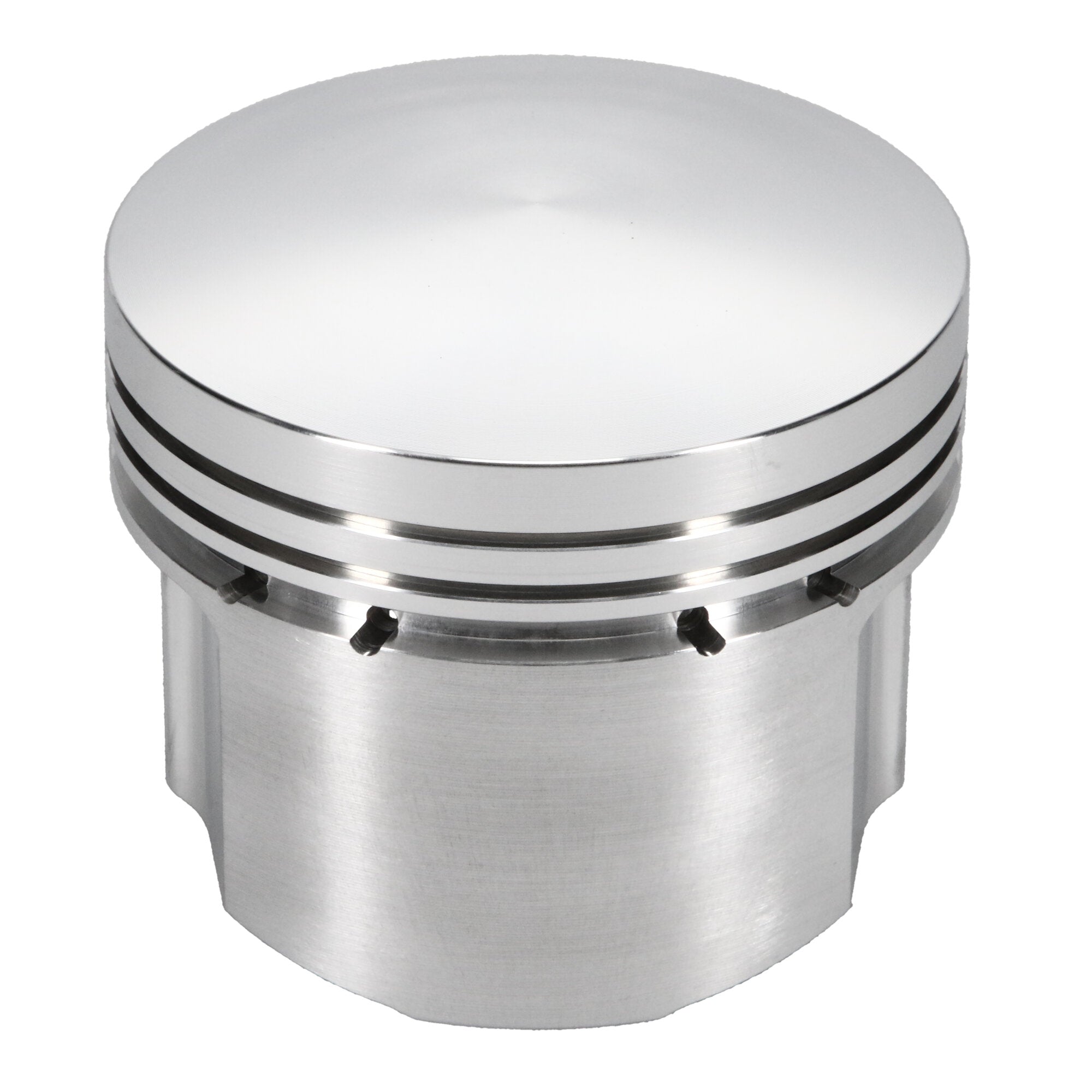

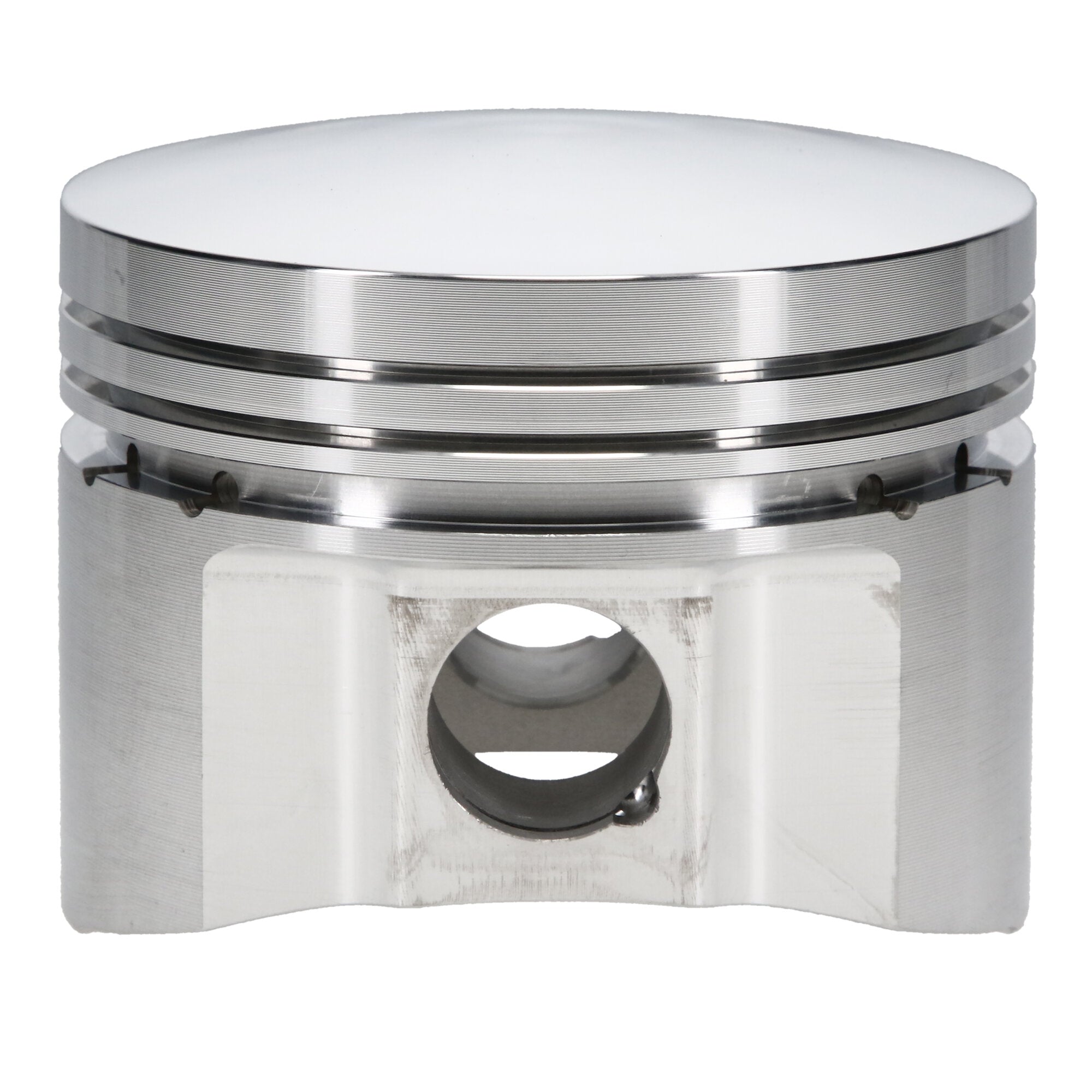

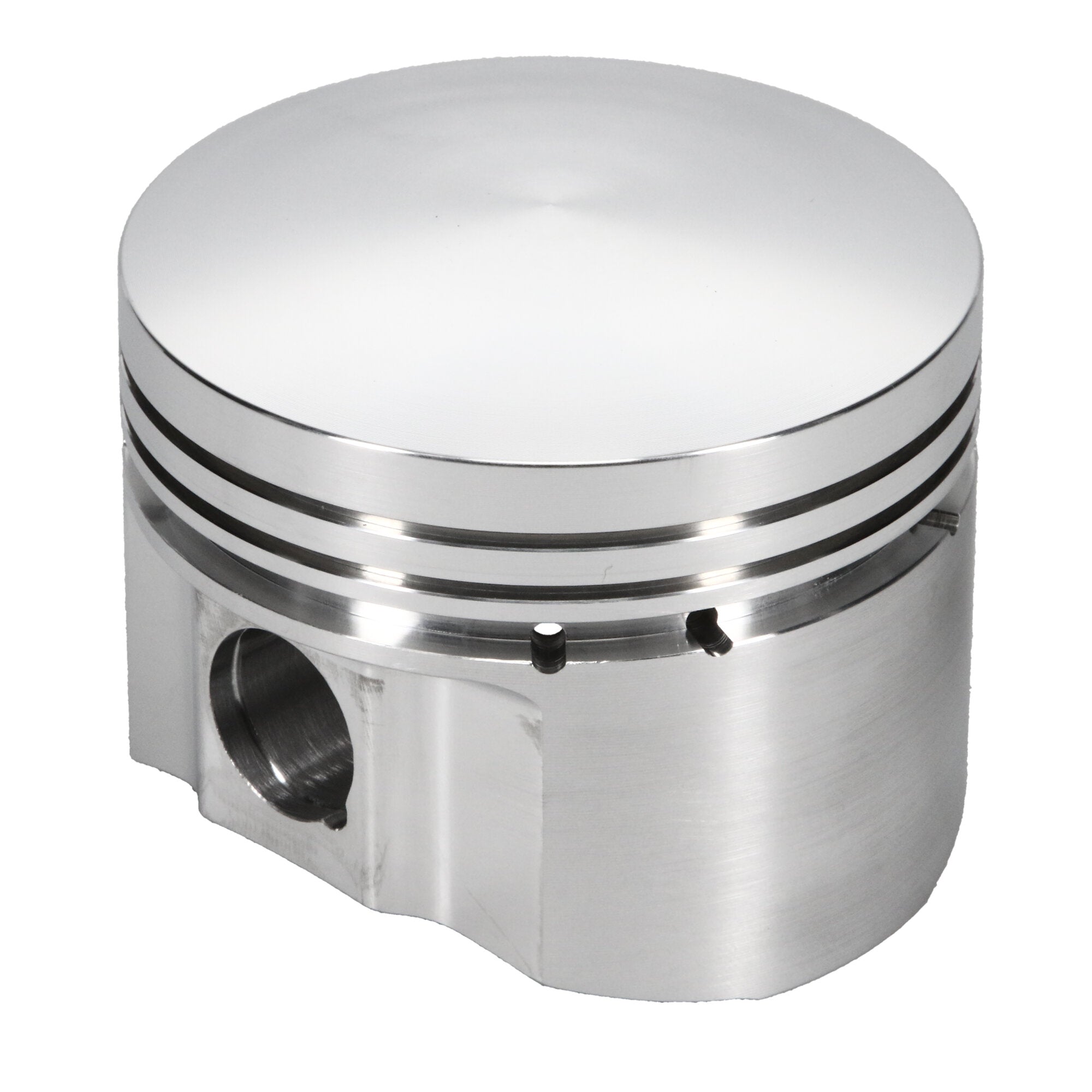

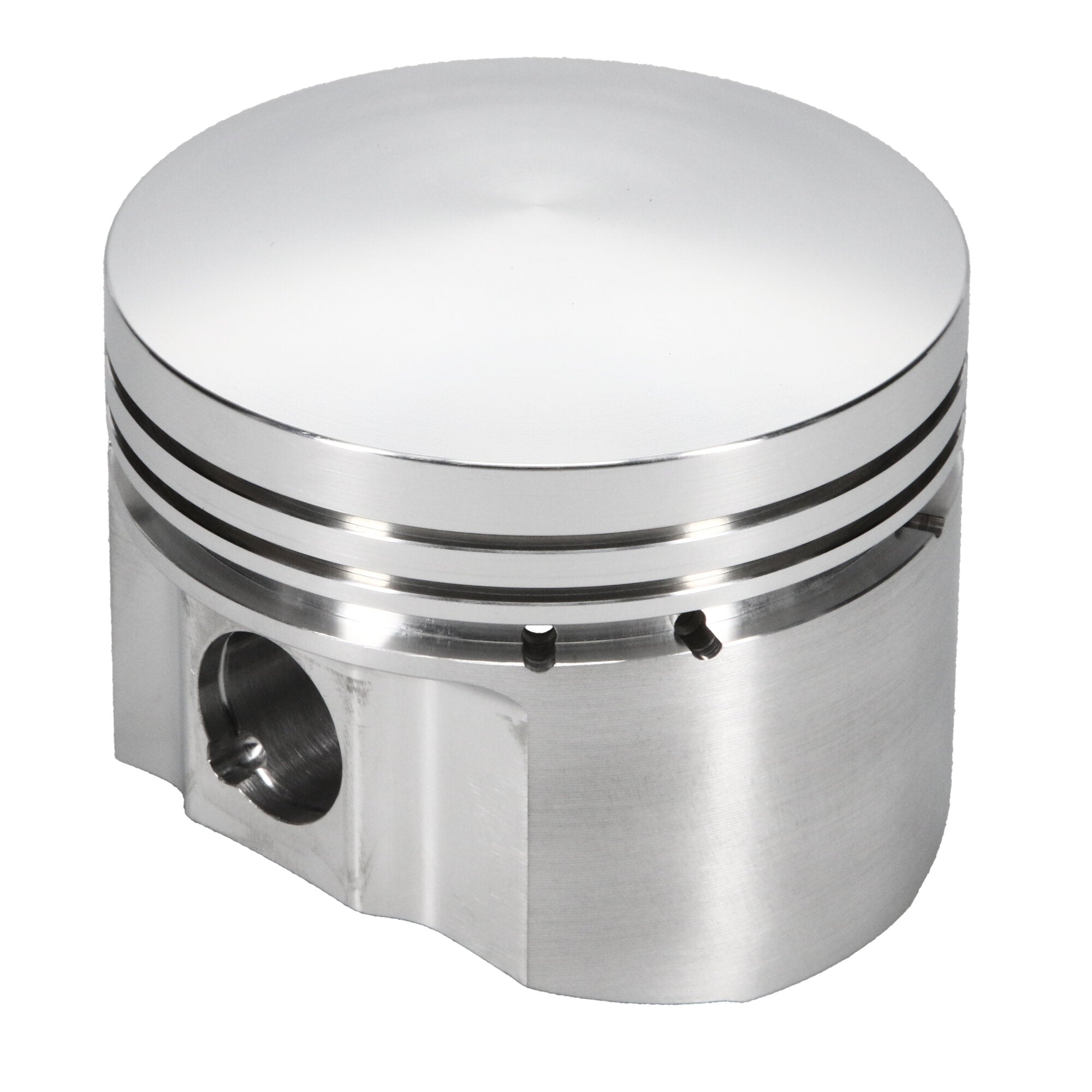

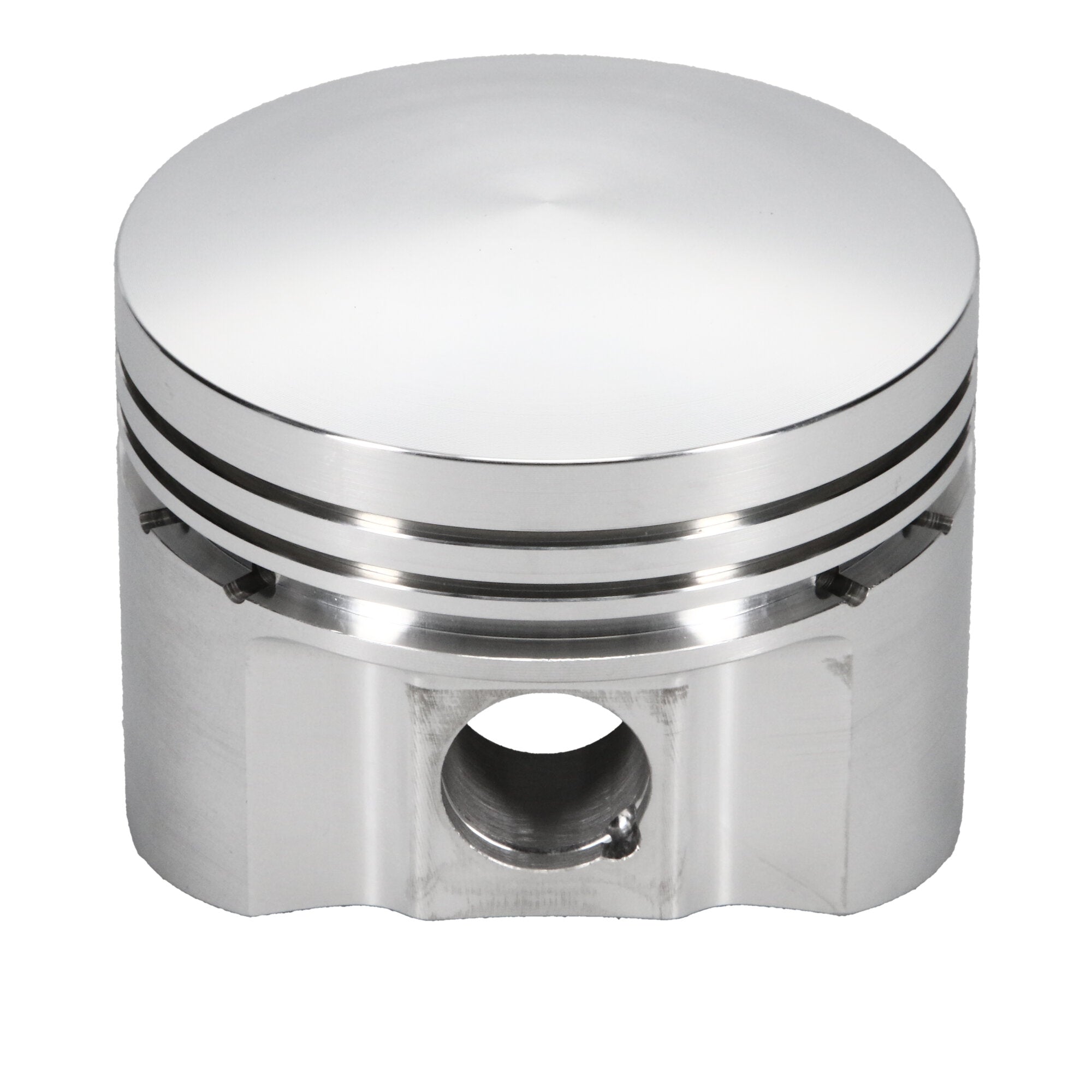

Piston Set, 4032, Dome, 3.312 Bore, 1.374 CD, 0.750 Pin, Set of 8. |
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Ford, Flathead, 3.312 in. Bore, 1.374 CD, Dome, 8 Cyl. Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Ford Flathead V8, 3.312 Bore, Dome, Set of 8 |
| Piston Head Type |

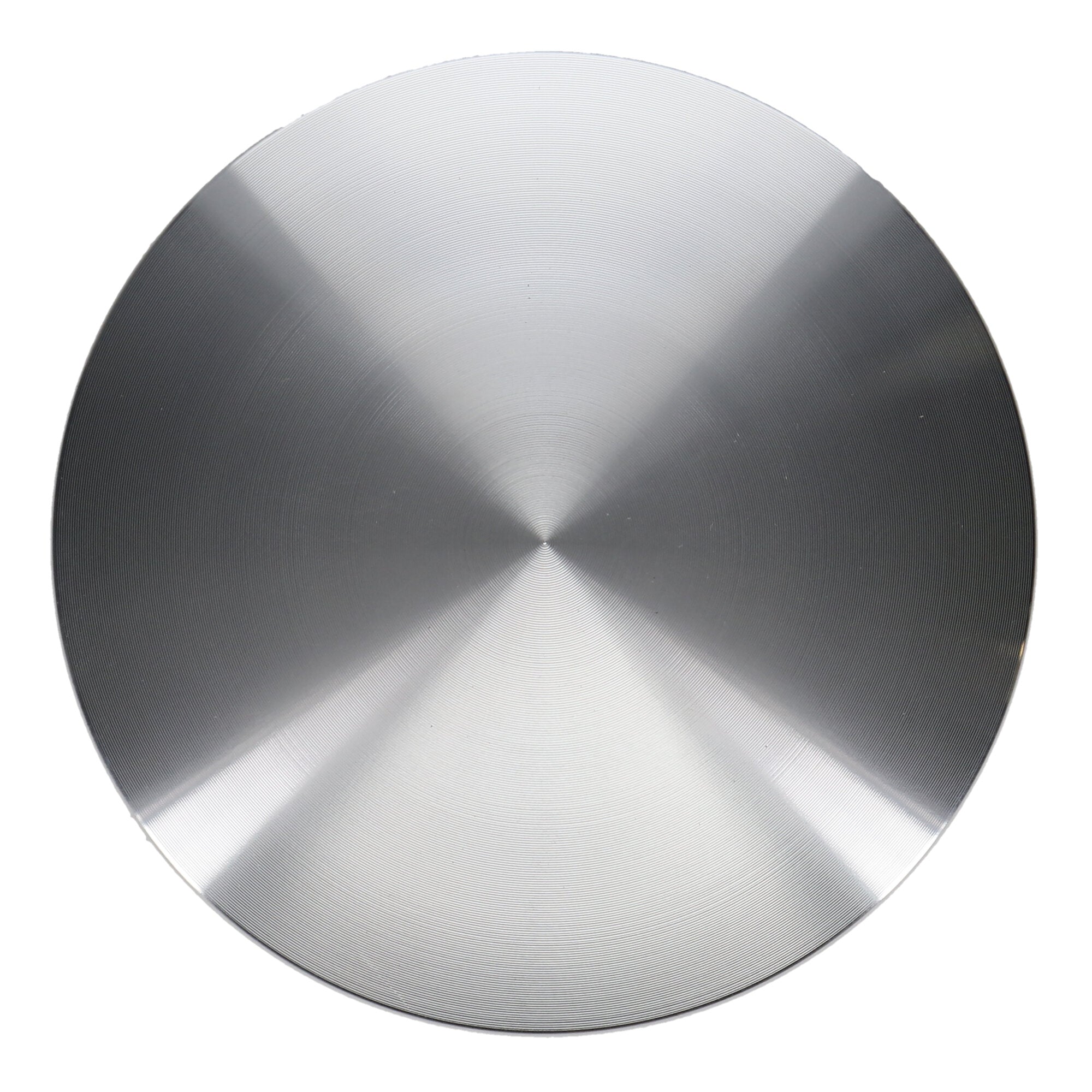

Dome |
| Second Compression Ring Thickness |
0.5950 |
| Title - Web |
JE Pistons Ford Flathead Piston Kit - 3.312 in. Bore - 1.374 in. CH, 0.00 CC |
| Add-On |
748-050-MW |
| Add-On |
J641F8-3317 |
| Cylinder Head |
FLATHEAD |
| Prop 65 Yes/No |
Yes |
| Add-On |
750-2500-14-51C |
| Prop 65 (C, R or CR) |
CR |
| Industry |
Automotive |
| Piston Material |
4032 |
| Ringset Included |
Yes |
| Out of Stock Message |
Call for Availability |
| Engine |
FLATHEAD |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Piston Pin Wall Thickness |
0.140 |
| Engine Type |
ICE |
| Make |
FORD |
| Bore Diameter |
3.312 |
| Forging Type |
Round |
| Compression Height |
1.374 |
| Title |
JE Pistons - Ford, Flathead, 3.312 in. Bore, Piston Kit |
| Piston Pin Length |
2.500 |
| Engine - Web |
Flathead |
| Wrist Pin Outer Diameter |
0.750 |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Wrist Pin Wall Thickness |
0.140 |
| Make - Web |
Ford |
| Product Market |
Domestic |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Oil Ring Thickness |
0.159 |
| Top Compression Ring Thickness |
0.5950 |
| Piston Quantity |
8 |
| Piston Series |
JE Pistons |
| Piston Volume |
0.00 |
| Piston Pin Material |
5115 |
| Piston Pin Outside Diameter |
0.750 |
| Product Type |
Engine Piston Kit |
| Ring Set Included |
Yes |
| Wrist Pin Length |
2.500 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
