As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford Flathead V8 |
| Description_DES |

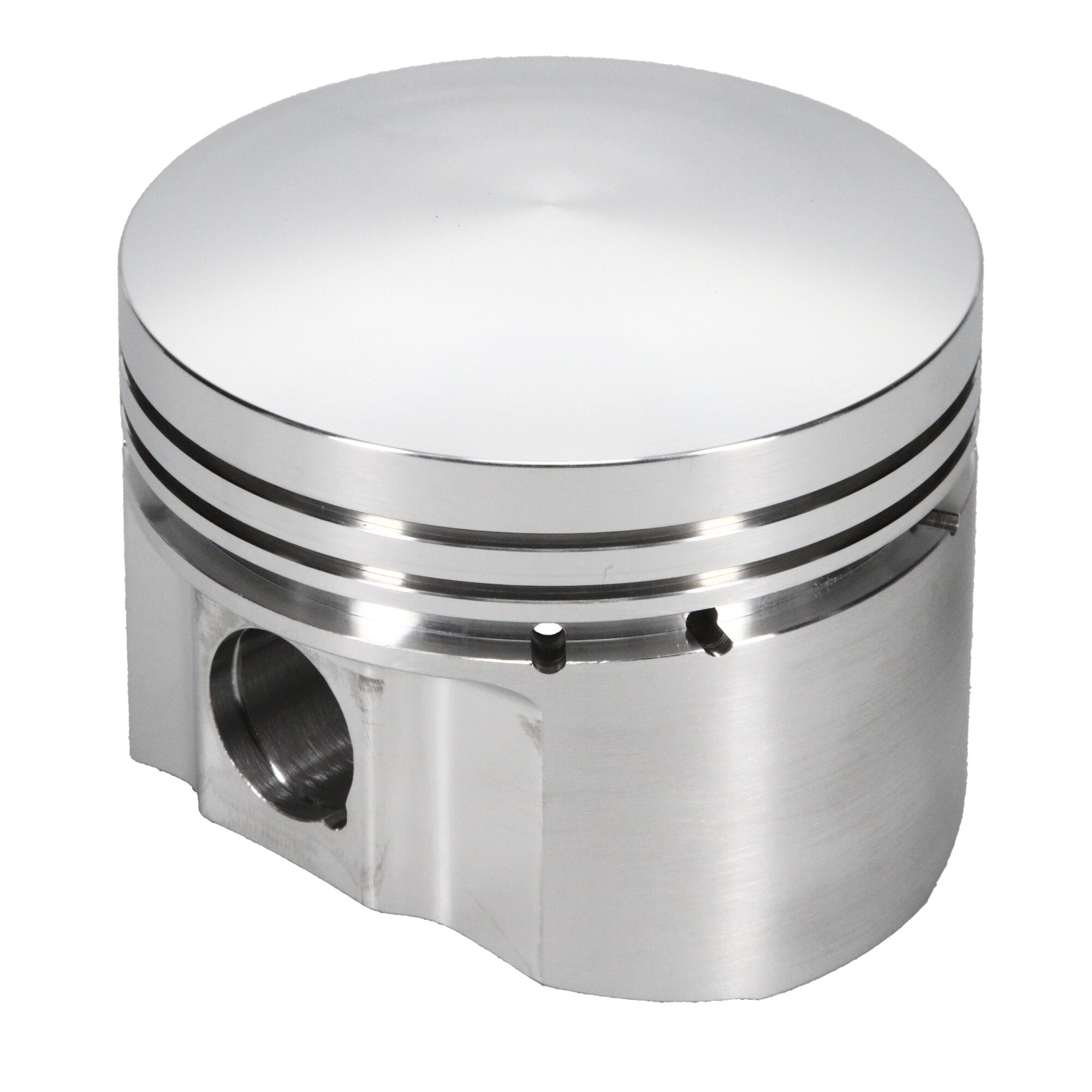

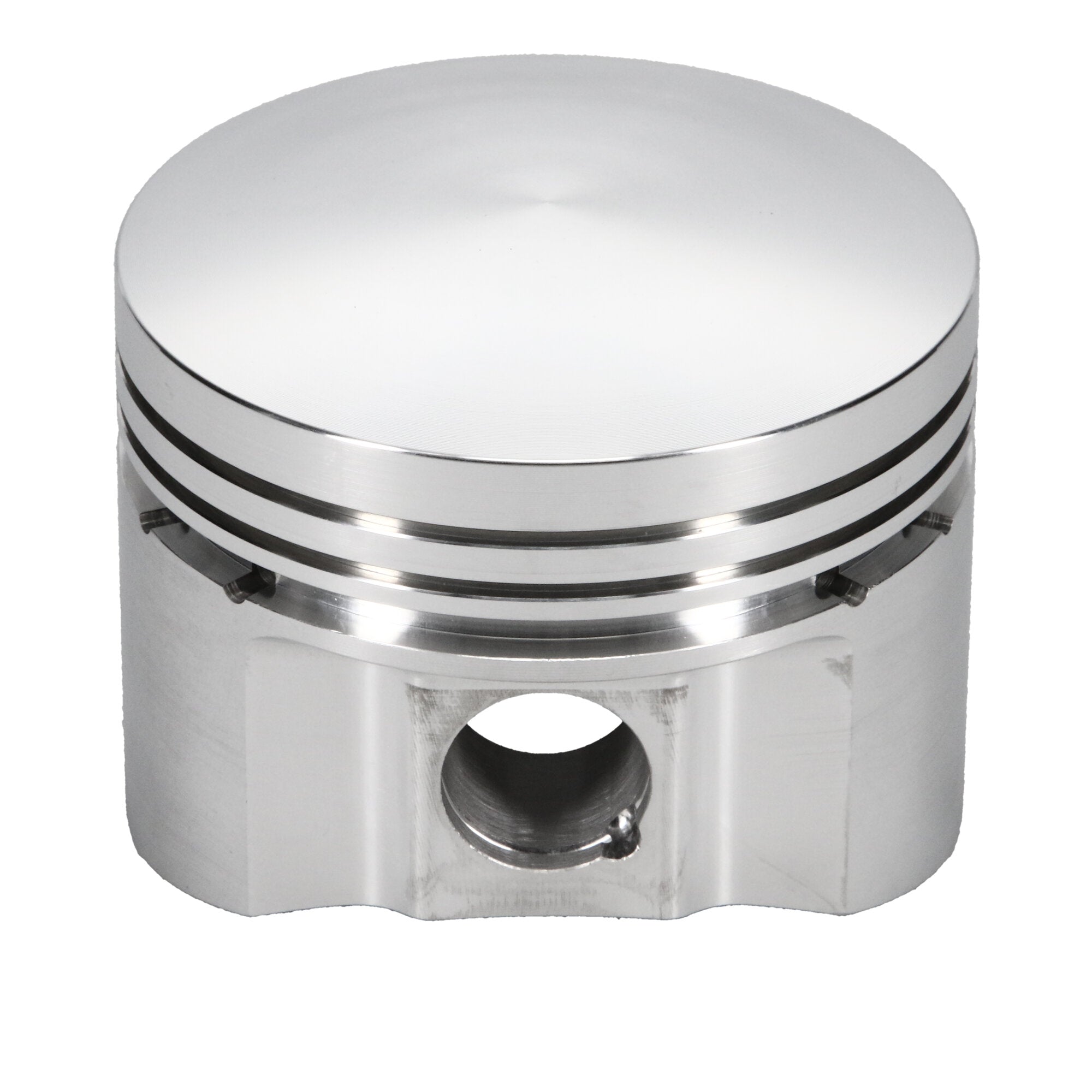

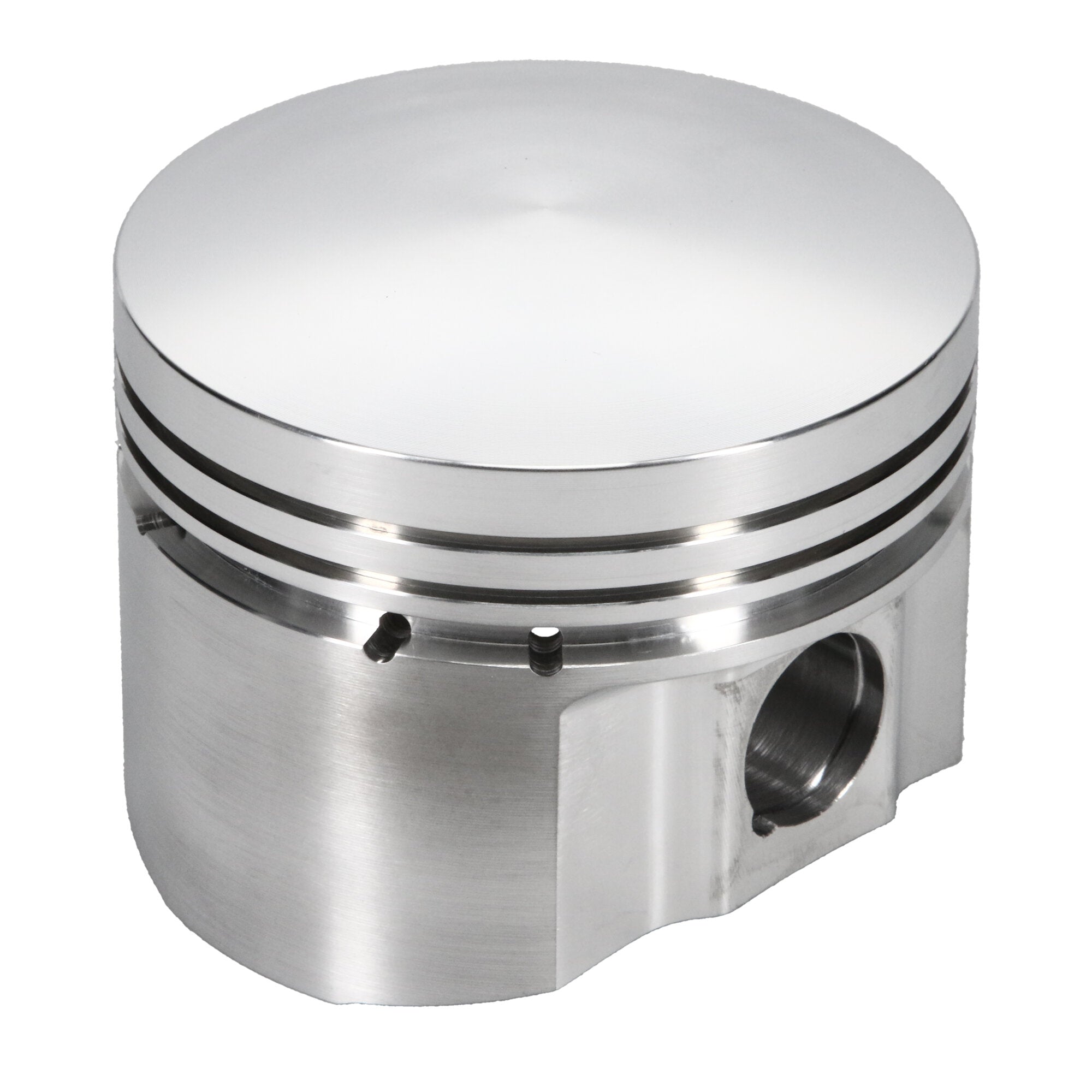

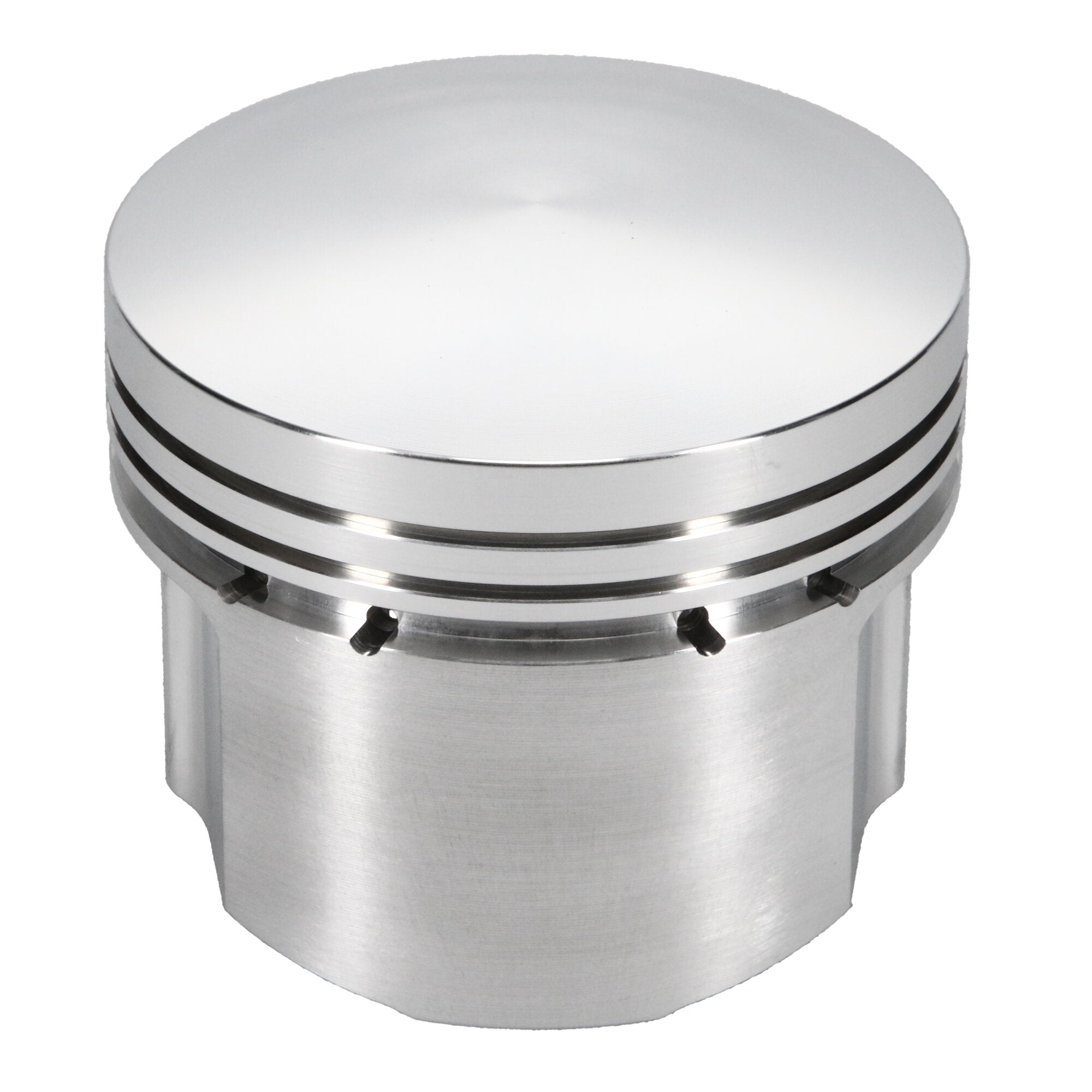

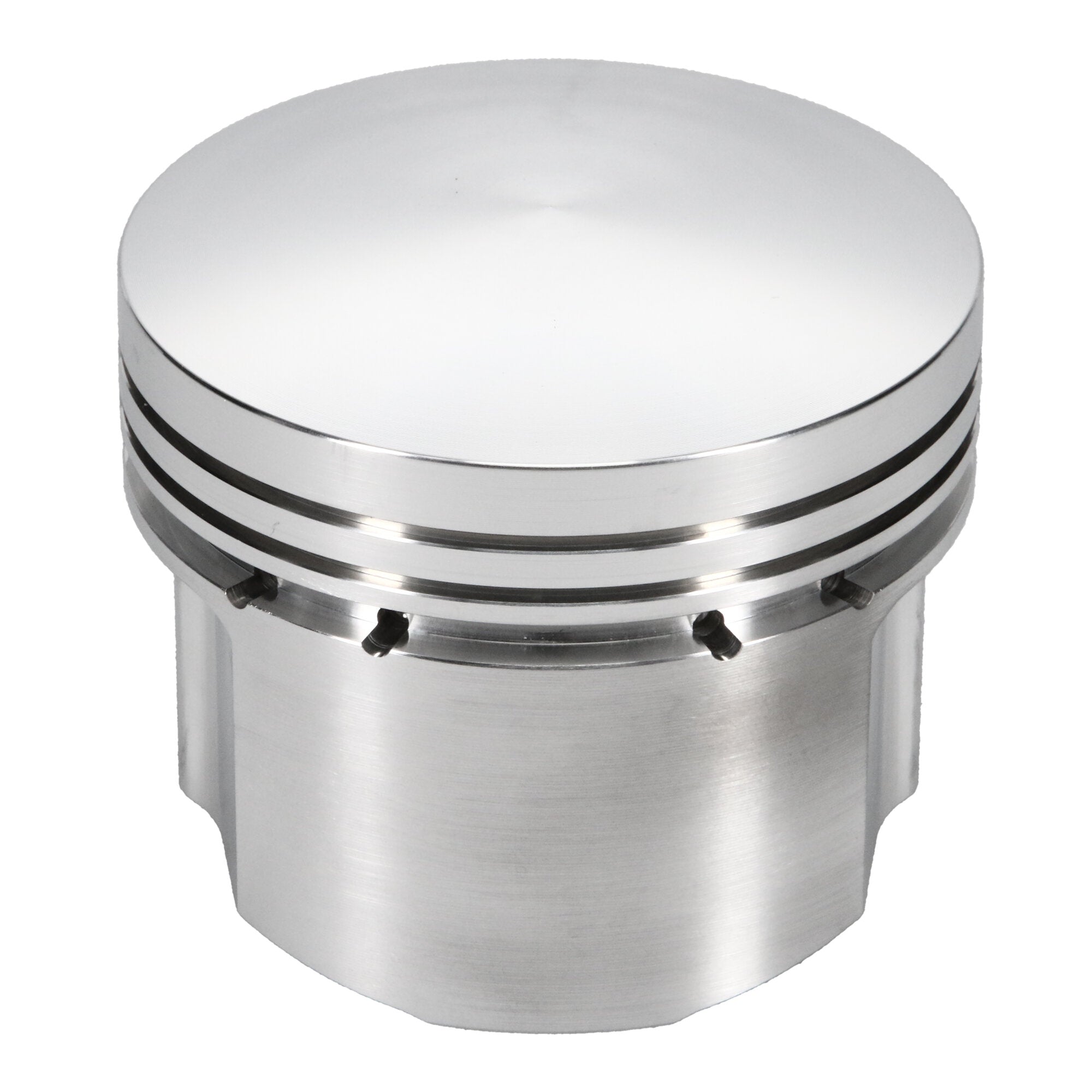

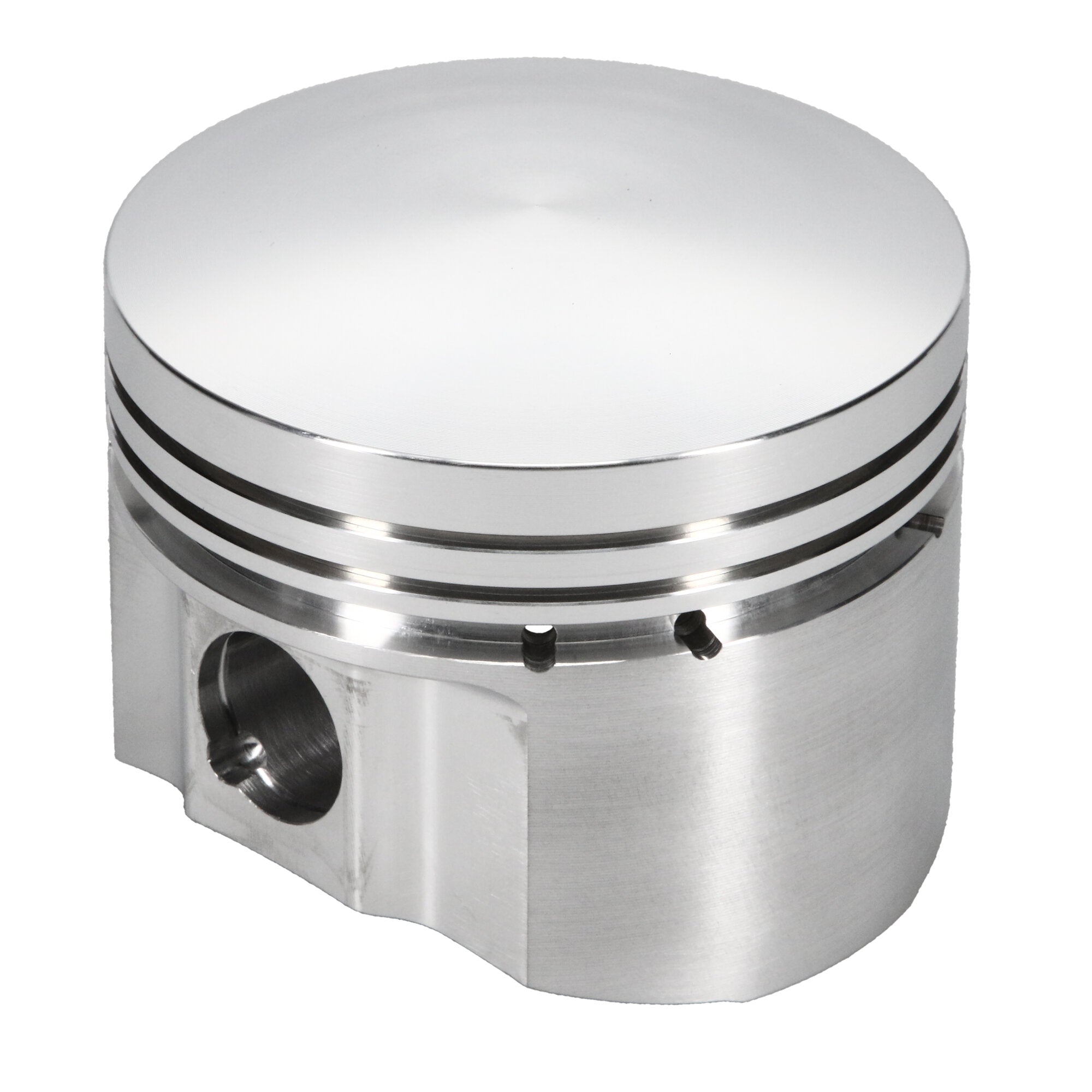

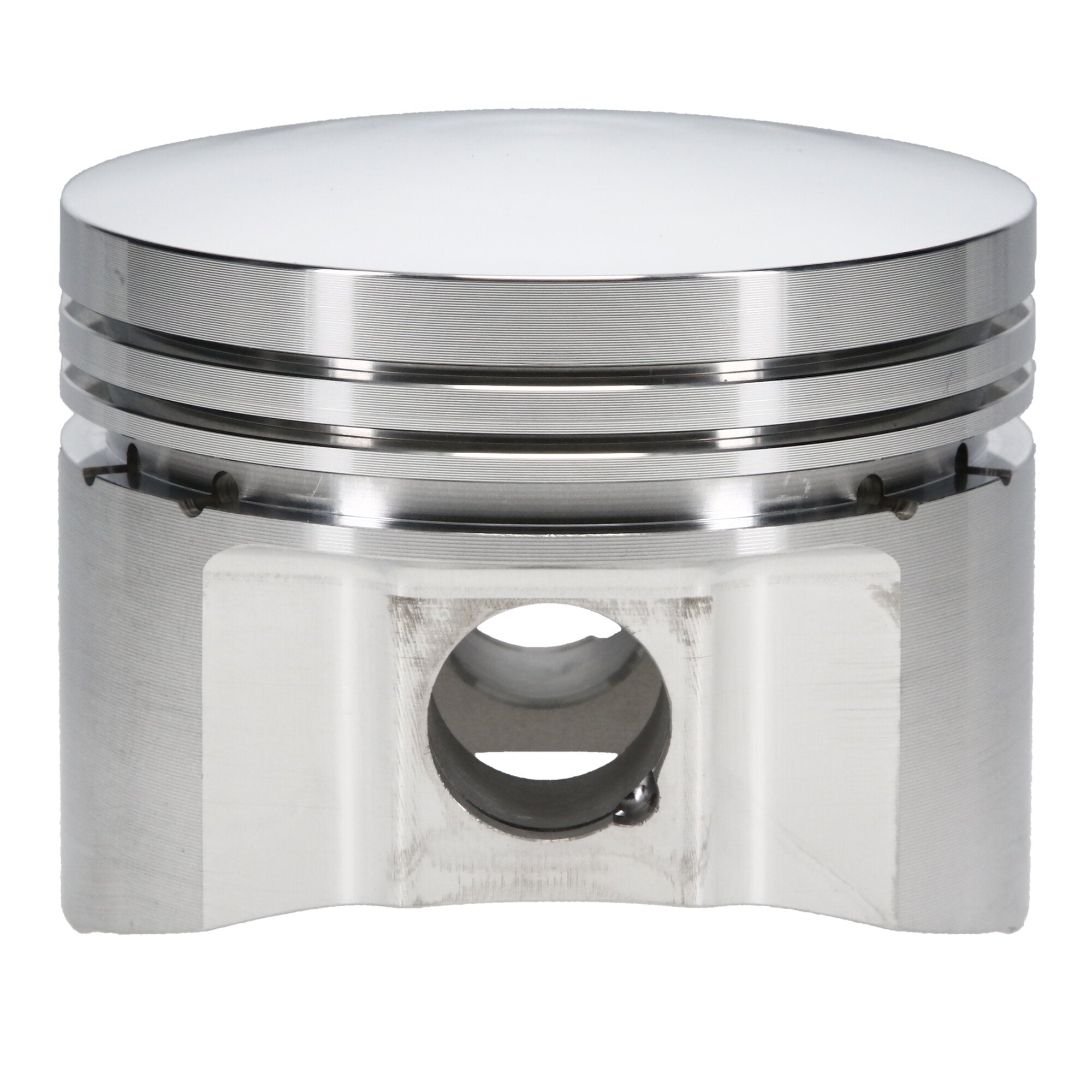

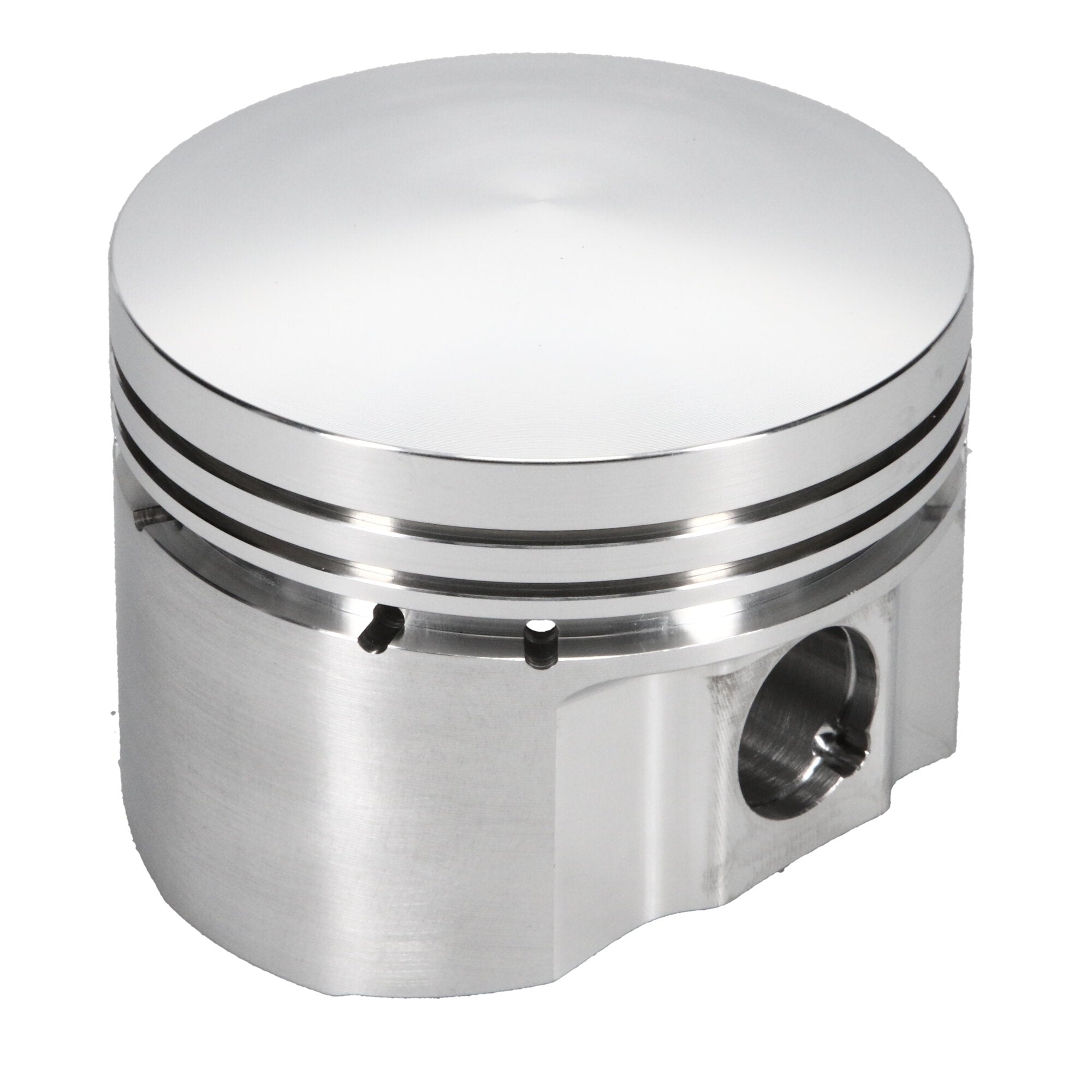

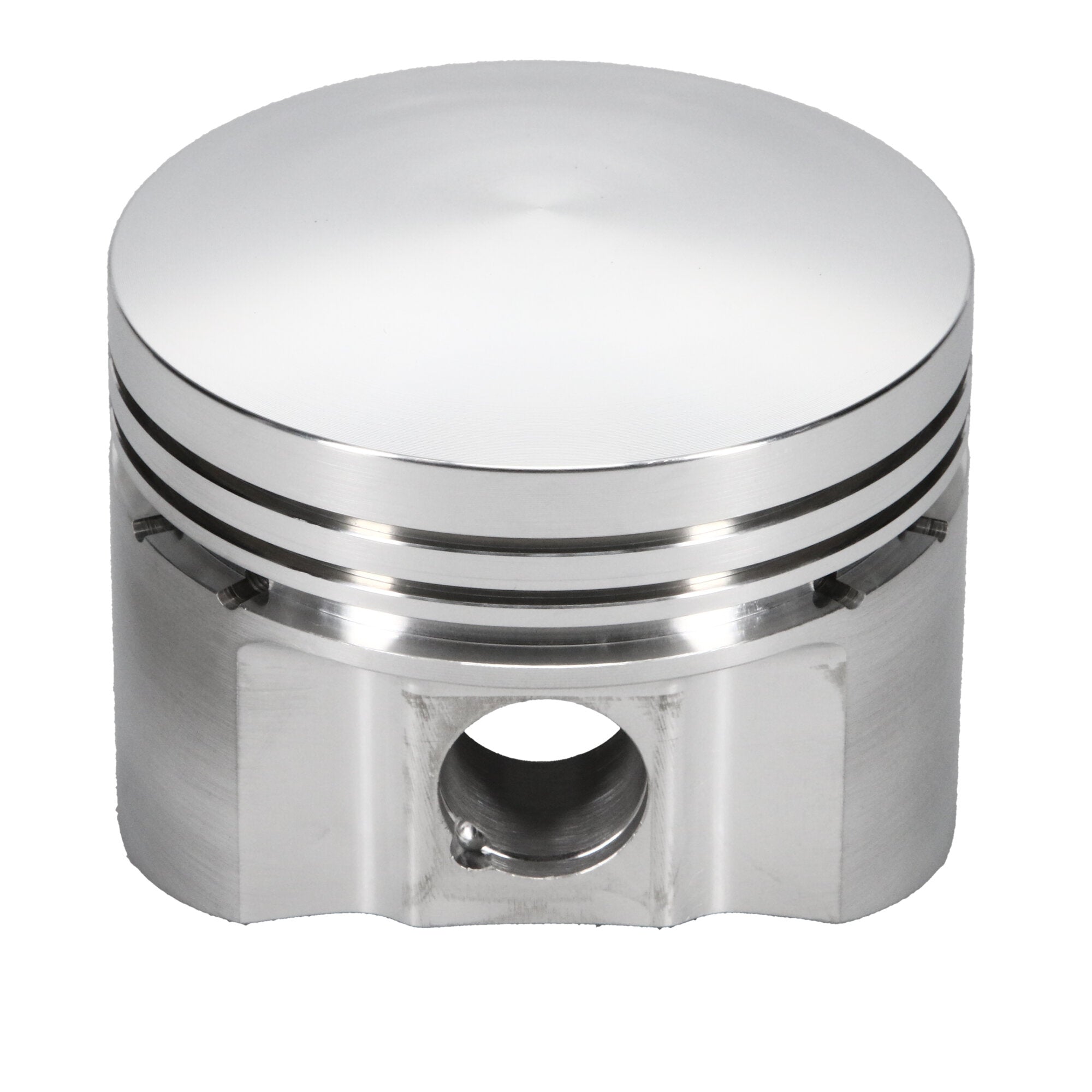

Piston Set, 4032, Dome, 3.342 Bore, 1.436 CD, 0.750 Pin, Set of 8. |
| Description_DEF |
Engine Piston Kit |
| Description_EXT |
JE, Ford, Flathead, 3.342 in. Bore, 1.436 CD, Dome, 8 Cyl. Piston Kit |
| Description_INV |
JE Pistons, Piston Kit |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Description_SHO |
Piston Kit |
| Description_TLE |
Ford Flathead V8, 3.342 Bore, Dome, Set of 8 |
| Prop 65 Yes/No |
Yes |
| Out of Stock Message |
Call for Availability |
| Second Compression Ring Thickness |
0.5950 |
| Add-On |
750-2500-14-51C |
| Add-On |
748-050-MW |
| Add-On |
J641F8-3346 |
| Engine |
FLATHEAD |
| Prop 65 (C, R or CR) |
CR |
| Ringset Included |
Yes |
| Cylinder Head |
FLATHEAD |
| Industry |
Automotive |
| Title - Web |
JE Pistons Ford Flathead Piston Kit - 3.342 in. Bore - 1.436 in. CH, 0.00 CC |
| Piston Pin Length |
2.500 |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Piston Pin Wall Thickness |
0.140 |
| Piston Pin Material |
5115 |
| Piston Volume |
0.00 |
| Engine Type |
ICE |
| Product Type |
Engine Piston Kit |
| Piston Material |
4032 |
| Piston Pin Outside Diameter |
0.750 |
| Piston Series |
JE Pistons |
| Piston Head Type |

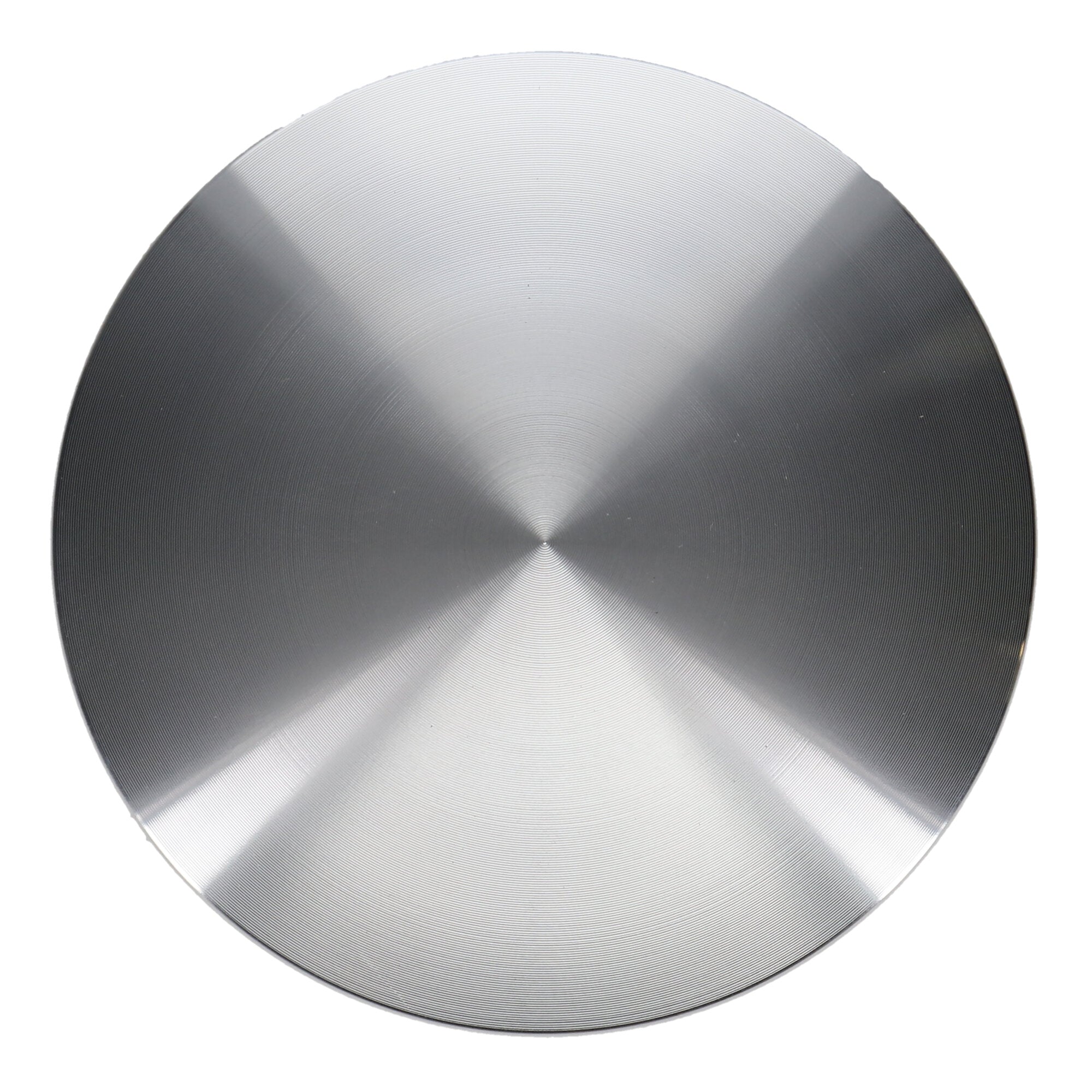

Dome |
| Forging Type |
Round |
| Wrist Pin Length |
2.500 |
| Ring Set Included |
Yes |
| Wrist Pin Wall Thickness |
0.140 |
| Make - Web |
Ford |
| Bore Diameter |
3.342 |
| Oil Ring Thickness |
0.159 |
| Product Market |
Domestic |
| Compression Height |
1.436 |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Piston Quantity |
8 |
| Top Compression Ring Thickness |
0.5950 |
| Title |
JE Pistons - Ford, Flathead, 3.342 in. Bore, Piston Kit |
| Make |
FORD |
| Engine - Web |
Flathead |
| Wrist Pin Outer Diameter |
0.750 |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
