As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications:
| Description_ASM |
Ford Flathead V8 |
| Description_DEF |
Engine Piston Kit |
| Description_DES |

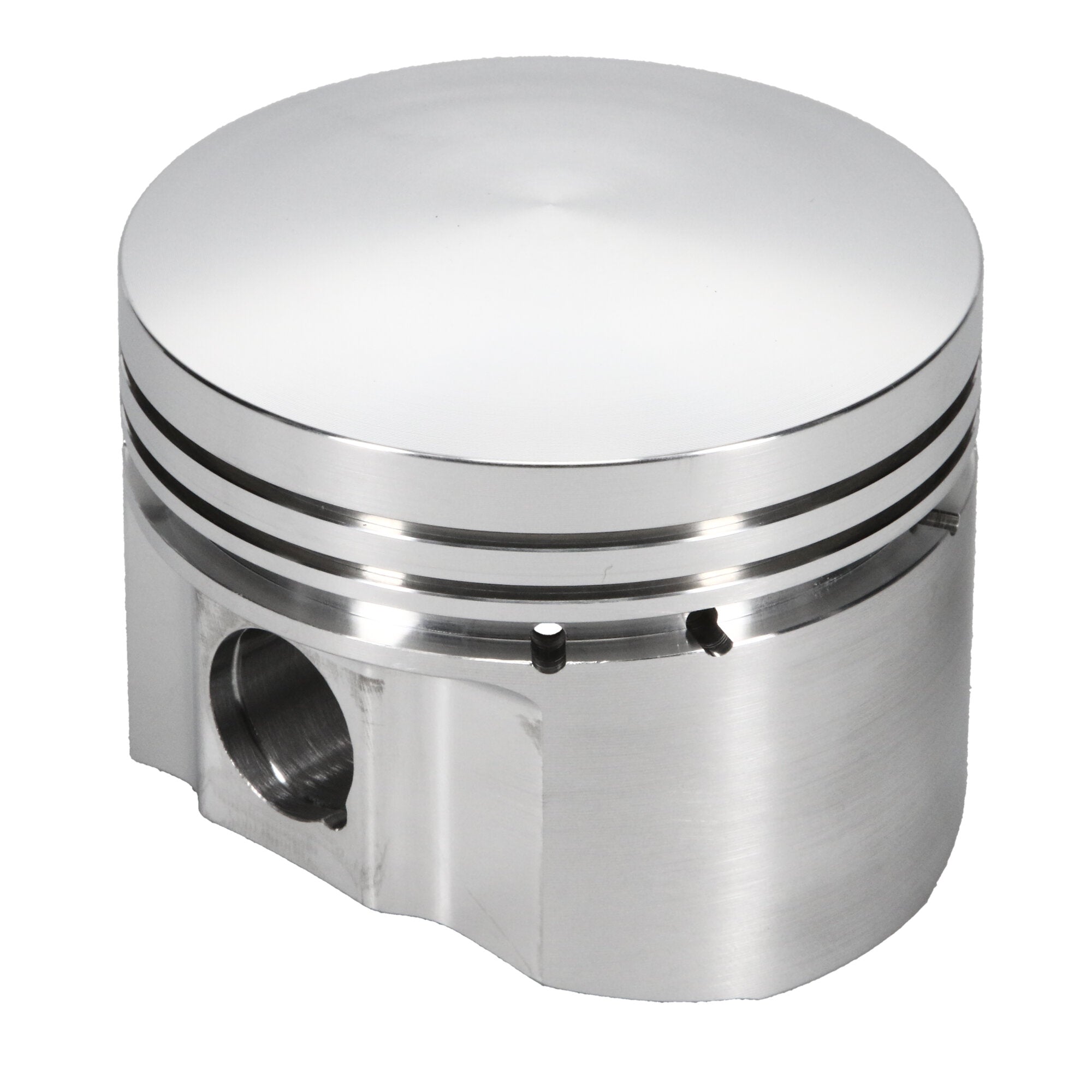

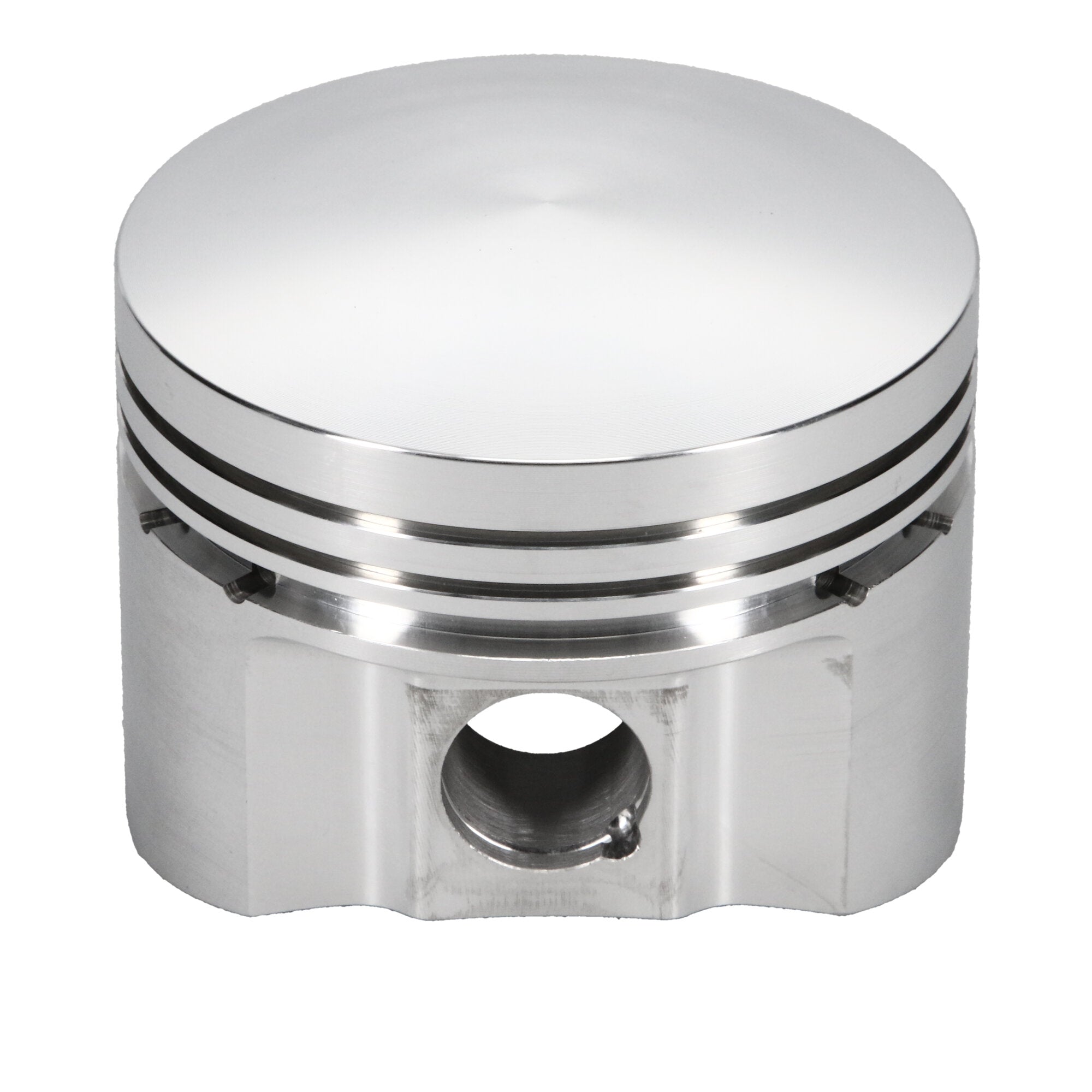

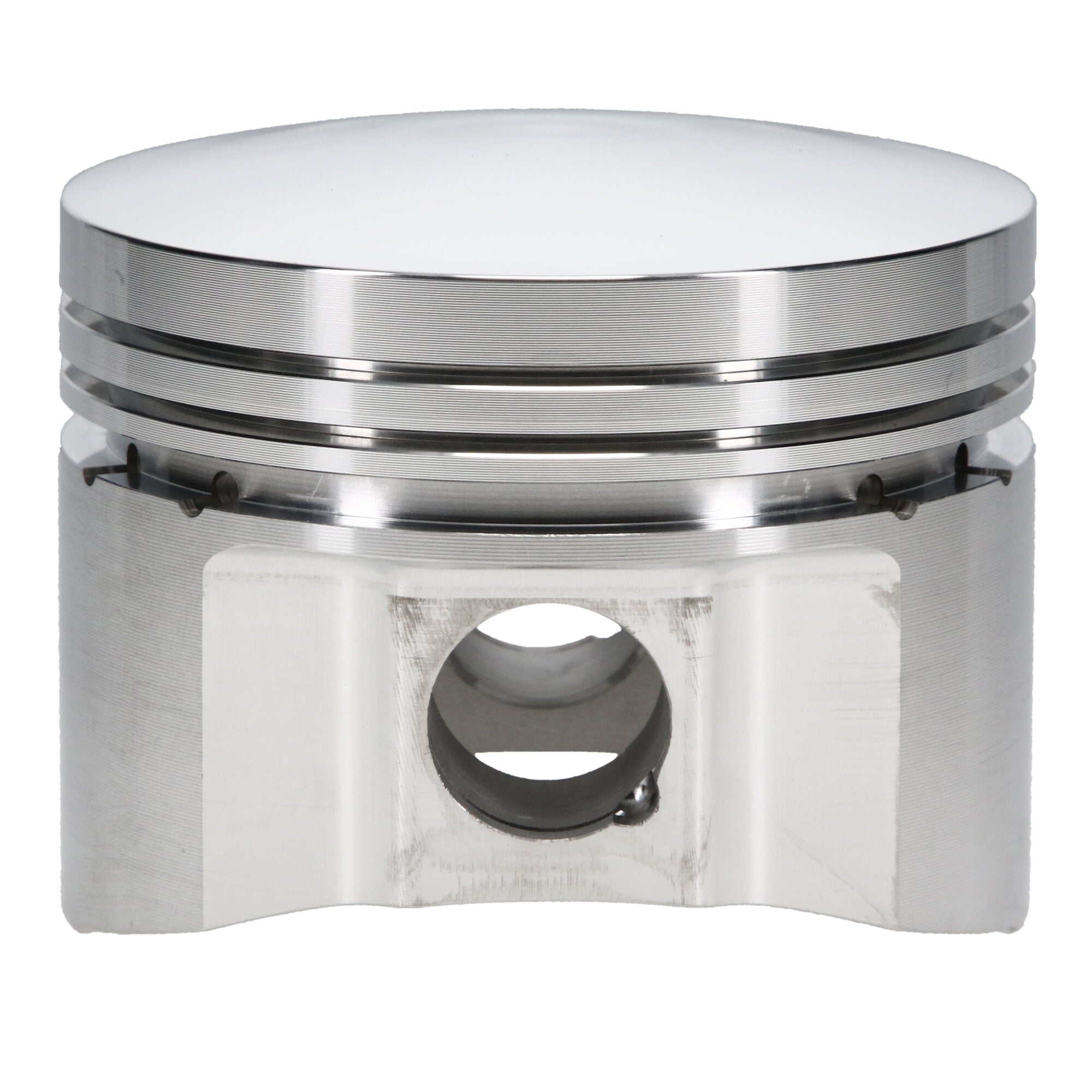

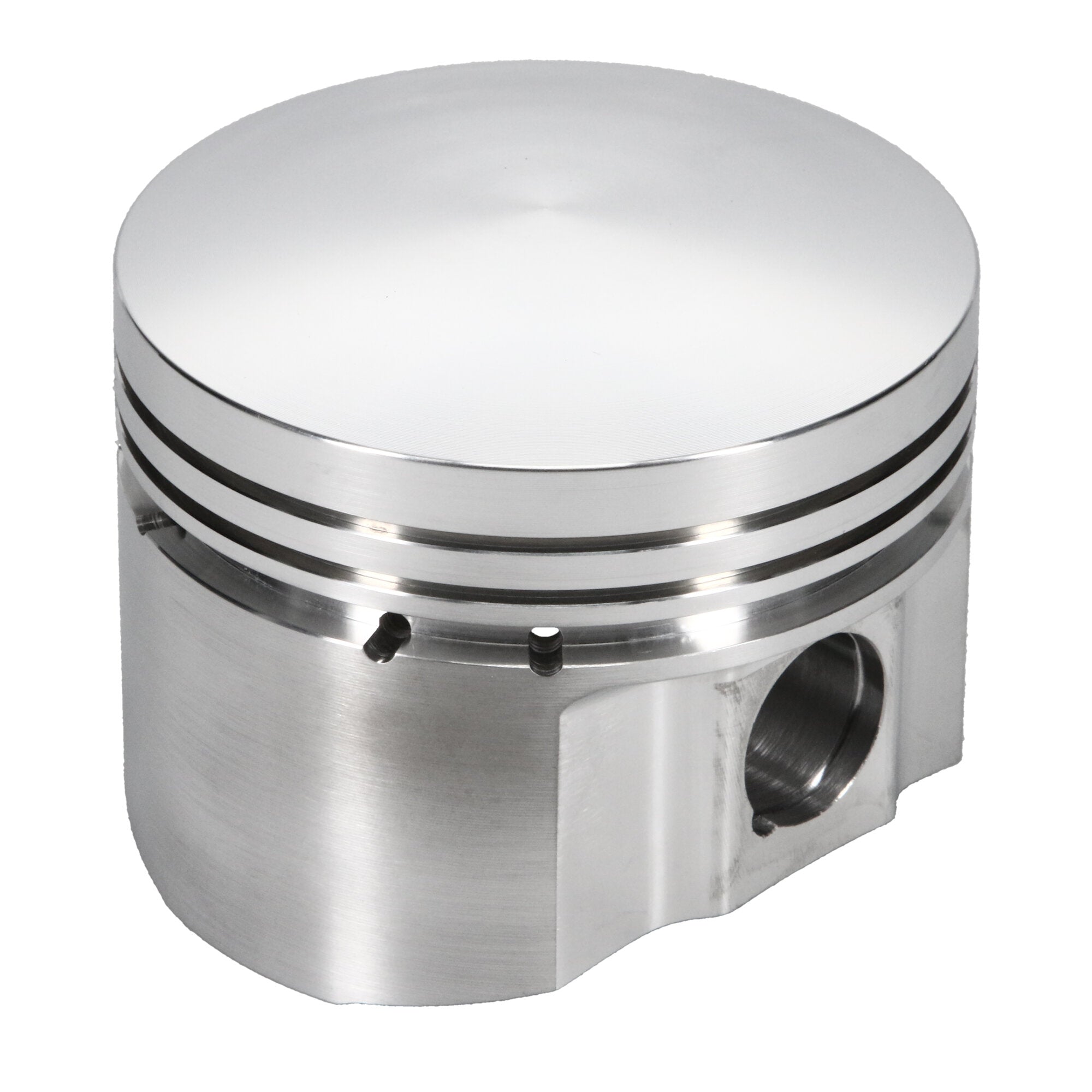

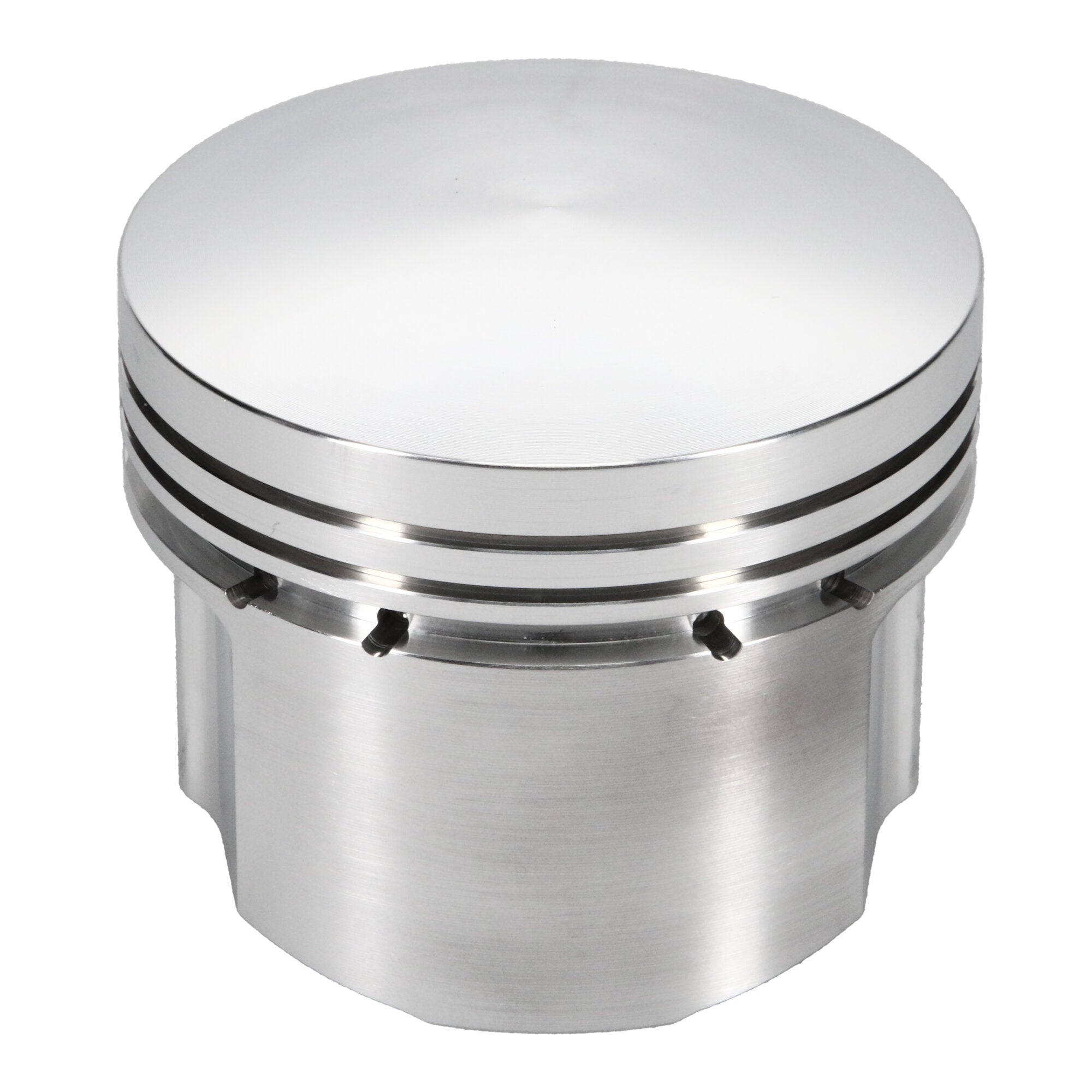

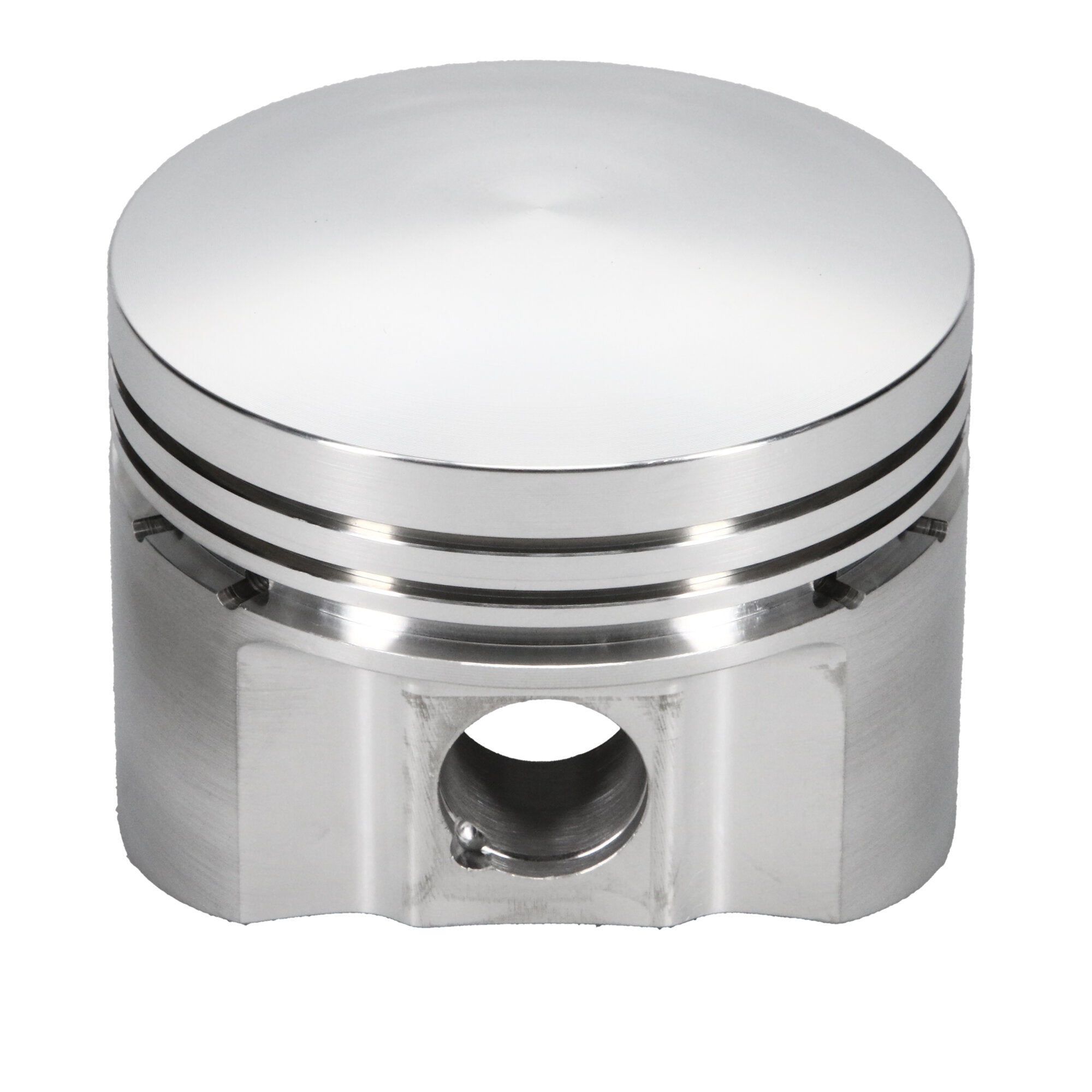

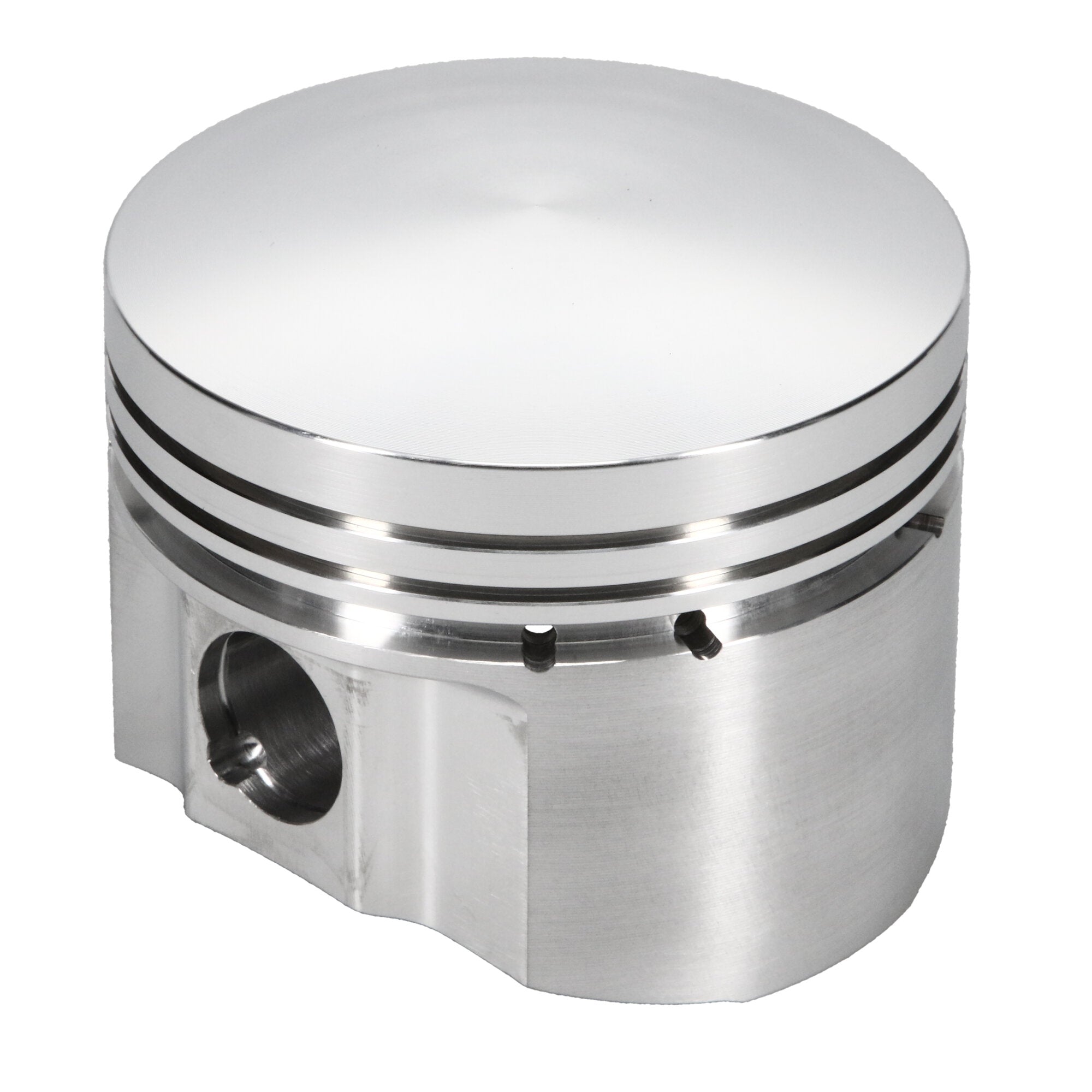

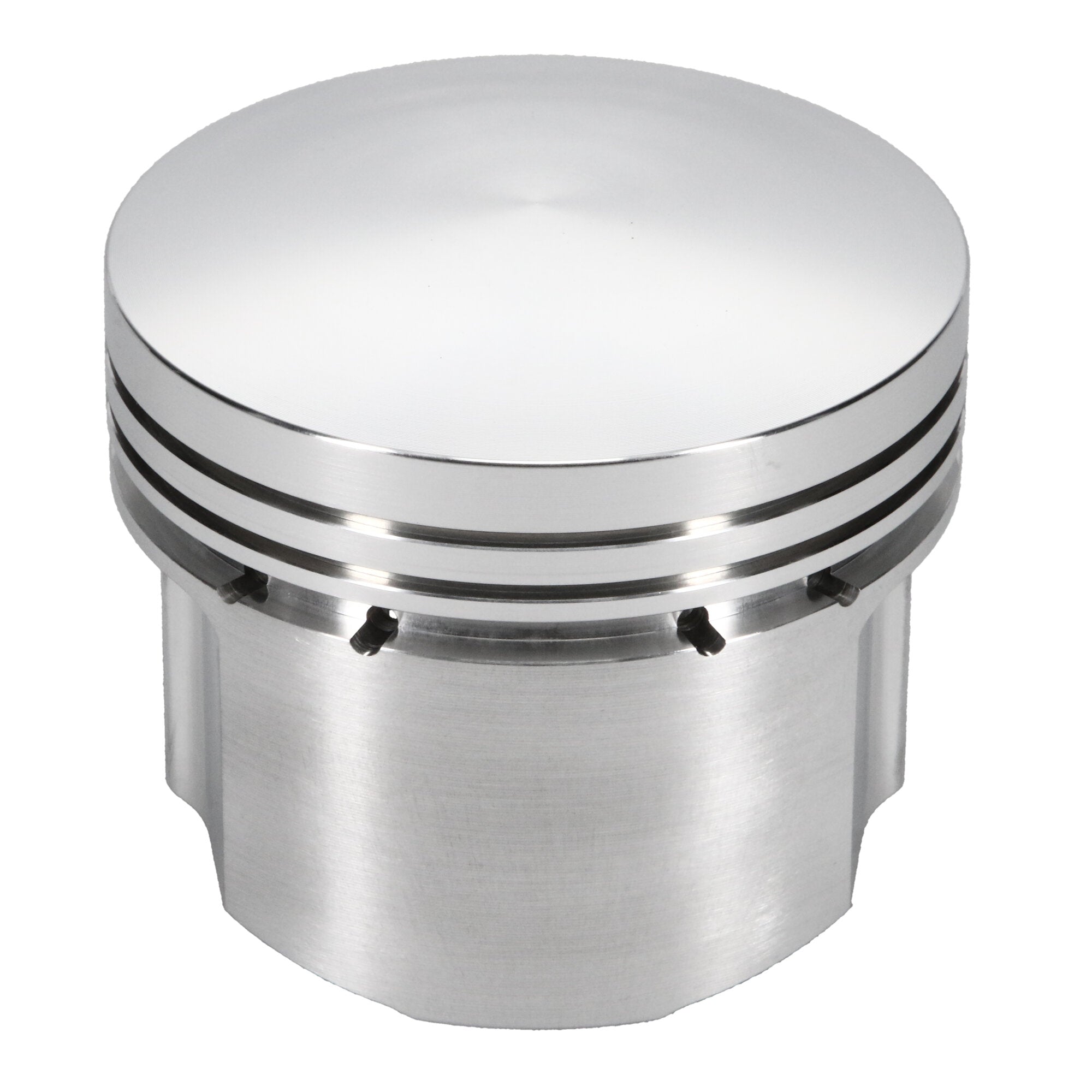

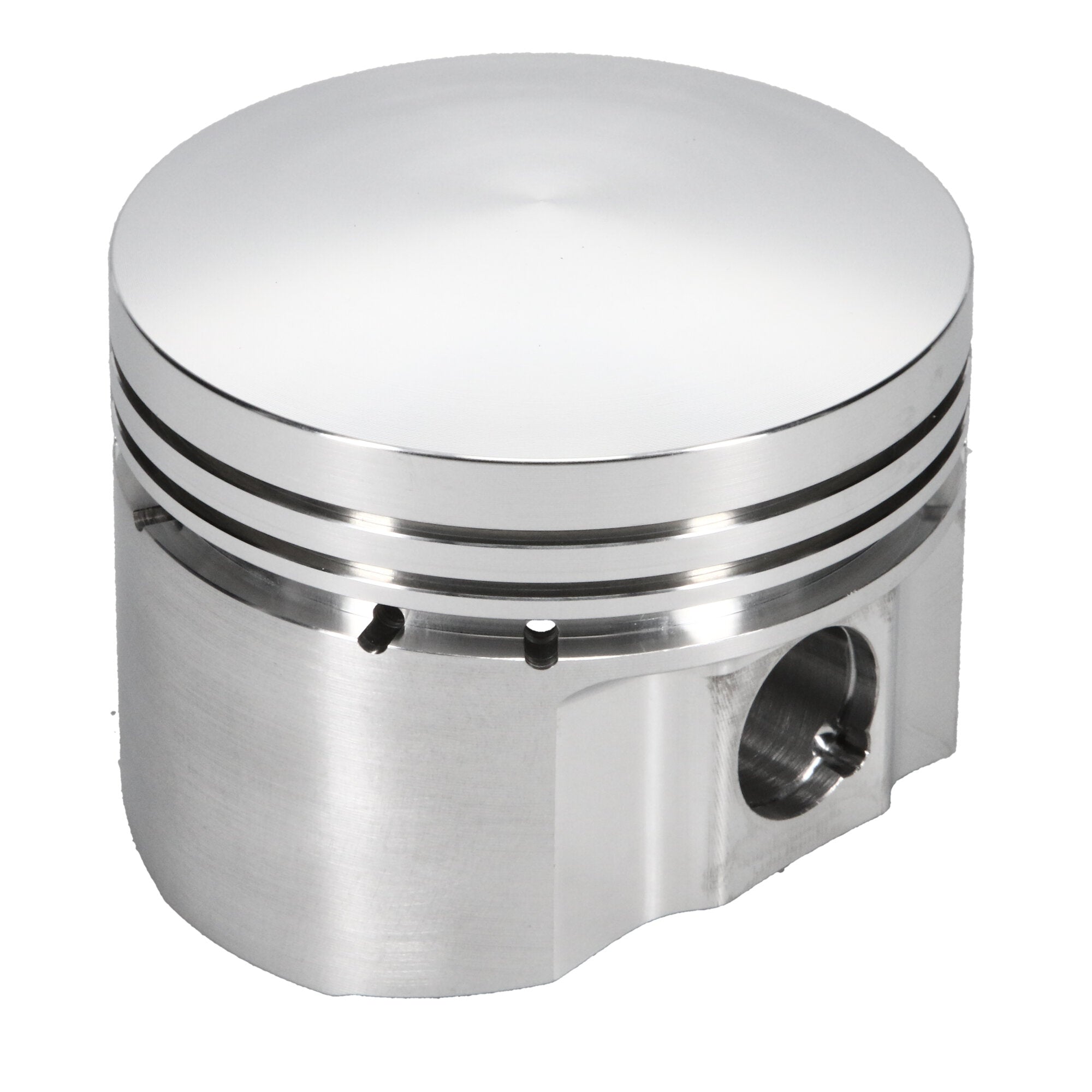

Piston Set, 4032, Dome, 3.248 Bore, 1.436 CD, 0.750 Pin, Set of 8. |
| Description_FAB |
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Made 100% in the USA
|
| Description_INV |
JE Pistons, Piston Kit |
| Description_EXT |
JE, Ford, Flathead, 3.248 in. Bore, 1.436 CD, Dome, 8 Cyl. Piston Kit |
| Description_SHO |
Piston Kit |
| Description_TLE |
Ford Flathead V8, 3.248 Bore, Dome, Set of 8 |
| Description_MKT |
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons. |
| Piston Material |
4032 |
| Piston Volume |
0.00 |
| Engine - Web |
Flathead |
| Oil Ring Thickness |
0.159 |
| Title |
JE Pistons - Ford, Flathead, 3.248 in. Bore, Piston Kit |
| Cylinder Head |
FLATHEAD |
| Product Market |
Domestic |
| Piston Pin Wall Thickness |
0.140 |
| Product Type |
Engine Piston Kit |
| Piston Pin Outside Diameter |
0.750 |
| Piston Pin Material |
5115 |
| Compression Height |
1.436 |
| Make |
FORD |
| Forging Type |
Round |
| Category Hierarchy |
Auto>JE Pistons>Piston Kits>Domestic |
| Ring Set Included |
Yes |
| Wrist Pin Wall Thickness |
0.140 |
| Wrist Pin Length |
2.500 |
| Piston Series |
JE Pistons |
| Second Compression Ring Thickness |
0.5950 |
| Top Compression Ring Thickness |
0.5950 |
| Engine |
FLATHEAD |
| Prop 65 (C, R or CR) |
CR |
| Out of Stock Message |
Call for Availability |
| Ringset Included |
Yes |
| Bore Diameter |
3.248 |
| Industry |
Automotive |
| Piston Quantity |
8 |
| Wrist Pin Outer Diameter |
0.750 |
| Engine Type |
ICE |

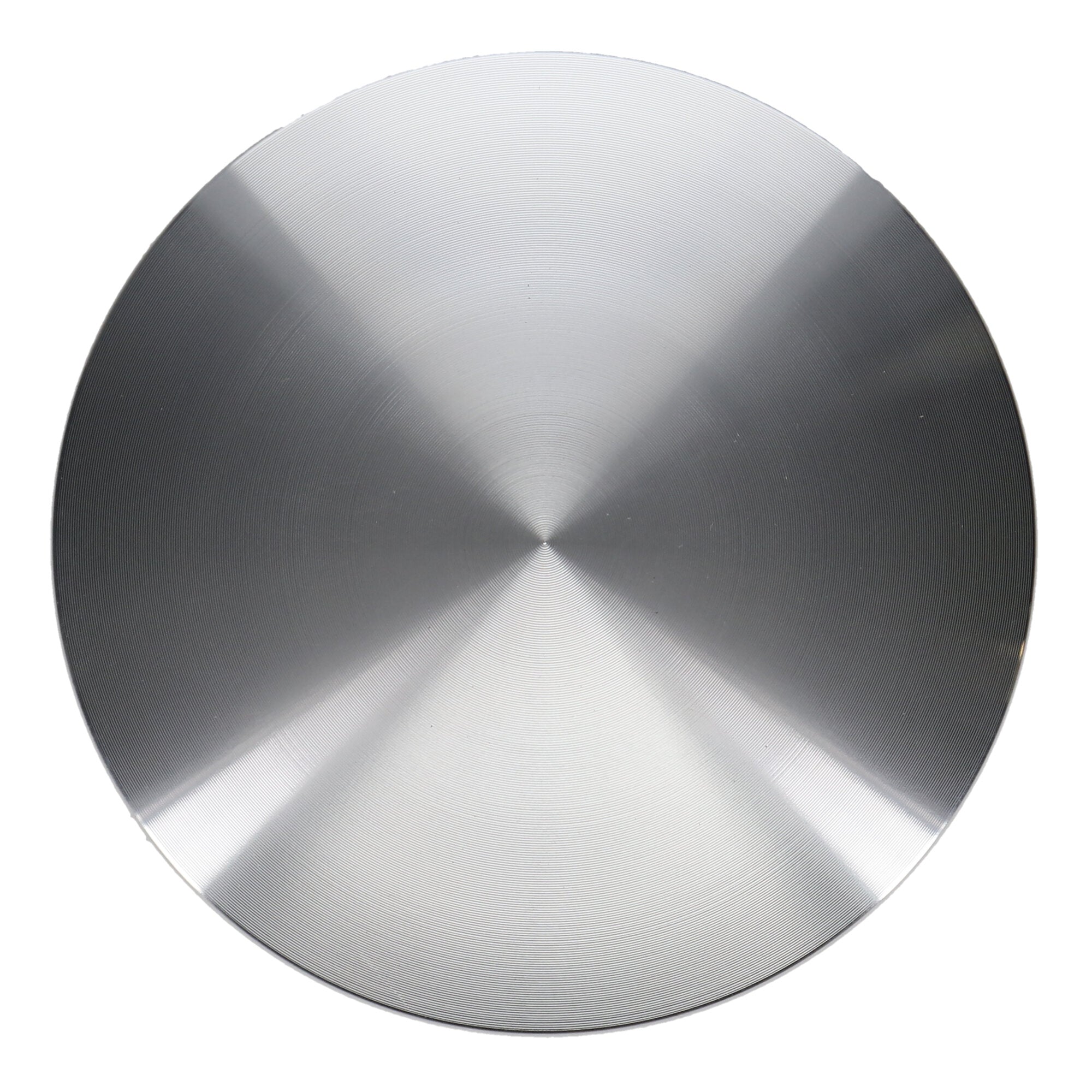

| Piston Head Type |
Dome |
| Title - Web |
JE Pistons Ford Flathead Piston Kit - 3.248 in. Bore - 1.436 in. CH, 0.00 CC |
| Add-On |
J641F8-3248 |
| Add-On |
748-050-MW |
| Add-On |
750-2500-14-51C |
| Prop 65 Yes/No |
Yes |
| Piston Pin Length |
2.500 |
| Make - Web |
Ford |
| Wrist Pin Material |
5115 Low Carbon Steel, Case Hardened |
| Prop 65 - Short Label |
Prop 65 Warning Label.JPG |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
26.0000 |
| Weight |
13.0000 |
